NSE UC-100 User manual

Model:UC-100
USB HD Endoscopic Camera System
User Manual (A/0)

Dear customer, thank you for purchasing USB HD Endoscopic Camera
System of North-Southern Electronics. This manual provides the information
about how to use, install and maintain, etc.
Please read this manual carefully and understand it before using the device.
This manual should be placed on where is easy for you to get for reading at
any time.
When you don't read the manual, please put it to a place where it will not
be lost or damaged.
For safety and correct operation, the following warning marks are identified.
Caution: Ignorance of this caution will lead to a slight damage.
Warning: Ignorance of this warning will cause a heavy damage.
This manual was created on December 01, 2016.
North-Southern Electronics Limited reserves the right to interpret the usage
of this manual.
Reading First

When first time open the package, please check if the described spare parts
are complete and in good condition. If any spare part is incomplete or
damaged, please contact with your supplier.
Please keep the packing materials well for future use.
Check the spare parts provided
Caution:
Main Unit
Qualified Certificate
User Manual
Optical Adapter
LED light source
1pc
1pc
1pc
1pc
1pc
Packing List

Contents
1 Overview
1.1 Product Name
1.2 Model
1.3 Product Component
1.4 Scope
1.5 Contraindication
1.6 Environment Condition
1.7 Safety Category
1.8 Technical Parameters
1.9 Requirements for Computer
1.10 Label and Symbol8
2 Product Structure
2.1 Product Diagram
2.2 Button Functions
3 Installation and Operation Instructions
3.1 Installation
3.2 Operation Instructions
4 Product Cleaning and Maintenance
4.1 Cleaning Methods
5 Troubleshooting
5.1 Fail to Install Driver
5.2 Video Interruption
1
1
1
1
1
1
1
2
2
2
3
5
5
6
7
7
8
9
9
10
10
11

11
11
12
12
12
13
5.3 Video is not smooth
5.4 Image is fuzzy
5.5 There is dark spot in image
6 EMC Information
7 After-Sales Service
Appendix A EMC Information

1 Overview
1.1 Product Name
USB HD Endoscopic Camera System.
1.2 Model
UC-100.
1.3 Product Component
UC-100 is made up of camera unit and USB cable, and the camera unit
contains C type lens mount, image sensor, micro controller and light source
interface.
1.4 Scope
UC-100 is used with medical optical endoscope for real-time observation and
recording in endoscopy and minimally invasive surgery.
The real-time video can be displayed on monitor by a computer with USB3.0
port.
1.5 Contraindication
No contraindication.
1.6 Environment Condition
Operation:
Temperature: 5℃~ 40℃;
Humidity: 20% ~ 80%;
Pressure: 86kPa ~ 106kPa;
1

Storage and transportation:
Temperature: -10℃~ 55℃;
Humidity: 10% ~ 95%;
Pressure:86kPa ~ 106kPa;
Long-term storage should be conducted indoor with non-corrosive gas, and
well ventilated;
Transport with general vehicle. Avoid severe impact, strenuous vibration
and snow rain splashed.
1.7 Safety Category
Applied Part：Type BF
Operation Mode：Continuous operation.
Voltage：DC 5V/0.7A supplied by computer USB3.0 port.
1.8 Technical Parameters
Image sensor type: CMOS.
Video resolution: 1920*1080, 30fps.
Interface type: USB3.0.
Optical adapter: Support all kind of C type optical adapter.
Product dimension: 45mm*45mm*80mm.
Product weight: 200±10g.
1.9 Requirements for Computer
Minimum requirements for computer:
CPU: Dual core 2.6GHz.
Operation System: Microsoft Windows10，Microsoft Windows8，Microsoft
Windows7(64-bits or 32-bits).
Memory: 4G RAM.
Screen: 1920*1080.
USB port: USB3.0.
Recommended configuration for computer:
CPU:Quad Intel Core i5 3.0GHz.
2

Operation System:Microsoft Windows10，Microsoft Windows8，Microsoft
Windows7(64-bits or 32-bits).
Memory:8G RAM.
Screen:1920*1080 IPS screen.
USB port:USB3.0.
1.10 Label and Symbol
3
Caution! Refer to attached file.
Type BF
Recyclable.
Keep away from fire.
CE mark
Follow instructions for use.
Name and address of the manufacture.
Name and address of European Representative.
Product LOT Number.
Product Serial Number.
ExplanationSymbol
SN
LOT
EC REP
IP58 Dust-protected, protected against the effects of continuous immersion
in water (Maximum immersion depth and time: 1m, 1hour)

Caution:
i. The device requires no calibration.
ii. The device contains no user repairable and serviceable parts.
iii. No modification of this equipment is allowed.
iv. Disposal
Do not dispose of electrical appliances as unsorted municipal waste, use
separate collection facilities. Contact your local government for information
regarding the collection systems available. If electrical appliances are
disposed of in landfills or dumps, hazardous substances can leak into the
groundwater and get into the food chain, damaging your health and
well-being.
v. The device is not suitable for use in the presence of flammable anesthetic
mixtures with air or with oxygen or nitrous oxide.
vi. Manufacturer will provide circuit diagrams, component part lists,
descriptions, calibration instructions to assist to SERVICE PERSONNEL in
parts repair.
vii. Additional equipment connected to medical electrical equipment must
comply with the respective IEC or ISO standards (e.g. IEC 60950 for data
processing equipment). Furthermore all configurations shall comply with the
requirements for medical electrical systems (See IEC 60601-1 or clause 16
of the 3Ed. of IEC 60601-1, respectively). Anybody connecting additional
equipment to medical electrical equipment configures a medical system
complies with the requirements for medical electrical systems. Attention is
drawn to the fact that local laws take priority over the above mentioned
requirements. If in doubt, consult your local representative or the technical
service department.
4

2 Product Structure
2.1 Product Diagram
5
Camera Unit
Lighting Interface
USB Cable
Fig. 1 Product Diagram

2.2 Button Functions
There are three buttons in the camera unit. Button and button are
used for reserved functions. Button is used for LED light brightness
adjustment and shut, LED light brightness can be adjusted from level 1 to
level 5.
6
Fig.2 Buttons
Customizable Button1
Customizable Button2
LED light brightness
adjust button

3 Installation and Operation Instructions
3.1 Installation
The product needs to be installed before using. Please follow the steps as
below:
a) Take out the lens cap from the camera unit, then connect the C type
optical adapter to the lens mount (C-Mount) located in the camera unit,
clockwise rotate it to tighten it up.
b) Open the lock of the optical adapter, connect the endoscope, and release
the lock to fix it.
c) Connect the self-locking connector of LED light to the lighting interface in
camera unit, and connect the other end of the LED light to endoscope,
clockwise rotate it to tighten it up.
7
Fig.3 Product Installation
Endoscope
Optical adapter
USB Cable
LED Light
Camera Unit

Caution: There is a red dot in the self-locking connector of LED light,
please make sure it is aligned to the red dot in the lighting interface in
camera unit when connecting LED light.
Caution: The LED light is the application component connected to the
endoscope.
3.2 Operation Instructions
After the installation of endoscope, please connect the UC-100 to the USB3.0
port of computer.
After connecting to computer, the operation system will install the driver
automatically, if the driver is installed correctly, you will see our product in
device manager->imaging devices.
8
Fig.4 View Device

Open the specific software to real-time view and record the image under
endoscope. After opening the specific software, you can use the LED light
brightness adjust button to adjust output brightness.
Before using, you can target endoscope to white object like white paper and
long press button to auto-adjust white balance parameters.
After using, please close the PC software, then unplug the UC-100, and keep
UC-100 in the packing box.
Caution: UC-100 can only be connected to the USB3.0 port for normally
use.
Caution: Please refer to the software user manual, and you can view the
software version by the ABOUT menu.
Warning: Please do not directly sight the LED light beam in short distance.
Warning: Please do not disassemble the product and spare parts like LED
light etc. Any malfunction or failure, please stop using it and contact with your
distributor or directly to the manufacturer.
4 Product Cleaning and Maintenance
4.1 Cleaning Methods
a) Suggested to use the sterilized cotton immersed in 70% aldehyde or
isopropyl made detergent or 75% made medical alcohol to wipe the product
surface, and please to wipe the glass gently.
b) The USB interface should be mounted by cap when cleaning.
c) Using the distilled water to wash the product, and using the dry soft fabric
to dry the product surface.
Warning: Do not touch the lens, or use the hard objects to scrub the lens.
Caution: Please clean UC-100 and keep it in packing box if long-time no
use.
Caution: Please keep UC-100 dry after cleaning.
9

Warning: Please make sure UC-100 used with sterile cover, while using
UC-100 in minimally invasive surgery.
5 Troubleshooting

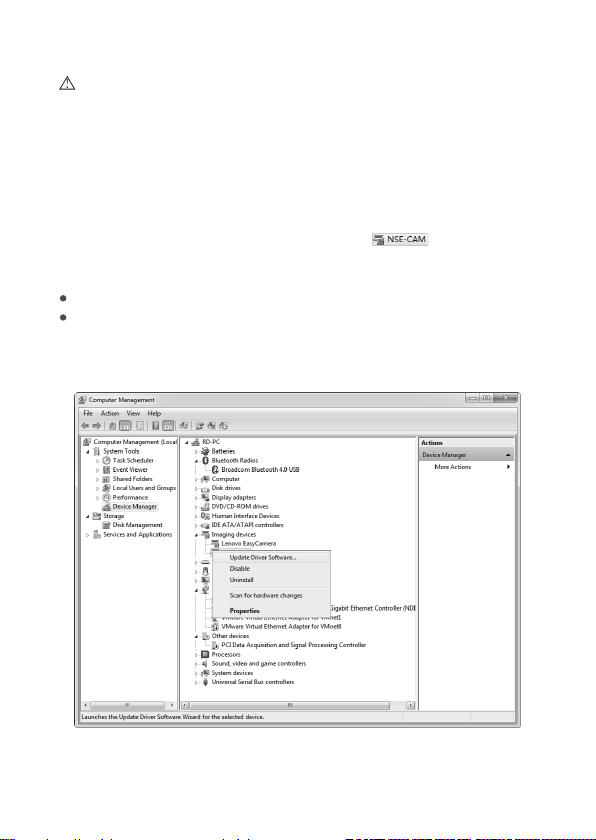

5.1 Fail to Install Driver
After you connect the UC-100 to the computer correctly, the software can’t
open the camera device, or there is a yellow mark in the device
icon in computer device management. Please refer to the following steps:
Please make sure connect UC-100 to the USB3.0 port.
Please use the following operation to update system drive:
10

Please try to reconnect UC-100.
5.2 Video Interruption
The connection between UC-100 and computer may loose, causing the video
interruption, please reconnect UC-100 to computer.
5.3 Video is not smooth
Please make sure the using computer configuration is above the minimum
requirements.
5.4 Image is fuzzy
Please adjust the focus of the optical adapter to get a clear image.
11
Fig.5 Update Driver

5.5 There is dark spot in image
Please check the endoscope, optical adapter and the camera surface are
clean, if they are dirty, please use the soft fabric to clean gently.
If the above operation can’t solve your problem, please contact the
after-sales service.
6 EMC Information
Caution: UC-100 is complying with IEC 60601-1-2:2014 standard.
Caution: Users should install and operate according to EMC information
provided in the accompanying documents.
Caution: Portable and mobile RF communications equipment may affect
UC-100 performance, please avoid the use of strong electromagnetic
interference, such as near mobile phones, microwave ovens.
Caution: Guidelines and manufacturer's statement detailed in the annex.
Warning: The device or system should not be close to or stacked with
other equipment, or if you must be close to stacked to use, should observe to
verify normal operation can be configured.
Warning: Class A equipment is intended for use in industrial environments,
for UC-100’s conductive disturbance and radiation interference, potential
dangers may appear in other environments to satisfy electromagnetic
compatibility.
7 After-Sales Service
UC-100 is warranted to be maintained by us, we give one year guaranty time.
During the guaranty period we will provide free repairing service and
replaced spare part.
The sevice life of the product is 5 years.
12

Warranties are void and do not apply if:
1. Damage caused by error operating or using without following instruction
manual (any application beyond the usable range).
2. Damage caused by repair or modified inspection that not operated by our
service engineer.
3. Damage caused by natural hazard such as fire, flood, earthquake or
thunder
If there is any malfunction please contact manufacturer or supplier for
services.
Caution: Warranties will not be applied if the device is disassembled.
13
Appendix A EMC Information
Guidance and manufacturer’s declaration – electromagnetic emissions
The UC-100 is intended for use in the electromagnetic environment specified
below.The customer or the user of the UC-100 should assure that it is used in such
an environment.
The UC-100 uses RF energy only for its
internal function. Therefore, its RF emissions
are very low and are not likely to cause any
interference in nearby electronic equipment.
The UC-100 must emit electromagnetic energy
in order to perform its intended function. Nearby
electronic equipment may be affected.
emission test
RF emissions
CISPR 11
RF emission
CISPR 11
Compliance
Group I
Class A
Harmonic
emissions
IEC 61000-3-2
N/A
Voltage
fluctuations
flicker emissions
IEC 61000-3-3
N/A
Electromagnetic environment – guidance

14
Guidance and manufacturer’s declaration – Electromagnetic immunity
UC-100 is intended for use in the electromagnetic environment specified below. The
customer or the user of UC -100 should assure that it is used in such an environment.
Electro-Static
discharge
（ESD）
IEC 61000-4-2
±8 kV Contact
discharge
±15 kV Air
discharge
±2kV to power
supply line
±1kV to
input/output line
± 1 kV line(s) to
line(s)
± 2 kV line(s) to
earth
±8 kV Contact
discharge
±15 kV Air
discharge
Floors should be wood,
concrete or ceramic
tile. If floors are
covered with synthetic
material, the relative
humidity should be at
least 30 %.
Mains power quality
should be that of a
typical commercial or
hospital environment.
Mains power quality
should be that of a
typical commercial or
hospital environment.
N/A
N/A
Electrical Fast
Transient
IEC
61000-4-4
Surge
IEC
61000-4-5
Immunity
test
IEC 60601 test
voltage
Compliance
level
Electromagnetic
environment – guidance

15
Voltage dips,
short
interruptions
and voltage
variations on
power supply
input lines
IEC
61000-4-11
<5 % UT
(>95 % dip in
UT)
for 0,5 cycle
40 % UT
(60 % dip in UT)
for 5 cycles
70 % UT
(30 % dip in UT)
for 25 cycles
<5 % UT
(>95 % dip in
UT)
for 5 s
50Hz,60Hz
3A/m
50Hz,60Hz
3A/m
N/A
Mains power quality
should be that of a
typical commercial or
hospital environment. If
the user of the UC-100
requires continued
operation during power
mains interruptions, it
is recommended that
the UC-100 be
powered from an
uninterruptible power
supply or a battery.
Power frequency
magnetic fields
should be at levels
characteristic of a
typical location in a
typical commercial or
hospital environment.
50Hz:30A/m
60Hz:30A/m
Power
frequency
(50/60 Hz)
magnetic field
IEC
61000-4-8
NOTE UTis the a.c. mains voltage prior to application of the test level.
