NuAire XS Series Instruction Manual

1
nuaire.co.uk 029 2085 8400 15. 09. 17. Leaflet Number 671052
The EMC Directive
2014/30/EU
The Low Voltage
Directive
2014/35/EU
XS Ceiling Fan Kits 50 / 60Hz
Supply / Extract Units
Installation and Maintenance
1.0 Safety Information
IMPORTANT: Installation or replacement of units or spare parts must be carried out by a qualified
or Nuaire approved service engineer/ electrician and in accordance with IEE or local national wiring
regulations.
2.0 Introduction
The Nuaire XS Ceiling Fan Kit is available in 6, 9 and 12 inch impeller
sizes suitable for supply or extract and can be the heart of a room’s
automatic ventilation system.
Ensure adequate air replacement for the fan and any fuel burning
appliance in the room.
2.1 Switching
Operated via a separately wired 3 amp fused spur (by others) or
operated via the optional XS-MFC remote controller allowing supply or
extract, variable speed and automatic or manual switching of several
fans if desired.
2.2 Sensors
Sensors are available as remote units or integral ‘plug in’ units. They
are able to control multiple fans, depending on sensor and fan types.
Integral sensors are quick and easy to install and are aesthetically
pleasing, whilst remote sensors give the benefit of location close to
the pollutant source. Remote sensors can be fitted with an optional
security strap to prevent unwanted tampering.
2.3 General
The removable interior grille provides easy access while the external
rotor motor makes for simple removal of the push-on impeller for
cleaning. Upward angled interior grille vanes shield workings from view.
The fan is IP24 splash proof approved with the motor rated at IP44.
Fan casing, impeller and shutter shall be manufactured from UV
stabilised ABS polymer. All models shall include an economy /high
efficiency setting facility and are dove grey in colour.
2.3.1 Coding For Ceiling Fan Kits
* H indicates 220V 60Hz 1ph
Ceiling Fan Kits are supplied as a complete package with all
installation parts included.
Fan assembly
Internal Grille
Mounting
Duct Adaptor
Brackets
Mounting
Screws
Figure 1. Main components of ceiling installation assembly.
Description Code (50 Hz) Code* (60 Hz)
6 inch Ceiling Fan Kit Complete XS6CL XS6CLH
9 inch Ceiling Fan Kit Complete XS9CL XS9CLH
12 inch Ceiling Fan Kit Complete XS12CL XS12CLH
3.0 Dimensions Figure 2.
350 mm*
230 mm*
250 mm*
200 mm*
200 mm*
200 mm*
269 mm
134 mm*
137 mm*
128mm
272mm
Front view
XS6CL (6 inch) XS9CL (9 inch) XS12CL (12 inch)
Rear view
269mm
Required ceiling/panel aperture
270 x 270mm sq.
Cable entry
337 mm
*To centre of
'duct'
171 mm*
175mm*
130mm
342mm
342mm
Required ceiling/panel aperture
340 x 340mm sq.
Cable entry
413mm
*To centre of
'duct'
206 mm*
214 mm*
169 mm
420mm
420mm
Required ceiling/panel aperture
430 x 430mm sq.
Cable entry
*To centre of
'duct'
*Duct Adaptor
Side view
Duct Adaptor Outlet dia.*
6 inch unit 200mm dia.
9 inch unit 250mm dia.
12 inch unit 350mm dia.

2
nuaire.co.uk 029 2085 8400 15. 09. 17. Leaflet Number 671052
Installation and Maintenance XS Ceiling Fan Kits 50/60Hz
4.0 Installation
4.1 Installation Of Ceiling Fan Kits
Lock the screw rods with the nuts provided. Fix the metal brackets to the cross battens.
12
3
5
4
6
78
Prepare the aperture to suit the fan size.
Offer the duct adaptor and the two metal brackets
into position.
Offer the fan up into the duct
adaptor and fix using the two screws.
Cut and fit timber supports (not supplied) for aperture
as shown.
below.
Screw the 2 mounting rods into the brackets from
Feed the supply cable through the duct adaptor.
Aperture
6 inch fan
270mm x 270mm
340mm x 340mm
9 inch fan
12 inch fan
430mm x 430mm
Mounting
with
Bracket
threaded
insert

3
nuaire.co.uk 029 2085 8400 15. 09. 17. Leaflet Number 671052
Installation and Maintenance XS Ceiling Fan Kits 50/60Hz
910
11
Remove the electrical connection panel (top left).
Fix the electrical connection before offering up the internal
grille. Note grille clips over top edge before being fixed.
Bring the cable through the fan plate approx 150mm.
See wiring page 4 for various wiring options.
IMPORTANT
(Shutter Operation XS fans)
There will be a short delay on start-up and shutdown of
approximately 40 seconds, this is normal.

4
nuaire.co.uk 029 2085 8400 15. 09. 17. Leaflet Number 671052
Installation and Maintenance XS Ceiling Fan Kits 50/60Hz
5.0 Electrical Installation
Electrical work should be undertaken by a qualified electrician in
accordance with the wiring regulations.
12
34
Clamp the cable and complete the connections.
Release the electrical panel from the fan plate. Remove the terminal cover.
Refit terminal cover before replacing the electrical panel.
5.1 Wiring
5.1.1 Fan Operated By On / Off Switch
5.1.2 Fan Operated By Integral Sensor
5.1.3 Basic Fan Operated By Remote Sensor
L5
L4
L3
L2
L1
N
or
L
N
Double pole
XS Fan unit
isolator
Fuse
max. 3 amp
Double pole
isolator
Fuse
max. 3 amp
L5
L4
L3
L2
L1
N
or
L
N
XS Fan unit with
integral sensor
SL
(Switched Live)
Double
pole
isolator
Fuse
max.
3 amp
Remote Sensor
L1 L2 N
XS Fan unit
or
L5
L4
L3
L2
L1
N
Connect link wire between L2 & L4 for extract OR
connect link wire between L2 & L3 for supply.
Connect link wire between L2 & L4 for extract OR
connect link wire between L2 & L3 for supply.
Connect link wire between L2 & L4 for extract OR
connect link wire between L2 & L3 for supply.
Connect switched live signal to L5 for integral timer module.
IMPORTANT
Isolation - Before commencing work, make sure that the unit is
electrically isolated from the mains supply.

5
nuaire.co.uk 029 2085 8400 15. 09. 17. Leaflet Number 671052
Installation and Maintenance XS Ceiling Fan Kits 50/60Hz

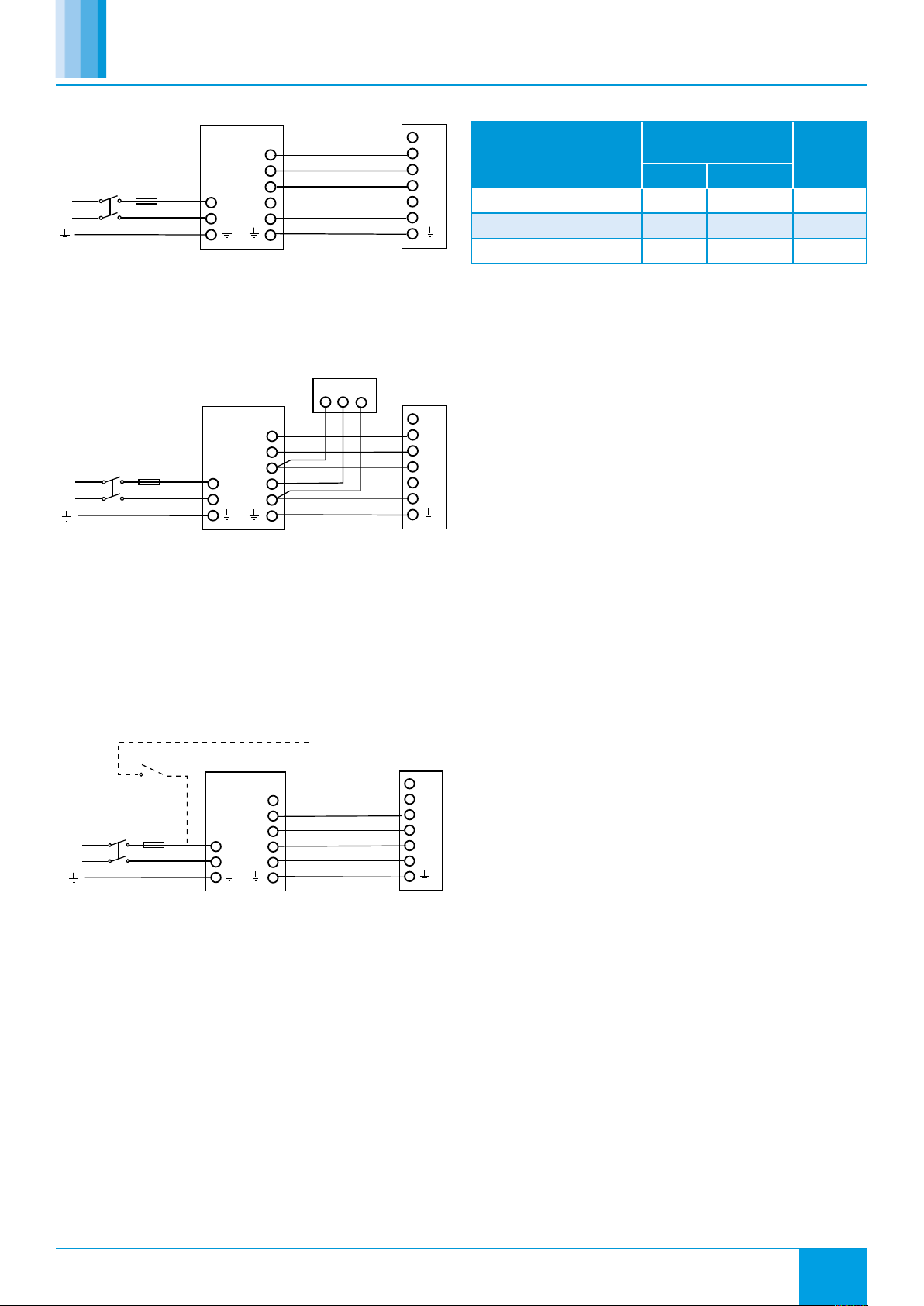

5.1.4 Supply / Extract Fan Operated via remote XS-MFC Control
5.1.5 Supply / Extract Fan Operated via remote XS-MFC Control
and Remote Sensor
5.1.6 Supply / Extract Fan Operated via remote XS-MFC Control
and an Integral Sensor
Remote switch may be set: On/Off, Forward/Reverse, Economy/Std.
(variable speed), Auto/Manual.
Remote switch may be set: On/Off, Forward/Reverse, Economy/Std.
(variable speed), Auto/Manual.
One or more Remote Sensors may be wired in parallel to one XS-MFC
Control.
Humidity Sensor: XS-HR
Air Quality Sensor: XS-AQR
Passive Infra-Red Sensor: XS-PIRR
Remote switch may be set: On/Off, Forward/Reverse, Economy/Std.
(variable speed), Auto/Manual.
Maximum one Integral Sensor per fan, 6/9/12 denotes unit size identity.
Humidity Sensor: XS-H6/9/12
Air Quality Sensor: XS-AQ6/9/12
Passive Infra Red Sensor: XS-PIR6/9/12
Temperature Sensor: XS-TH6/9/12
Run on Timer: XS-TA6/9/12.
A single sensor will switch all fans if more than one fan is being
operated by a single XS-MFC controller.
NOTE: Multi-fan options:
Up to 5 fans (size 6"/9") can be controlled by one XS-MFC.
Up to 2 fans (size 12") can be controlled by one XS-MFC.
Do not mix different fan sizes on the same controller.
XS-MFC controller
L5
L4
L3
L2
L1
N
L4
L3
L2
L1
N
L1
N
Double
pole
isolator
Fuse
max.
3 amp
L
N
XS Fan unit
mains
supply
XS-MFC controller
L5
L4
L3
L2
L1
N
L4
L3
L2
L1
N
L1
N
Double
pole
isolator max.
Fuse
3 amp
L
N
XS Fan unit
Remote sensor
mains
L2 L1 N
supply
XS-MFC controller
L5
L4
L3
L2
L1
N
L4
L3
L2
L1
N
L1
N
Double
pole
isolator
Fuse
max.
3 amp
L
N
XS Fan unit with
integral sensor
Required if using
integral Timer
mains
supply
Model
Input Power
(W) Weight
(kg)
Max. Economy
XS6CL supply & extract 38 20 3.95
XS9CL supply & extract 50 37 5.5
XS12CL supply & extract 100 70 8.7
5.2 Unit Consumption & Weight
5.3 Electrical Specification
230V ~ 50Hz / 220V ~ 60Hz Class I. Motor thermally protected by
overload device. Cable: 1mm max. or min. Fuse: 3 amp (if fan is supplied
from a 5A lighting circuit, no local fuse is required).
Note: If 2 x 12 inch fans or 3 x 6 or 9 inch fans are used in the same
operating mode in the same room they should all be controlled from
the same MFC speed control. This avoids the possibility of one fan (if
speed controlled at a lower flow rate) being stalled by the other fan(s).
Adequate make-up air provision sufficient to provide ventilation in
accordance with building regulations is required in all rooms. This
should be checked during commissioning with all fans in the same room
running together in all possible configurations.
The automatic shutters, motor bearings should be frequently inspected
and maintained to ensure they open fully/operate satisfactorily. Use
of an RCD and fused spur with 1A, Bussmann TDC180, BS1362, fuse
(Farnell order no: 1123029) for 1 fan or 2A, Bussmann TDC180, BS1362
fuse (Farnell order no: 1123032) for 2 or 3 fans is recommended.
Always confirm airflow direction before commissioning.
Note figures are for extract only at 50hz.

6
nuaire.co.uk 029 2085 8400 15. 09. 17. Leaflet Number 671052
Installation and Maintenance XS Ceiling Fan Kits 50/60Hz
Plug the connector into the required sensor module. Screw the sensor module into position.
1
2
4
3
1
5
6 7
Push the repacement cover into the grille front.
Lift out the sensor module wiring connector.
Push out the sensor area cover from the grille.
Remove the module plate.
Unscrew the module plate from motor plate assembly.
5.4 Fitting Integral Sensors (Optional)
Note: Before following the pictorial sequence shown, first remove the
fans front cover grille (2 screws). Release the four main corner screws
and lift out the motor/fan plate assembly. Remove the electrical cover
plate opposite the sensor plate. Follow the pictorial sequence on this
page.

7
nuaire.co.uk 029 2085 8400 15. 09. 17. Leaflet Number 671052
Installation and Maintenance XS Ceiling Fan Kits 50/60Hz
Fix backplate box to the prepared ceiling. Feed approx. 200mm of supply cable into the box
1
2
4
3
5
67
Fit the control into the backplate box and secure.
Test the installation.
Lift up panel and remove two screws to dismantle unit.
Spot through backplate box and drill and plug the ceiling.
Connect the end of the cable into the control block.
200mm
1.5m
Push out backplate box cable entry using a screwdriver.
5.5 Fitting Remote Controller XS-MFC or
Remote sensors (optional)
The XS-MFC Multi Fan Control provides supply or extract, variable
speed and automatic or manual switching of several fans if desired, (see
note below). The control is best mounted approx 1.5m above the floor.
Remote Sensors are available for Humidity, Air Quality and Passive Infra
Red control. Remote Sensors should be positioned at least 1.5m above
the floor and away from direct heat sources e.g. radiators.
Note:
Up to 5 fans (size 6 / 9 inch) can be controlled by one XS-MFC.
Up to 2 fans (size 12 inch) can be controlled by one XS-MFC.
Do not mix different fan sizes on the same controller.

8
nuaire.co.uk 029 2085 8400 15. 09. 17. Leaflet Number 671052
Installation and Maintenance XS Ceiling Fan Kits 50/60Hz
6.0 Ancillaries
Single Spigot Adaptor
Used in conjunction with flexible ducting systems.
Mounted onto the front of the Spacer section using the 4 off 5mm x
40mm brass screws supplied with the Single Spigot Adaptor. Replaces
the internal grille.
Can also be used connected directly to a Roof Terminal using the 4 off
5mm x 40mm brass screws supplied with the Single Spigot Adaptor.
Manufactured from HIPS material.
Flexible Ducting and Installation Accessories
A full range of ducting and installation accessories is available from
Nuaire. Call Nuaire on 02920 885231 to request literature.
7.0 Maintenance
Periodically, at least once a year or more frequently in case of heavy
use, remove the dirt and encrustation from the grille(s) fan impeller
and motor casing. Ensure the impeller is not cracked or deformed and is
able to rotate freely and without oscillation.
Do not use any solvents to clean this product.
10.0 After Sales Enquiries
For technical assistance or further product information, including spare
parts and replacement components, please contact the After Sales
Department.
8.0 Replacement Of Parts
As a manufacturer Nuaire is aware that time is important. In the event
of a breakdown of this equipment, it should be adequately packaged
and returned to Nuaire.
Please telephone Nuaire before posting your unit. A returns number will
be issued to identify your package.
We will endeavour to repair or replace it within five working days of
receipt. See our warranty terms.
9.0 Warranty
The 3 year warranty starts from the day of delivery and includes parts
and labour for the first year. The remaining period covers replacement
parts only.
This warranty is void if the equipment is modified without
authorisation, is incorrectly applied, misused, disassembled, or not
installed, commissioned and maintained in accordance with the details
contained in this manual and general good practice.
Installation or replacement of units or spare parts must be carried out
by a qualified or Nuaire approved service engineer/ electrician and in
accordance with IEE or local national wiring regulations.
The product warranty applies to the UK mainland and in accordance
with Clause 14 of our Conditions of Sale.
Customers purchasing from outside of the UK should contact Nuaire
International Sales office for further details. A unit returned to Nuaire
should be suitably protectively packaged and clearly marked with the
‘returns number’ obtained from Nuaire prior to posting.
Telephone [phone]
[e-mail]
Technical or commercial considerations may, from time to time, make it necessary to alter the design, performance and dimensions of equipment
and the right is reserved to make such changes without prior notice.
