NUANCE Dragon BTE038 User manual


BTE038+BTT004B
User’smanual






























Contents


Briefintroduction…………...…………………………..…....1
Beforeuse……………………………………………………..1
1.Overview…………………………………………………...……1
2.Charging……………………........................……………………2
Gettingstarted……..…………………………………………3
1.Wearingtheheadset………....………................……………......3
2.Turningon/off................................................................................3
3.Pairing/connecting…….……..............................……………..….4
4.Listeningmusic/makingacall…………………………….…...….5
5.Switchbetweenmusicandconversationmode.................................7
6.LEDindicator………………………………………………....8
7.FactoryResetofBTE038……………………………………..….8
Careandmaintenance……………………………..………..8
FAQs……………………………………...…………...……….9
Specification……………………………...………………..…10
FCCStatement……………………………...……………………………….10








Welcometousethisproduct.Pleasereadthisuser’smanualcarefully
beforeuse.

Briefintroduction
BTE038isaBluetoothheadsetformakingHDcall.BTT004BisaUSBDongle
withoutdriver.ConnectBTT004BintotheUSBjackofcomputer,itcan
transmitthemusicandcalltoBTE038viaBluetooth,functionsasfollowing:
1. MakeVoIPcallviaSkype,GoogleTalkandothercommoninternet
communicationsoftware
2. Listenmusicfromcomputer

Beforeuse
1. Overview

BTE038












1

1MFBbutton6MiniUSBchargingjack
2LEDindicator7Volumedown
3Microphone 8Volumeup
4Switch 9Speaker
5Rotatableearhook
BTT004B














2. Charging
BTE038comeswithabuilt‐inrechargeablebattery,priortousingit,itis
recommendedtochargethebatteryfullyforthefirsttime.
Whentheheadsetislowpower,theredLEDofheadsetwillflashes.Please
rechargethebatteryoftheheadset.

Thewayofchargingasfollowing:
UsingUSBcable
1. PlugthesideofcabletotheUSBportofPC
2. PluganothersideofcableintotheMiniUSBchargingjackofheadset
Redlighton:Charging
Redlightoff:Finishcharging
3. Itwilltakesabout2hourstofinishcharging



Remarks:
1) Thebatteryisrecyclable.
2) Batteries(batterypackorbatteriesinstalled)shallnotbeexposedto
excessiveheatplace,suchassunshine,fireorthelike.





2
1USBconnector
2LEDindicator
3Slidecover

Gettingstarted
1.Wearingtheheadset
a.Rotatetheearhookasfollowingshowntogetbetterwearing.














ForrightearForleftear

b.Afterputtingontheheadset,alignthemicrophonetowardstheuser’s
mouthtogetthebestconversationquality.

2. Turningon/off

BTE038
Turningon:puttheswitchtotheupside,blueLEDwillon.
Turningoff:puttheswitchtothedownside,redLEDwillon.
















3
BTT004B
Turningon:opentheslidecoverandplugitintotheUSBjackofPC,blue
LEDflashquickly,itwillturnonautomatically.
Turningoff:pullitoutfromthePC.










3.Pairing/connecting
PleasepairandconnectBTE038andBTT004B,youcanmakeacalland
listenmusic,pairingstepsasfollows:
1) TurnontheBTE038andlongpressMFBbuttonabout3secondstoenter
intopairingmode(blueandredLEDofBTE038flashalternately);
2) PlugBTT004BintoUSBjackofPC,blueLEDflashtwiceevery3seconds
anditenterpairingmode;
3) BTT004BandBTE038willpairandconnectwitheachother,after
connectsuccessfully,blueLEDofBTE038willflashtwiceevery4seconds,
blueLEDofBTT004Bwillon.

Remarks:
PleasedonotlongpressMFBbuttontoenterpairingmodeuntilyousee
theblueLEDonwhenyouturnontheBTE038.
ThepairingmodeofBTE038willlast2minutes,theheadsetwillbackto
standbymodeifitcannotpairwithBTT004Bover2minutes.
ThepairingmodeofBTT004Bwilllast30seconds,iffailtopair,please
plugBTT004Bagain.
Afterpaired,BTE038andBTT004Bwillremembereachother,itwill
connectedwitheachotherautomaticallynexttime.
WhenBTE038isturnedofforoveravailablerange,BTT004Bwillenter
sleepingmodeandLEDoff.WhenBTE038isturnedonorbackto
availablerange,itwillconnectwithBTT004Bautomatically,LEDof
BTT004Bison.



4

4.Listeningmusic/makingacall
1)Settingupsystem

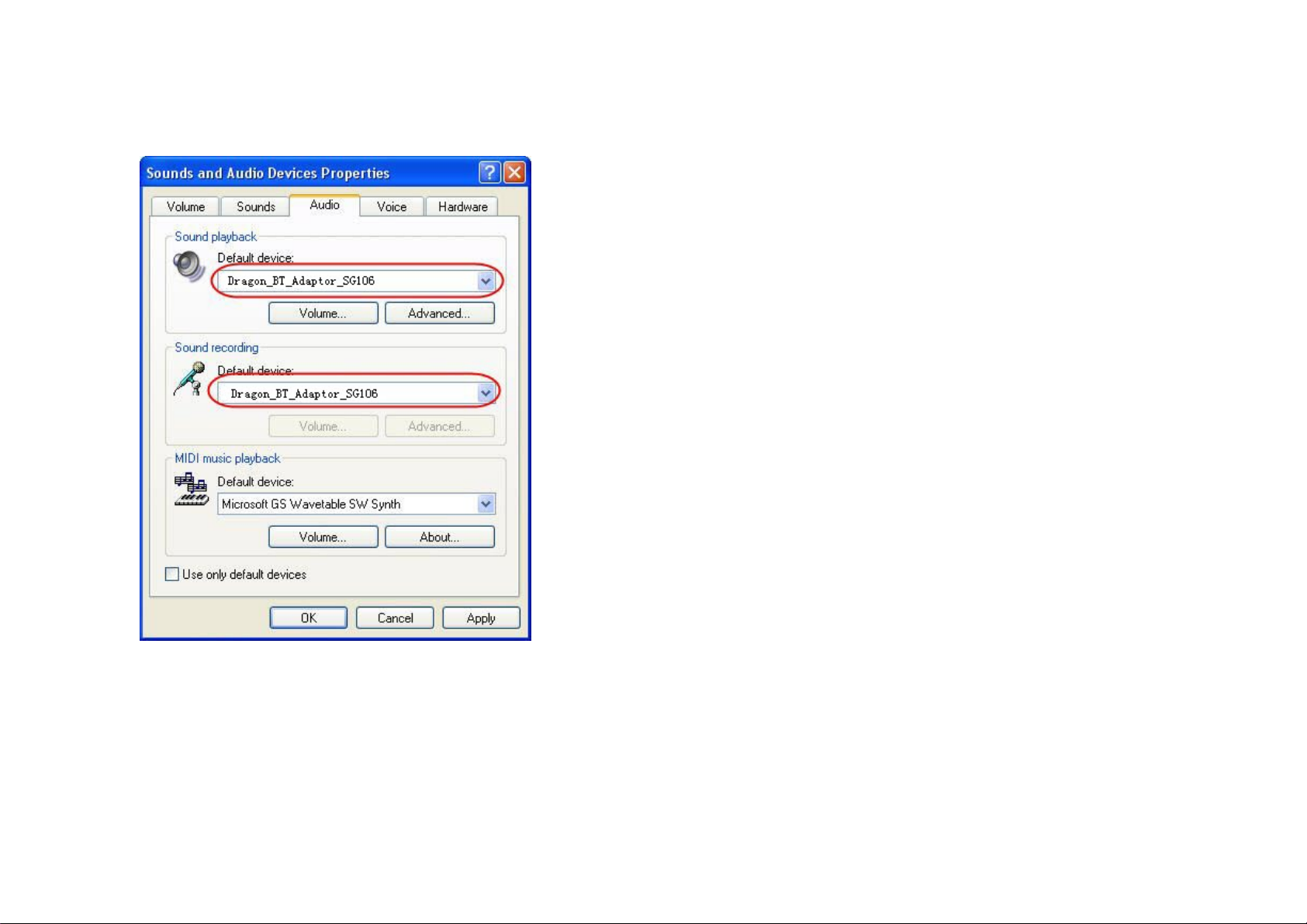

Beforeuse,pleasesetupthedefaultaudiodeviceinSoundsandAudio
DevicesPropertiesasthisdongle,followstakeWindowsXPforexample:




































5
2)Listeningmusic
a.AfterBTE038connectwithBTT004B,blueLEDofBTT004Bwillon,and
entermusicmode,youcanlistenmusicnow.

b.SetupdefaultdeviceasthisdongleonyourMediaplayer,followstake
WindowsMediaPlayerforexample；





























c.Shortorlongpressvolumeup/downbuttononBTE038toadjustvolume.




6

3)Makingacall
a.ShortpressMFBbuttononBTE038,blueLEDofBTT004Bflashslowlyand
enterconversationmode,youcanmakeaVoIPcallnow.

b.BTT004BsupportSkype,GoogleTalkandothercommoninternet
communicationsoftware.Pleasesetupaudiodeviceasthisdongleonthe
communicationsoftware,followstakeSkypeforexample:























c.Shortorlongpressvolumeup/downbuttononBTE038toadjustvolume.

5.Switchbetweenmusicandconversationmode
ShortpressMFBbuttononBTE038toswitchmusicandconversationmode.





7

6.LEDindicator
BTE038
LEDindicator Statusofheadset
RedandblueLEDflashes
alternately
Pairingmode
BlueLEDflashesonceevery2
seconds
Notconnectedtodevice
BlueLEDflashestwiceevery4
seconds
Connectedtodevice
RedLEDflashesinsteadofblue
LED
Lowbattery
BTT004B
LEDindicator Statusofheadset
BlueLEDflashesquickly Standbytoconnectlastconnected
device
BlueLEDflashtwiceevery3
seconds
Searchnewdevicetopair
BlueLEDon Musicmode
BlueLEDflashesslowly Conversationmode
NoLEDindicator Sleepingmode,available
connected

7.FactoryResetofBTE038
Inthestatusofturningonandnotconnectedwithdevice,pressMFBand
volumedownbuttonabout4secondsandreleaseituntiltheredandblue
LEDonsimultaneously.

Remarks:
Afterfactoryreset,thepairedlistofheadsetwillbedeleted.Afterturniton
again,theheadsetwillenterpairingmodeautomatically,andyouneedto
re‐pairandconnectwithBluetoothdevices.

Careandmaintenance
Readthefollowingrecommendationscarefullybeforeusingthisproduct.
Followingtheseyouwillbeabletoenjoythisproductformanyyears.
Keepitdryanddon’tputitinthedumpplacetoavoidtheproduct’s
internalcircuitbeingaffected.


8

Keeptheproductawayfromdirectsunlightorhotplaces.High
temperatureswillshortenthelifeofelectronicdevices,destroythe
batteryordistortcertainplasticparts.
Don’texposetheproducttocoldareas.Itmaydamagetheinternal
circuitboard.
Don’ttrytodisassembletheproductasitmaygetdamagedifyouare
notprofessional.
Don’tletitfalldownontothefloororotherhardsurfaces.Theinternal
circuitmightgetdamaged.
Don’tuseintensivechemicalproductsordetergenttocleantheproduct.
Don’tscratchthesurfacewithsharpthings.
Don’tusethisproductduringstrenuousexercise.Itmaygetdamagedby
sweat.

Incasetheproductdoesn’tfunctionproperly,sendittothestoreyou
boughtit.Thestaffwillhelpyoutosolvetheproblem

FAQs

1.WhyistheredLEDoffwhencharging?
a) Pleasemakesurethechargingdeviceconnectwithheadsetwell;
b) Thebatterymaydryup.Pleasechargethebatteryfor30minutes,and
thentheredLEDwillbeON.

2.Whycan’tIhearthesoundontheheadsetwhenmakingaVoIPcall?
a)MakesureDongleisunderconversationmode(blueLEDofdonglewill
flashesslowly);
b)Makesureyouhadsetuptheaudiodevicecorrectly.

3.Whycan’tIhearthesoundclearlyontheheadset?
a)Makesuretheinternetonyourcomputerisavailable;
b)Makesuretheheadsetisintheavailablerangeandnoobstaclebetween
headsetanddongle..







9
Specifications
Bluetoothversion Headset:BluetoothV3.0
Dongle:BluetoothV2.1+EDR
Bluetoothprofiles Headset,Handsfree,A2DP,AVRCP
Operatingdistance 10meters
Headsetmusictime About9hours
Headsettalktime About10hours
Headsetstandbytime About200hours
Headsetchargingtime About2hours

Notes:
1. ThisdevicecomplieswithPart15oftheFCCRules.Operationissubject
tothefollowingtwoconditions:(1)thisdevicemaynotcauseharmful
interference,and(2)thisdevicemustacceptanyinterferencereceived,
includinginterferencethatmaycauseundesiredoperation.
2. Changesormodificationsnotexpresslyapprovedbytheparty
responsibleforcompliancecouldvoidtheuser’sauthoritytooperate
theequipment.

FCCStatement

AnyChangesormodificationsnotexpresslyapprovedbytheparty
responsibleforcompliancecouldvoidtheuser’sauthoritytooperatethe
equipment.

Thisdevicecomplieswithpart15oftheFCCRules.Operationissubjectto
thefollowingtwoconditions:(1)Thisdevicemaynotcauseharmful
interference,and(2)thisdevicemustacceptanyinterferencereceived,
includinginterferencethatmaycauseundesiredoperation.

RadiationExposureStatement:

ThisequipmentcomplieswithFCCradiationexposurelimits
setforthforanuncontrolledenvironment.
Thistransmittermustnotbeco‐locatedoroperatinginconjunctionwith
anyotherantennaortransmitter.



