Numatic ttb 6652 100T Guide


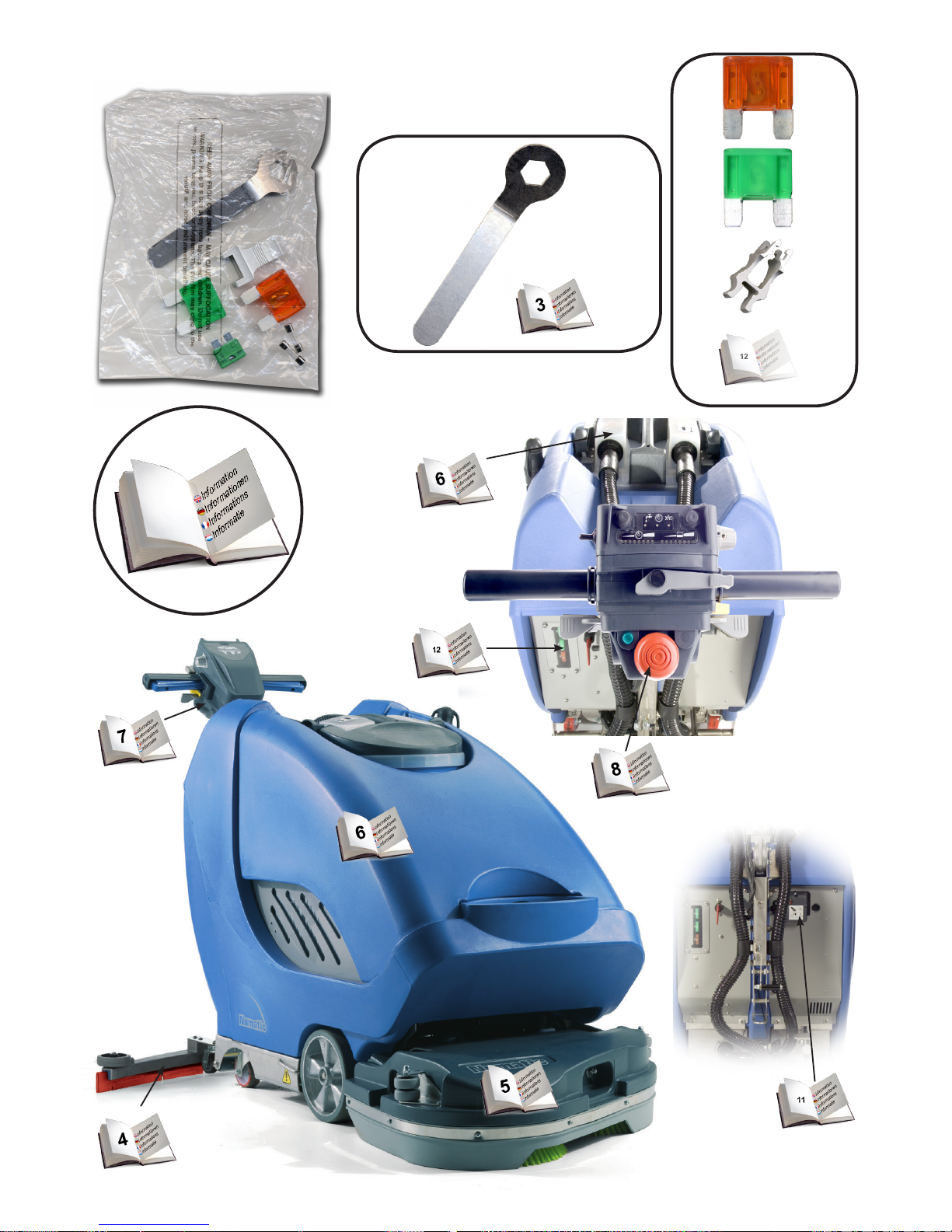

235298 07/11 (A13)2
?

235298 07/11 (A13) 3
X 3 X 3

235298 07/11 (A13)
4

235298 07/11 (A13) 5
1/4
=

235298 07/11 (A13)
6
1 2
34
1 2
60 L

235298 07/11 (A13) 7
1
2

235298 07/11 (A13)
8

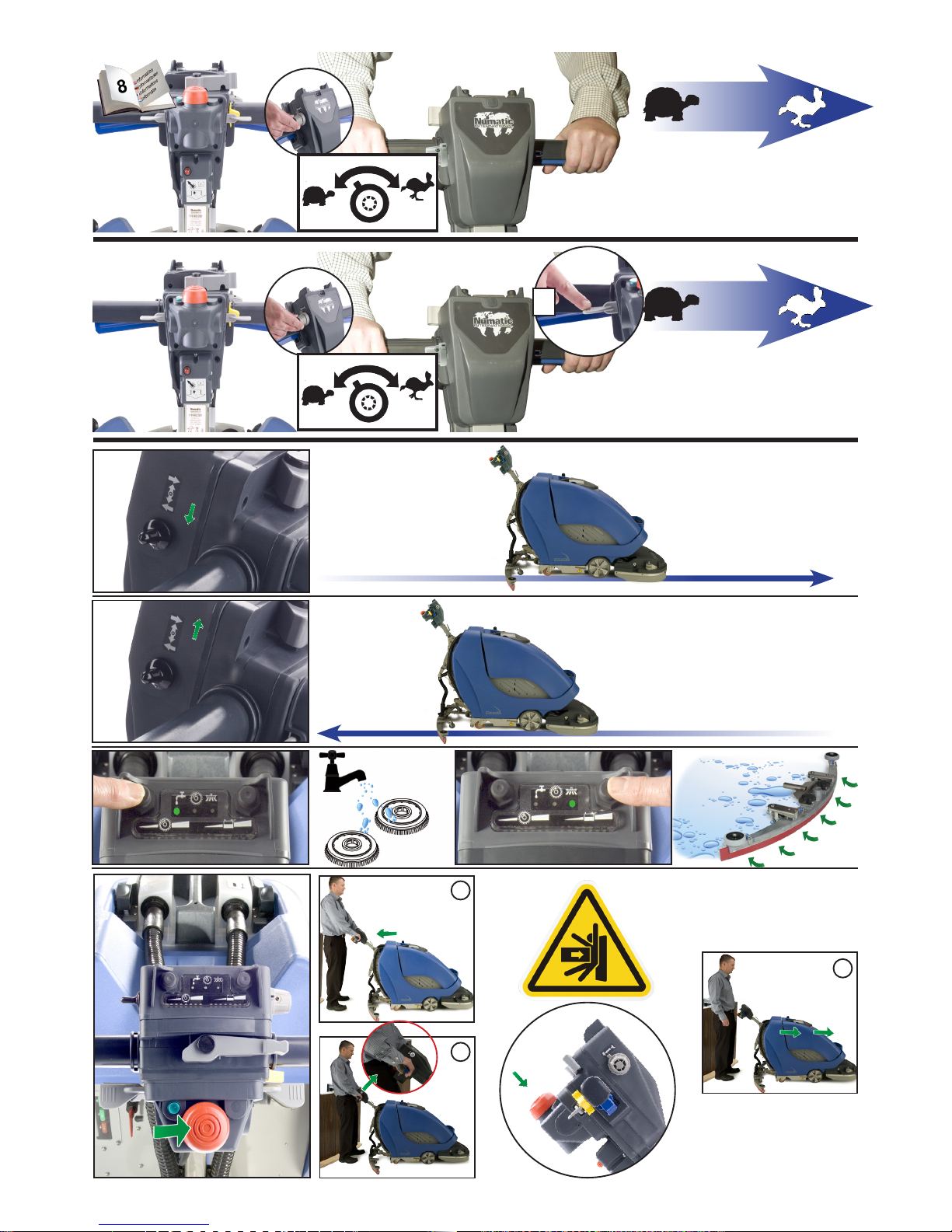

0- - - - - - - 50%
50- - - - - -100%
+
1
2
3
!

235298 07/11 (A13) 9
B
A
A
B

235298 07/11 (A13)
10
1 2
3
4
5
6

235298 07/11 (A13) 11
=

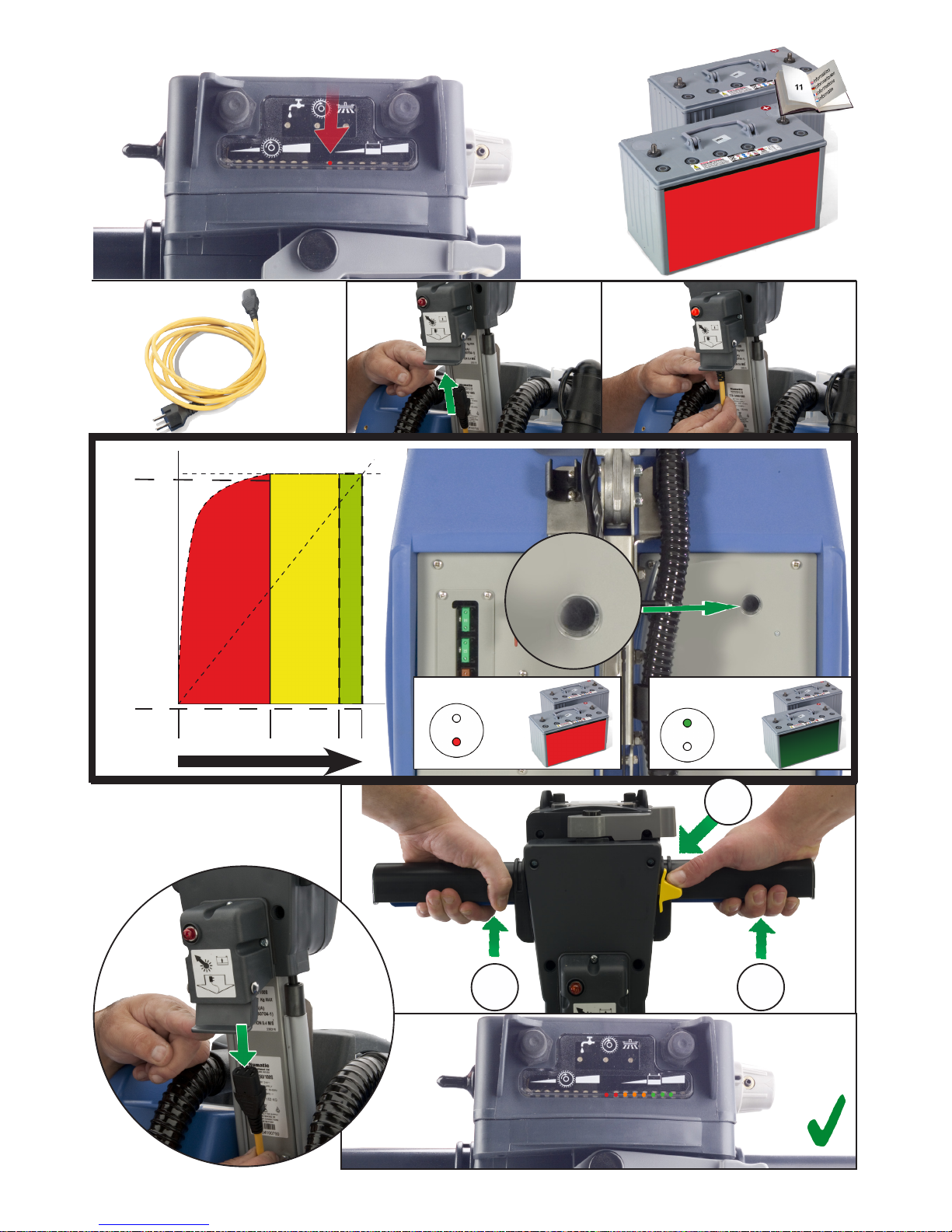

100%
25% 4 3 1
HRS (approx)
1
1
25% =100%
=
2

235298 07/11 (A13)
12
!
?

235298 07/11 (A13) 13

235298 07/11 (A13)
14
Changing the Floor Tool Blades, Auswechseln der Blätter des Bodenwerkzeugs
De rubbers van de zuigmond vervangen, Remplacement des lamelles du suceur.

235298 07/11 (A13) 15
Green Status Indicator Fault Possible Cause Effect on Product Investigate the Following Action Required If fault persists
1 Flash with pause Batteries voltage low Batteries not been charged
Possible bad connection between
batteries,
controller, charger or fuses caused
by loose connections , damaged
wiring , water ingress
Not accepting charge due to faulty
battery/cell
Charger not functioning
Operating time severely
reduced or machine will
not operate
Check when machine last charged
Switch OFF the machine :
Remove Fuses
Check connections to batteries,
charger and fuses for loose wires or
screws
Check each battery Voltage individu-
ally to detect defect unit 10.5V min
Check battery voltage and charge
current
ensuring charger red fault light is
extinguished.
Charge batteries immediately
Tighten loose connections and
replace damaged components
Replace batteries as required
Replace charger
Contact
Service
Agent
2 Flashes with pause Traction motor
disconnected
The motor has a bad connection
Motor disconnected
TCO activated
Motor failed open circuit
Motor will not operate Check all connections and leads
between the motor and controller
Tighten loose connections and
replace damaged
components - check exhaust
clean if necessary.
3 Flashes with pause Traction motor wiring
Trip
The motor has a short circuit to a
battery
Motor will not operate Check all connections and leads between the motor and controller
4 Flashes with pause Battery Lockout The battery charge level has fallen
below the battery lockout level and
the controller is inhibiting machine
functions
Machine functions not
working
Check battery voltage and charge
current
ensuring charger red fault light is
extinguished.
Check each battery Voltage individu-
ally to detect defect unit 10.5V min
Charge batteries immediately
6 Flashes with pause Charger Connected The controller is being inhibited from
driving, This may be because the
battery charger is connected
Machine functions not
working
Remove Charger to operate machine
8 Flashes with pause Controller Trip A controller trip is indicatied Machine functions not
working
Check all connections and leads Tighten loose connections and
replace damaged components
10 Flashes with pause High Battery Voltage Poor coonections between battery
controller and traction motor
Machine functions not
working
Check each battery Voltage individu-
ally to ensure voltage < 14 volts
Check connections on controller
batteries and traction motor
Check combined battery pack volt-
age is < 28 volts
Green Flashing Warning light.

235298 07/11 (A13)
16

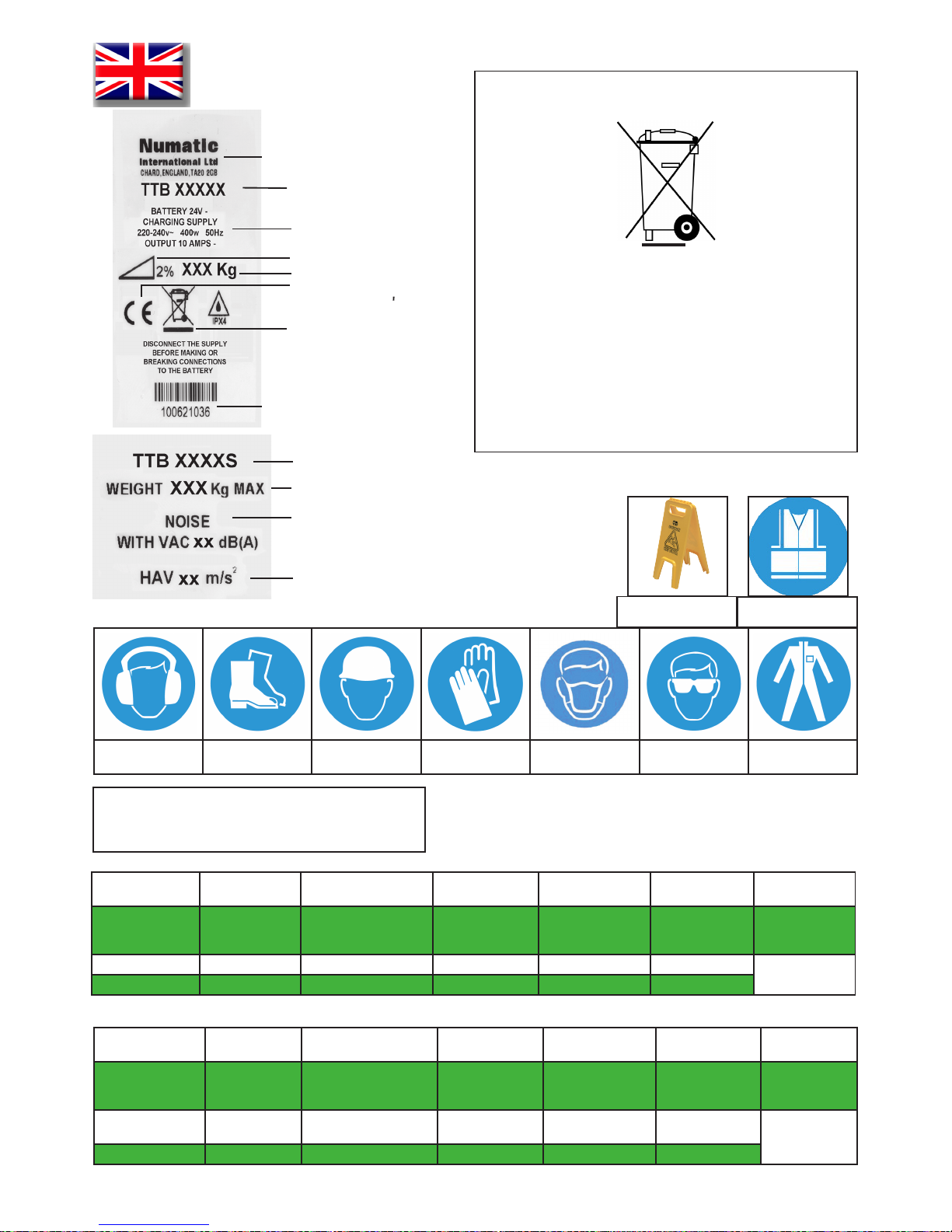

Rating Label
WEEE (Waste, Electrical and Electronic Equipment)
Scrubber Dryer Accessories and Packaging should be
sorted for Environmental- Friendly recycling.
Only for EU countries.
Do not dispose of Scrubber dryer into household waste.
According to the European directive 2002/96/EC on waste
electrical electronic equipment and its incorporation into
national law.
Scrubber dryers that are no longer suitable for use must
be separated collected and sent for recovery in an
Environmental- friendly manner.
Safety Critical Component
Mains Lead: H05VV-F x 1.5mm2x 3 core
PPE
(Personal protective equipment) that maybe required for certian operations.
Ear Protection Safety Footwear Hat Protection Safety Gloves Dust/Allergens
Protection
Eye Protection Protective
Clothing
Note:
A risk assessment should be conducted to decide what PPE
should be worn.
Brush Motor Vac Motor Voltage Sound
Pressure
Speed Brush Pad
2 x 400W 400W GELL BATTERY
24V
(4 X 12 V)
78 dB(A) 195rpm 2 x 330mm 2 x 330mm
Gross Weight Full Protection
Class
Hand Arm Vibration Dimensions Net Weight Water Capacity
285 Kg Class 1 0.4 ms +/- 0.05ms21200x1430x970 225 Kg 60 L
About the Machine
Machine Description
Company name and address
Voltage Frequency
Gradient
Weight
WEEE Logo
CE Mark
Machine yr/ wk / serial number
Machine Description
Weight
Noise Level
Hand Arm Vibration
Brush Motor Vac Motor Voltage Sound
Pressure
Speed Brush Pad
2 x 400W 400W GELL BATTERY
24V
(2 X 12 V)
76 dB(A) 195rpm 2 x 330mm 2 x 330mm
Gross Weight Full Protection Class Hand Arm Vibration Dimensions Net Weight Water Capacity
219 Kg Class 1 0.4 ms +/- 0.05ms21200x1430x970 159 Kg 60 L
TTB 6652 / 100T
TTB 6652 / 200T
Hi Vis Jacket
Caution Floorsign

235298 07/11 (A13) 17
Component Interval Inspect for
Mains Lead DAILY scufng, cracks, splits, conductors showing
Brushes DAILY bristle damage, wear, drive collar wear
Squeegee Blade BEFORE EACH USE wear, cracks, splits
Filters BEFORE EACH USE clogging and debris retention
Tanks AFTER EACH USE rinse dirty water tank after use
CAUTION:
Read the instruction manual before using the appliance.
This product meets the requirements of BS. EN 60335-2-72
WARNING:
As with all electrical equipment care and attention must be exercised at all times during its use, in addition
to ensuring that routine and preventative maintenance is carried out periodically in order to ensure its safe
operation.
Failure to carry out maintenance as necessary, including the replacement of parts to the correct standard
could render this equipment unsafe and the manufacturer can accept no responsibility or liability in this
respect.
When ordering spare parts always quote the Model Number / Serial
Number specied on the Rating Plate.
Warning do not use on slopes.
NOTE:
This machine is also suitable for commercial use, for example in hotels, schools, hospitals, factories, shops
and ofces for other than normal housekeeping purposes.
CAUTION:
This machine is not suitable for picking up hazardous dust.
Do not use on surfaces having a gradient exceeding that marked on the appliance.
The machine is not to be stored outdoors in wet conditions.
This machine is for indoor use only.
Do’s and Don’ts:
DO ensure only competent persons unpack/assemble the machine.
DO keep your machine clean.
DO keep your brushes in good condition.
DO replace any worn or damaged parts immediately.
DO regularly examine the power cord for damage, such as cracking or ageing. If damage is found, replace
the cord before further use.
DO only replace the power cord with the correct Numatic approved replacement parts.
DO ensure that the work area is clear of obstructions and / or people.
DO ensure that the working area is well illuminated.
DO pre-sweep the area to be cleaned.
DON’T use steam cleaners or pressure washers to clean the machine or use in the rain.
DON’T attempt machine maintenance or cleaning unless the power plug has been removed from the supply
outlet.
DON’T allow any inexperienced repairs. Call the experts
DON’T strain cable or try to unplug by pulling on cable.
DON’T leave the brush pad on the machine when not in use.
DON’T allow the machine to be used by inexperienced or unauthorised operators or without appropriate
training.
DON’T use the machine without the solution tanks properly positioned on the machine, as shown in the
instructions.
DON’T expect the machine to provide trouble-free, reliable operation unless maintained correctly.
DON’T run the machine over power cable during operation.
DON’T lift or pull the machine by any of the operating triggers - Use the main handle.
DON’T remove the handle from the machine except for service and repair.
Ensure machine is switched OFF when not in use.
Note:
This appliance is not intended for use by persons (including children) with reduced physical sensory or
mental capabilities, or lack of experience and knowledge.
Unless they have been given supervision or instruction concerning the use of the appliance by a person
responsible for their safety.
ORIGINAL INSTRUCTIONS
READ MANUAL BEFORE USE
Information for Scrubber Dryer

235298 07/11 (A13)
18
Warning:
Only use brushes provided with the appliance or those specied in the instruction manual.
The use of other brushes may impair safety.
A full range of brushes and accessories are available for this product.
Only use brushes or pads which are suitable for the correct operation of the machine for the specic task being per-
formed.
Warning:
It is essential that this equipment is correctly assembled and operated in accordance with current safety regulations.
When using the equipment always ensure that all necessary precautions are taken to guarantee the safety of the
operator and any other persons who may be affected.
Wear non-slip footwear when scrubbing. Use a respiratory mask in dusty environments.
The machine, while charging, must be positioned so that the mains plug is easily accessible.
When cleaning, servicing or maintaining the machine, replacing parts or converting to another function the power
source shall be switched off.
Mains operated machines shall be disconnected by removing the power plug, and battery operated machines shall be
disconnected by removing the isolating pin.
In order to prevent unauthorised use of the machine the power key must be removed after use.
Machines left unattended shall be secured against unintentional movement.
Operators shall be adequately instructed as to the correct use of the machine.
NOISE AND VIBRATION
Sound Level in use (L ) < 78 dB(A)
The operators arms are subject to a vibration level of <2.5m/s when using the
Machine.
NOTE:
In some applications, noise or vibration levels may exceed the gures stated. If
Noise levels exceed 85dB(A) appropriate ear protection must be used.
PRECAUTIONS WHEN WORKING WITH BATTERIES
1. Always wear protective clothing e.g. face visor, gloves and overalls when working with batteries
2. Whenever possible always use a properly designated and well-ventilated area for charging. Do not smoke or bring
naked ames into the charging area.
3. Remove any metallic items from hands, wrists and neck i.e. rings, chains etc. before working on a battery.
4. Never rest tools or metallic objects on top of the battery.
5. When charging is complete disconnect from the mains supply.
6. The batteries must be removed from the machine before it is scrapped.
7. The machine must be disconnected from the supply when removing the battery.
8. To remove the batteries:- Disconnect machine from the mains supply (if charging) and ensure batteries are switched
off with circuit disconnect switch (see page 17). Disconnect hoses from separator and tanks.
Remove separator and tanks . Unscrew battery strap xings and remove.
Undo battery terminals and remove. Remove batteries.
9. The batteries are to be disposed of safely and in accordance with the battery directive.(2006/66/EC)
10. Only use genuine NUMATIC replacement batteries.
11. Do not allow the batteries to become fully discharged; it may not be possible to recharge them. Batteries should
not be discharged below 9.5 volts with 10 amps owing.
12.Do not allow one battery to be discharged separately to the other.
13.Do not mix batteries from different machines.
14. The batteries tted to this product are Valve Regulated Lead Acid (VRLA) gel electrolyte type. The tting of any
other type of battery may cause a safety hazard.
BATTERY CARE
1. Always recharge the batteries after use. This can be done at any time –it
s not necessary to wait until they are fully discharged; they do not develop a “memory”.
2. Leaving the charger to operate for a minimum of 4 hours after the green
light has come on, at least weekly, will prolong battery life. 3. Do not store the machine with the batteries discharged.

235298 07/11 (A13) 19

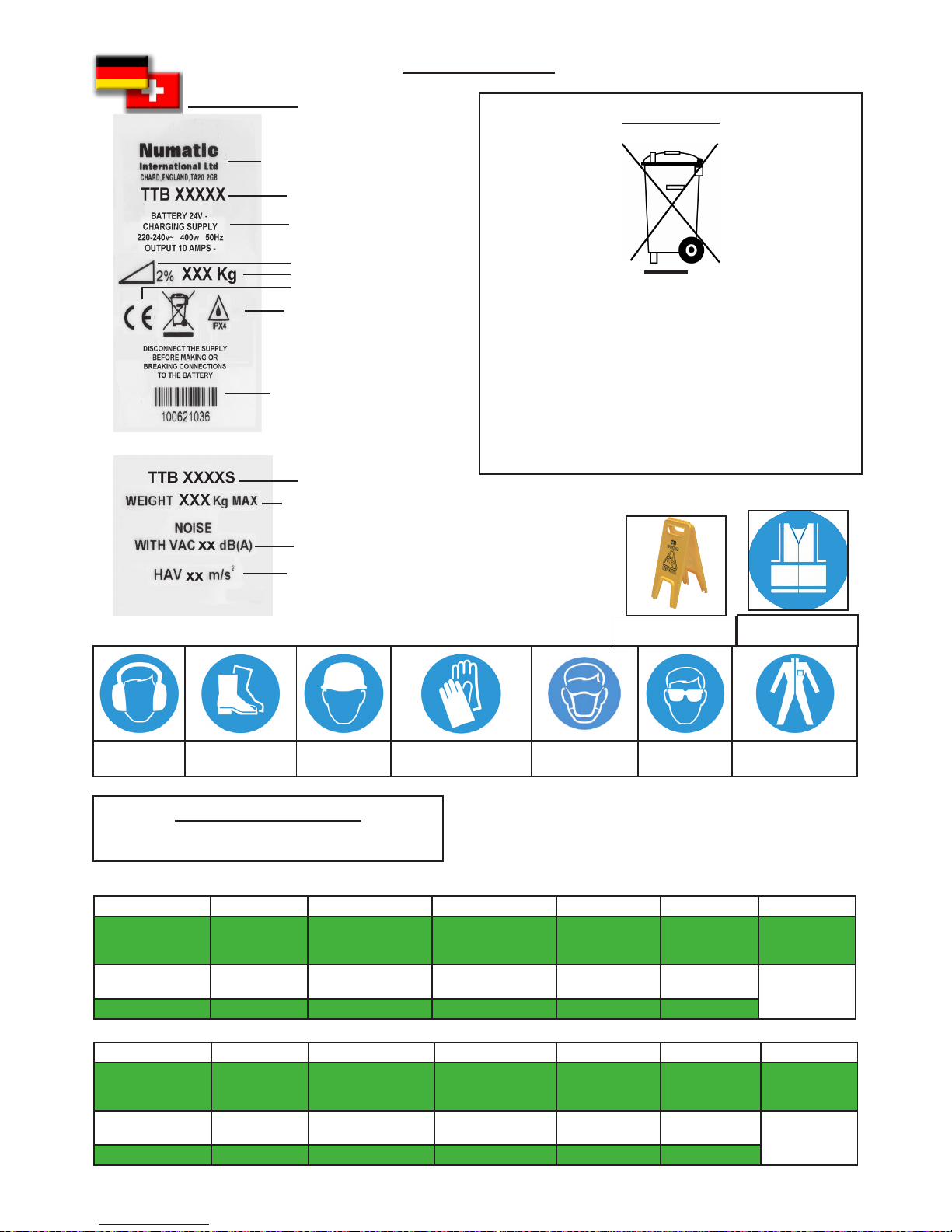

Gerätebeschreibung
Name und Adresse Unternehmen
Nennspannung/Frequenz
Neigung
(Nutz-) Gewicht
WEEE - Logo
CE-Kennzeichnung
Gerät Jahr/Woche/Seriennummer
Gerätebeschreibung
(Nutz-) Gewicht
Geräuschpegell
Hand-/Arm Vibration
Produktplakette
WEEE-Richtlinie
Staubsauger, Zubehör und Verpackung müssen getrennt entsorgt werden,
um ein umweltfreundliches Recycling zu ermöglichen.
Für EU-Länder gilt:
Entsorgen Sie Staubsauger nicht im Hausmüll!
- gemäß EU-Richtlinie 2002/96/EC über die Entsorgung von
Elektro- und Elektronikgeräten sowie deren Umsetzung in
nationales Recht.
Staubsauer, die nicht mehr verwendet werden können, sind getrennt
zu sammeln und zur umweltfreundlichen Entsorgung abzugeben.
In Deutschland sind das i.d.R. Sammelstellen beim örtlichen Entsorger.
Sicherheitsrelevante Bestandteile
Stromversorgung: H05VV-F x 1.5mm2x 3 core
PSA
(Persönliche Schutzausrüstung) kann für bestimmte Verwendung des Geräts erforderlich sein.
Ohrschutz Sicherheitsschuhe Kopfschutz Sicherheitshandschuhe Staub /
Allergieschutz
Augenschutz Schutzkleidung
Hinweis:
Eine Risikoauswertung ist vom Betreiber des Gerätes anhand der örtlichen
Gegebenheiten vorzunehmen, um die erforderliche Schutzausrüstung
festzulegen.
Borstelmotoren Zuigermotor Spannung Schalldruckpegel Drehzahl Bürste Pad
2 x 400W 400W Gell Akku
24V
(4 X 12 V)
78 dB(A) 195rpm 2 x 330mm 2 x 330mm
Bruttogewicht (voll) Schutzklasse Trillingen
handen/armen
Abmessungen Nettogewicht Wasserkapazität
285Kg Class 1 0.4 ms +/- 0.05ms21200x1430x970 225 Kg 60 L
Angaben zum Gerät
Borstelmotoren Zuigermotor Spannung Schalldruckpegel Drehzahl Bürste Pad
2 x 400W 400W Gell Akku
24V
(2 X 12 V)
76 dB(A) 195rpm 2 x 330mm 2 x 330mm
Bruttogewicht (voll) Schutzklasse Trillingen
handen/armen
Abmessungen Nettogewicht Wasserkapazität
219Kg Class 1 0.4 ms +/- 0.05ms21200x1430x970 159 Kg 60 L
TTB 6652 / 100T
TTB 6652 / 200T
Warnjacke
Hinweisschild
„Achtung Rutschgefahr”

235298 07/11 (A13)
20
ORIGINALANLEITUNG
VOR GEBRAUCH AUFMERKSAM UND VOLLSTÄNDIG LESEN
Informationen für Schrobzuigmachine
VORSICHT:
Lesen Sie das Handbuch gründlich durch, bevor Sie das Gerät einsetzen.
Dieses Produkt erfüllt die Anforderungen gemäß BS. EN 60335-2-72
WARNHINWEIS:
Wie bei allen elektrischen Geräten ist während der Benutzung jederzeit Vorsicht und Aufmerksamkeit geboten. Darüber
hinaus muss zur Gewährleistung eines sicheren Betriebs in regelmäßigen Abständen eine laufende und vorbeugende War-
tung durchgeführt werden.
Wenn Sie die Wartung nicht im nötigen Umfang durchführen, darin eingeschlossen das Verwenden von korrekten Ersatz-
teilen, kann die Sicherheit dieser Maschine beeinträchtigt werden, und der Hersteller kann weder die Verantwortung noch
eine Haftung in dieser Hinsicht übernehmen.
Nennen Sie bei der Bestellung von Ersatzteilen immer die Modell- oder Seriennummer, die auf dem Leistungsschild angege-
ben ist.
Warnhinweis: Verwenden Sie das Gerät nicht auf geneigten Oberächen.
ANMERKUNG:
Dieses Gerät ist zusätzlich zu seiner Verwendbarkeit in privaten Haushalten auch für den gewerblichen Einsatz geeignet,
beispielsweise in Hotels, Schulen, Krankenhäusern, Fabriken, Läden und Büros.
VORSICHT:
Dieses Gerät ist nicht für die Aufnahme von gefährlichem Staub geeignet.
Verwenden Sie das Gerät nicht auf Oberächen, die stärker geneigt sind, als auf dem Gerät gekennzeichnet ist.
Das Gerät darf nicht in Außenbereichen oder unter feuchten Bedingungen abgestellt werden.
Dieses Gerät ist nur für den Einsatz im Innenbereich ausgelegt.
Worauf zu achten ist:

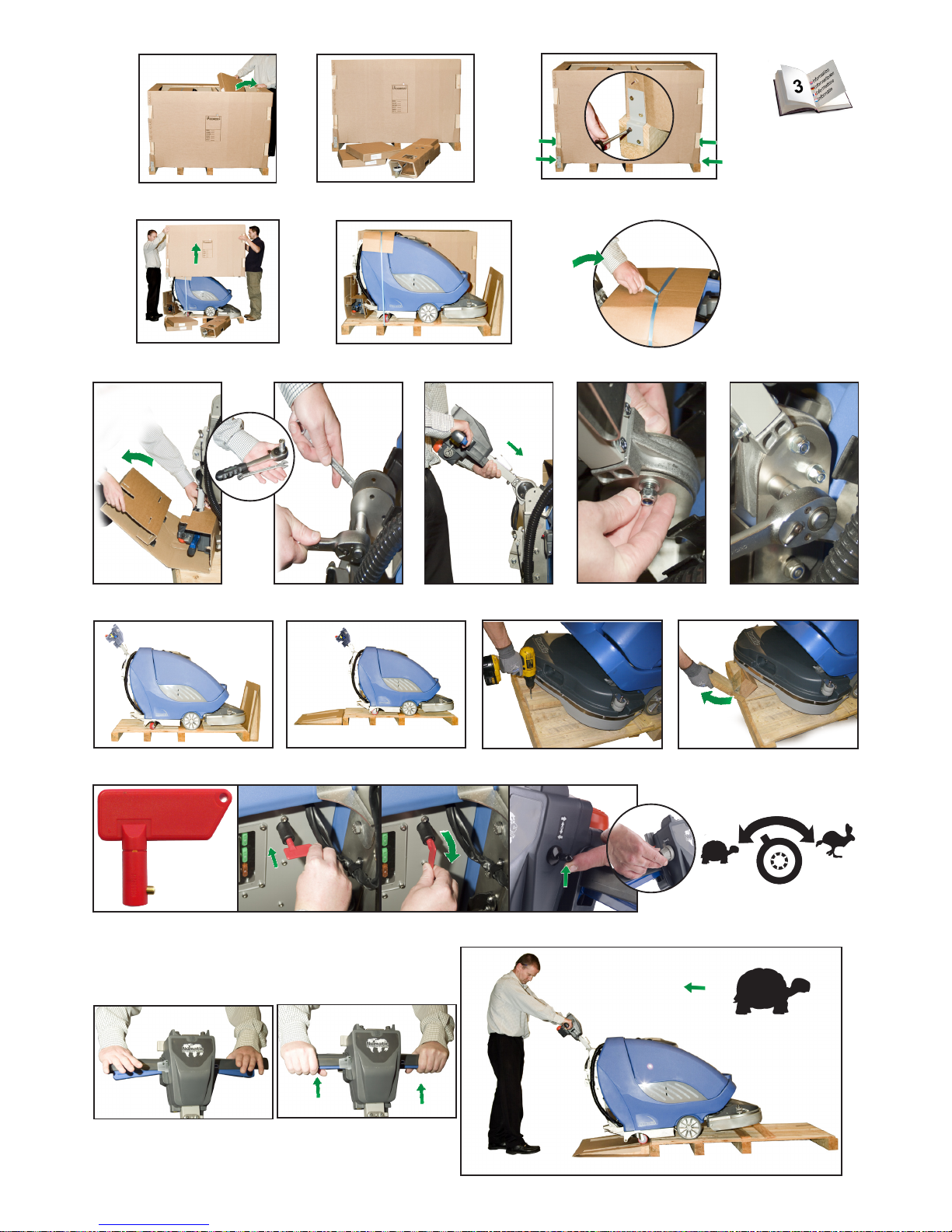

Stellen Sie sicher, dass nur entsprechend befähigte Personen das Gerät auspacken/zusammenbauen.
Halten Sie das Gerät sauber.
Halten Sie die Bürsten in einem guten Zustand.
Ersetzen Sie abgenutzte oder beschädigte Teile unverzüglich.
Überprüfen Sie das Netzkabel regelmäßig auf Beschädigungen, wie z. B. Risse oder Abnutzungserscheinungen. Wenn Sie
feststellen, dass das Kabel beschädigt ist, ersetzen Sie es, bevor Sie weiterarbeiten.
Ersetzen Sie das Netzkabel nur durch das korrekte, von Numatic bestätigte Ersatzteil.
Stellen Sie sicher, dass sich keine Hindernisse oder Personen im Arbeitsbereich benden.
Achten Sie darauf, dass der Arbeitsbereich gut beleuchtet ist.
Wischen Sie den zu reinigenden Bereich vor.
Verwenden Sie KEINE Dampf- oder Druckreiniger zum Reinigen des Geräts, und verwenden Sie das Gerät NICHT im Re-
gen.
Führen Sie KEINE Wartungs- oder Reinigungsarbeiten am Gerät durch, wenn der Netzstecker noch in der Steckdose steckt.
Lassen Sie Reparaturarbeiten NICHT von unerfahrenen Personen durchführen. Wenden Sie sich dazu an qualizierte Fach-
leute.
Belasten Sie NICHT das Kabel, und ziehen Sie NICHT daran, um den Stecker von der Stromversorgung zu trennen.

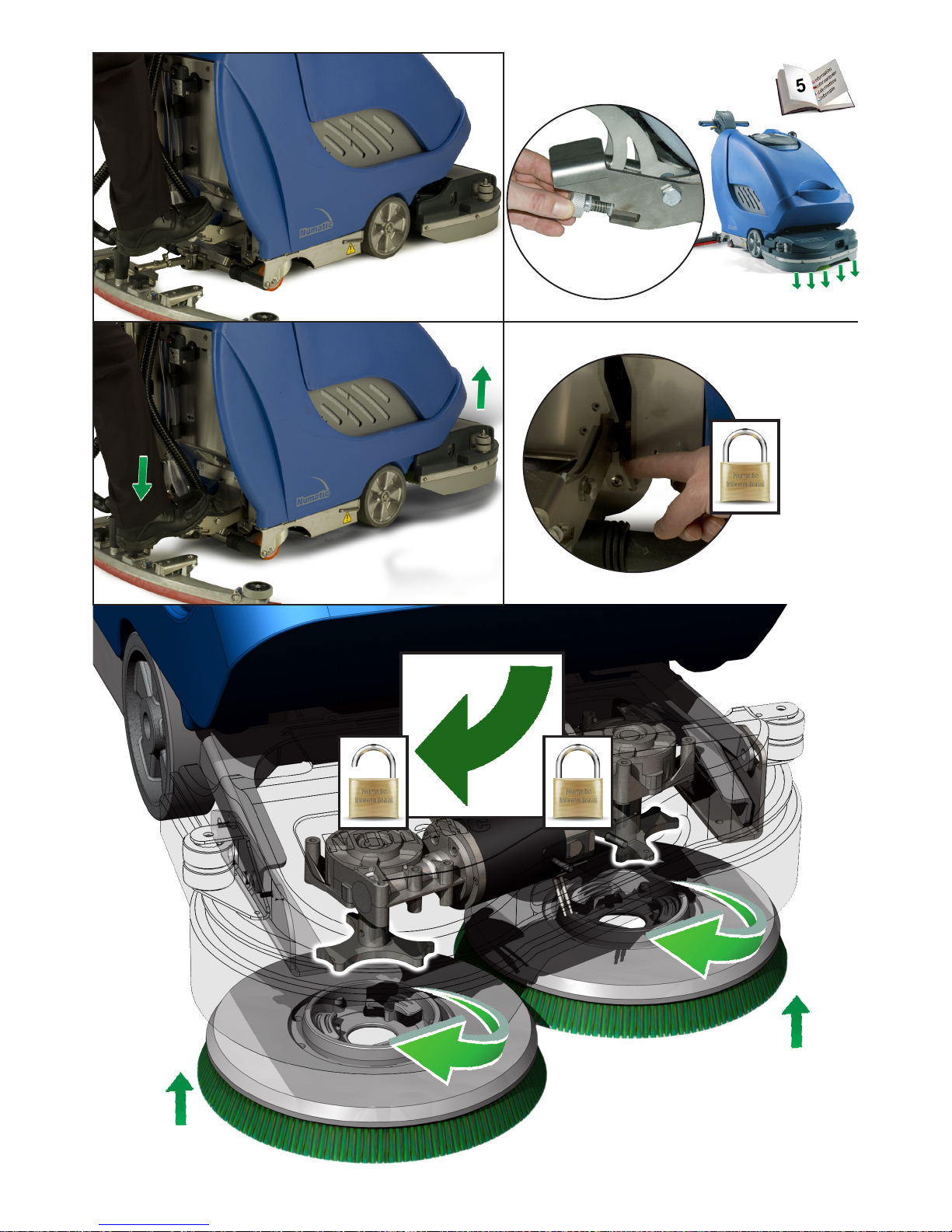

Nehmen Sie die Bürste bzw. das Pad ab, wenn Sie das Gerät nicht verwenden.
Das Gerät darf NICHT von unerfahrenen, nicht berechtigten bzw. nicht entsprechend geschulten Personen bedient werden.
Verwenden Sie das Gerät NICHT, wenn die Lösungstanks nicht ordnungsgemäß (so wie in der Anleitung gezeigt) am Gerät
angebracht sind.
Gehen Sie davon aus, dass das Gerät NUR dann störungsfrei und zuverlässig betrieben werden kann, wenn es ordentlich
gewartet wird.
Fahren Sie mit dem Gerät im Einsatz NICHT über Strom führende Kabel.
Heben oder ziehen Sie das Gerät nicht an Betriebsschaltern. Verwenden Sie dazu den Hauptgriff.
Bauen Sie den Griff NUR zur Wartung oder Reparatur vom Gerät ab.
Achten Maschine ausgeschaltet ist, wenn nicht in Gebrauch
Anmerkung:
Diese Maschine darf nicht von Kindern oder Personen mit eingeschränkten physisch-motorischen oder geistigen
Fähigkeiten oder von Personen mit mangelnder Erfahrung und Kenntnis bedient werden.
Letztere dürfen die Maschine nur unter Aufsicht oder nach spezieller Unterweisung in der Verwendung der Maschine
durch eine für die Sicherheit verantwortliche Person bedienen.
Baugruppe Zeitabstand Überprüfen auf
Netzleitung täglich Verschleiß, Risse, abgeschliffene Isolations-
stellen
Bürsten täglich Borstenverschleiß, Fremdkörper, Verschleiß
an der Kupplung

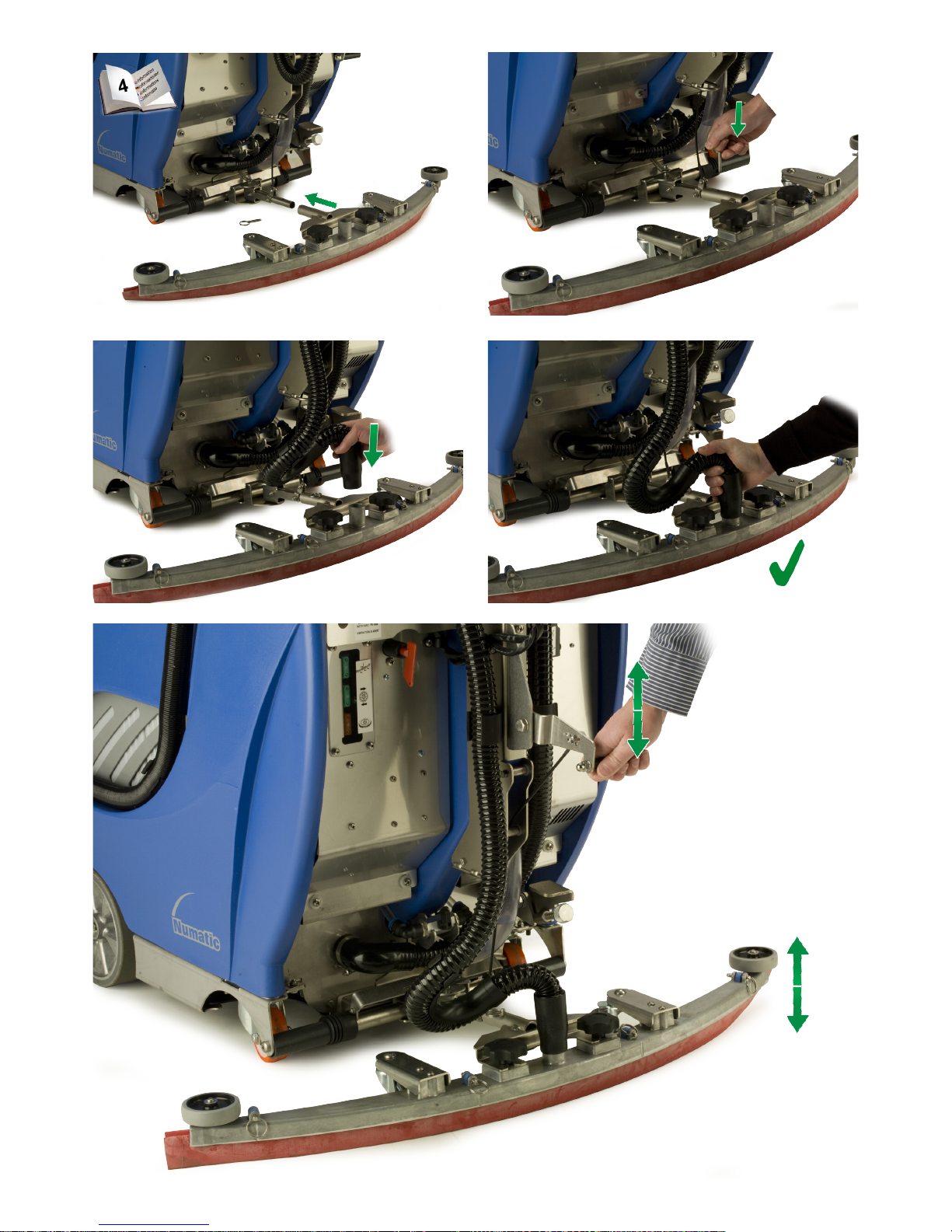

Sauglippen vor jeder Benutzung Abnutzung, Risse und sonstige Fehler

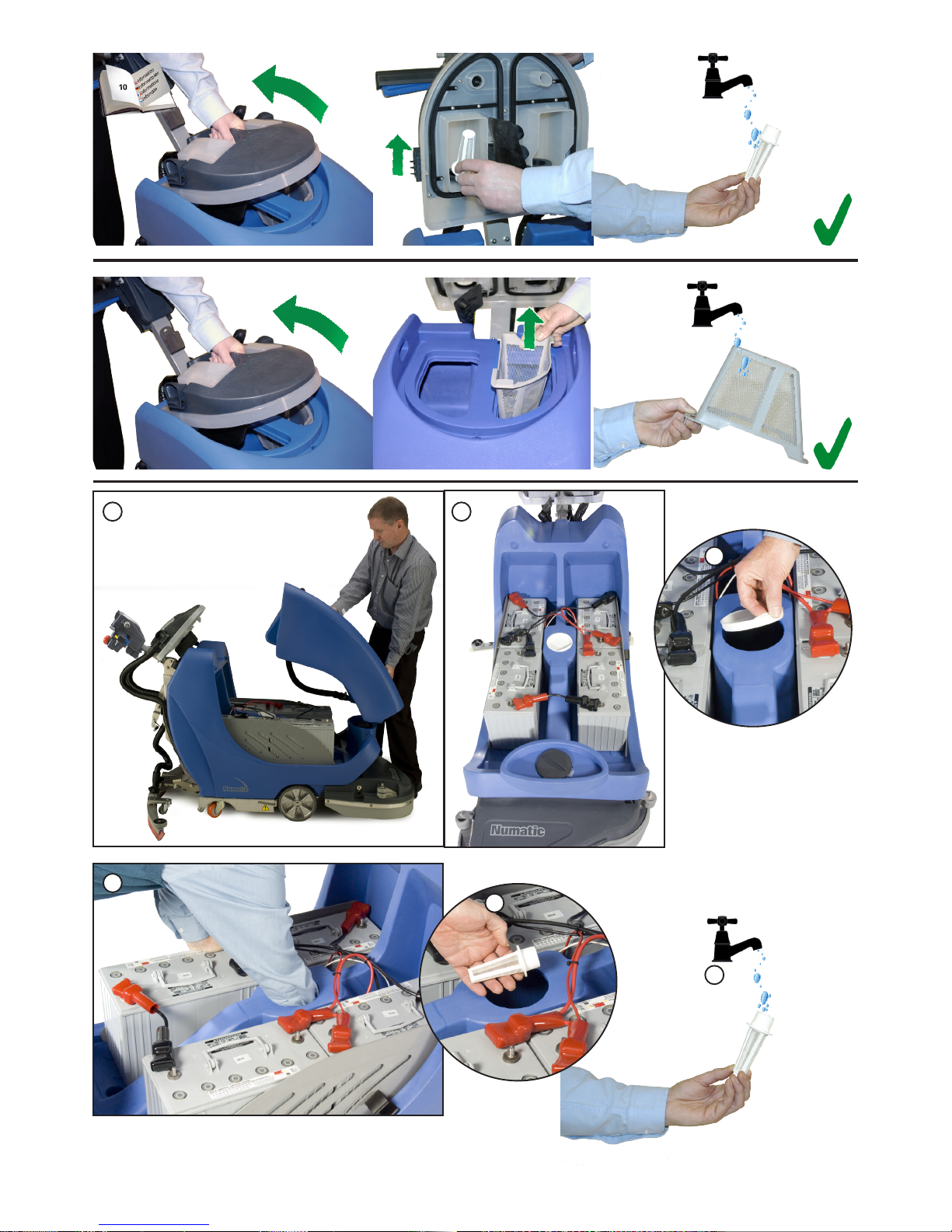

Filter vor jeder Benutzung Fremdkörper und Schmutz entfernen
Tanks nach jeder Benutzung nach Gebrauch Schmutzwassertank leeren
und spülen
This manual suits for next models
1
Table of contents
Languages:
Other Numatic Dryer manuals

Numatic
Numatic TTV 678-300 Assembly instructions

Numatic
Numatic CRG 8055/100T User manual

Numatic
Numatic HT 1840 User manual

Numatic
Numatic NX300 User manual

Numatic
Numatic TTV-5565/200T User manual

Numatic
Numatic CRL8055/100T User manual

Numatic
Numatic TTV - 4555/100T User manual

Numatic
Numatic CRG 8055/100T User manual

Numatic
Numatic TTB 1840G User manual

Numatic
Numatic TBL6055/100 User manual
