OAKWORKS Spa Portal Light User manual

www.oakworks.com · 717.235.6807
OAKWORKS®
Portal Light
USER MANUAL

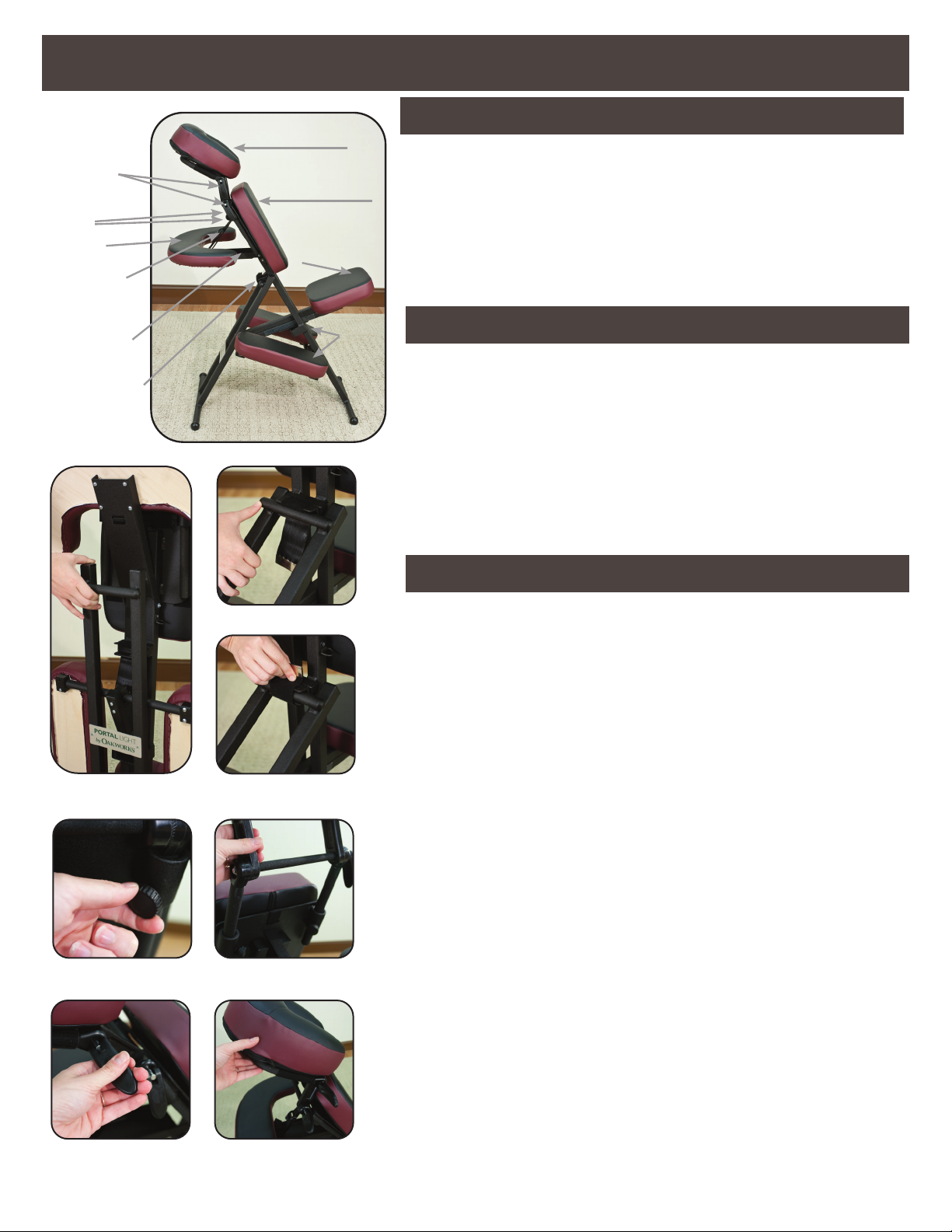

PORTAL LIGHT OWNER’S MANUAL
1. Have your client stand on the side of the chair and grasp the chair
frame just above the chest pad for support.
2. Have the client straddle the seat and place their far knee on the
knee pad.
3. Your client can then gradually begin to sit down. Once seated, the
client can put their other knee on the knee pad.
4. You can then make the adjustments to the face and arm rests for
proper client comfort and positioning.
1. Holding folded chair as shown, move the horizontal bar down &
insert the bar into locking arm. (Fig. 1 & 2)
2. Wrap Velcro®around inserted bar to insure locking. (Fig. 3)
3. Loosen face rest knobs and insert face rest platform arms into the
tubes on the back of the chest pad plate. (Fig. 4 & 5)
SETTING UP YOUR MASSAGE CHAIR
Page 1 of 2
1) Move horizontal
bar down
HELPING YOUR CLIENT ONTO THE CHAIR
2. Adjustment for optimal client comfort
A. Release the CamLocks and knobs on the face rest (photo 4 & 6)
B. Have your client lean forward into the chest pad, letting
the chair support their weight.
C. Ask your client to hold onto the face rest and to pull the
face rest toward them until their forehead rests comfortably
on the pad.
D. Lock the CamLocks and tighten the knobs securely.
Do not over tighten the knobs - too much force may
cause stripping.
FACE REST ADJUSTMENTS FOR OPTIMAL CLIENT COMFORT
1. General Adjustment Information
A. Oakworks QuickLock™ face rest has virtually unlimited
positioning options. Vertical adjustment is achieved by
loosening the knobs, raising or lowering the face rest & then
tightening the knobs (photo 4 & 5). Angle adjustments are
achieved by unlocking the CamLocks & moving the face
rest. (Fig. 6 & 7)
B. The locking cams on the face rest can be easily reversed
to the other side of the chair if desired. Loosen the knobs,
remove the face rest, reverse the rods & re-insert into the
tubes. Tighten the knobs. (Fig. 4 & 5)
2) Insert bar into arm
3) WrapVelcro®to secure
6) CamLock™ 7) Face rest positioning
4) Face rest knob 5) Vertical adjustments
Face rest
CamLocks
Arm rest
Arm rest buckle
& strap
Horizontal bar &
locking arm
Chest Pad
Seat
Knee
Pads
Face rest
knobs
Personal item
storage shelf

PORTAL LIGHT OWNER’S MANUAL CONT...
Page 2 of 2
1. You will need to lift or lower the arm rest until your client’s fore-
arms rest comfortably on the pad and his/her shoulders are
relaxed.
2. To lower the arm rest, lift the buckle and extend the strap. (Fig. 8)
3. To raise the arm rest, pull on the strap. (Fig. 9)
ARM REST ADJUSTMENTS
• Note: The arm rest is designed to support the weight of your cli-
ent’s forearms. Do not allow your clients to push against the arm
rest to lift themselves out of the chair. The arm rest will not sup-
port your client’s full weight.
1. Unlock Velcro®from around the inserted bar and remove bar from
locking arm. (Fig. 13 & 14)
2. Raise pivot section and push up on arm rest. (Fig. 15).
Tighten arm rest strap.
3. Remove face rest crescent, loosen the face rest knobs & CamLocks,
raise the face rest & fold forward over chest pad. Replace crescent.
Tighten knobs and CamLocks. (Fig. 16)
FOLDING YOUR MASSAGE CHAIR
8) Lengthen Strap 9) Tighten Strap
15) Fold up the chair
14) Remove Bar
13) Unwrap Velcro®
17) D-Ring
16) Fold head rest
Your Portal Light will arrive with the seat height at the standard position.
If you prefer the have the seat lower or higher, simply adjust as follows:
1. Locate angled adjustment block under the seat support, lift seat
slightly, pull to separate the block from theVelcro®. (Fig. 10)
2. To lower the seat, move the angled adjustment block back towards
the seat area (thin side of adjustment block). (Fig. 11)
3. To raise the seat, move the angled adjustment block away from the
seat area (thick side of adjustment block). (Fig. 12)
4. Push block against seat support to re-attach to the Velcro®.
SEAT HEIGHT ADJUSTMENT
11) To lower the seat
12) To raise the seat
10) Angle adjustment
block
1. To carry your chair with the carry strap,
First, fold the chair as instructed above.
Attach the carry strap to the D-Rings on
the frame of the chair. (Fig. 17)
2. Lift the chair by holding onto one of the
main frame tubes & place the strap on
your shoulder. (Fig. 18)
CARRYING YOUR CHAIR WITH STRAP
18) Carry position

Manual Part Number: MMMNPP0002-EN / MA-Eng-PM-40
Revision Level: 1
Revision Date: 12/16/2022
English, Printed in USA
OAKWORKS®
Portal Light
USER MANUAL
CONTACT INFORMATION:
Oakworks®Inc.
923 East Wellspring Road
New Freedom, PA USA 17349
Phone: [phone]
FAX: [phone]
www.oakworks.com
CLEANING & DISINFECTION
Reference the Recommended Cleaners and Disinfectant
list (MMINML0008-EN) that came with the product or on our
website www.oakworks.com under product information.
CAUTIONCAUTION
MAXIMUM WORKING LOAD RATING
300 LBS. (136 KG)
