Safety information
Pos: 39 /Alle Produk te/Sicherheit/S IC Sicherheitshinwei se Einleitung @ 7\mod_1205 310799730_121.doc @ 45453
The company OASE has built this unit according to the state of the art and the valid safety regulations. Despite the
above, hazards for persons and assets can emanate from this unit if it is used in an improper manner or not in accor-
dance with its intended use, or if the safety instructions are ignored.
Pos: 40 /Alle Produk te/Sicherheit/S IC Kinder und Jugendliche un ter 16 Jahren @ 6\mod_119635 6502951_121.doc @ 41194
For safety reasons, children and young persons under 16 years of age as well as persons who cannot recognise
possible danger or who are not familiar with these operating instructions, are not permitted to use the unit.
Pos: 41 /Pumpen/Sc hlammsauger/Aquama xStar t 2000, 3500, 5500, 8500/ Die Kombination von W asser Aquamax Start 2000-85 00 @ 4\mod_1156401100694 _121.doc @ 24613
The combination of water and electricity can lead to danger to life and limb, if the unit is incorrectly connected or
misused. Only operate the unit if no persons are in the water! Prior to reaching into the water, always disconnect the
power supply to all units used in the water. Compare the electrical values of the power supply with those on the type
plate on the packaging or on the unit itself. Ensure that the unit is fused for a rated residual current of max. 30 mA via a
residual current-operating system. Only operate the unit when plugged into a correctly fitted socket. Keep the power
plug and all connection points dry! Protect the connection cable when burying to avoid damage. Only use cables,
equipment, adapters, extension or connection cables with an earthed contact and approved for outside use. Do not
carry or pull the unit by the connection cable! Never operate the unit if the cable or housing are defective! Aquamax
3500, 5500, 8500: In case the mains connection cable of the unit is damaged, have it replaced by the manufacturer or
the customer service in order to prevent hazards. Aquamax 2000: This unit does not allow a change of the power
cable! If the cable is damaged, the entire unit has to be disposed of. Electrical installations at garden ponds must meet
the international and national regulations valid for installers. Never open the unit housing or its attendant components,
unless this is explicitly mentioned in the operating instructions. Never carry out technical changes to the unit. Only use
original spare parts and accessories. Only allow authorised customer service outlets to perform repairs. Never run the
unit without water! Never use the pump for fluids other than water! For your own safety, consult a qualified electrician if
you have questions or encounter problems!
Pos: 42 /Pumpen/Sc hlammsauger/Aquama xEC O/Elektrischer Ansc hluss Aquamax ECO @ 0\mod_1126 270337051_121.doc @ 3961
Electrical connection
Only entrust an authorised expert to carry out the electrical connection in accordance with the German EVU and VDE.
VDE 0100 Part 702 is valid for all installations. Refer to the type plate for all capacity parameters. Only perform any
work on the unit when isolated!
Pos: 43 /Pumpen/Sc hlammsauger/Aquama xStar t 2000, 3500, 5500, 8500/ Inbetriebnahme Aqua maxS tart 3500-8500 @ 4\mod _1154689266694_121.doc @ 22913
Start-up
Attention! Never operate the unit without filter basket or without water!

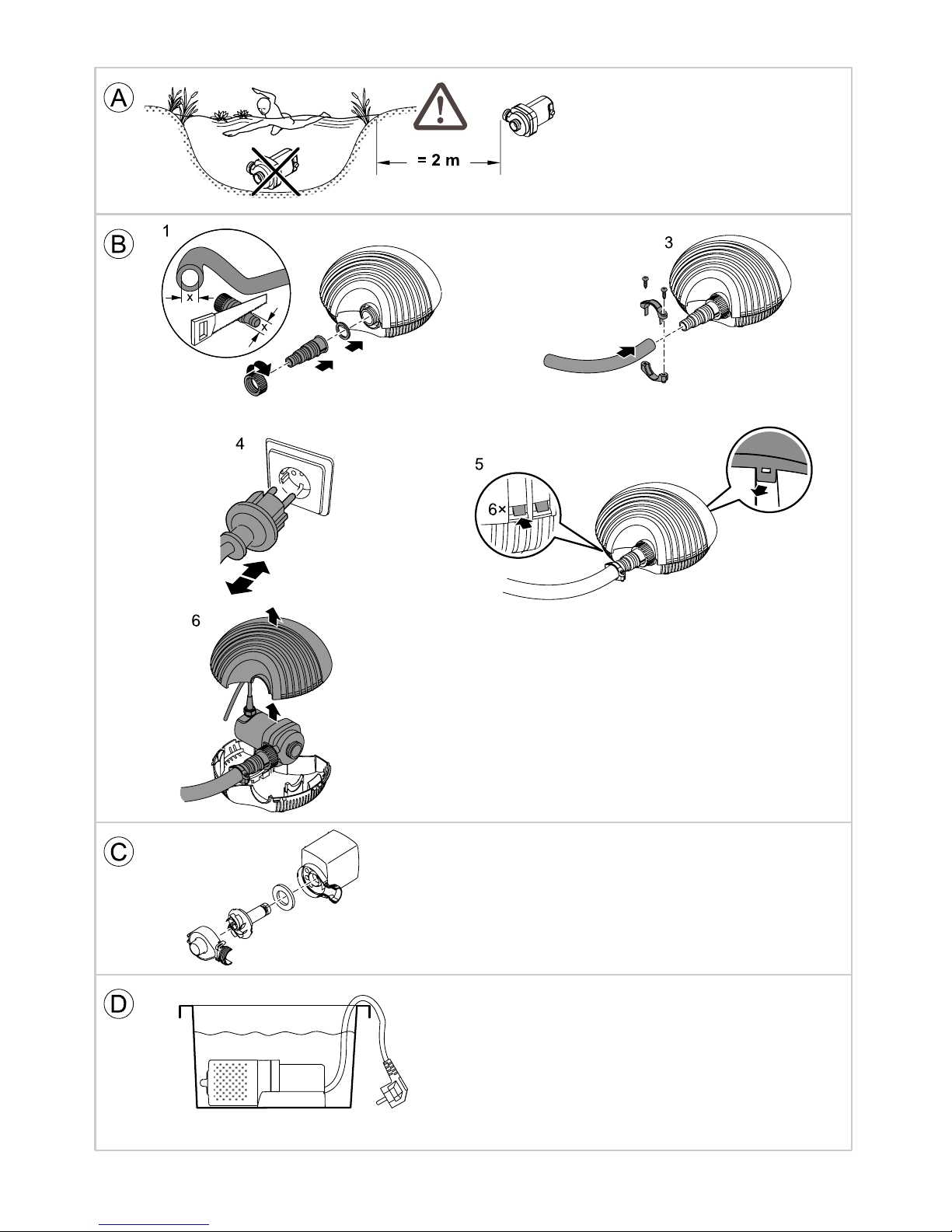

Only use the unit in its horizontal position and ensure stable seating on a firm ground. The unit must be positioned
below the water surface level. Connect the hose and fasten it with a hose clip (B3). The unit switches on automatically
when connected to power.
Pos: 44 /Pumpen/Sc hlammsauger/Aquama xStar t 2000, 3500, 5500, 8500/ Reinigung Aquama xStar t 3500-8500 @ 4\mod_115469 0253622_121.doc @ 22939
Maintenance and cleaning
Attention! Always disconnect the power supply prior to starting cleaning and maintenance work!
Important! Aquamax 3500, 5500, 8500: Never open the pump yourself! Contact a qualified electrician if the
rotor is blocked by soiling!
Aquamax 3500, 5500, 8500: Should the capacity drop, clean the filter housing under running water using a soft brush.
Pull the power plug prior to starting cleaning. Undo the screw at the underside of the strainer casing (B5) and remove
the casing. Disengage the retaining clamps (B5) and take the pump out of the strainer casing (B6). Clean the pump
under running water using a soft brush. Remove soiling from the impeller vanes through the openings. Never open the
motor housing. Danger to life! After cleaning, fit the unit in the reverse order.
Aquamax 2000: Dismantle the pump (C) if the rotor is blocked by soiling: Screw off the pump housing. Pull out the
rotor, clean, check and, if necessary, replace. Reassemble in the reverse order.
Pos: 45 /Pumpen/Schlam msauger/ Aquamax Start 2000, 3500, 5500, 8500/Verschl eißteil Aquamax Start 2000-8500 @ 4\mod_115469 1067662_121.doc @ 23017
Wearing parts
Aquamax 2000: Impeller unit, foam filter and rear bearing are wear parts and are excluded from the warranty.
Pos: 46 /Pumpen/Sc hlammsauger/Aquama xStar t 2000, 3500, 5500, 8500/ Lagern/Überwintern A quamax Start 3500-8500 @ 4\ mod_1154690658895_121. doc @ 22965
Storage/Over-wintering
Remove the unit at temperatures below zero degrees centigrade. Thoroughly clean the unit, check for damage and
store immersed in water in a frost-free environment. Do not immerse the plug! (D)
Pos: 47 /Alle Produk te/Entsorgung - gem. Bes timmungen/Fachhänd ler @ 0\mod_112557852331 2_121.doc @ 1407
Disposal
Dispose of the unit in accordance with the national legal regulations.
Pos: 48 /Pumpen/Sc hlammsauger/Aquama xStar t 2000, 3500, 5500, 8500/ Störung Aquamax Start 35 00-8500 @ 4\mod_11546907 88719_121.doc @ 22991
S
Malfunction
Malfunction Cause Remedy
Pump does not start No mains voltage
Check mains voltage
Clean/check supply lines
Pump does not deliver Filter housing clogged Clean strainer casings
Reduce hose length to the necessary minimum,
do not use unnecessary connection parts
Insufficient delivered quantity Filter housing clogged
Excessive loss in the supply hoses
Clean strainer casings
Reduce hose length to the necessary minimum,
do not use unnecessary connection parts
Pump switches off after a short running time Excessively soiled water
Water temperature too high
Clean pump
Note maximum water temperature of +35°C
