Oase HeatUp 150 User manual

Fountain Pump 90 / 150
Operating instructions
Notice d’emploi
Instrucciones de uso

2
- English -
REMINDER
CALL 1-866-627-3435
BEFORE RETURNING TO STORE.

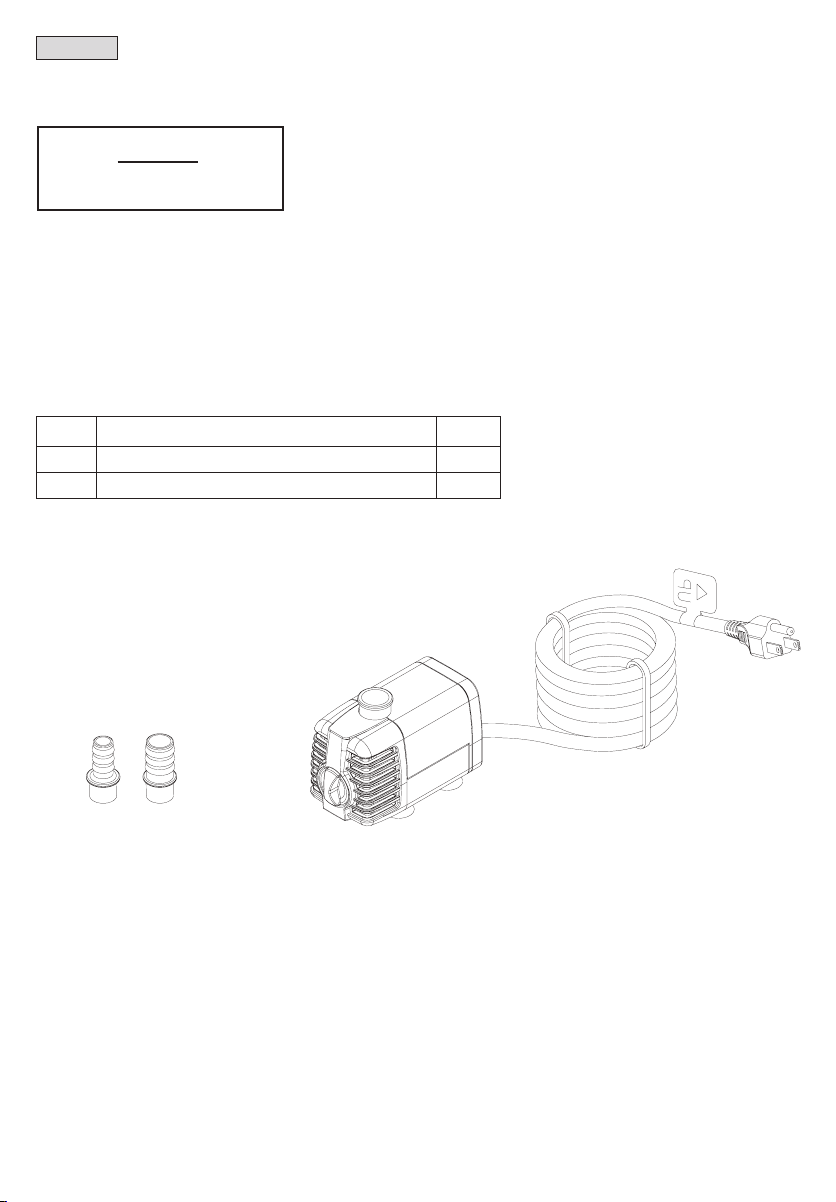

Part Description QTY
APump with ow control 1
B3/8 in. and 1/2 in. ID tubing adapter 1
Information about these operating instructions
Welcome to OASE Living Water. You made a great choice with the purchase of this product Fountain Pump 90 / 150. Prior
to operating the unit, please read the instructions of use carefully and fully familiarize yourself with the unit. Ensure that
all work on and with this unit is only carried out in accordance with these instructions. Please strictly follow the enclosed
instructions to ensure safe and correct handling of the product. Keep these instructions in a safe place. Please also hand
over the instructions when passing the unit on to a new owner.
B.
A.

- English -
3
2
Questions, problems, missing parts?
Before returning to your retailer, call us at 1-866-627-3435, 8 a.m.-6 p.m., EST, Monday-Friday, or email
us at [e-mail]. Or visit our website at www.oase-livingwater.com
WARNINGS AND CAUTIONS SYMBOLS
Symbols used in these instructions
The symbols used in this operating manual have the following meanings:
Risk of injury to persons due to dangerous electrical voltage.
This symbol indicates an imminent danger, which can lead to death or severe injuries if the appropriate measures are
not taken.
Risk of personal injury caused by a general source of danger.
This symbol indicates an imminent danger, which can lead to death or severe injuries if the appropriate measures are
not taken.
Important! The unit is equipped with a permanent magnet. The magnetic eld may affect the function of pacemakers.
Important information for trouble-free operation.
!
Intended use
Fountain Pump 90 / 150, referred to in the following as “unit”, may only be used as specied in the following:
• For pumping clean water in indoor and outdoor fountains, table fountains, and statues.
• Operation under observance of the technical data.
The following restrictions apply to the unit:
• Do not use in swimming pools.
• CAUTION - this pump has been evaluated for use with water only.
• Never run the unit without water.
• Do not use for commercial or industrial purposes.
• Do not use in conjunction with chemicals, food products, easily ammable or explosive substances.
• Do not connect to the domestic water supply.
• Do not exceed the voltage shown on the pump.
• Do not remove the grounding pin from the power cord plug.
• Inspect the power cord for damage before installation and maintenance.
• WARNING - To reduce the risk of an electric shock, use only on portable self-contained fountains no larger than 5 feet in
any direction.
Use other than that intended
This unit can be dangerous and cause harm if not used in accordance with these instructions. Any use not in accordance
with these instructions or modication(s) to the unit will void the limited warranty.
!

4
- English -
Installation
WARNING
Risk of electric shock – This pump is supplied with a grounding conductor and grounding-type attachment plug. To
reduce the risk of electric shock, be certain that it is connected only to a properly grounded, grounding-type
receptacle.

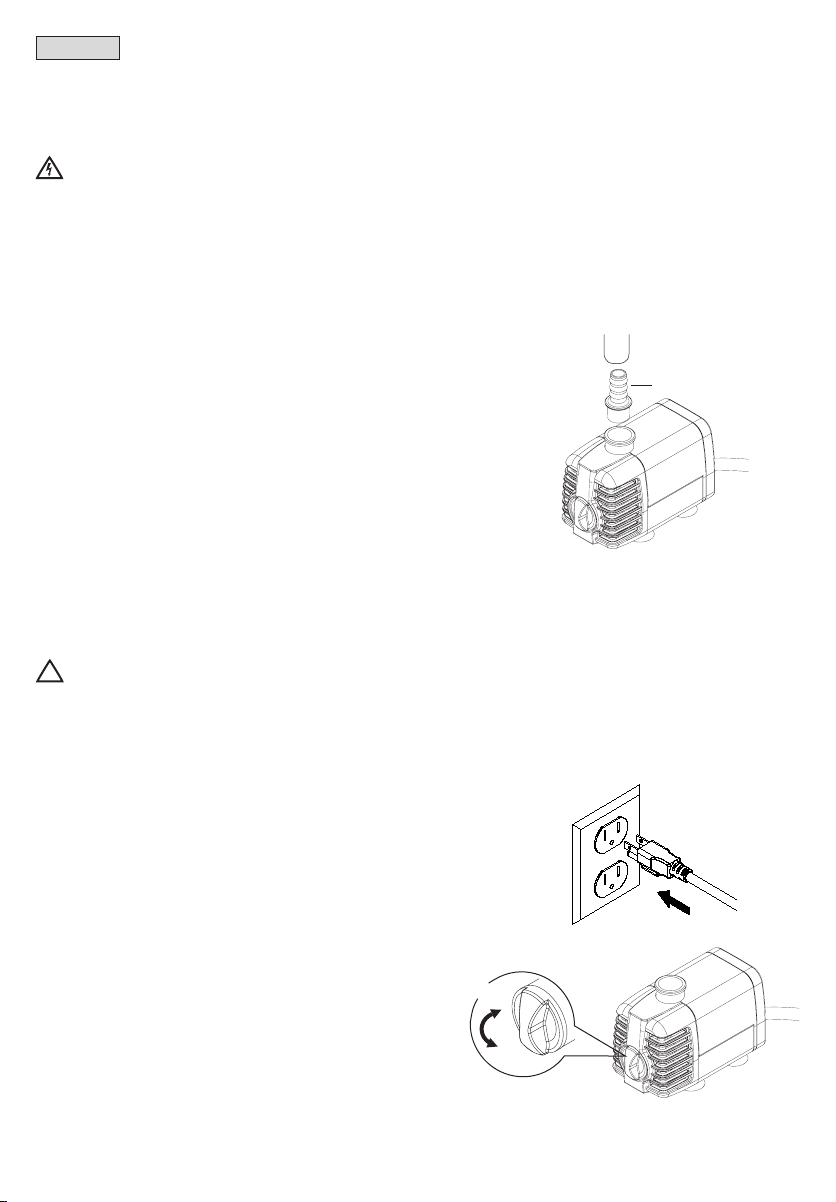

1. Attach the adapter to the pump rst, then connect the
appropriate tubing to the adapter.
NOTE: Tubing is NOT INCLUDED.
2. Attach the other end of tubing to desired fountain feature.
1.
1.
Start-up
Attention! The pump must never run dry.
Possible consequences: The pump will be destroyed.
Protective measures: Check the water level at regular intervals. Always place the unit below water level.
Install the unit so that it is not exposed to direct sun radiation (max. 104 ºF - 40 ºC).
!
Important:
● The unit switches on automatically when power connection
is established.
1. Switching on: Connect power plug to the socket.
2. Adjust the ow control to the preferred setting.
3. Switching off: Disconnect the power plug.
Important:
● Always place the unit below water level.
● It is recommened to place the unit horizontally on the ground ensuring its stable position.
● Do not lift the pump by its power cord.
Tubing
Adapter
Pump
2.+
-

- English -
5
4
Questions, problems, missing parts?
Before returning to your retailer, call us at 1-866-627-3435, 8 a.m.-6 p.m., EST, Monday-Friday, or email
us at [e-mail]. Or visit our website at www.oase-livingwater.com

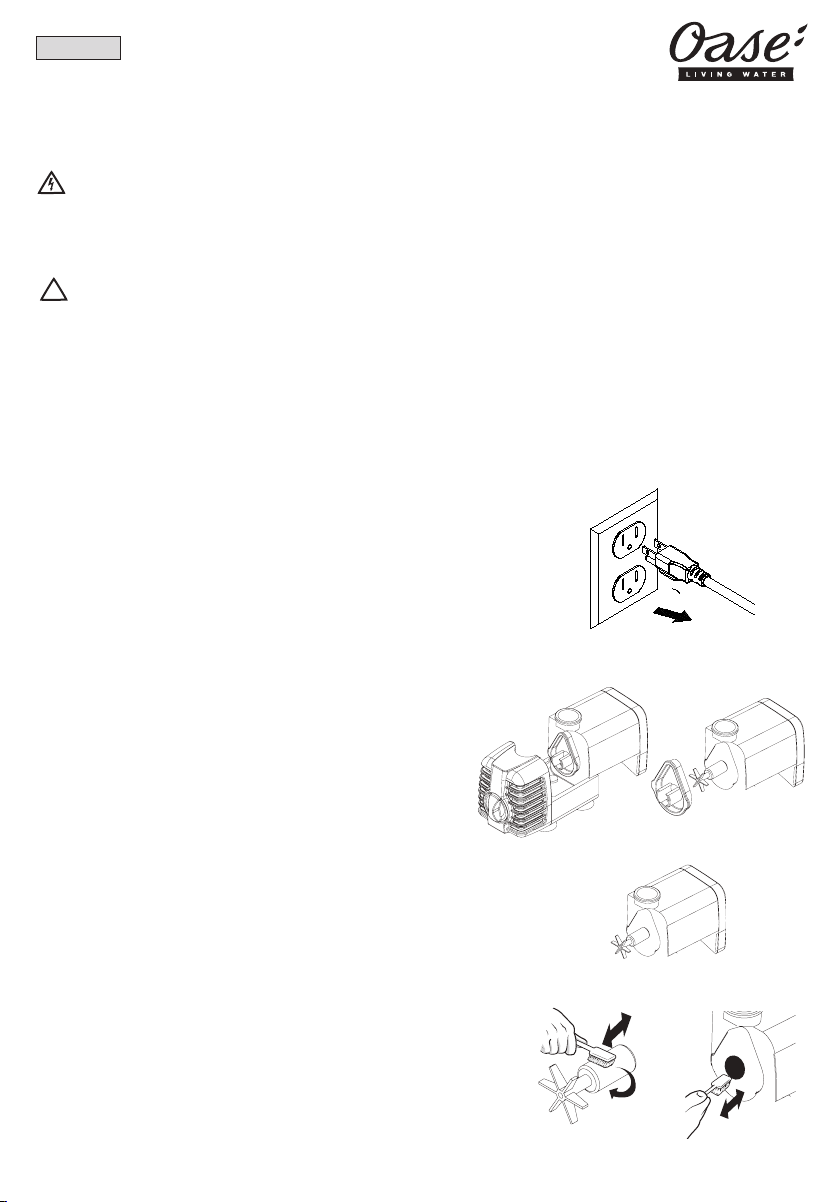

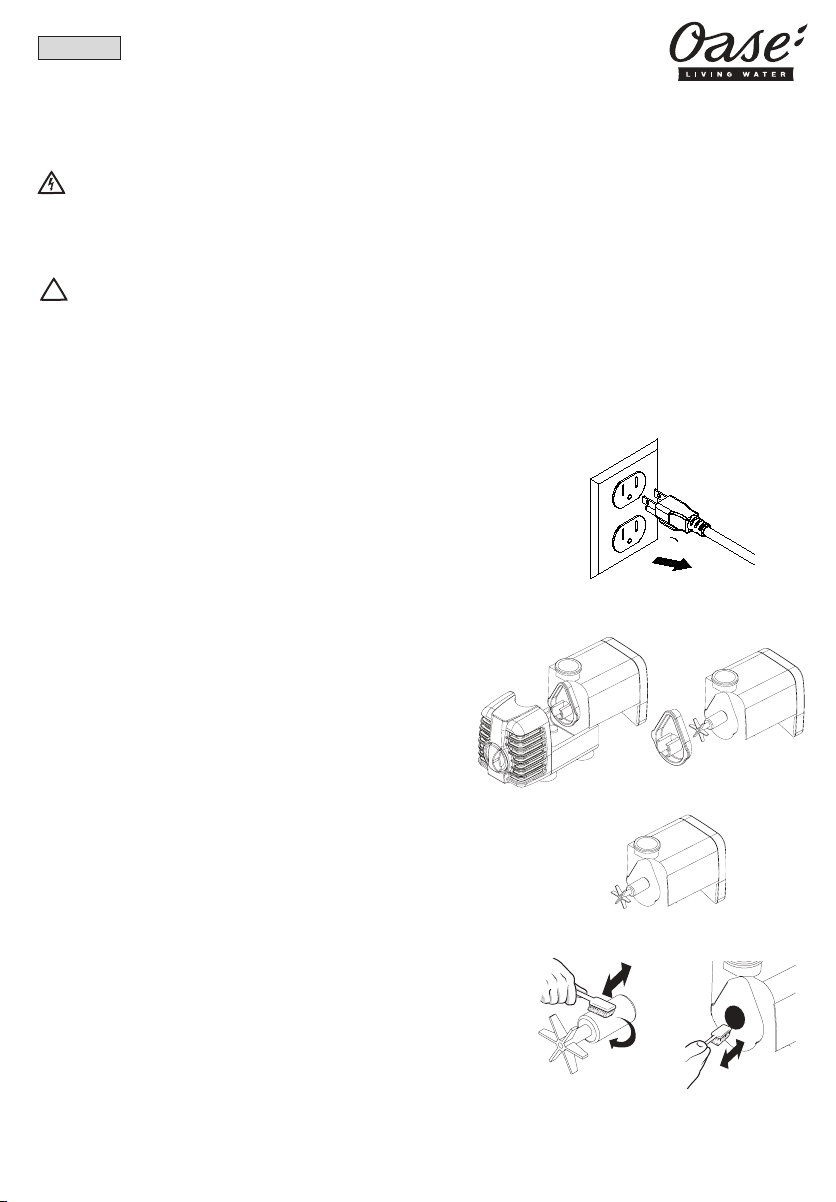

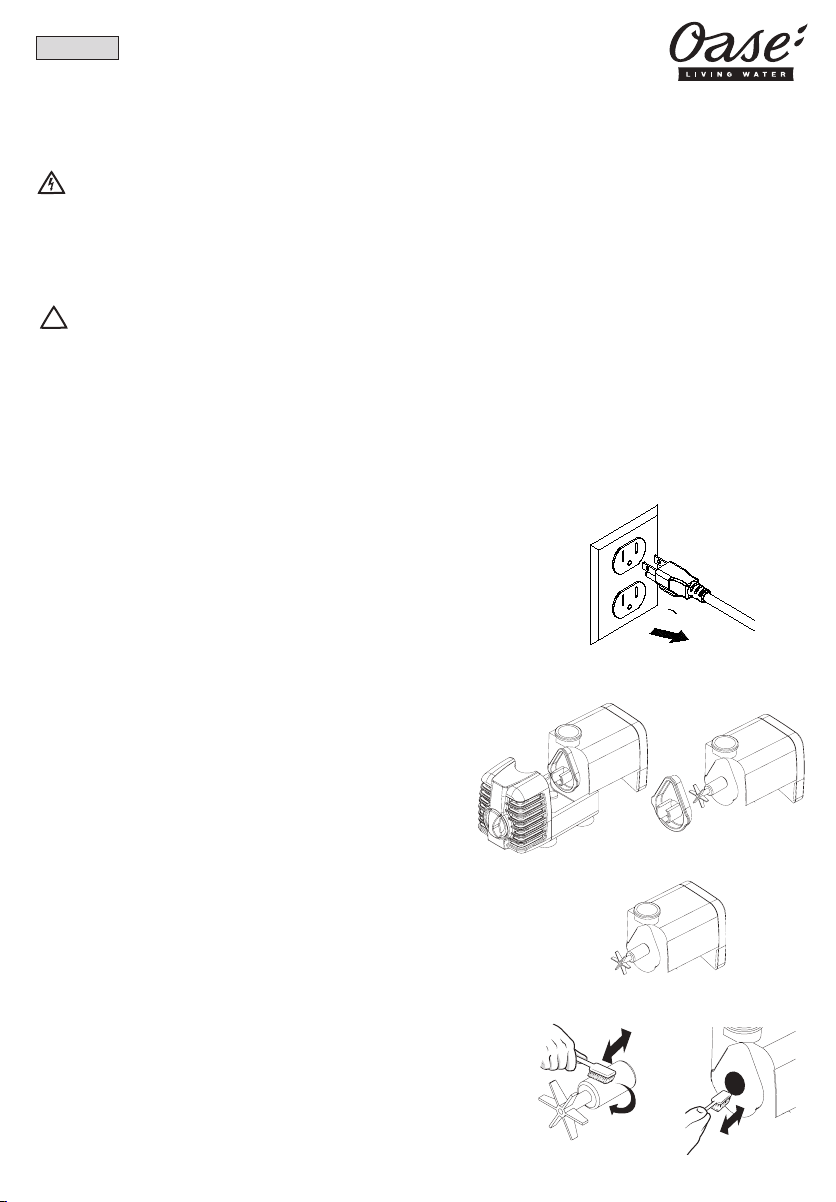

1.
Maintenance and cleaning
Attention! Dangerous electrical voltage.
Possible consequences: Death or serious injuries.
Protective measures:
• Electrical units and installations with a rated voltage of U > 12 V AC or U >30 V DC located in the water: Isolate the
units and installations (switch off and disconnect from the power supply) before reaching into the water.
• Isolate the unit before starting any work.
• Secure the unit to prevent unintentional switching on.
WARNING
This pump uses a very strong magnet to achieve superior performance. When removing the impeller assembly there
will be considerable magnetic force resisting the extraction of the impeller assembly. This is normal. Likewise when
replacing the impeller assembly there will be a strong magnetic force pulling the assembly into the pump to potentially
cause injury to ngers and in rare cases damaging the ceramic shaft or rear bearing. Use thick gloves when replacing
the impeller assembly.
Cleaning the unit
●Regular cleaning of the pump may be necessary depending
upon the environment in which it is operated. Clean the pump
when it is visibly soiled or when a drop in performance is
detected. Clean the unit with warm water using a soft brush.
●Never use aggressive cleaning agents or chemical solutions.
These could attack the housing surface or impair the function.
●In the event of stubborn furring (calcium deposits), a common
household cleaner free from vinegar and chlorine can be used.
Subsequently, clean the pump thoroughly using warm water.

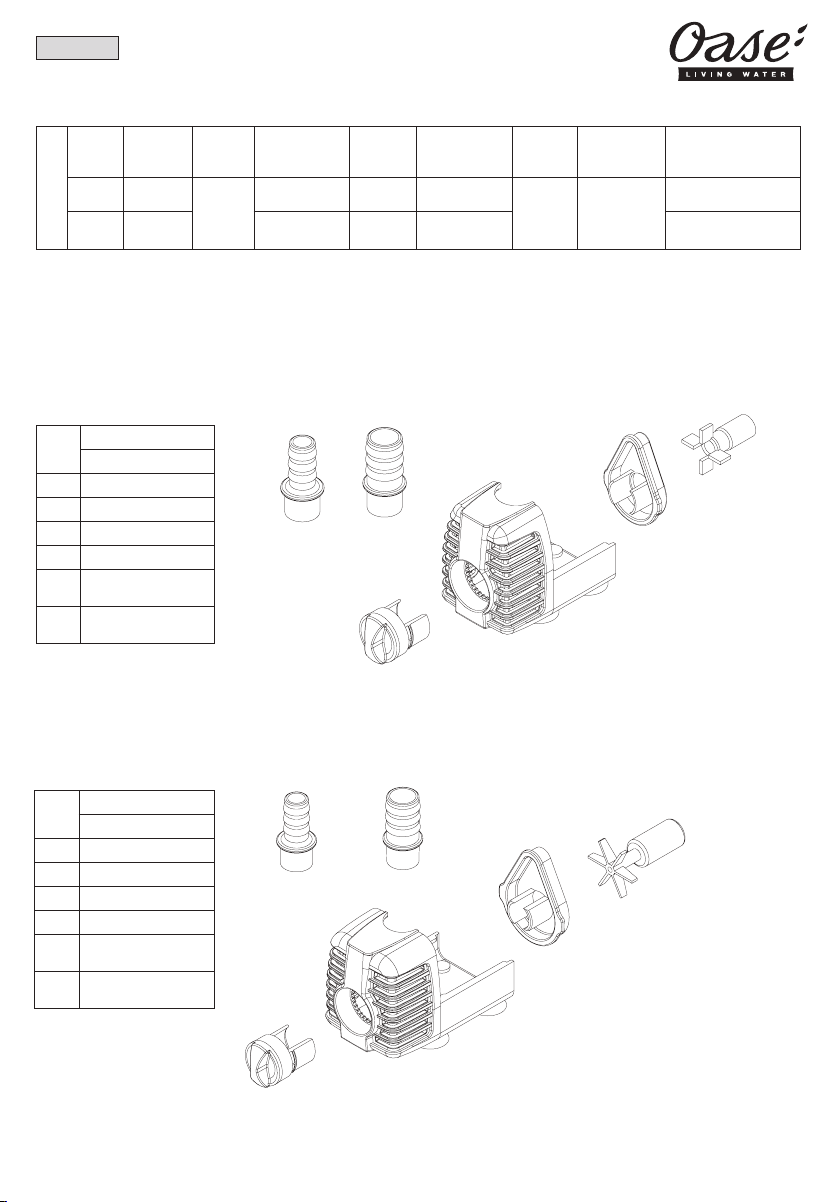

Cleaning the pump
1. Disconnect the pump from the power source.
○ Disconnect the tubing.
2. Remove the front cover and disassemble the impeller
cover to expose the impeller assembly.
3. Remove the impeller assembly by gently pulling on
the impeller blades.
4. Use a soft cloth or brush to clean the impeller assembly
and the inside of the impeller housing.
●Check parts for damages such as cracked rotor, shaft
or bearing, cracks in the magnet, and broken plastics.
Replace parts if necessary.
5. Reassemble in the reverse order.
2.
3.
4.
!
