OBO Bettermann isCon PR 90 SW User manual

OBO Bettermann Holding GmbH & Co. KG
Mounting
instructions
isCon®lightning protection system

© 2023 OBO Bettermann Holding GmbH & Co. KG
isCon®is a registered brand of OBO Bettermann Holding GmbH & Co. KG
isCon® lightning protection system
Mounting instructions

3 | DE
Mounting instructions isCon® lightning protection system
Table of contents
Table of contents
1 About these instructions . . . . . . . . . . . . . . . . . . . . . 5
1.1 Target group . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
1.2 Relevance of these instructions . . . . . . . . . . . . . . . . . . . . . . . . . 5
1.3 Types of warning information . . . . . . . . . . . . . . . . . . . . . . . . . . 5
1.4 Basic standards and regulations . . . . . . . . . . . . . . . . . . . . . . . . 5
1.5 Applicable documents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
2 Intended use . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
3 Safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
3.1 General safety information . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
3.2 Personal protective equipment . . . . . . . . . . . . . . . . . . . . . . . . . 7
4 Necessary tools . . . . . . . . . . . . . . . . . . . . . . . . . . 7
5 System description . . . . . . . . . . . . . . . . . . . . . . . .8
5.1 Basic principles . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
5.2 isCon® conductor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
5.3 Insulated air-termination rods . . . . . . . . . . . . . . . . . . . . . . . . . . 12
5.4 isCon® connection elements . . . . . . . . . . . . . . . . . . . . . . . . . . 14
5.5 System accessories for fastening . . . . . . . . . . . . . . . . . . . . . . . . 15
5.5.1 Tripod stand . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
5.5.2 Air-termination rod support for isFang mounting. . . . . . . . . . . . . . . . . . . . . 18
5.5.3 Holder for the isCon®-conductors . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
5.6 System accessories for connection . . . . . . . . . . . . . . . . . . . . . . . 21
6 Planning an installation . . . . . . . . . . . . . . . . . . . . 22
6.1 Schematic diagram of the isCon® system using the example of the isCon Pro+ 75 SW . 23
6.2 Calculating, checking and maintaining the separation distance . . . . . . . .25
6.3 Conductor lengths and lightning protection classes . . . . . . . . . . . . . .25
6.4 Installation in potentially explosive areas . . . . . . . . . . . . . . . . . . . .27
6.5 Soft-covered roofs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .29
7 Installing the isCon® system . . . . . . . . . . . . . . . . . . 30
7.1 Preparing the isCon® conductor . . . . . . . . . . . . . . . . . . . . . . . . .30
7.1.1 Shortening the isCon® conductor . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
7.1.2 Stripping the grey external jacket (isCon Pro+ 75 GR) . . . . . . . . . . . . . . . . . 30
7.1.3 Revealing the copper core for connection . . . . . . . . . . . . . . . . . . . . . . . . 31
7.2 Mounting isCon connection elements . . . . . . . . . . . . . . . . . . . . . .32
7.3 Assembling the air-termination rod with internal isCon® conductor . . . . . . .35
7.4 Assembling the air-termination rod with external isCon® conductor . . . . . . .39
7.5 Fastening the air-termination rod in the tripod stand . . . . . . . . . . . . . .42
7.5.1 Mounting the concrete base . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
7.5.2 Assembling the tripod stand . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
7.5.3 Fastening the air-termination rod in the tripod stand . . . . . . . . . . . . . . . . . . 44
7.6 Fastening the air-termination rod to pipes, a wall or T support . . . . . . . . .46
7.7 Routing the isCon® conductor . . . . . . . . . . . . . . . . . . . . . . . . . . 47

4 | DE OBO Bettermann
Table of contents
7.8 Attaching the potential connection . . . . . . . . . . . . . . . . . . . . . . .48
7.8.1 Installing the potential connection on an insulated air-termination rod . . . . . . . . . 48
7.8.2 Installing the potential connection on the end of the isCon® conductor . . . . . . . . . 50
7.8.3 Including the tripod stand in the functional equipotential bonding . . . . . . . . . . . . 53
7.8.4 Installing additional potential connections . . . . . . . . . . . . . . . . . . . . . . . . 54
7.8.5 Creating additional equipotential bonding for isCon Pro+ in potentially explosive areas 55
8 Mounting variants . . . . . . . . . . . . . . . . . . . . . . . 57
8.1 Separate lightning protection ring conductor . . . . . . . . . . . . . . . . . . 57
8.2 Metallic roof parapet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .58
8.3 Internal and external isCon® conductor . . . . . . . . . . . . . . . . . . . . .59
8.4 Lightning protection class I . . . . . . . . . . . . . . . . . . . . . . . . . . .60
8.5 isCon® conductor included in the ring conductor . . . . . . . . . . . . . . . . 61
8.6 Touch protection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61
9 Checking the lightning protection system . . . . . . . . . . 63
9.1 Carrying out a visual inspection . . . . . . . . . . . . . . . . . . . . . . . . .63
9.2 Carrying out a continuity and insulation test . . . . . . . . . . . . . . . . . .64
9.2.1 Carrying out a continuity test . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 64
9.2.2 Carrying out an insulation test . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 64
10 FAQ . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 66

5 | DE
Mounting instructions isCon® lightning protection system
About these instructions
1 About these instructions
1.1 Target group
These mounting instructions are intended for specialists, who are quali-
fied to erect lightning protection systems, e.g. lightning protection spe-
cialists. These specialists must know the lightning protection standards
applicable at the mounting location, as well as the generally recognised
rules of technology.
1.2 Relevance of these instructions
These instructions are based on the standards valid at the time of
compilation (November 2022).
Please read the instructions carefully before starting mounting. We will
not accept any warranty claims for damage caused through non-obser-
vance of these instructions.
Any images are intended merely as examples. Mounting results may look
different.
All the documents supplied with the product must be stored in an easily
accessible location, so as to be available when information is required.
To find out more about planning and mounting the product, we recom-
mend a comprehensive training course.
1.3 Types of warning information
Type of risk!
Shows a risky situation. If the safety instruction is not observed, then
serious or fatal injuries may occur.
Type of risk!
Shows a risky situation. If the safety instruction is not observed, then
medium or minor injuries may occur.
Type of risk!
Shows a hazardous situation. If the safety instruction is not observed,
then damage to the product or the surroundings may occur.
Note! Indicates important information or assistance.
1.4 Basic standards and regulations
– DIN EN 62305-1 ED2 (IEC 62305-1, VDE 0185-305-1),
Protection against lightning Part 1: General principles
– DIN EN 62305-2 ED2 (IEC 62305-2, VDE 0185-305-2),
Protection against lightning Part 2: Risk management
WARNING
CAUTION
ATTENTION

6 | DE OBO Bettermann
Intended use
– DIN EN 62305-3 ED 2(IEC 62305-3, VDE 0185-305-3),
Protection against lightning ‒ Part 3: Protection of structural facilities
and persons
– DIN EN 62305-4 ED 2 (IEC 62305-4, VDE 0185-305-4),
Protection against lightning ‒ Part 4: Electrical and electronic systems
within structures.
– DIN EN 62561-1 ED 2 (IEC 62561-1, VDE 0185-561-1),
Lightning protection system components – Part 1: Requirements for
connection components
– DIN EN 62561-2 ED2 (IEC 62561-2, VDE 0185-561-2),
Lightning protection system components – Part 2: Requirements for
conductors and earth electrodes
– DIN EN 62561-4 ED2 (IEC 62561-4, VDE 0185-561-4),
Lightning protection system components – Part 4: Requirements for
conductor fasteners
– DIN 18014, Foundation earth electrode
– VDE V 0185-561-8 (IEC TS 62561-8:1-2018), Lightning Protection
System Components (LPSC) – Part 8: Requirements for components
for isolated LPS
– DIN 18531-1, Waterproofing of roofs, balconies and walkways – Part
1: Non-utilised and utilised roofs – Requirements and principles for
execution and design
– IEC 60332-1-2, Tests on electric and optical fibre cables under fire
conditions – Part 1–2: Test for vertical flame propagation for a single
insulated wire or cable
* Date of standards: February 2022
1.5 Applicable documents
– For declarations of conformity, see www.obo-bettermann.com
2 Intended use
The OBO isCon® system is a lightning protection system for the external
lightning protection of buildings and systems, which, in the case of direct
lightning strikes, can arrest the lightning surge currents into the earth,
thus protecting the building, the system and people against the impacts
of the lightning strike, e.g. fires, mechanical building damage and lethal
impulse voltage/currents.
The lightning protection system is not designed for extreme weather
conditions, such as continuous hail, snow or sandstorms. Such weather
conditions can seriously reduce the lifespan of the isCon® system.
The system is not designed for any other purpose than the one de-
scribed here. If the system is installed and used for another purpose, any
liability, warranty or damage claims shall be rendered null and void.
If you require information on the use of the OBO isCon® system for
something other than under the conditions of use described here, please
speak to your OBO contact.

7 | DE
Mounting instructions isCon® lightning protection system
Safety
3 Safety
3.1 General safety information
Observe the following general safety information:
– The work may only be carried out by lightning protection specialists
who have been trained for the installation of standard-conformant
lightning protection systems.
– If there is a lightning strike, lethal currents can flow through the light-
ning protection system. Never work on the elements of the lightning
protection system during a thunderstorm or if there is a risk of one.
– Lethal voltages can occur during the handling of electrical resources.
Never work on parts through which power is flowing. Wear suitable
protective clothing and comply with all the required safety guidelines.
– To install the OBO isCon® system, use only components of the OBO
product range, as otherwise there is no guarantee that safe installa-
tion is possible.
– The production method means that metallic objects may have areas
with sharp edges. Wear suitable protective gloves to avoid cutting
injuries.
– When erecting systems for maintaining electrical functionality, take
the necessary fire protection regulations into account. These in-
structions do not mention any fire protection standards which are
to be complied with. The OBO fire protection guide (article number:
9134859) provides more information on this. The conductor system
and any possible fire insulation must be matched.
– Take the risk of flooding, local fire prevention measures, accident pre-
vention regulations and rescue routes at the location into account.
3.2 Personal protective equipment
List of personal protective equipment to be used:
Use hand protection
Wear safety shoes
4 Necessary tools
List of required tools:
– isCon stripper 2
– Cable knife
– Spanner

8 | DE OBO Bettermann
System description
5 System description
5.1 Basic principles
Without any additional countermeasures, the high voltage pulses which
occur when there is a direct lightning strike will cause arcing on insu-
lation surfaces. This effect is termed a creep flashover. When the so-
called creep discharge inception voltage has been exceeded, surface
discharge is initiated, which can bridge a gap of several metres. To avoid
dangerous arcing between conductive parts (electrical systems, pipe-
lines, etc.), the maintenance of the separation distance is a key require-
ment when planning and implementing a lightning protection system.
These days, the roof level of building complexes is used as an installa-
tion area for air-conditioning, ventilation, transmission and energy collec-
tion systems, meaning that the structural features may be in the way of
the required spacing between the air-termination systems and the elec-
trical installations.
The isCon® insulated lightning protection system is used to maintain the
required separation distance. Depending on the design, after the first
potential connection behind the connection element on the air-termina-
tion rod, the isCon® conductor reflects an equivalent separation distance
of up to 0.45‒0.9 metres in the air or double that in solid matter. This
means that installation is possible directly on metallic and electric-
al structures. If there is a direct lightning strike, the incoming energy is
arrested through the isCon® conductor to the building's earthing system.
There is no direct arcing between the conductor and the building to be
protected.
The isCon® system is tested according to VDE V 0185-561-8 (IEC TS
62561-8) and has an arresting capacity of 150‒200 kA lightning surge
current (10/350 μs), depending on the conductor. It consists primarily of
the following components:
– isCon® conductor
– Insulated air-termination rods
– isCon® connection elements
– System accessories for fastening (tripod stand, support and holder)
– System accessories for connection

9 | DE
Mounting instructions isCon® lightning protection system
System description
5.2 isCon® conductor
According to DIN EN 62305-3/VDE 0185-305-3/IEC 62305-3, the insu-
lated isCon® conductor implements a separation distance of 0.45‒0.9
metres in the air and 0.9‒1.8 metres in the case of solid materials,
depending on the product design. The isCon® conductor is equipped
with an external semi-conductive jacket, allowing it to limit high lightning
voltage pulses against a reference potential by creating a connection
between the external semi-conductive jacket and the building's equipo-
tential bonding, which is not energised with lightning current, in the area
of the connection element.
The isCon® conductor is flame-resistant according to DIN EN 60332-1-2,
weather-resistant and halogen-free. It is suitable for routing in external
areas and can be routed on roofs, in walls, in concrete, in facade instal-
lations or in buildings.
The isCon® conductor is sold by the metre and in five variants:
Conductor type Feature Article number
isCon PR 90 SW (Premium) Black 5408018
isCon Pro 75 SW (Professional) Black 5408008
isCon Pro+ 75 SW
(Professional plus)
Black 5408002, 5408004,
5408006
isCon Pro+ 75 GR Grey 5407995, 5407997
isCon BA 45 SW (Basic) Black 5408014
Tab. 1: Product variants, isCon® conductor
The grey isCon® conductor is also suitable for routing in the earth. The
grey conductor was tested according to VDE 0185-305-3 (IEC/EN 62305-
3) with a pulse voltage of min. 100 kV (1.2/50 μs) in rain and can be used
up to a length of max. 5 m for touch protection. If the conductor is not
used as touch protection, then coloured painting, e.g. with facade paint,
is also possible. As the external grey jacket is non-conductive, it must be
removed in the contact areas.

10 | DE OBO Bettermann
System description
Fig. 1:
35 mm²
Ø 23 mm
Ø 26 mm
1
2
3
6
5
4
Schematic diagram of the isCon® conductors Pro+ 75 SW and Pro+ 75 GR
Fig. 2:
35 mm²
x
x = Ø 20 mm
(Pro 75 SW/BA 45 SW)
x = Ø 23 mm
(PR 90 SW)
1
2
3
4
Schematic diagram of the isCon® conductors Pro 75 SW, BA 45 SW and PR 90
SW
Legend:
1 Round conductor, multi-wire, 35 mm2, Cu
2 Inner conductive layer
3
Insulation
4
Black, weakly conductive layer
5
Protective jacket
6 External jacket, grey
The isCon® conductor may only be connected to air-termination rods or
forwarding systems using system-tested OBO connection elements (see
also “5.4 isCon® connection elements” on page 14).

11 | DE
Mounting instructions isCon® lightning protection system
System description
Type isCon BA 45
SW
isCon Pro 75
SW
isCon Pro+
75 SW
isCon Pro+
75 GR
isCon PR
90 SW
Colour Black Black Black Grey Black
Equivalent separation
distance, air (cm)
≤ 45 ≤ 75 ≤ 75 ≤ 75 ≤ 90
Equivalent separation
distance, solid materials (cm)
≤ 90 ≤ 150 ≤ 150 ≤ 150 ≤ 180
Equivalent separation
distance, mixed materials See EN 62305-3
External diameter ~ 20 mm ~ 20 mm ~ 23 mm ~ 26 mm ~ 23 mm
Round conductor, multi-wire,
Cu 35 mm2
Cable weight ~ 0.570 kg/m ~ 0.570 kg/m ~ 0.694 kg/m ~ 0.868 kg/m ~ 0.666
kg/m
Temperature range for
routing Min. –5 °C, max. 40 °C
Operating temperature Min. –30 °C, max. 70 °C
Bend radius Min. 200 mm Min. 200 mm Min. 230 mm Min. 260 mm Min. 230
mm
Maximum tensile load 1, 750 N
Routing in the earth No No No Yes No
Can be painted No No No Yes
(does not
apply when
used as touch
protection)
No
Touch protection No No No Yes No
Weathering resistance
(UV-stabilised)
Ozone resistant according to DIN EN 60811-2-1 Section 8
Sunlight Resistance Test according to UL 1581 Section 1200
Coldness impact resistance according to DIN EN 60811-1-4 Section 8.5
Fire load (kWh/m) 3.3 4.3 5.1 4.2
Fire behaviour
Self-extinguishing
n/a n/a Yes Yes n/a
Lightning current carrying
capacity (class/Iimp (kA)
H1/150 H1/150 H1/150 H2/200
Testing certificate according
to IEC TS 62561-8 Yes
Halogen-free Yes
Softener None
Tab. 2: Technical data of the isCon® conductors

12 | DE OBO Bettermann
System description
5.3 Insulated air-termination rods
The insulated air-termination rods of the isCon® system come in three
parts and consist of the air-termination rod (length 1,000 mm), the insu-
lated central rod (length 1,500 mm) and the retaining rod.
Fig. 3:
1
2
3
Air-termination rod components
Legend:
1
Air-termination rod
2
Insulated central rod
3
Retaining rod
The metallic components of the rods are made of aluminium of stainless
steel (V2A).
The insulated central rod is made of glass-fibre reinforced
plastic (GRP) and allows sufficient spacing of the arresting compo-
nents (connection element at the bottom end of the air-termination rod)
to all roof structures. In addition, it guarantees a sufficient distance of
1,500 mm to the equipotential bonding, which is connected at the bottom
end of the insulated rod (see also Fig. 13 on page 21 No.
4
).

13 | DE
Mounting instructions isCon® lightning protection system
System description
The system comprises three types of air-termination rod. This means it
can be used in different mounting situations.

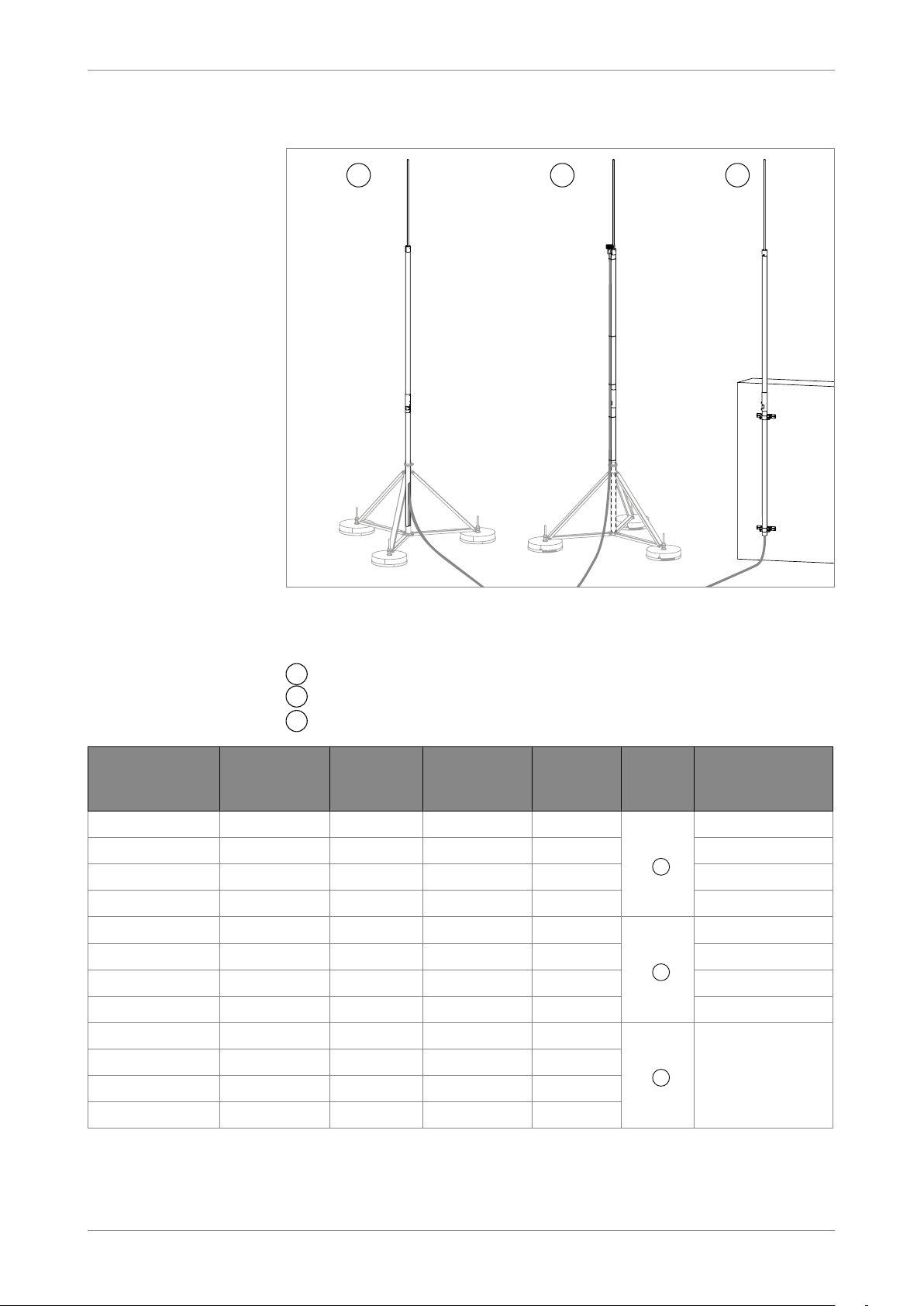

Fig. 4:
1 2 3
Three air-termination rod types (without potential connection)
Legend:
1 Air-termination rod with internal isCon® conductor and side exit
2 Air-termination rod with external isCon® conductor
3
Air-termination rod with internal isCon® conductor and bottom exit
Type Article
number
Overall
length
[m]
Diameter
[mm] Material Type (Fig. 4)
Corresponding
air-termination
rod stand
isFang IN-A L4 5408874 4,000 50 Alu/GRP
1
isFang 3B-100-A
isFang IN-A L6 5408876 6,000 50 Alu/GRP isFang 3B-150-A
isFang IN-A L8 5408878 8,000 50 Alu/GRP isFang 3B-250-A
isFang IN-A L10 5408880 10,000 50 Alu/GRP isFang 3B-250-A
isFang 4000 AL 5408943 4,000 40 Alu/GRP
2
isFang 3B-100 AL
isFang 6000 AL 5408947 6,000 40 Alu/GRP isFang 3B-150 AL
isFang 4000 5408942 4,000 40 V2A/GRP isFang 3B-100
isFang 6000 5408946 6,000 40 V2A/GRP isFang 3B-150
isFang IN L4 5408854 4,000 50 Alu/GRP
3
To be fastened
with support
system
isFang IN L6 5408856 6,000 50 Alu/GRP
isFang IN L8 5408858 8,000 50 Alu/GRP
isFang IN L10 5408860 10,000 50 Alu/GRP
Tab. 3: Technical data of the isCon® air-termination rods
Contact OBO Customer Service about other air-termination rod variants.

14 | DE OBO Bettermann
System description
5.4 isCon® connection elements
Using the isCon® connection element, you can connect OBO isCon® con-
ductors to forwarding systems, e.g. to the insulated OBO isFang air-ter-
mination rod system or to a separate ring conductor or earthing system
using a connection terminal. At the same time, an electrical connection
is created between the copper core and the black, weakly conductive
layer or protective jacket of the isCon® conductor. The grub screws in
the connection element are pre-coated with a reactive screw lock made
of two components. The components of the coating react automatically
on turning in and stick down the grub screws. If the screws are released
once more, the components are separated again and the grub screws
are locked again the next time they are screwed in. The screw lock is
fully hardened after six hours.
The isCon IN... connection elements allow the connection of internal
isCon® conductors in isFang air-termination rods.
The isCon ASE 23 and isCon ASE IN 23 possess an adaptive switching
element (ASE), which allows an insulation test.
Fig. 5:
1
2
3
4
isCon connection elements
No. Product Type Item no. Features
1Connection element isCon connect
isCon con 2
isCon con PRE
5408022
5408021
5408023
Connection elements for external isCon®
conductors
2Connection element with
adaptive switching element
isCon ASE 23 5408080 Connection elements for external isCon®
conductors with the option of insulation testing
3Connection element,
internal
isCon IN connect
isCon IN con 2
isCon IN con PRE
5408024
5408019
5408020
Connection elements for internal isCon conduc-
tors
4Connection element with
adaptive switching element,
internal
isCon ASE IN 23 5408082 Connection elements for internal isCon®
conductors with the option of insulation testing

15 | DE
Mounting instructions isCon® lightning protection system
System description
5.5 System accessories for fastening
Tripod stands (see section 5.5.1) or supports for wall or pipe mount-
ing (see section 5.5.2 on page 18) can be used to fasten the isCon®
air-termination rods. In addition, the system offers special holders for the
isCon® conductor (see section 5.5.3 on page 20).
5.5.1 Tripod stand
Fig. 6: Tripod stand with concrete blocks
The isCon® system contains folding tripod stands of different sizes, to
allow the isFang air-termination rods to be mounted on flat roofs, for
example. The tripod stands allow the erection of the air-termination rods
without penetrating the building structure with bolts/anchors.
Instead, the tripod stands are weighed down with FangFix concrete
blocks. The number of blocks required is dependent on the height of the
air-termination rod and the wind-speed zone.
Note! You can find further information on wind-speed zones in the OBO TBS
lightning protection guide (order no.: 9131970) and national directives.
The use of a tripod stand can compensate for a slope in the roof surface
of up to 5° (see also Fig. 44 on page 44). To protect the roof surface
and if there is the risk of softeners escaping from the roof film, it may be
wise to place a protective film/support mat under the concrete blocks of
the air-termination rod stand. We recommend contacting the roofer about
this.
Scope of delivery of the air-termination rod stand:
– Tripod stand
– Crossbar for potential connection with bolt, nut and lock washer
– Brief instructions

16 | DE OBO Bettermann
System description
Fig. 7:
D
B
L
H
Dimensions of the tripod stands, see Tab. 4
Type Article number
Dimension
B
mm
Dimension
D
mm
Dimension
L
mm
Dimension
H
mm
Mater-
ial
With side exit for internal isCon® conductor
isFang 3B-100-A 5408930 1,026 50 600 885 V2A
isFang 3B-150-A 5408932 1,500 50 900 1,275 V2A
isFang 3B-250-A 5408902 2,900 50 1,450 2,055 V2A
With bottom exit or for external isCon® conductor
isFang 3B-100 AL 5408966 1,000 40 600 885 Alu
isFang 3B-150 AL 5408967 1,500 40 900 1,275 Alu
isFang 3B-100 5408968 1,000 40 600 885 V2A
isFang 3B-150 5408969 1,500 40 900 1,275 V2A
Tab. 4: Technical data of the tripod stands
The isCon® concrete blocks weigh approx. 16 kg and are screwed to the
bottom of the unfolded tripod stand. The blocks can be stacked to in-
crease the stand weight (e.g. for increased wind speeds) (see Fig. 8 on
page 17). Additional blocks can mounted internally in the tripod stands
of diameter 1,500 mm (unfolded).

17 | DE
Mounting instructions isCon® lightning protection system
System description
Fig. 8: Increasing the stand weight by stacking the concrete blocks
Fig. 9:
1
2
3
4
5
Concrete block with fastenings
Legend:
1 Hexagonal nuts (with washers) for height compensation
2 Lock nut (with washer and plate)
3
Concrete block
4 Edge protection
5 Threaded rod

18 | DE OBO Bettermann
System description
Product Type Item no. Features Material
FangFix concrete
block
F-FIX-S16 5403227 Weight: 16 kg; Ø 365 mm;
stackable
Concrete, frost-resist-
ant
Edge protection
for concrete block
16 kg
F-FIX-B16 3B 5403238 Edge protection with gland hole Polyamide
Threaded rod isFang
3B-G1
5408971 270 mm, for 1 concrete block1) V2A
Threaded rod isFang
3B-G2
5408972 340 mm, for 2 concrete blocks1) V2A
Threaded rod isFang
3B-G3
5408973 430 mm, for 3 concrete blocks1) V2A
Threaded rod isFang
3B-G4
5408905 500 mm, for 4 concrete blocks1) V2A
Fig. 10: Technical data of the concrete blocks with accessories
1) Number of concrete blocks for mounting on flat surface. For height
compensation in an inclined position, select a longer threaded rod if
necessary (see Fig. 44 on page 44).
Nuts and washers are included in the scope of delivery of the threaded
rods.
5.5.2 Air-termination rod support for isFang mounting
Fig. 11:
1 2
200-300 mm
4
200 mm
200 mm
3
∅ 50-300 mm
100/200/300 mm
6
∅ 50-300 mm
5
∅ 40-50 mm
7
∅ 50-60 mm
8
max. 50 x 70 mm
9
Support for wall or pipe mounting of the isFang air-termination rods
No. Type Article
number
Ø isCon
air-termination rod
[mm]
Features Material
1
isFang TW30 5408952 40/50 Surface mounting, distance from wall
30 mm
V2A
2isFang TW80 5408950 40/50 Surface mounting, distance from wall
80 mm
V2A

19 | DE
Mounting instructions isCon® lightning protection system
System description
3isFang TW200 12 5408910 40/50 Surface mounting, distance from wall
200 mm
V2A
4
isFang TW200 5408954 40/50 Surface mounting, variable distance
from wall 200–300 mm
V2A
5
isFang TR100 5408956 40/50 Tightening strap clip for round construc-
tion pipes of Ø 50–300 mm; distance to
pipe 40 mm
V2A
5isFang TR100
100
5408955 40/50 Tightening strap clip for round construc-
tion pipes of Ø 50–300 mm; distance to
pipe 100 mm
V2A
5
isFang TR100
200
5408957 40/50 Tightening strap clip for round construc-
tion pipes of Ø 50–300 mm; distance to
pipe 200 mm
V2A
6isFang TR100
300
5408959 40/50 Tightening strap clip for round construc-
tion pipes of Ø 50–300 mm; distance to
pipe 300 mm
V2A
7
isFang TS40-50 5408958 40/50 Pipe ribbon clip for round construction
pipes of Ø 40–50 mm; distance to pipe
40 mm
V2A
8isFang TS50-60 5408960 40/50 Pipe strip clip for round construction
pipes of Ø 50–60 mm; distance to pipe
30 mm
V2A
9
isFang TS50x50 5408964 40/50 Pipe strip clip for round construction
pipes of max. 50 x 70 mm; distance to
pipe 30 mm
V2A
Tab. 5: Technical data of the isCon® supports

20 | DE OBO Bettermann
System description
5.5.3 Holder for the isCon®-conductors
Fig. 12:
5403 117
10 kg
1
23
6
5
4
7
8
Holder for the isCon® conductor
No. Product Type Item no. Features
1
Conductor holder for
isCon® conductor
isCon H VA
isCon H 26 VA
5408056
5408064
Ø 20 + Ø 23 mm; V2A
Ø 26 mm; V2A
2
VA conductor holder
with tightening strap
isCon HS VA
isCon HS 26 VA
5408052
5408068
Ø 20 + Ø 23 mm; V2A; 2 m tightening
strap
Ø 26 mm; V2A; 2 m tightening strap
3
PA cable holder with
tightening strap
isCon HS 26 PA 5408066 Ø 26 mm; PA grey; 2 m tightening strap
4
Terminal for steel
support with
1
, bolt
M16x6 and washer
TKI 13-6 1483587 Galvanised terminal with M6 internal
thread to fasten an isCon H VA conductor
holder with M16x6 bolt
5Roof conductor holder
with adapter and
M-Quick conductor
holder
165 MBG 8-10
165 MBG UH
M-Quick M25 SW
M-Quick M25 LGR
5218700
5218882
2153787
2153734
PA/PE roof conductor holder, filled with
frost-resistant concrete. Clamping range
of M-Quick conductor holder ..SW: 20–25
mm, for ...LGR: 25–32 mm
6
VA roof conductor
holder for pitched roof
isCon H280 VA
isCon H280 26 VA
5408047
5408074
Ø 20 + Ø 23 mm; V2A
Ø 26 mm; V2A
7PA roof conductor
holder for pitched roof
isCon H280 PA
isCon H280 26 PA
5408049
5408072
Ø 23 mm; PA black
Ø 26 mm; PA grey
8
Spacer for stand-off
routing of the isCon®
conductor
isCon DH 5408043 Material: GRP; clamping range Ø 23–26
mm; height 1,000 mm, can be shortened;
for mounting on FangFix concrete block,
10 kg, with edge protection
Tab. 6: Technical data of the holders for the isCon® conductor
