Ocular OCULAR IQ COMMERCIAL User manual

OCULAR IQ COMMERCIAL
IOCAW05C-7S/7T / IOCAW05C-22S/22T
INSTALLATION GUIDE
ocularcharging.com.au
[email protected]
1300 912 650

2
CONTENTS
Specications
Features
Product Overview
Safety Instructions
Installation
03
04
04
05
06
LCD Display Details
Troubleshooting
Maintenance & Repair
10
11
11
Tools Required
Overview of Steps
Step One - Check Box Contents
Step Two - Concrete Anchoring
Step Three - Power Cable Wiring
Step Four - Internet Connection
Step Five - Verify The Installation
Step Six - Secure Cover
READ THIS ENTIRE DOCUMENT BEFORE INSTALLING
OR USING THE CHARGER. FAILURE TO DO SO
OR TO FOLLOW ANY OF THE INSTRUCTIONS AND
WARNINGS IN THIS DOCUMENT CAN RESULT IN FIRE,
ELECTRICAL SHOCK, SERIOUS INJURY OR DEATH.
THE CHARGER MUST BE INSTALLED
BY A QUALIFIED ELECTRICIAN.
THE ENTIRE INSTALLATION MUST COMPLY WITH
THE LATEST “AS/NZS3000:2018 & AS/NZS:3008
STANDARDS”
IMPORTANT!

3
Model IOCAW05C-7S/7T IOCAW05C-22S/22T
Voltage and Wiring 230V AC single-phase:
LIVE, NEUTRAL, and EARTH.
400V AC three-phase:
L1, L2, L3, NEUTRAL, and EARTH.
Current and Power Maximum 32A and 7kW Maximum 32A and 22kW
Frequency 50-60 Hz
Internal RCD RCD Type-B
Data Protocol OCPP 1.6J
Charging Connector IEC62196 Type-2 socket or 5m type-2 cable
Buttons 1 x Physical Button
RFID ISO 14443 A/B
Display 7 inch LCD Display
Network Connectivity Ethernet, WLAN, optional 4G Cellular
Working Temperature -30°C to 50°C
Storage Temperature -40°C to 70°C
Working Humidity 5% - 95% without condensation
Dimension (H x W x D) 400 x 270 x 130 mm
Weight 12 Kg 12.5Kg
IP Rating IP55
Certications
SPECIFICATIONS
IEC/ EN 61851-1:2020, IEC/EN 61851-21-2, IEC/ EN 61000-3

4
FEATURES
Integrated RCD Type B
LCD Screen & RFID Reader
Self-Monitoring & Recovery
OCPP 1.6J Full Proles & Smart Charging Support
PRODUCT OVERVIEW
The Ocular IQ Commercial is designed to meet and comply with the AS/NZS3000:2018
Wiring Rules.
With an integrated RCD Type B, the installer will only need to install a Type A RCBO
at the distribution board.
The Ocular IQ Commercial is equipped with a 7 inch LCD screen allowing users to know the
status of the charger. Details about the LCD screen can be found on pages 10 – 12.
The Ocular IQ Commercial charger comes with an inbuilt RFID reader to allow for access control
to the charging station. The RFID Reader is compatible with all ISO 14443 A/B RFID Cards.
The charger will automatically resume charging after a minor fault such as OVP, UVP, OTP or
OCP with no user intervention required.
The charger supports OCPP 1.6J full proles, including the latest smart charging to balance
the load of charging stations with limited power supply.
11
2
3
4
5
6
Wi-Fi & 4G Antenna
LED Indicator
Optional Programmable Start/Stop Button
7” LCD screen
RFID card reader
Universal Type 2 Socket
2
4
5
3
6

5
WARNING!
CAUTIONS!
SAFETY INSTRUCTION
Do not install or use the charger near ammable, explosive, harsh,
or combustible materials, chemicals, or vapors.
Turn o input power at the circuit breaker before installing or maintaining.
Do not use or stop using the charger if it is defective, appears cracked, frayed, broken or other-
wise damaged, or fails to operate.
Do not attempt to open, disassemble, repair, tamper with, or modify the charger.
The charger is not user serviceable. Contact your installer for any repairs.
Do not use the charger when either you, the vehicle or the charger is exposed to
severe rain, snow, electrical storm or other inclement weather.
Do not touch the charger sockets with sharp metallic objects,
such as wire, tools or needles.
Do not put ngers into the charger sockets.
Do not use this charger if the EV charging cable is frayed, has broken insulation,
or displays any other indication of damage.
Do not use this charger if the enclosure or the EV charging connector is broken, cracked, open, or
shows any other indication of damage.
The charger should be installed only by a qualied electrician.
Make sure that the materials used and the installation procedures follow local building codes
and safety standards.
Incorrect installation and testing of the charger could potentially damage either the vehicle’s
Battery and/or the charger itself. Any resulting damage is excluded from the warranty for both
the vehicle and the charger. Do not operate the charger in temperatures outside its operating
range of -30°C to +50°C.
Ensure that the EV charging cable is positioned properly to the charging sockets.
Do not use cleaning solvents to clean any of the charger’s components.
Be careful not to damage the circuit board when removing the power entry knock-out.

6
Tools Required
Overview of Steps
If any components are damaged or missing, please contact your installer or Ocular charging.
EV Charger RCD Box Key x 1
Wall Mounting Bracket x 1
Screw M6*10 x 2
Screw M6*12 x 1 Dynabolts x 4
• Slotted #6 screwdriver
• Philips #2 screwdriver
• Electric drill
TURN OFF THE POWER SUPPLY.
Then follow these steps to install the Charger:
No. Steps
1
2
3
4
5
6
Check box contents.
Wall mounting with backplate or pole mounting on the pedestal.
Power cable wiring.
Internet connection.
Verify the installation.
Secure cover and power up.
Step 01 - Check Box Contents
INSTALLATION

7
Mount the backplate to the wall. Fix 2 x M6*10 screws to the back of the
EV Charger and hang on the backplate.
Fix the EV charger to the backplate
with M6*12 screw.
Step 02 - Wall Mounting
01. 02.
03.
INSTALLATION
Cross the power wires through
the bottom hole.
Connect the power wires to the terminal
board, and make sure that the PE cable
passes through the CT clamp.
Step 03 - Power Cable Wiring
01. 02.

8
Step 04 - Internet Connection
Cellular & Ethernet
Wi-Fi
Option 01.
Option 02.
No. Item
1
2
Insert SIM card to the card slot
for cellular connection.
Connect the internet cable for
Ethernet connection.
a) Connect your device to the charger Wi-Fi
SSID ‘ioc-XXXXXX’, and enter default password
‘IOC12345’.
b) Open web-based setup page by entering the
default IP Address ‘192.168.10.1:8900’,
and enter Username ‘admin’ and Password
‘ioc12345’ then click ‘ok’.
No. Item
1
2
3
4
Change the value to ‘true’ to activate the oine mode.
Ethernet supporting DHCP or static IP.
Scan the Wi-Fi to select the SSID to be connected.
Enter parameters from your ISP provider for cellular connection.
INSTALLATION
Additional Notes

9
Step 05 - Verify The Installation
Step 06 - Secure Cover
No. Steps
1
2
3
4
5
Verify the power cables are wired properly.
Secure the EV Charger with screws and lock RCD box with the key.
Close the RCD to power on the charger unit, and you should see
the LED lights sequentially illuminate green.
If the LED red light illuminates or ashes,
refer to the Troubleshooting table on page 11.
Check on the screen display whether internet is available
and back oce is connected, refer to page 10.
Test the live charging process with simulator
or electric vehicle if the installation is completely veried.
INSTALLATION

10

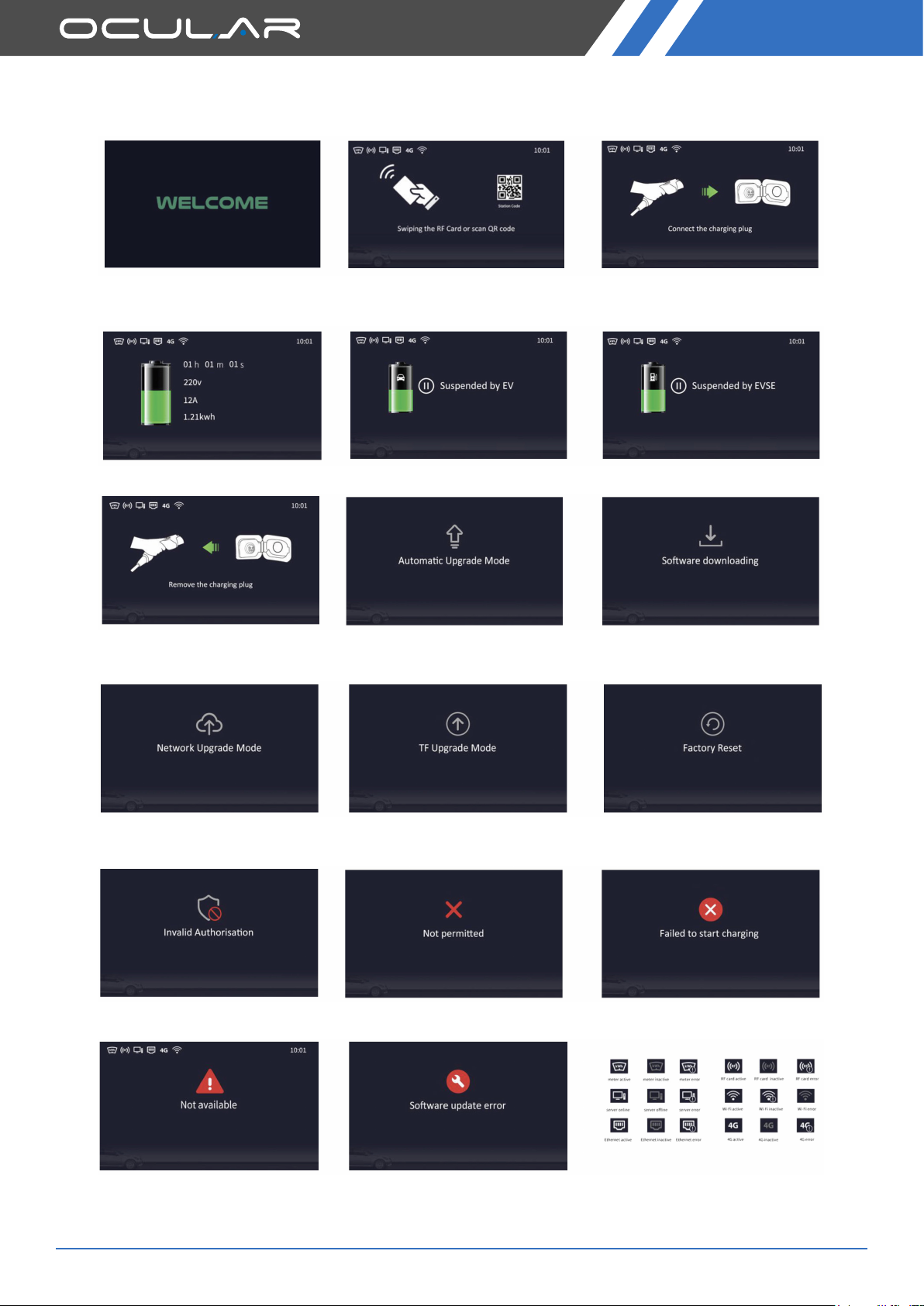

LCD DISPLAY SCREEN
Welcome Screen
Charging in process
Scan the QR code or swipe
the RFID card to start charging
Suspended by EV Suspended by EVSE
Connect the charging plug
Remove the charging plug Automatic upgrade
mode activated
Software downloading and
upgrading automatically
Network upgrade mode Micro SD card
upgrade mode
Factory reset activated
Invalid authorisation Not permitted to charge Failed to start charging
Service not available Software update error Explanation of icons

11
Situations Actions
1
1
1
1
2
2
2
2
3
3
3
3
4
4
4
Make sure the AC power input is connected correctly.
Status indicator is not
green after the charger is
powered on.
Status indicator does not
ash green when the charger
is connected to the EV.
Status indicator ashes red
while charging.
Status indicator is solid red.
Turn OFF the charger and then back ON using the switch.
If the problem persists,
please contact your installer or Ocular charging.
Unplug the charging plug and reconnect it fully
to the receptacle on the EV.
Inspect the cable and plug for damage.
Inspect the EV and its receptacle for damage.
There is a temporary error.
If the status indicator doesn’t return to green,
turn OFF the pedestal charger, and then back ON
using the switch.
If the problem persists,
please contact your installer or Ocular Charging.
There is a critical error.
Unplug the charging plug from the EV immediately.
Turn OFF the pedestal charger
and then back ON using the switch.
If the problem persists,
please contact your installer or Ocular Charging.
Wait until the temporary error is resolved and the pedestal
charger returns to normal condition. It usually takes less
than 10 seconds.
Try to charge with the portable cord set that came with
the vehicle; if the problem persists, please contact
your installer or Ocular Charging.
TROUBLESHOOTING
MAINTENANCE & REPAIR
• Regularly inspect the Charger. If damage is found, contact your installer or Ocular Charging.
• The Charger contains no user-serviceable components. If unit is not operating correctly,
contact your installer or Ocular Charging.
• Wipe the outside of the Pedestal Charger regularly with a clean damp cloth to remove
any accumulation of dust and dirt to prevent rust.

CHARGE WITH VISION
