UNPACKING
After unpacking, inspect
carefully for any damage that
may have occurred during
transit. Check for loose,
missing, or damaged parts.
If any damage is observed, a
shipping damage claim must
be filed with carrier. Do not
use the work light if it appears
damaged in any way, operates
abnormally or is missing parts.
Please read and save these instructions. Read through this owner’s manual carefully before using product. Protect yourself and
others by observing all safety information, warnings, and cautions. Failure to comply with instructions could result in personal
injury and/or damage to product or property. Please retain instructions for future reference.
The following safety information is provided as a guideline to help you operate your Rechargeable Work Light under the
safest possible conditions. Any tool or piece of equipment can be potentially dangerous to use when safety or safe handling
instructions are not known or not followed. The following safety instructions are to provide the user with the information
necessary for safe use and operation. Please read and retain these instructions for the continued safe use of your tool. Failure
to follow instructions listed below may result in serious injury. In addition, make certain that anyone who uses the equipment
understands and follows these safety instructions as well.
Operating Instructions and Parts Manual 24648
FOR CUSTOMER SERVICE
Technical Question?
CALL 1-866-458-2472
[email protected]
RECHARGEABLE MULTI-HEAD
ALL-IN-ONE WORK LIGHT KIT
Thank you very much for choosing an OEMTOOLS™ Product!
For future reference, please register your new tool at www.oem-tools.com and complete the owner’s record below:
Model: _______________ Purchase Date: ___________
Save the receipt, warranty and these instructions. It is important that you read the entire manual to become familiar with this product
before you begin using it. This product is designed for certain applications only. OEMTOOLS™ cannot be responsible for issues
arising from modification. We strongly recommend this product is not modified and/or used for any application other than that for
which it was designed. If you have any questions relative to a particular application, DO NOT use the product until you have first
contacted customer service to determine if it can or should be performed on the product.
Explanation of Safety Signal Words
WARNING:Indicates a potentially hazardous situation which, if not avoided, could result in death or serious injury.
CAUTION:Indicates a potentially hazardous situation which, if not avoided, may result in minor or moderate injury.
CAUTION:Used without the safety alert symbol indicates a potentially hazardous situation which, if not avoided, may result
in property damage.
NOTES:Provide clarity and helpful information.
WARNING
1
5/17
2017 OEMTOOLS™

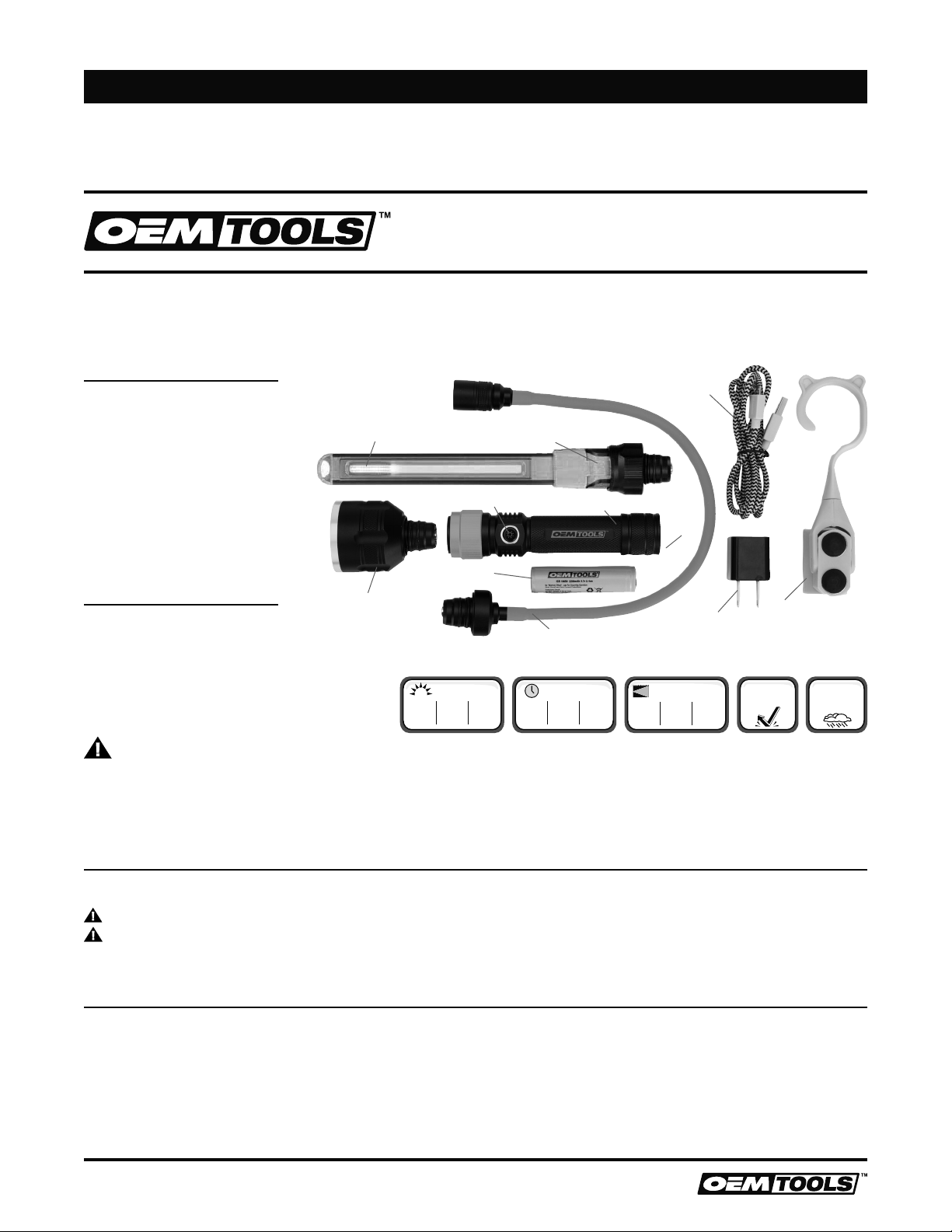

180° Pivoting inspection light
Dual function inspection light
features UV LEDs for leak detection
Magnetic
Base
Quick attachment coupler for
easy accessory transition
350 Lumens
flashlight head
180 Lumens 15" flexible shaft extension
for maneuvering in narrow spaces
Rechargeable
18650 battery
USB
charging
cord
AC adapter
Detachable 180° swivel
hook with 2 Powerful
magnets for sticking to
any ferrous surface
Lightweight, anodized
aluminum body
Power button to
adjust light modes
IMPACT
RESISTANT
1m
WATER
RESISTANT
IP54
Flashlight Inspection Flex Light
24 m23 m
BEAM DISTANCE
150 m
HRS HRS
MAX RUNTIME
HRS
Flashlight Inspection Flex Light
LUMENS
350
MAX OUTPUT
Flashlight
LUMENS
350
Inspection
LUMENS
180
Flex Light
2.5 2.5 2.5

2
Operating Instructions and Parts Manual 24648
RECHARGEABLE MULTI-HEAD
ALL-IN-ONE WORK LIGHT KIT
5/17
2017 OEMTOOLS™
IMPORTANT INSTRUCTIONS
AND SAFETY RULES
1. Know your work light. Read this manual carefully. Learn
the work light’s applications and limitations, as well as
potential hazards specific to it.
2. Keep work area clean and well lit. Cluttered or dark
work areas invite accidents.
3. Keep children away. All children should be kept away
from the work area. Never let a child handle a tool
without strict adult supervision.
4. Use safety equipment. Eye protection should be worn
at all times when working this light tool. Use ANSI
approved safety glasses. Everyday eyeglasses are NOT
safety glasses. Dust mask, non-skid safety shoes, hard
hat or hearing protection should be used in appropriate
conditions.
5. Do not use the work light if the switch does not turn it
on and off. Any tool that cannot be controlled with the
switch is dangerous and must be repaired.
6. Check for damage. Check your work light and batteries
regularly. If part of the work light is damaged, it should
be carefully inspected to make sure that it can perform
its intended function correctly. If in doubt, the part
should be repaired or replaced.
7. Keep away from flammables. Do not attempt to
operate this work light near flammable materials or
combustibles. Failure to comply may cause serious
injury or death.
PRODUCT SPECIFICATIONS (FLASHLIGHT)
Dimensions: 2" (Length) x 1.88" (Diameter)
Max Output: 350 Lumens
Low Output: 175 Lumens
Runtime @ Max Output: 2.5 Hours
Runtime @ Low Setting: 5.5 Hours
Beam Distance: 150 m
Impact Resistance: 1 m
Water Resistance: IP54
PRODUCT SPECIFICATIONS (INSPECTION LIGHT)
Dimensions: 9.5" (Length) x
0.88" (Head Width) x
1.25" (Base Diameter)
Max Output: 350 Lumens
Low Output: 175 Lumens
Runtime @ Max Output: 2.5 Hours
Runtime @ Low Setting: 5 Hours
Beam Distance: 24 m
Impact Resistance: 1 m
Water Resistance: IP54
OPERATING INSTRUCTIONS
1. Basic operation: slightly press the black button on the
body to turn the light on.
2. Light mode operation: press once for low brightness
setting, press again for max brightness setting.
To use the TRUE UV LED light, press the purple
button on the back of the ultra slim inspection light
attachment. To turn off, press the purple button
again. To focus Extension Light Attachment, gently
pull the focusing light head away from the flexible
extension to desired focus.
3. To change the work light to the ultra slim inspection
light or flex light, slide the green quick-attachment
coupler toward the handle to release attachment.
Take desired attachment and press into handle input
until the green coupler engages with an audible click.
Store the attachment not being used in a safe place to
prevent damage to the lights.
CHARGING INSTRUCTIONS
1. Plug the USB cord into the USB port on the work light.
2. Make sure 18650 battery is correctly placed into the
body of the work light.
3. Plug USB cord into charging unit.
4. Plug charging unit into 120V outlet.
5. (1) 18650 Li-Ion battery will fully recharge in 5 hours. At
100% power, you should have a fully charged beam for
up to 2.5 hours.
PRODUCT SPECIFICATIONS (FLEXIBLE SHAFT LIGHT)
Dimensions: 17" (Length) x
0.75" (Head Width) x
1.25" (Base Diameter)
Max Output: 180 Lumens
Low Output: 90 Lumens
Runtime @ Max Output: 2.5 Hours
Runtime @ Low Setting: 5 Hours
Beam Distance: 23 m
Impact Resistance: 1 m
Water Resistance: IP54

3
Operating Instructions and Parts Manual 24648
RECHARGEABLE MULTI-HEAD
ALL-IN-ONE WORK LIGHT KIT
5/17
2017 OEMTOOLS™
Figure Description Quantity
AWork Light Handle 1
B 3.7V 18650 Li-Ion Battery 1
C350 Lumens Flashlight 1
D350 Lumens Inspection Light
with UV Setting
1
E180 Lumens Flexible Extension Light 1
FUSB Charging Cord 1
GMagnetic 180° Swivel Hook 1
HPower Adapter 1
NOTE: OEMTOOLS™ and/or its distributors have
provided the parts list and assembly diagram as a
reference only. Neither OEMTOOLS™ or its distributors
make any representation or warranty of any kind to
the buyer and/or user of this product that he or she is
qualified to do any repairs or replace any parts of this
product. OEMTOOLS™ and its distributors expressly
state that all repairs or parts replacement should be done
by certified or licensed technicians. The buyer assumes
all risk and liability arising out of his or her repairs or parts
replacement to the original product.
A
B
D
FG
H
E
C
PARTS LIST
PARTS DIAGRAM

4
Operating Instructions and Parts Manual 24648
RECHARGEABLE MULTI-HEAD
ALL-IN-ONE WORK LIGHT KIT
5/17
2017 OEMTOOLS™
OEMTOOLS™ LIMITED LIFETIME WARRANTY
Please read the following carefully.
If for as long as you own this OEMTOOLS™ product you find any defect in material or workmanship, through normal
usage, return it to the place of purchase, or to OEMTOOLS™ for repair or replacement at our discretion. In order to
obtain this service, send your tool and proof of purchase, transportation pre-paid, to OEMTOOLS™ Q.A. Dept, 3850
Raines Road #3, Memphis, TN 38118. We will not be responsible for lost or damaged goods during transportation;
please insure your package. If our inspection verifies the defect, we will either repair or replace the product at our
election, or we may elect to refund the purchase price if we cannot readily and quickly provide you with a replacement.
We will return repaired products at our expense, but if we determine there is no defect, or that the defect resulted from
causes not within the scope of our warranty, then you must bear the cost of returning the product.
OEMTOOLS™ does not provide warranty for products labeled other than OEM®or OEMTOOLS™. OEMTOOLS™ will
not provide any warranty for products subjected to abnormal use. Abnormal use includes, but is not limited to, abuse,
accident, alteration, neglect, and unauthorized or unreasonable use or repairs. This warranty does not cover bits,
blades, files, batteries, or calibration. We recommend that you maintain your tools and sharpen or replace blades, bits,
files, and batteries as necessary. OEMTOOLS™ reserves the right to make any changes in construction or design at
any time without any obligation in incorporating such changes to tools or equipment previously sold.
OEMTOOLS™ makes every effort to ensure that its products meet high quality and durability standards, and warrants
to the original purchaser that this product is free from defects in materials and workmanship for the duration of this
warranty from the date of purchase. This warranty does not apply to damage due directly or indirectly to misuse,
abuse, negligence or accidents, repairs or alterations outside our facilities, criminal activity, improper installation,
normal wear and tear or to lack of maintenance.
We shall in no event be liable for death, injuries to persons or property, or for incidental, contingent, special or
consequential damages arising from the use of our product. Some states do not allow the exclusion or limitation of
incidental or consequential damages, so the above limitation of exclusion may not apply to you. THIS WARRANTY
IS EXPRESSLY IN LIEU OF ALL OTHER WARRANTIES, EXPRESS OR IMPLIED, INCLUDING THE WARRANTIES OF
MERCHANTABILITY AND FITNESS. This warranty gives you specific legal rights, and you may also have other rights,
which vary from state to state.
Don’t forget to register your new OEMTOOLS™ product at www.oem-tools.com.
CONTACT US
3580 E. Raines Road, Suite 3, Memphis, TN 38118
