OHAUS Defender 6000 Series User manual

DefenderTM 6000 Series Base
Instruction Manual
EN
ES
FR
DE
IT
PT
SE
NL
DK
PL
CZ
HU

Defender Series Base EN-1
INTRODUCTION
This manual covers installation, and maintenance instructions for the OHAUS DefenderTM Series Base. Please
read this manual completely before installation and operation.
SAFETY PRECAUTIONS
For safe and dependable operation of this product, please comply with the following precautions:
Operate the base only under ambient conditions specified in these instructions
Ensure that the load cell cable does not pose an obstruction or tripping hazard
Do not operate the base in hazardous environments or unstable locations
Do not drop loads on the base
Do not lift the base by the top frame; always lift from the bottom frame when moving the
base
Service should only be performed by authorized personnel
INSTALLATION
Unpacking
Unpack and inspect the product to make sure that all components have been included. The package includes the
following:
• DefenderTM Series Base • Weighing Pan • Instruction Manual
When purchased as a complete Defender Series Scale, the package will also include:
• Indicator • Column Assembly
ASSEMBLY
Weighing Pan

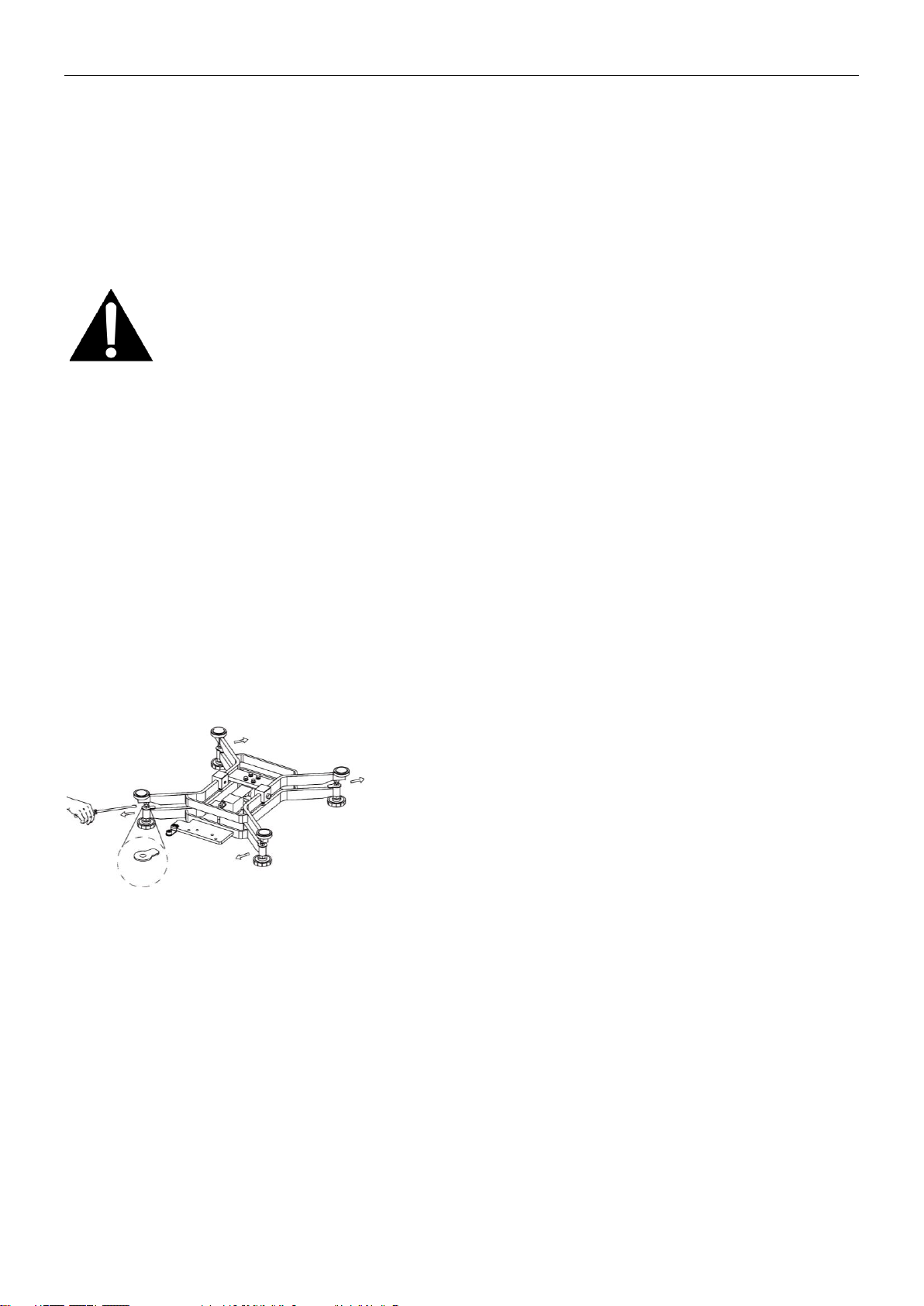

Remove the shipping spacers, and place the weighing pan securely over the rubber load pads on the top frame of
the base.
Note: Not included with some models
Wiring Connections
When connecting the base to an OHAUS indicator equipped with the matching circular connector, push the base
connector onto the indicator connector and turn the locking ring clockwise to lock it in place.
When connecting the base to an indicator that does not have the matching connector, install the optional load cell
cable adapter (P/N 30429931 sold separately) to the indicator using the wiring codes in Table 1. Then attach the
load cell cable to the cable adapter.
Note: As an alternate wiring method, cut off the connector, strip the wires and attach them to the indicator using the
wiring codes in Table 1.
The extension cable accessory (P/N: 30429931) cannot be used if the scale will be used in a legal for trade or
legally controlled application, because there is no provision to seal the connection between the indicator and
platform.

EN-2 Defender Series Base
TABLE 1. LOAD CELL CONNECTION
Type1. For model i-D3K1S, i-D6K1S, i-D15K1R, i-D30K1R, i-D60K1L bases
FUNCTION
WIRE COLOR
+ Excitation
Blue
- Excitation
Black
+ Signal
White
- Signal
Red
+ Sense
Green
- Sense
Grey
Shield
Yellow
Type2. For model i-D150K1L base
FUNCTION
WIRE COLOR
+ Excitation
Green
- Excitation
Black
+ Signal
White
- Signal
Red
+ Sense
Light Yellow
- Sense
Blue
Shield
Deep Yellow
Selecting the Location
To ensure accuracy, proper performance and safety, locate and operate the base on a stable, level surface. Avoid
locations with rapid temperature changes or excessive dust, air currents, vibrations, electromagnetic fields or heat.
Level the base by adjusting the four leveling feet until the bubble in the level indicator is centered. A wrench may
be needed to loosen the locking nut above each leveling foot. When the base is level, retighten the locking nuts up
against the base to lock each foot into place.
Note: Ensure that the base is level each time its location is changed.
CORRECT INCORRECT
MAINTENANCE
Cleaning
The base components should be kept clean and free of excessive material build up.
A damp cloth with water and a mild detergent may be used to wipe clean the external surfaces –do not
use acids, alkalis, strong solvents or abrasive materials.
To maintain surface integrity, do not allow debris to remain on the surface of the painted or stainless steel base
frame.
Remove the pan and use fresh water to clean the base frame surface of any debris. Dry the base with a
clean cloth or allow to air dry before replacing the pan. Repeat daily for best care.

Defender Series Base EN-3
Troubleshooting
Aside from installing components and leveling adjustments, the Defender Series Base does not require any other
adjustments as shipped from the factory.
Operational difficulties that may be encountered can often be traced to simple causes such as:
Loose or incorrect wiring connections
Failure to remove the shipping spacers
Obstructions to the base frame
Unstable environments
Incorrect calibration or setup of the indicator
If the troubleshooting section does not resolve or describe your problem, contact your authorized OHAUS service
agent. For service assistance or technical support in the United States, call toll-free 1-800-526-0659 between 8:00
AM and 5:00 PM EST. An OHAUS product service specialist will be available to provide assistance. Outside the
USA, please visit our web site, www.ohaus.com to locate the OHAUS office nearest you.
TECHNICAL DATA
Technical Specifications
The technical data is valid under the following ambient conditions:
Operating temperature: -10ºC to +40 ºC (14 °F to 104 °F)
Relative humidity: 10% to 90% relative humidity, non-condensing
Altitude: Up to 2,000m
Note: Not all models may be available in your area. Check with your local OHAUS representative.

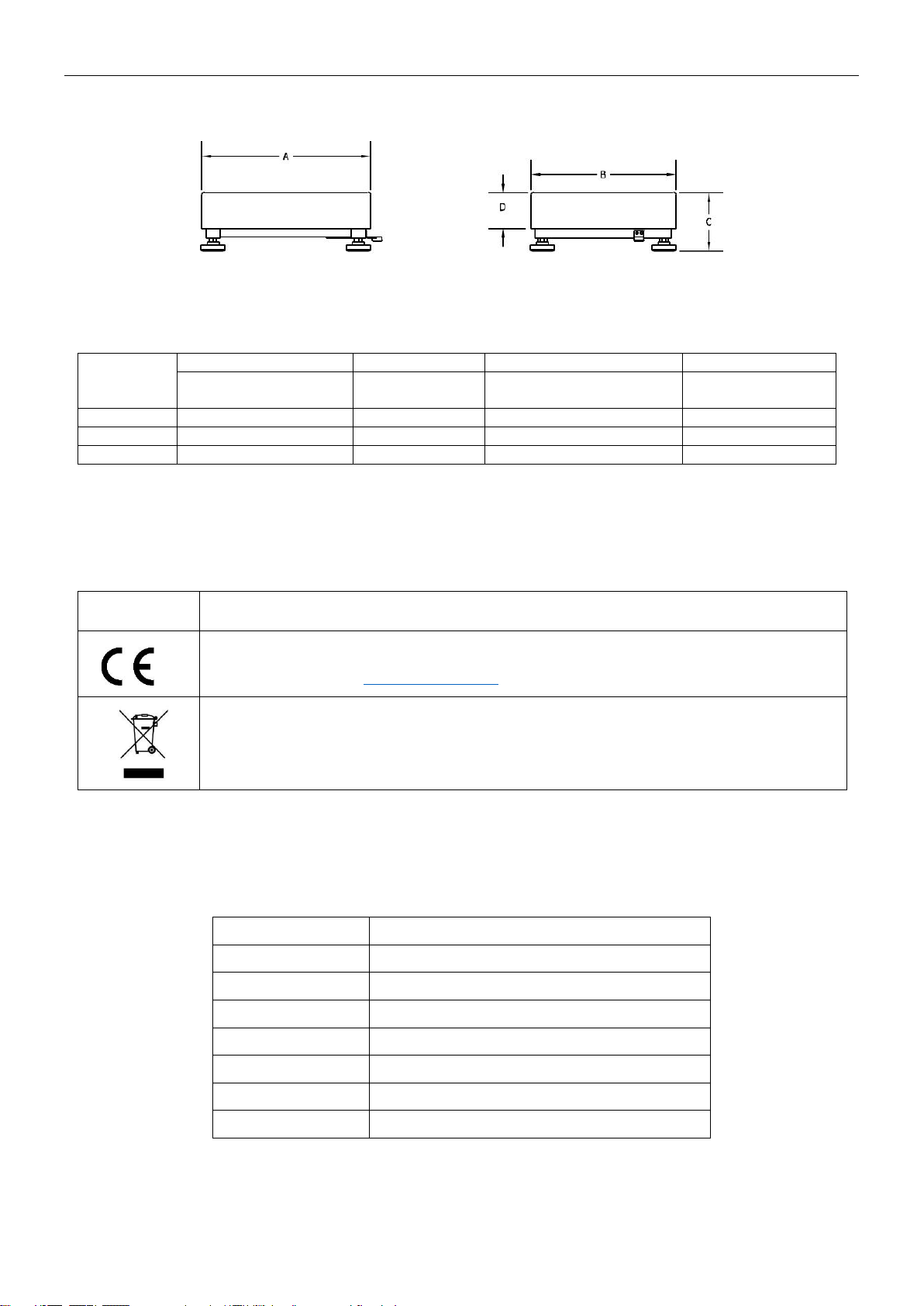

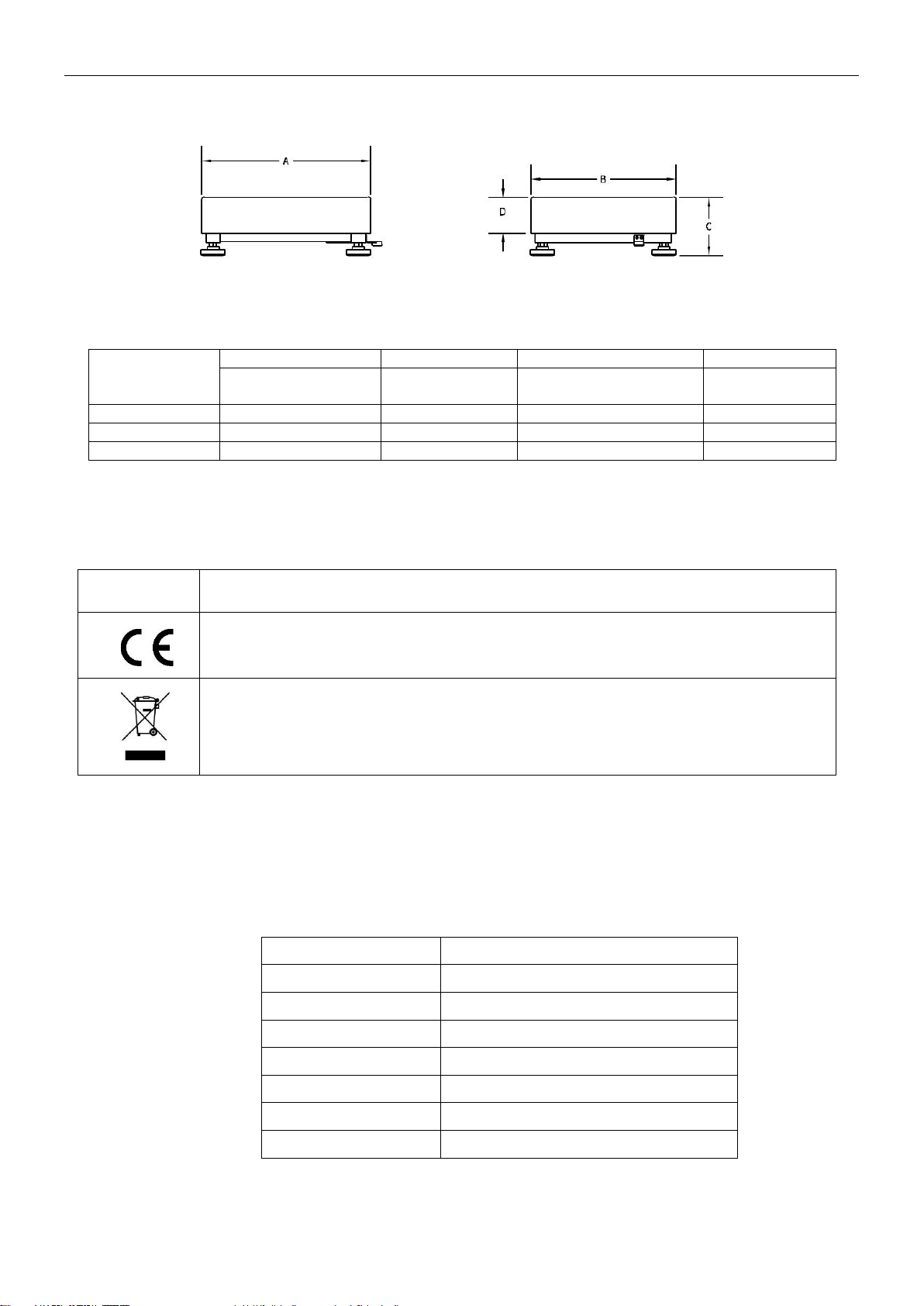

TABLE 2.1 SPECIFICATIONS
MODEL
i-D3K1S
i-D6K1S
i-D15K1R
i-D30K1R
i-D60K1L
i-D150K1L
Capacity
3 kg
6 kg
15 kg
30 kg
60 kg
150 kg
Approved Resolution
OIML 3000e
Safe Overload Capacity
150% of capacity
Pan Dimensions
254 x 254 mm
10 x 10 in
305 x 305 mm
12 x 12 in
400 x 500 mm
15.7 x 19.6 in
Base Construction
Stainless Steel platform with stainless steel frame and rubber leveling feet
Repeatability (std.deviation)
2d
Linearity
± 2d
Load Cell Capacity
10 kg
10 kg
20 kg
50 kg
100 kg
200 kg
Load Cell Cable
1 m L x 6-wire
2 m L x 6-wire
Load Cell Type
350 Ohm, SST, single point
Load Cell Excitation
3.3-15V DC/AC
Load Cell Rated Output
2mV/V
Load Cell Protection
IP69K
Net Weight
6 kg / 13.2 lb
7.5 kg / 16.5 lb
16 kg / 35.3 lb
Shipping Weight
7 kg / 15.4 lb
8.5 kg / 18.7 lb
18 kg / 39.7 lb
