OHAUS Valor 1000 User manual

Valor 1000 Series
TM
Instruction Manual
(Spanish)
(French)
(German)
(Italian)

EN-1OHAUS Valor 1000 Series
1. INTRODUCTION
This manual contains installation, operation and maintenance instructions for the
Ohaus Valor 1000 Series Scales. Please read the manual completely before using
the scale.
TM
1.1 Safety Precautions
Please follow these safety precautions:
• Verify AC Adapter input voltage matches the local AC power supply.
• Do not immerse the scale in water or other liquids.
• Do not operate the scale in hostile environments.
• Do not drop loads on the platform.
• Do not place the scale upside down on the pan.
• Service should only be performed by authorized personnel
• Disconnect the scale from the power supply when cleaning
1.2. Controls
‘
3
9
4
2
1
8
6
7
5
Figure 1-1. Controls.
Item Description
1Low battery indicator
2Battery charge indicator
3Level Bubble
4Accumulate, NET, Stability Sum icons
5Over, Under , Accept Check weigh indicators
67-segment, 6 digit backlit LCD w/ units of measure enunciators
7Adjustable feet
8Power input jack
9On/ Off Power Switch

EN-2 OHAUS Valor 1000 Series
TABLE 1-2. CONTROL FUNCTIONS.
Button Action Function
ZERO
Enter
Short Press
Menu Press
Sets display to zero
Confirms settings
Short Press Tares weight of item on panTARE
ªMenu Press Decrement over and under settings
M+
©
Units
Short press:
Menu Press
Long Press
Stores displayed weight in accumulation memory
Display accumulation data when display is at zero
Increment over and under settings
Change unit of measure while long pressing SELECT
button
Short press: Shift to next digit when setting over and under valuesSELECT
§
Units Long Press: Change unit of measure with short press of M+ button
2. INSTALLATION
2.1 Package Contents
• Valor 1000 Scale
• Stainless steel Pan
• AC Power Adapter
• Instruction Manual
• Warranty Card
2.2 Location
Use the scale on a firm, steady surface. Avoid locations with excessive air current,
vibrations, heat sources, or rapid temperature changes. Adjust the leveling feet so the
bubble is centered in the circle.
Level Bubble Level Feet
Figure 2-1. Leveling the Scale.

EN-3OHAUS Valor 1000 Series

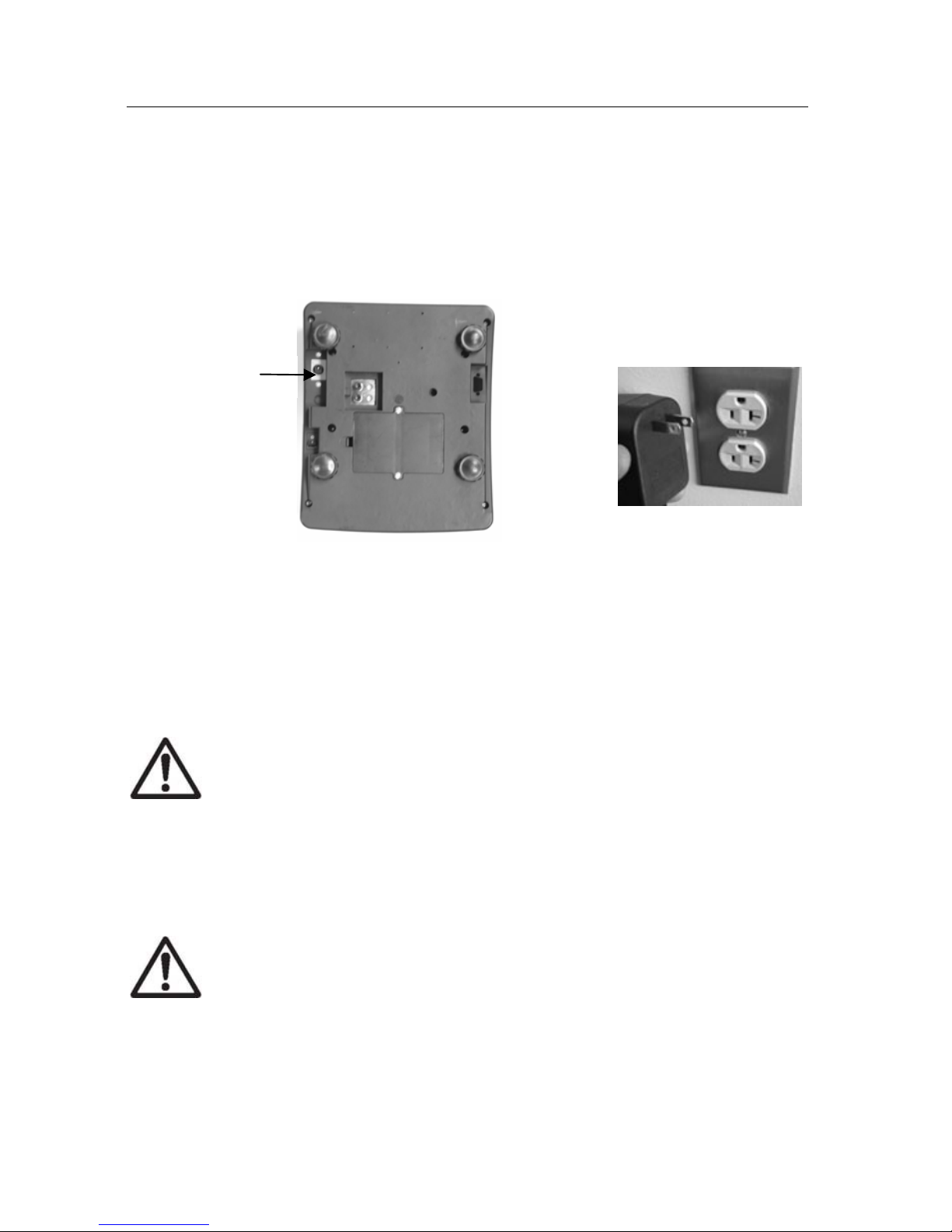

2.3 Power
Connect the AC Adaptor to the AC mains supply. Connect the plug to the DC jack on
the bottom of the scale. The scale may be operated on the AC mains supply or the built
in rechargeable battery. The scale must be turned on to charge the battery.
DC Mains
Figure 2-2. Power Connection
2.3.1 Battery Power
The scale can be operated on the internal rechargeable battery when AC power is not
available. The scale will automatically switch to battery operation if there is a power
failure or the power cord is removed.
Before using the scale for the first time, the battery should be fully charged
for up to 12 hours. During charging, the battery Indicator displays the
charge level (see table 1-1), and the scale can be operated during
charging. The battery is protected against over charging and the scale can
remain connected to the AC power line.
NOTE:
• Charging the scale must only be performed in a dry environment
CAUTION: Battery is to be replaced only by an authorized Ohaus service
dealer
Risk of explosion can occur if replaced with the wrong type or connected
improperly
Dispose of the lead acid battery according to local laws and regulations

EN-4 OHAUS Valor 1000 Series
2.4 Initial Calibration
When the scale is operated for the first time, a Span calibration is recommended to
ensure accurate weighing results. Before performing the calibration, be sure to have the
appropriate calibration weight.
Refer to section 4.3 for Span calibration procedures.
3. OPERATION
3.1 Turning Scale On/Off
To turn the scale on, flip toggle switch below right front keyboard. The scale performs a
display test, momentarily displays software version, and then enters the active
weighing mode. To turn the scale off, toggle same switch to off position.
3.2 Zero Operation
Zero is set under the following conditions:
• Automatically at Power On (initial zero).
• Manually by pressing the ZERO button.
Press the ZERO button to zero the weight display. The scale must be stable and weight
+/- 2% of capacity to accept zero operation.
3.3 Manual Tare
Place a container on the weighing pan, then press TARE. The display will show a net
value of “0”. To clear the Tare value, press TARE with the pan empty.
3.4 Weighing Mode
Use this mode to measure the weight of a sample in the selected unit of measure.
Press and hold SELECT and press M+ Unit until the desired unit icon is displayed.
Press ZERO to set the display to zero. Put an empty container on the pan, and then
press TARE to tare the container weight. Add material to the container. The display
shows the weight of the material in selected unit of measure.
3.5 Accumulate Mode
Use this mode to store the weight and HI, LO, SUM statistics from a series of samples.
Press ZERO to set the display to zero.
Place the sample on the pan.
Press M+ to store the weight of the sample. Storage is confirmed by the display [n----
x], where x is the sample number. The enunciator above SUM text will illuminate to let
user know there are readings in memory. Remove the sample, wait for stable zero
reading, then place the next sample on the pan. Press M+ to store the weight of the

EN-5OHAUS Valor 1000 Series
next sample. Repeat this process until all samples have been weighed.
Review the accumulation data by pressing M+ when the display is at zero.
The display shows the number of samples [n----x]
Press M+ to view the maximum sample weight [Hxxxxx].
Press M+ to view the minimum sample weight [Lxxxxx].
Press M+ to view the sum of weights [xxxxx].
Press M+ to return to weighing.
Clear the accumulated data by pressing ZERO when the number of samples is
displayed.
3.6 Check Weigh Mode
Use this mode to compare samples to a target weight range.
Press ZERO to set the display to zero. Place a sample on the pan and read the weight
and under / accept / over status on display.
(Refer to section 4.1 to set limits)
3.7 Changing Units of Measure
Press and hold the M+ and SELECT buttons to display the next available measuring
unit.
4. SETTINGS
The scale allows the user to customize several settings including check weigh limits,
backlight operation and calibration.
4.1 Over and Under Limits
Press and hold ZERO and press SELECT until [SET---] is displayed.
Press SELECT to display [SET-F0]
Press ZERO to view the upper limit [000000].
Press §, ©, ªto edit the upper limit.
Press ENTER to confirm the setting and display the lower limit [000000].
Press §, ©, ªto edit the lower limit.
Press ENTER to confirm the lower setting and display will show Run---X where x is the
alarm setting. In this case x=
0 = Turns off check weigh mode
1 = under / accept / over indicators are displayed, alarm beeps when
weight is outside accept range.
2 = under / accept / over indicators are displayed, alarm beeps when
weight is within accept range.
3 = under / accept / over indicators are displayed, alarm is off.

EN-6 OHAUS Valor 1000 Series
Press SELECT to change the alarm setting.
Press ENTER to confirm setting and display [End]
Press and hold ZERO key then press SELECT to return to weighing.
4.2 Backlight
Press and hold ZERO button until [b9---x] is displayed, where x=
0 = backlight is turned off
1 = backlight is on during weighing
2 = backlight is always on
Press TARE to change the setting. Press ZERO to confirm the setting and return to
weighing.
4.3 CALIBRATION
Span Calibration:
Turn on the scale. When display flashes all segments ("888888") press and hold
ZERO and SELECT at the same time. "SET--- " will be displayed at the end of power on
sequence. Press the SELECT key until "SET-F1" is shown on the display.
Press ZERO key to display "A____x"(x=divisions in grams:1,2,5,10.20.50).
Press ZERO key to accept the default division setting which is shown on the display.
Press ZERO key to display "b____x"(x=decimal point:0,1,2,3). Press ZERO key to
accept the default decimal point setting which is shown on the display.
Press ZERO key to display "Cxxxxx"(xxxxx=Span weight or capacity of scale). Press
ZERO key to accept the default span calibration weight setting which is shown on the
display, or press M+ or TARE to increment or decrement the span calibration weight
setting.
Press ZERO to display "dx"(x=Zero tracking setting:0-9 from 0.125d to 2d). Press
ZERO key to accept the default setting which is shown on the display, or press M+ or
TARE to increment or decrement setting. Default setting is 3 which = 0.5d.
Press ZERO and display will show "Load 0". Make sure pan is empty then press ZERO
key to accept. Display will show "CAL 0" briefly, then "Load F” will be displayed.
Press ZERO to display "Fxxxxx"(xxxxx=Span weight ). Put displayed weight on the
scale, and press ZERO to accept. After completion, scale will be in weighing mode.

EN-7OHAUS Valor 1000 Series
5. MAINTENANCE
Caution: before cleaning, turn off the scale, remove the AC adapter.
5.1 Cleaning
The housing may be cleaned with a cloth dampened with a mild detergent if necessary.
Do not use solvents, chemicals, alcohol, ammonia or abrasives to clean the housing
or control panels.
5.2 Troubleshooting
The following table lists common problems and possible causes and remedies. If the
problem persists, contact Ohaus or your authorized dealer.
TABLE 5-1. TROUBLESHOOTING.
Symptom Possible Cause(s) Remedy
Scale will not turn on No power to scale
Battery power used up
Verify connections and voltage.
Connect power and charge the battery
Poor accuracy Improper calibration • Unstable
environment
Perform calibration • Move scale to
suitable location
Unable to calibrate Unstable environment
Incorrect calibration mass
Move the scale to suitable location
Use correct calibration mass
Scale flashes Bat Battery discharged Connect power and charge the battery
Battery fails to charge
fully
Battery is defective Have battery replaced by authorized
service dealer
-----H Pan has load during power on Remove weight from pan and re-zero
-----L Pan was removed Install pan and re-zero.
-Over- Weight on pan exceeds capacity Remove weight from the pan
Err-01 Invalid under and over limit settings Re-enter under and over limits
5.3 Service Information
If the troubleshooting section does not resolve or describe your problem, contact your
authorized Ohaus service agent. For service assistance or technical support in the
United States call toll-free 1-800-526-0659 between 8.00 AM and 5:00 PM EST. An
Ohaus product service specialist will be available to provide assistance. Outside the

EN-8 OHAUS Valor 1000 Series
USA, please visit our web site, www.ohaus.com to locate the Ohaus office nearest
you.
6. TECHNICAL DATA
The technical data is valid under the following ambient conditions:
Ambient temperature: 0°C to 40°C, Maximum Relative humidity: 80% for temperatures
up to 31°1C, decreasing linearity to 50% relative humidity at 40°C. Height above sea
level: Up to 2000m. Operability is assured at ambient temperatures between 0°C and
40°C Power: AC adapter – 9 VDC 500 mA output, Protection: Protected against dust
and water, Pollution degree: 2 , Installation category: Class III, EMC: See Declaration
of Conformity
6.1 Specifications
TABLE 6-1. Specifications.
Model V11P3 V11P6 V11P15 V11P30
Capacity (kg) 3 6 15 30
Readability (g) 0.5 1 2 5
Weigh Units Kilograms, Pounds, Grams, Ounces
Modes Weigh, Accumulate, Checkweigh
Keyboard Four Mechanical switches (Right)
Calibration Digital External Span Calibration
Display Type 6-digit 7-segment LCD with blue LED backlight
Display Indicators Center of zero, Stability, Net, Sum, Over/Accept/Under Check, Weighing
unit and Battery charge status
Display Size 20 mm / 0.8 in digits
Tare Range To capacity by subtraction
Stabilization Time <=3 seconds
Auto Zero Tracking User selectable from 0.1d to 2d
Operating Temp / Humidity 32°F to 104°F (0°C to 40°C) at 10% to 95% relative humidity
Non-condensing, up to 2.5 miles /4000m above sea level
Power 9 VDC 500 mA AC adapter (supplied)
Internal rechargeable sealed lead acid battery
Battery Life 80/100 hours (with/without backlight on)
Scale Dimensions (mm/in) 250w x 307d x 110h / 10w x 12d x 4.3h
Pan Size (mm/in) 250 x 180 / 9.9 x 7.1
Carton Dimensions (mm/in) 340w x 160d x 300h / 12.75w x 6.25d x 11.9h
Net Weight (kg/lb) 3.2/ 7
Shipping Weight (kg/lb) 4.0/ 8.8

EN-9OHAUS Valor 1000 Series
6.2 Compliance
Compliance to the following standards is indicated by the corresponding mark on the
product
.
Mark Standard
This product conforms to the EMC directive 2004/108/EC and the
Low Voltage Directive 2006/95/EC. The complete declaration of
Conformity is available from Ohaus Corporation
AS/NZS4251.1 Emission; AS/NZS4252.1 Immunity
Disposal
In conformance with the European Directive 2002/96/EC on Waste
Electrical and Electronic Equipment (WEEE) this device may not be
disposed of in domestic waste. This also applies to countries outside
the EU, per their specific requirements. Please dispose of this product in
accordance with local regulations at the collecting point specified for
electrical and electronic equipment. If you have any questions, please
contact the responsible authority or the distributor from which you
purchased this device.
Should this device be passed on to other parties (for private or
professional use), the content of this regulation must also be related.
Thank you for your contribution to environmental protection.
FCC Note
This equipment has been tested and found to comply with the limits for a Class A
digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference when the equipment is
operated in a commercial environment. This equipment generates, uses, and can
radiate radio frequency energy and, if not installed and used in accordance with the
instruction manual, may cause harmful interference to radio communications.

EN-10 OHAUS Valor 1000 Series
Operation of this equipment in a residential area is likely to cause harmful interference
in which case the user will be required to correct the interference at his own expense.
This Class A digital apparatus complies with Canadian ICES-003.
Cet appareil numérique de la classe A est conforme à la norme NMB-003 du Canada.
ISO 9001 Registration
In 1994, Ohaus Corporation, USA, was awarded a certificate of registration to ISO
9001 by Bureau Veritus Quality International (BVQI), confirming that the Ohaus quality
management system is compliant with the ISO 9001 standard’s requirements. On May
15, 2003, Ohaus Corporation, USA, was re-registered to the ISO 9001:2000 standard.
LIMITED WARRANTY
Ohaus products are warranted against defects in materials and workmanship from the
date of delivery through the duration of the warranty period. During the warranty period
Ohaus will repair, or, at its option, replace any component(s) that proves to be
defective at no charge, provided that the product is returned, freight prepaid, to Ohaus.
This warranty does not apply if the product has been damaged by accident or misuse,
exposed to radioactive or corrosive materials, has foreign material penetrating to the
inside of the product, or as a result of service or modification by other than Ohaus. In
lieu of a properly returned warranty registration card, the warranty period shall begin on
the date of shipment to the authorized dealer. No other express or implied warranty is
given by Ohaus Corporation. Ohaus Corporation shall not be liable for any
consequential damages.
As warranty legislation differs from state to state and country to country, please contact
Ohaus or your local Ohaus dealer for further details.

Ohaus Corporation
19A Chapin Road
P.O. Box 2033
Pine Brook, NJ 07058-2033, USA
Tel: [phone]
Fax: [phone]
With offices worldwide / Con oficinas alrededor del mundo / Avec des bureaux dans le monde
entier / Weltweite Geshäftsstellen / Con uffici in tutto il mondo.
www.ohaus.com
*80251220*
P/N 80251220 © Ohaus Corporation 2007, all rights reserved / todos los derechos
reservados / tous droits réservés / Alle Rechte vorbehalten / tutti i diritti riservati.
Printed in China / Impreso en la China / Imprimé en Chine / Gedruckt in China / Stampato in
Cina
