Ohme Home Pro User manual
Product Manual
V2.0
Welcome to Ohme, the smartest,
cheapest and greenest way to
charge your electric vehicle.
This handy guide will get you set
up in no time.
Safety precautions 1
Introduction 2
Welcome to Ohme 2
Download the app 2
Your charger information 2
Product overview 3
Ohme Home 3
Ohme Go 4
Commando 4
Type 2 5
3-Pin 6
Schuko / European Charger 7
Ohme box overview 8
Understanding the display screen 9
Understanding the display icons 10
Understanding the indicator lights 11
The Ohme app 12
Benets of the using the Ohme app 12
Create an account 13
‘Pair’ your charger 14
Select your car 14
Select your tari15
Create your schedule 16
Lock your charger 16
Set a price cap 17
Max charging 18
V2.0
Contents
Connecting to your car 18
Exploring the ‘Dashboard’ 19
Exploring the app settings 19
Troubleshooting 20
Additional Information 21
Standards Compliance 21
Cleaning 21
Maintenance 21
Disposal 22
Contact Details 23
Manufacturer’s Warranty 23
Limitation of Liability 24
Terms and Conditions 24
Installer Information 25
Vehicle compatibility 25
Ohme Home Installation 25
Ohme Go Installation 26
Commando socket installation 27
RCD Selection 27
Earthing 27
Socket selection 27
Socket placement 28
DNO Notication 28
OZEV Grant Eligibility 28
Product Specication 29
Part Numbers 30
V2.0
Safety precautions
This document contains important safety information relating to your Ohme charger.
Please retain this document for future reference.
Please read the document fully before using the Ohme charger.Not following the safety
instructions can result in electric shock, re, serious injury or death.
⚠
The charger should be inspected periodically to check for damage to the
cabling and the enclosure. Do not use if the product is defective or appears
damaged. Contact Ohme Customer Care for support.
⚠
Do not attempt to open, repair, tamper or modify the Ohme charger in any
way. There are no user-serviceable parts.
⚠
We strongly recommend that a competent person (e.g. qualied electrician)
installs and/or inspects the installation to check for safety and supply
adequacy before use.
⚠
The overall installation should be in accordance with the IET Wiring
Regulations and the IET Code of Practice for Electric Vehicle Charging
Equipment.
⚠
Handle the Ohme charger with care. Do not expose any part of the cable to
severe forces, impact or sharp objects.
⚠
The Ohme charger is only intended for vehicles that do not require ventilation
during charging (NB all mainstream electric vehicles do not require
ventilation).
⚠
You may clean the Ohme charger with a soft damp cloth. Do not use any
solvents or abrasives.
V2.0
Page of1 30
Introduction
Welcome to Ohme
This guide contains everything you need to know to set up your new charger. It covers
important safety information, as well as our top tips. If you need a bit more information
there are plenty of useful resources available on our website and if you can't nd what
you're looking for, our Customer Care Team will be happy to help. Now, let’s get started…
Download the app
The rst step in setting up your Ohme charger is
downloading the Ohme App. Simply head over to the
App Store or Play Store on your smart phone or tablet,
and search for ‘Ohme'. Learn more about the benets of
using the Ohme app on page 12.
Your charger information
Use the section below to make a note of your charger’s serial number as this is important
if you ever need to contact our Customer Care Team. If you’ve had an Ohme Home
charger installed take a moment to write down the installer’s name, contact number and
installation date. Turn to page 13 to nd out where to locate the serial number.
Page of2 30
V2.0
Serial Number
o
h
m
e
o
h
m
e
Installation Information
Installer name:
Installer contact number:
Installation date:
Product overview
Ohme Home
Ohme Home is an Electric Vehicle (EV) charging device to be used with single phase
electricity supplies (which is standard in most UK houses). It's a tethered unit, which
means the cable cannot be removed. It has a maximum charge rate of 32 A.
V2.0
Page of3 30
32A
7.4kW
The battery capacity of your EV will determine how long it
takes to charge. To get an estimation of how long your EV
will take to charge from 0 - 100% (When charging at your
charger’s maximum rate) divide the battery capacity by the
charging power.
For example: 60 kWh / 7.4 kW = 8.1 hours
Tip:
Ohme Go
We have a range of Ohme Go chargers with dierent plug types: Commando, Type 2, 3-
Pin, Schuko / European Charger.
Please do not use multi-plug adaptors or extension leads with any Ohme Go charger.
Many of these are not suitable for the continuous, high loads drawn by electrical vehicle
charging, nor are they suitable for use outside.
Commando
Our Commando charger is designed to be used with a 32 A CEE "commando" socket.
Your electrician will be familiar with these sockets and the additional requirements for
using them to charge an electric vehicle. You will nd all of the relevant information for
installing a Commando socket to use with a Commando charger in the 'Commando
socket installation’ section on page 27.
The Commando charger will charge at a maximum rate of 32 A. If you're unable to charge
at 32 A due to supply limitations, just call us and let us know the serial number of your
charger and we can remotely reduce the charge rate for you.
Page of4 30
V2.0
32A
7.4kW
Type 2
Our Type 2 charger is designed to be plugged into your existing un-tethered charge
point. No additional installation is required, simply plug in your new Type 2 charger and
download the Ohme app to start benetting from Ohme's smart features.
The Type 2 charger will talk to your charge point and make sure that it does not charge
above the rating of your unit. If you have an existing 16 A charge point, Ohme will charge
at a maximum rate of 16 A (there's no need to contact us to reduce the rate).
Your Type 2 charger can charge up to a maximum rate of 32 A, if not limited by the rate of
your existing untethered charge point.
IMPORTANT NOTE: the Type 2 charger won't power up unless it's plugged into both a
power supply and an electric vehicle.
V2.0
Page of5 30
32A
7.4kW
3-Pin
Our 3-pin charger can be plugged into a standard UK socket. We recommend that you
ask a qualied electrician to give your electrical supply a once over, just to make sure that
the socket and circuit are safe for the continuous demands of EV charging.
Although UK 3-pin plugs are rated 13 A, most domestic sockets can't safely deliver this
current for long periods of time, so to avoid the potential for overheating we've de-rated
our cables to 10 A.
For daily charging, and to reduce the risk of overload to existing electrical systems, you
can ask a qualied electrician to install a dedicated external socket.
Page of6 30
V2.0
10A
2.4kW
Schuko / European Charger
Our Schuko charger can be plugged into a standard European socket. These are rated at
13 A, so it's important to ask a qualied electrician to check that the supplying circuit and
socket are safe to deliver 13 A for the duration of your charge.Charging at 13 A can
provide about 10 miles of added range an hour.
For daily charging, and to reduce the risk of overload to existing electrical systems, you
can ask a qualied electrician to install a dedicated external socket.
V2.0
Page of7 30
13A
3kW
Ohme box overview
The control box is identical across all variants. The LCD display has various icons that tell
you important information about the charger, as well as useful real-time measurements of
active charge sessions. The circle of indicator lights provides a visual reference to the
current state of the charger. More information about the indicator lights can be found on
page 11.
Don't worry about your charger being left outside, it's IP55 rated which means it's
resistant to all weather types.
Page of8 30
V2.0
60mm
90mm
50mm
240mm
220mm
Understanding the display screen
V2.0
Page of9 30
Understanding the display screen
Internal temperature of the Ohme unit
Number of amps the charger has been set to deliver
Connectivity status bar
Total kWh charged and time elapsed in a session
Real time kW being delivered to the car
Real time amps being delivered to the car
Mains voltage
QR code to link charger with Ohme app
1
2
3
4
5
6
7
8
32A 3.200kWh
00:31:42
7.39kW
32A
234V
28°c
1
7
8 4
2
6
3
5
* If on a timed scheduled session the charger will display 0A.
*

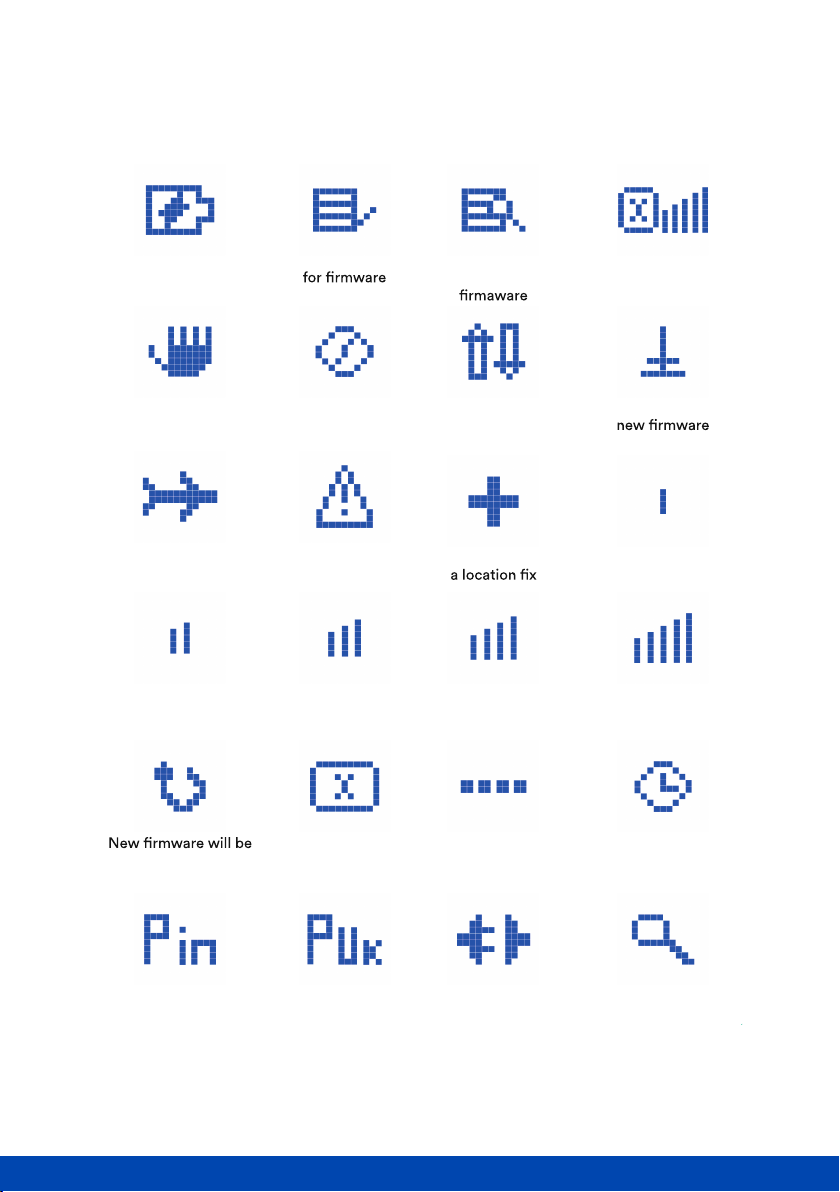

Understanding the display icons
Page of10 30
V2.0
Charging Checking server Attempting to
download new
Charging suspended
due to vehicle
communications error
EV Supply Equipment
(EVSE) connected, but not
ready to charge
Level 2 signal
strength
installed on device,
awaiting reboot
PIN number
needed
PUK code
needed
Ready to charge Searching for
network
No SIM Not charging
due to schedule
No network
Level 3 signal
strength
Level 4 signal
strength
Level 5 signal
strength
GPS has secured Level 1 signal
strength
Fault
Connection to
network denied
Connected to
server
Downloading
Connected to network,
but unable to send
or receive data
What do the LED symbols on the screen mean?
Understanding the indicator lights
The indicator lights on the front of the Ohme Charger can be used to tell you about the
charger’s status at a quick glance. The ring of lights comprises three segments: red,
green, and yellow. The dierent combinations of lights that you will see are shown below.
If the indicator lights display an Electrical or EV fault, contact Ohme Customer Care Team
via help@ohme-ev.com.
V2.0
Page of11 30
Waiting, ready to plug into the vehicle.
(Steady green light)
Plugged into vehicle, waiting to connect to vehicle.
(Flashing green light)
Connected to vehicle, waiting for vehicle to accept charge.
(Steady red light)
Waiting for schedule to start charging.
(Lights ash in sequence)
Charging.
(Steady red light, ashing green light)
Electrical fault.
(Flashing yellow light)
EV fault.
(Lights ash simultaneously)
2
1
3
The Ohme app
Benets of the using the Ohme app
Page of12 30
V2.0
Smart features
You'll have full access
to all of our smart
features. You can create
charge schedules, limit
your charging to a
certain price per kWh
and keep track of your
energy costs and
consumption.
Help and support
Creating an account on
the Ohme app helps us
to help you. We'll be
able to easily access
your charging
information to provide
support when you need
it.
Peace of mind
You can create a lock
schedule in the Ohme
app, so you won’t have
to worry about passers-
by using your charger
when you're not home.
Find out more in 'Create
your schedule'
on page 16.
Want to watch the app set up?
Scan the QR code below to check
out our app tutorial videos online.
To make the most of charging with Ohme, it’s important to download our mobile
app. Doing so means you can benet from the following:
Create an account
Once you've downloaded the app,
creating an account is easy.
Tap 'Create Account' and ll in the
relevant information or for quick sign-in
choose to sign in with Google, Facebook,
or your Apple ID.
If you want to download the Ohme app on
multiple devices, choose the option to
sign in with your email.
Next, you will need to 'pair' your new
Ohme account with your charger by
scanning the QR code on your charger.
See below on where to nd the QR code.
V2.0
Page of13 30
‘Pair’ your charger
When prompted, use your camera to scan the QR code
on the side or back of the charger control box (you'll
need to allow access to your camera for this). This will
link the charger to your Ohme account.
If you're having trouble scanning your QR code, you can
enter the serial number manually by tapping 'enter
manually' in the top right of your screen.
Select your car
Next, you need to tell Ohme which car you drive so
we can accurately calculate your charge sessions.
For more precise charging, choose the
'Account Sign In' option where you'll be
prompted to log in with your car
manufacturer app's login details. This gives
Ohme access to your car's state of charge.
This option is currently only available for
select manufacturers. To check the current
list of available manufacturers, please visit
our website.
You can change your car at any time by
heading to ‘Settings’ > ‘Change Car’ and
selecting the manufacturer and car model.
Page of14 30
V2.0
Tip:
If you can't see your car listed, please contact our Customer
Care Team so we can add this to the database for you.
Select your tari
Choose your energy supplier and tarifrom the list
provided. If you have a variable or time-of-use tari, we
can use this information to save you money by charging
at the cheaper rates. If no taris are listed once you've
entered your postcode, get in touch with our Customer
Care Team who will be able to help.
Can't see your electricity supplier or tari
listed? You can create a custom tariby
selecting the 'Create New Tari' option
located at the bottom of the ‘Select
Electricity Supplier’ list.
If your tariis a single price throughout the
day and night, choose ‘Fixed price tari’. If
your tarihas an o-peak period, choose
‘Variable price tari’.
V2.0
Page of15 30
Create your schedule
Create a charge schedule to ensure your car
has exactly how much charge you need,
when you need it. You can create as many
charge schedules as you like, and Ohme will
pick up whichever schedule is applicable at
the time of plug-in. For example, you could
create a charge schedule for 70% by 7am
every weekday, and another for 100% by
10am every weekend.
If you want to check which schedule has
been applied while charging, take a look at
the main dashboard where you'll notice the
name of the schedule is displayed
underneath 'Smart Charging’.
Lock your charger
If you want to securely disable use of your charger you
can create a ‘Lock’ schedule. Tap the ‘+’ button located in
the bottom right of the ‘Charge Schedule’ section of the
app. Tap the days you wish the schedule to be active and
set the ‘Target/Added Range’ to 0%. Set the ‘Finish Time’
for just before you are due to arrive home at the end of
the day.
For example: If you are regularly away from home until
6pm each night you could create a ‘Lock’ schedule with a
‘Finish Time’ of 5:30pm. If anyone plugs in before 5:30pm
the ‘Lock’ schedule will be applied and zero charge will
be added to the car.Plugging in after 5:30pm will set the
next active schedule.
Page of16 30
V2.0
This manual suits for next models
15
Table of contents
