4 • English
Printer Overview
Front View
1FrontDoor
2 Paper Trays (1 and 2)
3 Duplex Unit
4 Multi-Purpose Tray (MPT, Tray 5)
5 Standard top bin output tray and transport to
optional finisher
6 Optional High Capacity
Feeder (HCF)
7 Optional tabloid tray or
tandem tray (Trays 3
and 4)
8 Optional finisher
9 Finisher main stacker
(3000 sheets)
10Finisher upper stacker
(500 sheets)
11Exit 2: used in
conjunction with the
optional duplexer and
the optional finisher.
Present only if the
optional duplexer is
installed.

5 • English
READY light
Off: printer is idle
On: printer is active
Blinking: printer is waiting, processing
ATTENTION light
Off:
no error
On: there is an error requiring user
intervention
CANCEL Button
Cancel a print job.
ON-LINE Button
Toggles the printer on-line and off-
line.
MENU Button
Press to enter or exit the menu.
SELECT Button
Press to select the Menu or Submenu
shown on the second line of the
display or choose and save the setting
shown on the second line of the
display.
NEXT/PREVIOUS Buttons
Press to move to the Next ( ! ) or
Previous ( " ) Menu, Submenu, or
Setting within the same level of the
menu structure.
FORWARD/BACK Buttons
Press to move Forward ( # ) or Back
(
$ ) one level in the menu structure to
the menu shown on the first line of
the display.
Printer Overview
Operator Panel Overview

6 • English
Print a Summary of the
Printer’s Settings
Press the Info button on the Operator
Panel to print a configuration
summary including:
• Status of menu options
• Media selections in trays
• Installed options
Cancel a Print Job at the
Printer
At the Operator Panel:
1. Press the
Cancel button.
2. Press the
On-line button.
Note that pages that are printing at
the moment will finish printing.
Reset Printer to Factory
Defaults
At the Operator Panel:
1. Press
Menu .
2. Press
Next ( ! ) until Maintenance
Menu is displayed.
3. Press
Select . You may be
prompted to enter a password.
4. Press
Forward ( # ) until Menu
Reset
is displayed.
5. Press
Select to reset the menus to
their factory defaults (i.e.,
“execute”).
6. Press
Menu . The printer resets and
goes back to the Ready to Print
state.
Printer Overview
Basic Operator Panel Functions

7 • English
Using the Printer Menu
Changing Settings
1. Press Menu .
2. Press Next ( ! ) and Previous ( " )
to scroll through the menus until
the one you want is displayed.
3. Press
Select .
4. Press
Forward ( # ) and Back ( $ )
to cycle through the submenus for
the selected menu until the one
you want is displayed.
5. Press
Select .
6. Press
Next ( ! ) and Previous ( " )
to scroll through the options until
the one you want is displayed.
7. Press
Select .
An asterisk appears next to the
setting.
8. To exit Menu mode, press 3 or
press the Menu button.
Note : If there is a conflict between
settings in the menu, Printing
Preferences, or Embedded Web Server
and printer settings set via your
application, the application settings
supersede any other setting.
C96
_
R
ea
d
y
NETWORK MENU
!
"
$#

8 • English
How to Enter a Pin Number
at the Operator Panel
1. Press Menu . Press Next ( ! ) until
the Print Jobs menu is displayed.
Press
Select .
2. Press
Forward ( # ). You are
prompted to enter a pin number.
3. Use
Next ( ! ) and Previous ( " )
to specify the first digit in the pin
number, then press
Forward ( # )
to enter the digit.
4. Repeat step 3 until all digits are
entered. Press
Select .
5. Press
Next ( ! ) until the Print
Menu
is displayed. Press Select .
6. Press
Next ( ! ) until your
document is displayed. Press
Select .
7. To print the document: Press
Next
(
! ) to specify the number of
copies. Press Select to print.
!
"
$#
Using the Printer Menu
Entering a Pin Number

9 • English

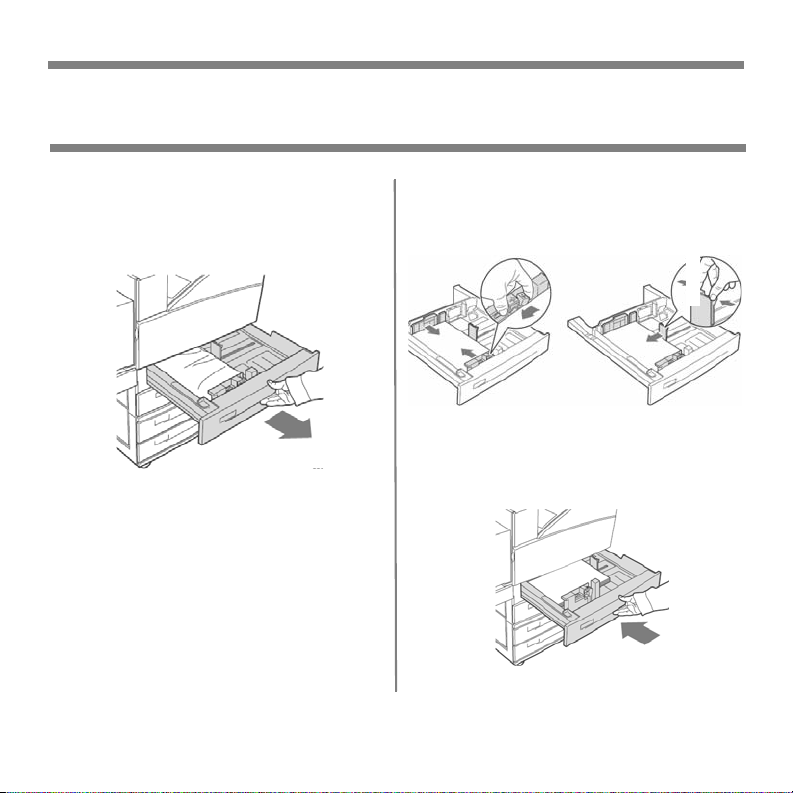

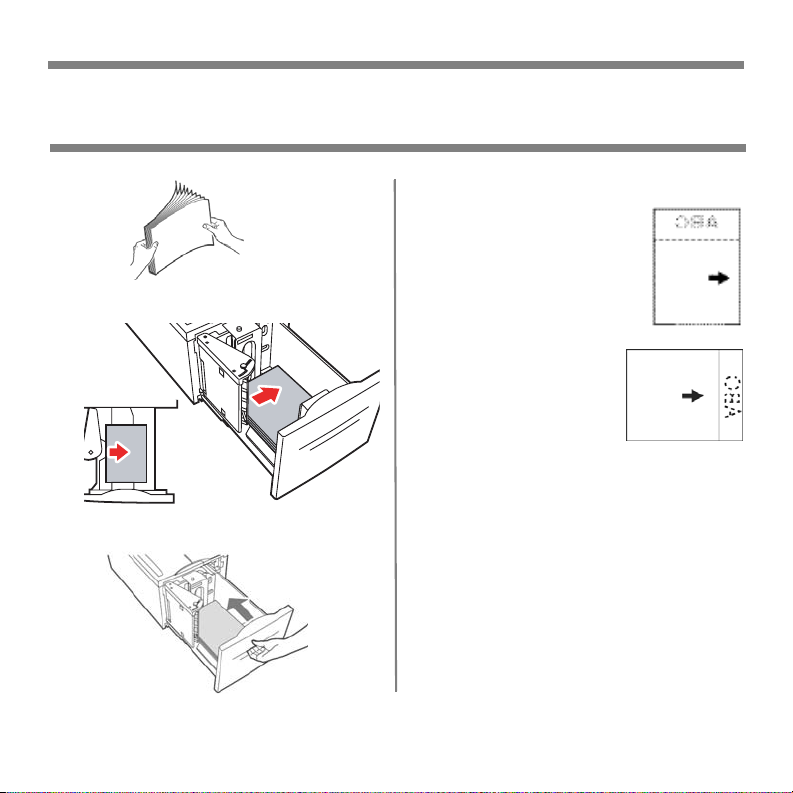

Loading Media in Trays 1-2

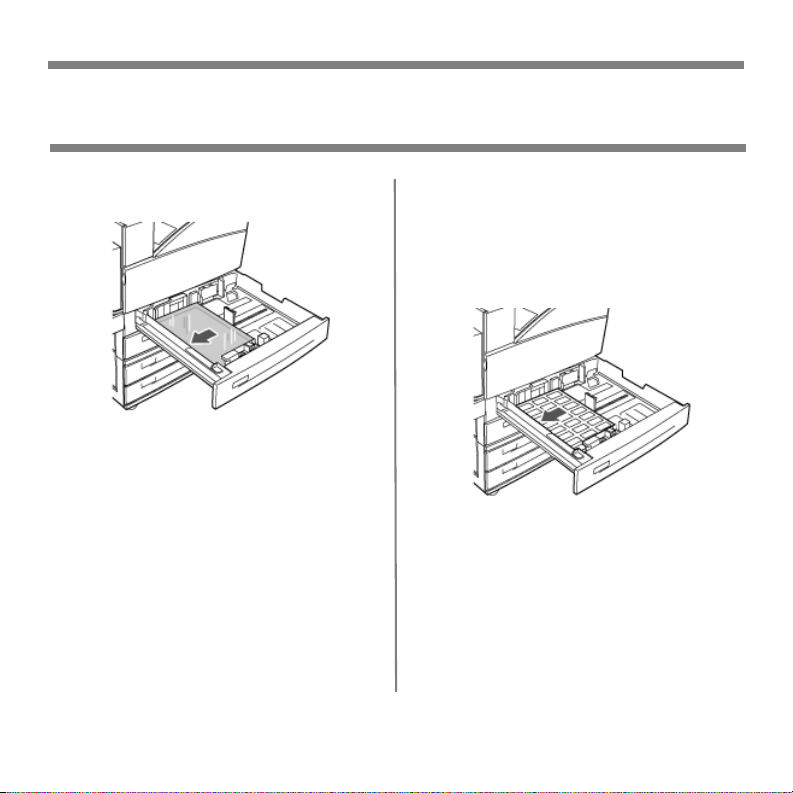

1.
2.
Note: Put side to be printed face up.
3. Slide the paper tray back into the
machine . If custom sizes of paper
are used, make the appropriate
changes in your Printer Properties
and at the Operator Panel as
needed.
For Letterhead stationery:
Long edge feed—face
up, top toward the
front of the printer.
Short edge feed—
face up, top to the
left:
Print Media
Loading Trays 1 & 2

10•English
For Transparencies:
Long edge feed—face up, top
toward the front of the printer.

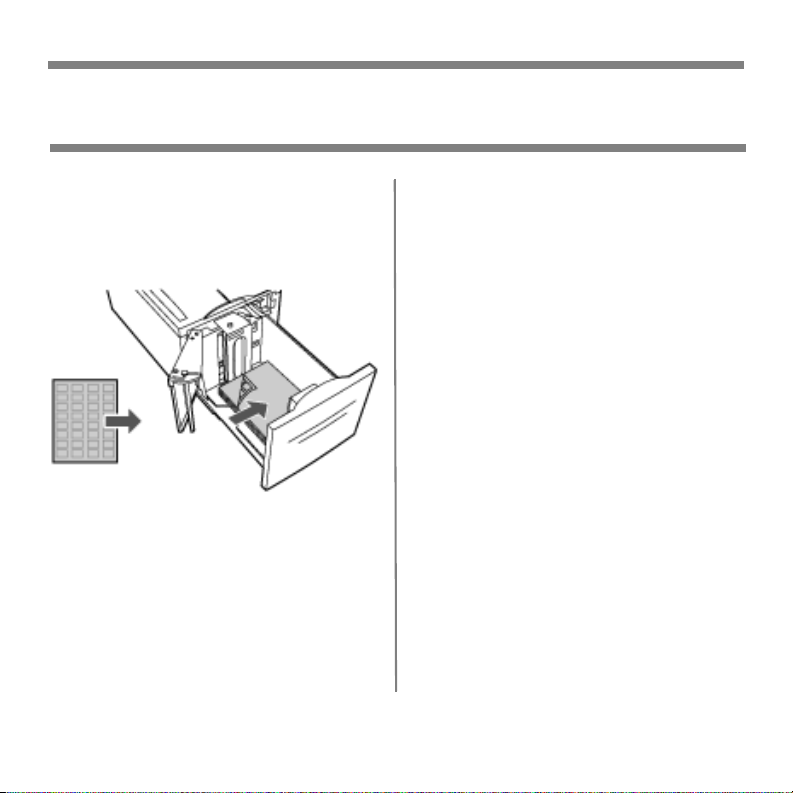

For Labels:
Insert the label sheets long-edge
feed and face up. Place the top of
the label page toward the front of
the printer.
Print Media
Loading Trays 1 & 2 (cont.)
