Y101700-5 Service Manual v
CAUTION
This product is a class 1 laser product that complies with 21CFR 1040.10 and 1040.11 of the CDRH standard and IEC825. This
means that this machine does not produce hazardous laser radiation. The use of controls, adjustments or performance of
procedures other than those specified herein may result in hazardous radiation exposure.
This laser radiation is not a danger to the skin, but when an exact focusing of the laser beam is achieved on the eye’s retina, there
is the danger of spot damage to the retina.
The following cautions must be observed to avoid exposure of the laser beam to your eyes at the time of servicing.
1) When a problem in the laser optical unit has occurred, the whole optical unit must be exchanged as a unit, not as individual
parts.
2) Do not look into the machine with the main switch turned on after removing the developer unit, toner cartridge, and drum
cartridge.
3) Do not look into the laser beam exposure slit of the laser optical unit with the connector connected when removing and
installing the optical system.
4) The middle frame contains the safety interlock switch.
Do not defeat the safety interlock by inserting wedges or other items into the switch slot.

vi Service Manual Y101700-5

Y101700-5 Service Manual 1-1
1. GENERAL
1.1 Main features
The d-Copia 12 copier has the following major
characteristics:
-High-speed laser copying
· Since warm-up time is zero, copying can be started
immediately after the power switch is turned on.
· First-copy time is only 9.6 seconds (normal mode).
· Copying speed is 12 copies/min. which adapts to busi-
ness use, allowing improvement of working efficiency.
-Digital high-quality image
· High-quality image copying with 600 dpi can be per-
formed.
· In addition to the automatic exposure mode, the manual
exposure can be adjusted in five steps.
· The photo mode copying function which allows clear
copying of delicate halftone original images such as
monochrome photos and color photos can be used.
-Substancial copying functions
· Zoom copying from 50% to 200% in 1% increments can
be performed.
· A maximum of 99 copies can be selected.
· Toner save mode for reducing toner consumption by
approximately 10% can be set.
-Environmentally friendly design
· Paper output tray is housed in the copier for space
saving.
· Preheat mode and auto power shut-off mode are provid-
ed to reduce power consumption in standby mode.
-Printer feature
· This copier is also a laser printer.

Service Manual Y101700-51-2
1.2 Specifications
1.2.1 Basic specifications of the copier
A. Basic specifications
Item Spec.
Type Desktop
Copy system Dry, electrostatic
Segment (class) Digital personal copier
External dimensions (W ×D ×H) (mm) 518 mm ×482.6 mm ×292.6 mm
Weight Approx. 19Kg, (drum cartridges included)
B. Operation specifications
Section Item Details Spec.
Paper feed 1 tray (250 sheets) + 1 single-sheet manual bypass
system
Paper size A4, B5, A5 (Landscape)
Tray paper Paper weight 56 – 80g/m2 Tray paper
feed section Paper feed capacity 250 sheets
Kinds Standard paper, specified paper, recycled paper
AB system Remark User adjustment of paper guide available
Single-sheet Paper size A4, B5, A5, B6, A6 (Landscape)
manual bypass Paper weight 52 – 128g/m2
feed section Kinds *1 Standard paper, specified paper, recycled paper, OHP, Label,
Postal card
Remark User adjustment of paper guide available
Tray paper Paper size 8-1/2″×14″, 8-1/2 ×11″, 8-1/2″×5-1/2″(Landscape)
feed section Paper weight 15 – 21 lbs.
Paper feed capacity 250 sheets
Kinds Standard paper, specified paper, recycled paper
Remark User adjustment of paper guide available
Inch system
Single-sheet Paper size 8-1/2″×14″, 8-1/2 ×11″, 8-1/2″×5-1/2″, 3-1/2″×5-1/2″
manual bypass (Landscape)
feed section Paper weight 14 – 34.5 lbs.
Kinds *1 Standard paper, specified paper, recycled paper, OHP, Label,
Postal card
Remark User adjustment of paper guide available
∗1: OHP, Label, Postal card: each 1 pc.
Paper
feed
setion

Y101700-5 Service Manual 1-3
Section Item Details Spec.
Paper exit Exit way Face down
section Capacity of output tray 100 sheets
Original set Center Registration (left edge)
Max. original size B4 (10″×14″)
Originals Original kinds sheet
Original size detection None
Scanning system CCD sensor scanning by
lighting lamp scanner
CCD sensor Resolution 400 dpi
Scanning Type Xenon lamp
Optical section Lighting lamp Voltage 1.5kV
section Power consumption 11 ±3W
Gradation 256 gradations/8bit
Writing Writing system Writing to OPC drum by the
section semiconductor laser
Laser unit Resolution 600 dpi
Type OPC (30φ)
Photoconductor Life 18k
Charging system Saw -tooth charging with a
grid, / (–) scorotron discharge
Image forming Charger Transfer system (+) DC corotron system
Separation system (–) DC corotron system
Developing Developing system Dry, 2-component magnetic
brush development system
Cleaning Cleaning system Counter blade system
(Counter to rotation)
Fusing system Heat roller system
Upper heat roller Type Teflon roller
Fusing section Lower heat roller Type Silicon rubber roller
Type Halogen lamp
Heater lamp Voltage 100V
Power consumption 800W
Power source Voltage Local AC voltage
Frequency Common use for 50 and 60Hz
Max. 1000W
Electrical section Average (during copying) *1) 310Wh/H
Power consumption Average (stand-by) *1) 70Wh/H
Pre-heat mode *1) 40Wh/H
Auto power shut-off mode *1) 18Wh/H
*1) May fluctuate due to environmental conditions and the input voltage.

Service Manual Y101700-51-4
C. Copy performance
Section Item Details Spec.
Copy Fixed magnification ratios 3R + 2E (AB system: 50, 70,
magnification 81, 100, 141, 200%)
(Inch system: 50, 64, 78, 100,
129, 200%)
Zooming magnification ratios 50 ∼200% (151 steps in 1%
increments)
Manual steps (manual, 5 steps
photo)
Tray paper feed 9.6 sec. or below (A4), 9.4 sec.
or below (8-1/2" × 14")
Pre-heat mode: 16 sec.
or below / Auto power-
Copy speed First copy time shut-off mode: 23 sec. or
below)
Manual paper feed 10.0 sec (Pre-heat mode: 16
sec. or below / Auto
power-shut-off mode: 23 sec.
or below)
AB system: A4 Copy speed (CPM) Same size 12
(Landscape) Enlargement 12
Reduction 12
B5 (Landscape) Copy speed (CPM) Same size 12
Enlargement 12
Reduction 12
Inch system 8-1/2″Copy speed (CPM) Same size 10
×14″(Landscape) Enlargement 10
Reduction 10
8-1/2″×11″Copy speed (CPM) Same size 12
(Landscape) Enlargement 12
Reduction 12
Max. continuous copy 99
quantity
Leading edge 1 ∼4mm
Trailing edge 4mm or less, 6mm or less
Void Void area
4.0mm or less (per side),
Side edge void area machine with side edge void
0.5mm ∼4mm (Total of both
edge voids)
Image loss OC mode Leading edge Same size: 3.0mm or less /
Enlarge (200%): 2.0mm
or less / Reduction (50%):
6.0mm or less
Warm-up time 0 sec.
Power save mode reset time 0 sec.
Paper jam recovery time 0 sec.

Y101700-5 Service Manual 1-5
1.3 Consumables
1.3.1 Supply system table
No. Name Content Life Package
1 Toner CA (Black) Toner x10 6.5K 1
with CA (Toner Net Weight 210g) per unit
Polyethylene bag x10
2 Developer Developer x10 25K 1
(Developer Net Weight 170g) per unit
3 Drum kit Drum x1 25K 10
Drum fixing plate x1
Note: Packed together with the machine: DR 25K/Developer UN/Process UN.

Service Manual Y101700-51-6
1.4 Environmental conditions
The environmental conditions for assuring the copy
quality and the machine operations are as follows:
- Normal operating condition
• Temperature:20°C~25
• Humidity:65 ± 5%RH
- Acceptable operating condition
- Optical condition
- Supply storage condition
1.5 Production control number
(lot No.) identification
(Developing cartridge)
*: Destination
Division No.
EX Destination A same pack G
B same pack H
Option Destination A P
B Q
(Drum cartridge)
The label on the drum cartridge shows the date of
production (SOCC production).
(JAPAN production)

Y101700-5 Service Manual 1-7
Division No.
Ex production 1
Option 2
Same pack 3
*1 The production control label is not attached to the cartridge
of a China product.
1.6 TD cartridge replacement
1) Open the front and side cabinets of the copier.
2) Keep holding Toner lover, and
3) Carefully pull out Toner unit from the copier.
4) PutToner unit in acollectionbagimmediately after removing
it from the copier.
Note: Never carry exposed Toner unit. Be sure to put it in the
collection bag.

Service Manual Y101700-51-8
1.7 External views and internal components
1.7.1 General appearance
1 Original cover
2 Side cover
3 Manual bypass
4 Paper guides
5 Side cover open button
6 Front cover
7 Paper tray
8 Operation panel
9 Original table
10 Parallel interface
11 Paper output tray
12 Paper output tray extension
13 Handle
14 Power switch
15 Power cord socket
16 Toner cartridge lock release lever
17 Toner cartridge
18 Transfer charger
19 Photoconductive drum
20 Charger cleaner
21 Fusing unit release tab
22 Paper feed roller
1
2
3
4
5
6
7
8
9
10
11
12
13
15
14 13
16
17
22
21 20
19
18

Y101700-5 Service Manual 1-9
1.8 Operation panel
1Exposure mode selector key and indicators
Use to sequentially select the exposure modes: AUTO, MA-
NUAL (=) or PHOTO ( ). Selected mode is shown by a
lit indicator.
2Light ({) and dark ( ) keys and exposure indicators
Used to adjust the MANUAL (=) or PHOTO ( ) exposure
level. Selected exposure level is shown by a lit indicator.
Use to start and terminate user program setting.
3Alarm indicators
q
: Developer replacement required indicator.
t : Misfeed indicator.
s
: Toner cartridge replacement required indicator.
p
: Maintenance indicator.
4Copy ratio selector key and copy ratio indicators
Use to sequentially select prset reduction/enlargement copy
ratios.
5Zoom indicator
6Copy ratio display (%) key
7Display
Displays the specified copy quantity, zoom copy
ratio, user program code, and error code.
8ON LINE indicator
Lights up when the machine is used as a printer or when it is
receiving or processing print data.
9Power save indicator
Lights up when the copier is in a power save mode.
0Zoom keys (N, L)
Use to select any reduction or enlargement copy
ratio from 50 to 200% in 1% increments.
qCopy quantity keys ( , )
•Use to select the desired copy quantity (1 to 99).
•Use to make user program entries.
wClear key (>)
•Press to clear the display, or press during a copy run to
terminate copying.
•Press and hold down during standby to display the total
number of copies to date.
ePrint key and ready indicator ( )
•Copying is possible when the indicator is on.
•Use to set a user program.

Service Manual Y101700-51-10

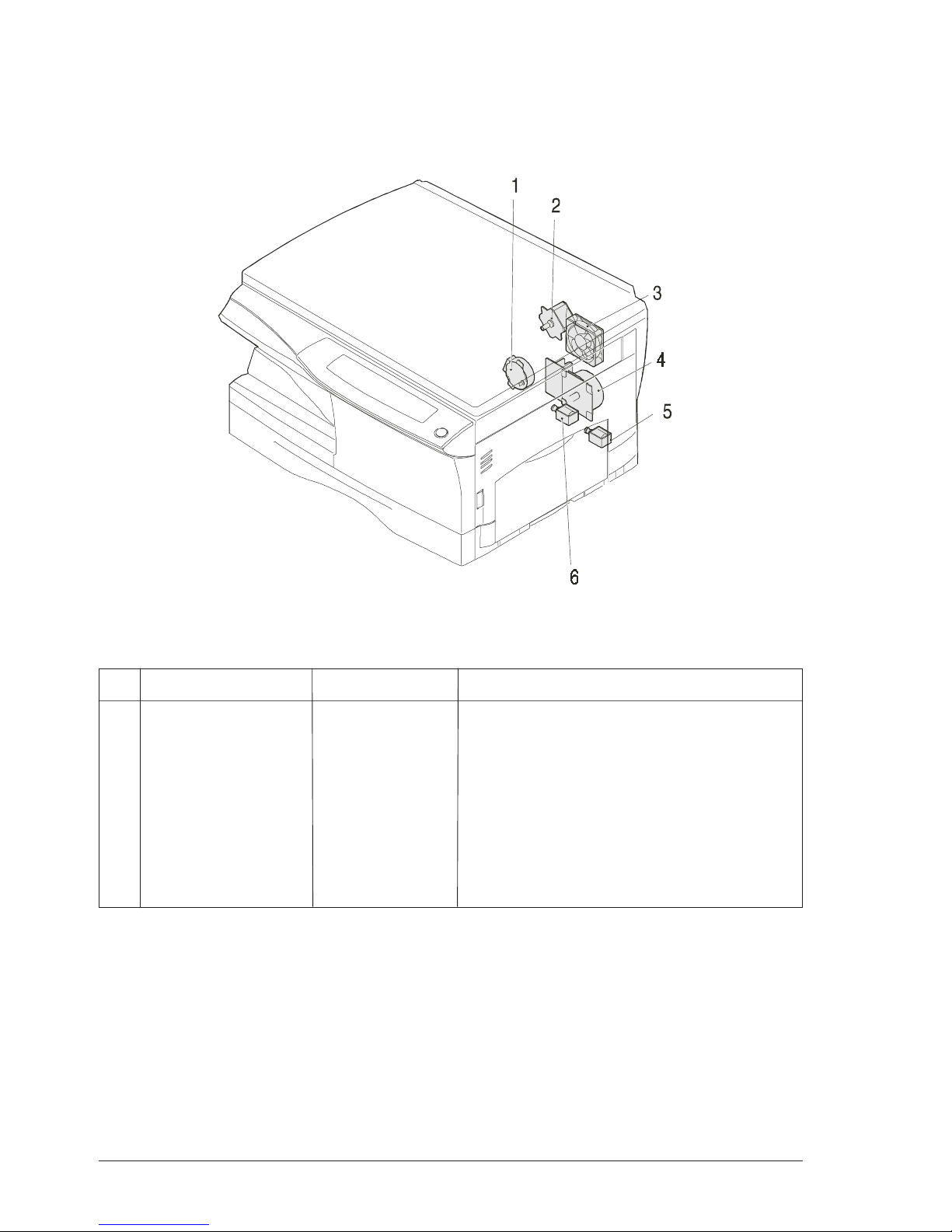

1.9 Motors and solenoids
No. Part name Control signal Function operation
1 Toner motor TM Supplies toner
2 Mirror motor MRMT Drives the optical mirror base
(scanner unit)
3 Cooling fan motor VFM Cools the optical section
4 Main motor MM Drives the copier
5 Resist roller solenoid RRS Resist roller rotation control solenoid
6 Paper feed solenoid CPFS1 Cassette paper feed solenoid 1

Y101700-5 Service Manual 1-11
1.10 Sensors and switches
No. Name Signal Type Function Output
1 Mirror home Mirror (scanner unit)
position sensor MHPS Transmission sensor home pos. detection “H” at home pos.
2 POD sensor POD Transmission sensor Paper exit detection “H” at paper pass
3 SPPD sensor SPPD Transmission sensor Paper transport detection “L” at paper pass
4 PPD2 sensor PPD2 Transmission sensor Paper transp. detection 2 “L” at paper pass
5 Cassette detect. Cassette installation
switch CED1 Microswitch installation “H” at cass. insert.
6 PPD1 sensor PPD1 Transmission sensor Paper transp. detection 1 “L” at paper pass
7 PPD3 sensor PPD3 Transmission sensor Paper transp. detection 3 “L” at paper pass
8 Door switch DSW Microswitch Door open/close detect. 1 or 0V or 5V at
(safety switch for 5V) dooropen
9 Door switch DSW Microswitch Door open/close detect. 1 or 0V or 24Vat
(safety switch for 24V) door open

Service Manual Y101700-51-12
1.11 PWB unit
No. Name Function
1 Exposure lamp invertor PWB Exposure lamp (Xenon lamp) control
2 GDI PWB For GDI interface
3 Main PWB (MCU) Copier control
4 Memory PWB 4MB For memorizing data
5 LSU PWB For laser control
6 LSU motor PWB For polygon motor drive
7 TCS PWB For toner sensor control
8 Operation PWB Operation input/display
9 CCD sensor PWB For image scanning
10 Power PWB AC power input, DC voltage control, High voltage control

Y101700-5 Service Manual 1-13
1.12 Cross sectional view
No. Part name Function and operation
1 Paper exit roller Roller for paper exit
2 Lens unit Scans the original image with the lens and the CCD
3 LSU (Laser unit) Converts the original image signal into laser beams and writes onto
the drum
4 Main charger Provides negative charges evenly to the drum surface
5 Scanner unit Illuminates the original with the copy lamp and passes the reflected
light to the ens unit (CCD)
6 Exposure lamp Exposure lamp (Xenon lamp) Illuminates original
7 Heat roller Fuses toner on the paper (Teflon roller)
8 Pressure roller Fuses toner on the paper (Silicon rubber roller)
9 Drum Forms images
10 Transferunit Transfers images onto the drum.
11 Manual paper feed
roller Transport the paper from the manual paper feed port
12 PS roller unit Takes synchronization between the lead edge and the rear edge of
the paper
13 Paper feed roller Picks up a sheet of paper from the cassette

Service Manual Y101700-51-14

Y101700-5 Service Manual 2-1
2. UNPACKING AND
INSTALLATION
2.1 Copier installation
Improper installation may damage the copier. Please
note the following during initial installation and whenever
the copier is moved.
Caution: If the copier is moved from a cool place to a
warm place, condensation may form inside the
copier. Operation in this condition will cause
poor copy quality and malfunctions. Leave the
copier at room temperature for at least 2 hours
before use.
Do not install your copier in areas that are:
• damp, humid, or very dusty
• exposed to direct sunlight
• poorly ventilated
• subject to extreme temperature or humidity
changes, e.g., near an air conditioner or heater.
The copier should be installed near an accessible
power outlet for easy connection. Be sure to connect the
power cord only to a power outlet that meets the specified
voltage and current requirements. Also make certain the
outlet is properly grounded.
Be sure to allow the required space around the machi-
ne for servicing and proper ventilation.
2.2 Cautions on handling
Be careful in handling the copier as follows to maintain the
performance of this copier.
Do not drop the copier, subject it to shock or strike it
against any object.
Do not expose the drum cartridge to direct sunlight.
Doing so will damage the surface (green portion) of the
drum cartridge, causing poor print quality.
Store spare supplies such as drum cartridges and TD
cartridges in a dark place without removing from the package
before use.
If they are exposed to direct sunlight, poor print quality
may result.
Do not touch the surface (green portion) of the drum
cartridge.
Doing so will damage the surface of the cartridge, cau-
sing poor print quality.

2-2 Service Manual Y101700-5
2.3 Checking packed components and
accessories
Open the carton and check if the following components
and accessories are included.
2.4 Unpacking
Be sure to hold the handles on both sides of the copier to
unpack the copier and carry it to the installation location.
2.5 Removing protective packing
materials
1) Remove pieces of tape and protective cover. Then open
the original cover and remove protective materials (a)
and (b).
2) Use a coin (or suitable object) to remove the screw.
Store the screw in the paper tray because it will be used if
the copier has to be moved.
2.6 Developer unit installation
1) 2) 3) Open the side and front cabinets of the copier.
4) Remove the locking tape of the developer unit.
5) Remove the screw which is fixing the copier and Developer
unit.
6) Remove Developer unit slowly from the copier.
7) Remove the screw (1 pc).
8) Remove Upper developer unit.
Power cord
Copier
Drum cartridge
(installed in copier)
Interface
cable
