Olympia P-4430 User manual

MAINTENANCE AND CARE INSTRUCTIONS
Olympia products are designed and engineered under strict quality standards. Regular and proper care of our
products will ensure years of trouble free service. To clean, simply wipe with a damp, soft cloth. Do not use
abrasive or harsh cleaners as they may result in nish damage. Regularly remove and clean minor debris from
the aerator.

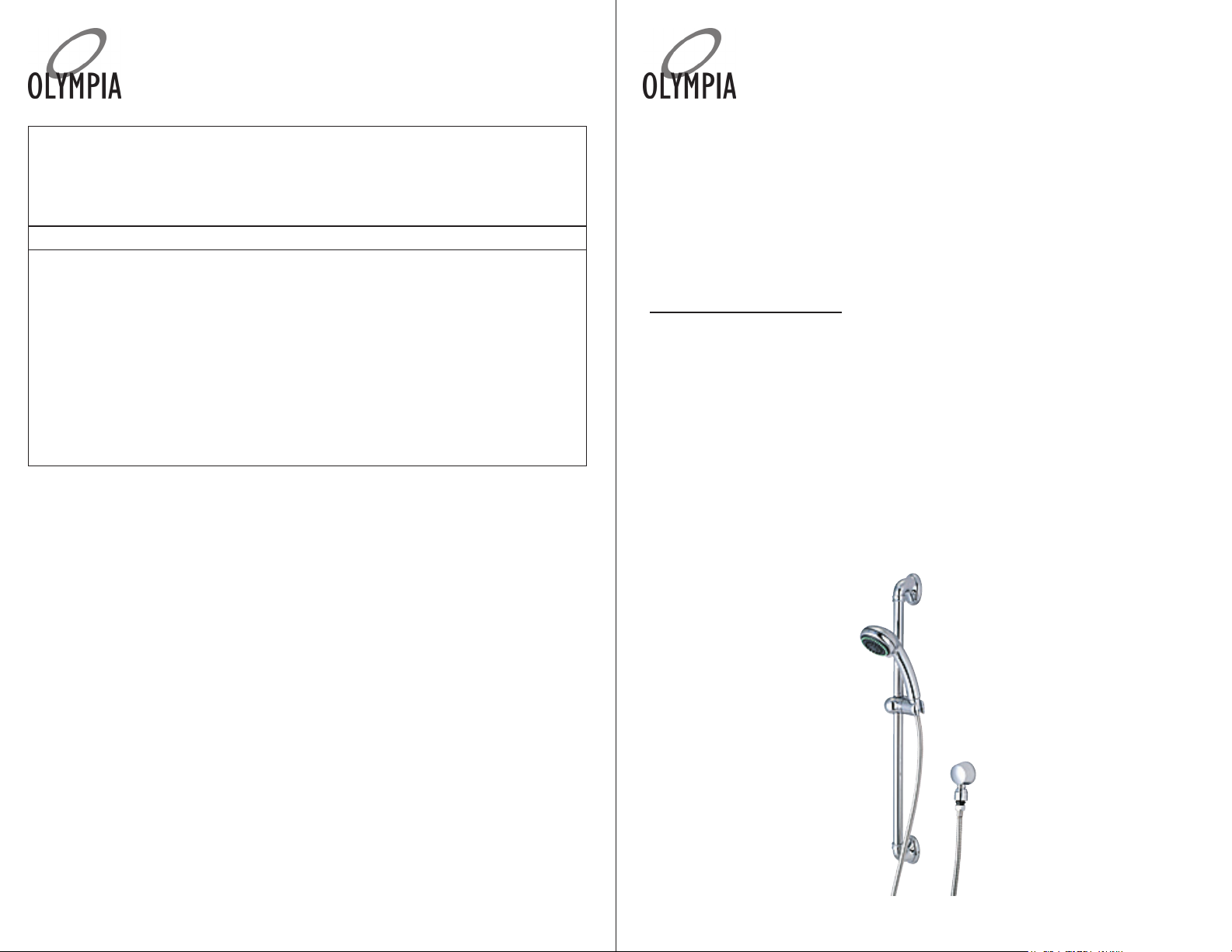

INSTALLATION AND MAINTENANCE
INSTRUCTIONS FOR OLYMPIA HANDHELD
SHOWER SET
PRODUCT NUMBERS
#P-4430 Handheld Shower Set
#P-4420 Handheld Shower Set With Two Way Diverter
Olympia Faucets, Inc. © 2009
OLYMPIA FAUCETS, INC. LIMITED LIFETIME WARRANTY *
Olympia Faucets, Inc. warrants its products to the original consumer purchaser to be free from defects in material
and workmanship as long as the consumer purchaser owns it. Dated proof of purchase must accompany all war-
ranty claims. PVD nishes carry a lifetime warranty in residential service.
Olympia Faucets, Inc. will replace, free of charge, to the original consumer purchaser, any and all parts that
prove defective under normal installation, use, and service. Damage as a result of misuse, abuse, accident, or
improper installation, will consequentially void this warranty. Replacement parts can be obtained from your local
dealer or directly from Olympia Faucets. Olympia Faucets, Inc. recommends using a certied plumber for all
faucet installation and repair.
This warranty is limited to replacement of defective parts only. Incidental and consequential damages, labor
charges, repair, or replacement costs are expressly excluded. Some states do not allow the exclusion or limita-
tion of incidental or consequential damages, so the above limitation may not apply to you. This warranty gives
you specic legal rights, as you may have other rights of which vary from state to state.
Installation or maintenance and cleaning must be in compliance with instructions furnished with every Olympia
product. If you nd a problem with your product, please immediately contact your nearest Olympia Faucets, Inc.
dealer or sales representative.
* 2 year limited warranty on commercial and multi-family projects.

Thank you for purchasing this quality product. Olympia products are rigorously tested to provide long service
under normal conditions. Prior to installation, familiarize yourself with this parts diagram. Make sure that you have
all of the illustrated parts for your Olympia product before installation.
INSTALLATION INSTRUCTIONS
Tools you will need:
• Plumbers Putty • Teon Tape
• Screwdriver • Flexible Supply Lines
• Pipe Wrench • Adjustable Wrench
• Basin Wrench • Soft Cloth
Handheld Shower Set INSTALLATION:
1. Carefully shut off water supply.
2. Position screw hole locations for 25-1/4” slide bar mounting brackets at the desired height of the
user, at least 54” above the ground. Drill 1/4” holes perpendicular to the ground for each of the
anchor screws
3. Place plastic anchor screws into holes using a hammer to tap it in ush with the wall.
3. Attach brass slide mounts(F) using 3/32” hex wrench to tighten set screws.
4. For P-4430 :- Mount drop ell(D1) at least 2” above the rim of tub or shower drain.
For P-4420 :- Install two way diverter (D2) male end to shower arm. Front end to Showerhead. Use
teong tape at threaded connections.
5. Secure drop ell(D1) mount with silicon caulking.
6. Install Vacuum Breaker (C) between drop ell (D1) or two way diverter (D2) and 60” SST ex hose
(B).
7. Check hose connections between showerhead(A) and drop ell(D1) or two way diverter (D2) for any
leak.
Olympia Faucets, Inc. © 2009
For more care information or trouble shooting inquiries
about your Olympia product, please call:
OLYMPIA FAUCETS, INC. [phone]
Central Standard Time: 8:00am ~ 7:00pm
www.olympiafaucets.com
ITEM # DESCRIPTION
A OP-660003 Handheld Showerhead
B OP-460021 60” SST Hose
C OP-460020 Vacuum Breaker
D1 OP-460006 Drop Ell (For P-4430)
D2 OP-460013 Two Way Diverter (For P-4420)
E OP-560001 Mounting Kit
F OP-460009 Brass Mounts
G OP-460010 24” Slide Bar
H OP-490011 3/32” Allen Wrench
1 OP-460023 Washer
2 OP-440048 1.75 GPM Restrictor
ITEM # DESCRIPTION
3 OP-460025 Washer
4 OP-460011 Mounting Screw
5 OP-490029 3/32” Allen Screw
