Omcan BB-CN-0012E-SH User manual

Revised - 02/10/2023
Toll Free: 1-800-465-0234
Fax: [phone]
Email: [email protected]
www.omcan.com
Aurora Back Bar Coolers
Models BB-CN-0012E-SH, 0012E-GH, 0020E-SH, 0020E-GH
Items 59057, 59058, 59061, 59062
Instruction Manual

2
Page
-------------------------------------------------------------------------------------------- 3
--------------------------------------------------------------------------- 4 - 5
--------------------------------------------------------------------------- 5 - 7
---------------------------------------------------------------------- 8 - 9
-------------------------------------------------------------------------------------- 9 - 10
--------------------------------------------------------------------------------- 10 - 11
----------------------------------------------------------------------------- 11 - 12
---------------------------------------------------------------------------- 13 - 20
---------------------------------------------------------------------------- 21
------------------------------------------------------------------------------------------------ 22
---------------------------------------------------------------------------- 23
Table of Contents
Section
Disclaimer
General Information
Safety and Warranty
Technical Specications
Installation
Maintenance
Troubleshooting
Parts Breakdown
Electrical Schematics
Notes
Warranty Registration
Model BB-CN-0012E-SH / Model BB-CN-0012E-GH
Model BB-CN-0020E-SH / Model BB-CN-0020E-GH

3
Disclaimer
OMCAN IS NOT RESPONSIBLE FOR ANY DAMAGES
DUE TO WATER LEAKS. WARRANTY FOR
WATER LEAKS IS VOID IF THE AMBIENT ROOM
TEMPERATURE EXCEEDS 75°F AND 55% RELATIVE
HUMIDITY, AND THE APPLIANCE DRAIN IS NOT
CONNECTED DIRECTLY TO A FLOOR DRAIN.
OMCAN NO SE HACE RESPONSABLE DE LOS
DAÑOS CAUSADOS POR FUGAS DE AGUA. LA
GARANTÍA POR FUGAS DE AGUA QUEDA ANULADA
SI LA TEMPERATURA AMBIENTE SUPERA LOS 75°F Y
EL 55% DE HUMEDAD RELATIVA, Y EL DESAGÜE DEL
APARATO NO ESTÁ CONECTADO DIRECTAMENTE A
UN DESAGÜE DE PISO.
OMCAN N’EST PAS RESPONSABLE DES DOMMAGES
DUS AUX FUITES D’EAU. LA GARANTIE POUR LES
FUITES D’EAU EST ANNULÉE SI LA TEMPÉRATURE
AMBIANTE DE LA PIÈCE DÉPASSE 75°F ET 55%
D’HUMIDITÉ RELATIVE, ET SI LE DRAIN DE
L’APPAREIL N’EST PAS RACCORDÉ DIRECTEMENT
À UN DRAIN DE PLANCHER.

4
General Information
Omcan Manufacturing and Distributing Company Inc., Food Machinery of America, Inc. dba Omcan
and Omcan Inc. are not responsible for any harm or injury caused due to any person’s improper or
negligent use of this equipment. The product shall only be operated by someone over the age of 18, of
sound mind, and not under the inuence of any drugs or alcohol, who has been trained in the correct
operation of this machine, and is wearing authorized, proper safety clothing. Any modication to the
machine voids any warranty, and may cause harm to individuals using the machine or in the vicinity of
the machine while in operation.
CHECK PACKAGE UPON ARRIVAL
Upon receipt of an Omcan shipment please inspect for external damage. If no damage is evident on the
external packaging, open carton to ensure all ordered items are within the box, and there is no concealed
damage to the machine. If the package has su󰀨ered rough handling, bumps or damage (visible or concealed),
please note it on the bill of lading before accepting the delivery and contact Omcan within 24 hours, so we may
initiate a claim with the carrier. A detailed report on the extent of the damage caused to the machine must be
lled out within three days, from the delivery date shown in the shipping documents. Omcan has no recourse
for damaged products that were shipped collect or third party.
Before operating any equipment, always read and familiarize yourself with all operation and safety
instructions.
Omcan would like to thank you for purchasing this machine. It’s of the utmost importance to save
these instructions for future reference. Also save the original box and packaging for shipping the
equipment if servicing or returning of the machine is required.
---------------------------------------------------------------------------------------------------------------------------------------------------
Omcan Fabrication et distribution Companie Limité et Food Machinery d’Amerique, dba Omcan et
Omcan Inc. ne sont pas responsables de tout dommage ou blessure causé du fait que toute personne
ait utilisé cet équipement de façon irrégulière. Le produit ne doit être exploité que par quelqu’un de
plus de 18 ans, saine d’esprit, et pas sous l’inuence d’une drogue ou d’acohol, qui a été formé pour
utiliser cette machine correctement, et est vêtu de vêtements de sécurité approprié. Toute modication
de la machine annule toute garantie, et peut causer un préjudice à des personnes utilisant la machine
ou des personnes à proximité de la machine pendant son fonctionnement.
VÉRIFIEZ LE COLIS DÈS RÉCEPTION
Dès réception d’une expédition d’Omcan veuillez inspecter pour dommages externes. Si aucun dommage
n’est visible sur l’emballage externe, ouvrez le carton an de s’assurer que tous les éléments commandés
sont dans la boîte, et il n’y a aucun dommage dissimulé à la machine. Si le colis n’a subi aucune mauvaises
manipulations, de bosses ou de dommages (visible ou cachée), notez-le sur le bond de livraison avant
d’accepter la livraison et contactez Omcan dans les 24 heures qui suivent, pour que nous puissions engager
une réclamation auprès du transporteur. Un rapport détaillé sur l’étendue des dommages causés à la machine
doit être rempli dans un délai de trois jours, à compter de la date de livraison indiquée dans les documents
d’expédition. Omcan n’a aucun droit de recours pour les produits endommagés qui ont été expédiées ou cueilli
par un tiers transporteur.

5
Safety and Warranty
General Information
Please pay close attention to the safety notices in this section. Disregarding these notices may lead to serious
injury and can damage the unit.
CAUTION FOR SAFETY
1. Leave enough space from the wall to the cabinet and the ceiling; do not place the back of the unit against
the wall.
Avant d’utiliser n’importe quel équipement, toujours lire et vous familiariser avec toutes les opérations
et les consignes de sécurité.
Omcan voudrais vous remercier d’avoir choisi cette machine. Il est primordial de conserver ces
instructions pour une référence ultérieure. Également conservez la boîte originale et l’emballage pour
l’expédition de l’équipement si l’entretien ou le retour de la machine est nécessaire.
---------------------------------------------------------------------------------------------------------------------------------------------------
Omcan Empresa De Fabricacion Y Distribucion Inc. Y Maquinaria De Alimentos De America, Inc. dba
Omcan y Omcan Inc. no son responsables de ningun daño o perjuicío causado por cualquier persona
inadecuada o el uso descuidado de este equipo. El producto solo podra ser operado por una persona
mayor de 18 años, en su sano juicio y no bajo alguna inuencia de droga o alcohol, y que este ha sido
entrenado en el correcto funcionamiento de esta máquina, y ésta usando ropa apropiada y autorizada.
Cualquier modicación a la máquina anúla la garantía y puede causar daños a las personas usando la
máquina mientras esta en el funcionamiento.
REVISE EL PAQUETE A SU LLEGADA
Tras la recepcion de un envio Omcan favor inspeccionar daños externos. Si no hay daños evidentes en el
empaque exterior, Habra el carton para asegurararse que todos los articulos solicitados ésten dentro de la
caja y no encuentre daños ocultos en la máquina. Si el paquete ha sufrido un manejo de poco cuidado, golpes
o daños (visible o oculto) por favor anote en la factura antes de aceptar la entrega y contacte Omcan dentro
de las 24 horas, de modo que podamos iniciar una reclamación con la compañia. Un informe detallado sobre
los daños causados a la máquina debe ser llenado en el plazo de tres días, desde la fecha de entrega que se
muestra en los documentos de envío. Omcan no tiene ningun recurso por productos dañados que se enviaron
a recoger por terceros.
Antes de utilizar cualquier equipo, siempre lea y familiarizarse con todas las instrucciones de
funcionamiento y seguridad.
Omcan le gustaría darle las gracias por la compra de esta máquina. Es de la mayor importancia para
salvar estas instrucciones para futuras consultas. Además, guarda la caja original y el embalaje para el
envío del equipo si servicio técnico o devolución de la máquina que se requiere.

6
Safety and Warranty
Caution: keep a minimum of 20cm from the cabinet and the wall.
2. Please keep other objects away from the unit that may cause a re.
3. Do not store ammable or combustible materials near the unit.
4. Only connect to a grounded single phase connection.
Caution: Do not connect grounding wire to a water or gas pipe.
5. Handle with caution during transportation, the unit can only be leaned a maximum of 45°.
6. When encountering problems, please refer to the Troubleshooting section or call Omcan.
Danger: Flammable refrigerant used. Do not use mechanical devices to defrost the unit. Do not
puncture the refrigerant tubing. To be repaired only by trained service technicians.
Caution: Flammable refrigerant used. Consult repair manual/owners guide before attempting to service
this unit. All safety precautions must be followed.
Caution: Dispose of properly in accordance with federal or local regulations. Flammable refrigerant
used.
Caution: Follow handling instructions carefully.
Caution: Ensure all ventilation openings are unobstructed.
Caution: Servicing shall be done by authorized service personnel, so as to minimize the risk of injury
due to incorrect parts or improper service.
ATTENTION
• To minimize shock and re hazards, be sure not to overload outlet. Please designate one outlet for your
unit.
• Do not use extension cords.
• Do not put your hands under the unit when the unit is required to be moved.
• When the unit is not in use for a long period of time, please unplug the unit from the outlet.
• After unplugging the unit, wait at least 10 minutes before re-plugging it. Failure to do so could cause
damage to the compressor.
UNPLUG CORD
• To minimize shock and re hazards, please do not plug or unplug the cord with wet hands.
• During maintenance and cleaning, please unplug the unit..
PROPER GROUNDING REQUIRED
• To minimize shock and re hazards, make sure that the unit is properly grounded.
PROHIBITION
• Do not attempt to remove or repair any component unless instructed by Omcan.
• Make sure that the unit is not resting on or against the electrical cord and plug.
• To minimize personal injury, do not hang on the doors.
• Do not store any ammable or explosive material inside the unit.

7
Safety and Warranty
• Do not attempt to alter or tamper with the electrical cord.
RESIDENTIAL USERS: Vendor assumes no liability for parts or labor coverage for component failure
or other damages resulting from installation in non-commercial or residential applications. The right
is reserved to deny shipment for residential usage; if this occurs, you will be notied as soon as
possible.
1 YEAR PARTS AND LABOUR WARRANTY
Within the warranty period, contact Omcan Inc. at 1-800-465-0234 to schedule an Omcan authorized
service technician to repair the equipment locally.
Unauthorized maintenance will void the warranty. Warranty covers electrical and part failures, not
improper use.
Please see https://omcan.com/disclaimer for complete info.
WARNING:
The packaging components are classied as normal solid urban waste and can therefore be disposed of
without di󰀩culty.
In any case, for suitable recycling, we suggest disposing of the products separately (di󰀨erentiated
waste) according to the current norms.
DO NOT DISCARD ANY PACKAGING MATERIALS IN THE ENVIRONMENT!

8
Technical Specications
SOLID DOOR UNITS
Model BB-CN-0012E-SH BB-CN-0020E-SH
Temperature Range 0.6 - 4.4°C / 33 - 40°F
Max Ambient Temp
Rating 24°C / 75°F
Power 346 W 396 W
Refrigerant R290
Isolation Material Cyclopentane
Cooling System Ventilated
Defrosting Automatic
Type of Controller Digital
Self-Closing Door Yes
Current 3.7A 4.1A
Number of Doors 2 3
Number of Shelves 4 6
Shelf Material Plastic Coated
Shelf Loading Capacity 88 lbs. / 39.9 kgs.
Electrical 110-120V / 60Hz / 1
Interior Dimensions 36.2” x 18.5” x 30.5”
920 x 470 x 775mm
60.2” x 18.5” x 30.5”
1528 x 470 x 775mm
Overall Dimensions 48.8” x 24.4” x 35.6”
1240 x 620 x 905mm
72.8” x 24.4” x 35.6”
1848 x 620 x 905mm
Packaging Dimensions 51.2” x 27.6” x 41.7”
1300 x 700 x 1060mm
75.2” x 27.6” x 41.7”
1910 x 700 x 1060mm
Net Volume 318 L / 11.2 cu.ft. 525 L / 18.5 cu.ft.
Weight 231.5 lbs. / 105 kgs. 330.7 lbs. / 150 kgs.
Packaging Weight 282.2 lbs. / 128 kgs. 374.8 lbs. / 170 kgs.
Item Number 59057 59061

9
Installation
IMPORTANT!!! PLEASE READ BEFORE INSTALLATION
• If the unit has recently been transported, please let the unit stand upright for a minimum of 24 hours before
plugging it in.
• Make sure that the unit drops down to the desired temperature before loading the unit with product.
• Make sure that there is proper ventilation around the unit in the area where it will operate.
Technical Specications
GLASS DOOR UNITS
Model BB-CN-0012E-GH BB-CN-0020E-GH
Temperature Range 0.6 - 4.4°C / 33 - 40°F
Max Ambient Temp
Rating 24°C / 75°F
Power 273 W 396 W
Refrigerant R290
Isolation Material Cyclopentane
Cooling System Ventilated
Defrosting Automatic
Type of Controller Digital
Self-Closing Door Yes
Current 2.88A 4.1A
Number of Doors 2 3
Number of Shelves 4 6
Shelf Material Plastic Coated
Shelf Loading Capacity 88 lbs. / 39.9 kgs.
Electrical 110-120V / 60Hz / 1
Interior Dimensions 36.2” x 18.5” x 30.5”
920 x 470 x 775mm
60.2” x 18.5” x 30.5”
1528 x 470 x 775mm
Overall Dimensions 48.8” x 24.4” x 35.6”
1240 x 620 x 905mm
72.8” x 24.4” x 35.6”
1848 x 620 x 905mm
Packaging Dimensions 51.2” x 27.6” x 41.7”
1300 x 700 x 1060mm
75.2” x 27.6” x 41.7”
1910 x 700 x 1060mm
Net Volume 318 L / 11.2 cu.ft. 525 L / 18.5 cu.ft.
Weight 231.5 lbs. / 105 kgs. 330.7 lbs. / 150 kgs.
Packaging Weight 282.2 lbs. / 128 kgs. 377 lbs. / 171 kgs.
Item Number 59058 59062

10
Maintenance
Installation
CLEANING THE CONDENSER COIL
• For e󰀩cient operation, it is important that the condenser surface be kept free of dust, dirt and lint.
• We recommend cleaning the condenser coil and ns at least once per month.
• Clean with a commercial condenser coil cleaner. Brush the condenser ns from top to bottom, not side to
side.
• After cleaning, straighten any bent condenser ns with a n comb.
• Make sure all accessories are installed (shelves, casters, ect.) before plugging in the unit.
• Please read through the manual in its entirety.
CABINET LOCATION GUIDELINES
INSTALL THE UNIT ON A STRONG AND LEVELED SURFACE
• Unit may make unpleasant noises if surface is uneven.
• Unit may malfunction if surface is uneven.
INSTALL THE UNIT IN AN INDOOR, WELL VENTILATED AREA
• Unit performs more e󰀩ciently in a well ventilated area.
• For best performance, please maintain a clearance of 4” from the back of the unit.
• Not to be used outdoors.
AVOID INSTALLATION IN A HIGH HUMIDITY AND/OR DUSTY AREA
• Humidity can cause the unit to rust and decrease e󰀩ciency of the unit.
• Dust collected on the condenser coil will cause the unit to malfunction. Clean the condenser at least once a
month with a brush or clean cloth.
SELECT A LOCATION AWAY FROM HEAT AND MOISTURE-GENERATING EQUIPMENT
• High ambient temperatures will cause the compressor to overwork, leading to higher energy bills and
gradual breakdown of the unit.
ELECTRICAL
Please ensure that the required voltage of the compressor is being supplied at all times. Low or high voltage
can detrimentally a󰀨ect the refrigeration unit. All units should be plugged into a grounded a properly-sized
electrical outlet with appropriate overcurrent protection. Please refer to the electrical requirements on the rating
plate. Please make sure that your unit has its own dedicated outlet. Do not use an extension cord.

11
Maintenance
Troubleshooting
CLEANING THE FAN BLADES AND MOTOR
If necessary, clean the fan blades and motor with a soft cloth. If it is necessary to wash the fan blades, cover
the fan motor to prevent moisture damage.
CLEANING THE INTERIOR OF THE UNIT
• When cleaning the cabinet interior, us a solvent of warm water and mild soap.
• Do not use steel wool, caustic soap, abrasive cleaners, or bleach that may damage the stainless steel
surface.
• Wash door gaskets on a regular basis, preferably weekly. Simply remove door gasket from the frame of the
door, soak in warm water and soap for thirty (30) minutes, dry with a soft cloth and replace.
• Check door gaskets for proper seal after they are replaced.
• Periodically remove the shelves and pilasters from the unit and clean them with mild soap and warm water.
To remove the pilasters, rst remove the shelves and shelf brackets. Then, simply lift the pilaster up and
out.
Warning: Disconnect power cord before cleaning any parts of the unit.
Problem Possible Cause Solution
Compressor not running. Fuse blown or circuit breaker
tripped.
Replace fuse or reset circuit
breaker.
Power cord unplugged. Plug in power cord.
Thermostat set too high. Set thermostat to a lower
temperature.
Cabinet in defrost cycle. Wait for defrost cycle to nish.

12
Troubleshooting
Condensing unit runs for long
periods of time.
Excessive amount of warm product
placed in cabinet.
Allow adequate time for product to
cool down.
Prolonged door opening or door
ajar.
Ensure doors are closed when not
in use. Avoid opening doors for
long periods of time.
Door gaskets not sealing properly. Ensure gaskets are snapped in
completely. Remove gaskets and
wash with soap and water. Check
condition of gaskets and replace if
necessary.
Dirty condenser coil. Clean the condenser coil.
Evaporator coil iced over. Unplug unit and allow coil to
defrost. Make sure thermostat is
not set too cold. Ensure that the
door gaskets are sealing properly.
Cabinet temperature is too warm. Thermostat set too warm. Set thermostat to a lower
temperature.
Blocking air ow. Re-arrange product to allow for
proper air ow. Make sure there
is at least 4” of clearance from
evaporator.
Excessive amount of warm product
placed in cabinet.
Allow adequate time for product to
cool down.
Fuse blown or circuit breaker
tripped.
Replace fuse or reset circuit
breaker.
Dirty condenser coil. Clean the condenser coil.
Prolonged door opening or door
ajar.
Ensure doors are closed when not
in use. Avoid opening doors for
long periods of time.
Evaporator coil iced over.
Cabinet is noisy. Loose parts. Locate and tighten the loose parts.
Tubing vibration. Ensure tubing is free from contact
with other tubing or components.

13

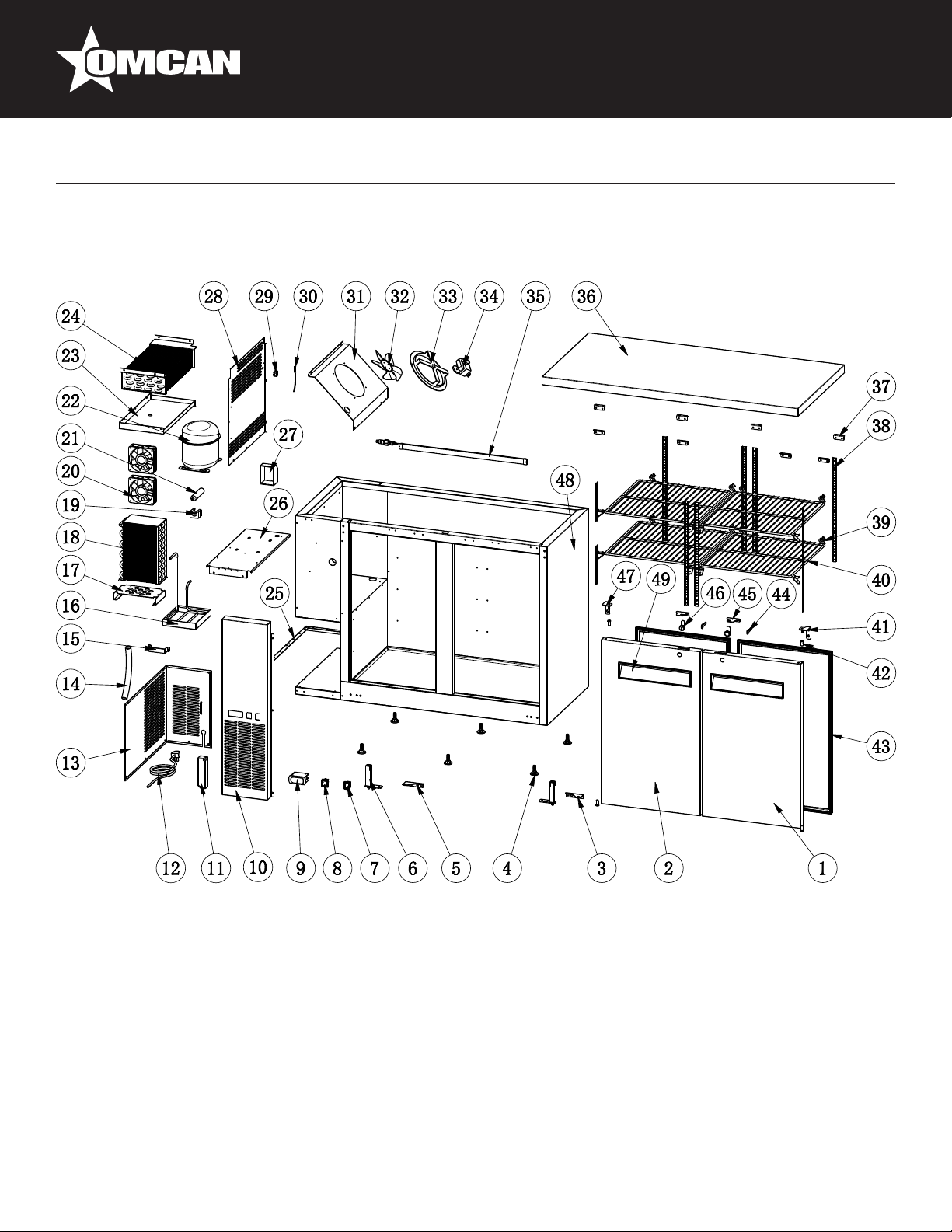

Model BB-CN-0012E-SH 59057
Parts Breakdown

14
Model BB-CN-0012E-SH 59057
Parts Breakdown
Item No. Description Position Item No. Description Position Item No. Description Position
AF774 Right Door for 59057 1 AF778 Condenser Installation Board for 59057 17 AM180 Evaporator Fan Motor for 59057 34
AF775 Left Door for 59057 2 AA155 Condenser for 59057 18 AM181 LED Light for 59057 35
61468 Left Bottom Hinge for 59057 3 AB595 Filter Fixer for 59057 19 AF821 Top Board for 59057 36
AA185 Leveling Feet for 59057 4 AA128 Condenser Fan Motor for 59057 20 AF764 Top Board Fixer for 59057 37
AA360 Bottom Left Hinge for 59057 5 AA371 Filter for 59057 21 AF176 K Strip-4 Holes for 59057 38
AA398 Bottom Hinge Axis for 59057 6 AF088 Compressor for 59057 22 26884 K Clip for 59057 39
AA124 Power Switch for 59057 7 AI396 Inner Drain Pan for 59057 23 AA386 Shelf for 59057 40
AA362 LED Light Switch for 59057 8 AI397 Evaporator for 59057 24 AA436 Upper Right Hinge for 59057 41
27185 Carel Controller PJEZ for 59057 9 AF780 Fixed Mounts for Back Grill for 59057 25 AA388 Axis Cover for 59057 42
AF776 Control Panel for 59057 10 AF781 Compressor Installation Board for 59057 26 AA414 Gasket for 59057 43
AM179 LED Power Supply for 59057 11 AF820 Evaporator Cover for 59057 28 AA196 Key for 59057 44
AA365 Power Cord for 59057 12 AA378 Temperature Probe Fixer for 59057 29 AF761 Lock Plate for 59057 45
AF777 Back Grill for 59057 13 AA379 Temperature Probe for 59057 30 AA197 Lock for 59057 46
AA216 Drain Tube for 59057 14 AF783 Evaporator Fan Installation Board for
59057 31 AF786 Upper Light Hinge for 59057 47
AB974 Handle for Installation Board for 59057 15 AA962 Blade of Evaporator Fan Motor for 59057 32 AA418 Door Handle for 59057 49
AF087 Outer Drain Pan for 59057 16 AL936 Evaporator Fan Holder for 59057 33

15

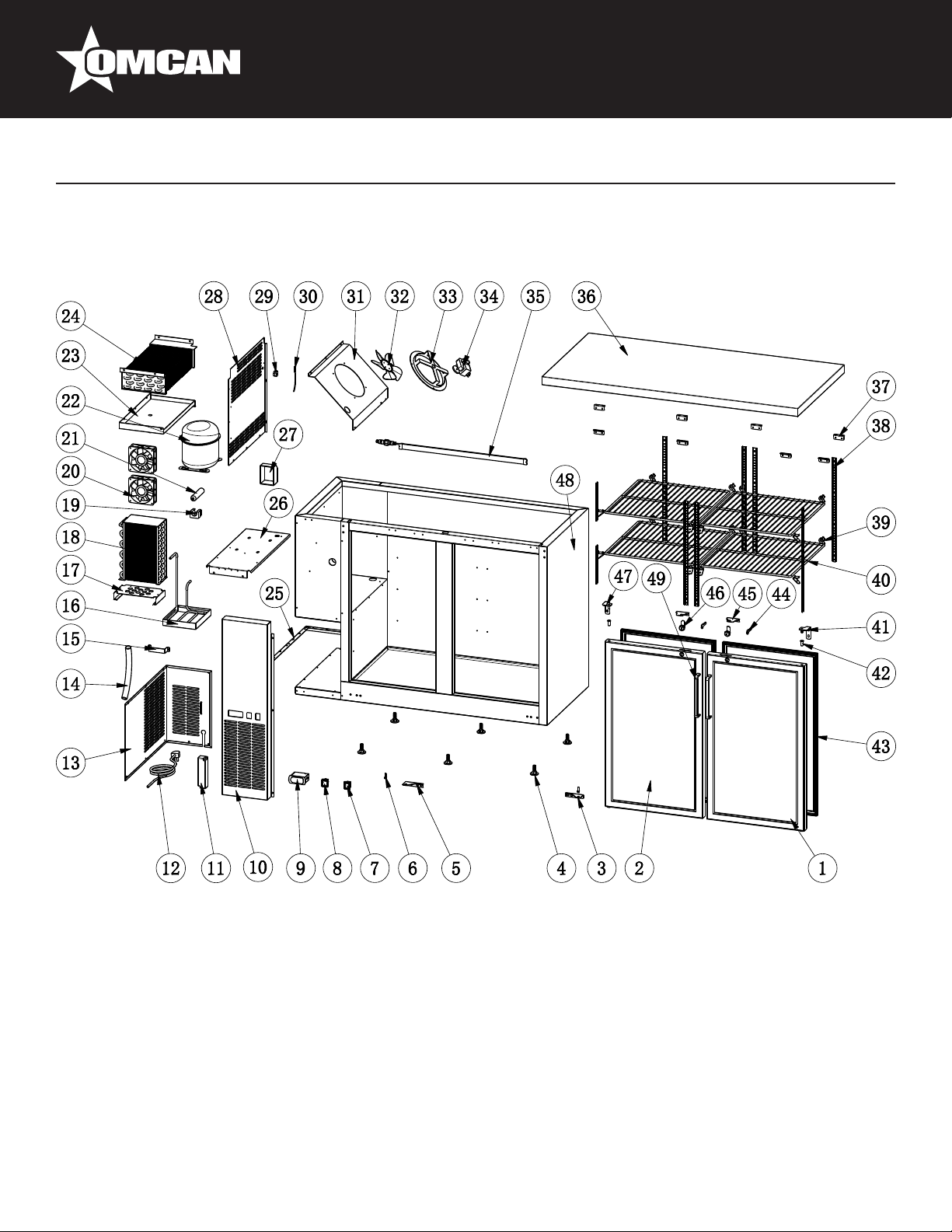

Model BB-CN-0012E-GH 59058
Parts Breakdown

16
Model BB-CN-0012E-GH 59058
Parts Breakdown
Item No. Description Position Item No. Description Position Item No. Description Position
AA357 Right Glass Door for 59058 1 AF778 Condenser Installation Board for 59058 17 AM180 Evaporator Fan Motor for 59058 34
AA358 Left Glass Door for 59058 2 AA155 Condenser for 59058 18 AM181 LED Light for 59058 35
61468 Left Bottom Hinge for 59058 3 AB595 Filter Fixer for 59058 19 AF821 Top Board for 59058 36
AA185 Leveling Feet for 59058 4 AA128 Condenser Fan Motor for 59058 20 AF764 Top Board Fixer for 59058 37
AA360 Bottom Left Hinge for 59058 5 AA371 Filter for 59058 21 AF176 K Strip-4 Holes for 59058 38
AA361 Bottom Hinge Axis for 59058 6 AF088 Compressor for 59058 22 26884 K Clip for 59058 39
AA124 Power Switch for 59058 7 AI396 Inner Drain Pan for 59058 23 AA386 Shelf for 59058 40
AA362 LED Light Switch for 59058 8 AI397 Evaporator for 59058 24 AA436 Upper Right Hinge for 59058 41
27185 Carel Controller PJEZ for 59058 9 AF780 Fixed Mounts for Back Grill for 59058 25 AA388 Axis Cover for 59058 42
AF776 Control Panel for 59058 10 AF781 Compressor Installation Board for 59058 26 AA389 Gasket for 59058 43
AM179 LED Power Supply for 59058 11 AF820 Evaporator Cover for 59058 28 AA390 Key for 59058 44
AA365 Power Cord for 59058 12 AA378 Temperature Probe Fixer for 59058 29 AF761 Lock Plate for 59058 45
AF777 Back Grill for 59058 13 AA379 Temperature Probe for 59058 30 AA392 Lock for 59058 46
AA216 Drain Tube for 59058 14 AF783 Evaporator Fan Installation Board for
59058 31 AF786 Upper Light Hinge for 59058 47
AB974 Handle of Compressor Installation Board
for 59058 15 AA962 Blade of Evaporator Fan Motor for 59058 32 AA395 Glass Door Handle for 59058 49
AF087 Outer Drain Pan for 59058 16 AL936 Evaporator Fan Cover for 59058 33

17

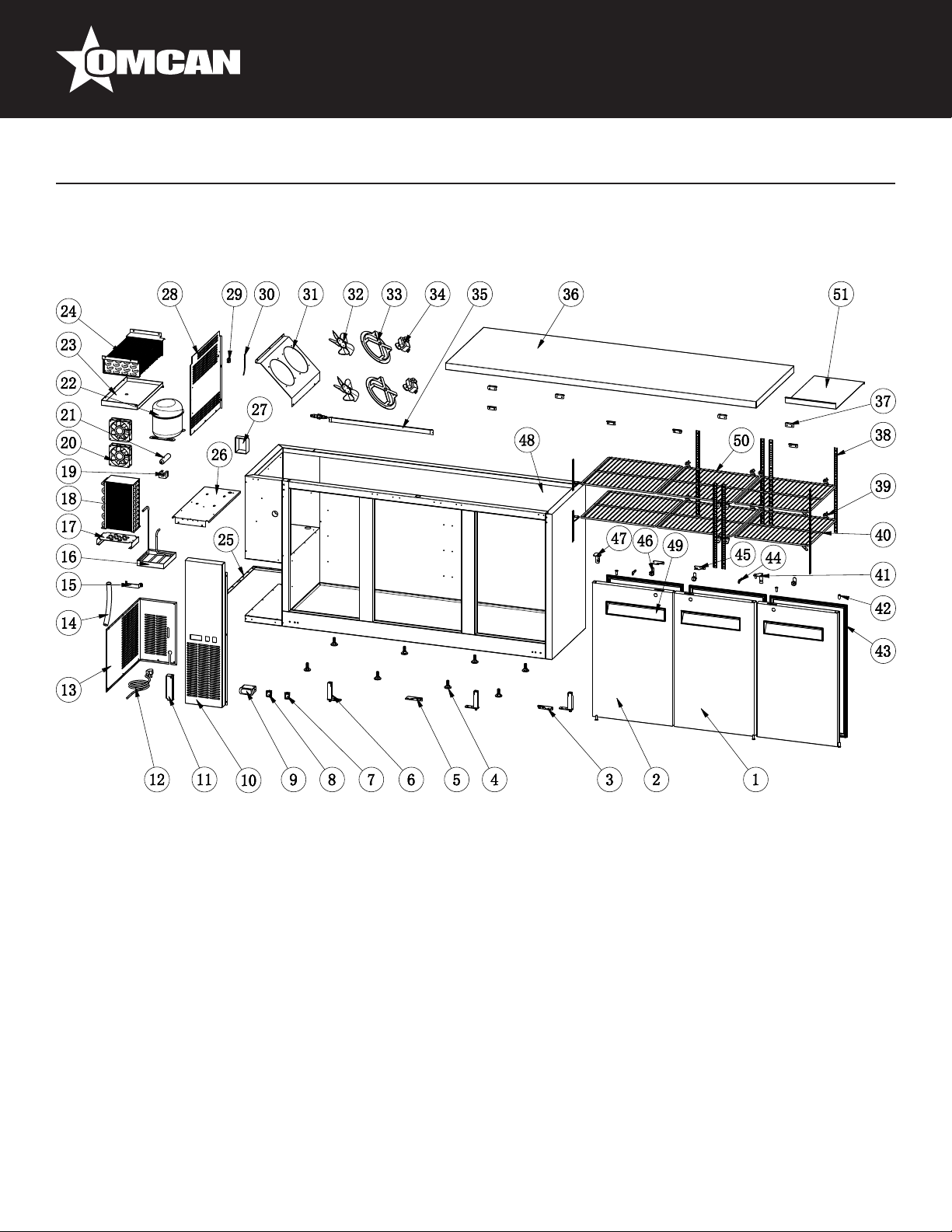

Model BB-CN-0020E-SH 59061
Parts Breakdown

18
Model BB-CN-0020E-SH 59061
Parts Breakdown
Item No. Description Position Item No. Description Position Item No. Description Position
AF800 Right Door for 59061 1 AA155 Condenser for 59061 18 AF824 Top Board for 59061 36
AF801 Left Door for 59061 2 AB595 Filter Fixer for 59061 19 AF764 Top Board Fixer for 59061 37
61468 Left Bottom Hinge for 59061 3 AA128 Condenser Fan Motor for 59061 20 AF176 K Strip-4 Holes for 59061 38
AA185 Leveling Feet for 59061 4 AA371 Filter for 59061 21 26884 K Clip for 59061 39
AA360 Bottom Left Hinge for 59061 5 AF088 Compressor for 59061 22 AF804 Shelf/Left and Right for 59061 40
AA398 Bottom Hinge Axis for 59061 6 AI396 Inner Drain Pan for 59061 23 AA436 Upper Right Hinge for 59061 41
AA124 Power Switch for 59061 7 AI397 Evaporator for 59061 24 AA388 Axis Cover for 59061 42
AA362 LED Light Switch for 59061 8 AF780 Fixed Mounts for Back Grill for 59061 25 37720 Solid Door Gasket for 59061 43
27185 Carel Controller PJEZ for 59061 9 AF781 Compressor Installation Board for 59061 26 AA196 Key for 59061 44
AF776 Control Panel for 59061 10 AF823 Evaporator Cover for 59061 28 AF761 Lock Plate for 59061 45
AM179 LED Power Supply for 59061 11 AA378 Temperature Probe Fixer for 59061 29 AA197 Lock for 59061 46
AA365 Power Cord for 59061 12 AA121 Temperature Sensor of Cabinet Inside
for 59061 30 AF786 Upper Light Hinge for 59061 47
AF777 Back Grill for 59061 13 AF783 Evaporator Fan Installation Board for
59061 31 AA418 Door Handle for 59061 49
AA216 Drain Tube for 59061 14 AA962 Blade of Evaporator Fan Motor for 59061 32 AA484 Middle Shelf for 59061 50
AB974 Handle for Installation Board for 59061 15 AL936 Evaporator Fan Cover for 59061 33 AF805 Air Deector for 59061 51
AF087 Outer Drain Pan for 59061 16 AM180 Evaporator Fan Motor for 59061 34
AF778 Condenser Installation Board for 59061 17 AM181 LED Light for 59061 35

19
Model BB-CN-0020E-GH 59062
Parts Breakdown

20
Model BB-CN-0020E-GH 59062
Parts Breakdown
Item No. Description Position Item No. Description Position Item No. Description Position
AA462 Right Glass Door for 59023 1 AF778 Condenser Installation Board for 59023 17 68296 LED Light for 59023 35
AA463 Left Glass Door for 59023 2 AA155 Condenser for 59023 18 AF824 Top Board for 59023 36
61468 Left Bottom Hinge for 59023 3 AB595 Filter Fixer for 59023 19 AF764 Top Board Fixer for 59023 37
AA185 Leveling Feet for 59023 4 AA128 Condenser Fan Motor for 59023 20 AF176 K Strip-4 Holes for 59023 38
AA360 Bottom Left Hinge for 59023 5 AA371 Filter for 59023 21 26884 K Clip for 59023 39
AA361 Bottom Hinge Axis for 59023 6 AI395 Compressor for 59023 22 AF804 Shelf Left and Right for 59023 40
AA124 Power Switch for 59023 7 AI396 Inner Drain Pan for 59023 23 AA436 Upper Right Hinge for 59023 41
AA362 LED Light Switch for 59023 8 AI397 Evaporator for 59023 24 AA388 Axis Cover for 59023 42
AB109 Thermostat for 59023 9 AI398 Inst Sheet for Evaporator for 59023 25 AA437 Gasket for 59023 43
AF776 Control Panel for 59023 10 AF781 Compressor Installation Board for 59023 26 AA390 Key for 59023 44
AA364 LED Power Supply for 59023 11 AI399 Evaporator Cover for 59023 28 AF761 Lock Plate for 59023 45
AA365 Power Cord for 59023 12 AA378 Temperature Probe Fixer for 59023 29 AA392 Lock for 59023 46
AF777 Back Grill for 59023 13 AA379 Temperature Probe for 59023 30 AI401 Waterproof Cover of Thermostat for
59023 47
AA216 Drain Tube for 59023 14 AI400 Evaporator Fan Motor for 59023 31 AA484 Middle Shelf for 59023 48
AB974 Handle for Installation Board for 59023 15 AF786 Upper Light Hinge for 59023 32
AF087 Outer Drain Pan for 59023 16 AA395 Glass Door Handle for 59023 34
