Omcan RE-CN-0015-HC User manual

Revised - 02/24/2023
Toll Free: 1-800-465-0234
Fax: 905-607-0234
Email: [email protected]
www.omcan.com
Undercounter Coolers and Freezers
Models RE-CN-0006-HC, 0011-HC, 0015-HC, 0016-HC, 0006-BS-HC,
0011-BS-HC, 0015-BS-HC, 0016-BS-HC, FR-CN-0686-HC, 1219-HC,
1524HC, 0686-BS-HC, 1219-BS-HC, 1524-BS-HC
Items 50054, 50056, 50093, 50091, 50095, 50097, 50099,
50100, 50053, 50055, 50092, 50094, 50096, 50098
Instruction Manual

2
Page
------------------------------------------------------------------------------------------------------------------ 3
------------------------------------------------------------------------------------------------- 4 - 5
------------------------------------------------------------------------------------------------- 5 - 7
------------------------------------------------------------------------------------------ 7 - 10
---------------------------------------------------------------------------------------------------------- 10 - 12
------------------------------------------------------------------------------------------------------- 12 - 13
--------------------------------------------------------------------------------------------------- 13 - 14
------------------------------------------------------------------------------------------- 15 - 19
-------------------------------------------------------------------------------------------------- 20 - 33
-------------------------------------------------------------------------------------------- 34 - 40
----------------------------------------------------------------------------------------------------------------- 41 - 42
-------------------------------------------------------------------------------------------------- 43
Table of Contents
Section
Disclaimer
General Information
Safety and Warranty
Technical Specications
Installation
Maintenance
Troubleshooting

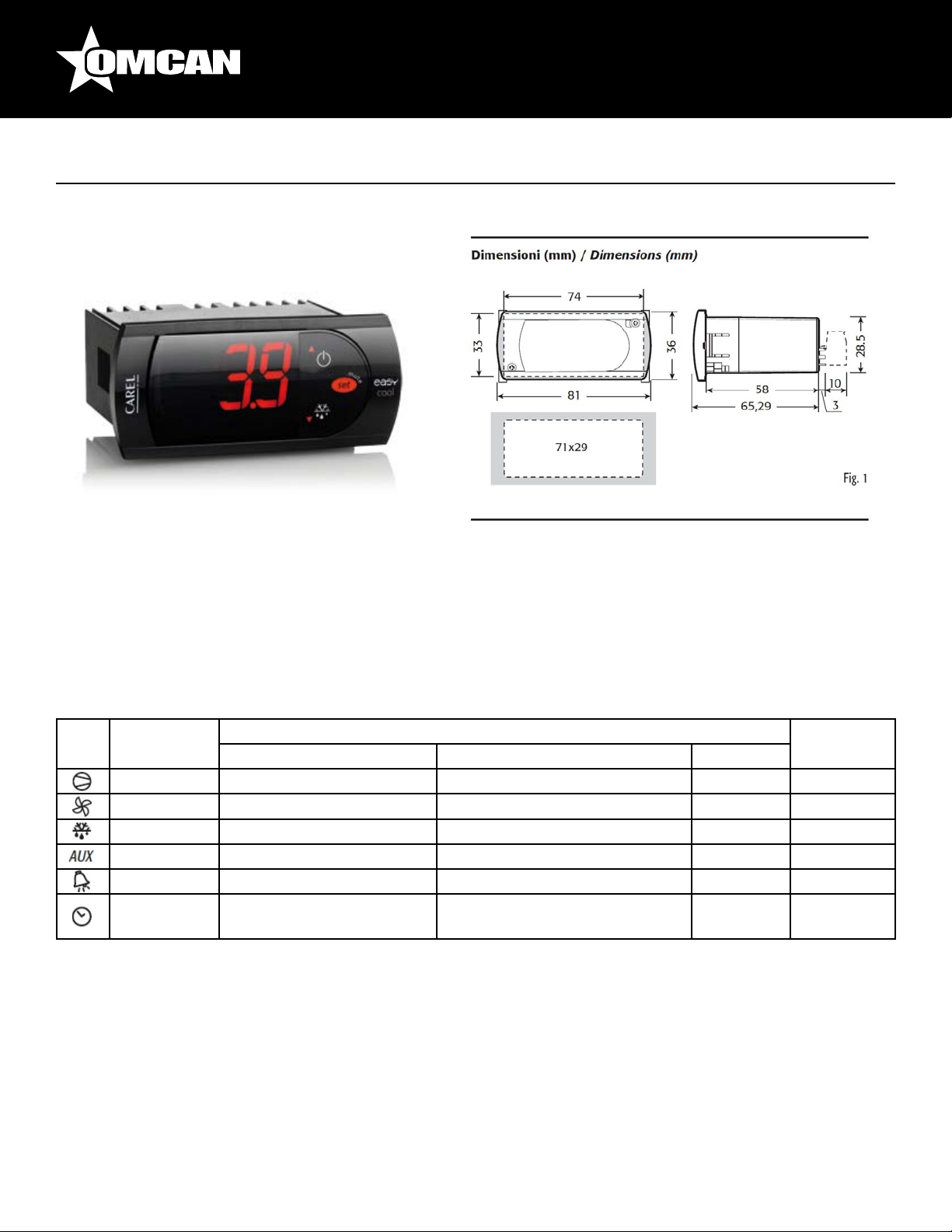

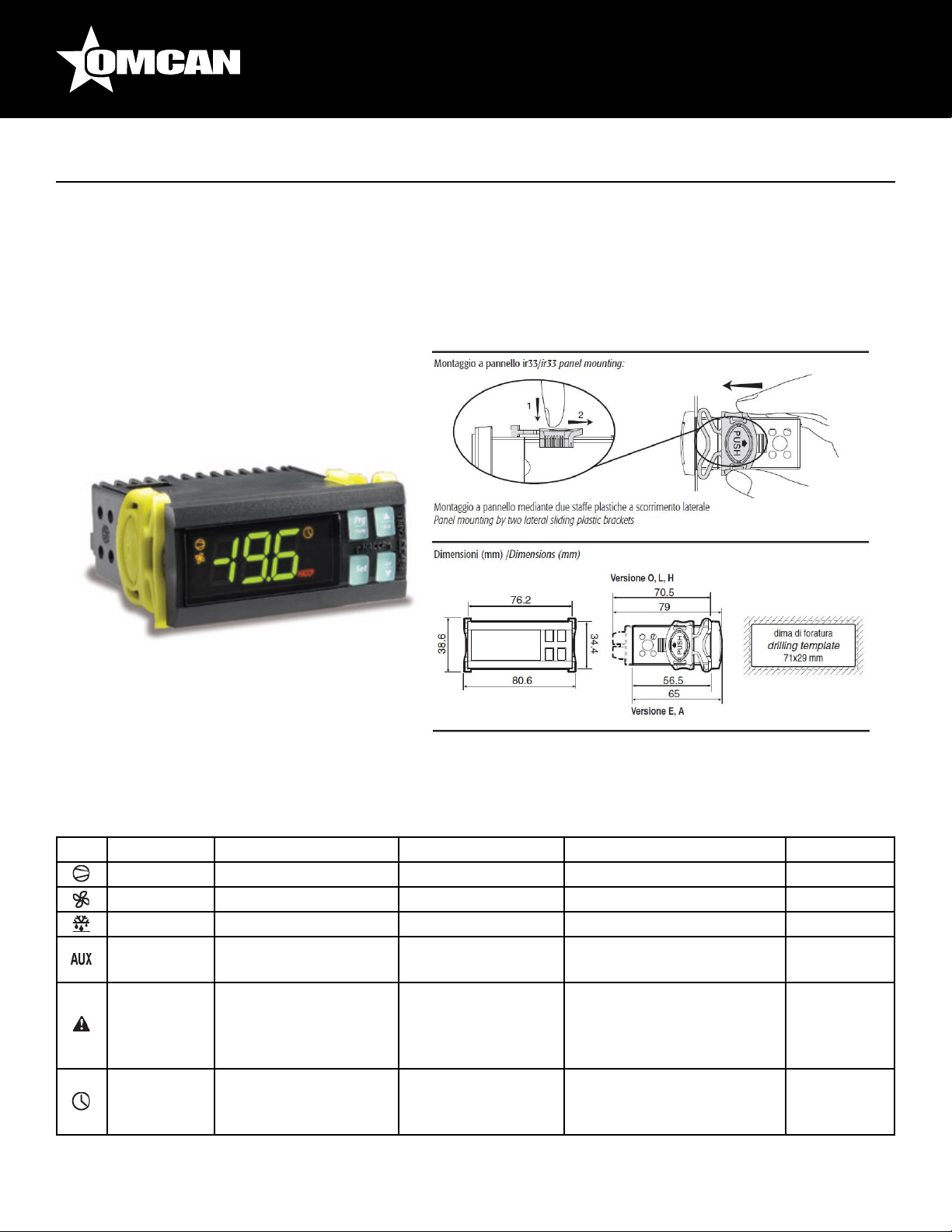

Controller Instructions
Parts Breakdown
Electrical Schematics
Notes
Warranty Registration
Model RE-CN-0006-HC / Model RE-CN-0011-HC / Model RE-CN-0015-HC
Model RE-CN-0016-HC / Model RE-CN-0006-BS-HC / Model RE-CN-0011-BS-HC
Model RE-CN-0015-BS-HC / Model RE-CN-0016-BS-HC / Model FR-CN-0686-HC
Model FR-CN-1219-HC / Model FR-CN-1524-HC / Model FR-CN-0686-BS-HC
Model FR-CN-1219-BS-HC / Model FR-CN-1524-BS-HC

3
Disclaimer
OMCAN IS NOT RESPONSIBLE FOR ANY DAMAGES
DUE TO WATER LEAKS. WARRANTY FOR WATER
LEAKSISVOIDIFTHEAMBIENTROOMTEMPERATURE
EXCEEDS75°FAND55%RELATIVEHUMIDITY,ANDTHE
APPLIANCE DRAIN IS NOT CONNECTED DIRECTLY TO
A FLOOR DRAIN.
OMCAN NO SE HACE RESPONSABLE DE LOS DAÑOS
CAUSADOS POR FUGAS DE AGUA. LA GARANTÍA
POR FUGAS DE AGUA QUEDA ANULADA SI LA
TEMPERATURA AMBIENTE SUPERA LOS 75°F Y EL
55% DE HUMEDAD RELATIVA, Y EL DESAGÜE DEL
APARATONOESTÁCONECTADODIRECTAMENTEAUN
DESAGÜE DE PISO.
OMCAN N’EST PAS RESPONSABLE DES DOMMAGES
DUS AUX FUITES D’EAU. LA GARANTIE POUR LES
FUITES D’EAU EST ANNULÉE SI LA TEMPÉRATURE
AMBIANTE DE LA PIÈCE DÉPASSE 75°F ET 55%
D’HUMIDITÉRELATIVE,ETSILEDRAINDEL’APPAREIL
N’EST PAS RACCORDÉ DIRECTEMENT À UN DRAIN DE
PLANCHER.

4
General Information
Omcan Manufacturing and Distributing Company Inc., Food Machinery of America, Inc. dba Omcan
and Omcan Inc. are not responsible for any harm or injury caused due to any person’s improper or
negligent use of this equipment. The product shall only be operated by someone over the age of 18, of
CHECK PACKAGE UPON ARRIVAL
Upon receipt of an Omcan shipment please inspect for external damage. If no damage is evident on the
external packaging, open carton to ensure all ordered items are within the box, and there is no concealed
damage to the machine. If the package has suered rough handling, bumps or damage (visible or concealed),
please note it on the bill of lading before accepting the delivery and contact Omcan within 24 hours, so we may
initiate a claim with the carrier. A detailed report on the extent of the damage caused to the machine must be
lled out within three days, from the delivery date shown in the shipping documents. Omcan has no recourse
for damaged products that were shipped collect or third party.
instructions.
equipment if servicing or returning of the machine is required.
---------------------------------------------------------------------------------------------------------------------------------------------------
Omcan Fabrication et distribution Companie Limité et Food Machinery d’Amerique, dba Omcan et
Omcan Inc. ne sont pas responsables de tout dommage ou blessure causé du fait que toute personne
ait utilisé cet équipement de façon irrégulière. Le produit ne doit être exploité que par quelqu’un de
de la machine annule toute garantie, et peut causer un préjudice à des personnes utilisant la machine
ou des personnes à proximité de la machine pendant son fonctionnement.
VÉRIFIEZ LE COLIS DÈS RÉCEPTION
Dès réception d’une expédition d’Omcan veuillez inspecter pour dommages externes. Si aucun dommage
n’est visible sur l’emballage externe, ouvrez le carton an de s’assurer que tous les éléments commandés
sont dans la boîte, et il n’y a aucun dommage dissimulé à la machine. Si le colis n’a subi aucune mauvaises
manipulations, de bosses ou de dommages (visible ou cachée), notez-le sur le bond de livraison avant
d’accepter la livraison et contactez Omcan dans les 24 heures qui suivent, pour que nous puissions engager
une réclamation auprès du transporteur. Un rapport détaillé sur l’étendue des dommages causés à la machine
doit être rempli dans un délai de trois jours, à compter de la date de livraison indiquée dans les documents
d’expédition. Omcan n’a aucun droit de recours pour les produits endommagés qui ont été expédiées ou cueilli
par un tiers transporteur.

5
General Information
Avant d’utiliser n’importe quel équipement, toujours lire et vous familiariser avec toutes les opérations
et les consignes de sécurité.
Omcan voudrais vous remercier d’avoir choisi cette machine. Il est primordial de conserver ces
l’expédition de l’équipement si l’entretien ou le retour de la machine est nécessaire.
---------------------------------------------------------------------------------------------------------------------------------------------------
Omcan Empresa De Fabricacion Y Distribucion Inc. Y Maquinaria De Alimentos De America, Inc. dba
Omcan y Omcan Inc. no son responsables de ningun daño o perjuicío causado por cualquier persona
inadecuada o el uso descuidado de este equipo. El producto solo podra ser operado por una persona
máquina mientras esta en el funcionamiento.
REVISE EL PAQUETE A SU LLEGADA
Tras la recepcion de un envio Omcan favor inspeccionar daños externos. Si no hay daños evidentes en el
empaque exterior, Habra el carton para asegurararse que todos los articulos solicitados ésten dentro de la
caja y no encuentre daños ocultos en la máquina. Si el paquete ha sufrido un manejo de poco cuidado, golpes
o daños (visible o oculto) por favor anote en la factura antes de aceptar la entrega y contacte Omcan dentro
de las 24 horas, de modo que podamos iniciar una reclamación con la compañia. Un informe detallado sobre
los daños causados a la máquina debe ser llenado en el plazo de tres días, desde la fecha de entrega que se
muestra en los documentos de envío. Omcan no tiene ningun recurso por productos dañados que se enviaron
a recoger por terceros.
funcionamiento y seguridad.
Omcan le gustaría darle las gracias por la compra de esta máquina. Es de la mayor importancia para
salvar estas instrucciones para futuras consultas. Además, guarda la caja original y el embalaje para el
Safety and Warranty
Please pay close attention to the safety notices in this section. Disregarding these notices may lead to
serious injury and/or damage to the unit.
ATTENTION
• To minimize shock and re hazards, be sure not to overload outlet. Please designate one outlet for your
unit.

6
Safety and Warranty
• Do not use extension cords.
• Do not put your hands under the unit when the unit is required to be moved.
• When the unit is not in use for a long period of time, please unplug the unit from the outlet.
• After unplugging the unit, wait at least 10 minutes before re-plugging it. Failure to do so could cause
damage to the compressor.
UNPLUG CORD
• To minimize shock and re hazards, please do not plug or unplug the cord with wet hands.
• During maintenance and cleaning, please unplug the unit.
PROPER GROUNDING REQUIRED
• To minimize shock and re hazards, make sure that the unit is properly grounded.
PROHIBITION
• Do not attempt to remove or repair any component unless instructed by factory.
• Make sure that the unit is not resting on or against the electrical cord and plug.
• To minimize personal injury, do not hang on the doors.
• Do not store any ammable and explosive gas or liquids inside the unit.
• Do not attempt to alter or tamper with the electrical cord.
RESIDENTIAL USERS: Vendor assumes no liability for parts or labor coverage for component failure
or other damages resulting from installation in non-commercial or residential applications. The right
possible.
2 YEARS PARTS AND LABOUR / 5 YEARS PARTS ONLY ON COMPRESSOR
WARRANTY
service technician to repair the equipment locally.
improper use.
Please see https://omcan.com/disclaimer for complete info.
WARNING:
The packaging components are classied as normal solid urban waste and can therefore be disposed of
without diculty.

7
Technical Specications
UNDERCOUNTER REFRIGERATORS
Model
Temperature Range 0.5 - 5°C / 33 - 41°F
Max Ambient Temp Rating 24°C / 75°F
127 W 149 W 324 W 149 W
Refrigerant R290
Isolation Material Cyclopentane
Cooling System Ventilated
Defrosting Automatic
Type of Controller Digital Mechanical / Digital Digital
Self-Closing Door Yes
Current 1.9A 2.7A 3.12A 3.2A
Number of Doors 123
Number of Shelves 123
Shelf Material Coated Steel Plastic Coated
Shelf Loading Capacity 44 lbs. / 20 kgs. 39.6 lbs. / 18 kgs. 88 lbs. / 39.9 kgs.
Electrical 110-120V / 60Hz / 1
Interior Dimensions 22.2” x 22.8” x 23.5”
565 x 580 x 597mm
42.5” x 22.8” x 23.5”
1080 x 580 x 597mm
55.6” x 19.8” x 23.5”
1413 x 504 x 597mm
66.9” x 19.8” x 23.5”
1698 x 504 x 597mm
Overall Dimensions 27” x 29.5” x 35.2”
685 x 750 x 895mm
47.2” x 29.5” x 35.2”
1199 x 793 x 895mm
60.2” x 29.5” x 35.2”
1529 x 750 x 895mm
72” x 29.5” x 35.2”
1829 x 750 x 895mm
30.4” x 32.6” x 38.6”
770 x 830 x 980mm
50” x 32.3” x 38.6”
1270 x 820 x 980mm
63” x 32.3” x 38.2”
1600 x 820 x 970mm
74.2” x 32.3” x 38.2”
1885 x 820 x 970mm
Net Volume 177 L / 6.3 cu.ft. 338 L / 12 cu.ft. 425 L / 15 cu.ft. 440 L / 15.5 cu.ft.
Weight 169 lbs. / 77 kgs. 229 lbs. / 104 kgs. 253.5 lbs. / 115 kgs. 297.6 lbs. / 135 kgs.
220 lbs. / 100 kgs. 273 lbs. / 124 kgs. 324.1 lbs. / 147 kgs. 372.6 lbs. / 169 kgs.
Item Number 50054 50056 50093 50091
Safety and Warranty
DO NOT DISCARD ANY PACKAGING MATERIALS IN THE ENVIRONMENT!

8
Technical Specications
UNDERCOUNTER REFRIGERATORS WITH BACKSPLASH
Model
Temperature Range 0.5 - 5°C / 33 - 41°F
Max Ambient Temp Rating 24°C / 75°F
280 W 324 W
Refrigerant R290
Isolation Material Cyclopentane
Cooling System Ventilated
Defrosting Automatic
Type of Controller Digital
Self-Closing Door Yes
Current 3A 3.48A 3.12A
Number of Doors 123
Number of Shelves 123
Shelf Material Plastic Coated
Shelf Loading Capacity 88 lbs. / 39.9 kgs.
Electrical 110-120V / 60Hz / 1
Interior Dimensions 22.4” x 19.8” x 23.5”
569 x 504 x 597mm
42.6” x 19.8” x 23.5”
1083 x 504 x 597mm
55.6” x 19.8” x 23.5”
1413 x 504 x 597mm
66.9” x 19.8” x 23.5”
1698 x 504 x 597mm
Overall Dimensions 27” x 29.5” x 38.8”
685 x 750 x 985mm
47.2” x 29.5” x 38.8”
1200 x 750 x 985mm
60.2” x 29.5” x 38.8”
1529 x 750 x 985mm
72” x 29.5” x 38.8”
1829 x 750 x 985mm
29.7” x 32.3” x 38.2”
755 x 820 x 970mm
50” x 32.3” x 38.2”
1270 x 820 x 970mm
63” x 32.3” x 38.2”
1600 x 820 x 970mm
74.2” x 32.3” x 38.2”
1885 x 820 x 970mm
Net Volume 154 L / 5.4 cu.ft. 320 L / 11.1 cu.ft. 425 L / 15 cu.ft. 481 L / 17 cu.ft.
Weight 158.7 lbs. / 72 kgs. 213.8 lbs. / 97 kgs. 253.5 lbs. / 115 kgs. 297.6 lbs. / 135 kgs.
202.8 lbs. / 92 kgs. 275.6 lbs. / 125 kgs. 324.1 lbs. / 147 kgs. 372.6 lbs. / 169 kgs.
Item Number 50095 50097 50099 50100

9
Technical Specications
UNDERCOUNTER FREEZERS
Model FR-CN-1219-HC FR-CN-1524-HC
Temperature Range -22 to -18°C / -8 to 0°F
Max Ambient Temp Rating 24°C / 75°F
149 W 186 W 600 W
Refrigerant R290
Isolation Material Cyclopentane
Cooling System Ventilated
Defrosting Automatic
Type of Controller Digital
Self-Closing Door Yes
Current 2.1A 4.5A 5.2A
Number of Doors 1 2
Number of Shelves 1 2
Shelf Material Coated Steel Plastic Coated
Shelf Loading Capacity 44 lbs. / 20 kgs. 39.6 lbs. / 18 kgs. 88 lbs. / 39.9 kgs.
Electrical 110-120V / 60Hz / 1
Interior Dimensions 22.2” x 22.8” x 23.5”
565 x 580 x 597mm
42.5” x 22.8” x 23.5”
1080 x 580 x 597mm
55.6” x 19.8” x 23.5”
1413 x 504 x 597mm
Overall Dimensions 27” x 29.5” x 35.2”
685 x 750 x 895mm
47.2” x 29.5” x 35.2”
1200 x 750 x 895mm
60.2” x 29.5” x 35.2”
1529 x 750 x 895mm
30.4” x 32.6” x 38.6”
770 x 830 x 980mm
50.4” x 32.6” x 38.6”
1280 x 830 x 980mm
63” x 32.3” x 38.2”
1600 x 820 x 970mm
Net Volume 177 L / 6.3 cu.ft. 338 L / 12 cu.ft. 425 L / 15 cu.ft.
Weight 178 lbs. / 81 kgs. 251 lbs. / 114 kgs. 253.5 lbs. / 115 kgs.
233 lbs. / 106 kgs. 312 lbs. / 142 kgs. 324.1 lbs. / 147 kgs.
Item Number 50053 50055 50092

Installation
IMPORTANT!!!PLEASE READ BEFORE INSTALLATION
• If the unit has recently been transported. Please let unit stand still for a minimum of 24 hours before
plugging it in.
• Make sure that the unit drops down to desired temperature before loading the unit with product.
• Make sure that there is proper ventilation around the unit in the area where it will operate.
• Make sure all accessories are installed(i.e. shelves, shelf clips, casters) before plugging the unit in.
• Please read through the Operation / Owner’s Manual in its entirety.
Technical Specications
UNDERCOUNTER FREEZERS WITH BACKSPLASH
Model FR-CN-1219-BS-HC FR-CN-1524-BS-HC
Temperature Range -22 to -18°C / -8 to 0°F
Max Ambient Temp Rating 24°C / 75°F
480 W 600 W
Refrigerant R290
Isolation Material Cyclopentane
Cooling System Ventilated
Defrosting Automatic
Type of Controller Digital
Self-Closing Door Yes
Current 4.2A 5.2A
Number of Doors 1 2
Number of Shelves 1 2
Shelf Material Plastic Coated
Shelf Loading Capacity 88 lbs. / 39.9 kgs.
Electrical 110-120V / 60Hz / 1
Interior Dimensions 22.4” x 19.8” x 23.5”
569 x 504 x 597mm
42.6” x 19.8” x 23.5”
1083 x 504 x 597mm
55.6” x 19.8” x 23.5”
1413 x 504 x 597mm
Overall Dimensions 27” x 29.5” x 38.8”
685 x 750 x 985mm
47.2” x 29.5” x 38.8”
1200 x 750 x 985mm
60.2” x 29.5” x 38.8”
1529 x 750 x 985mm
29.7” x 32.3” x 38.2”
755 x 820 x 970mm
50” x 32.3” x 38.2”
1270 x 820 x 970mm
63” x 32.3” x 38.2”
1600 x 820 x 970mm
Net Volume 154 L / 5 cu.ft. 320 L / 11 cu.ft. 425 L / 15 cu.ft.
Weight 158.7 lbs. / 72 kgs. 213.8 lbs. / 97 kgs. 253.5 lbs. / 115 kgs.
202.8 lbs. / 92 kgs. 275.6 lbs. / 125 kgs. 324.1 lbs. / 147 kgs.
Item Number 50094 50096 50098

11
Installation
CABINET LOCATION GUIDELINES
• Install the unit on strong and leveled surfaces.
- Unit may make unpleasant noises if surface is uneven.
- Unit may malfunction if surface is uneven.
• Install the unit in an indoor, well-ventilated area.
- Unit performs more eciently in a well-ventilated area.
- For best performance, please maintain clearance of 6” on the back of the unit.
- Outdoor use may cause decreased eciency and damage to the unit.
• Avoid installation in a high humidity and/or dusty area.
- Humidity could cause unit to rust and decrease eciency of the unit.
- Dust collected on condenser coil will cause unit to malfunction. Clean the condenser at least once a
month with a brush or clean cloth.
- Malfunction due to dirty condenser will void warranty.
• Select a location away from heat and moisture-generating equipment.
- High ambient temperature will cause the compressor to overwork, leading to higher energy bills and
gradual breakdown of the unit.
- Malfunction due to high ambient temperature will void warranty.
ELECTRICAL
Please ensure that the required voltage of the compressor is being supplied at all times. Low or high voltage
can detrimentally aect the refrigeration unit. All units should be plugged into a grounded and properly-sized
electrical outlet with appropriate overcurrent protection. Please refer to the electrical requirement on the
nameplate of the unit. Please make sure that your unit has its own dedicated outlet. Do not use an extension
cord.
TEMPERATURE CONTROLS
The temperature controls are factory-set to maintain an average temperature of 38°F in refrigeration. To
maintain a dierent temperature, adjust it on the temperature controller–see manual of temperature controller.
CAUTION
Setting the temperature control to the coldest setting may cause the evaporator coil to freeze and ice up. This
will eventually result in a warmer cabinet temperature.
LOADING PRODUCT
Shelves have been factory-installed for your convenience. Before loading shelves, please be sure that all shelf
clips are completely fastened in their correct locations. It is important that all shelves rest completely level
before stocking your cabinet with product. In order to maintain correct air ow inside the unit, please be sure
to leave two to four(2 to 4) inches of space between the back wall and stored product. Blocking the evaporator
fans will result in a warmer cabinet temperature, and ultimately compressor failure.

12
Maintenance
Installation
CLEANING THE CONDENSER COIL
• For ecient operation, it is important that the condenser surface be kept free of dust, dirt, and lint.
• We recommend cleaning the condenser coil and ns at least once per month.
• Clean with a commercial condenser coil cleaner, available from any kitchen equipment retailer. Brush the
condenser ns from top to bottom, not side to side.
• After cleaning, straighten any bent condenser ns with a n comb.
DEFROST SYSTEMS
Refrigerator coils are kept below the freezing point (32°F). During compressor down-time, the evaporator fan
continues to circulate air through the evaporator coil. This air circulation raises the coil temperature above the
freezing point, melting any accumulated frost. Run-o water is drained into the evaporator pan and evaporated.
Freezer coils are defrosted electrically. Automatic defrost timers are built-in to the refrigeration system and may
not be adjusted. The defrost timers automatically initiate at pre-set intervals and for a pre-determined duration.
PLEASE NOTE: Excessive door opening should be avoided in order to maintain cabinet temperature and to
eliminate the possibility of coil freeze-up.
LOADING FOOD PANS
Pizza prep units and sandwich prep units are designed to function with all pans in place, even if some pans are
to be left empty. For maximum food freshness, Fill the pans only with an amount that can be used in a specic
usage period. During non-use, please close the insulated lid cover.
Note: This only applies to the single door units.
1. Open the door.
2. Remove the screws from the top panel, then open the top panel.
3. Remove the screws of the bottom louver, then remove the louver.
4. Unscrew all of the screws from the upper hinge
5. Unscrew all of the screws from the lower hinge and remove the door and hinges.
6. Place the former upper hinge at the bottom of the unit, parallel to where the lower hinge is, do the same
with the former lower hinge except for the top. Screw the hinges into place.
7. Reassemble the door so it is facing the opposite direction.
8. Reassemble the top panel and the lower louver.
9. The door is now reversed.

13
Troubleshooting
guide serve only as a reference for solutions to common problems.
SYMPTOM POSSIBLE CAUSE CORRECTIVE ACTION
Compressor not running. Fuse blown or circuit breaker
tripped.
Replace fuse or reset circuit
breaker.
Power cord unplugged. Plug in power cord.
Thermostat set too high. Set thermostat to lower
Temperature.
Cabinet in defrost cycle. Wait for defrost cycle to nish.
Maintenance
CLEANING THE FAN BLADE AND MOTOR
• If necessary, clean the fan blades and motor with a soft cloth, If it is necessary to wash the fan blades,
cover the fan motor to prevent moisture damage.
CLEANING THE INTERIOR OF UNIT
• When cleaning the cabinet interior, use a solvent of warm water and mild soap.
• Do not use steel wool, caustic soap, abrasive cleaners, or bleach that may damage the stainless steel
surface.
• Wash door gaskets on a regular basis, preferably weekly. Simply remove door gasket from the frame of the
door, soak in warm water and soap for thirty (30) minutes, dry with soft cloth, and replace.
• Check door gaskets for proper seal after they are replaced.
• Periodically remove the shelves and pilasters from the unit and clean them with mild soap and warm water.
To remove the pilasters, rst remove the shelves and shelf brackets. Then, simply lift the pilaster up and
out.
WARNING
ICE ACCUMULATION MAY OCCUR IN FREEZERS

14
Troubleshooting
Condensing unit runs for long
periods of time.
Excessive amount of warm product
Placed in cabinet.
Allow adequate time for Product to
cool down.
Prolonged door opening or door
ajar.
Ensure doors are closed when not
in use. Avoid opening doors for
long periods of time.
Door gasket(s) not sealing
properly.
Ensure gaskets are snapped in
Completely. Remove gasket and
Wash with soap and water.
Check condition of gasket and
replace if necessary.
Dirty condenser coil. Clean the condenser coil.
Evaporator coil iced over. Unplug unit and allow coil to
defrost. Make sure thermostat is
not set too cold. Ensure that door
gasket(s) are sealing properly.
Cabinet is noisy. Loose part(s). Locate and tighten loose part(s).
Tubing vibration. Ensure tubing is free from contact
with other tubing or components.
Cabinet Temperature Is too warm. Thermostat set too warm. Set thermostat to lower
Temperature.
Blocking air ow. Re-arrange product to allow for
Proper air ow. Make sure there
Is at least four inches of clearance
from evaporator.
Excessive amount of warm product
Placed in cabinet.
Allow adequate time for product to
cool down.
Fuse blown or circuit breaker
tripped.
Replace fuse or reset circuit
breaker.
Dirty condenser coil. Clean the condenser coil.
Prolonged door opening or door
ajar.
Ensure doors are closed when not
in use. Avoid opening doors for
long periods of time.
Evaporator coil iced over. Unplug unit and allow coil to
defrost. Make sure thermostat is
not set too cold. Ensure that door
gasket(s) are sealing properly.
For service call 1-800-465-0234.

15
Controller Instructions
Digital controller model: PJEZ for cooler
Display and functions
During normal operation, the controller displays the value of the probe set using parameter/4(=1 ambient
probe, default, = 2 second probe, = 3 third probe).In addition, the display has LEDs that indicate the activation
of the control functions (see Table 1), while the 3 buttons can be used to activate/deactivate some of the
functions(see Table 2).
Icon Function Normal Operation Start Up
ON OFF Blink
Compressor On O Request ON
Fan On O Request ON
Defrost On O Request ON
Aux Output On Output O - ON
Alarm All No Alarm - ON
Clock RTC tted and enabled, at
least 1 time band set
RTC not tted or disabled, not
even 1 time band set
- ON if RTC
tted

16
Controller Instructions
Button Normal Operation Start Up
Pressing the Button Alone Pressed Together
Up
ON/OFF
More than 3 sec: toggle ON/
OFF
Start/Stop
continuous cycle
-
Down
Defrost
More than 3 sec: start/stop
defrost
Pressed
together
Start parameter
reset procedure
For 1 sec.
display
rmware
vers. code
Set Mute - 1 sec.: display/set the set
point.
- more than 3 secs.: access
parameter setting menu
(enter password )
- mute audible alarm
(buzzer)
- For 1 sec.
RESET cur-
rent EZY set
• press SET for 1 sec, the set value will start ashing after a few moments;
• increase or decrease the value using UP or DOWN;
• press SET to conrm the new value.
Press UP for more than 3 sec. The control and defrost algorithms are now disabled and the Instrument
displays the message “OFF” alternating with the temperature read by the set probe
Manual defrost
Press for DOWN more than 3 sec (the defrost starts only the temperature conditions are valid).
Continuous cycle
Press UP and DOWN together for more than 3 sec
1. press SET for 3 sec (the display will show “PS”);
2. • to access the type F and C parameter menu, enter the password “22” using UP/DOWN, press SET to
conrm;
• to access the F parameter menu only, press SET (without entering the password);
3. scroll inside the parameter menu using UP/DOWN;

17
Controller Instructions
• to display/set the values of the parameter displayed, press SET, then UP/DOWN and nally SET to
conrm the changes (returning to the parameter menu).
To save all the new values and exit the parameter menu, press SET for 3 s;
To exit the menu without saving the changed values (exit by timeout) do not press any button for at least 60 s.
Signals on the display
The blinking status indicates a request for activation that cannot be implemented until the end of the
Corresponding delay times.
Icon Function ON OFF Blink Startup
Compressor Compressor on Compressor o Request
Fan Fan on Fan o Request
Defrost Defrost in progress Defrost not required Request
Aux Auxiliary Output AUX
active
Auxiliary Output
AUX not active
Anti-sweat heater function
active
Alarm Delayed external
alarm (before the
expiry of the time ‘A7’)
No alarm present Alarms in normal operation
(eg. high/low temp.) or
alarm from ext. digital input
immediate or delayed
Clock At least one timed
defrost has been set
No timed defrost is
present
Clock alarm On if Real-
Time Clock
present

18
Controller Instructions
Light Auxiliary output light
active
Auxiliary output light
not active
Anti-sweat heater function
active
Service No malfunction Malfunction (eg. EEPROM
error or probe fault)
HACCP HACCP function HACCP function
enabled
HACCP alarm (HA and/or
HF) not enabled
Continuous
Cycle
Enabled Not enabled Request
To display or set the set point, proceed as follow:
1. press the “Set” button for more than 1 second to display the set point;
2. increase or decrease the value of the set point, using the “ ” and “ ” respectively, until reaching the
desired value;
3. press the “Set” button again to conrm the new value,
The alarms with manual reset can be reset by pressing the “ ” and “ ” for more than 5 sec.
Manual defrost
As well as the automatic defrost function, a manual defrost can be enabled, if the temperature conditions allow,
by pressing the “ ” button for more than 5 sec.
Continuous cycle
Pressing the buttons “ ” and “ ” simultaneously for more than 5 seconds enables the continuous cycle
function. During operation in continuous cycle, the compressor continues to operate for the time “cc” and
it stops when it reaches the “cc” time out or the minimum temperature has been reached(AL = minimum
temperature alarm threshold). Continuous cycle setting: “cc” parameter (continuous cycle duration): “cc”=0
never active; “c6” parameter (by passing the alarm after the continuous cycle):”cc” = 0 never active; it avoid or
delays the low temperature alarm after the continuous cycle.
1. Pressing the “ ” and “Set” buttons at the same time for more than 5 sec, the display will show
“00”(password prompt).
2. Use the “ ” or “ ” buttons to display the number “22” (parameter access password).
3. Conrm by pressing “Set”.
4. The display will show the rst modiable “C” parameter.

19
Controller Instructions
1. Hold the “ ” button for more than 5 s (if there are active alarms, rst mute the buzzer), the display will
show the rst modiable “F” parameter.
Modifying the parameters
After having displayed the parameter, either type “C” or type “F”, proceed as follows:
1. Use the “ ” or “ ” buttons to scroll the parameters, until reaching the parameter to be modied; when
scrolling the parameters, an icon is shown on the display that represents the category of the parameter.
2. Alternatively, press the “ ” button to display a menu that can be used to quickly access the family of
parameters to be modied.
3. Scrolling the menu using the “ ” and “ ” buttons displays the codes of the various categories of
parameter, accompanied by the corresponding icon on the display(if present).
4. Once having reached the desired category, press “Set” to go directly to the rst parameter in the chosen
category(if no parameter is visible, pressing the “Set” button will have no eect).
5. At this stage, modify the parameters or return to the “Category” menu, using the “ ” button.
6. Press “Set” to display the value associated with the parameter.
7. Increase or decrease the value using the “ ” or “ ” buttons respectively.
8. Press “Set” to temporarily save the new value and return to the display of the parameter.
9. Repeat the operation from point 1 or point 2.
10. If the parameter has sub-parameters, press “Set” to display the rst sub-parameter.
11. Press the “ ” or “ ” button to display all the sub-parameters.
12. Press “Set” to display the associated value.
13. Increase or decrease the value using the “ ” or “ ” button respectively.
14. Press “Set” to temporarily save the new value and return to the display of the sub-parameter code.
15. Press “ ” to return to the display of the parent parameter.
To denitely save the new values of the modied parameters, press the “ ” button for more than 5 seconds,
thus exiting the parameter setting procedure. All the modication made to the parameters temporarily saved in
the RAM, can be cancelled and “normal operation” resumed by not pressing any button for 60 seconds, thus
allowing the parameter setting session to expire due to timeout if the Instrument is switched o before pressing
the “ ” button, all the modications made to the parameters and temporarily saved will be lost.

Parts Breakdown
Model RE-CN-0006-HC 50054
Model RE-CN-0006-BS-HC 50095
This manual suits for next models
28
Table of contents
Other Omcan Accessories manuals

Omcan
Omcan BC-CN-0152 User manual

Omcan
Omcan BB-CN-0005-HC User manual

Omcan
Omcan JBC-50 User manual

Omcan
Omcan BB-CN-0012E-SH User manual

Omcan
Omcan BE-CN-2083-CSS User manual

Omcan
Omcan BD-CN-0007-HC User manual

Omcan
Omcan BB-CN-230S User manual

Omcan
Omcan BB-CN-0014-HC User manual

Omcan
Omcan BB-CN-0012-DH User manual

Omcan
Omcan BB-CN-0012-G User manual
