Omcan MS-IT-0330-A User manual

Revised - 03/01/2017
Toll Free: 1-800-465-0234
Fax: [phone]
Email: [email protected]
www.omcan.com
13” Meat Slicer
Model MS-IT-0330-A
Item 13645
Instruction Manual

2
Page
--------------------------------------------------------------------------- 3 - 4
--------------------------------------------------------------------------- 4 - 5
-------------------------------------------------------------------------- 6
-------------------------------------------------------------------------------------------- 6
--------------------------------------------------------------------------------------------- 7
------------------------------------------------------------------------------------- 8 - 9
---------------------------------------------------------------------------- 10 - 23
---------------------------------------------------------------------------- 24
------------------------------------------------------------------------------------------- 25 - 26
---------------------------------------------------------------------------- 27
Table of Contents
Section
General Information
Safety and Warranty
Technical Specications
Installation
Operation
Maintenance

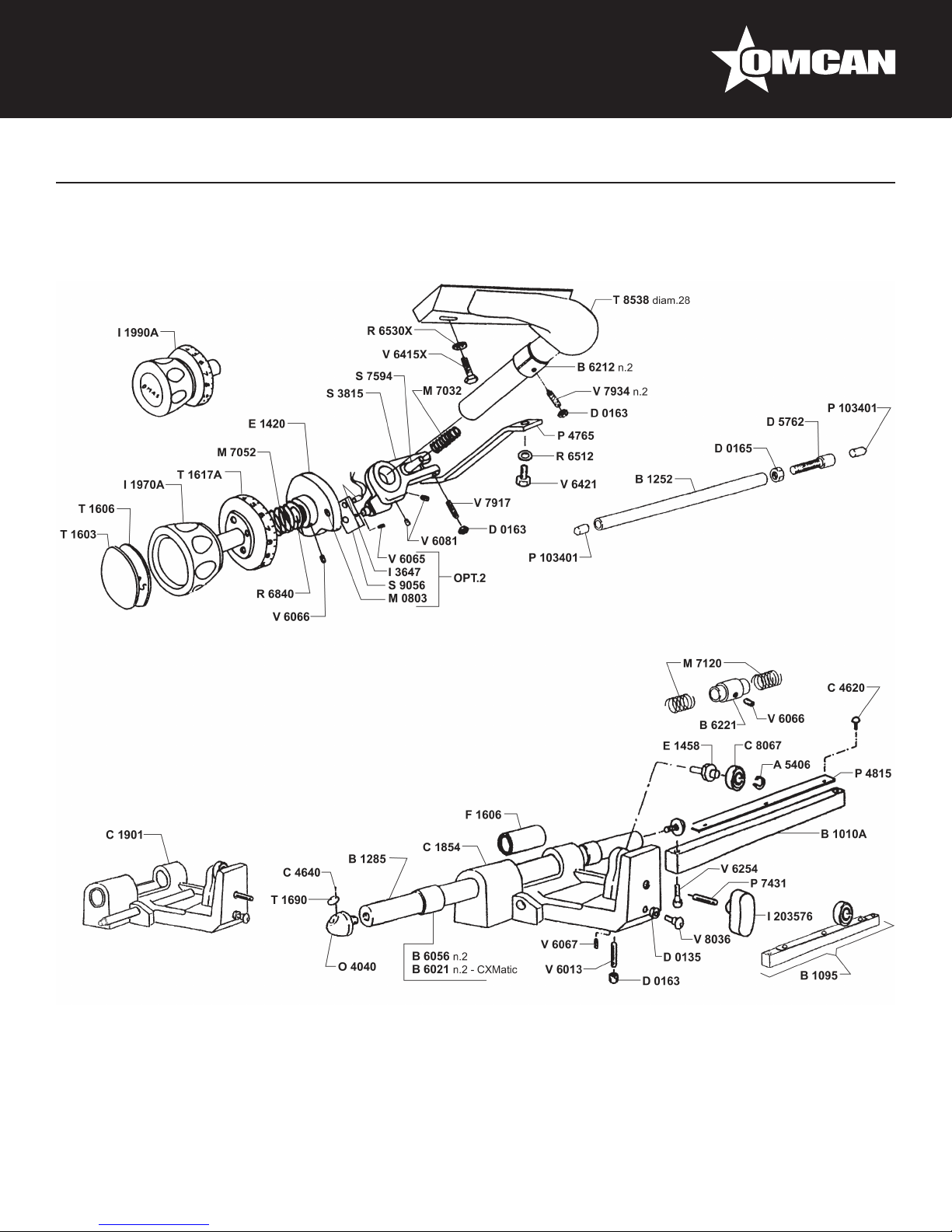

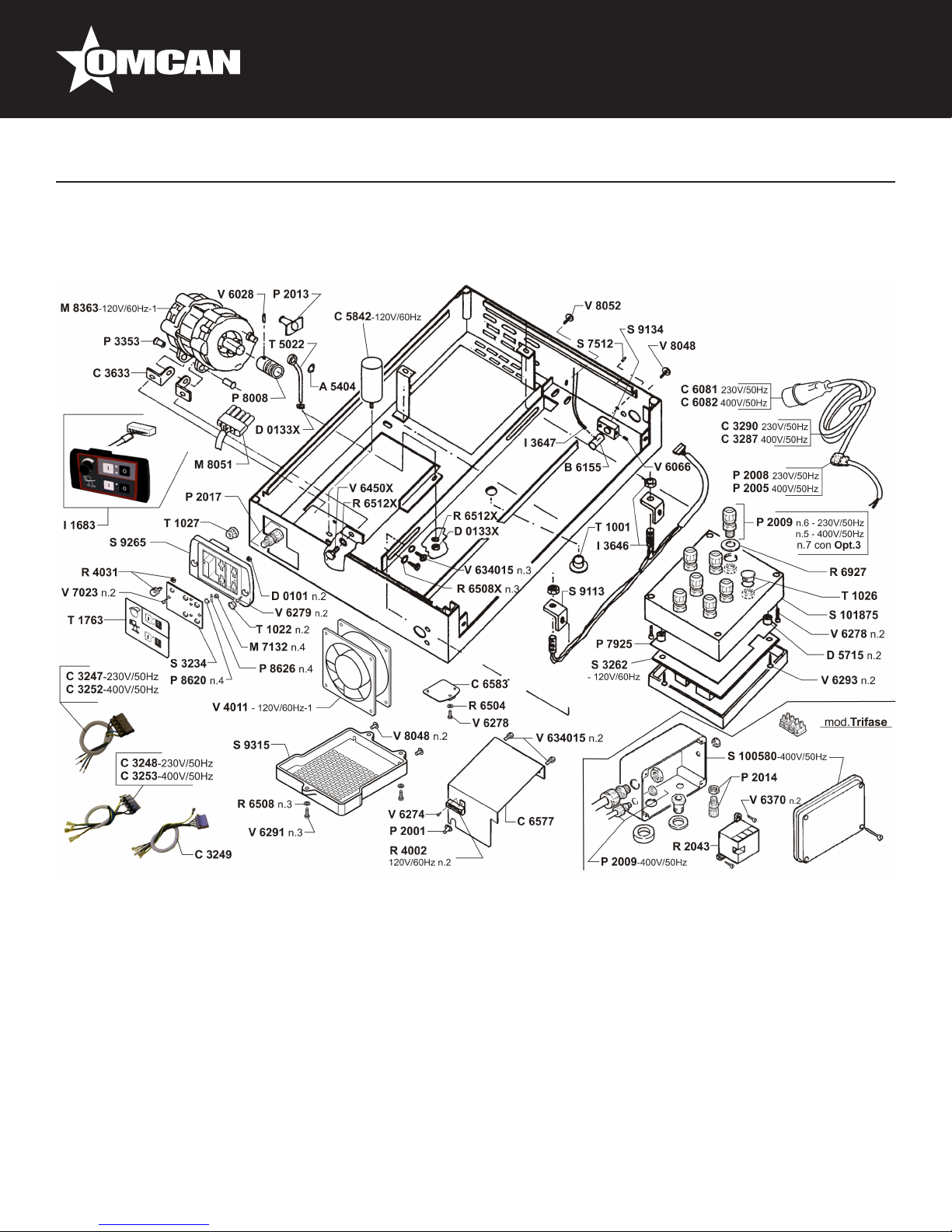

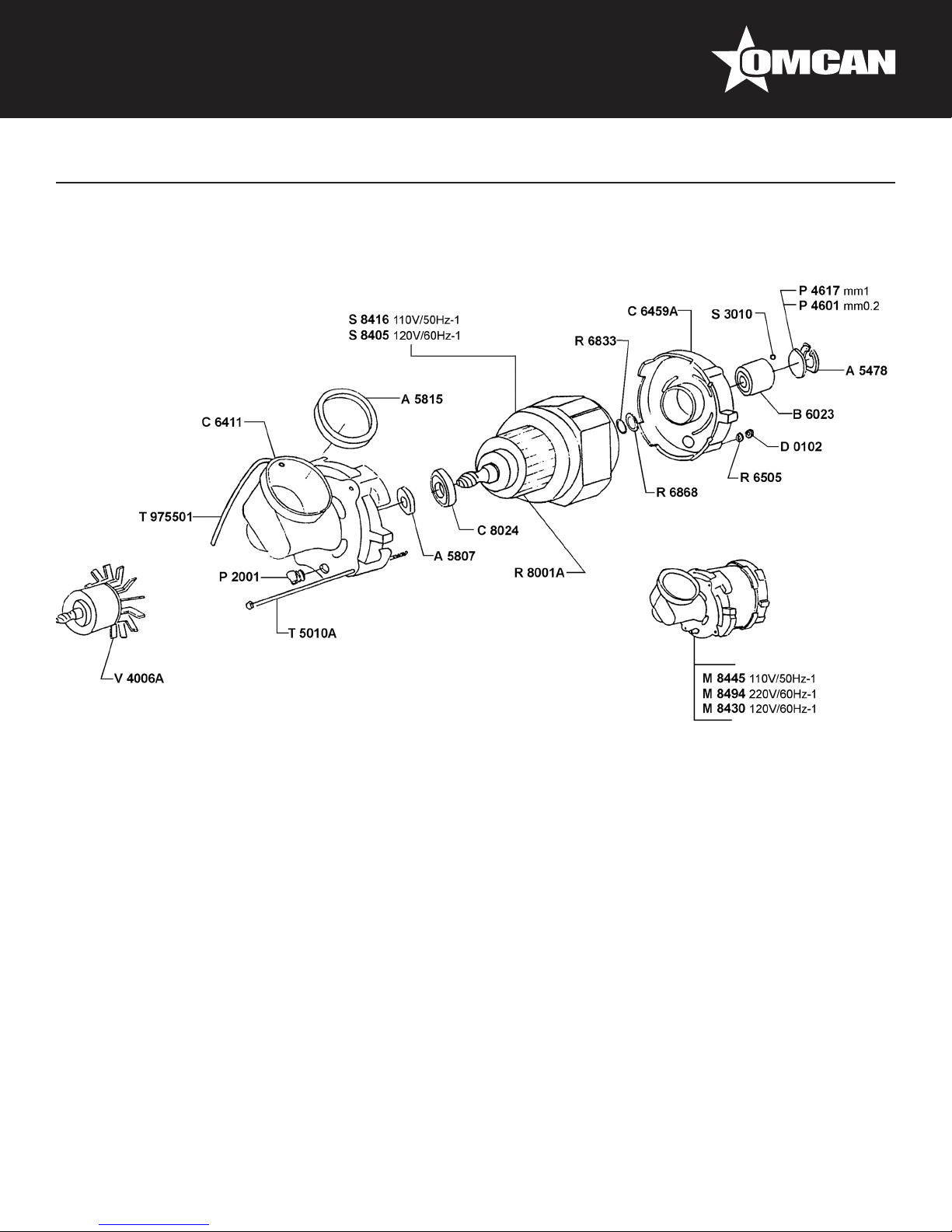

Parts Breakdown
Electrical Schematics
Notes
Warranty Registration
Model MS-IT-0330-A

3
General Information
Omcan Manufacturing and Distributing Company Inc., Food Machinery of America, Inc. dba Omcan
and Omcan Inc. are not responsible for any harm or injury caused due to any person’s improper or
negligent use of this equipment. The product shall only be operated by someone over the age of 18, of
sound mind, and not under the inuence of any drugs or alcohol, who has been trained in the correct
operation of this machine, and is wearing authorized, proper safety clothing. Any modication to the
machine voids any warranty, and may cause harm to individuals using the machine or in the vicinity of
the machine while in operation.
CHECK PACKAGE UPON ARRIVAL
Upon receipt of an Omcan shipment please inspect for external damage. If no damage is evident on the
external packaging, open carton to ensure all ordered items are within the box, and there is no concealed
damage to the machine. If the package has suffered rough handling, bumps or damage (visible or concealed),
please note it on the bill of lading before accepting the delivery and contact Omcan within 24 hours, so we may
initiate a claim with the carrier. A detailed report on the extent of the damage caused to the machine must be
lled out within three days, from the delivery date shown in the shipping documents. Omcan has no recourse
for damaged products that were shipped collect or third party.
Before operating any equipment, always read and familiarize yourself with all operation and safety
instructions.
Omcan would like to thank you for purchasing this machine. It’s of the utmost importance to save
these instructions for future reference. Also save the original box and packaging for shipping the
equipment if servicing or returning of the machine is required.
---------------------------------------------------------------------------------------------------------------------------------------------------
Omcan Fabrication et distribution Companie Limité et Food Machinery d’Amerique, dba Omcan et
Omcan Inc. ne sont pas responsables de tout dommage ou blessure causé du fait que toute personne
ait utilisé cet équipement de façon irrégulière. Le produit ne doit être exploité que par quelqu’un de
plus de 18 ans, saine d’esprit, et pas sous l’inuence d’une drogue ou d’acohol, qui a été formé pour
utiliser cette machine correctement, et est vêtu de vêtements de sécurité approprié. Toute modication
de la machine annule toute garantie, et peut causer un préjudice à des personnes utilisant la machine
ou des personnes à proximité de la machine pendant son fonctionnement.
VÉRIFIEZ LE COLIS DÈS RÉCEPTION
Dès réception d’une expédition d’Omcan veuillez inspecter pour dommages externes. Si aucun dommage
n’est visible sur l’emballage externe, ouvrez le carton an de s’assurer que tous les éléments commandés
sont dans la boîte, et il n’y a aucun dommage dissimulé à la machine. Si le colis n’a subi aucune mauvaises
manipulations, de bosses ou de dommages (visible ou cachée), notez-le sur le bond de livraison avant
d’accepter la livraison et contactez Omcan dans les 24 heures qui suivent, pour que nous puissions engager
une réclamation auprès du transporteur. Un rapport détaillé sur l’étendue des dommages causés à la machine
doit être rempli dans un délai de trois jours, à compter de la date de livraison indiquée dans les documents
d’expédition. Omcan n’a aucun droit de recours pour les produits endommagés qui ont été expédiées ou cueilli
par un tiers transporteur.

4
General Information
Safety and Warranty
GENERAL SAFETY REGULATIONS
The slicer must be used only by suitably trained personnel. Furthermore, this personnel must have read this
manual carefully. In particular, please comply to the following instructions:
•Install the machine according to the instructions contained in the “Installation” section.
•Do not remove the transparent protections, and do not modify nor exclude the mechanical and electrical
Avant d’utiliser n’importe quel équipement, toujours lire et vous familiariser avec toutes les opérations
et les consignes de sécurité.
Omcan voudrais vous remercier d’avoir choisi cette machine. Il est primordial de conserver ces
instructions pour une référence ultérieure. Également conservez la boîte originale et l’emballage pour
l’expédition de l’équipement si l’entretien ou le retour de la machine est nécessaire.
---------------------------------------------------------------------------------------------------------------------------------------------------
Omcan Empresa De Fabricacion Y Distribucion Inc. Y Maquinaria De Alimentos De America, Inc. dba
Omcan y Omcan Inc. no son responsables de ningun daño o perjuicío causado por cualquier persona
inadecuada o el uso descuidado de este equipo. El producto solo podra ser operado por una persona
mayor de 18 años, en su sano juicio y no bajo alguna inuencia de droga o alcohol, y que este ha sido
entrenado en el correcto funcionamiento de esta máquina, y ésta usando ropa apropiada y autorizada.
Cualquier modicación a la máquina anúla la garantía y puede causar daños a las personas usando la
máquina mientras esta en el funcionamiento.
REVISE EL PAQUETE A SU LLEGADA
Tras la recepcion de un envio Omcan favor inspeccionar daños externos. Si no hay daños evidentes en el
empaque exterior, Habra el carton para asegurararse que todos los articulos solicitados ésten dentro de la
caja y no encuentre daños ocultos en la máquina. Si el paquete ha sufrido un manejo de poco cuidado, golpes
o daños (visible o oculto) por favor anote en la factura antes de aceptar la entrega y contacte Omcan dentro
de las 24 horas, de modo que podamos iniciar una reclamación con la compañia. Un informe detallado sobre
los daños causados a la máquina debe ser llenado en el plazo de tres días, desde la fecha de entrega que se
muestra en los documentos de envío. Omcan no tiene ningun recurso por productos dañados que se enviaron
a recoger por terceros.
Antes de utilizar cualquier equipo, siempre leer y familiarizarse con todas las instrucciones de
operación y seguridad.
Omcan quisiera darles las gracias por la compra de esta máquina. Es de la máxima importancia para
guardar estas instrucciones para referencias en el futuro. También guarde la caja original y el embalaje
para envío del equipo si el mantenimiento o la devolución de la máquina es necesaria.

5
Safety and Warranty
safety devices.
•Do not use the machine with improvised connections, or provisional or non insulated cables.
•Check the power cable and gland plate on the machine body regularly and, when necessary, have them
replaced by qualied personnel.
•In case of anomalies, defective operation, incorrect movement, and/or unusual noise, stop the machine
immediately.
•Before cleaning or servicing, disconnect the machine from the mains.
•Always use protection gloves during cleaning or maintenance.
•Lay or remove the goods to be sliced on the sliding plate only when the latter is completely pushed back
and the thickness control knob positioned to 0.
•To move the carriage tray when slicing, use the handle or the product grip handle.
•For extraordinary maintenance (to replace the sharpener wheels, the blade, etc), please contact the
manufacturer or qualied and duly authorized personnel.
•Avoid running the slicers with no product on it.
• The slicers are equipped with a ventilated motor. Extended continual use is not recommended. Let the
motor cool down after 30 minutes of use.
1 YEAR PARTS AND LABOR BENCH WARRANTY
Within the warranty period, contact Omcan Inc. at 1-800-465-0234 to schedule a drop off to either
an Omcan authorized service depot in the area, or to an Omcan Service warehouse to repair the
equipment.
Unauthorized maintenance will void the warranty. Warranty covers electrical and part failures, not
improper use.
Please see www.omcan.com/warranty.html for complete info.
WARNING:
The packaging components are classied as normal solid urban waste and can therefore be disposed of
without difculty.
In any case, for suitable recycling, we suggest disposing of the products separately (differentiated
waste) according to the current norms.
DO NOT DISCARD ANY PACKAGING MATERIALS IN THE ENVIRONMENT!

6
Installation
UNPACKING
Immediately on delivery unloading, please check whether machine packaging is eventually deteriorated and, in
this case, make necessary reservations on signing the delivery note. Check the machine inside packaging and
contact the carrier immediately if it is damaged.
Prior to installation, test the electrical service to assure that it is in compliance with the specications on the
machine data plate.
ELECTRICAL
WARNING: It must be connected to properly grounding plug, grounded outlet. If the receptacle is not the
proper grounding type, contact an electrician.
SAFETY
Safety devices incorporated in this slicer must be in their correct operating position every time the slicer is in
use.
• The blade cover must be in position over the knife and secured by tightening the hand knob.
• The last slice device must be used when slicing. It keeps your hands away from the knife.
• When the slicer is not working, the slicer thickness control must be set to zero (fully clockwise) to prevent
the blade edge from being exposed.
• Always unplug the power cord before cleaning or moving the slicer.
Technical Specications
Model MS-IT-0330-A
Blade Size 13” / 330 mm
Power 2 x 0.50 HP / 0.37 kW
Cheese Slicing*
Slicing Volume* 8 hours or more
RPM 250
Cutting Size 9.25” x 10.62” / 235 x 270 mm
Electrical 110V / 60 Hz / 1 Ph
Weight 140 lbs. / 64 kg.
Dimensions (WDH) 29” x 24” x 24” / 737 x 610 x 610 mm
Item Number 13645
*Results may vary due to product consistency and temperature

7
Operation
SLICING
• Pull the product holder (3) towards you until it stops and
place the product to be sliced on the product holder tray.
• Place the last slice device against the product and start the
slicer by pressing the on-off switch (9).
• Adjust the slice thickness by turning the slice thickness
control. The numbers on the slice thickness control do
not indicate precise measurement, but may be used for
reference to duplicate slice thickness.
• Using either the carriage handle (13) or last slice device (4),
push the product holder (3) back and forth to slice. Always
switch-off the slicer and turn the slice thickness control
clockwise to zero when not slicing.
WARNING: Slicer should not be operated by untrained
personnel or persons under 18 years of age.
WEAR ADJUSTMENT
After several years of operation and sharpening of the blade, it may become necessary to have the slice
thickness plate adjusted closer to the blade.
MANUAL OPERATION
• Rotate the AUTO/MANUAL selector carriage release handle by 1800 (clockwise).
• Push the on-switch/blade start push button.
• Adjust the thickness you want by turning the slice thickness control knob.
• Actuate the carriage by your hand.
• Push the off-switch/blade stop push button.
AUTOMATIC OPERATION
• Rotate the AUTO/MANUAL selector carriage release handle by 1800 (counterclockwise).
• Push the on-switch/blade start push button.
• Adjust the thickness you want by turning the slice thickness control knob.
• Push the product holder start push button.
• Adjust the length of the stroke by turning the product holder stroke adjustment.
• Push the product holder stop push button to end.

8
2
4
5
7
1
3
5
14
7
1
6
7
6

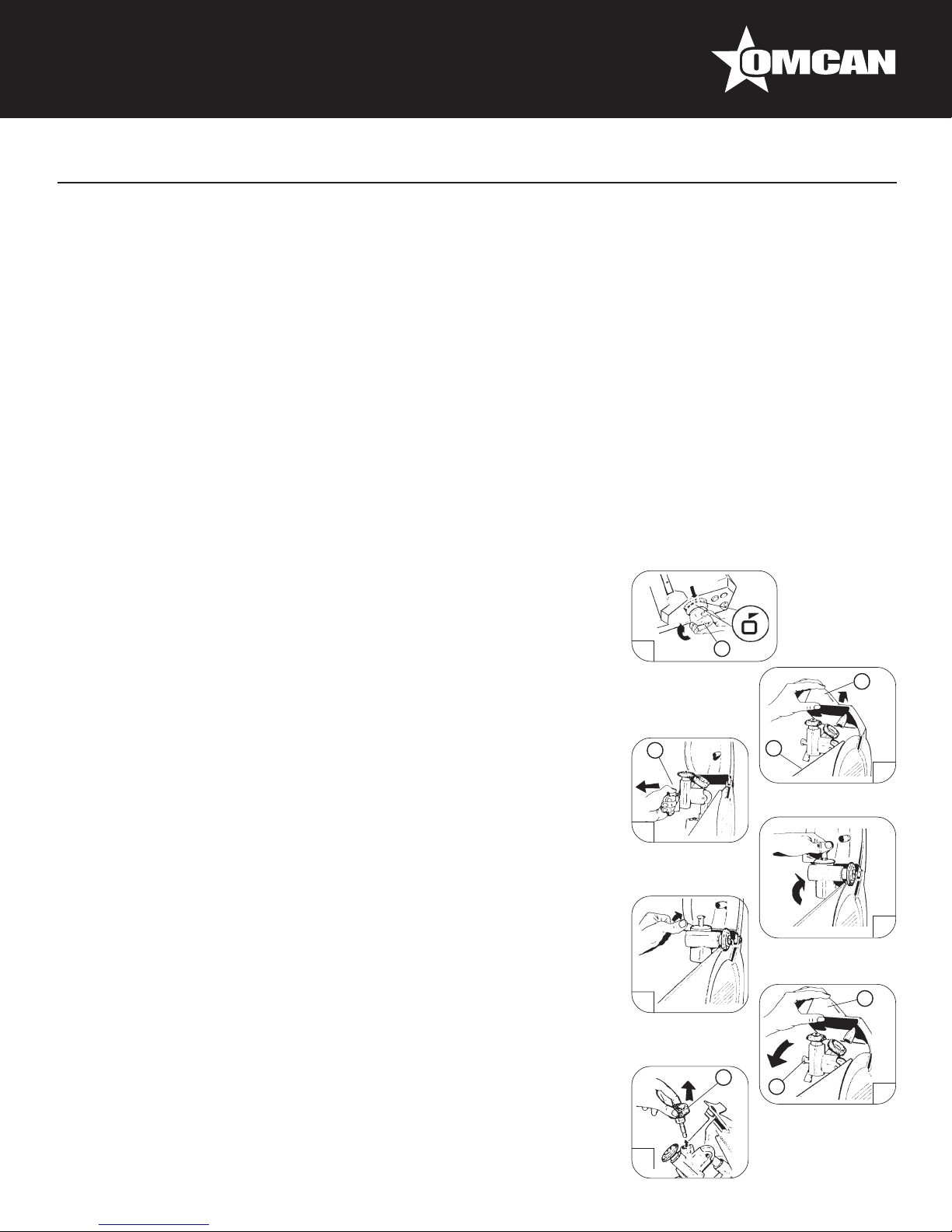

SHARPENING OPERATION
Your slicer blade will provide long service in normal deli, food store, or
commercial kitchen use. However, in high volume applications where it is
a practice to sharpen the blade frequently or even daily, the blade will be
expended in a shorter time.
Before using the sharpener, be sure the front and back side of the knife
edge is clean and free of grease.
To sharpen knife:
a) Be sure that the slicer has been switched off.
b) Rotate the slice thickness control (4) into “O” position, so that the
thickness plate (5) protects the knife. (See Fig. 2)
• Lift up the sharpener cover. (1) (See Fig. 2)
• Disengage the pin (7) and rotate the sharpener. (See Fig. 3)
• The sharpener, then, goes into its sharpening position. (See Fig. 4)
• To sharpen, rst turn the switch on so that when the knife turns, it will
slowly rotate the lever which lets both stones go in contact with the
knife. Sharpening and trimming are made in same time. (See Fig. 5)
• Replace the sharpener to normal horizontal position by lifting the pin
(7) and close the cover. (See Fig. 6)
• The grinding stone (6), tted on its pin, can be easily removed by just
drawing it. (See Fig. 7)
• To get a nice sharpening, the grinding stone must be clean and free of
grease.
• The sharpening time depends on the wear of the knife. To get a good
Maintenance
ELECTRICAL SAFETY
When the slicer is running, removing the blade cover eventually or electric power causes the stop of the
machine. To restart the slicer, press the on-off switch.
LUBRICATION
• The rod on which the product holder slides, which is underneath the slicer, should be lubricated weekly with
several drops of oil.
• Stop the carriage at the end of the stroke nearest the operator position and pour the lubricant into the
special oiler. DO NOT use vegetable oil.
• Occasionally, the slice thickness plate slide rod should be coated lightly with lubricant. Turn the slice
thickness control fully counterclockwise when lubricating this slide rod and then turn it fully clockwise when
nished.
• DO NOT lubricate the rod on which the last slice device slides. It must be kept clean but not lubricated.
• The motor has sealed bearings and requires no lubrication maintenance.

9
Maintenance
CLEANING THE SLICER
This machine must be thoroughly cleaned and sanitized after installation and before being put into service. It
should also be cleaned after each day’s operation or every time it will not be used for an extended period.
WARNING: Unplug machine power cord and turn the index knob fully clockwise before cleaning the slicer.
• Remove the slice deector (12) by removing its thumb screw.
• The product holder can be removed for an easy cleaning by
unfastening its handle (8).
• Using a mild soap and hot water solution and a clean cloth,
wipe all surfaces of the slicer.
• Thoroughly rinse it with another clean cloth and fresh water.
• Remove the blade cover by removing the hand knob (7).
• With the hand knob removed, grasp the edge of the blade
cover and carefully lift it straight off the knife.
WARNING: The slicer blade is very sharp. Use extreme caution
when working near the blade.
• Carefully wash both sides of the blade with the slice thickness
control turned fully clockwise. Wash the blade by wiping outward from the center.
• Always rinse the blade thoroughly using fresh water and a clean cloth. Never use steel pads to clean the
blade.
• Wash and thoroughly rinse the removed components prior to reassembling them.
• Do not wash any slicer components in a dishwasher.
REFERENCE
Item Number Model Number Description Manufacturer Model Number
13645 MS-IT-0330-A
Meat Slicer Gear Driven Automatic
13” / 330mm Blade 1 HP / 746 W
110V/60/1 NSF cETLus
CX MATIC
result, the time needed is 10 to 15 seconds. A longer sharpening reduces the duration of the knife and
gives no advantage.
• Wipe the slicer with a clean damp cloth to remove any grinding particles.

10
Parts Breakdown
Model MS-IT-0330-A 13645

11
Parts Breakdown
Model MS-IT-0330-A 13645

12
Parts Breakdown
Model MS-IT-0330-A 13645

13
Parts Breakdown
Model MS-IT-0330-A 13645

14
Parts Breakdown
Model MS-IT-0330-A 13645

15
Parts Breakdown
Model MS-IT-0330-A 13645

16
Parts Breakdown
Model MS-IT-0330-A 13645

17
Parts Breakdown
Model MS-IT-0330-A 13645

18
Parts Breakdown
Model MS-IT-0330-A 13645

19
Parts Breakdown
Model MS-IT-0330-A 13645

20
Parts Breakdown
Model MS-IT-0330-A 13645
Item No. Description Position Item No. Description Position Item No. Description Position
17272 Sharpening Assembly (Support and
Stones) for CXMATIC A1003 16905 Bushing DU 16x18x15 for CXMATIC B6053 36602 Driving Belt 330x10 for CXMATIC C4813
17280 Ring EL Benzing 5 for CXMATIC A5404 17304 Bushing for CXMATIC B6056 36604 Belt D.420 L100 for CXMATIC C4817
36536 Stainless Steel Ring EL. Benzing 6 for
CXMATIC A5404X 17305 Bushing DU 18x20x15 for CXMATIC B6057 36605 Belt V.360x10 for CXMATIC C4824
16902 Ring EL.Benzing 8 for CXMATIC A5406 16906 Bush Sharpening H-L-C for CXMATIC B6075 36606 Bolt H-L-C for CXMATIC C5002A
19606 Ring 17 for CXMATIC A5446 16907 Bush Sharpening H-L-C for CXMATIC B6076 36609 Capacitor 20 µF 250V for CXMATIC C5814
77584 Ring EL.Seeger EST.25 (OMAS) for
CXMATIC A5453 17307 Bushing Sharpener H-L-C for CXMATIC B6083 36610 Capacitor 50 MF 250V for CXMATIC C5842
77585 Ring EL.Seeger EST.25 Ser.Heavy
(OMAS) for CXMATIC A5454 19630 Bushing Fastener HBC for CXMATIC B6104B 77609 Connettore Spina Monofase 2x16A CEE (OMAS) for CXMATIC C6081
36541 Ring EL.Seeger INT.35 for CXMATIC A5470 78265 Bushing, Funnel H-L-C for CXMATIC B6110 78286 Three-Phase Connector 3x16A for
CXMATIC C6082
78251 Ring EL.Seeger INT 45 for CXMATIC A5478 78265 Knife Shaft for CXMATIC B6110 78240 Front Motor Cover for CXMATIC C6411
19484 Ring 52 for CXMATIC A5485 36559 Bushing Support Switch for CXMATIC B6155 78247 Back Motor Cover C for CXMATIC C6459A
19612 Ring 33 for CXMATIC A5495 18648 Bushing for CXMATIC B6212 78266 Motor for CXMATIC C6463
17282 Oil Seal 20x42x7 for CXMATIC A5807 36566 Bushing To Hold Carriage Springs for
CXMATIC B6221 36615 Back Motor Cover for CXMATIC C6466
17283 Oil Seal 25x52x10 for CXMATIC A5809 36568 DU Bushing 6x8x6 for CXMATIC B6224 36617 Motor Fan Cover for CXMATIC C6573
17285 Oil Seal 60x75x8 for CXMATIC A5815 36865 Sharpener Operating Handle for
CXMATIC B6244 36618 CXM-GLM Motor Cover for CXMATIC C6577
19493 Oil Seal 25*47*07 for CXMATIC A5816 36572 CXM Locking Bushing for CXMATIC B6255 36619 CXM-GLM Belt Cover for CXMATIC C6583
17287 O-Ring 123 17.86x2.62 for CXMATIC A5852 23646 Sharpener Pivot Ferrule for CXMATIC B6256 78291 Body Rear Cover for CXMATIC C6779
17288 O-Ring 3081 20.24x2.62 for CXMATIC A5854 36573 Fixing Box Bushing for CXMATIC B6257 36624 G Matic Carriage Side Cover for
CXMATIC C6781
36544 Carriage Rod H-L-C300/330/350 for
CXMATIC B1010A 16909 Sharpener Cover H-L-C for CXMATIC C1603 19534 Housing Sharpener for CXMATIC C6807
19496 Carriage Rod C-H for CXMATIC B1095 36590 AG35-C-H Carriage for CXMATIC C1854 36629 Bearing 2Z-6003 17x35x10 for CXMATIC C8006
36549 Shock Absorber Rod 12x185 for
CXMATIC B1252 19527 Carriage Assembly C for CXMATIC C1901 17334 Bearing 2Z-6205 25x52x15 for CXMATIC C8011
19499 CXM Carriage Rod for CXMATIC B1284 78277 Control Board Cable 230/50 for CXMATIC C3247 16925 Bearing 2RS-6204 20x47x14 for
CXMATIC C8024
36552 C-H350-HM350 Carriage Rod for
CXMATIC B1285 78279 Control Board Cable 230/50 for CXMATIC C3248 36631 Bearing 2RS-6205 25x52x15 for CXMATIC C8056
19501 Meat Grip Rod A310 & C for CXMATIC B1337A 36595 CXM Assembly Carriage Motor Wiring
for CXMATIC C3249 16926 Bearing 2RS-6000 (10x26x8) for CXMATIC C8067
78270 Body for CXMATIC B1807 78278 Control Board Cable 400/50 for CXMATIC C3252 19637 Nut M3 for CXMATIC D0101
78292 Body Housing for CXMATIC B1871 78280 Control Board Cable 400/50 for CXMATIC C3253 19638 Nut M4 for CXMATIC D0102
36555 Belt Bracket for CXMATIC B5032 78288 Power Cord 400/50 for CXMATIC C3287 16928 Nut U5589 M6 for CXMATIC D0133
19510 Hangover Bracket for CXMATIC B5033 78287 Power Cord 230/50 for CXMATIC C3290 36636 Stainless Steel Nut U5589 M6 for
CXMATIC D0133X
17298 Bushing Fastener C for CXMATIC B6006 19633 Hinge Motor VS for CXMATIC C3633 19639 Nut U5589 M8 (OMAS) for CXMATIC D0135
19618 Bushing 8*10*8 for CXMATIC B6009 17316 Pin 8.5mm for CXMATIC C4601 19639 Nut U5589 M8 for CXMATIC D0135
36557 Bushing DU 25x28x30 for CXMATIC B6021 17317 Pin .11 for CXMATIC C4602 36637 Stainless Steel Nut U5589 M8 for
CXMATIC D0135X
78252 Bushing 17x45 for CXMATIC B6023 20423 Pin for CXMATIC C4620 36639 Stainless Steel Nut U5721 M5 for
CXMATIC D0152X
16904 Bushing Sharpener for CXMATIC B6048 36601 Rivet 1.9x5 for CXMATIC C4640 36640 Stainless Steel Domed Nut U5721 M6
for CXMATIC D0153X
