Omcan MS-IT-0319-M User manual

Revised - 04/20/2018
Toll Free: 1-800-465-0234
Fax: [phone]
Email: [email protected]
www.omcan.com
Manual Meat Slicer
Model MS-IT-0319-M
Item 44007
Instruction Manual

2
Page
----------------------------------------------------------------------------------------- 3 - 4
---------------------------------------------------------------------------------------- 4 - 5
---------------------------------------------------------------------------------------- 5
---------------------------------------------------------------------------------------------------------- 6
------------------------------------------------------------------------------------------------------ 6 - 7
-------------------------------------------------------------------------------------------------- 7 - 9
----------------------------------------------------------------------------------------- 10 - 19
-------------------------------------------------------------------------------------------------------- 20 - 22
----------------------------------------------------------------------------------------- 23
Table of Contents
Section
General Information
Safety and Warranty
Technical Specications
Installation
Operation
Maintenance

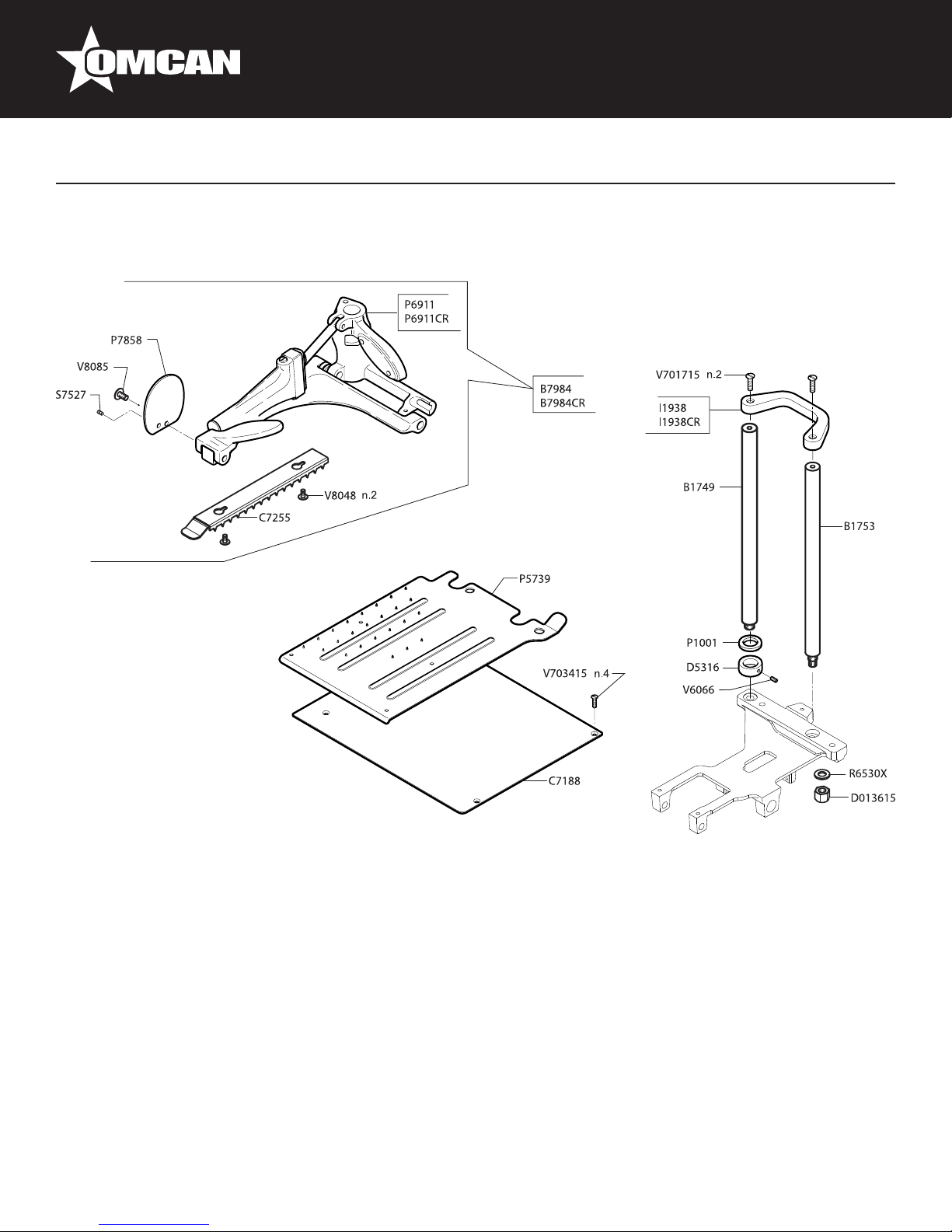

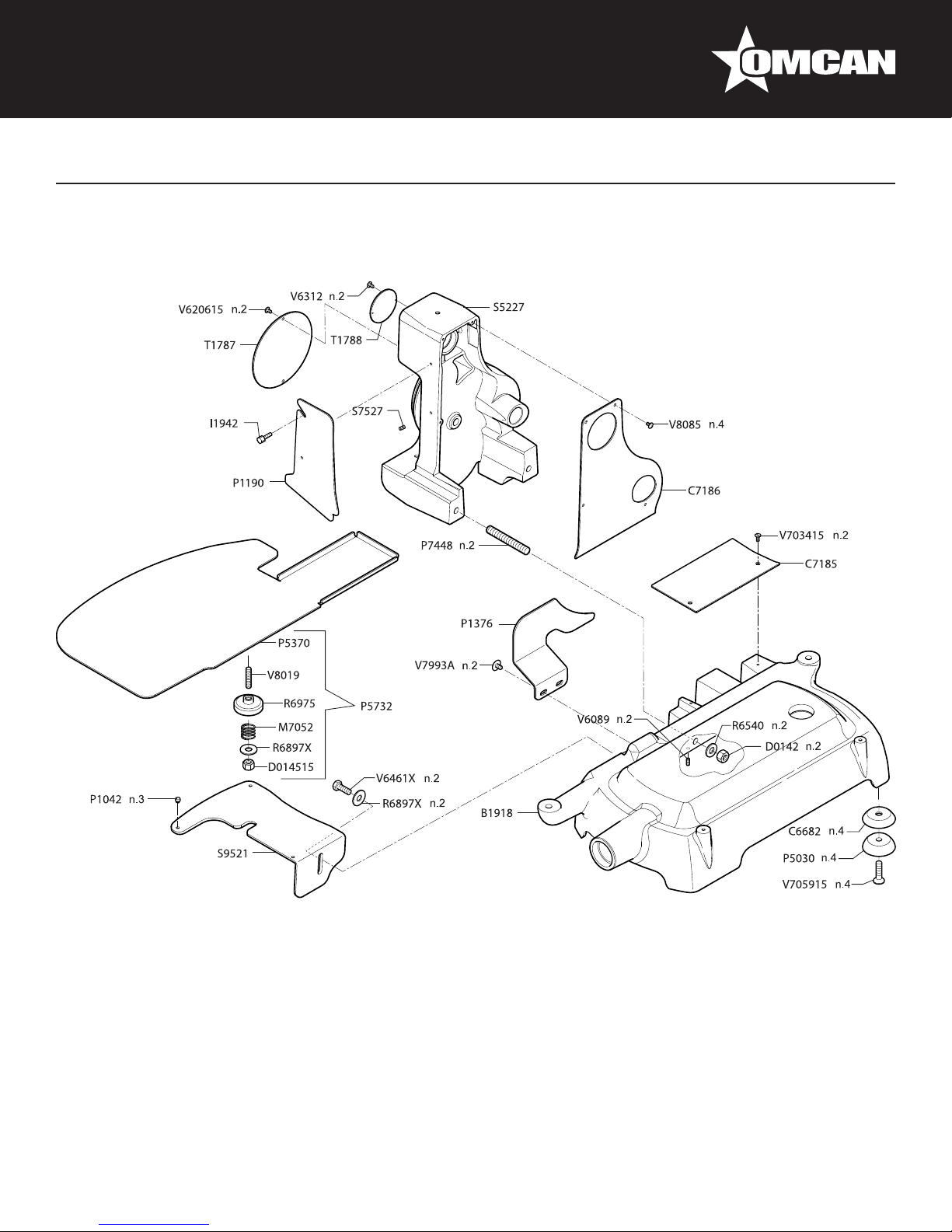

Parts Breakdown
Notes
Warranty Registration
Model MS-IT-0319-M

3
General Information
Omcan Manufacturing and Distributing Company Inc., Food Machinery of America, Inc. dba Omcan
and Omcan Inc. are not responsible for any harm or injury caused due to any person’s improper or
negligent use of this equipment. The product shall only be operated by someone over the age of 18, of
sound mind, and not under the inuence of any drugs or alcohol, who has been trained in the correct
operation of this machine, and is wearing authorized, proper safety clothing. Any modication to the
machine voids any warranty, and may cause harm to individuals using the machine or in the vicinity of
the machine while in operation.
CHECK PACKAGE UPON ARRIVAL
Upon receipt of an Omcan shipment please inspect for external damage. If no damage is evident on the
external packaging, open carton to ensure all ordered items are within the box, and there is no concealed
damage to the machine. If the package has suffered rough handling, bumps or damage (visible or concealed),
please note it on the bill of lading before accepting the delivery and contact Omcan within 24 hours, so we may
initiate a claim with the carrier. A detailed report on the extent of the damage caused to the machine must be
lled out within three days, from the delivery date shown in the shipping documents. Omcan has no recourse
for damaged products that were shipped collect or third party.
Before operating any equipment, always read and familiarize yourself with all operation and safety
instructions.
Omcan would like to thank you for purchasing this machine. It’s of the utmost importance to save
these instructions for future reference. Also save the original box and packaging for shipping the
equipment if servicing or returning of the machine is required.
---------------------------------------------------------------------------------------------------------------------------------------------------
Omcan Fabrication et distribution Companie Limité et Food Machinery d’Amerique, dba Omcan et
Omcan Inc. ne sont pas responsables de tout dommage ou blessure causé du fait que toute personne
ait utilisé cet équipement de façon irrégulière. Le produit ne doit être exploité que par quelqu’un de
plus de 18 ans, saine d’esprit, et pas sous l’inuence d’une drogue ou d’acohol, qui a été formé pour
utiliser cette machine correctement, et est vêtu de vêtements de sécurité approprié. Toute modication
de la machine annule toute garantie, et peut causer un préjudice à des personnes utilisant la machine
ou des personnes à proximité de la machine pendant son fonctionnement.
VÉRIFIEZ LE COLIS DÈS RÉCEPTION
Dès réception d’une expédition d’Omcan veuillez inspecter pour dommages externes. Si aucun dommage
n’est visible sur l’emballage externe, ouvrez le carton an de s’assurer que tous les éléments commandés
sont dans la boîte, et il n’y a aucun dommage dissimulé à la machine. Si le colis n’a subi aucune mauvaises
manipulations, de bosses ou de dommages (visible ou cachée), notez-le sur le bond de livraison avant
d’accepter la livraison et contactez Omcan dans les 24 heures qui suivent, pour que nous puissions engager
une réclamation auprès du transporteur. Un rapport détaillé sur l’étendue des dommages causés à la machine
doit être rempli dans un délai de trois jours, à compter de la date de livraison indiquée dans les documents
d’expédition. Omcan n’a aucun droit de recours pour les produits endommagés qui ont été expédiées ou cueilli
par un tiers transporteur.

4
Safety and Warranty
General Information
MECHANICAL SAFETY DEVICES
The slicer is manufactured according to the EEC 2006/42 Machinery Directive. The mechanical safety devices
are the following:
• The 360° unmovable blade guard ring protects the blade.
• A specic device allows to expose only the part of the blade used for cutting.
Avant d’utiliser n’importe quel équipement, toujours lire et vous familiariser avec toutes les opérations
et les consignes de sécurité.
Omcan voudrais vous remercier d’avoir choisi cette machine. Il est primordial de conserver ces
instructions pour une référence ultérieure. Également conservez la boîte originale et l’emballage pour
l’expédition de l’équipement si l’entretien ou le retour de la machine est nécessaire.
---------------------------------------------------------------------------------------------------------------------------------------------------
Omcan Empresa De Fabricacion Y Distribucion Inc. Y Maquinaria De Alimentos De America, Inc. dba
Omcan y Omcan Inc. no son responsables de ningun daño o perjuicío causado por cualquier persona
inadecuada o el uso descuidado de este equipo. El producto solo podra ser operado por una persona
mayor de 18 años, en su sano juicio y no bajo alguna inuencia de droga o alcohol, y que este ha sido
entrenado en el correcto funcionamiento de esta máquina, y ésta usando ropa apropiada y autorizada.
Cualquier modicación a la máquina anúla la garantía y puede causar daños a las personas usando la
máquina mientras esta en el funcionamiento.
REVISE EL PAQUETE A SU LLEGADA
Tras la recepcion de un envio Omcan favor inspeccionar daños externos. Si no hay daños evidentes en el
empaque exterior, Habra el carton para asegurararse que todos los articulos solicitados ésten dentro de la
caja y no encuentre daños ocultos en la máquina. Si el paquete ha sufrido un manejo de poco cuidado, golpes
o daños (visible o oculto) por favor anote en la factura antes de aceptar la entrega y contacte Omcan dentro
de las 24 horas, de modo que podamos iniciar una reclamación con la compañia. Un informe detallado sobre
los daños causados a la máquina debe ser llenado en el plazo de tres días, desde la fecha de entrega que se
muestra en los documentos de envío. Omcan no tiene ningun recurso por productos dañados que se enviaron
a recoger por terceros.
Antes de utilizar cualquier equipo, siempre lea y familiarizarse con todas las instrucciones de
funcionamiento y seguridad.
Omcan le gustaría darle las gracias por la compra de esta máquina. Es de la mayor importancia para
salvar estas instrucciones para futuras consultas. Además, guarda la caja original y el embalaje para el
envío del equipo si servicio técnico o devolución de la máquina que se requiere.

5
Safety and Warranty
Technical Specications
IMPORTANT
The front support feet can be unscrewed and replaced as required according to the dimensions of the
working surface.
1 YEAR PARTS AND LABOUR WARRANTY
Within the warranty period, contact Omcan Inc. at 1-800-465-0234 to schedule an Omcan authorized
service technician to repair the equipment locally.
Unauthorized maintenance will void the warranty. Warranty covers electrical and part failures, not
improper use.
Please see www.omcan.com/warranty.html for complete info.
WARNING:
The packaging components are classied as normal solid urban waste and can therefore be disposed of
without difculty.
In any case, for suitable recycling, we suggest disposing of the products separately (differentiated
waste) according to the current norms.
DO NOT DISCARD ANY PACKAGING MATERIALS IN THE ENVIRONMENT!
Model MS-IT-0319-M
Blade Size 12.5” / 319mm
Cutting Size 8” x 8.7” / 203 x 220mm
Cut Thickness Range 0.01” - 0.16” / 0.3 - 4mm
Weight 110 lbs. / 50 kgs.
Dimensions 32.7” x 23” x 22” / 831 x 584 x 559mm
Item Number 44007

6
Installation
Operation
The slicer must be placed horizontally on a stable, robust and non-slip base adequate to support its weight.
The suggested height of the working surface is about 800mm. Check out that the product tray motion has no
hindrance and that the product can be easily loaded. It is possible to move the front support feet according to
the depth of the working surface.
WARNING: To prevent the risk of crushing, position the machine so as to leave a clear space between
the moving parts and the permanent structure.
PRELIMINARY CLEANING
The machine has to be cleaned from the protection oil. Please follow the instructions detailed in Maintenance.
WARNING
The working surface must always be cleaned.
SLICER FUNCTIONING AND USE
This slicer is suitable only for cutting ham and prosciutto
WARNING
The following products cannot be sliced:
• Inedible products.
• Foodstuff with bones.
• Frozen products.
1. Check out that the blade is protected by the blade guard
2. By manually moving the ywheel, bring the foodholding plate towards the operator side.
WARNING: Turn the ywheel only in clockwise direction.
3. Distance the food-holding plate using the fast plate shifting lever.
4. Place the product on the food-holding plate, press down on the pusher vertical sliding handle and lock it
with the self-clamping pusher.
Note: To avoid slicing anomalies (irregular thickness, broken slices, etc.) it is suggested not to let
an excessive quantity of the product jut out from the self-clamping pusher.
Note: When it is necessary to cut a substantial amount of the product, it is suggested to repeat
several times the product re-positioning and re-locking operation by using the self-clamping
pusher.
5. Arrange the thickness desired slice thickness control is working on cutting.
Note: Turning the slice thickness control in clockwise direction increases the slice thickness,
whereas turning it in counterclockwise direction reduces it. The knob is equipped with a graduate
scale from 1 to 11 (from 0 to 2 mm).

7
Operation
Maintenance
6. Bring the product in the cutting position by using the fast plate shifting lever or the slow plate shifting knob.
WARNING: Leave a 0,5 to 1,0 cm space between product and blade.
7. Turn in counterclockwise direction the blade protection block. The blade guard will move away from the
blade, exposing just the part used for cutting.
DANGER: The part of the blade used for cutting is not protected.
8. With your right hand rotate the ywheel in clockwise direction.
With such an action you will start the slicing operation.
To unload the product, do the reverse operations.
WARNING
Once you nished the cutting operation, do not forget to put back the blade protection by following the
described instructions in reverse.
BLADE SHARPENING
If the quality of the cut is not satisfying, the blade must be sharpened. The time interval between the
sharpening operations depends on the use of the slicer and on the kind of products to be cut. This operation
must be accomplished by qualied personnel. The blade must be replaced when its diameter is 10mm shorter
than the original one.
WARNING
The replacement of the blade is a dangerous operation. If the sharpening quality is not satisfying, replace both
of the grinding stones. Please contact Omcan customer service.
WARNING
Check that the blade guard covers the part of the blade used for cutting.
SHARPENING OPERATION
For a correct blade sharpening please proceed following the instructions hereafter:
1. Clean the blade, especially from fat leftovers.
2. Distance the food-holding plate from the blade.
3. Lift up the sharpener and rotate it 180°.
WARNING: Risk of injury - Once you have removed the sharpening device, a section of the blade
remains uncovered.
4. Replace carefully the sharpener, the grinding stones will position themselves on either side of the blade.
5. With your right hand rotate the ywheel clockwise.
6. Sharpening: Press and hold the “A” button to bring the grinding stones in contact with the blade. Perform

8
Maintenance
20/30 blade rotations with the ywheel. Then release the “A” button and stop the rotation of the blade.
7. Honing: Press and hold the “B” button and bring it in contact with the blade. Perform 1/2 blade rotations
with the ywheel. Then release the “B” button and stop the blade rotation.
8. With your right hand rotate the ywheel clockwise.
9. Lift and rotate by 180° degrees the sharpener and reposition it in its initial position.
GRINDING STONES CLEANING
To obtain an excellent sharpening the grinding stones must always be clean. Remove dirt and grease with
alcohol and the supplied brush.
MAINTENANCE
SPARE PARTS
Please request only original spare parts.
CLEANING
After long periods of inactivity, always perform the cleaning operations before using the machine again. Clean
all the accessible parts by using a cloth damped with water.
WARNING
Please avoid water jets.
DANGER
Please be careful during the cleaning operations: danger of injury.
WARNING
Check that the front blade protection covers the part of the blade used for cutting.
COMPONENTS REMOVAL
FOOD-HOLDING PLATE
• Turn the food-holding plate locking lever counterclockwise
• Pull up and remove the food holding plate.
SLICE-DEFLECTOR
• Loosen the screw and remove the slice deector.
SLICER RECEIVING TRAY
• Loosen the two handles and pull out the tray

9
Maintenance
BLADE CLEANING
DANGER
During the blade cleaning operations, carefully avoid accidental contacts with the blade.
• Clean the blade front side with a wet cloth and move it slowly outwards from the centre, as indicated by the
arrow. Dry with another cloth, then clean the back side of the blade in the same way.
BLADE PROTECTION CLEANING
• Clean the blade guard ring front side with a wet cloth.
• Turn in counterclockwise direction the blade protection block.
DANGER: The part of the blade used for cutting is now uncovered.
• Clean the blade guard ring back side with a wet cloth.
• Once you nish the cleaning operation, turn the blade protection block clockwise, the blade guard will cover
the blade.
IMPORTANT: All the disassembled parts have to be cleaned individually with water and dishes
detergent (do not use strong detergents), using a brush or a cloth. Then rinse them in warm water and
dry them.
LUBRICATION
LUBRICATION OF THE CARRIAGE GUIDE BAR
This operation must be performed after cleaning the machine or whenever there are sliding problems. We
suggest to use SHELL ONDINA 15 or ESSO MARCOL 82 oils.
• By activating the ywheel, move the carriage with the food-holding plate towards the operator.
• Squeeze the lubricating oil into the specic carriage guide bar lubricator.
• By activating the ywheel, let the carriage run back and forth several times.
REFERENCE
Item Number Model Number Description Manufacturer Model Number
44007 MS-IT-0319-M Volano Flywheel Slicer Heritage - Manual
Slicer 319mm Diameter of Blade HRT

10
Parts Breakdown
Model MS-IT-0319-M 44007

11
Model MS-IT-0319-M 44007
Parts Breakdown

12
Model MS-IT-0319-M 44007
Parts Breakdown

13
Parts Breakdown
Model MS-IT-0319-M 44007

14
Model MS-IT-0319-M 44007
Parts Breakdown

15
Parts Breakdown
Model MS-IT-0319-M 44007

16
Model MS-IT-0319-M 44007
Parts Breakdown

17
Parts Breakdown
Model MS-IT-0319-M 44007
Item No. Description Position Item No. Description Position Item No. Description Position
65116 Sharpener Assembled Cream for HRT A1151C 65134 Bush Ingr. V.S.F. for HRT B6375 36646 Nut U5588 M6 Stainless Steel for HRT D0163X
65117 Sharpener Assembled Black for HRT A1151N 65135 Arm Pressamerce Ass. for HRT B7984 36648 Nut U5588 M8 for HRT D0165X
65118 Sharpener Assembled Red for HRT A1151R 65136 Arm Pressam.Cromato Ass. for HRT B7984CR 64366 Nut M14x1 for HRT D0188
65119 Sharpener Assembled Custom for HRT A1151X 65137 Aluminum Hood Cream for HRT C1640C 36652 Nut M25x1.5 for HRT D0198
65120 Tree Flyer for HRT A3176 65138 Aluminum Hood Black for HRT C1640N 65160 Flywheel Spacer for HRT D5312
65121 Shaft for Wheel IN. (Z.36) for HRT A3177 65139 Aluminum Hood Red for HRT C1640R 65161 Spacer Shaft Corona for HRT D5313
65122 Shaft for Paral.Est.Mob Sledge for HRT A3178 65140 Aluminum Hood Custom for HRT C1640X 65162 Spacer Bar Øi7x18x10 for HRT D5314
65123 Blade Door Shaft for HRT A3180 65142 Flywheel Cart for HRT C1896 65163 Conical Spacer Øi7x18x22x10 for HRT D5315
65124 Compensator Ring 42x12 for HRT A5016 65143 Trolley Ass. for HRT C1945 65164 Spacer Bar2 BCT for HRT D5316
17279 Ring EL.Benzing 5 for HRT A5403 65144 Cart Ass. for HRT C1952 65165 Spacer for HRT D5317
16902 Ring EL.Benzing 8 for HRT A5406 65656 Cart Part Crome Assy. for HRT C1952CR 65167 Distance Lever AZ.Paral.Est. for HRT D576101
64355 Ring EL.Seeger Ext.12 for HRT A5444 65146 Roller Chain 3/8x7/32" L.81p Closed
for HRT C3003 65166 Distance Barrel Carr. for HRT D5828
36541 Ring EL.Seeger INT.35 for HRT A5470 64360 Right Hinge Stainless Steel Groupe of
Int90E for HRT C3665 19554 Bearing Cam A310 for HRT E1401
19174 Ring for HRT A5475 65147 Flywheel Hinge Imp. for HRT C3668 64367 Wheel Eccentric 104 for HRT E1430
64356 Oil Seal OR 3043 for HRT A5849 36599 Rivet 3.85 for HRT C4621 65169 Feltro Cart for HRT F1616
17287 O-Ring 123 17.86x2.62 for HRT A5852 36601 Rivet 1.9x5 for HRT C4640 65170 Flat Floor for HRT F6084
65125 Flange Ring for HRT A5960 36623 Foot Cover for HRT C6682 65171 Flange Chrome Plate B114 / TRIB
for HRT F6084CR
65126 Bar 12x20 Scorr.Carr for HRT B1067 65612 Sharpener Body for HRT C680764 65174 Ring Adjusting Device for HRT G5117
65127 Cart Bar for HRT B1746 65150 Trolley Bar Cover for HRT C7184 64368 Handle Bar Verticale L250 for HRT I1938
65128 Cart Bar Transport for HRT B1747 65151 Cover Inf. Shoulder for HRT C7185 65657 Grip. Chrome Vertical Bar 105 for HRT I1938CR
65129 Round Bar Ø19x310 Arm for HRT B1749 65152 Ant. Cover Shoulder S5227 for HRT C7186 17357 Deector Screw for HRT I1942
65130 Round Bar Ø19x320 Arm for HRT B1753 65153 Supp. Cover for HRT C7188 65176 Handle 6 Lobe D.30 Hole M6 for HRT I1963
65131 Rod Vernic for HRT B4010 65154 Rack Pressamerce for HRT C7255 36719 Cover Handle for HRT I2102
19618 Bushing 8x10x8 for HRT B6009 65155 Rack Advance. for HRT C7258 65178 Handle Regul.Avanz Handle for HRT I2138
19619 Bushing 8x10x12 for HRT B6020 36629 Bearing 2Z-6003 17x35x10 for HRT C8006 65179 Chromed Grip Reg.Piatto Handle for
HRT I2138CR
16904 Bushing Sharpener for HRT B6048 19538 Bearing 20x42x12 for HRT C8008 65180 Grip Holder Fix.Piatto Portamerce for
HRT I2145
17303 Bushing DU 12x14x15 for HRT B6052 64362 Bearing 2Z-626 6x19x6 for HRT C8012 65181 Impug. Chromed Fix.Piatto B114 / TRB
for HRT I2145CR
16905 Bushing DU 16x18x15 for HRT B6053 17335 Bearing.2RS-6203 17x40x12 for HRT C8022 65182 Flying Handle for HRT I2147
17304 Bushing for HRT B6056 16926 Bearing 2RS-6000 (10x26x8) for HRT C8067 65183 Imp. for Leva Mov. V.S.F. for HRT I2161
16906 Bush Sharpening for HRT B6075 65157 Ball Holder 51103 17x30x9 for HRT C8114 65184 Imp. Chromed Movement Lever for HRT I2161CR
16907 Bush. Sharpening for HRT B6076 36636 Nut U5589 M6 Stainless Steel for HRT D0133X 65185 Hand Assembly for HRT I2177
17307 Bushing Sharp. for HRT B6083 64363 Nut DIN 917 M10 Inox for HRT D013615 65186 Handle Ass. for HRT I2292
64358 Bushing DU 12x14x10 for HRT B6217 64364 Nut U5589 M14 Inox for HRT D014015 65187 Gripping Assembly for HRT I2292CR
36568 DU Bushing 6x8x6 for HRT B6224 65159 Normal Nut U5588 M12 for HRT D0142 65188 Gear Advancement for HRT I2449
64359 Bushing DU 14x16x20 for HRT B6238 77555 Domed Nut DIN 917 M8 Stainless Steel
for HRT D014515 65189 Gear Z16 DP40 M2.5 for HRT I2474
65882 Bushing SI.12x16x15 Sharpener AV3
for HRT B6242 36644 U5588 M5 Stainless Steel Nut for HRT D016015 65190 Gear Z32 DP80 M2.5 for HRT I2475
65132 Bushing SI.17x25x32x4x35 for HRT B6372 77613 Normal Nut U5588 M4 for HRT D0161 65191 Roller Engraver 3/8x7/32 z.36 for HRT I2477
65133 Bushing for Pivot Aff. for HRT B6373 19644 Nut M6 for HRT D0163 65192 Input Screw s.F.Avat.Avat.On for HRT I2480

18
Parts Breakdown
Model MS-IT-0319-M 44007
Item No. Description Position Item No. Description Position Item No. Description Position
65193 Blade mm 319/19/2 for HRT L0633 65214 Pin for Imp. for HRT P3750 36889 Washer 10.5x16x1 for HRT R6816
65195 Drive Lever for HRT L2444 65215 Axle Lift Station Pin for HRT P3771 65232 Washer Spec.Rasam.Ram24 17x24x0.2
for HRT R6835
65196 Lever Block Gear for HRT L2445 65216 Ax.Mola Sbavatrice Pin for HRT P3788 65233 Special Washer 8x14x1 Inox for HRT R6862
65197 Lever for Rod for HRT L2446 64372 Support Motor Flat for HRT P4623 36891 Washer 10.5x26x0.5 Stainless Steel
for HRT R6871
65198 External Operating Lever for HRT L2447 65217 Bearing Sliding Plate for HRT P4629 16972 Washer 5.5x19x2.5 for HRT R6884
65199 Lever Mov. Screw S.F. for HRT L2448 17438 Foot for HRT P5030 36893 Stainless Steel Special Washer 8.5x24x2
for HRT R6897X
65200 Movim Lever Screw S.F. B114 / TRIB
for HRT L2448CR 65218 Plate Posit. Sharpener Body for HRT P5147 36897 Special Washer 5.5x22x1.5 for HRT R6932
14787 Grinding Stone C for HRT M6602 65219 Plate Supp. Flat Bearing for HRT P5149 65234 Blade Fixing Washer for HRT R6969
36739 Honing-Finishing Stone for HRT M6621 65220 Plate Supp. Sharpener for HRT P5150 65235 Washer Adjustable Threading for HRT R6970
36741 Spring 2.9x4x12 Stainless Steel for HRT M7001 65221 Plate Flying Comb 319 for HRT P5153 65236 Washer Dist.Barra Cart for HRT R6971
17379 Spring 11.9x0.7x27 Stainless Steel
for HRT M7029 65222 Fix Plate Felt Carr. for HRT P5162 65237 Washer Ecc. Ring for HRT R6973
17380 Spring 13.4x1.3x30 Stainless Steel
for HRT M7030 65223 Plate Assembly Strap for HRT P5196 65238 Washer Imp. for HRT R6974
19249 Spring 15.1x1.3x18 for HRT M7035 65224 Stainless Steel Plate Posamerce for HRT P5370 65239 Rond. Pos. for HRT R6975
19781 Spring for HRT M7049 65225 Stainless Steel Plate Posamerce.Ass.
for HRT P5732 65240 Washer Ø12x21.8x2 Brass for HRT R6976
19782 Spring 19.5x1.5x16.7 for HRT M7050 65226 Transversal Plate Ass. for HRT P5739 19677 Wheel Tray for HRT R8512
17381 Spring 22 5x1 8x18 for HRT M7052 64373 Pusher Ass.L250/275 2 Colonne for HRT P6911 19680 Ball 3 17 for HRT S3005
65204 Handle Spring Trolley for HRT M7090 65228 Presser B114 / TRB Chrome for HRT P6911CR 19681 Sphere 4 for HRT S3010
64122 Spring Support for HRT M7099 65229 Prisoner M12x90 Galvanized for HRT P7448 17465 Ball 4.76 for HRT S3015
65202 Spring 10x50 SP.0.5 for Lever for HRT M7186 65230 Protection Parpollice for HRT P7858 65243 Slide Move Paral.Externo for HRT S3831
65203 Conical Spring ØI39xØI26x42 Wire Ø2.5
for HRT M7187 24030 HLC Sharpener Operating Handle for HRT P8625 65244 Sled Ass. for HRT S3898
17386 Rubber Shock Absorber for HRT P1001 19657 Washer 4 for HRT R6003 65245 Spherical Joint Rad.GE10E 10x19x9
for HRT S4504
36760 Pin Tray Shock-Absorber for HRT P1025 19661 Washer 8 for HRT R6030 65658 Heritage Flywheel Shoulder for HRT S5227
19797 Nylon Shock 8.5x8 for HRT P1042 17454 Washer for HRT R6204 64379 Spina Pivot Blocco Lame MT55 Inox
for HRT S7417
36762 Rubber Plug for HRT P1053 64374 Rondella Tazza 16.3x31.5x0.8 for HRT R6225 36921 Stainless Steel 4x7 Pin M.C for HRT S7527
65206 Parafet for HRT P1190 64375 Rondella Ondulata 10.5x15.8x0.15 for
HRT R6282 64380 Spina Mecc.Elast. U6873 6x40 for HRT S7548
65207 Paragrasso for HRT P1376 65231 Wavy Washer 12.5x25x0.3 for HRT R6290 64381 Spina 5x10 Inox Supp.Afla. for HRT S7646
65208 External Paralam for HRT P1721 64376 Washer U6593 5 (5,5x15x1,2) Inox
for HRT R650715 64382 Spina Centraggio Plate S9M-1 for HRT S7672
16959 Pin Grinding for HRT P3225 36882 Washer U6592 5 Stainless Steel for HRT R6508X 64383 Stainless Steel Pin 6x10 Zig. for HRT S7678
17419 Pin Truing for HRT P322601 17457 Washer U6592 6 Stainless Steel for HRT R6512X 65247 Plug x.External Panel S9M-1 for HRT S7681
65209 Spindle Lever Flat Advance for HRT P3237 36884 Washer U6592 8 Stainless Steel for HRT R6520X 65248 Central Plug Sharpening for HRT S7686
17427 Assy Grinding Stone Pin for HRT P3381 36885 Washer U6592 10 Stainless Steel for
HRT R6530X 65249 Conical Plug Ø6x70 for HRT S7687
65211 Transmission Pin Couple Con for HRT P3743 65241 Flat Washer U6953 10x30x2.5 Inox
for HRT R653215 65659 Supp. Plate Port. Cream for HRT S9516C
65212 Sharpening Pin for HRT P3744 64377 Washer U6592 12 for HRT R6540 65660 Supp. Plate Port. Black for HRT S9516N
65213 Spindle Scroll.Select for HRT P3747 64378 Stainless Steel Washer U6593
6.6x18x1.6 for HRT R680415 65661 Supp. Plate Port. Red for HRT S9516R

19
Parts Breakdown
Model MS-IT-0319-M 44007
Item No. Description Position Item No. Description Position Item No. Description Position
65662 Supp. Plate Port. Custom for HRT S9516X 64390 Vite STEI U5929 M6x25 Inox for HRT V607115 64400 Stainless Steel Screw TSPEI U5933
M6x15 for HRT V704715
65663 Arm Support 2 Columns for HRT S9517 19694 Screw M8x10 for HRT V6075 65277 Screw TSPEI U5933 M10x25 Inox
for HRT V705915
65255 Flat Support Pos. for HRT S9521 64391 Screw M10x25 U5923 for HRT V6084 65278 Screw TSP U6109 M8x16 Inox for HRT V707815
65256 Supp. Crem. Adv. for HRT S9526 65263 Screw STEI U5923 M8x10 for HRT V6089 19713 Screw Sharpener for HRT V7710
19877 Rubber Cap for HRT T1001 37034 Stainless Steel Screw M8x4 U5931
for HRT V620615 17503 Screw M5x13 for HRT V7908
65257 Heyco DP-625 Plug Diam.16 for HRT T1034 64392 Screw TCEI U5931 M5x12 Inox for HRT V624315 19715 Screw Sharpener for HRT V7910
65258 Plate Autoad. 0-11 Advance. Plate for
HRT T1783 77598 Stainless Steel Screw TCEI U5931 M6x20 for HRT V6245X 19717 Screw M6x50 for HRT V7917
64384 Targhetta Royal Machines Mezzaluna
for HRT T1785 64393 Vite TCEI U5931 M6x30 Inox for HRT V625015 19720 Screw M6 for HRT V7934
64385 Targhetta Royal Machines Ø58 for HRT T1786 64394 Screw TCEI U5931 M8x35 for HRT V6255 64401 Screw M6x10 for HRT V7944
65259 Flat Flywheel Plate Ø126.5 for HRT T1787 64395 Vite TBTC U6954 4,8x19 for HRT V6302 37095 Screw for Rod 6x13 for HRT V7993A
65260 Rounded Flywheel Plate Ø57.5 for HRT T1788 64396 Screw TBTC Aut.U6954 2.2x9.5 for HRT V6312 65664 Screw M8x35 Inox for HRT V8019
65261 Plate Vol.Sagomata 2Col for HRT T1792 37055 Stainless Steel Screw M5x8 U5931
for HRT V634015 37103 Screw M5x15 for HRT V8038
64386 Screw STTC U6113 M5x12 for HRT V6002 65264 Screw TCEI U5931 M12x100 for HRT V6348 37104 Threaded Stud for HRT V8042
37016 Screw STTC U6113 M4x25 for HRT V6008 65265 Screw TCEI U5931 M4x10 for HRT V6355 37106 Stainless Steel Switch Screw M5x10
for HRT V8048
26127 Stud C Model for HRT V602115 37060 Stainless Steel Screw TE U5737 M5x12
for HRT V6403X 37112 Stainless Steel Screw M8x4 for HRT V8085
64387 Stainless Steel Screw M8x30 U5923
for HRT V602215 37062 Screw TE U5739 M10x25 Stainless Steel for HRT V6413X 37114 Stainless Steel Screw M6x25 for HRT V8130
37021 Screw for HRT V6030 65276 Screw for Ends S9M-1 for HRT V642216 65267 Flywheel Cream for HRT V8510C
64388 Screw STEI U5923 M6x16 for HRT V6031 37070 Screw TE U5739 M6x20 Stainless Steel
for HRT V6449X 65268 Flywheel Black for HRT V8510N
64389 Screw STEI U5929 M4x5 for HRT V6062 37073 Screw TE U5739 M8x25 Stainless Steel
for HRT V6461X 65269 Flywheel Red for HRT V8510R
65262 Screw STEI U5929 M5x14 for HRT V6063 64397 Stainless Steel Screw TSP U6109 M4x12
for HRT V700815 65270 Flywheel Custom for HRT V8510X
65275 Screw STEI U5929 M5x14 Inox for HRT V606315 17497 Screw TSP U6109 M5x15 Stainless Steel
for HRT V7014X 65271 Flower Flywheel Cream for HRT V8512C
37023 Screw STEI U5929 M5x5 for HRT V6065 64398 Screw TSP DIN 963 M6x16 Stainless
for HRT V7016X 65272 Flower Flywheel Black for HRT V8512N
19691 Grub Screw M6x6 for HRT V6066 64399 Screw TSP U6109 M6x20 Inox for HRT V701715 65273 Flower Flywheel Red for HRT V8512R
19692 Screw M6x8 for HRT V6067 37079 Screw TSP U6190 M6x30 Stainless Steel
for HRT V7018X 65274 Flower Flywheel Custom for HRT V8512X
19693 Screw M6x5 for HRT V6068 74418 Vite TSP U6109 M4x8 Inox for HRT V703415

20
Notes
________________________________________________________________________________________
________________________________________________________________________________________
________________________________________________________________________________________
________________________________________________________________________________________
________________________________________________________________________________________
________________________________________________________________________________________
________________________________________________________________________________________
________________________________________________________________________________________
________________________________________________________________________________________
________________________________________________________________________________________
________________________________________________________________________________________
________________________________________________________________________________________
________________________________________________________________________________________
________________________________________________________________________________________
________________________________________________________________________________________
________________________________________________________________________________________
________________________________________________________________________________________
________________________________________________________________________________________
________________________________________________________________________________________
________________________________________________________________________________________
________________________________________________________________________________________
________________________________________________________________________________________
________________________________________________________________________________________
________________________________________________________________________________________
