Pasta Sheeter
Model PM-CN-0179
Item 13229
Instruction Manual

2
Page
--------------------------------------------------------------------------- 3 - 4
--------------------------------------------------------------------------- 4 - 5
-------------------------------------------------------------------------- 5
--------------------------------------------------------------------------------------------- 6
----------------------------------------------------------------------------------------- 6
------------------------------------------------------------------------------- 7 - 8
-------------------------------------------------------------------------------------------- 9 - 10
---------------------------------------------------------------------------- 11
Table of Contents
Section
General Information
Safety and Warranty
Technical Specications
Operation
Maintenance
Parts Breakdown
Notes
Warranty Registration
Model PM-CN-0179

3
General Information
Omcan Manufacturing and Distributing Company Inc., Food Machinery of America, Inc. dba Omcan
and Omcan Inc. are not responsible for any harm or injury caused due to any person’s improper or
negligent use of this equipment. The product shall only be operated by someone over the age of 18, of
sound mind, and not under the inuence of any drugs or alcohol, who has been trained in the correct
operation of this machine, and is wearing authorized, proper safety clothing. Any modication to the
machine voids any warranty, and may cause harm to individuals using the machine or in the vicinity of
the machine while in operation.
CHECK PACKAGE UPON ARRIVAL
Upon receipt of an Omcan shipment please inspect for external damage. If no damage is evident on the
external packaging, open carton to ensure all ordered items are within the box, and there is no concealed
damage to the machine. If the package has suffered rough handling, bumps or damage (visible or concealed),
please note it on the bill of lading before accepting the delivery and contact Omcan within 24 hours, so we may
initiate a claim with the carrier. A detailed report on the extent of the damage caused to the machine must be
lled out within three days, from the delivery date shown in the shipping documents. Omcan has no recourse
for damaged products that were shipped collect or third party.
Before operating any equipment, always read and familiarize yourself with all operation and safety
instructions.
Omcan would like to thank you for purchasing this machine. It’s of the utmost importance to save
these instructions for future reference. Also save the original box and packaging for shipping the
equipment if servicing or returning of the machine is required.
---------------------------------------------------------------------------------------------------------------------------------------------------
Omcan Fabrication et distribution Companie Limité et Food Machinery d’Amerique, dba Omcan et
Omcan Inc. ne sont pas responsables de tout dommage ou blessure causé du fait que toute personne
ait utilisé cet équipement de façon irrégulière. Le produit ne doit être exploité que par quelqu’un de
plus de 18 ans, saine d’esprit, et pas sous l’inuence d’une drogue ou d’acohol, qui a été formé pour
utiliser cette machine correctement, et est vêtu de vêtements de sécurité approprié. Toute modication
de la machine annule toute garantie, et peut causer un préjudice à des personnes utilisant la machine
ou des personnes à proximité de la machine pendant son fonctionnement.
VÉRIFIEZ LE COLIS DÈS RÉCEPTION
Dès réception d’une expédition d’Omcan veuillez inspecter pour dommages externes. Si aucun dommage
n’est visible sur l’emballage externe, ouvrez le carton an de s’assurer que tous les éléments commandés
sont dans la boîte, et il n’y a aucun dommage dissimulé à la machine. Si le colis n’a subi aucune mauvaises
manipulations, de bosses ou de dommages (visible ou cachée), notez-le sur le bond de livraison avant
d’accepter la livraison et contactez Omcan dans les 24 heures qui suivent, pour que nous puissions engager
une réclamation auprès du transporteur. Un rapport détaillé sur l’étendue des dommages causés à la machine
doit être rempli dans un délai de trois jours, à compter de la date de livraison indiquée dans les documents
d’expédition. Omcan n’a aucun droit de recours pour les produits endommagés qui ont été expédiées ou cueilli
par un tiers transporteur.

4
Avant d’utiliser n’importe quel équipement, toujours lire et vous familiariser avec toutes les opérations
et les consignes de sécurité.
Omcan voudrais vous remercier d’avoir choisi cette machine. Il est primordial de conserver ces
instructions pour une référence ultérieure. Également conservez la boîte originale et l’emballage pour
l’expédition de l’équipement si l’entretien ou le retour de la machine est nécessaire.
---------------------------------------------------------------------------------------------------------------------------------------------------
Omcan Empresa De Fabricacion Y Distribucion Inc. Y Maquinaria De Alimentos De America, Inc. dba
Omcan y Omcan Inc. no son responsables de ningun daño o perjuicío causado por cualquier persona
inadecuada o el uso descuidado de este equipo. El producto solo podra ser operado por una persona
mayor de 18 años, en su sano juicio y no bajo alguna inuencia de droga o alcohol, y que este ha sido
entrenado en el correcto funcionamiento de esta máquina, y ésta usando ropa apropiada y autorizada.
Cualquier modicación a la máquina anúla la garantía y puede causar daños a las personas usando la
máquina mientras esta en el funcionamiento.
REVISE EL PAQUETE A SU LLEGADA
Tras la recepcion de un envio Omcan favor inspeccionar daños externos. Si no hay daños evidentes en el
empaque exterior, Habra el carton para asegurararse que todos los articulos solicitados ésten dentro de la
caja y no encuentre daños ocultos en la máquina. Si el paquete ha sufrido un manejo de poco cuidado, golpes
o daños (visible o oculto) por favor anote en la factura antes de aceptar la entrega y contacte Omcan dentro
de las 24 horas, de modo que podamos iniciar una reclamación con la compañia. Un informe detallado sobre
los daños causados a la máquina debe ser llenado en el plazo de tres días, desde la fecha de entrega que se
muestra en los documentos de envío. Omcan no tiene ningun recurso por productos dañados que se enviaron
a recoger por terceros.
Antes de utilizar cualquier equipo, siempre lea y familiarizarse con todas las instrucciones de
funcionamiento y seguridad.
Omcan le gustaría darle las gracias por la compra de esta máquina. Es de la mayor importancia para
salvar estas instrucciones para futuras consultas. Además, guarda la caja original y el embalaje para el
envío del equipo si servicio técnico o devolución de la máquina que se requiere.
THIS MANUAL IS AN INTEGRAL PART OF THE MACHINE
This machine is not a toy. When in use it must be kept out of the reach of children. Do not use this machine
while wearing garments or aprons with aps which may catch in the moving parts of the pasta machine or the
cutting blades. Other than hygienic reasons, ensure that hair is tied back for the reason previously stated (it is
advisable to use a protective cap) and remove any items which may cause danger (necklaces, bracelets, etc.).
Do not use the machine if it is not working correctly or has been damaged. When making any inquiries or when
General Information
Safety and Warranty

5
Safety and Warranty
Technical Specications
contacting the authorised retailer, quote the MODEL and the SERIAL NUMBER.
6 MONTHS PARTS AND LABOUR BENCH WARRANTY
Within the warranty period, contact Omcan Inc. at 1-800-465-0234 to schedule a drop off to either
an Omcan authorized service depot in the area, or to an Omcan Service warehouse to repair the
equipment.
Unauthorized maintenance will void the warranty. Warranty covers electrical and part failures, not
improper use.
Please see www.omcan.com/warranty.html for complete info.
WARNING:
The packaging components are classied as normal solid urban waste and can therefore be disposed of
without difculty.
In any case, for suitable recycling, we suggest disposing of the products separately (differentiated
waste) according to the current norms.
DO NOT DISCARD ANY PACKAGING MATERIALS IN THE ENVIRONMENT!
Model PM-CN-0179
Roller Length 7” / 178mm
Max. Roller Opening 0.1” / 3mm
Weight 8.5 lbs. / 3.9 kgs.
Packaging Weight 8 lbs. / 3.6 kgs.
Machine Dimensions 8.3” x 9.5” x 6” / 210 x 241 x 152mm
Packaging Dimensions 10” x 8” x 7” / 254 x 203 x 178mm
Item Number 13229

6
Operation
Maintenance
USE OF THE PASTA MACHINE
BEFORE USE AND AFTER USE:
Follow the instructions described in the maintenance section.
1. Position the machine on a at stable surface which can bear the weight, t the clamp into the opening,
tighten the screw until the machine is rmly locked to the table.
2. Fit the tray to the machine body matching the openings to the catches on the tray, push gently downwards
until the tray and the machine body are rmly locked.
3. The dough must be kept at room temperature.
4. After turning the knob to its highest position place part of the prepared dough on the rollers. Press the
dough gently and insert the handle in the hole on the machine body, turn the handle clockwise (causing the
pasta rollers to turn). This will roll out the pasta, fold the pasta in half and pass it through the rolls again.
Repeat the operation until a at sheet of pasta is obtained.
5. To reduce the thickness of the pasta sheet stop the machine and turn the regulator knob to reduce the
distance between the pasta rollers. Pass the sheet repeatedly through the rollers until it is of the desired
thickness.
BEFORE USE
Clean the machine thoroughly with a dry cloth or a soft brush. AFTER FIXING THE MACHINE TO A SUITABLE
SURFACE the cleaning operation can be completed by passing a piece of pasta through the rollers and the
cutters (to remove any dust). The pasta used for this operation should then be thrown away. NEVER wash the
machine body or the accessory under running water or using detergent. NEVER wash any part of the machine
or the accessory in a dishwasher.
AFTER USE
Do not remove residues of pasta using sharp objects. NEVER wash the machine body or the accessory under
running water or using detergent. NEVER wash any part of the machine or the accessory in a dishwasher.
Check that the parts are perfectly dry before putting them away.

7

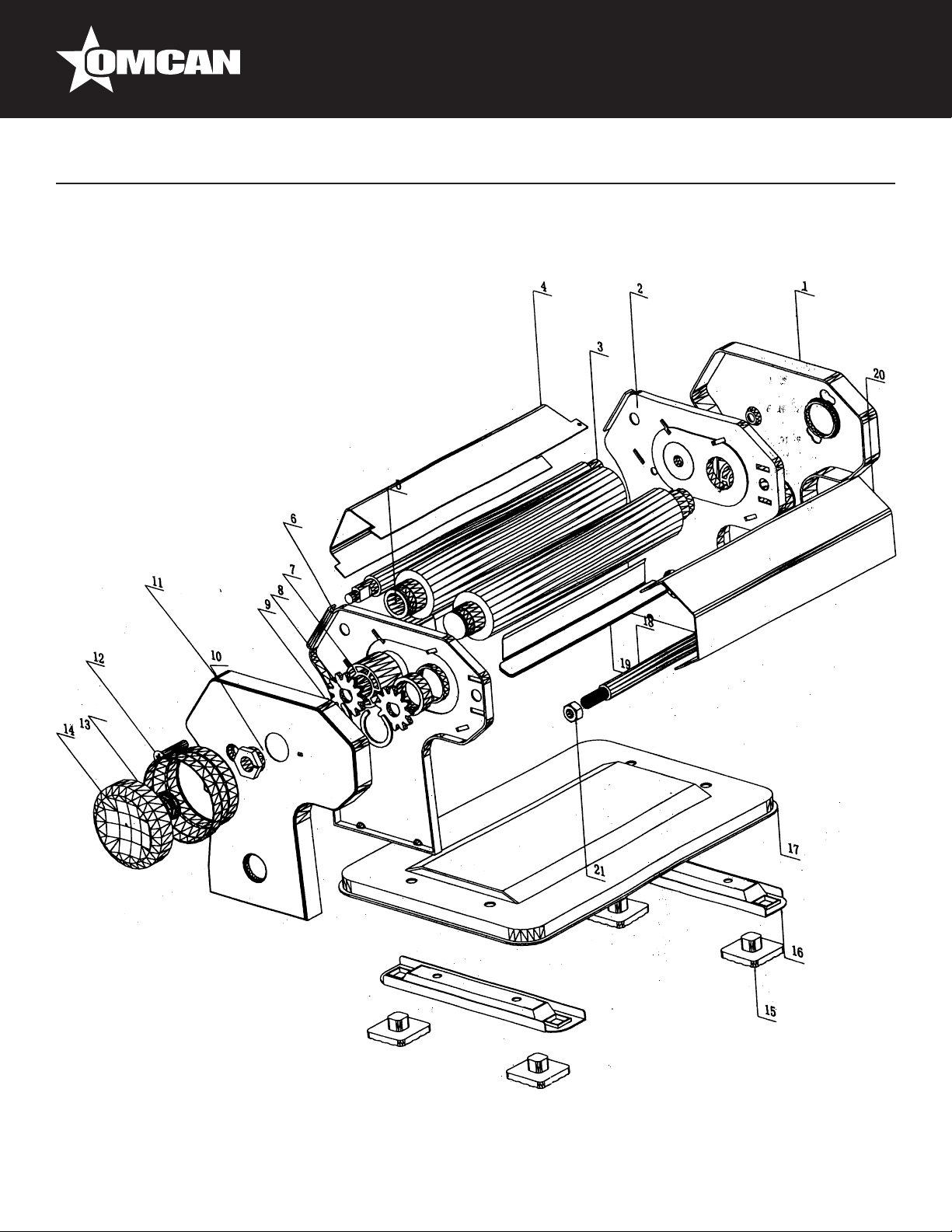

Parts Breakdown
Model PM-CN-0179 13229

8
Parts Breakdown
Model PM-CN-0179 13229
Item No. Description Position Item No. Description Position Item No. Description Position
64334 Right Cover for QF180 1 64342 Washer for QF180 9 64350 Bottom Board for QF180 17
64335 Right Bracket for QF180 2 64343 Nut for QF180 10 64351 Bolt for QF180 18
64336 Spindle for QF180 3 64344 Left Cover for QF180 11 64352 Cutter for QF180 19
64337 Back Bafe for QF180 4 64345 Bolt for QF180 12 64353 Front Bafe for QF180 20
64338 Toller for QF180 5 64346 Spring for QF180 13 64354 Nut for QF180 21
64339 Left Bracket for QF180 6 64347 Adjustable Knob for QF180 14 23742 Clamp for QF180
64340 Nylon Washer for QF180 7 64348 Rubber Foot for QF180 15
64341 Gear for QF180 8 64349 Bottom Bafe for QF180 16
