Omega OL-BLADE-AL-CH6 User manual

NOTICE: The manufacturer will accept no responsibility for any electrical damage resulting from
improper installation of this product, be that either damage to the vehicle itself or to the installed
device. This device must be installed by a certified technician. This guide has been written for
properly trained technicians; a certain level of skill & knowledge is therefore assumed. Please
reviewtheInstallation Guide carefullybefore beginning any work.
!
Omega R&D Inc.
INSTALL GUIDE
OL-BLADE-AL(DL)-CH6
AvAiLABLE fOr: OL-BLADE-AL
CH6
The brand names and logos found in this guide are property of their respective owners. Omega R&D Inc. © 2010
PLEASE VISIT www.BLADEUPDATE.COM FOR COMPLETE PRODUCT DETAILS
Rev. Date: September 02, 2010
Doc. No.: ##3849##
20100901

INSTALL TYPE SELECTION
XX-XX PAGE X-XADS-AL(DL)-CH6 PAGE 2-4
MAKE MODEL YEAR INSTALL TYPE
FEATURES
DATA IMMOBILIZER BYPASS DOWNLOADABLE SOFTWARE RS232 COMMUNICATION 2-WAY COMPATIBILITY PRIORITY UNLOCK DOOR LOCK DOOR UNLOCK ARM OEM ALARM DISARM OEM ALARM POWER LIFTGATE TRUNK/HATCH RELEASE POWER SLIDING DOOR (L) POWER SLIDING DOOR (R) DOOR STAT OUTPUT TRUNK STAT OUTPUT TACHOMETER OUTPUT DATA/MUX STARTER CTRL BRAKE PEDAL STAT OUTPUT* E-BRAKE OUTPUT
CHRYSLER
300M 99-04 1 • • • • • • • • • • • •
300M w/Alarm 99-04 3 • • • • • • • • • • • • • •
Concorde 99-04 1 • • • • • • • • • • • •
Concorde w/Alarm 99-04 3 • • • • • • • • • • • • • •
LHS 99-01 1 • • • • • • • • • • • •
LHS w/Alarm 99-01 3 • • • • • • • • • • • • • •
Neon 00-05 3 • • • • • • • • • • • • •
Pacifi ca 04-08 2 • • • • • • • • • • • • • • • •
PT Cruiser 01-05 3 • • • • • • • • • • • • • •
Sebring Sedan/Convertible 01-06 1 • • • • • • • • • • • • •
Sebring Sedan/Convertible w/Alarm 01-06 3 • • • • • • • • • • • • • • •
Town & Country 01-03 4 • • • • • • • • • • • • • • • • • •
Town & Country w/Alarm 01-03 5 • • • • • • • • • • • • • • • • • •
Town & Country 04-07 2 • • • • • • • • • • • • • • • • • •
Voyager 01-034•••••••••••••••• ••
Voyager w/Alarm 01-03 5 • • • • • • • • • • • • • • • • • •
DODGE
Caravan/Grand Caravan 01-03 4 • • • • • • • • • • • • • • • •
Caravan/Grand Caravan w/Alarm 01-03 5 • • • • • • • • • • • • • • • • • •
Caravan/Grand Caravan 04-07 2 • • • • • • • • • • • • • • • • • •
Dakota 01-04 6 • • • • • • • • • • •
Dakota w/Alarm 01-04 3 • • • • • • • • • • • • •
Durango 01-03 6 • • • • • • • • • • • •
Durango w/Alarm 01-03 3 • • • • • • • • • • • • • •
Intrepid 99-04 1 • • • • • • • • • • • •
Intrepid w/Alarm 99-04 3 • • • • • • • • • • • • • •
Ram Pickup 02-05 3 • • • • • • • • • • • • •
SRT 4 03-05 3 • • • • • • • • • • • • •
Stratus Sedan 01-06 1 • • • • • • • • • • • • •
Stratus Sedan w/Alarm 01-06 3 • • • • • • • • • • • • • • •
SX 2.0 03-05 3 • • • • • • • • • • • • •
JEEP
Grand Cherokee 99-04 1 • • • • • • • • • • • • • •
Liberty 02-04 3 • • • • • • • • • • • •
Liberty 05-07 2 • • • • • • • • • • • • • •
TJ 01-06 1 • • • • • •
Wrangler 01-06 1 • • • • • •
PLYMOUTH
Neon 00-01 3 • • • • • • • • • • • • •
Visit our website
for advanced
features.
† Extra resis-
tor and relay
required.
* Brake output
available ONLY
with ignition ON.
Page 2 of 12 OL-BLADE-AL(DL)-CH6 20100901
INSTALL GUIDE
WWW.BLADEUPDATE.COM Omega Research & Development Inc. © 2010
ALL IN ONE
Chrysler/DoDge/Jeep
Doc. No.: ##3849##

XX-XX PAGE X-X
NOTICE
XX-XX PAGE X-XVEHICLE OWNER NOTICEDETECT OEM ALARM
DETECT OEM ALARM EQUIPPED VEHICLES
1Close hood and trunk/hatch.
Enter vehicle.
Close all doors.
1Open driver’s door window.
Close hood and trunk/hatch.
Close all doors.
3Open driver’s door.
Alarm goes on,
OEM alarm equipped vehicle.
3Open driver’s door using handle
located inside vehicle.
Alarm goes on,
OEM alarm equipped vehicle.
2LOCK driver’s door twice using
OEM key.
Wait 60 seconds.
x2
2Press LOCK twice on OEM fob.
Wait 60 seconds.
x2
LOCK
WITH OEM KEYFOB WITHOUT OEM KEYFOB
Page 3 of 12 OL-BLADE-AL(DL)-CH6 20100901
INSTALL GUIDE
WWW.BLADEUPDATE.COM Omega Research & Development Inc. © 2010
ALL IN ONE
Chrysler/DoDge/Jeep
Doc. No.: ##3849##

XX-XX PAGE X-X

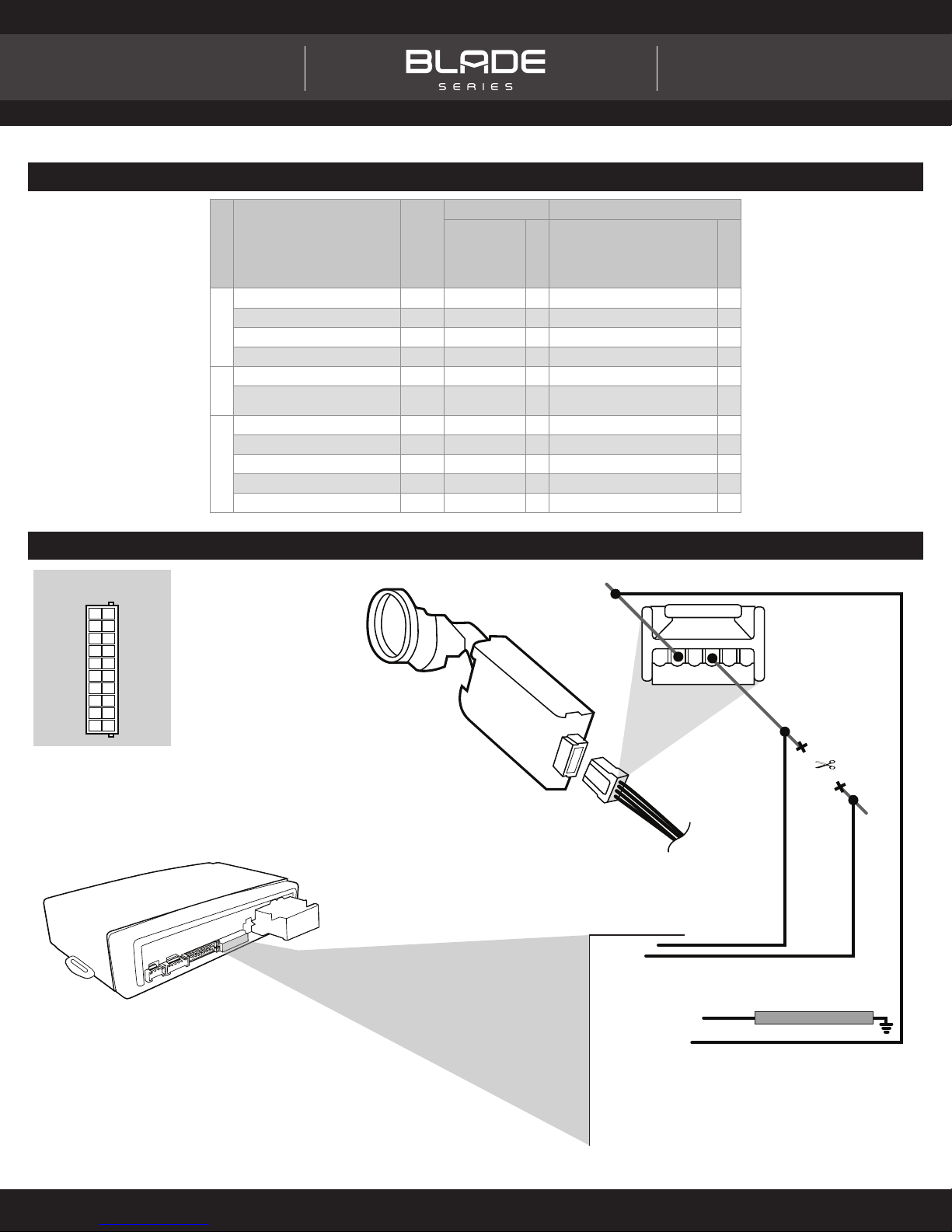

WIRE CROSS REFERENCE CHART
ADS-AL(DL)-CH6 T1 PAGE X-X
TYPE 1 - WIRE CROSS REFERENCE CHART
MAKE MODEL YEAR
IGNITION J1850
WIRE COLOR POSITION WIRE COLOR POSITION
CHRYSLER
300M299-04 Blue/White 4 Violet/Yellow 2
Concorde299-04 Blue/White 4 Violet/Yellow 2
LHS299-01 Blue/White 4 Violet/Yellow 2
Sebring Sedan/Convertible201-06 Blue/White 4 Violet/Pink 2
DODGE
Intrepid299-04 Blue/White 4 Violet/Yellow 2
Stratus Sedan201-06 Blue/White 4 Violet/Pink 2
JEEP
Grand Cherokee1&2 99-04 Blue/White 3 Yellow/Violet or Yellow/Black 5
TJ1&2 01-04 Blue 4 Violet/Yellow 2
TJ1&2 05-06 Pink/White 4 White/Violet 2
Wrangler1&2 01-04 Blue 4 Violet/Yellow 2
Wrangler1&2 05-06 Pink/White 4 White/Violet 2
1 With OEM Alarm
2 Without OEM Alarm
TYPE 1 - WIRING DIAGRAM
MOVE THE FOLLOWING ITEMS IN YOUR
SCHEMATIC WITH ALL LAYERS ON
USE THE FOLLOWING LAYER SPECIFIC ITEMS AS
WIRING AND TEXT TEMPLATES
123456
IGNITION
J1850
SKIM
IMMOBILIZER MODULE
BLACK (NC)
BLUE/RED (NC)
BLUE/YELLOW (NC)
GREEN/RED (NC)
GRAY/RED (NC)
GRAY/YELLOW (NC)
ORANGE - DATA (J1850)
ORANGE/WHITE (NC)
ORANGE/BLACK - GROUND
BROWN/YELLOW (NC)
BROWN/RED (NC)
YELLOW (NC)
PINK/BLACK (NC)
PINK (NC)
WHITE/BLACK
WHITE/RED
WHITE (NC)
WITH O.E.M. ALARM ONLY
REMOTE STARTER
BLADE CONNECTOR*
01
02
03
04
05
06
07
08
09
10
11
12
13
14
15
16
17
18
19
20
GRAY/RED GRAY/YELLOW
BLUE/YELLOW
YELLOWGREEN/RED
BLUE/RED
NO WIREORANGE
ORANGE/WHITEORANGE/BLACK
BROWN/YELLOWBROWN/RED
BLACKNO WIRE
PINKPINK/BLACK
NO WIREWHITE
WHITE/BLACKWHITE/RED
*BLADE CONNECTOR
EXACT PIN-OUT
Page 4 of 12 OL-BLADE-AL(DL)-CH6 20100901
INSTALL GUIDE
WWW.BLADEUPDATE.COM Omega Research & Development Inc. © 2010
ALL IN ONE
Chrysler/DoDge/Jeep
Doc. No.: ##3849##

TYPE 2 - WIRING DIAGRAM
XX-XX PAGE X-X
WIRE CROSS REFERENCE CHART
ADS-AL(DL)-CH6 T2 PAGE X-X
TYPE 2 - WIRE CROSS REFERENCE CHART
MAKE MODEL YEAR
IGNITION J1850
WIRE COLOR WIRE COLOR
CHRYSLER
Pacifi ca 04-08 Pink/Gray White/Violet
Town & Country 04-07 Pink/White White/Violet
DODGE
Caravan/Grand Caravan 04-07 Pink/White White/Violet
JEEP
Liberty 05-07 Pink/LtGreen White/Violet
MOVE THE FOLLOWING ITEMS IN YOUR
SCHEMATIC WITH ALL LAYERS ON
USE THE FOLLOWING LAYER SPECIFIC ITEMS AS
WIRING AND TEXT TEMPLATES
123456
IGNITION
J1850
SKIM
IMMOBILIZER MODULE
BLACK (NC)
BLUE/RED (NC)
BLUE/YELLOW (NC)
GREEN/RED (NC)
GRAY/RED (NC)
GRAY/YELLOW (NC)
ORANGE - DATA (J1850)
ORANGE/WHITE (NC)
ORANGE/BLACK - GROUND
BROWN/YELLOW (NC)
BROWN/RED (NC)
YELLOW (NC)
PINK/BLACK (NC)
PINK (NC)
WHITE/BLACK
WHITE/RED
WHITE (NC)
WITH OEM ALARM ONLY
REMOTE STARTER
BLADE CONNECTOR*
01
02
03
04
05
06
07
08
09
10
11
12
13
14
15
16
17
18
19
20
GRAY/RED GRAY/YELLOW
BLUE/YELLOW
YELLOWGREEN/RED
BLUE/RED
NO WIREORANGE
ORANGE/WHITEORANGE/BLACK
BROWN/YELLOWBROWN/RED
BLACKNO WIRE
PINKPINK/BLACK
NO WIREWHITE
WHITE/BLACKWHITE/RED
*BLADE CONNECTOR
EXACT PIN-OUT
Page 5 of 12 OL-BLADE-AL(DL)-CH6 20100901
INSTALL GUIDE
WWW.BLADEUPDATE.COM Omega Research & Development Inc. © 2010
ALL IN ONE
Chrysler/DoDge/Jeep
Doc. No.: ##3849##

XX-XX PAGE X-X
TYPE 3 - COMPONENT LOCATOR
ADS-AL(DL)-CH3 T3 PAGE X-X
C2
GREY COVERBLACK COVER
WHITE COVER
BCM
C1
C2
C3
C4
BCM: 300M, CONCORDE, INTREPID
BCM: LIBERTY
XX-XX PAGE X-XADS-AL(DL)-CH6 T3 PAGE X-X
TYPE 3 - WIRE CROSS REFERENCE CHART
MAKE MODEL YEAR
ANALOG DOORLOCK IGNITION J1850
WIRE COLOR LOCATION WIRE COLOR WIRE COLOR
CHRYSLER
300M199-04 LtGreen/Orange At BCM, C4 Connector, Pin #13 (See BCM image) Blue/White Violet/Yellow
Concorde199-04 LtGreen/Orange At BCM, C4 Connector, Pin #13 (See BCM image) Blue/White Violet/Yellow
LHS199-01 LtGreen/Orange At BCM, C4 Connector, Pin #13 (See BCM image) Blue/White Violet/Yellow
Neon1&2 00-05 LtGreen Harness coming from driver door Blue/White Violet/Yellow
PT Cruiser101-05 White/DkGreen Harness coming from driver door Blue/Black Violet/Yellow
Sebring Convertible101-06 LtGreen/Orange At BCM, C4 Connector, Pin #4 or Harness from driver door Blue/White Violet/Pink
Sebring Sedan101-06 LtGreen/Orange At BCM, C4 Connector, Pin #4 or Harness from driver door Blue/White Violet/Pink
DODGE
Dakota101-04 LtGreen/Orange Driver Kick Panel LtGreen/Black Violet/Yellow
Durango101-03 LtGreen/Orange Driver Kick Panel LtGreen/Black Violet/Yellow
Intrepid199-04 LtGreen/Orange At BCM, C4 Connector, Pin #13 (See BCM image) Blue/White Violet/Yellow
Ram Pickup202-03 White/LtGreen Driver Kick Panel LtGreen/Black Violet/White
Ram Pickup102-03 LtGreen/Orange Driver Kick Panel LtGreen/Black Violet/White
Ram Pickup204-05 Purple/DkGreen Driver Kick Panel Pink/Gray White/Violet
Ram Pickup104-05 Purple/LtBlue Driver Kick Panel Pink/Gray White/Violet
SRT 41&2 03-05 LtGreen Harness coming from driver door Blue/White Violet/Yellow
Stratus Sedan101-06 LtGreen/Orange At BCM, C4 Connector, Pin #4 or Harness from driver door Blue/White Violet/Pink
SX 2.01&2 03-05 LtGreen Harness coming from driver door Blue/White Violet/Yellow
JEEP
Liberty1&2 02-04 Pink/Violet At BCM, C2 Connector, Pin #20 (See BCM image) Blue Yellow/Violet
or Violet/Black
PLYMOUTH
Neon1&2 00-01 LtGreen Harness coming from driver door Blue/White Violet/Yellow
1 With OEM Alarm
2 Without OEM Alarm
Page 6 of 12 OL-BLADE-AL(DL)-CH6 20100901
INSTALL GUIDE
WWW.BLADEUPDATE.COM Omega Research & Development Inc. © 2010
ALL IN ONE
Chrysler/DoDge/Jeep
Doc. No.: ##3849##

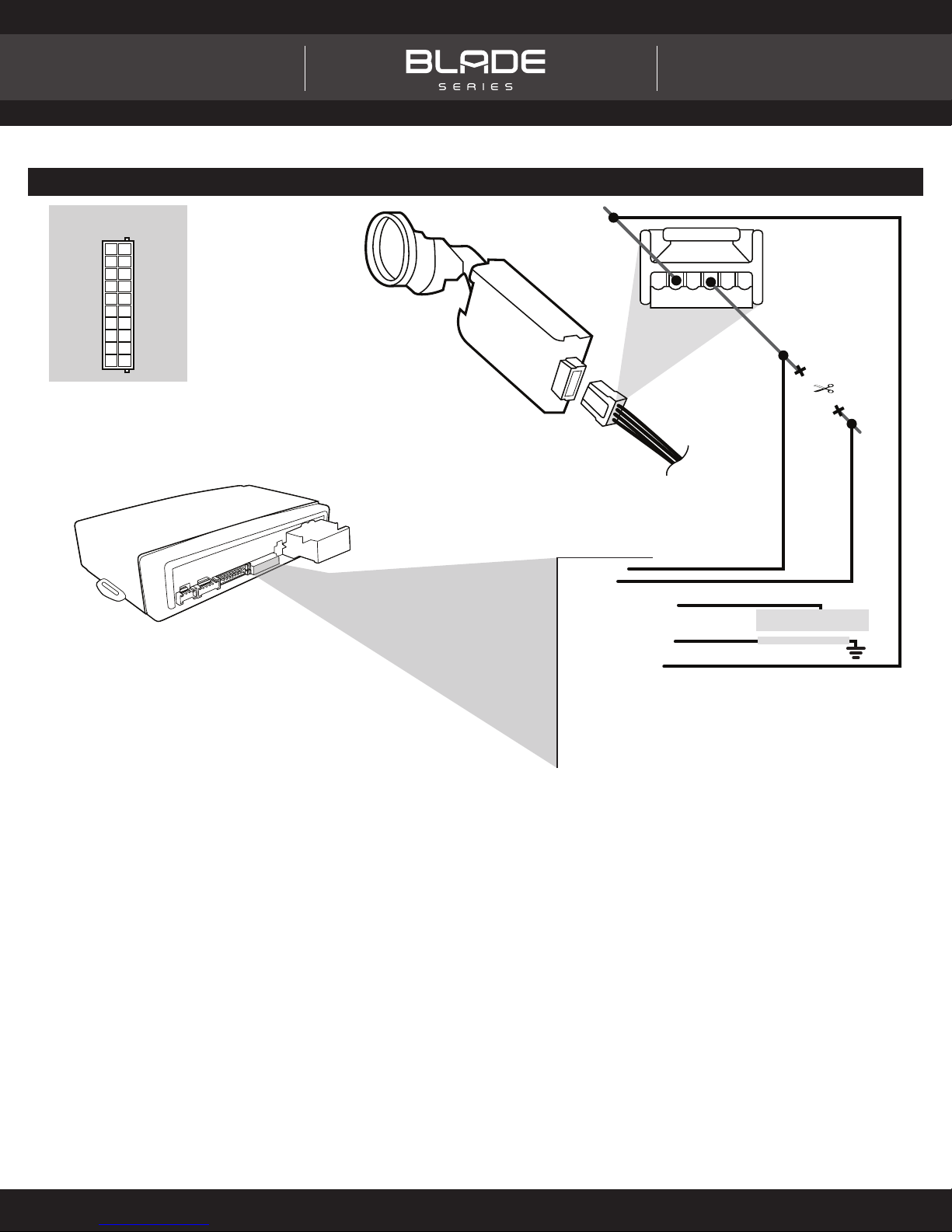

TYPE 3 - WIRING DIAGRAM
MOVE THE FOLLOWING ITEMS IN YOUR
SCHEMATIC WITH ALL LAYERS ON
USE THE FOLLOWING LAYER SPECIFIC ITEMS AS
WIRING AND TEXT TEMPLATES
123456
REFER TO WIRING
CROSS-REFERENCE CHART
WITH OEM ALARM ONLY
IGNITION
J1850
SKIM
IMMOBILIZER MODULE
BLACK (NC)
BLUE/RED (NC)
BLUE/YELLOW (NC)
GREEN/RED (NC)
GRAY/RED (NC)
GRAY/YELLOW (NC)
ORANGE - DATA (J1850)
ORANGE/WHITE (NC)
ORANGE/BLACK - GROUND
BROWN/YELLOW (NC)
BROWN/RED (NC)
YELLOW - ANALOG OUTPUT
PINK/BLACK (NC)
PINK (NC)
WHITE/BLACK
WHITE/RED
WHITE (NC)
REMOTE STARTER
BLADE CONNECTOR*
01
02
03
04
05
06
07
08
09
10
11
12
13
14
15
16
17
18
19
20
GRAY/RED GRAY/YELLOW
BLUE/YELLOW
YELLOWGREEN/RED
BLUE/RED
NO WIREORANGE
ORANGE/WHITEORANGE/BLACK
BROWN/YELLOWBROWN/RED
BLACKNO WIRE
PINKPINK/BLACK
NO WIREWHITE
WHITE/BLACKWHITE/RED
*BLADE CONNECTOR
EXACT PIN-OUT
Page 7 of 12 OL-BLADE-AL(DL)-CH6 20100901
INSTALL GUIDE
WWW.BLADEUPDATE.COM Omega Research & Development Inc. © 2010
ALL IN ONE
Chrysler/DoDge/Jeep
Doc. No.: ##3849##

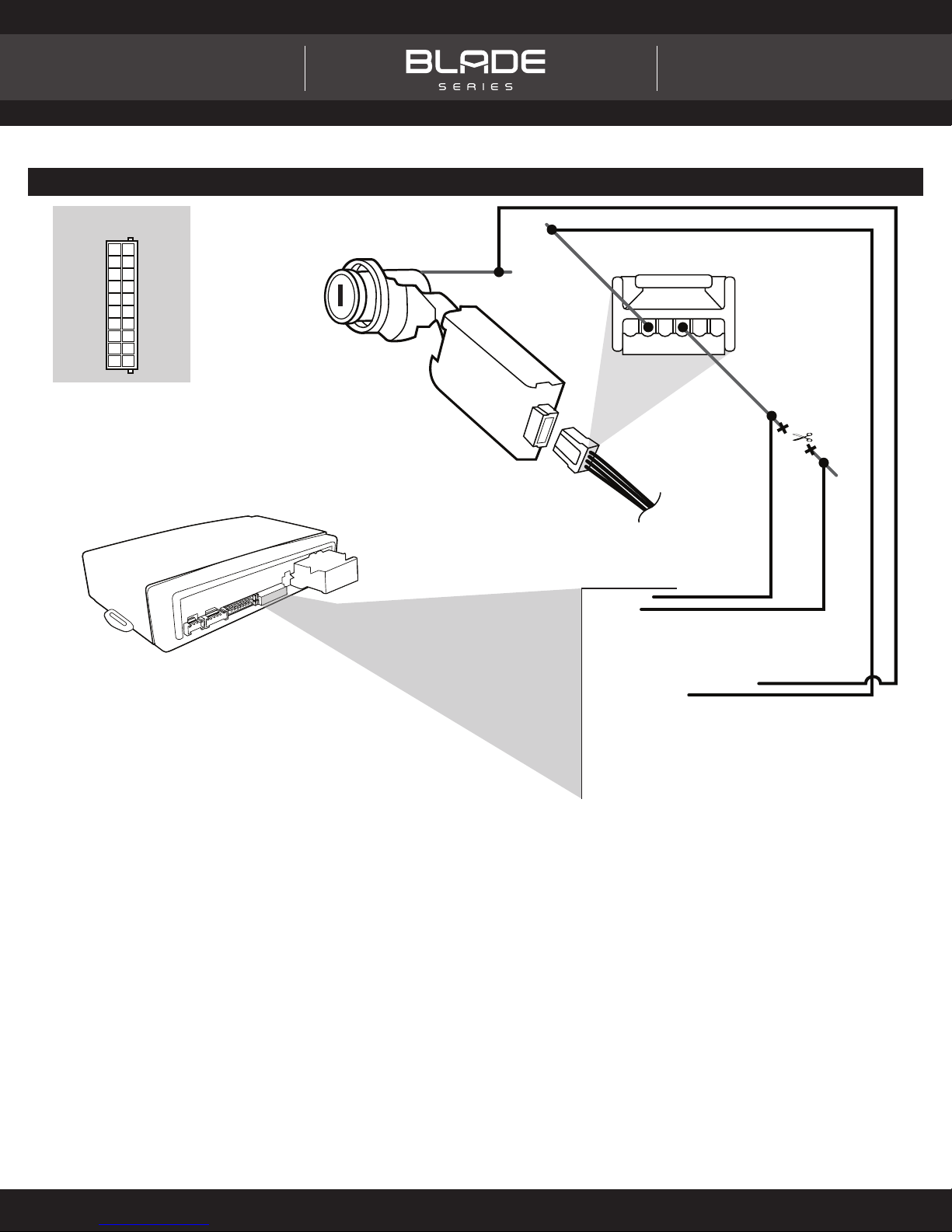

TYPE 4 - WIRING DIAGRAM
MOVE THE FOLLOWING ITEMS IN YOUR
SCHEMATIC WITH ALL LAYERS ON
USE THE FOLLOWING LAYER SPECIFIC ITEMS AS
WIRING AND TEXT TEMPLATES
123456
IGNITION
PINK/WHITE
WHITE/VIOLET
J1850
SKIM
IMMOBILIZER MODULE
YELLOW (STARTER +)
VIOLET/BROWN (SWITCH MUX*)
GROUND WHEN RUNNING OR STATUS OUTPUT
RESISTOR
BETWEEN 180-210 0HMS
85
30
87
87A
86 KEY
BLACK (NC)
BLUE/RED (NC)
BLUE/YELLOW (NC)
GREEN/RED (NC)
GRAY/RED (NC)
GRAY/YELLOW (NC)
ORANGE - DATA (J1850)
ORANGE/WHITE (NC)
ORANGE/BLACK (NC)
BROWN/YELLOW (NC)
BROWN/RED (NC)
YELLOW - ANALOG OUTPUT
PINK/BLACK (NC)
PINK - IGNITION (NC)
WHITE/BLACK
WHITE/RED
WHITE (NC)
PINK/WHITE (IGNITION +)
REMOTE STARTER
BLADE CONNECTOR*
01
02
03
04
05
06
07
08
09
10
11
12
13
14
15
16
17
18
19
20
GRAY/RED GRAY/YELLOW
BLUE/YELLOW
YELLOWGREEN/RED
BLUE/RED
NO WIREORANGE
ORANGE/WHITEORANGE/BLACK
BROWN/YELLOWBROWN/RED
BLACKNO WIRE
PINKPINK/BLACK
NO WIREWHITE
WHITE/BLACKWHITE/RED
*BLADE CONNECTOR
EXACT PIN-OUT
1N4001
DIODE
*USE ISOLATED GROUND WHEN
RUNNING (-) STATUS OUTPUT FROM
REMOTE STARTER TO POWER
RELAY
BCM LOCATED UNDER
DRIVER SIDE DASH
AGAINST FIREWALL
WARNING:
MULTIPLE WIRES WITH THE SAME COLOR.
TEST WIRES AND VERIFY PINOUT POSITION.
10 11 12 13 14 15 16 17
18 19 20 21 22 23 24 25
26 27 28 29 30 31 32 33 34
123456789
21
PURPLE/GREEN
C3 - CONNECTOR
C5C4C3C2C1
Page 8 of 12 OL-BLADE-AL(DL)-CH6 20100901
INSTALL GUIDE
WWW.BLADEUPDATE.COM Omega Research & Development Inc. © 2010
ALL IN ONE
Chrysler/DoDge/Jeep
Doc. No.: ##3849##

TYPE 5 - WIRING DIAGRAM
MOVE THE FOLLOWING ITEMS IN YOUR
SCHEMATIC WITH ALL LAYERS ON
USE THE FOLLOWING LAYER SPECIFIC ITEMS AS
WIRING AND TEXT TEMPLATES
123456
IGNITION
PINK/WHITE
WHITE/VIOLET
J1850
SKIM
IMMOBILIZER MODULE
YELLOW (STARTER +)
VIOLET/BROWN (SWITCH MUX*)
GROUND WHEN RUNNING OR STATUS OUTPUT
RESISTOR
BETWEEN 180-210 0HMS
85
30
87
87A
86 KEY
BLACK (NC)
BLUE/RED (NC)
BLUE/YELLOW (NC)
GREEN/RED (NC)
GRAY/RED (NC)
GRAY/YELLOW (NC)
ORANGE - DATA (J1850)
ORANGE/WHITE (NC)
ORANGE/BLACK - GROUND
BROWN/YELLOW (NC)
BROWN/RED (NC)
YELLOW - ANALOG OUTPUT
PINK/BLACK (NC)
PINK (NC)
WHITE/BLACK
WHITE/RED
WHITE (NC)
PINK/WHITE (IGNITION +)
REMOTE STARTER
BLADE CONNECTOR*
01
02
03
04
05
06
07
08
09
10
11
12
13
14
15
16
17
18
19
20
GRAY/RED GRAY/YELLOW
BLUE/YELLOW
YELLOWGREEN/RED
BLUE/RED
NO WIREORANGE
ORANGE/WHITEORANGE/BLACK
BROWN/YELLOWBROWN/RED
BLACKNO WIRE
PINKPINK/BLACK
NO WIREWHITE
WHITE/BLACKWHITE/RED
*BLADE CONNECTOR
EXACT PIN-OUT
1N4001
DIODE
*USE ISOLATED GROUND WHEN
RUNNING (-) STATUS OUTPUT FROM
REMOTE STARTER TO POWER
RELAY
BCM LOCATED UNDER
DRIVER SIDE DASH
AGAINST FIREWALL
WARNING:
MULTIPLE WIRES WITH THE SAME COLOR.
TEST WIRES AND VERIFY PINOUT POSITION.
10 11 12 13 14 15 16 17
18 19 20 21 22 23 24 25
26 27 28 29 30 31 32 33 34
123456789
14
PURPLE/LT.BLUE
C3 - CONNECTOR
C5C4C3C2C1
Page 9 of 12 OL-BLADE-AL(DL)-CH6 20100901
INSTALL GUIDE
WWW.BLADEUPDATE.COM Omega Research & Development Inc. © 2010
ALL IN ONE
Chrysler/DoDge/Jeep
Doc. No.: ##3849##

TYPE 6 - WIRING DIAGRAM
MOVE THE FOLLOWING ITEMS IN YOUR
SCHEMATIC WITH ALL LAYERS ON
USE THE FOLLOWING LAYER SPECIFIC ITEMS AS
WIRING AND TEXT TEMPLATES
123456
SKIM
IMMOBILIZER MODULE
KEY
IGNITION
LT.GREEN/BLACK
VIOLET/YELLOW
J1850
KEYSENSE (-)
LT.BLUE
BLACK (NC)
BLUE/RED (NC)
BLUE/YELLOW (NC)
GREEN/RED (NC)
GRAY/RED (NC)
GRAY/YELLOW (NC)
ORANGE - DATA (J1850)
ORANGE/WHITE - KEYSENSE (-) OUTPUT
ORANGE/BLACK (NC)
BROWN/YELLOW (NC)
BROWN/RED (NC)
YELLOW (NC)
PINK/BLACK (NC)
PINK (NC)
WHITE/BLACK
WHITE/RED
WHITE (NC)
REMOTE STARTER
BLADE CONNECTOR*
01
02
03
04
05
06
07
08
09
10
11
12
13
14
15
16
17
18
19
20
GRAY/RED GRAY/YELLOW
BLUE/YELLOW
YELLOWGREEN/RED
BLUE/RED
NO WIREORANGE
ORANGE/WHITEORANGE/BLACK
BROWN/YELLOWBROWN/RED
BLACKNO WIRE
PINKPINK/BLACK
NO WIREWHITE
WHITE/BLACKWHITE/RED
*BLADE CONNECTOR
EXACT PIN-OUT
Page 10 of 12 OL-BLADE-AL(DL)-CH6 20100901
INSTALL GUIDE
WWW.BLADEUPDATE.COM Omega Research & Development Inc. © 2010
ALL IN ONE
Chrysler/DoDge/Jeep
Doc. No.: ##3849##

MODULE PROGRAMMING
XX-XX PAGE X-XBLADE-AL(DL)-CH6 PAGE X-X
5Turn key to OFF position.
MODULE PROGRAMMING PROCEDURE
7Module Programming
Procedure completed.
OFF
1Insert key into ignition.
2Turn key to ON position.
ON
4Wait, it may take up to
20 seconds. LED will turn solid
BLUE then will turn OFF.
3LED will turn solid RED.
6Remove key.
CARTRIDGE INSTALLATION
2Ready for Module Programming
Procedure.
1Slide cartridge into unit. Notice
button under LED.
BLADE-AL(DL)-CH6 102
BLADE-TB-CH6 102
Page 11 of 12 OL-BLADE-AL(DL)-CH6 20100901
INSTALL GUIDE
WWW.BLADEUPDATE.COM Omega Research & Development Inc. © 2010
ALL IN ONE
Chrysler/DoDge/Jeep
Doc. No.: ##3849##

XX-XX PAGE X-X

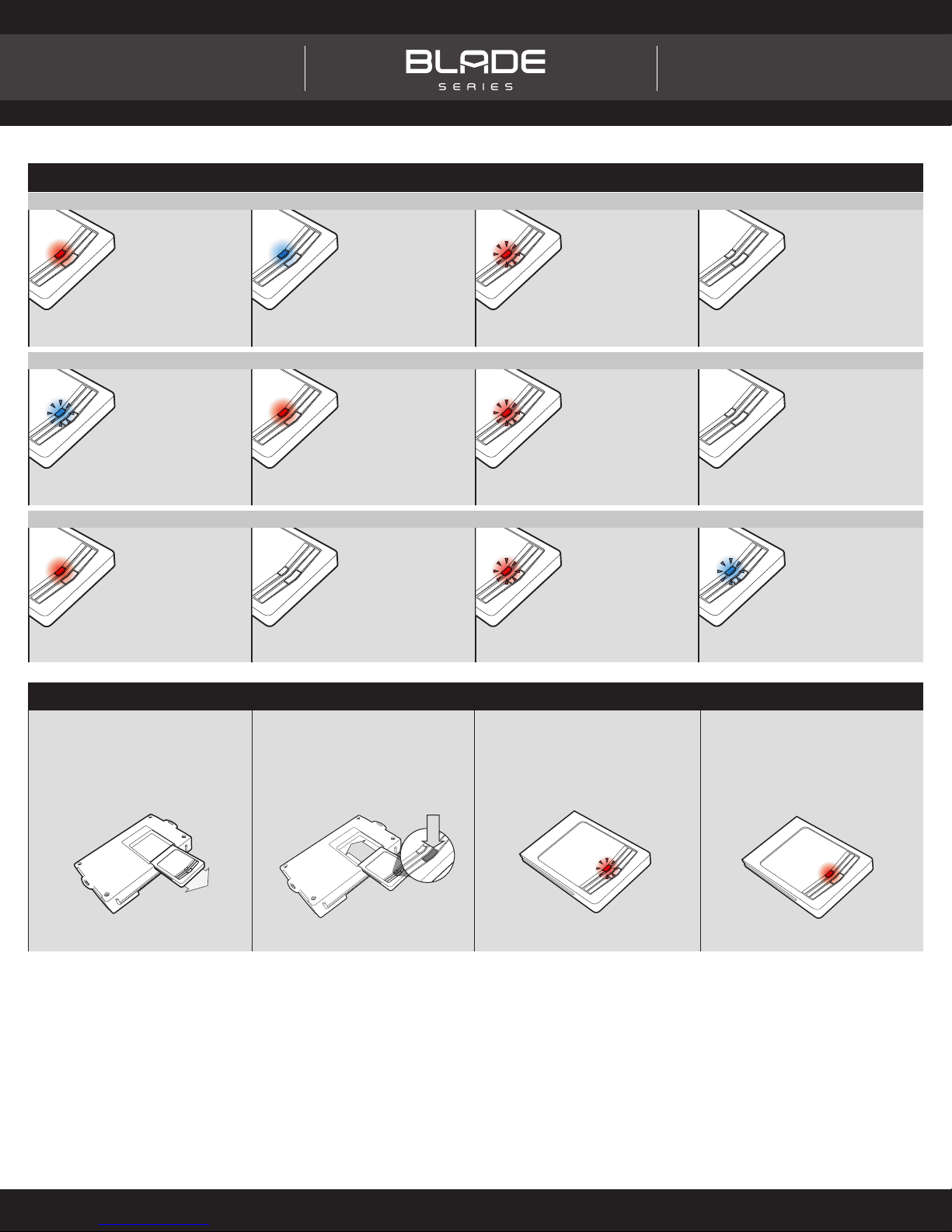

MODULE DIAGNOSTICS
BLADE-AL-SERIES PAGE 1-1
1DISCONNECT BLADE from
remote starter. 2PRESS AND HOLD programming button while re-
connecting BLADE to remote
starter.
3LED will fl ash red. Immediately
RELEASE programming button. 4LED will turn solid red for 2 seconds, RESET COMPLETED.
Reconnect all connectors and
repeat programming procedure.
FLASHING BLUE
correctly
programmed
and operational
SOLID RED
incorrectly
programmed
FLASHING RED
incorrectly
programmed
LED OFF
invalid ground
when running
status from r.s.
SOLID RED
waiting
for more vehicle
information
LED OFF
at rest and
ready for a
r.s. sequence
FLASHING RED
incorrectly
programmed
or connected
FLASHING BLUE
false ground
when running
status from r.s.
SOLID RED
waiting
for more vehicle
information
SOLID BLUE
THEN OFF
correctly
programmed
FLASHING RED
missing/wrong
connection or
fi rmware
LED OFF
no activity
or already
programmed
FACTORY RESET PROCEDURE
MODULE DIAGNOSTICS
DURING PROGRAMMING
DURING REMOTE START (R.S.)
WITH IGNITION OFF
Page 12 of 12 OL-BLADE-AL(DL)-CH6 20100901
INSTALL GUIDE
WWW.BLADEUPDATE.COM Omega Research & Development Inc. © 2010
ALL IN ONE
Chrysler/DoDge/Jeep
Doc. No.: ##3849##
