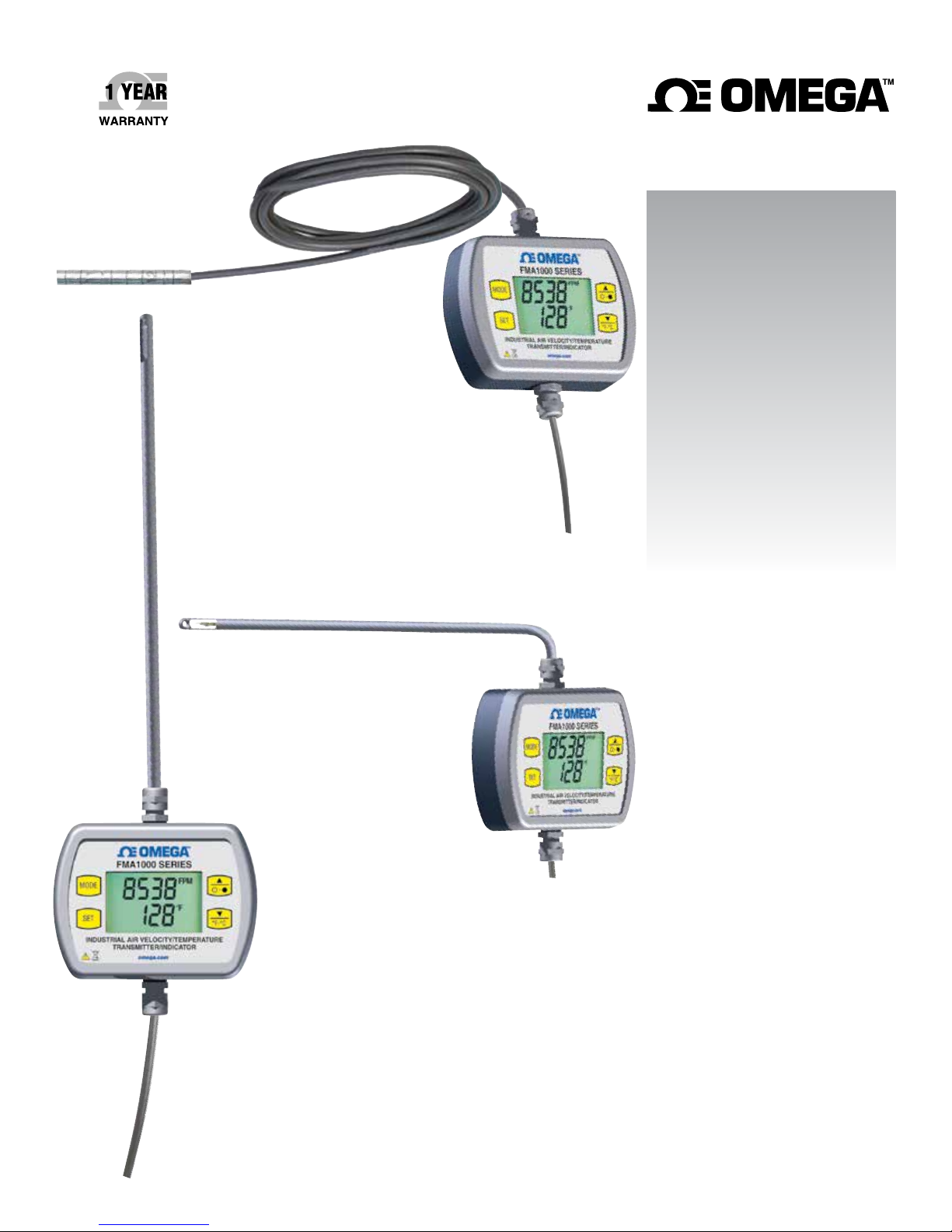

Omega FMA1001A series User manual

FMA1000 SERIES
Air Velocity/Temperature
Transmitter and Indicator
TM
TOP MOUNT
BACK MOUNT
WITH REMOTE
SENSOR PROBE
FMA100XR
FMA100XB
FMA100XA
e-mail: [email protected]
For latest product manuals:
www.omegamanual.info
Shop online at
omega.com
User’s Guide

The information contained in this document is believed to be correct, but OMEGA accepts no liability for any errors it contains, and reserves
the right to alter specifications without notice.
omega.com [email protected]
Servicing North America:
U.S.A. Omega Engineering, Inc.
Headquarters: Toll-Free: 1-800-826-6342 (USA & Canada only)
Customer Service: 1-800-622-2378 (USA & Canada only)
Engineering Service: 1-800-872-9436 (USA & Canada only)
Tel: [phone] Fax: [phone]
e-mail: [email protected]
For Other Locations Visit omega.com/worldwide

i
Table of Contents
Section Page
Section 1 - Package Insection ............................................................................. 1-1
Included Items ................................................................................................ 1-1
Section 2 - Introduction ...................................................................................... 2-1
Introduction .................................................................................................... 2-1
Important Considerations Before Installation ..........................................2-2
Section 3 - Installation ........................................................................................ 3-1
Section 4 - Main Operations .............................................................................. 4-1
Section 5 - PC Interface and Application ........................................................ 5-1
Operation ........................................................................................................ 5-1
Maintenance ................................................................................................... 5-4
Calibration ...................................................................................................... 5-4
Section 6 - Specifications .................................................................................... 6-1
FMA1000 SERIES
Air Velocity/Temperature Transmitter and Indicator

ii
List of Figures
Figure Description Page
1 FMA1000 Transmitter with Fixed Probe Mount
and Right Angle Mount ................................................................... 3-3
2 FMA1000 Transmitter with a Remote Sensor Probe .................. 3-4

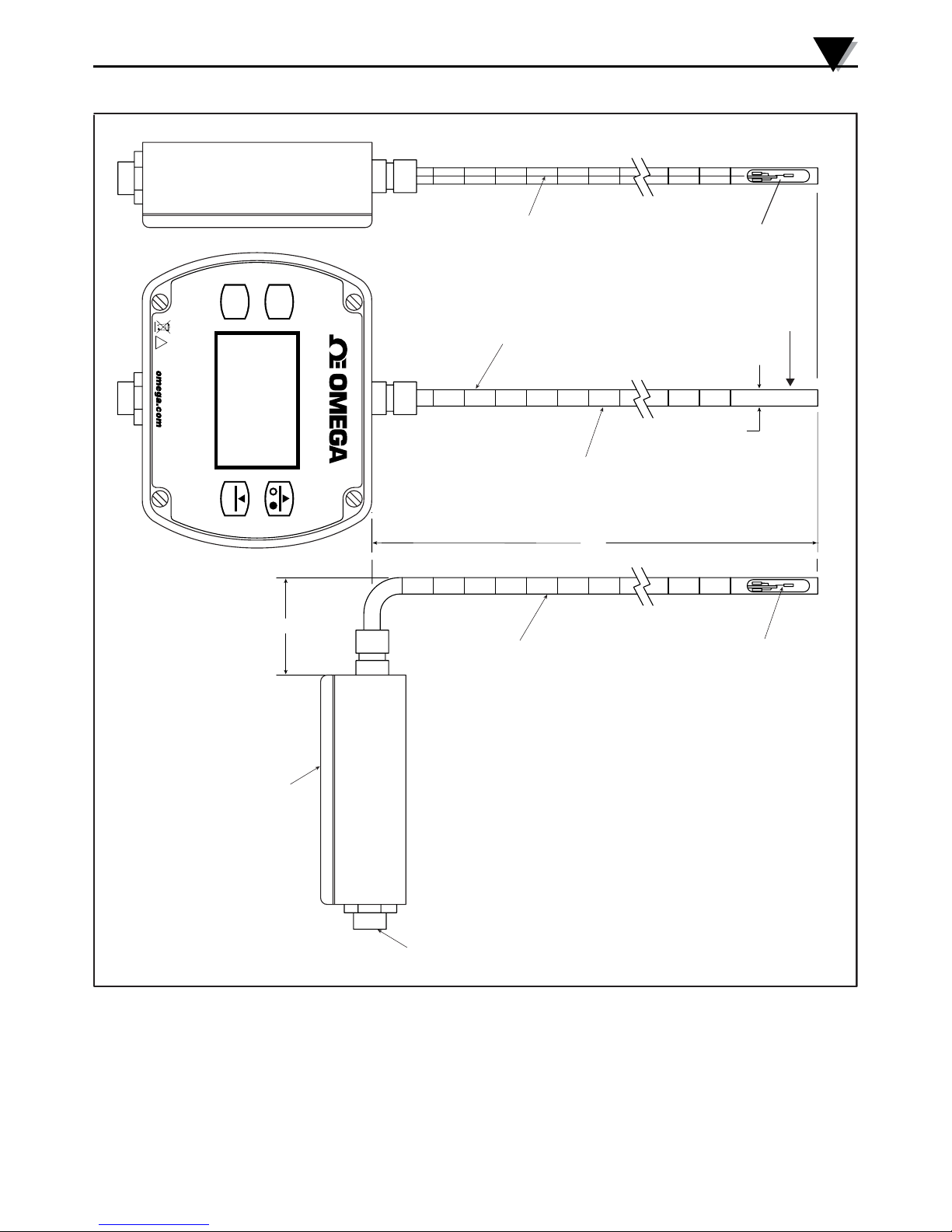

3 FMA1000 Transmitter General Dimensions ................................ 3-5
4 FMA1000 Transmitter Wall Mounting Holes .............................. 3-6

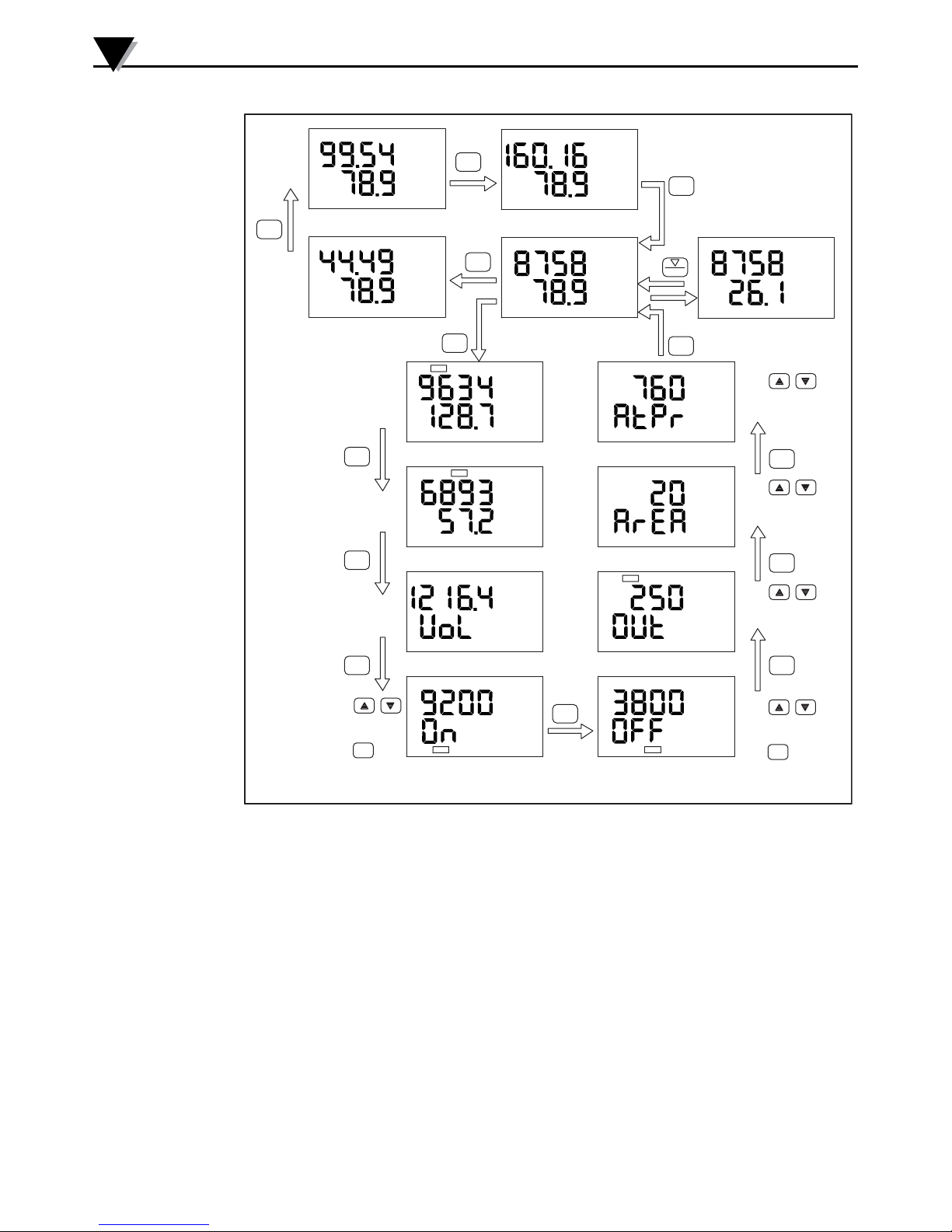

5 Functional Display Flow Chart ....................................................... 4-3

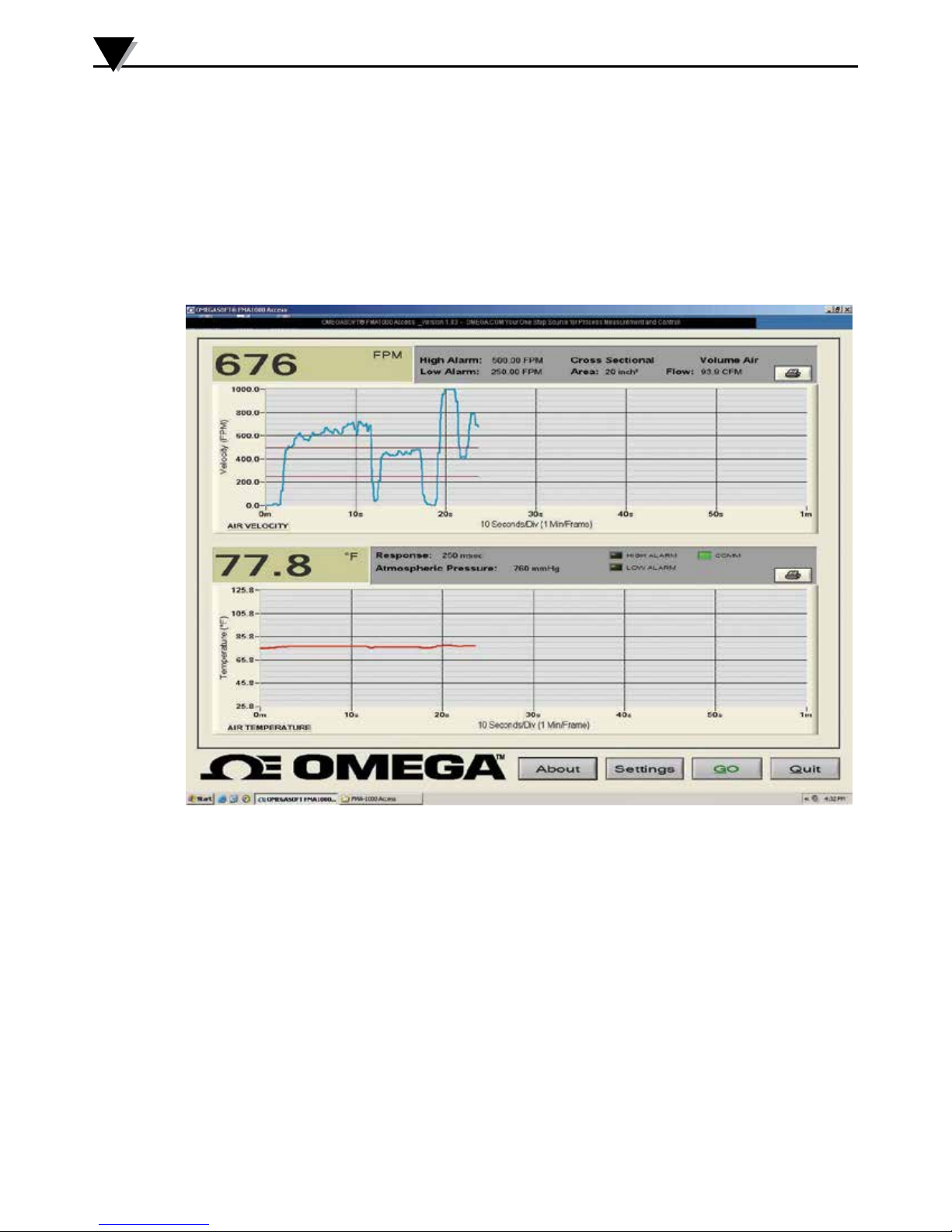

6 Main Window .................................................................................... 5-2
7 Typical Data File ................................................................................ 5-3
8 Settings Menu .................................................................................... 5-4
FMA1000 SERIES
Air Velocity/Temperature Transmitter and Indicator

NOTE:
1-1
Section 1 - Package Inspection
Remove the packing list and verify that you have received all your equipment.
If
you have any questions about the shipment, please call our Customer Service
Department at 1-800-622-2378 or 203-359-1660. We can also be reached on the
Internet at omega.com, e-mail: [email protected]. When you receive the
shipment, inspect the container and equipment for any signs of damage. Note
any evidence of rough handling in transit. Immediately report any damage to
the shipping agent.
The carrier will not honor any damage claims unless all shipping material is
saved for inspection. After examining and removing contents, save packing
material and carton in the event reshipment is necessary.
Included Items
The following items are supplied with the FMA1000 air velocity transmitter:
• FMA1000 air velocity/temperature transmitter
• 15 feet shielded Power/Output cable with 10 pin female mating connector
with 6 feet shielded USB cable with female mating connector
• Instruction Manual
• PC application program CD
The following items are optional accessories that can be ordered separately:
Model No. Description
PSR-24S Regulated +24 Vdc @ 400 mA power supply, screw
terminal
PSR-24L Regulated +24 Vdc @ 400 mA power supply, stripped
leads
SSLK-14-14 Compression Fitting, 1⁄4" tube OD, 1⁄4" NPT
T-FER-1/4 1⁄4" PTFE Ferrules (10 per pack) for use with SSLK14-14
TX8-100 8 conductor shielded cable, 24 AWG, 30m long
Package Inspection 1

1-2
CAUTION & SAFETY INFORMATION
If the equipment is used in a manner not specified in this manual, the
protection provided by the equipment may be impaired.
The installation category is one (I).
The output terminals of this product are for use with equipments (Digital
meters, chart recorders, etc.) which have no accessible live parts. Such
equipment should comply with all the applicable safety requirements.
Avoid contact with Hazardous live parts.
Do not operate the equipment in flammable or explosive environments.
The equipment comes with a 4.6 m (15') shielded multi-conductor power/
output cable. This cable is an ten conductor 26 AWG stranded wire cable with
rating of 300 Vdc, 105ºC (221ºF) PVC insulation. It also comes with a 2m (6')
shielded USB + Four conductor cable.
Power must be disconnected before making any electrical connections.
The supply voltage to the equipment should not exceed 24 Vdc.
The recommended power supply should be VDE or UL approved. Rating of 15
to 24 Vdc @ 150 mA minimum power with overload protection, current limited
to 500 mA.
There is no user replaceable fuse in this product.
The FMA1000 series passed all the EMC standards (EN61326 Emissions &
EN61000 immunity) under normal mode of operation using the power/output
cable provided and an external DC power supply.

2-1
Section 2 - Introduction
The FMA1000 series industrial air velocity/temperature transmitter/indicator
measures and displays air velocity mass flow and air temperature of clean air
flows in ducts & pipes, while producing very little pressure drop in the flow
stream. The FMA1000 series can be used in research & development labs,
HVAC applications, and other manufacturing processes. The sensor design is
based on three RTD elements, one measures the air temperature and the other
two measure the air velocity. The air velocity is measured based on the heat
loss from the RTD velocity sensor as it cools down by the air flow.
The FMA1000 series offers many standard features such as dual display of
air velocity & temperature, two analog outputs corresponding to air velocity
& temperature, high & low voltage alarm outputs for air velocity, USB PC
interface with a Windows based PC interface software. The FMA1000 displays
the air velocity in feet per minute (FPM), meter per second (m/s), miles per
hour (MPH), and kilometer per hour (Km/h). The air temperature is displayed
in ºF & ºC.
The sensor probe is 12" long as standard. The 304 Stainless steel sensor tubing
is provided with inch marks for ease of insertion depths. The sensor probe
comes in four different versions as follows:
• Fixed probe mount
• Right angle probe mount
• Remote probe
• Fixed short probe, 3.75" Long
Introduction 2

The following table shows all the air velocity/temperature transmitter model
numbers:
Model No. Velocity Range FPM (m/s) Probe Type Temperature Measurment Range
FMA1001A-* Fixed Probe -40 to 121°C (-40 to 250°F)
FMA1001A-*-HT -40 to 171°C (-40 to 340°F)
FMA1001B-* 0-1000 (0-5.1) Right Angle Probe -40 to 121°C (-40 to 250°F)
FMA1001B-*-HT -40 to 171°C (-40 to 340°F)
FMA1001R-* Remote Probe -40 to 121°C (-40 to 250°F)
FMA1001R-*-HT -40 to 171°C (-40 to 340°F)
FMA1002A-* Fixed Probe -40 to 121°C (-40 to 250°F)
FMA1002A-*-HT -40 to 171°C (-40 to 340°F)
FMA1002B-* 0-5000 (0-25.5) Right Angle Probe -40 to 121°C (-40 to 250°F)
FMA1002B-*-HT -40 to 171°C (-40 to 340°F)
FMA1002R-* Remote Probe -40 to 121°C (-40 to 250°F)
FMA1002R-*-HT -40 to 171°C (-40 to 340°F)
FMA1003A-* Fixed Probe -40 to 121°C (-40 to 250°F)
FMA1003A-*-HT -40 to 171°C (-40 to 340°F)
FMA1003B-* 0-10,000 (0-50.8) Right Angle Probe -40 to 121°C (-40 to 250°F)
FMA1003B-*-HT -40 to 171°C (-40 to 340°F)
FMA1003R-* Remote Probe -40 to 121°C (-40 to 250°F)
FMA1003R-*-HT -40 to 171°C (-40 to 340°F)
FMA1004A-* Fixed Probe -40 to 121°C (-40 to 250°F)
FMA1004A-*-HT -40 to 171°C (-40 to 340°F)
FMA1004B-* 0-500 (0-2.54) Right Angle Probe -40 to 121°C (-40 to 250°F)
FMA1004B-*-HT -40 to 171°C (-40 to 340°F)
FMA1004R-* Remote Probe -40 to 121°C (-40 to 250°F)
FMA1004R-*-HT -40 to 171°C (-40 to 340°F)
FMA1005A-* Fixed Probe -40 to 121°C (-40 to 250°F)
FMA1005A-*-HT -40 to 171°C (-40 to 340°F)
FMA1005B-* 0-2000 (0-10.16) Right Angle Probe -40 to 121°C (-40 to 250°F)
FMA1005B-*-HT -40 to 171°C (-40 to 340°F)
FMA1005R-* Remote Probe -40 to 121°C (-40 to 250°F)
FMA1005R-*-HT -40 to 171°C (-40 to 340°F)
FMA1006A-* Fixed Probe -40 to 121°C (-40 to 250°F)
FMA1006A-*-HT -40 to 171°C (-40 to 340°F)
FMA1006B-* 0-12,000 (0-60.9) Right Angle Probe -40 to 121°C (-40 to 250°F)
FMA1006B-*-HT -40 to 171°C (-40 to 340°F)
FMA1006R-* Remote Probe -40 to 121°C (-40 to 250°F)
FMA1006R-*-HT -40 to 171°C (-40 to 340°F)
* - Specify analog output for air velocity
-MA, 4-20 mA output
-V1, 0-5 Vdc output
-V2, 0-10 Vdc output
The air temperature analog output is 0-5 Vdc.
Introduction
2
2-2

Important Considerations Before Installation
The FMA1000 air velocity transmitter is not explosion proof, nor is it Intrinsically
safe. Do not use for flammable or hazardous gases, or in Hazardous areas.
The FMA1000 series air velocity transmitter is intended for use with clean
air or Nitrogen ONLY. Do not use with other gases, as it will produce an
un-calibrated and non-linear display measurement and analog output. In
addition, air carrying dust or oil (such as found in blower/compressor systems
that utilize oil) can lead to coating of the sensor and thus inaccurate readings.
Refer to the Maintenance section for information on cleaning the sensor.
The FMA1000 is a bi-directional device, meaning the flow in the forward or
reverse direction provides the same readings. The FMA1000 can be mounted
vertically or horizontally without shift in calibration.
Introduction 2
2-3
NOTE:

3-1
Installation
3
Section 3 - Installation
1. Remove the protective cap from the sensor tip.

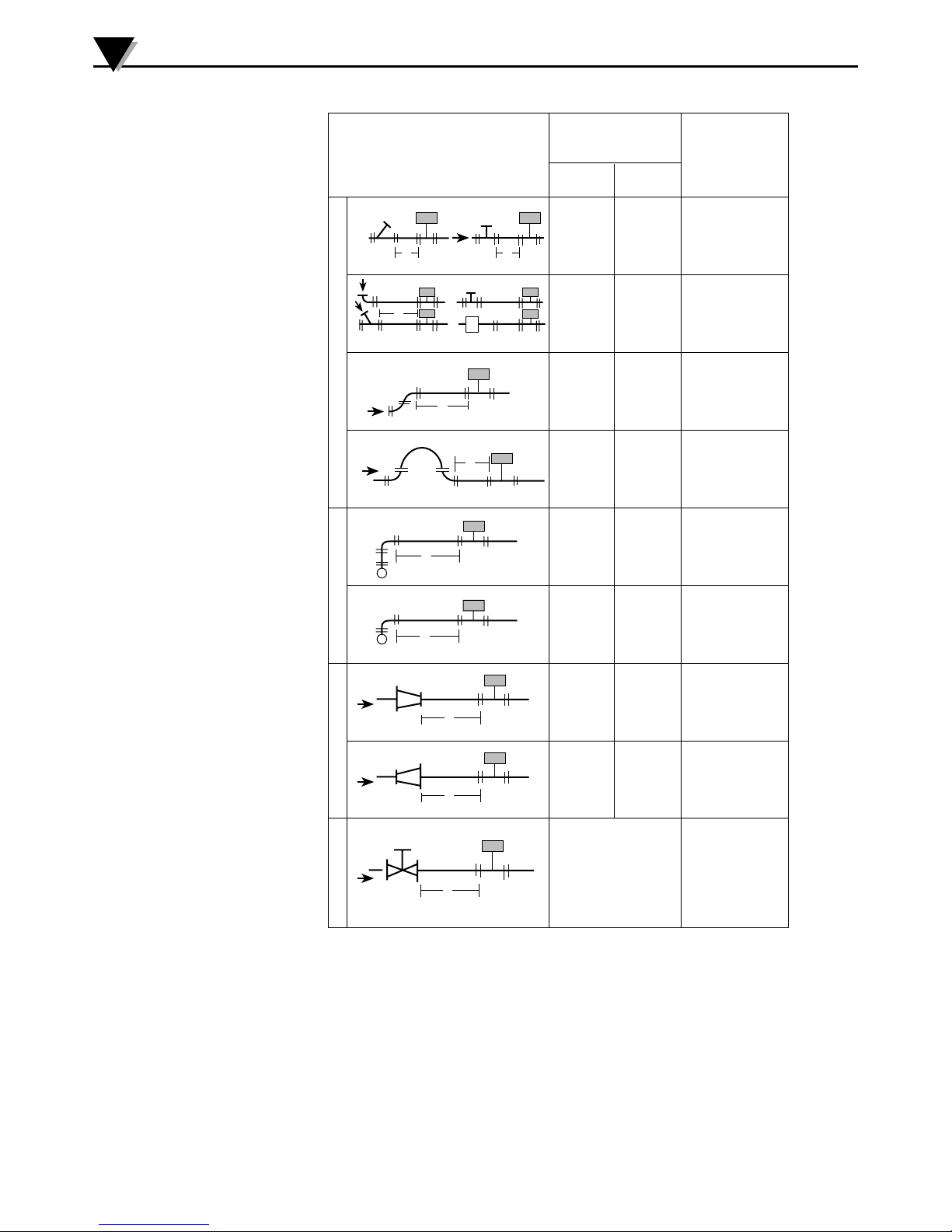

2. Run a length of straight pipe before and after the flow sensor probe.
The amount of upstream straight pipe required depends on the type of
obstruction which is immediately upstream of the flow sensor. See Table 1
for specific requirements. Downstream of the flow sensor, in all situations,
run 5 diameters of straight pipe regardless of the downstream obstruction.
3. Align the sensor probe with the air flow. Make sure the air flow is
perpendicular to the sensor window. The score line on the sensor tubing
is another way of aligning the sensor to the flow stream. The score line
starts from the center of the sensor window and as a result it can be aligned
properly.
4. One way of installing the sensor probe into a flow stream is to utilize a
compression fitting such as Omega’s SSLK-14-14 stainless steel compression
fitting with Teflon ferrule, which allows adjustment of the insertion depth of
the probe.
5. Connect the 15 feet shielded Power/Output cable to the transmitter’s 10-pin
male mating connector. Follow the wiring information below:
Power/ Output Cable Wire Connection
Red + Power Input
Black - Power Input (Common Ground)
White Velocity Analog Output referenced to Common Ground
Green Temperature Analog Output referenced to Common Ground
Brown High Alarm voltage output-Velocity
Blue Low Alarm voltage output-Velocity
Shield Earth Ground
USB Connector PC USB Port
Power/output Cable Wiring
