Oil resistant Cylindrical Proximity Sensor (Automotive)
E2E
Designed and tested for
Automotive assembly lines
• tested oil resistance on commonly used lubricants in
Automotive industry
Ordering Information
DC 2-wire/Pre-wired Models - enhanced oil resistant PUR/PE cable
DC 2-wire/Pigtail-connector - enhanced oil resistant PUR/PE cable
DC 2-wire/Pre-wired Models - PVC cable
*1. In addition to the above models, E2E-X@@15 models (e.g., E2E-X3D15-N), which are different in frequency from the above models, are available.
*2. E2E models with a robotics cable are available as well. The model number of a model with a robotics cable has the suffix “-R”
(e.g., E2E-X3D1-R).
*3. Cables with a length of 5 m are also available. Specify the cable length at the end of the model number (e.g., E2E-X3D1-N 5M).
Self-diagnostic
output function Size Sensing distance Model
NO NC
No Shielded M8 2 mm E2E-X2D1-U E2E-X2D2-U
M12 3 mm E2E-X3D1-U E2E-X3D2-U
M18 7 mm E2E-X7D1-U E2E-X7D2-U
M30 10 mm E2E-X10D1-U E2E-X10D2-U
Self-diagnostic
output function Size Sensing distance Model
NO NC
No Shielded M8 2 mm E2E-X2D1-M1TGJ-U 0.3 M E2E-X2D2-M1TGJ-U 0.3 M
M12 3 mm E2E-X3D1-M1TGJ-U 0.3 M E2E-X3D2-M1TGJ-U 0.3 M
M18 7 mm E2E-X7D1-M1TGJ-U 0.3 M E2E-X7D2-M1TGJ-U 0.3 M
M30 10 mm E2E-X10D1-M1TGJ-U 0.3 M E2E-X10D2-M1TGJ-U 0.3 M
Self-diagnostic
output function Size Sensing distance Model
NO NC
Yes Shielded M12 3 mm E2E-X3D1S (See note 1.) ---
M18 7 mm E2E-X7D1S (See note 1.) ---
M30 10 mm E2E-X10D1S (See note 1.) ---
Unshielded M12 8 mm E2E-X8MD1S (See note 1.) ---
M18 14 mm E2E-X14MD1S (See note 1.) ---
M30 20 mm E2E-X20MD1S (See note 1.) ---
No Shielded M8 2 mm E2E-X2D1-N (See notes 2 and 3.) E2E-X2D2-N (See note 3.)
M12 3 mm E2E-X3D1-N (See notes 1, 2 and 3.) E2E-X3D2-N (See note 3.)
M18 7 mm E2E-X7D1-N (See notes 1, 2 and 3.) E2E-X7D2-N (See note 3.)
M30 10 mm E2E-X10D1-N (See notes 1, 2 and 3.) E2E-X10D2-N
Unshielded M8 4 mm E2E-X4MD1 (See notes 2 and 3.) E2E-X4MD2
M12 8 mm E2E-X8MD1 (See notes 1, 2 and 3.) E2E-X8MD2
M18 14 mm E2E-X14MD1 (See notes 1, 2 and 3.) E2E-X14MD2
M30 20 mm E2E-X20MD1 (See notes 1, 2 and 3. E2E-X20MD2

2Inductive Sensors

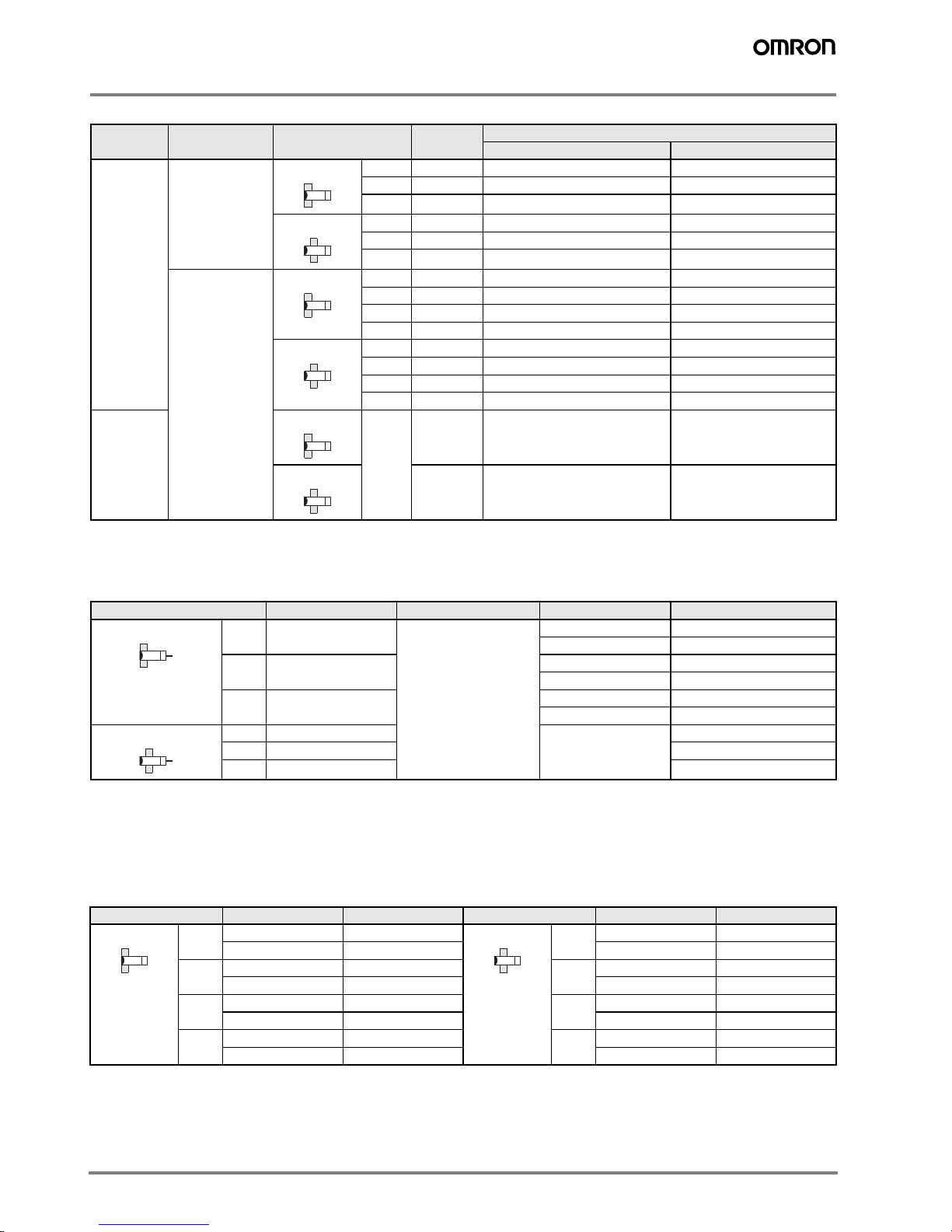

DC 2-wire/Connector Models
Note: In addition to the above models, E2E-X@D15-M1G models (e.g., E2E-X3D15-M1G), which are different in frequency from the above models, are available.
DC 2-wire/Pre-wired Connector Models
*1. A model with no polarity has a residual voltage of 5 V, which must be taken into consideration together with the interface condition (the PLC’s ON voltage, for
example) when connecting the Proximity Sensor to a load.
*2. The standard cable length is 300 mm. Models are also available with 500 mm and 1 m cables.

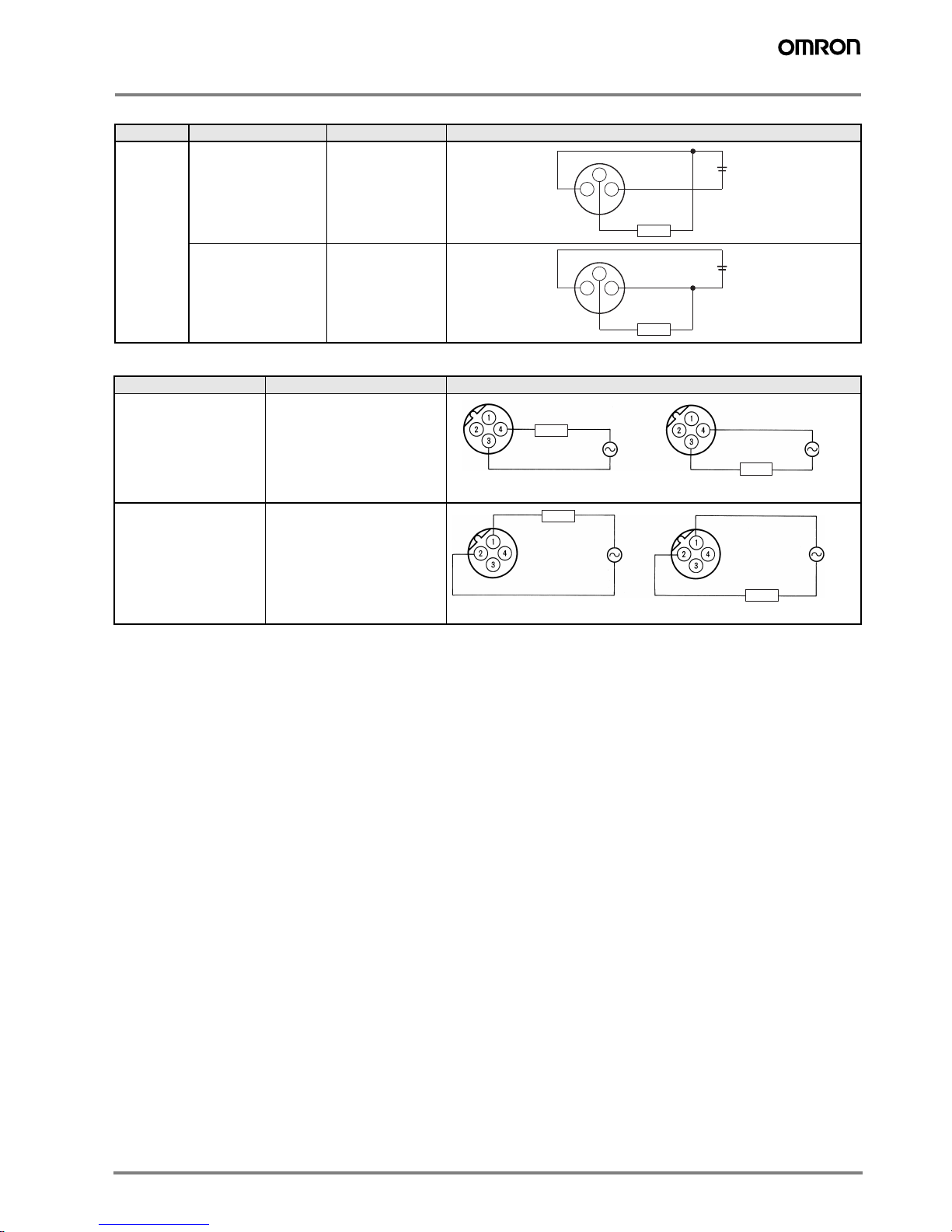

Connector Pin Assignments of DC 2-wire Model
The connector pin assignments of each new E2E DC 2-wire conforms to IEC947-5-2 Table III.
The following E2E models with conventional connector pin assignments are available as well.
Connector Self-diagnostic
output function Size Sensing distance Model
NO NC
M12 Yes Shielded M12 3 mm E2E-X3D1S-M1 ---
M18 7 mm E2E-X7D1S-M1 ---
M30 10 mm E2E-X10D1S-M1 ---
Unshielded M12 8 mm E2E-X8MD1S-M1 ---
M18 14 mm E2E-X14MD1S-M1 ---
M30 20 mm E2E-X20MD1S-M1 ---
No Shielded M8 2 mm E2E-X2D1-M1G E2E-X2D2-M1G
M12 3 mm E2E-X3D1-M1G (See note.) E2E-X3D2-M1G
M18 7 mm E2E-X7D1-M1G (See note.) E2E-X7D2-M1G
M30 10 mm E2E-X10D1-M1G (See note.) E2E-X10D2-M1G
Unshielded M8 4 mm E2E-X4MD1-M1G E2E-X4MD2-M1G
M12 8 mm E2E-X8MD1-M1G (See note.) E2E-X8MD2-M1G
M18 14 mm E2E-X14MD1-M1G (See note.) E2E-X14MD2-M1G
M30 20 mm E2E-X20MD1-M1G (See note.) E2E-X20MD2-M1G
M8 Shielded M8 2 mm E2E-X2D1-M3G E2E-X2D2-M3G
Unshielded 4 mm E2E-X4MD1-M3G E2E-X4MD2-M3G
Size Sensing distance Operation mode Polarity Model
Shielded M12 3 mm NO Yes E2E-X3D1-M1GJ
No E2E-X3D1-M1J-T
M18 7 mm Yes E2E-X7D1-M1GJ
No E2E-X7D1-M1J-T
M30 10 mm Yes E2E-X10D1-M1GJ
No E2E-X10D1-M1J-T
Unshielded M12 8 mm Yes E2E-X8MD1-M1GJ
M18 14 mm E2E-X14MD1-M1GJ
M30 20 mm E2E-X20MD1-M1GJ
Size Operation mode Model Size Operation mode Model
Shielded M8 NO E2E-X2D1-M1 Unshielded M8 NO E2E-X4MD1-M1
NC E2E-X2D2-M1 NC E2E-X4MD2-M1
M12 NO E2E-X3D1-M1 M12 NO E2E-X8MD1-M1
NC E2E-X3D2-M1 NC E2E-X8MD2-M1
M18 NO E2E-X7D1-M1 M18 NO E2E-X14MD1-M1
NC E2E-X7D2-M1 NC E2E-X14MD2-M1
M30 NO E2E-X10D1-M1 M30 NO E2E-X20MD1-M1
NC E2E-X10D2-M1 NC E2E-X20MD2-M1

3E2E
DC 3-wire/Pre-wired Models
Note: 1. Cables with a length of 5 m are also available. Specify the cable length
at the end of the model number (e.g., E2E-X2E1 5M).
2. Models with a robotics cable are also available. These models are
E2E-X@E1-R (e.g., E2E-X5E1-R).
3. Models with a different frequency are also available. Thesemodels are
E2E-X@E@5 (e.g., E2E-X5E15).
4. These models have e-CON connectors (0.3 m cable length), which is
indicated by the suffix “-ECON” (e.g., E2E-X2E1-ECON).
AC 2-wire/Pre-wired Models
Note: 1. Models with a different frequency are alsoavailable. These modelsare
E2E-X@Y@5 (e.g., E2E-X5Y15).
2. Cables with a length of 5 m are also available. Specify the cable length
at the end of the model number (e.g., E2E-X2Y1 5M).
Size Sensing
distance Output configuration Model
Shielded M8 1.5 mm NPN NO E2E-X1R5E1
(See notes 1 and 2.)
NPN NC E2E-X1R5E2
PNP NO E2E-X1R5F1
PNP NC E2E-X1R5F2
M12 2 mm NPN NO E2E-X2E1
(See notes 1, 2, 3,
and 4.)
NPN NC E2E-X2E2
(See notes 3 and 4.)
PNP NO E2E-X2F1
PNP NC E2E-X2F2
M18 5 mm NPN NO E2E-X5E1
(See notes 1, 2, 3,
and 4.)
NPN NC E2E-X5E2
(See notes 3 and 4.)
PNP NO E2E-X5F1
PNP NC E2E-X5F2
M30 10 mm NPN NO E2E-X10E1
(See notes 1, 2, 3,
and 4.)
NPN NC E2E-X10E2
(See notes 3 and 4.)
PNP NO E2E-X10F1
PNP NC E2E-X10F2
Unshielded M8 2 mm NPN NO E2E-X2ME1
(See note 2.)
NPN NC E2E-X2ME2
PNP NO E2E-X2MF1
PNP NC E2E-X2MF2
M12 5 mm NPN NO E2E-X5ME1
(See notes 1, 2, 3,
and 4.)
NPN NC E2E-X5ME2
(See notes 3 and 4.)
PNP NO E2E-X5MF1
PNP NC E2E-X5MF2
M18 10 mm NPN NO E2E-X10ME1
(See notes 1, 2, 3,
and 4.)
NPN NC E2E-X10ME2
(see notes 3 and 4.)
PNP NO E2E-X10MF1
PNP NC E2E-X10MF2
M30 18 mm NPN NO E2E-X18ME1
(See notes 1, 2, 3,
and 4.)
NPN NC E2E-X18ME2
(See notes 3 and 4.)
PNP NO E2E-X18MF1
PNP NC E2E-X18MF2
Size Sensing
distance Operation mode Model
Shielded M8 1.5 mm NO E2E-X1R5Y1
NC E2E-X1R5Y2
M12 2 mm NO E2E-X2Y1
(See notes 1 and
2.)
NC E2E-X2Y2
M18 5 mm NO E2E-X5Y1
(See notes 1 and
2.)
NC E2E-X5Y2
M30 10 mm NO E2E-X10Y1
(See notes 1 and
2.)
NC E2E-X10Y2
Unshielded M8 2 mm NO E2E-X2MY1
NC E2E-X2MY2
M12 5 mm NO E2E-X5MY1
(See notes 1 and
2.)
NC E2E-X5MY2
M18 10 mm NO E2E-X10MY1
(See note 1.)
NC E2E-X10MY2
M30 18 mm NO E2E-X18MY1
(See note 1.)
NC E2E-X18MY2

4Inductive Sensors
DC 3-wire/Connector Models
AC 2-wire/Connector Models
AC/DC 2-wire/Pre-wired Models
*1. These models do not conform to CE standards.
*2. Cables with a length of 5 m are also available as standard models. Specify
the cable length at the end of the model number (e.g., E2E-X7T1 5M).
Connector Size Sensing
distance Output configuration Model
M12 Shielded M8 1.5 mm NPN NO E2E-X1R5E1-M1
NPN NC E2E-X1R5E2-M1
PNP NO E2E-X1R5F1-M1
PNP NC E2E-X1R5F2-M1
M12 2 mm NPN NO E2E-X2E1-M1
NPN NC E2E-X2E2-M1
PNP NO E2E-X2F1-M1
PNP NC E2E-X2F2-M1
M18 5 mm NPN NO E2E-X5E1-M1
NPN NC E2E-X5E2-M1
PNP NO E2E-X5F1-M1
PNP NC E2E-X5F2-M1
M30 10 mm NPN NO E2E-X10E1-M1
NPN NC E2E-X10E2-M1
PNP NO E2E-X10F1-M1
PNP NC E2E-X10F2-M1
Unshielded M8 2 mm NPN NO E2E-X2ME1-M1
NPN NC E2E-X2ME2-M1
PNP NO E2E-X2MF1-M1
PNP NC E2E-X2MF2-M1
M12 5 mm NPN NO E2E-X5ME1-M1
NPN NC E2E-X5ME2-M1
PNP NO E2E-X5MF1-M1
PNP NC E2E-X5MF2-M1
M18 10 mm NPN NO E2E-X10ME1-
M1
NPN NC E2E-X10ME2-
M1
PNP NO E2E-X10MF1-M1
PNP NC E2E-X10MF2-M1
M30 18 mm NPN NO E2E-X18ME1-
M1
NPN NC E2E-X18ME2-
M1
PNP NO E2E-X18MF1-M1
PNP NC E2E-X18MF2-M1
M8 Shielded M8 1.5 mm NPN NO E2E-X1R5E1-M3
NPN NC E2E-X1R5E2-M3
PNP NO E2E-X1R5F1-M3
PNP NC E2E-X1R5F2-M3
Unshielded M8 2 mm NPN NO E2E-X2ME1-M3
NPN NC E2E-X2ME2-M3
PNP NO E2E-X2MF1-M3
PNP NC E2E-X2MF2-M3
Size Sensing
distance Operation mode Model
Shielded M12 2 mm NO E2E-X2Y1-M1
NC E2E-X2Y2-M1
M18 5 mm NO E2E-X5Y1-M1
NC E2E-X5Y2-M1
M30 10 mm NO E2E-X10Y1-M1
NC E2E-X10Y2-M1
Unshielded M12 5 mm NO E2E-X5MY1-M1
NC E2E-X5MY2-M1
M18 10 mm NO E2E-X10MY1-M1
NC E2E-X10MY2-M1
M30 18 mm NO E2E-X18MY1-M1
NC E2E-X18MY2-M1
Size Sensing
distance Operation mode Model
Shielded M12 3 mm NO E2E-X3T1
M18 7 mm E2E-X7T1
(See note 2.)
M30 10 mm E2E-X10T1

5E2E
Specifications
Ratings/Characteristics
E2E
E2E-X@D@DC 2-wire Models
Note: 1. Use the E2E within the range in which the setting indicator (green LED) is ON (except D2 models).
2. The response speed is an average value. Measurement conditions are as follows: standard sensing object, a distance of twice the standard sensing object,
and a set distance of half the sensing distance.
3. The residual voltage of each E2E model with the model number suffix “-M1J-T” is 5 V. When connecting an E2E model with the suffix “-M1J-T” to a device,
make sure that the device can withstand the residual voltage.
Size M8 M12 M18 M30
Type Shielded Unshielded Shielded Unshielded Shielded Unshielded Shielded Unshielded
Item E2E-X2D@E2E-X4MD@E2E-X3D@E2E-X8MD@E2E-X7D@E2E-
X14MD@E2E-X10D@E2E- X20MD@
Sensing distance 2 mm ±10% 4 mm ±10% 3 mm ±10% 8 mm ±10% 7 mm ±10% 14 mm ±10% 10 mm ±10% 20 mm ±10%
Set distance
(See note 1.) 0 to 1.6 mm 0 to 3.2 mm 0 to 2.4 mm 0 to 6.4 mm 0 to 5.6 mm 0 to 11.2 mm 0 to 8.0 mm 0 to 16.0 mm
Differential travel 15% max. of sensing distance 10% max. of sensing distance
Sensing object Ferrous metal (The sensing distance decreases with non-ferrous metal, refer to Engineering Data.)
Standard sensing object Iron, 8 x 8 x
1mm Iron, 20x 20x 1mm Iron,12 x 12 x 1mm Iron,30 x 30 x 1mm Iron,18x 18x 1mm Iron, 30x 30x 1mm Iron,30 x 30 x 1mm Iron,54x 54x 1mm
Response speed (See
note 2.) 1.5 kHz 1.0 kHz 1.0 kHz 0.8 kHz 0.5 kHz 0.4 kHz 0.4 kHz 0.1 kHz
Power supply voltage
(operating voltage
range)
12 to 24 VDC (10 to 30 VDC), ripple (p-p): 10% max.
Leakage current 0.8 mA max.
Control
output Load cur- rent 3 to 100 mA Diagnostic output: 50 mA for -D1(5)S models
Residual
voltage
(See note
3.)
3 V max. (Load current: 100 mA, Cable length: 2 m. M1J-T models only: 5 V max.)
Indicator D1 Models: Operation indicator (red LED), setting indicator (green LED)
D2 Models: Operation indicator (red LED)
Operation mode
(with sensing object ap-
proaching)
D1 Models: NO
D2 Models: NC
For details, refer to Timing Charts.
Diagnostic output delay 0.3 to 1 s
Protection circuits Surge suppressor, output load short-circuit protection (for control and diagnostic output)
Ambient temperature Operating: –25°C to 70°C, Storage: –40°C to 85°C (with no icing or condensation)
Ambient humidity Operating/Storage: 35% to 95% (with no condensation)
Temperature influence ±15% max. of sensing dis-
tance at 23°C in the tempera-
ture range of –25°C to 70°C
±10% max. of sensing distance at 23°C in the temperature range of –25°C to 70°C
Voltage influence ±1% max. of sensing distance in the rated voltage range ±15%
Insulation resistance 50 MΩmin. (at 500 VDC) between current-carrying parts and case
Dielectric strength 1,000 VAC at 50/60 Hz for 1 min between current-carrying parts and case
Vibration resistance 10 to 55 Hz, 1.5-mm double amplitude for 2 hours each in X, Y, and Z directions
Shock resistance 500 m/s210 times each in X,
Y, and Z directions 1,000 m/s210 times each in X, Y, and Z directions
Degree of protection IEC 60529 IP67 (Pre-wired models, pre-wired connector models: JEM standard IP67g (waterproof and oil-proof))
Connection method Pre-wired models (standard length: 2 m), connector models, pre-wired connector models (standard length: 0.3 m)
Weight
(packed
state)
Pre-wired
models Approx. 60 g Approx. 70 g Approx. 130 g Approx. 175 g
Pre-wired
connector
models
--- Approx. 40 g Approx. 70 g Approx. 110 g
Connector
models Approx. 15 g Approx. 25 g Approx. 40 g Approx. 90 g
Material Case Stainless steel (SUS303) Brass-nickel plated
Sensing
surface PBT (polybutylene terephthalate)
Cable PVC (polyvinyl chloride)
all E2E-@@@-U PUR/PE (polyurethane/polyethylene)
Clamping
nuts Brass-nickel plated
Toothed
washer Iron-zinc plated
Accessories Instruction manual

6Inductive Sensors
E2E-X@E@/F@DC 3-wire Models
Note: 1. The response speed is an average value. Measurement conditions are as follows: standard sensing object, a distance of twice the standard sensing object,
and a set distance of half the sensing distance.
2. When using an E2E with an M8 connector at an ambient temperature range between 70°C and 85°C, supply 10 to 30 VDC to the E2E and make sure that
the E2E has a control output of 100 mA maximum.
Size M8 M12 M18 M30
Type Shielded Unshielded Shielded Unshielded Shielded Unshielded Shielded Unshielded
Item E2E-X1R5E@/
F@E2E-X2ME@/ F@E2E-X2E@/ F@E2E-X5ME@/ F@E2E-X5E@/ F@E2E-X10ME@/
F@E2E-X10E@/
F@E2E-X18ME@/
F@
Sensing distance 1.5 mm ±10% 2 mm ±10% 2 mm ±10% 5 mm ±10% 5 mm ±10% 10 mm ±10% 10 mm ±10% 18 mm ±10%
Set distance 0 to 1.2 mm 0 to 1.6 mm 0 to 1.6 mm 0 to 4.0 mm 0 to 4.0 mm 0 to 8.0 mm 0 to 8.0 mm 0 to 14.0 mm
Differential travel 10% max. of sensing distance
Sensing object Ferrous metal (The sensing distance decreases with non-ferrous metal, refer to Engineering Data.)
Standard sensing ob-
ject Iron, 8 x 8 x 1mm Iron, 12 x 12 x 1mm Iron, 12 x 12 x 1mm Iron, 15 x 15 x 1mm Iron, 18 x 18 x 1mm Iron, 30 x 30 x 1mm Iron, 30 x 30 x 1mm Iron, 54 x 54 x 1mm
Response speed (See
note 1.) 2.0 kHz 0.8 kHz 1.5 kHz 0.4 kHz 0.6 kHz 0.2 kHz 0.4 kHz 0.1 kHz
Power supply voltage
(operating voltage
range) (See note 2.)
12 to 24 VDC (10 to 40 VDC), ripple (p-p): 10% max.
Current consumption 13 mA max.
Control
output Load current (See note 2.) 200 mA max.
Residual
voltage 2 V max. (Load current : 200 mA, Cable length: 2 m)
Indicator Operation indicator (red LED)
Operation mode
(with sensing object ap-
proaching)
E1 F1 Models: NO
E2 F2 Models: NC
For details, refer to Timing Charts.
Protection circuits Power supply reverse polarity protection, surge suppressor, output load short-circuit protection
Ambient temperature
(See note 2) Operating/Storage: –40°C to 85°C (with no icing or condensation)
Ambient humidity Operating/Storage: 35% to 95% (with no icing)
Temperature influence ±15% max. of sensing distance at 23°C in the temperature range of –40°C to 85°C
±10% max. of sensing distance at 23°C in the temperature range of –25°C to 70°C
Voltage influence ±1% max. of sensing distance in the rated voltage range ±15%
Insulation resistance 50 MΩmin. (at 500 VDC) between current-carrying parts and case
Dielectric strength 1,000 VAC at 50/60 Hz for 1 min between current-carrying parts and case
Vibration resistance 10 to 55 Hz, 1.5-mm double amplitude for 2 hours each in X, Y, and Z directions
Shock resistance 500 m/s210 times each in X, Y,
and Z directions 1,000 m/s210 times each in X, Y, and Z directions
Degree of protection IEC 60529 IP67 (Pre-wired models: JEM standard IP67g (waterproof and oil-proof))
Connection method Pre-wired models (standard length 2 m), connector models
Weight
(packed
state)
Pre-wired
models Approx. 65 g Approx. 75 g Approx. 150 g Approx. 195 g
Connector
models Approx. 15 g Approx. 25 g Approx. 40 g Approx. 90 g
Material Case Stainless steel (SUS303) Brass-nickel plated
Sensing sur-
face PBT (polybutylene terephthalate)
Cable PVC (polyvinyl chloride)
Clamping
nuts Brass-nickel plated
Toothed
washer Iron-zinc plated
Accessories Instruction manual

7E2E
E2E-X@Y@AC 2-wire Models
Note: 1. When supplying 24 VAC to any of the above models, make sure that the operating ambient temperature range is over –25°C.
2. When using an M18-or M30-sized E2E within an ambient temperature of 70°C to 85°C, make sure that the E2E has a control output of 5 to 200 mA max.
Size M8 M12 M18 M30
Type Shielded Unshielded Shielded Unshielded Shielded Unshielded Shielded Unshielded
Item E2E-X1R5Y@E2E-X2MY@E2E-X2Y@E2E-X5MY@E2E-X5Y@E2E-X10MY@E2E-X10Y@E2E-X18MY@
Sensing distance 1.5 mm ±10% 2 mm ±10% 2 mm ±10% 5 mm ±10% 5 mm ±10% 10 mm ±10% 10 mm ±10% 18 mm ±10%
Set distance 0 to 1.2 mm 0 to 1.6 mm 0 to 1.6 mm 0 to 4.0 mm 0 to 4.0 mm 0 to 8.0 mm 0 to 8.0 mm 0 to 14.0 mm
Differential travel 10% max. of sensing distance
Sensing object Ferrous metal (The sensing distance decreases with non-ferrous metal, refer to Engineering Data.)
Standard sensing
object Iron, 8 x 8 x 1mm Iron,12 x 12 x 1mm Iron,12x12 x 1mm Iron,15x15x 1mm Iron,18 x18x 1mm Iron,30 x30x 1mm Iron,30x30x 1mm Iron,54x54x 1mm
Response speed 25 Hz
Power supply volt-
age (operating volt-
age range)
(See note 1.)
24 to 240 VAC, 50/60 Hz (20 to 264 VAC)
Leakage current 1.7 mA max.
Control
output Load cur- rent (See
note 2.)
5 to 100 mA 5 to 200 mA 5 to 300 mA
Residual
voltage Refer to Engineering Data.
Indicator Operation indicator (red LED)
Operation mode
(with sensing object
approaching)
Y1 Models: NO
Y2 Models: NC
For details, refer to Timing Charts.
Protection circuit Surge suppressor
Ambienttemperature
(See notes 1 and 2.) Operating/Storage:–25°Cto 70°C (with no icing or con-
densation)
Operating/Storage: –40°C to 85°C (with no icing or condensation)
Ambient humidity Operating/Storage: 35% to 95% (with no condensation)
Temperature influ-
ence ±10% max. of sensing dis- tance at 23°C in the temper-
ature range of –25°C to
70°C
±15% max. of sensing distance at 23°C in the temperature range of –40°C to 85°C
±10% max. of sensing distance at 23°C in the temperature range of –25°C to 70°C
Voltage influence ±1% max. of sensing distance in the rated voltage range ±15%
Insulation resistance 50 MΩmin. (at 500 VDC) between current-carrying parts and case
Dielectric strength 4,000 VAC at 50/60 Hz for 1 min between current-carrying parts and case (2,000 VAC for M8 Models)
Vibration resistance 10 to 55 Hz, 1.5-mm double amplitude for 2 hours each in X, Y, and Z directions
Shock resistance 500 m/s210 times each in X,
Y, and Z directions 1,000 m/s210 times each in X, Y, and Z directions
Degree of protection IEC 60529 IP67 (Pre-wired models: JEM standard IP67g (waterproof, oil-proof))
Connection method Pre-wired models (standard length 2 m), connector models
Weight
(packed
state)
Pre-wired
models Approx. 60 g Approx. 70 g Approx. 130 g Approx. 175 g
Connector
models Approx. 15 g Approx. 25 g Approx. 40 g Approx. 90 g
Material Case Stainless steel (SUS303) Brass-nickel plated
Sensing
surface PBT (polybutylene terephthalate)
Cable PVC (polyvinyl chloride)
Clamping
nuts Brass-nickel plated
Toothed
washer Iron-zinc plated
Accessories Instruction manual

8Inductive Sensors
AC/DC 2-wire Models
Note: 1. The response speed is an average value. Measurement conditions are as follows: standard sensing object, a distance of twice the standard sensing object,
and a set distance of half the sensing distance.
2. Power supply voltage waveform: Use a sine wave for the power supply. Using a rectangular AC power supply may result in faulty reset.
Size M12 M18 M30
Type Shielded
Item E2E-X3T1 E2E-X7T1 E2E-X10T1
Sensing distance 3 mm ±10% 7 mm ±10% 10 mm ±10%
Set distance 0 to 2.4 mm 0 to 5.6 mm 0 to 8.0 mm
Differential travel 10% max. of sensing distance
Sensing object Ferrous metal (The sensing distance decreases with non-ferrous metal, refer to Engineering Data.)
Standard sensing object Iron, 12 x 12 x 1 mm Iron, 18 x 18 x 1 mm Iron, 30 x 30 x 1 mm
Response speed
(See note 1.) DC 1.0 kHz 0.5 kHz 0.4 kHz
AC 25 Hz
Power supply voltage
(operating voltage range) (See note 2.) 24 to 240 VDC (20 to 264 VDC)/48 to 240 VAC (40 to 264 VAC)
Leakage current 1 mA DC max., 2 mA AC max.
Control output Load current 5 to 100 mA
Residual volt-
age 6.0 VDC max. (Load current: 100 mA, Cable length: 2 m) 10 VAC max. (Load current: 5 mA , Cable length: 2 m)
Indicator Operation indicator (red LED), setting indicator (green LED)
Operation mode
(with sensing object approaching) NO For details, refer to Timing Charts.
Protection circuits Output load short-circuit protection (at 20 to 40 VDC), Surge suppressor
Ambient temperature Operating: –25°C to 70°C, Storage: –40°C to 85°C (with no icing or condensation)
Ambient humidity Operating/Storage: 35% to 95% (with no condensation)
Temperature influence ±10% max. of sensing distance at 23°C in the temperature range of –25°C to 70°C
Voltage influence ±1% max. of sensing distance in the rated voltage range ±15%
Insulation resistance 50 MΩmin. (at 500 VDC) between current-carrying parts and case
Dielectric strength 4,000 VAC at 50/60 Hz for 1 min between current-carrying parts and case
Vibration resistance 10 to 55 Hz, 1.5-mm double amplitude for 2 hours each in X, Y, and Z directions
Shock resistance 1,000 m/s210 times each in X, Y, and Z directions
Degree of protection IEC 60529 IP67 (JEM standard IP67g (waterproof, oil-proof))
Connection method Pre-wired Models (standard length 2 m)
Weight (packed state) Approx. 80 g Approx. 140 g Approx. 190 g
Material Case Brass-nickel plated
Sensing surface PBT (polybutylene terephthalate)
Cable PVC (polyvinyl chloride)
Clamping nuts Brass-nickel plated
Toothed washer Iron-zinc plated
Accessories Instruction manual

9E2E
Engineering Data
E2E

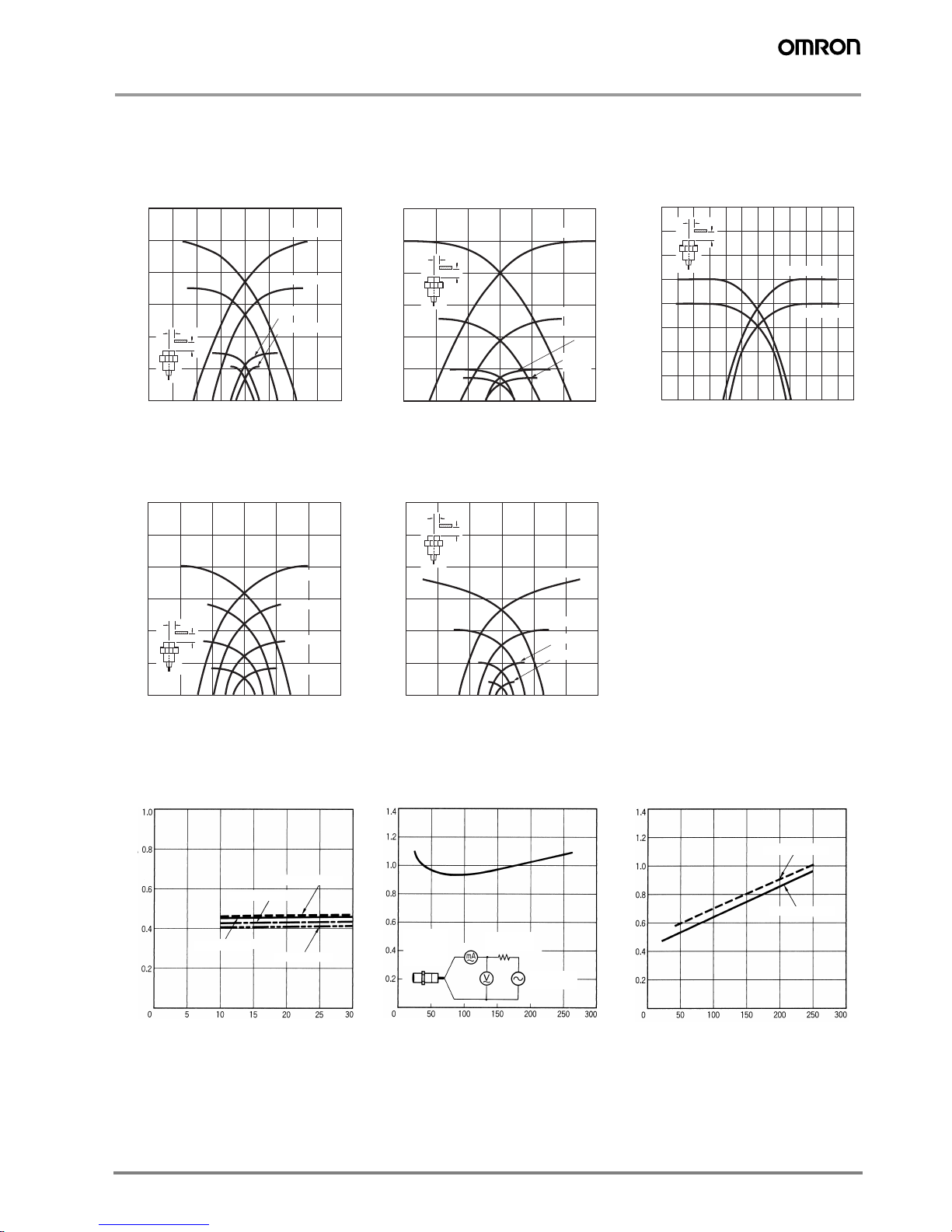

Operating Range (Typical)
Leakage Current (Typical)
Shielded Models
E2E-X@D@
E2E-X@T1 E2E-X@E@/F@
E2E-X@Y@
E2E-C@C@/B@
E2E-X@C@/B@
Unshielded Models
E2E-X@MD@E2E-X@ME@/F@
E2E-X@MY@
X
Y
12
10
8
6
4
2
0
−20 −15 −10 −5 0 5 10 15 20
DistanceY (mm)
E2E-X10
E2E-X7
E2E-X3
E2E-X2
Sensing distance X (mm)
12
10
8
6
4
2
0
−15 −10 −5 0 5 10 15
Distance Y (mm)
E2E-X10
E2E
-X1R5
E2E-X5
E2E-X2
Sensing distance X (mm)
X
Y
1.6
1.4
1.2
1.0
0.8
0.6
0.4
0.2
0
−3.0 −2.0 −1.0 0 1.0 2.0 3.0
Distance Y (mm)
E2E-X1/E2E-C1
E2E-CR8
Sensing distance X (mm)
X
Y
X
Y
30
25
20
15
10
5
0
−30 −20 −10 0 10 20 30
Distance Y (mm)
E2E-X20M
E2E-X14M
E2E-X8M
E2E-X4M
Sensing distance X (mm)
30
25
20
15
10
5
0
−30 −20 −10 0 10 20 30
Distance Y
(
mm
)
E2E-X18M
E2E-X10M
E2E-X5M
E2E-X2M
Sensing distance X (mm)
X
Y
E2E-X@D@E2E-X@Y@E2E-X@T1
DC/AC
Leakage current (mA)
Supply voltage (V)
Leakage current (mA)
Supply voltage (V)
Leakage current (mA)
Su
pp
l
y
volta
g
e
(
V
)
E2E-X10D1-N
E2E-X3D1-N
E2E-X2D1-N
E2E-X7D1-N
AC power supply
DC power supply
Proximity
Sensor
(when
OFF)
Protective
resistance
AC power
supply

10 Inductive Sensors

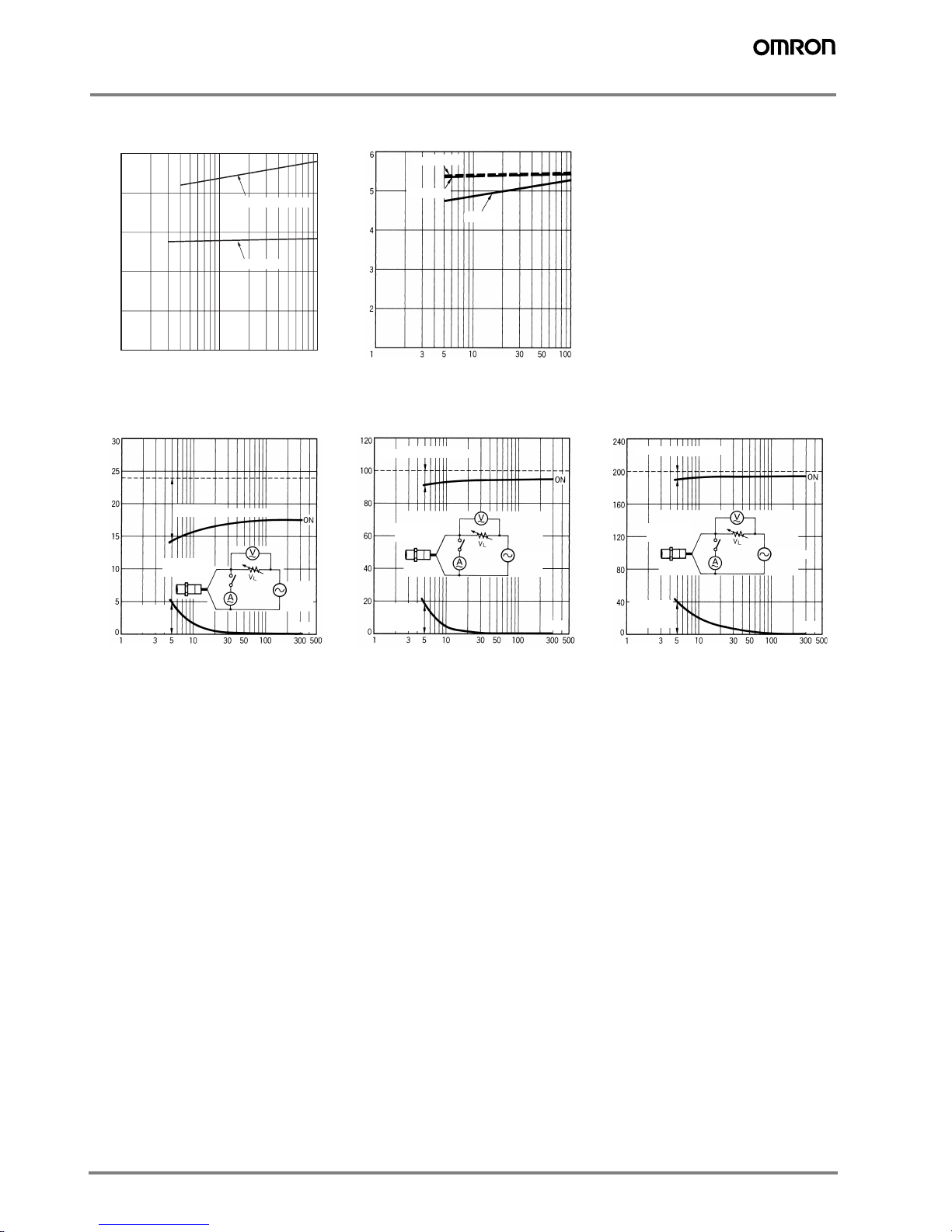

Residual Output Voltage (Typical)
E2E-X@D@
Residual output voltage (V)
Load current (mA)
E2E-X@T1
Residual output voltage (V)
Load current (mA)
200 VAC
100 VAC
24 VDC
E2E-X@D1-M1J-T
E2E-X@D@
1 3 5 10 30 50 100
5
4
3
2
1
0
E2E-X@Y@
Load current
(
mA
)
Load voltage VL(V)
Load current
(
mA
)
Load current
(
mA
)
Residual output voltage
Residual
load
voltage
Proximity
Sensor
24 VAC
100 VAC
Residual output voltage
Residual
load
voltage
Proximity
Sensor
Residual output voltage
Residual
load
voltage
Proximity
Sensor
200 VAC
Load voltage VL(V)
Load voltage VL(V)
24 VAC 100 VAC 200 VAC
OFF OFF OFF

11E2E

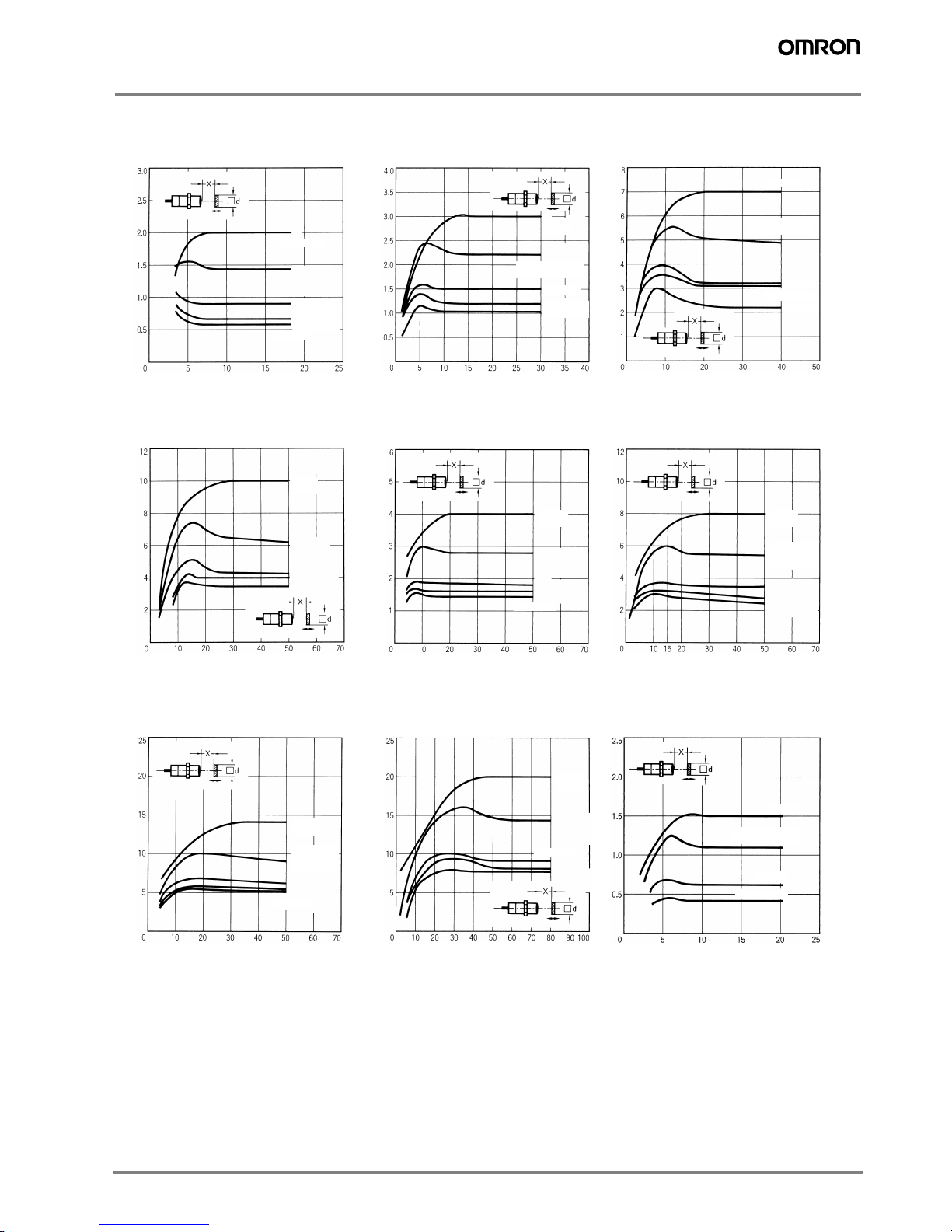

Sensing Distance vs. Sensing Object (Typical)
E2E-X2D@E2E-X3D@
E2E-X3T1
E2E-X7D@
E2E-X7T1
E2E-X10D@
E2E-X10T1
E2E-X4MD@E2E-X8MD@
E2E-X14MD@E2E-X20MD@E2E-X1R5E@/F@
E2E-X1R5Y@
Iron
Stainless steel
(SUS304)
Brass
Aluminum
t = 1 mm
Iron
Aluminum
Copper
Brass
Stainless steel
(SUS304)
t = 1 mm
Brass
Copper
Stainless steel
(SUS304)
t = 1 mm
Aluminum
Iron
Iron
Copper
Stainless
steel
(SUS304)
Brass
Aluminum
t = 1 mm
Iron
Brass
Aluminum
Copper
Stainless
steel
(SUS304)
t = 1 mm
Iron
Aluminum
Copper
Brass
Stainless
steel
(SUS304)
t = 1 mm
Iron
Copper
Stainless
steel
(SUS304)
Brass
Aluminum
t = 1 mm
Iron
Brass
Stainless
steel
(SUS304)
Aluminum
Copper
t = 1 mm
Sensing distance (mm)
Side length of sensing
object d (mm)
Sensing distance (mm) Sensing distance (mm)
Side length of sensing
object d (mm)
Side length of sensing
object d (mm)
Sensing distance (mm)
Side length of sensing
object d (mm)
Sensing distance (mm) Sensing distance (mm)
Side length of sensing
object d (mm)
Side length of sensing
object d (mm)
Sensing distance (mm)
Side length of sensing
ob
j
ect d
(
mm
)
Sensing distance (mm) Sensing distance (mm)
Side length of sensing
ob
j
ect d
(
mm
)
Side length of sensing
ob
j
ect d
(
mm
)
Brass
Aluminum
Iron
t = 1 mm
Stainless steel
(SUS304)
Copper

12 Inductive Sensors
E2E-X2E@/F@
E2E-X2Y@
E2E-X5E@/F@
E2E-X5Y@
E2E-X10E@F@
E2E-X10Y@
E2E-X2ME@/F@
E2E-X2MY@
E2E-X10ME@/F@
E2E-X10MY
E2E-X18ME@/F@
E2E-X18MY@
Sensing distance (mm)
Side length of sensing
object d (mm)
Sensing distance (mm) Sensing distance (mm)
Side length of sensing
object d (mm)
Side length of sensing
object d (mm)
Sensing distance (mm)
Side length of sensing
object d (mm)
Sensing distance (mm)
Side length of sensing
object d (mm)
Sensing distance (mm)
Side length of sensing
object d (mm)
E2E-X1@@
Iron
Stainless steel
(SUS304)
Brass
Aluminum
t = 1 mm
Sensing distance (mm)
Side length of sensing
object d (mm)
Iron
Stainless steel
(SUS304)
Brass
Aluminum
t = 1 mm
Iron
Stainless steel
(SUS304)
Brass
Aluminum
t = 1 mm
Iron
Stainless steel
(SUS304)
Brass
Aluminum
t = 1 mm
E2E-X5ME@/F@
E2E-X5MY@
Sensing distance (mm)
Side length of sensing
object d (mm)
Iron
Stainless steel
(SUS304)
Brass
Aluminum
t = 1 mm
Iron
Stainless steel
(SUS304)
Brass
Aluminum
t = 1 mm
Iron
Stainless steel
(SUS304)
Brass
Aluminum
t = 1 mm
t = 1 mm
Brass
Copper
Stainless steel
(SUS304)
Alumi-
num
Iron

13E2E
Output Circuits and Timing Charts
Output Circuits
E2E
E2E-X@D@DC 2-wire Models
DC 3-wire Models
E2E-X@D1
Without Diagnostic Output
E2E-X@D1-M1J-T
No Polarity
E2E-X@D1S
With Diagnostic Output
Load
Brown
4
Blue 0 V
1
(0 V)
0 V
4
3
Load
Brown
Blue 3
0 V
4
Load
Load
2
Orange (diagnostic
output)
E2E-X@D2
Without Diagnostic Output
Brown
2
Blue 0 V
1
Proximity
sensor
main
circuit
Proximity
sensor
main
circuit
Proximity
sensor
main
circuit
Proximity
sensor
main
circuit
Note: 1. The load can be connected to
either the +V or 0 V side.
2. The pin numbers in the above diagram
are for the -M@G(J). For the -M1, pin 4
is +V and pin 3 is 0 V.
Note: 1. The load can be connected to
either the +V or 0 V side.
2. The E2E-X@D1-M1J-T has no
polarity. Therefore, terminals 3
and 4 have no polarity.
Note: 1. The load can be connected to
either the +V or 0 V side.
2. The pin numbers in the above
diagram are for the -M@G.
For -M1 models, pin 2 is +V
and
p
in 3 is 0 V.
Note: Connect both the loads to the +V
side of the control output and
diagnostic output.
Load
Brown 1
Blue 3
Load
Black 4
(or 2)**
100 Ω
Constant
current*
E2E-X@E@
NPN Output
E2E-C/X@C@
NPN Open-collector Output
E2E-C/X@B@
PNP Open-collector Output
E2E-X@F@
PNP Output
Blue 3
Load
Black 4
(or 2)***
Brown 1
0 V
100 Ω
*
**
Blue 3
Load
Black 4
Brown 1
0 V
100 Ω
Blue 3
Load
Black 4
Brown 1
0 V
Output
100 Ω
* Constant current output is 1.5 to 3 mA.
** When connecting to a Tr circuit.
Proximity
sensor
main
circuit
Proximity
sensor
main
circuit
Proximity
sensor
main
circuit
Proximity
sensor
main
circuit
*** Pin 4 is an NO contact, and pin 2 is an NC contact.
* Constant current output is 1.5 to 3 mA.
** Pin 4 is an NO contact, and pin 2 is an NC contact.
0 V

14 Inductive Sensors
E2E-X@Y@AC 2-wire Models
E2E-X@T1 AC/DC 2-wire Models
Load
Brown 3 (or 1)
Blue 4 (or 2)
Proximity
sensor
main
circuit
Note: For connector models, the
connection between pins 3 and 4
uses an NO contact, and the
connection between pins 1 and 2
uses an NC contact.
24 to 240 VDC
48 to 240 VAC
Load
Brown
Blue
Power
supply
Proximity
sensor
main
circuit
Note:The load can be connected to either
the +V or 0 V side.
There is no need to be concerned
about the polarity (Brown/Blue) of the
Proximity Sensor.

15E2E
Timing Charts
E2E
E2E-X@D@DC 2-wire Models
E2E-X@T1 AC/DC 2-wire Models
DC 3-wire Models
E2E-X@Y@AC 2-wire Models
E2E-X@D1
E2E-X@T1
NO Models
E2E-X@D2
NC Models
E2E-X@D1S
Non-sensing
area
Unstable
sensing area
Set
position
Stable sensing
area
Sensing
object
Proximity
Sensor
Rated sensing distance
Stable sensing
area
ON
OFF
Setting
indicator (green)
ON
OFF
Operation
indicator (red)
Control
output
ON
OFF
Non-sensing area Sensing area Proximity
Sensor
ON
OFF
Control
output
Sensing
object
Operation
indicator (red)
ON
OFF
Non-sensing
area
Unstable
sensing area
Set
position
Stable sensing
area
Sensing
object
Proximity
Sensor
ON
OFF
Setting
indicator (green)
ON
OFF
Diagnostic
output (see note)
Control
output
Operation
indicator (red)
ON
OFF
ON
OFF
Note: The diagnostic output of the E2E-X@D1S is
ON when there is a coil burnout or the
sensing object is located in the unstable
sensing range for 0.3 s or more.
Rated sensing distance
Rated sensing distance
E2E-X@E@
NPN Output
E2E-C/X@C@/B@
NPN/PNP Open-collector Output
E2E-X@F@
PNP Output
Ye s
No
ON
OFF
Sensing
object
Control output
between brown and black lines
Output voltage
between black and blue lines
Operation
indicator (red)
ON
OFF
H
L
Sensing
object
Control output
between black and blue lines
Ye s
No
ON
OFF
Operation
indicator (red)
ON
OFF
ON
OFF
Sensing
object
Control
output
Ye s
No
ON
OFF
Operation
indicator (red)
ON
OFF
Output voltage
between black and blue lines
Sensing
object
Control
output
Ye s
No
ON
OFF
Operation
indicator (red)
ON
OFF

16 Inductive Sensors

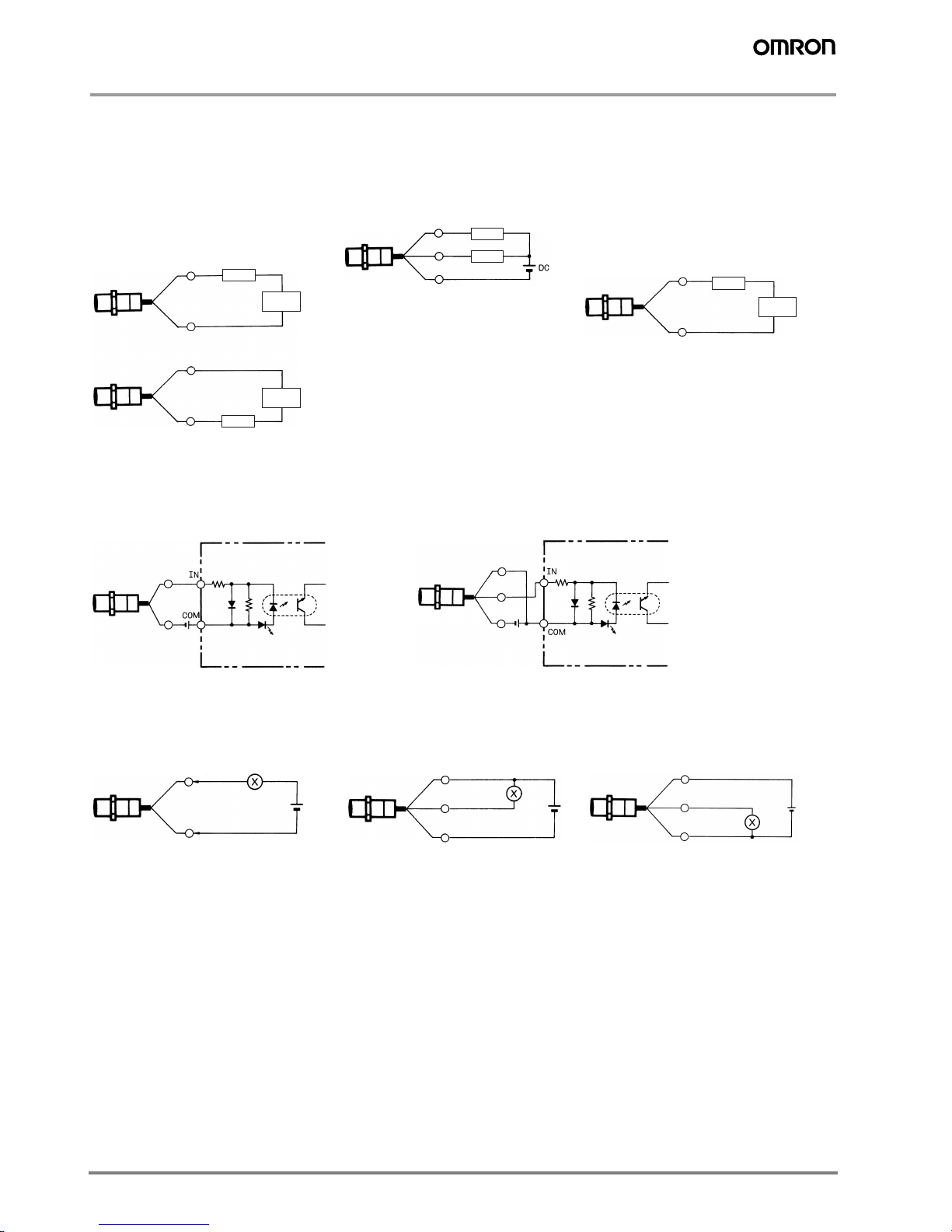

Installation
Connection
E2E
E2E-X@D@
DC 2-wire Models
(Without Diagnostic Output)
E2E-X@Y@
AC 2-wire Models
E2E-X@T1
AC/DC 2-wire Models
E2E-X@D1S
DC 3-wire Models
(With Diagnostic Output)
E2E-X@D1-M1J-T
DC 2-wire Models
(No Polarity)
E2E-X@Y@
AC 2-wire Models
E2E-X@T1
AC/DC 2-wire Models
Blue
Load
Load
Brown
Brown
Blue
Power
supply
Power
supply
Orange
Blue
Brown Load
Load
Load
Blue
Brown
Power
supply
Note: The load can be connected
as shown above.
Note: The control output and
diagnostic output share the
negative common terminal.
Therefore, the loads must be
connected to the positive
sides of the control output
and diagnostic output.
Note: There is no need to be
concerned about the polarity
(Brown/Blue) of the
Proximity Sensor.
Connected to PC
E2E-X@D@
DC 2-wire Models
E2E-X@E@
DC 3-wire Models
Connected to Relay Load
E2E-X@D@
DC 2-wire Models
E2E-X@E@
DC 3-wire Models E2E-X@F@ DC 3-wire Models
24 VDC
Blue
Brown
24 VDC
Brown
Blue
24 VDC
Blue
Brown
Black
Blue
Brown
Black
Brown
Blue
Black

17E2E
Pin Arrangement
E2E-X@D@-M@DC 2-wire Models
Note: The above pin arrangements conform to IEC standards.
Connector Self-
diagnostic
output
Opera-
tion
mode
Applicable
models Pin arrangement
M12 No NO E2E-X@D1-M1G@
E2E-X@-D1-
M1TGJ@U
(See note.)
E2E-X@D1-M1J-T
E2E-X@D1-M1
NC E2E-X@D2-M1G
E2E-X@-D2-
M1TGJ@U
(See note.)
E2E-X@D2-M1
Yes NO E2E-X@D1S-M1
M8 No NO E2E-X@D1-M3G
NC E2E-X@D2-M3G
Note: Terminals 2 and 3 are not used.
Load
Load
Load
or
Load
or
Note: 1. Terminals 1 and 2 are not used.
2. Terminals 3 and 4 has no
polarity.
Note: Terminals 1 and 2 are not used.
Load
Load
Note: Terminals 3 and 4 are not used.
Load
Load
Load
Load
Note: Terminal 1 is not used.
Note: Terminals 1 is not used.
Load
Load
(S
e
lf
-
di
agnost
i
c output
)
Note: Terminals 2 and 3 are not used.
Load
Load
Note: Terminals 3 and 4 are not used.
Load
Load

18 Inductive Sensors
E2E-X@E/F@-M@DC 3-wire Models
Connector Operation mode Applicable models Pin arrangement
M12 NO E2E-X@E1-M1
E2E-X@F1-M1
NC E2E-X@E2-M1
E2E-X@F2-M1
M8 NO E2E-X@E1-M3
E2E-X@F1-M3
NC E2E-X@E2-M3
E2E-X@F2-M3
Note: Terminal 2 is not used.
Load
Note: Terminal 2 is not used.
Load
Note: Terminal 4 is not used.
Load
Note: Terminal 4 is not used.
Load
Note: Terminal 2 is not used.
Load
Note: Terminal 2 is not used.
Load
Note: Terminal 4 is not used.
Load
Note: Terminal 4 is not used.
Load

19E2E
E2E-CR8C@/CR8B@/X1C@/X1B@-M5 DC 3-wire Models
E2E-X@Y@-M1 AC 2-wire Models
Connector Operation mode Applicable models Pin arrangement
M8-3pin NO/NC E2E-X1C@-M5
NO/NC E2E-X1B@-M5
Operation mode Applicable models Pin arrangement
NO E2E-X@Y1-M1
NC E2E-X@Y2-M1
DC
Load
1
4
3
DC
Load
1
4
3
Note: Terminals 1 and 2 are not used.
Load
Load
Note: Terminals 3 and 4 are not used.
Load
Load

20 Inductive Sensors

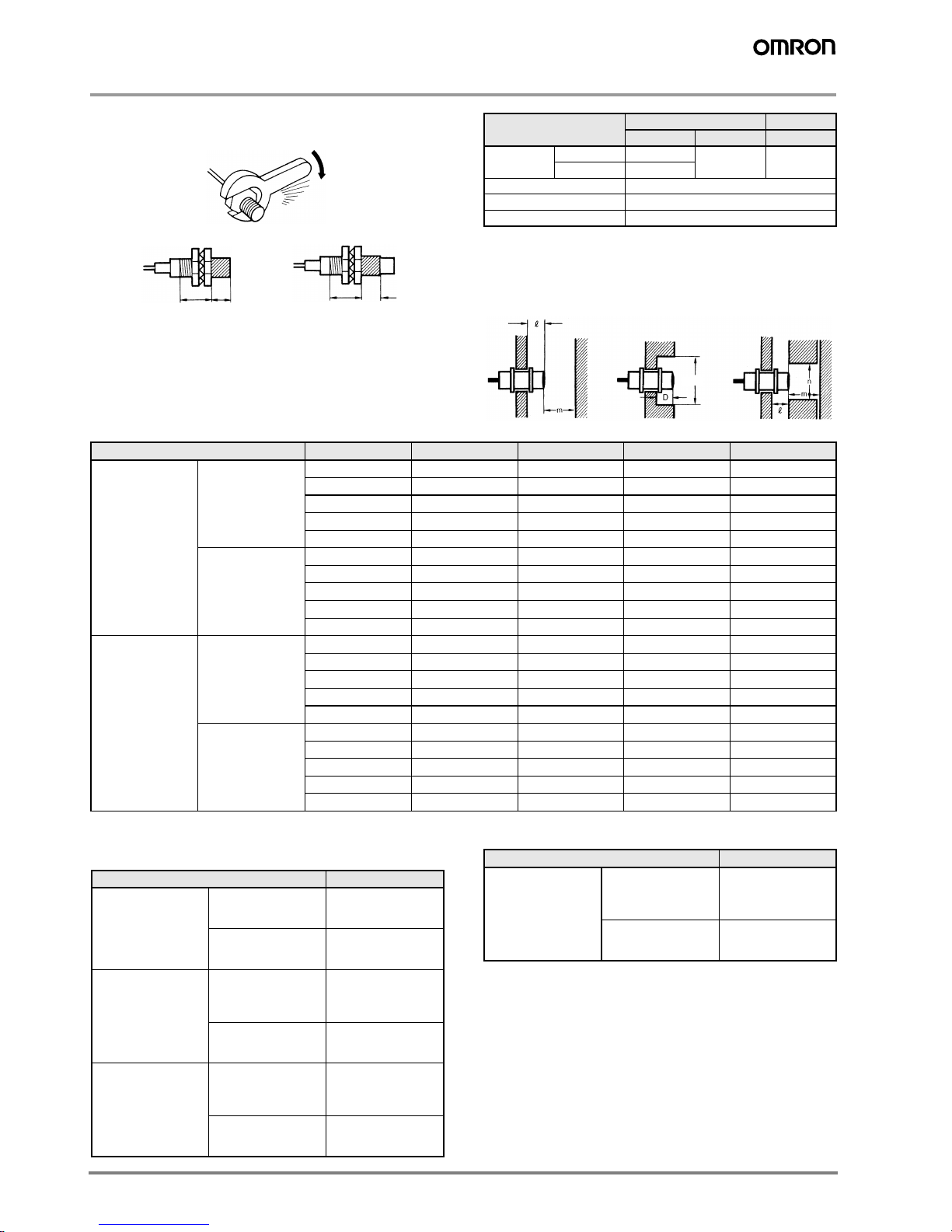

Precautions
Mounting
Do not tighten the nut with excessive force. A washer must be used
with the nut.
Note: The table below shows the tightening torques for part A and part B nuts.
In the previous examples, the nut is on the sensor head side (part B) and
hence the tightening torque for part B applies. If this nut is in part A, the
tightening torque for part A applies instead.
Influence of Surrounding Metal
When mounting the E2E within a metal panel, ensure that the clea-
rances given in the following table are maintained. Failure to main-
tain these distances may cause deterioration in the performance of
the sensor.
Relationship between Sizes and Models
E2E
Shielded Model Unshielded Model
Part B Part A Part B Part A
Model Part A Part B
Length Torque Torque
M8 Shielded 9 mm 9 N·m 12 N·m
Unshielded 3 mm
M12 30 N·m
M18 70 N·m
M30 180 N·m
d dia.
Model Item M8 M12 M18 M30
E2E-X@D@
DC 2-wire
E2E-X@T1
AC/DC 2-wire
Shielded l 0 mm 0 mm 0 mm 0 mm
d 8 mm 12 mm 18 mm 30 mm
D 0 mm 0 mm 0 mm 0 mm
m 4.5 mm 8 mm 20 mm 40 mm
n 12 mm 18 mm 27 mm 45 mm
Unshielded l 12 mm 15 mm 22 mm 30 mm
d 24 mm 40 mm 70 mm 90 mm
D 12 mm 15 mm 22 mm 30 mm
m 8 mm 20 mm 40 mm 70 mm
n 24 mm 40 mm 70 mm 90 mm
E2E-X@E@
E2E-X@F@
DC 3-wire
E2E-X@Y@
AC 2-wire
DC 3-wire
E2E2-X@Y@
AC 2-wire
Shielded l 0 mm 0 mm 0 mm 0 mm
d 8 mm 12 mm 18 mm 30 mm
D 0 mm 0 mm 0 mm 0 mm
m 4.5 mm 8 mm 20 mm 40 mm
n 12 mm 18 mm 27 mm 45 mm
Unshielded l 6 mm 15 mm 22 mm 30 mm
d 24 mm 40 mm 55 mm 90 mm
D 6 mm 15 mm 22 mm 30 mm
m 8 mm 20 mm 40 mm 70 mm
n 24 mm 36 mm 54 mm 90 mm
Model Model No.
M8 Shielded E2E-X2D@
E2E-X1R5E@/F@
E2E-X1R5Y@
Unshielded E2E-X4MD@
E2E-X2ME@/F@
E2E-X2MY@
M12 Shielded E2E-X3D@
E2E-X2E@/F@
E2E-X2Y@
E2E-X3T1
Unshielded E2E-X8MD@
E2E-X5ME@/F@
E2E-X5MY@
M18 Shielded E2E-X7D@
E2E-X5E@/F@
E2E-X5Y@
E2E-X7T1
Unshielded E2E-X14MD@
E2E-X10ME@/F@
E2E-X10MY@
M30 Shielded E2E-X10D@
E2E-X10E@/F@
E2E-X10Y@
E2E-X10T1
Unshielded E2E-X20MD@
E2E-X18ME@/F@
E2E-X18MY@
Model Model No.
