E3X-DA-S/E3C-LDA Series
High-speed, High-resolution
Analog Output Meets a Wide
Range of Applications
Features
Analog Output Models
Analog Control Output
Outputs at a voltage of 1 to 5 V depending on the incident
light level (digital display). Applicable to position control,
height distinction, and a variety of other applications.
High Speed, High Precision
Select the detection mode that best suits the application. High-
speed response of 80 µs (super-high-speed mode) enables use
when high-speed positioning is required.
Stabilizing APC Function
The built-in APC function monitors and controls the light emission
intensity. This helps to minimize fluctuating emission levels caused
by degradation of the emitter.
Easy Settings
Make settings easily and precisely while checking them on the
digital display. Use the Power Tuning function to make satura-
tion and other sensitivity adjustments with the press of a but-
ton.
E3X-DA@AN-S
Digital Fiber Amplifier
E3C-LDA@AN
Photoelectric Sensor
with Separate Digital
Amplifier (Laser-type)
Light emission intensity
Time
Without APC circuit
Press
To about 1/25
To about 5x
ON/OFF
Analog
Tablet height distinctionSheet meandering
Position control, height distinction, and other applications with analog output.
Select the detection mode (response speed, as high as 80 µs) to suit the application.
Easy, one-touch sensitivity setting with the Power Tuning function.
■
■
■
N E W

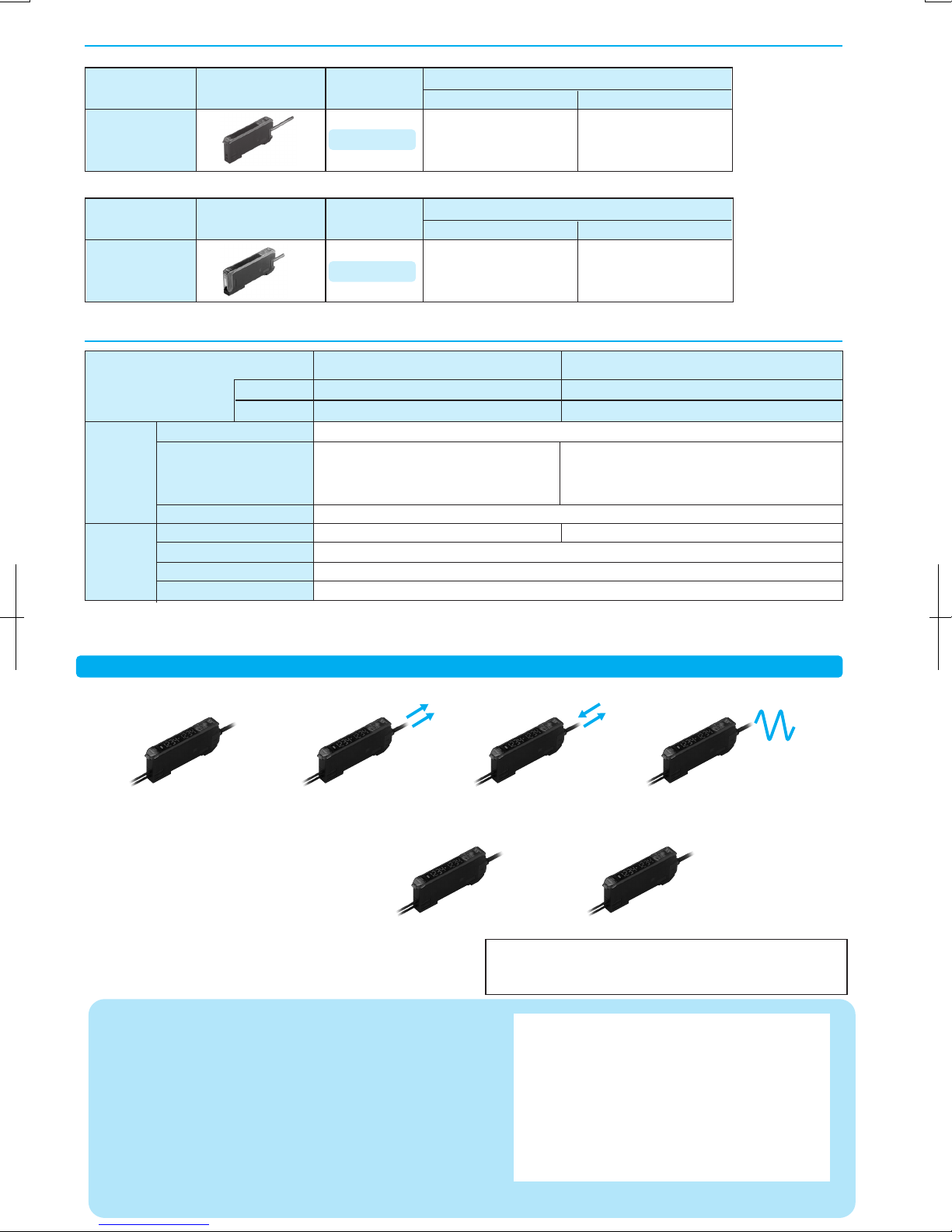

Ordering Information
Ratings and Specifications
A Full Line-up of Digital Fiber Amplifiers
NPN output PNP output
E3X-DA41AN-S
E3X-DA41AN-S E3C-LDA41AN
E3X-DA11AN-S
E3X-DA11AN-S E3C-LDA11AN
Pre-wired Models Analog output
Analog output
Type
■Digital Fiber Amplifier
■Photoelectric Sensor with Separate Digital Amplifier (Laser-type)
Appearance Type
NPN output PNP output
E3C-LDA41ANE3C-LDA11ANPre-wired Models
Type Appearance
Functions
Functions Type
Item
Type
Model Digital Fiber Amplifier Photoelectric Sensor with Separate
Digital Amplifier (Laser-type)
NPN output
PNP output
Analog
output
Response
time
Voltage output 1 to 5 VDC (with connected load of 10 kΩmin.)
Super-high-speed mode: 1.5% F.S.
High-speed mode: 1.5% F.S.
Standard mode: 1% F.S.
High-resolution mode: 0.75% F.S.
Super-high-speed mode: 4% F.S.
High-speed mode: 4% F.S.
Standard mode: 2% F.S.
High-resolution mode: 2% F.S.
0.3% F.S./˚C
Operate or reset: 80 µs Operate or reset: 100 µs
Operate or reset: 250 µs
Operate or reset: 1 ms
Control output
Repeat accuracy
Temperature characteristics
Super-high-speed mode
High-speed mode
Standard mode
Operate or reset: 4 ms
High-resolution mode
The Power Tuning function cannot be used in super-high-speed mode.
From high-speed to
long-distance applications
General-purpose models
For distinguishing a range
between two thresholds
Twin output models
For teaching with an input signal
External input models
Expands applications with analog output
Analog output models
Green, blue, and infrared
light sources are available
in addition to red.
E3X-DA@-S E3X-DA@TW-S E3X-DA@RM-S E3X-DA@AN-S
Simple functions and operation
Limited-function models
Threshold-compensating amplifier
Advanced ATC models
E3X-DA@SE-S E3X-DA@AT-S
Other performance items and functions are the same as those of general-purpose models.
For details, refer to the data sheet for the E3X-DA-S (Cat. No. E336) and the E3L-LDA (Cat. No. E338).
Note 1:
Note 2:
Authorized Distributor:
Note: Specifications subject to change without notice. Cat. No. E358-E1-01
Printed in Japan
0305-2M (0305) (B)
Note: Do not use this document to operate the Unit.
