Omron IntelliSense HEM-650 User manual

Instruction Manual
ESPAÑOL
ENGLISH
Automatic Blood Pressure Monitor
with A.P.S.®
Model HEM-650
HEM-650-IM-US-8012 12/7/05 10:22 AM Page 1

2
Before Using the Monitor
Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Important Safety Notes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Before Taking a Measurement . . . . . . . . . . . . . . . . . . . . . . . 5
Operating Instructions
Know Your Unit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Unit Display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Irregular Heartbeat Symbol . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Battery Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Advanced Positioning Sensor . . . . . . . . . . . . . . . . . . . . . . . . 9
Position Sensor Alarm . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Wrist Measurement Selection . . . . . . . . . . . . . . . . . . . . . . . 10
Setting the Date and Time . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Applying the Wrist Cuff...........................13
Taking a Measurement ..............................14

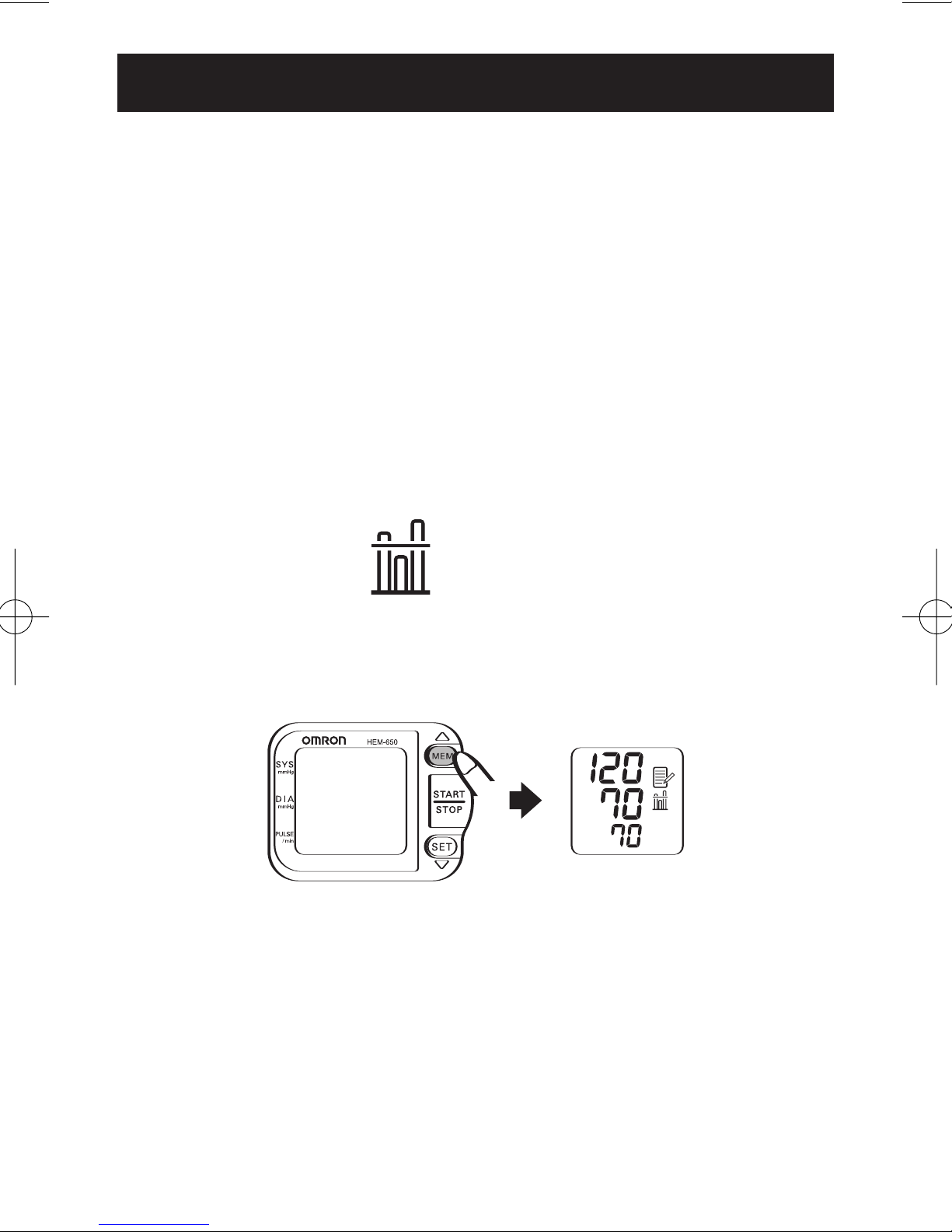

Using the Memory Function . . . . . . . . . . . . . . . . . . . . . . . . .16
Careand Maintenance
Care and Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

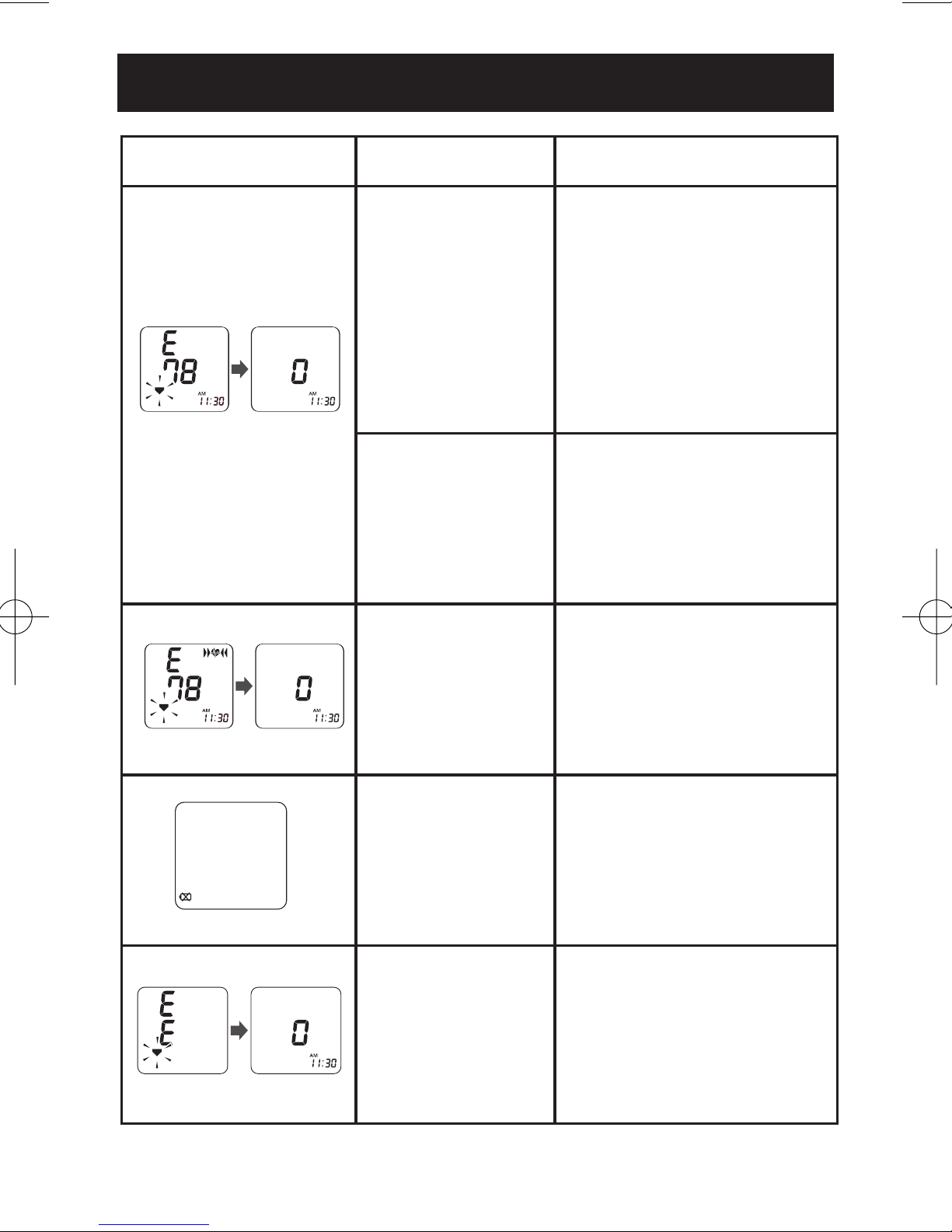

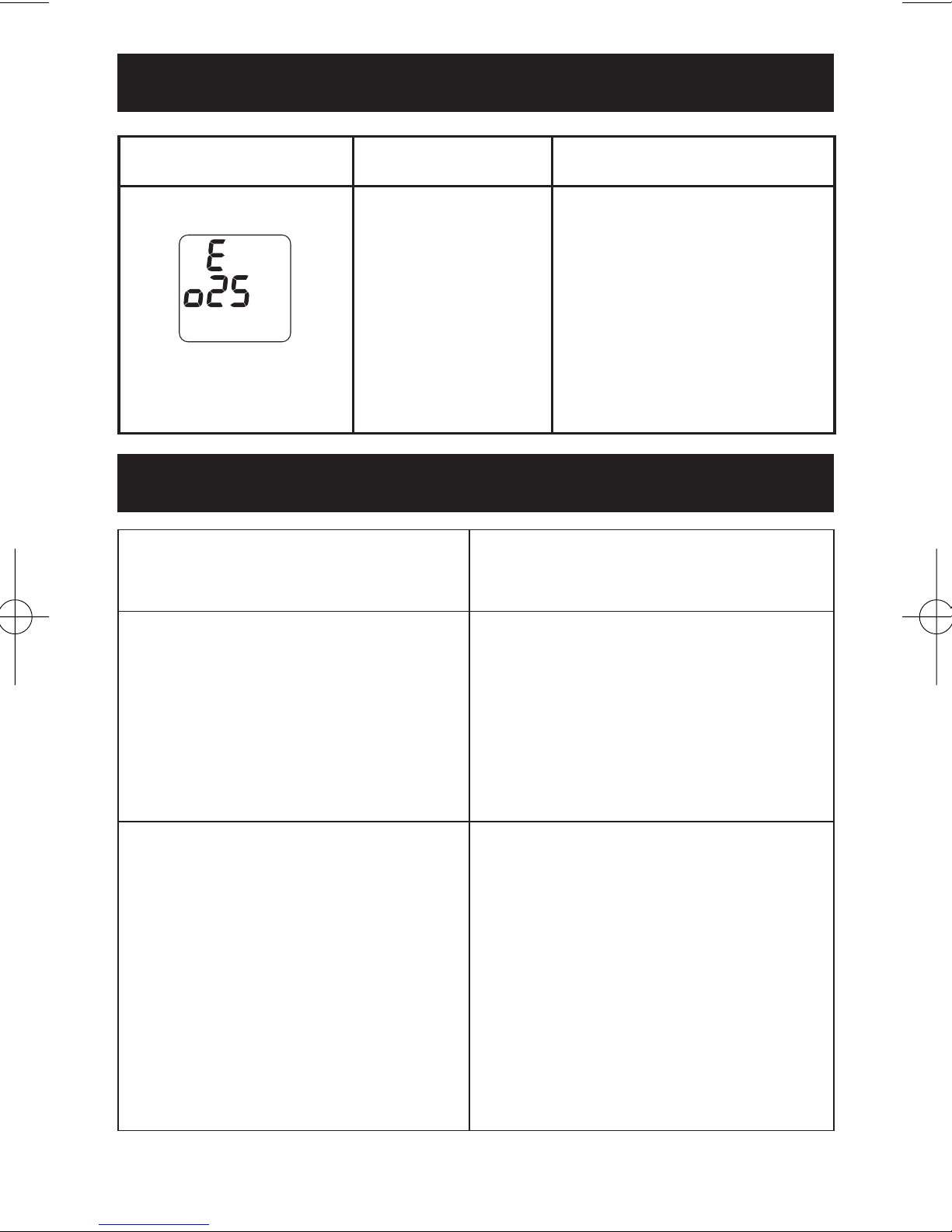

Error Indicators and Troubleshooting Tips . . . . . . . . . . . . . 19
FCC Statement ..................................21
Warranty Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Introduction
TABLE OF CONTENTS
HEM-650-IM-US-8012 12/7/05 10:22 AM Page 2

INTRODUCTION
3
SAVE THESE INSTRUCTIONS
Thank you for purchasing the OMRON®HEM-650 Automatic
Wrist Blood Pressure Monitor with A.P.S.®.
Fill-in for future reference
DATE PURCHASED: ________________
SERIAL NUMBER: __________________
Staple your purchase receipt here.
The monitor is compact and easy-to-use at home, at work, and
during travel. Perfect for people who frequently monitor their
own blood pressure.
OMRON®digital blood pressure monitors use the oscillometric method
of blood pressure measurement. This means the monitor detects your
blood’smovement through your artery and converts the movements
into a digital reading. An oscillometric monitor does not need a
stethoscope so the monitor is simple to use.
Clinical research has proven a direct relationship between blood
pressure in the wrist and blood pressure in the arm. Changes in
wrist blood pressure reflect changes in arm blood pressure
because the arteries in the wrist and the arm are close to each
other. Frequently measuring the blood pressure in your wrist
will provide your physician with an accurate indication of
changes in your blood pressure.
The OMRON®HEM-650 Automatic Wrist Blood Pressure Monitor
with A.P.S.®is intended for home use.
HEM-650-IM-US-8012 12/7/05 10:22 AM Page 3

IMPORTANT SAFETY NOTES
4
To assure the correct use of the product basic safety measures
should always be followed including the precautions listed below:
þConsult your physician before measuring blood pressure at
the wrist if you have any of the following conditions:
severe hypertension, severe diabetes, severe arteriosclerosis,
severe kidney disease, or vascular disease that may
compromise circulation.
þRead all information in the instruction book and any other
literature included in the box before using the unit.
þContact your physician for specific information about your blood
pressure. Follow the instructions of your healthcare provider.
þOperate the unit only as intended. Do not use for
any other purpose.
þThe unit is intended for use in measuring blood pressure and
pulse rate in adult patient population. Do not use on infants.
þDo not use a cellular phone near the unit. It may result in
operational failure.
þChanges or modifications not approved by Omron Healthcare
will void the user warranty. Do not disassemble or attempt to
repair the unit or components.
HEM-650-IM-US-8012 12/7/05 10:22 AM Page 4

BEFORE TAKING A MEASUREMENT
5
1. Avoid eating, drinking alcohol, smoking, exercising and bathing
for 30 minutes before taking a measurement. Rest for at least 15
minutes before taking the measurement.
2. Stress raises blood pressure. Avoid taking measurements during
stressful times.
3. The cuff can be applied to your left or right wrist. Always
measure your blood pressure on the same wrist.
4. Measurements should be taken in a quiet place.
5. Position the unit at heart level throughout the measurement.
6. Remain still and do not talk during the measurement.
7. Keep a record of your blood pressure and pulse readings for your
physician. A single measurement does not provide an accurate
indication of your true blood pressure. You need to take and
record several readings over a period of time. Try to measure
your blood pressure at the same time each day for consistency.
8. Wait 2-3 minutes between measurements. The wait time allows
the arteries to return to the condition prior to taking the blood
pressure measurement. You may need to increase the wait time
depending on your individual physiological characteristics.
HEM-650-IM-US-8012 12/7/05 10:22 AM Page 5

6
KNOW YOUR UNIT
Main Unit
Display
MEM Button
START/STOP Button
SET Button
Wrist Cuff
Battery Compartment
Accessories
Two “AAA” Alkaline Batteries Storage Case
HEM-650-IM-US-8012 12/7/05 10:22 AM Page 6

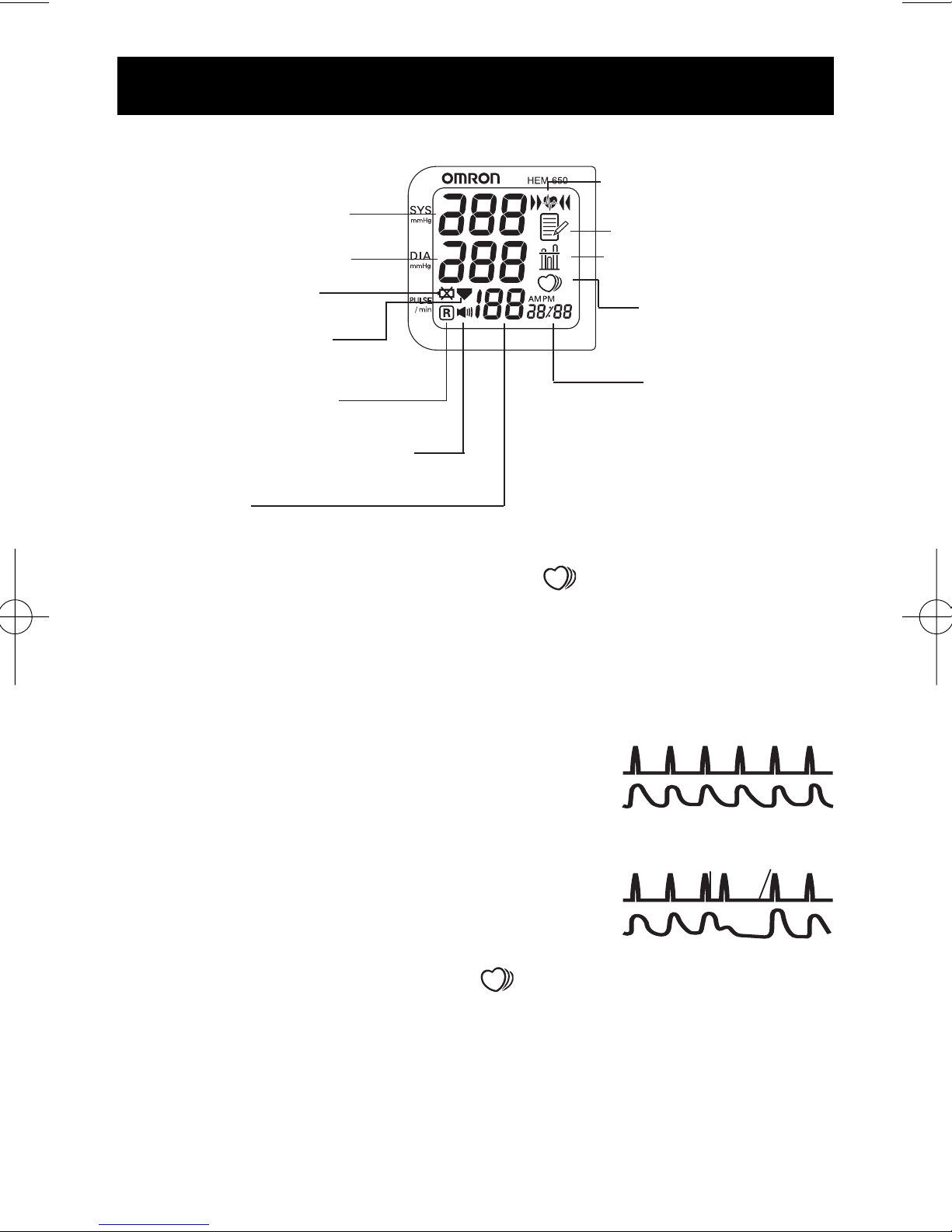

UNIT DISPLAY
7
Battery Low Symbol
Heart Symbol
Memory Value Symbol
Average Value Symbol
Position Sensor Alarm Symbol
Pulse Display
Diastolic Blood Pressure
Systolic Blood Pressure
Date/Time Display
Right Wrist
Measurement Symbol
Cuff Deflation Symbol
Irregular Heartbeat
Symbol
IRREGULAR HEARTBEAT SYMBOL ( )
When the monitor detects an irregular rhythm two or more times
during the measurement, the Irregular Heartbeat Symbol
will appear on the display with the measurement values.
An irregular heartbeat rhythm is
defined as a rhythm that varies by
less than 25% from the average
rhythm or 25% more than the
average rhythm detected while the
monitor is measuring the systolic
and diastolic blood pressure.
If the Irregular Heartbeat Symbol ( ) displays with your
measurement results we recommend you consult your physician.
Follow the directions of your doctor.
Normal Heartbeat
Irregular Heartbeat
Pulse
Blood
pressure
Pulse
Blood
pressure
Short Long
HEM-650-IM-US-8012 12/7/05 10:22 AM Page 7

BATTERY INSTALLATION
1. Press both sides of the battery cover and
lift the cover off in the direction of the arrow.
2. Install two “AAA” Alkaline Batteries in the
battery compartment, so that + (positive)
and - (negative) polarities match the polarities
of the battery compartment as indicated.
3. Replace the battery cover. Make sure the
battery cover is securely in place.
BATTERY REPLACEMENT
Initial Set-Up
When the Low Battery Symbol appears on the display screen
remove all the batteries. Replace with two new batteries at the same
time. When the Low Battery Symbol blinks a brief period of usage
remains. Long life alkaline batteries are recommended.
NOTES:
•Measurement values stored in the memory will not be deleted
during battery replacement.
•After replacing the batteries, reset the date and time. Refer to page
11, Setting the Date and Time.
•Dispose of batteries according to applicable local regulations.
MEM
SET
START
STOP
MEM
SET
START
STOP
LowBattery Symbol
MEM
SET
START
STOP
8
HEM-650-IM-US-8012 12/7/05 10:22 AM Page 8

9

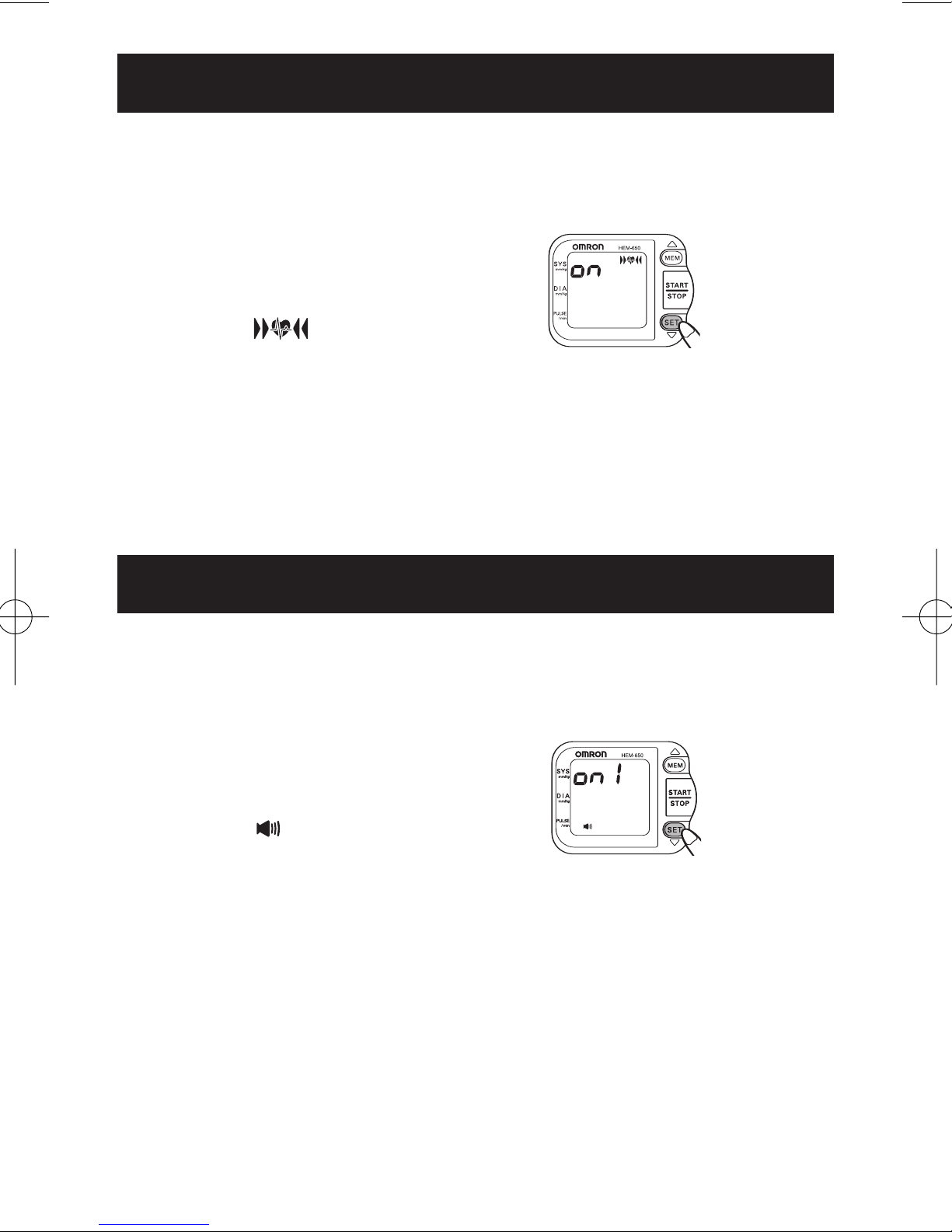

ADVANCED POSITIONING SENSOR
The Advanced Positioning Sensor, A.P.S.®will assure you that the
unit is in the correct position before it starts to take a measurement.
1. Press the SET button
while the power is turned
off. The Position Sensor
symbol ( ) will
appear on the display.
2. Press the MEM button to select “on” or “oFF”. Press the
START/STOP button to save this selection. When the feature
is “on” the symbols will appear on the display. The heart symbol
will begin to flash when your wrist is in the correct position.
POSITION SENSOR ALARM
The Sensor Alarm emits sound to help you place your wrist in the
correct position.
1. Press the SET button twice
while the power is turned off.
The Position Sensor Alarm
symbol ( ) will appears on
the display.
The alarm set “on 1” emits a series of blips if your wrist is too
far away from the correct measuring position and beeps slowly
once your wrist is in the correct position. When “on 2” is set the
alarm only beeps once your wrist is in the correct position.
2. Press the MEM button to select “on 1”, “on 2” or “oFF”.
Press the START/STOP button to savethis selection.
HEM-650-IM-US-8012 12/7/05 10:22 AM Page 9

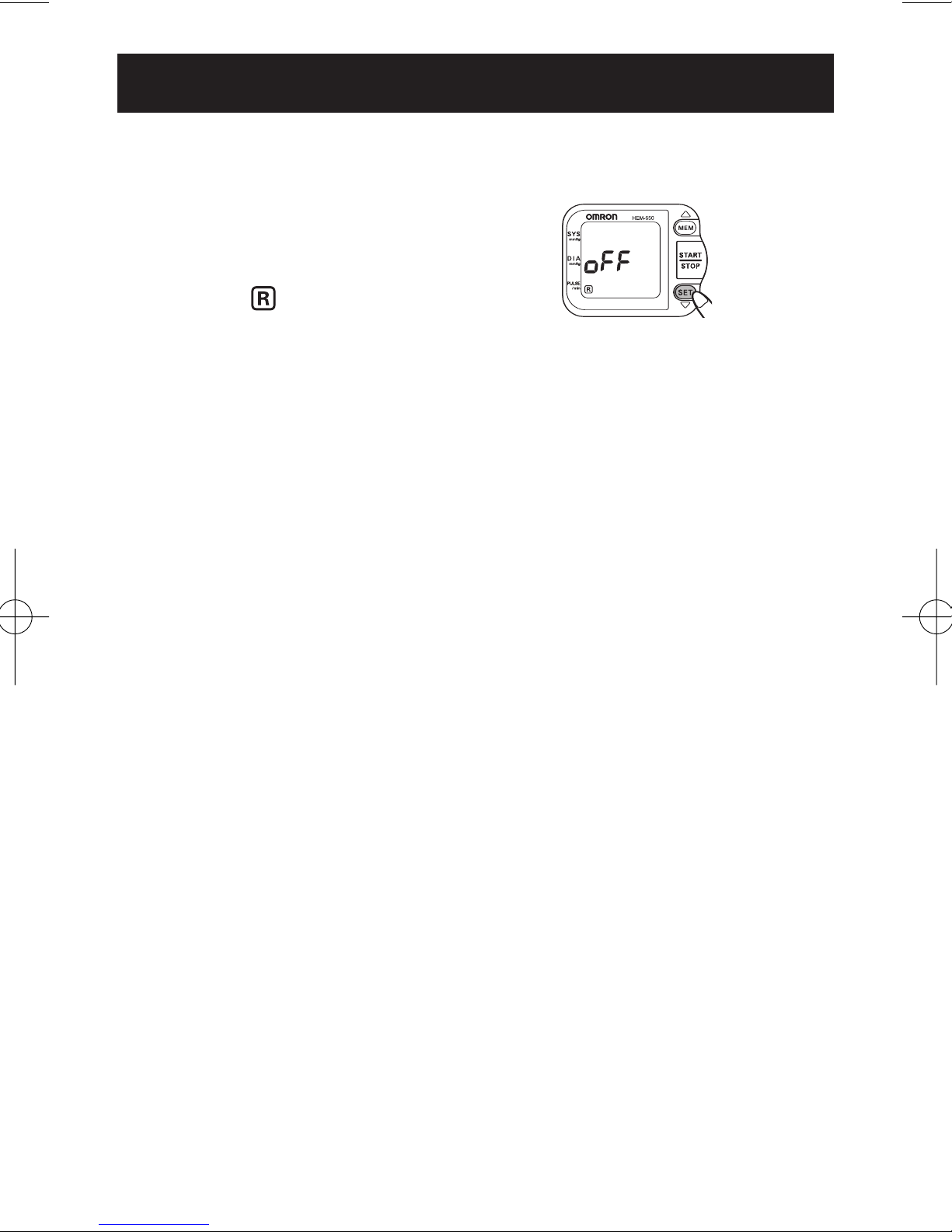

WRIST MEASUREMENT SELECTION
Blood Pressure Measurements can be taken on the left or right wrist.
1. Press the SET button three (3)
times while the power is turned
off. The Right Wrist Measurement
symbol ( ) will appear on
the display.
Select “on” to measure your blood pressure using your
right wrist.
Select “oFF” to measure your blood pressure using your
left wrist.
2. Press the MEM button to select “on” or “oFF”.
Press the START/STOP button to save this selection.
10
HEM-650-IM-US-8012 12/7/05 10:22 AM Page 10

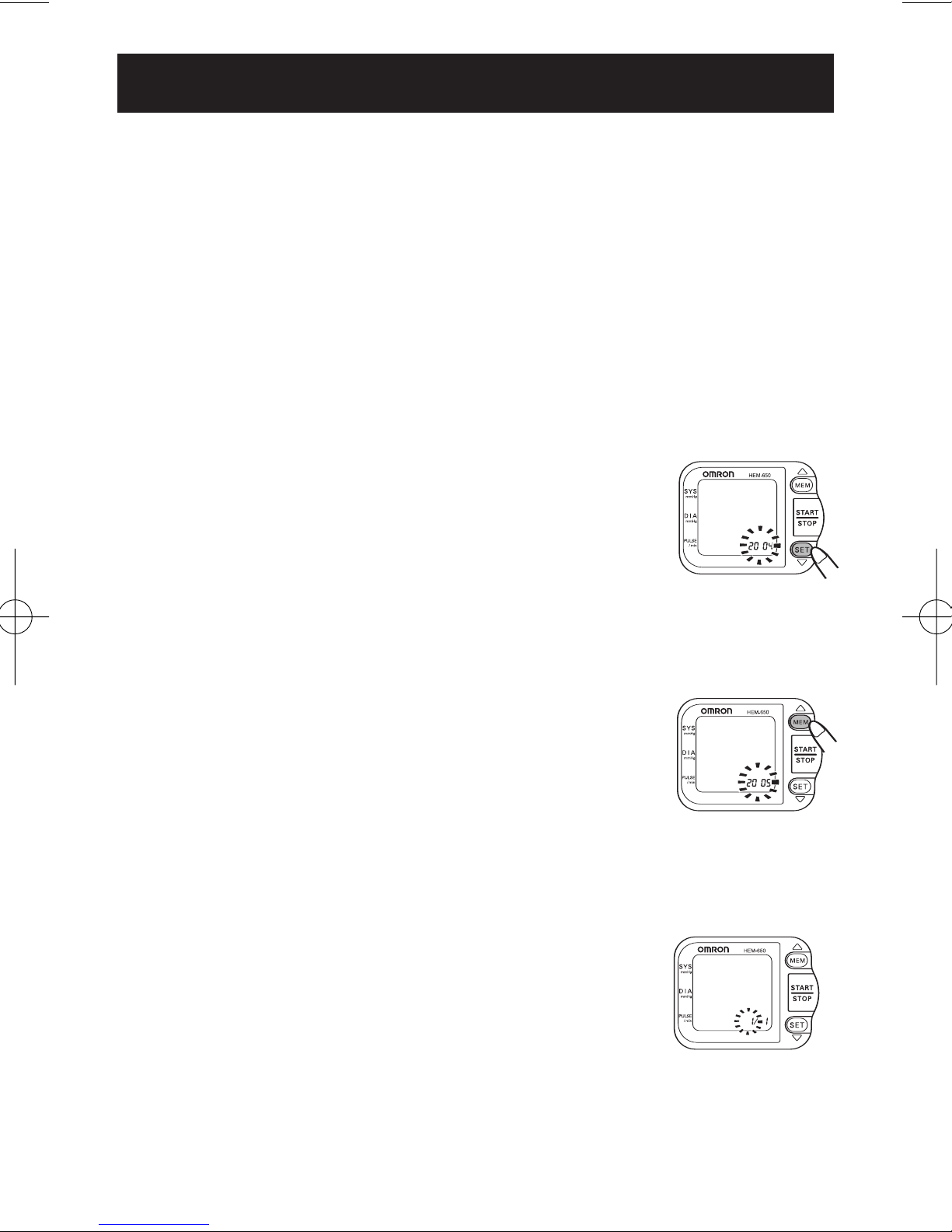

SETTING THE DATE AND TIME
The Blood Pressure Monitor stores up to 90 measurement values
with the date and time. The monitor also calculates an average
reading based on the last three measurement values.
Set the monitor to the current date and time before taking a
measurement for the first time. If the current date and time is not
set, the default date and time will display. The measurement values
will be stored in the memory with the wrong date and time.
1. TO START THE SETTING
Press the SET button four (4) times while
the power is turned off.
The will year flash on the display.
2. SETTING THE YEAR
The year can be set between 2004 and 2030.
When the display reaches 2030, it will return
to 2004.
Press the MEM button to advance by increments
of one year.
NOTE: Press and hold the MEM button to increase
the values faster.
Press the SET button to set the current year.
The month flashes on the display.
11
HEM-650-IM-US-8012 12/7/05 10:22 AM Page 11

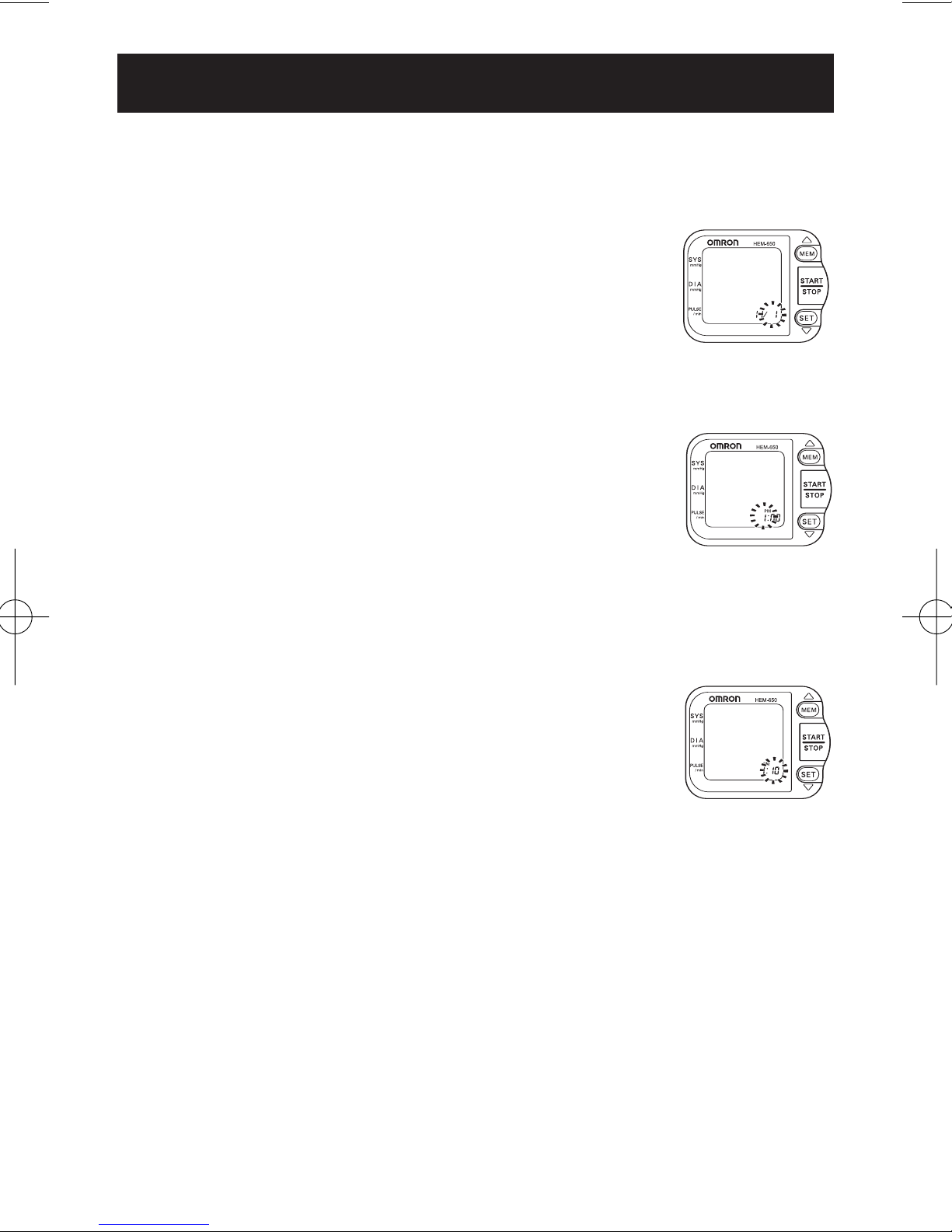

3. SETTING THE MONTH
Press the MEM button to advance by increments of one month.
Press the SET button to set the current month.
The day flashes on the display.
4. SETTING THE DAY
Press the MEM button to advance by increments of one day.
Press the SET button to set the current day.
The hour flashes on the display.
5. SETTING THE HOUR
The time is set using AM or PM.
Press the MEM button to advance by increments
of one hour.
Press the SET button to set the current hour.
The minutes flash on the display.
6. SETTING THE MINUTE
Press the MEM button to advance by increments of one minute.
Press the SET button to set the current minute.
The year flashes on the display.
7. Press the START/STOP button to save this selection.
SETTING THE DATE AND TIME
12
HEM-650-IM-US-8012 12/7/05 10:22 AM Page 12

13
APPLYING THE WRIST CUFF
Wrapping the wrist cuff is one of the most important points for
taking a correct measurement.
APPLYING THE CUFF ON THE LEFT WRIST
1. Roll up sleeve. Make sure your sleeve is not
rolled up too tightly on your arm. This may
constrict the flow of blood in your arm.
2. Wrap the cuff directly against your skin.
Do not apply over clothing. Place the cuff over
your left wrist with your left thumb facing upward.
3. Position the cuff leaving a clearance of approximately
1/2 to 1 inch between the cuff and the bottom of your palm.
4. Hold the bottom part of the cuffand wrap it
around the wrist so it fits comfortably and
securely around your wrist.
NOTE: Make sure the wrist cuff does not
cover the protruding part of the wrist bone
on the outside of the wrist.
5. Fold the remaining part of the wrist cuffback
out of the way.
APPLYING THE CUFF ON THE RIGHT WRIST
When taking a measurement using the right
wrist position the cuffas shown in the
illustration.
Make sure the right wrist measurement symbol
is displayed. Refer to page 10, Wrist
Measurement Selection to select “on”.
MEM
SET
ST
ART
STOP
MEM
SET
ST
ART
STOP
MEM
SET
START
STOP
MEM
SET
START
STOP
HEM-650-IM-US-8012 12/7/05 10:22 AM Page 13

TAKING A MEASUREMENT
1. Sit comfortably in a chair with your feet
flat on the floor.
2. Press the START/STOP button.
3. Hold your arm across your chest at heart level.
Hold your elbow firmly to avoid body movement.
Sit still and do not talk or move during
the measurement.
4. Description of position sensor activity during measurement.
Adjust the height of your wrist until the position sensor alarm beeps
slowly. When the monitor senses that your arm is in the correct
position, the wrist cuff will automatically start to inflate and
measurement starts.
NOTE: If your wrist is too lowor too high, the position sensor
alarm will emit a series of two short bleeps similar to
aheartbeat.
The current time is displayed and the Heart Symbol starts to flash
while the cuff is inflating.
Hold the monitor at heart level until the measurement is completed.
NOTE: To stop the inflation or measurement, push the
START/STOP button. The monitor will stop inflating, start
deflating, and will turn off.
Blip Blip
14
Blip Blip
Blip Blip
HEM-650-IM-US-8012 12/7/05 10:22 AM Page 14

15
TAKING A MEASUREMENT
5. After the monitor has detected your blood pressure and pulse
rate, the cuff automatically deflates. Your blood pressure and
pulse rate are displayed.
NOTE: The time and date of the measurement are
displayed alternately.
6. Press the START/STOP button
to turn the monitor off.
NOTE: The monitor will automatically turn off after two minutes.
IRREGULAR HEARTBEAT FEATURE
The irregular heartbeat feature automatically determines if the
measurement is usable.
If the measurement results are affected by irregular heartbeats but
the result is valid, the result is shown together with the Irregular
Heartbeat Symbol ( ).
If the irregular heartbeats cause the measurement to be invalid, no
result is shown. If the Irregular Heartbeat Symbol ( ) is shown
after you have taken a measurement, repeat the measurement.
If the Irregular Heartbeat Symbol ( ) is shown frequently, please
notify your doctor.
Alternating Display
HEM-650-IM-US-8012 12/7/05 10:22 AM Page 15

Every time you complete a measurement the monitor stores the
blood pressure and pulse rate in the memory. The Blood Pressure
Monitor automatically stores up to 90 measurement values. When 90
sets of measurement values are stored in the memory, the oldest
record is deleted to save the most recent measurement values.
The monitor also calculates an average reading based on the values
of the three most recent measurements taken. If the date and time is
not set, the measurement values will not be stored in the memory
correctly.
TO DISPLAY THE AVERAGE VALUE
1. Press the MEM button. The average value symbol will display
on the screen with the average reading.
USING THE MEMORY FUNCTION
Average Value Symbol
16
HEM-650-IM-US-8012 12/7/05 10:22 AM Page 16

TO DISPLAY THE MEASUREMENT VALUES
The date and time is alternately displayed with the measurement
values.
1. Press the MEM button to display the measurement values
stored in the memory beginning with the most recent values to
the oldest values.
Press the SET button to display the measurement values stored
in the memory beginning with the oldest values to the most
recent values.
NOTES:
•Press the button repeatedly to display the next values.
•Press and hold the button to display the values faster.
2. Press the START/STOP button to turn the power off.
TO DELETE ALL VALUES STORED IN THE MEMORY
You cannot partially delete records stored in the memory. All records
will be deleted.
1. Press and hold the MEM button and START/STOP button
simultaneously for more than 2 seconds.
17
USING THE MEMORY FUNCTION
HEM-650-IM-US-8012 12/7/05 10:22 AM Page 17

CARE AND MAINTENANCE
To keep your Automatic Wrist Blood Pressure Monitor in the best condition
and protect the unit from damage follow the directions listed below:
Clean the monitor with a soft dry cloth. Do not use any abrasive
or volatile cleaners. Do not attempt to wash the cuff. Never immerse the
monitor or any components in water.
Store the monitor in a safe and dry location. Do not fold the cuff tightly.
Do not subject the monitor to extreme hot or cold temperatures, humidity
and direct sunlight. Store the monitor in the storage case when not in use.
Avoid subjecting the monitor to strong shocks or vibrations, such as
dropping the unit on the floor.
Remove the batteries if the unit will not be used for three months or longer.
Always replace all the batteries with new ones at the same time.
Use the unit consistent with the instruction provided in this manual.
Use only authorized parts and accessories.
18
HEM-650-IM-US-8012 12/7/05 10:22 AM Page 18

19
ERROR INDICATORS
SYMBOL CAUSE CORRECTION
After several seconds
Movement during
measurement.
Press the START/STOP
button to turn the unit off.
Remove the monitor from
your wrist. Refer to
“Taking a Measurement”
on page 14.
Wait 2-3 minutes.
Take another measurement.
The cuff is not
fastened securely.
Remove the monitor from
your wrist. Refer to
“Applying the Wrist Cuff”
on page 13.
Wait 2-3 minutes.
Take another measurement.
Wrist is not in the
correct position.
Refer to “Taking a
Measurement” on page 14.
Make sure the wrist
measurement selection is
correct. Refer to page 10.
Batteries are worn.
Replace the two “AAA”
batteries. Refer to
“Battery Installation”
on page 8.
After several seconds
Cuff
over-inflated.
Repair service required.
Refer to the warranty
information on page 22.
HEM-650-IM-US-8012 12/7/05 10:22 AM Page 19

ERROR INDICATORS
SYMBOL CAUSE CORRECTION
Abnormal
unit function.
Repair service required.
Refer to “warranty
information” on page 22.
20
TROUBLESHOOTING TIPS
PROBLEM CAUSE
No display appears on the unit
when the START/STOP button
is pressed.
Replace worn batteries.
Check the battery installation for
proper placement of the battery
polarities.
Measurements values appear
too high or too low.
Blood pressure reading varies
constantly. Many factors
including stress, time of day,
howyou apply the cuff, may
affect your blood pressure
reading. Review the sections
“Before Taking a Measurement”,
“Applying the Wrist Cuff” and
“Taking a Measurement”.
HEM-650-IM-US-8012 12/7/05 10:22 AM Page 20
