INSTRUCTION MANUAL
SELF TAKING
BLOOD PRESSURE MONITOR
Model HEM-18
Model HEM-18S
ENGLISH ESPAÑOL
302390_HEM-18_Q7_E_SP_r2.qxd:301215 HEM-18 IM A 12/3/10 3:36 PM Page

2
TABLE OF CONTENTS
Introduction .............................................................................................. 2
Important Safety Notes ............................................................................ 3
Unit Assembly .......................................................................................... 4
Before Taking a Measurement ................................................................ 6
Taking a Measurement.............................................................................. 7
Care and Maintenance ............................................................................ 10
Limited Warranty .................................................................................... 11
Blood Pressure Log ................................................................................ 12
Thank you for purchasing the Omron Self Taking Blood Pressure
Monitor, Model HEM-18 series.
The Omron Model HEM-18 series come with the following components:
• Aneroid Gauge
• Standard Size Adult Arm Cuff (fits 9"-13" in circumferences) with
attached Stethoscope (Chestpiece)
• Stethoscope Binaural
• Inflation Bulb and Valves
• English/Spanish Instruction Manaual
• Storage Case
The Omron Self Taking Blood Pressure Monitor is intended for
home use.
INTRODUCTION
SAVE THESE INSTRUCTIONS
302390_HEM-18_Q7_E_SP_r2.qxd:301215 HEM-18 IM A 12/3/10 3:36 PM Page

SAFETY SYMBOLS USED IN THIS INSTRUCTION MANUAL
3
IMPORTANT SAFETY NOTES
To assure the correct use of the product, basic safety measures should always be
followed including the warnings and cautions listed in this instruction manual.
WARNING Indicates a potentially hazardous situation which, if not
avoided, could result in death or serious injury.
CAUTION Indicates a potentially hazardous situation which, if not
avoided, may result in minor or moderate injury to the user
or patient or damage to the equipment or other property.
Contact your physician for specific information about your blood pressure.
Self-diagnosis and treatment using measured results may be dangerous.
Follow the instructions of your physician or licensed healthcare provider.
DO NOT adjust medication based on measurement results from this blood
pressure monitor. Take medication as prescribed by your physician. Only
a physician is qualified to diagnose and treat High Blood Pressure.
The monitor is not intended to be a diagnostic device.
Read all of the information in the instruction manual and any other
literature in the box before operating the unit.
Failure to assemble the parts correctly may result in injury or an incorrect
reading.
Make sure the metal D-ring does not pinch your skin.
This device is intended for use in measuring blood pressure in the adult
population.
Before you put the stethoscope binaural in your ears make sure the eartips
are securely fastened to the binaural.
Operate the device only as intended. Do not use the device for any other
purpose.
Dispose of the device, components and optional accessories according to
applicable local regulations. Unlawful disposal may cause environmental
pollution.
Changes or modification not approved by the manufacturer will void the
user warranty. Do not disassemble or attempt to repair.
302390_HEM-18_Q7_E_SP_r2.qxd:301215 HEM-18 IM A 12/3/10 3:36 PM Page

4
UNIT ASSEMBLY
HOW TO FOLD THE CUFF
The cuff should already be folded through the metal D-ring when
you remove the cuff from the box. If the cuff is not prefolded, lay
the cuff flat in front of you. Place the metal D-ring on your left.
The stethoscope faces up. Pull the end of the cuff through the metal
D-ring. When the cuff is folded correctly, the hook and pile material
faces the outside of the cuff loop.
HOW TO ASSEMBLE THE UNIT
Lay the parts out as illustrated on the next page. Refer to the illustration
to help you put the unit together.
Follow these four easy steps:
1Attach the gauge to tubing on the left.
2Attach the inflation bulb to the tubing on the right.
3Attach the single end of the Y-tubing to the stethoscope chestpiece.
4Attach the double end of the Y-tubing to the binaural.
302390_HEM-18_Q7_E_SP_r2.qxd:301215 HEM-18 IM A 12/3/10 3:36 PM Page

5
UNIT ASSEMBLY
Hook material
Pile material
Gauge
Inflation bulb
Binaural
Chest piece
(Stethoscope)
D-ring
Y-tubing
1
2
3
4
Deflation
valve
302390_HEM-18_Q7_E_SP_r2.qxd:301215 HEM-18 IM A 12/3/10 3:36 PM Page

6
1. Avoid eating, drinking alcohol, smoking, exercising and bathing
for 30 minutes before taking a measurement. Rest for at least 15
minutes before taking the measurement.
2. Stress raises blood pressure. Avoid taking measurement during
stressful times.
3. Measurements should be taken in a quiet place.
BEFORE TAKING A MEASUREMENT
302390_HEM-18_Q7_E_SP_r2.qxd:301215 HEM-18 IM A 12/3/10 3:36 PM Page

7
TAKING A MEASUREMENT
1. Make sure the parts are securely and correctly assembled.
2. Sit on a chair with your feet flat on the floor. Rest your left arm on a
table so that the cuff is at the same level as your heart. Remain still
and do not talk during the measurement.
3. Remove tight fitting clothing from your left arm.
CAUTION: Failure to assemble the parts correctly may result in
injury or an incorrect reading.
4. Press two fingers one inch above the bend of
your elbow on the inside of your arm. You may
feel the pulse of the brachial artery. Even if
you do not feel your pulse, the stethoscope will
allow you to hear the pulse sounds.
5. Slip the cuff up your arm. Place the bottom
edge of the cuff one-half inch above the
elbow. Adjust the cuff so the chestpiece
sits on the inside of the arm over your
brachial artery.
6. Pull the end of the cuff downward until the
cuff fits snugly.
CAUTION: Make sure the metal D-ring
does not pinch your skin.
Press the hook material firmly against the pile
material. Make sure the chestpiece sits over the
brachial artery.
302390_HEM-18_Q7_E_SP_r2.qxd:301215 HEM-18 IM A 12/3/10 3:36 PM Page

8
TAKING A MEASUREMENT

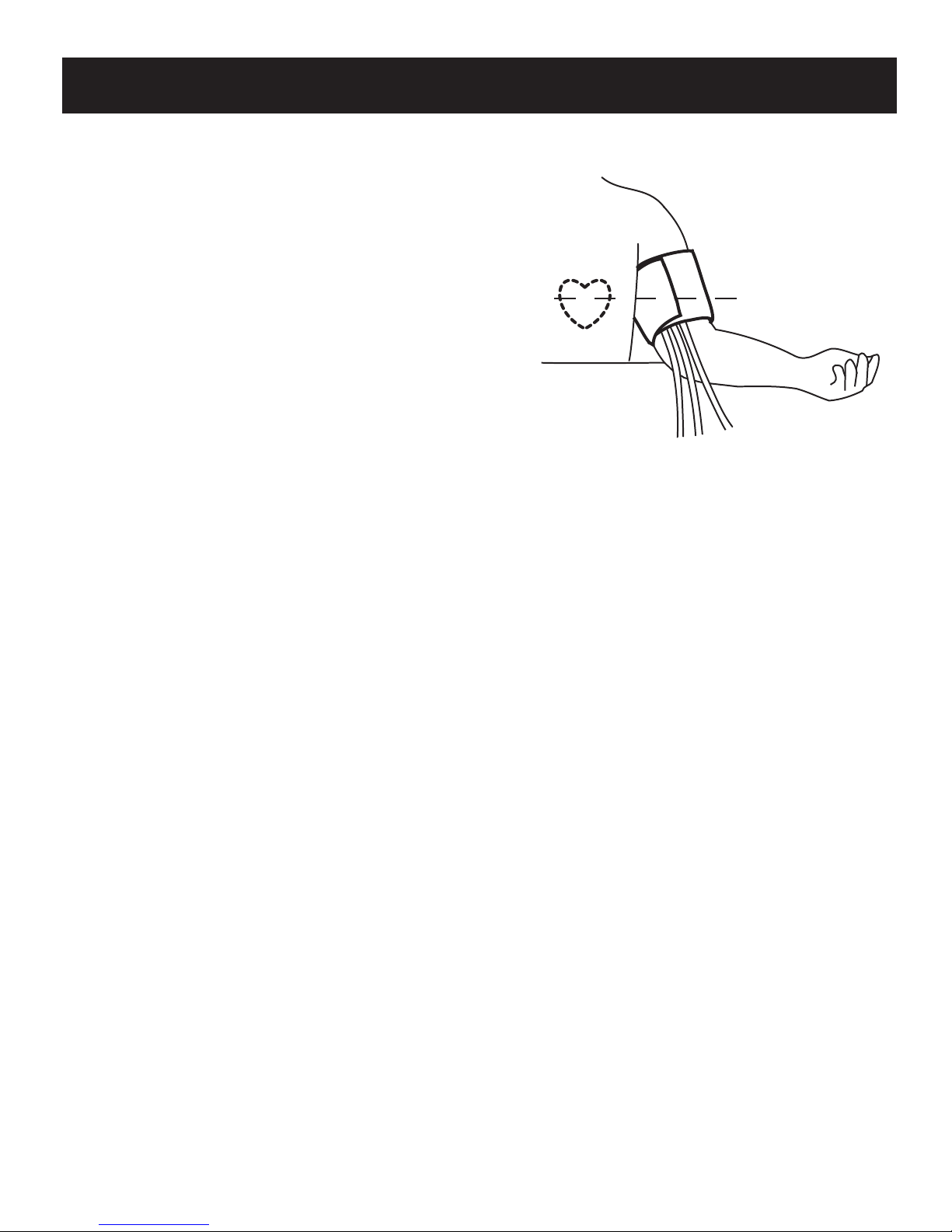

7. Place your arm on a table so the cuff is at the
same level as your heart.
CAUTION: Before you put the stethoscope
binaural in your ears make sure the
eartips are securely fastened to the binaural.
8. Insert the eartips into your ears. Adjust the metal binaural for
comfort.
9. Clip the gauge to a hard cover book on the table
in front of you. Hold the inflation bulb in your
right hand. Close the air deflation valve attached
to the inflation bulb by turning the valve clockwise.
10. To inflate the cuff, slowly and steadily pump the inflation bulb.
NOTE: If you know your systolic reading, pump the inflation bulb
until the needle on the gauge reaches approximately 50
mmHg above your average systolic reading. If you do not
know your systolic reading, pump the inflation bulb until the
needle on the gauge reaches 180 mmHg.
CAUTION: DO NOT inflate the cuff above
280 mmHg. You may damage the
unit or cause personal injury. If you
are unsure, consult your healthcare
provider for the correct inflation
level.
302390_HEM-18_Q7_E_SP_r2.qxd:301215 HEM-18 IM A 12/3/10 3:36 PM Page

9
TAKING A MEASUREMENT
11. Slowly open the air deflation valve
by turning it counterclockwise.
Release the air at a rate of 2 mmHg
per second.
12. Listen carefully for your pulse beat.
Watch the gauge needle. When you
hear the first thumping sound note
the reading on the gauge.
This is your SYSTOLIC blood
pressure value.
13. When you no longer hear any sounds note the reading on the gauge.
This is your DIASTOLIC blood pressure value.
14. Turn the air deflation valve counterclockwise to release the
remainder of the air. Remove the stethoscope binaural from your
ears. Remove the cuff from your arm. Record your reading in the
Blood Pressure Log.
NOTE: If you make a mistake, do not immediately reinflate the cuff.
Release all the air in the cuff.
Wait 5 minutes. The wait time allows the arteries to return to the
condition prior to taking the blood pressure measurement.
302390_HEM-18_Q7_E_SP_r2.qxd:301215 HEM-18 IM A 12/3/10 3:36 PM Page

10
CARE AND MAINTENANCE
Your new blood pressure monitor has been carefully checked to ensure
reliability and accuracy prior to shipment and use. As with any sensitive
instrument subjected to repeated use, the manufacturer recommends your
blood pressure gauge be checked annually by a medical professional for
proper calibration. The unit is properly calibrated when the needle
rests at zero.
To keep your blood pressure monitor in the best condition and protect
the unit from damage follow the directions listed below:
Avoid washing or moistening the cuff. Never immerse any of the
parts in water.
Store the monitor in a safe and dry location. Do not fold the cuff and
tubing tightly.
Avoid subjecting the instrument to strong shocks, such as dropping the
gauge on the floor or hitting the surface of the stethoscope. When the
cuff is fully deflated, the needle stays within the zero indicator on the
gauge. If the needle points outside of the zero indicator the gauge gives
inaccurate readings. Return the unit to the manufacturer for calibration.
Use the unit consistent with the instruction provided in this manual.
Use only authorized parts and accessories.
302390_HEM-18_Q7_E_SP_r2.qxd:301215 HEM-18 IM A 12/3/10 3:36 PM Page

11
LIMITED WARRANTY
Your Omron Self Taking Blood Pressure Monitor is warranted to be free from
defects in materials and workmanship appearing within 1 year from the date of
purchase, when used in accordance with the instructions provided with the
monitor. The above warranties extend only to the original retail purchaser.
We will, at our option, repair or replace without charge any components of the
Blood Pressure Monitor covered by the above warranties. Repair or replacement
is our only responsibility and your only remedy under the above warranties.
To obtain warranty service contact Customer Service by calling 1-800-634-4350
for the address of the repair location and the return shipping and handling fee.
Enclose the Proof of Purchase. Include a letter, with your name, address, phone
number, and description of the specific problem. Pack the product carefully to
prevent damage in transit. Because of possible loss in transit, we recommend
insuring the product with return receipt requested.
THE FOREGOING IS THE SOLE WARRANTY PROVIDED BY OMRON
IN CONNECTION WITH THIS PRODUCT, AND OMRON HEREBY
DISCLAIMS ANY OTHER WARRANTIES, EXPRESS OR IMPLIED,
INCLUDING IMPLIED WARRANTIES OF MERCHANTABILITY AND
FITNESS FOR A PARTICULAR PURPOSE. IMPLIED WARRANTIES
AND OTHER TERMS THAT MAY BE IMPOSED BY LAW, IF ANY, ARE
LIMITED IN DURATION TO THE PERIOD OF THE ABOVE EXPRESS
WARRANTY.
OMRON SHALL NOT BE LIABLE FOR LOSS OF USE OR ANY
OTHER SPECIAL, INCIDENTAL, CONSEQUENTIAL OR INDIRECT
COSTS, EXPENSES OR DAMAGES.
This warranty provides you with specific legal rights, and you may have other
rights that vary by jurisdiction. Because of special local requirements, some of
the above limitations and exclusions may not apply to you.
FOR CUSTOMER SERVICE
Visit our web site at: www.omronhealthcare.com
Call toll free: 1-800-634-4350
302390_HEM-18_Q7_E_SP_r2.qxd:301215 HEM-18 IM A 12/3/10 3:36 PM Page

12
BLOOD PRESSURE LOG
DATE AM SYS./DIA.PM SYS./DIA.
Name
302390_HEM-18_Q7_E_SP_r2.qxd:301215 HEM-18 IM A 12/3/10 3:36 PM Page

13
DATE AM SYS./DIA.PM SYS./DIA.
Name
BLOOD PRESSURE LOG
302390_HEM-18_Q7_E_SP_r2.qxd:301215 HEM-18 IM A 12/3/10 3:37 PM Page

14
DATE AM SYS./DIA.PM SYS./DIA.
Name
BLOOD PRESSURE LOG
302390_HEM-18_Q7_E_SP_r2.qxd:301215 HEM-18 IM A 12/3/10 3:37 PM Page

302390_HEM-18_Q7_E_SP_r2.qxd:301215 HEM-18 IM A 12/3/10 3:37 PM Page

Distributed by:
Omron Healthcare, Inc.
1200 Lakeside Drive
Bannockburn, IL 60015
www.omronhealthcare.com
Copyright © 2010 Omron Healthcare, Inc.
Made in China
302390_HEM-18_Q7_E_SP_r2.qxd:301215 HEM-18 IM A 12/3/10 3:37 PM Page

MANUAL DE INSTRUCCIONES
ESPAÑOL
MONITOR PARA LA
AUTOMEDICIÓN
PRESIÓN ARTERIAL
Modelo HEM-18
Modelo HEM-18S
302390_HEM-18_Q7_E_SP_r2.qxd:301215 HEM-18 IM A 12/3/10 3:37 PM Page

E2
ÍNDICE
Introducción ........................................................................................... E2
Información importante de seguridad .................................................... E3
Armado de la unidad ............................................................................. E4
Antes de tomar una medición ............................................................... E6
Cómo tomar una medición ..................................................................... E7
Cuidado y mantenimiento .................................................................... E10
Garantía limitada................................................................................... E11
Registro de presión arterial .................................................................. E12
Gracias por comprar el monitor para la automedición de presión arterial
Omron, Modelo serie HEM-18.
El Modelo serie HEM-18 de Omron incluye los siguientes componentes:
• Manómetro aneroide
• Brazalete estándar para brazo adulto (se adapta a una circunferencia de
brazo de 9 a 13 pulgadas) con estetoscopio incluido (pieza torácica)
• Binaural del estetoscopio
• Pera de insuflación y Válvulas
• Manual de Instrucciones Inglés/Español
• Estuche
El monitor para la automedición de presión arterial de Omron está
diseñado para ser usado en el hogar.
INTRODUCCIÓN
GUARDE ESTAS INSTRUCCIONES
302390_HEM-18_Q7_E_SP_r2.qxd:301215 HEM-18 IM A 12/3/10 3:37 PM Page

SÍMBOLOS DE SEGURIDAD UTILIZADOS EN EL MANUAL DE INSTRUCCIONES
E3
INFORMACIÓN IMPORTANTE DE SEGURIDAD
A fin de garantizar el uso adecuado del producto, se deben aplicar siempre medidas de seguridad
básicas, incluyendo las advertencias y precauciones que se enumeran en este manual de instrucciones.
ADVERTENCIA
Indica una situación potencialmente peligrosa que, si no se evitara,
podría dar como resultado lesiones graves o, incluso, ser fatal.
PRECAUCIÓN
Indica una situación potencialmente peligrosa que, si no se
evitara, podría derivar en lesiones leves o moderadas al
usuario o al paciente o en daños al equipo u otros bienes.
Consulte a su médico para obtener información específica acerca de su presión
arterial. El autodiagnóstico y la automedicación realizados sobre la base de los
resultados de la medición pueden ser peligrosos. Siga las instrucciones de su
médico o profesional médico autorizado.
NO ajuste la medicación en base a los resultados de mediciones realizadas con
este monitor de presión arterial. Tome las medicinas tal como fueron recetadas
por su médico. Solamente un médico está capacitado para diagnosticar y tratar
la presión arterial alta.
El monitor no está diseñado para ser utilizado como dispositivo de diagnóstico.
Lea toda la información del manual de instrucciones y cualquier material
impreso incluido en la caja antes de comenzar a usar la unidad.
La incorrecta colocación de las piezas puede ocasionar lesiones o una lectura
errónea.
Asegúrese de que el anillo de metal en D no le ajuste la piel.
Este dispositivo está diseñado para medir la presión arterial en adultos.
Antes de colocarse el binaural del estetoscopio, asegúrese de que los
auriculares estén firmemente ajustados al binaural.
Opere el dispositivo sólo con el fin para el que fue diseñado. No use el
dispositivo para ningún otro fin.
Respete las normas locales aplicables al desechar el dispositivo, los
componentes y accesorios opcionales. Violar las normas establecidas para su
eliminación puede provocar contaminación ambiental.
Los cambios o las modificaciones que no hayan sido aprobados por el
fabricante dejarán sin efecto la garantía del usuario. No desarme ni trate de
reparar la unidad.
302390_HEM-18_Q7_E_SP_r2.qxd:301215 HEM-18 IM A 12/3/10 3:37 PM Page

E4
ARMADO DE LA UNIDAD
CÓMO COLOCAR EL BRAZALETE
El brazalete ya debe estar colocado a través del anillo de metal en D al
retirarlo de la caja. Si el brazalete no estuviese colocado previamente,
despliéguelo en frente suyo. Coloque el anillo de metal en D a la
izquierda.
El estetoscopio debe estar hacia arriba. Jale el extremo del brazalete a
través del anillo de metal en D. Cuando el brazalete es doblado
correctamente, el material de sujeción y la parte aterciopelada deben
quedar al exterior del bucle del brazalete.
CÓMO ARMAR LA UNIDAD
Acomode las piezas como se indica en la ilustración de la siguiente
página. Consulte la ilustración para armar correctamente la unidad.
Siga estos cuatro simples pasos:
1Conecte el manómetro al tubo del lado izquierdo.
2Conecte la pera de insuflación al tubo del lado derecho.
3Coloque el extremo individual del tubo en Y en la pieza torácica del
estetoscopio.
4Coloque el extremo doble del tubo en Y en el binaural.
302390_HEM-18_Q7_E_SP_r2.qxd:301215 HEM-18 IM A 12/3/10 3:37 PM Page
