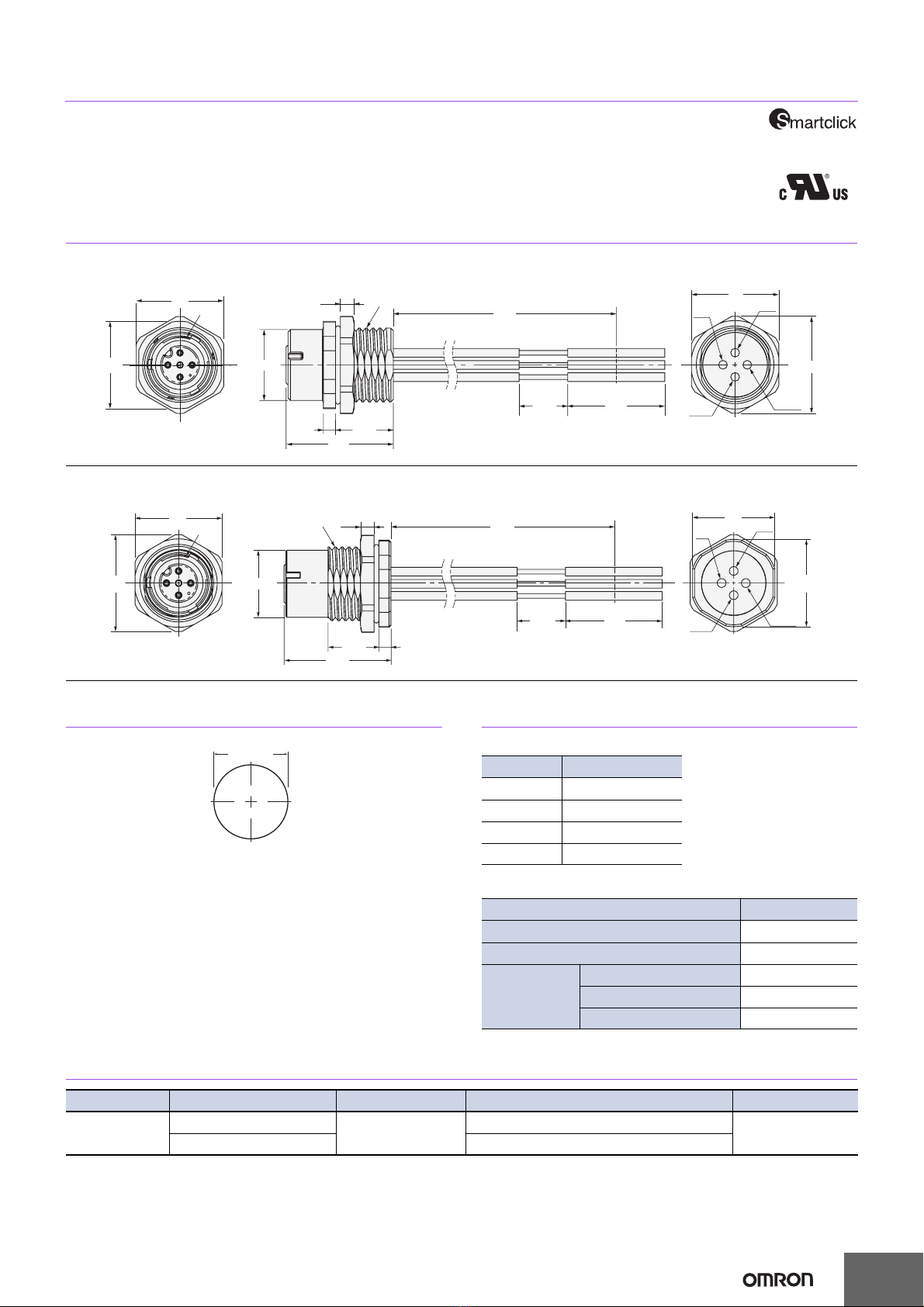

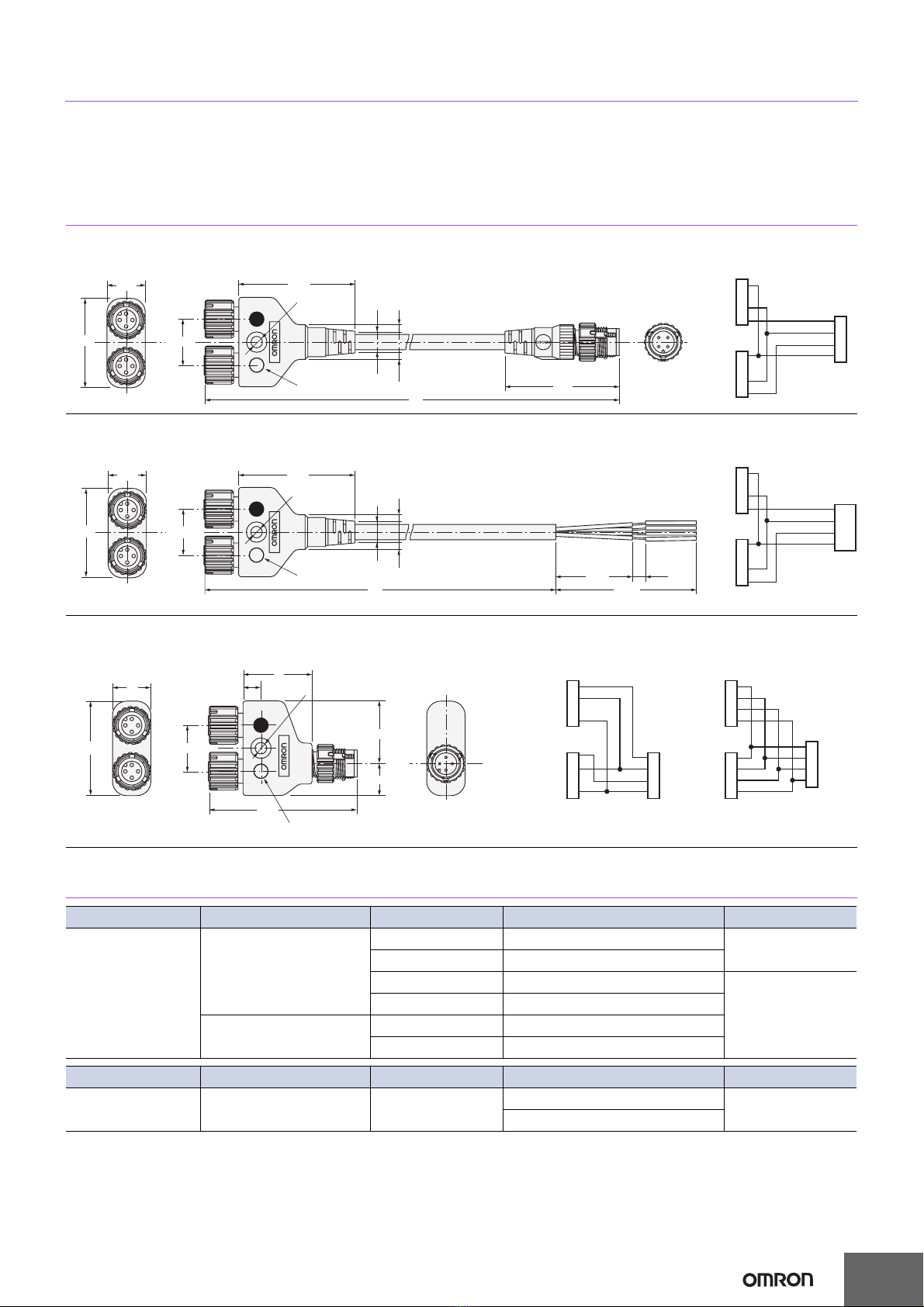

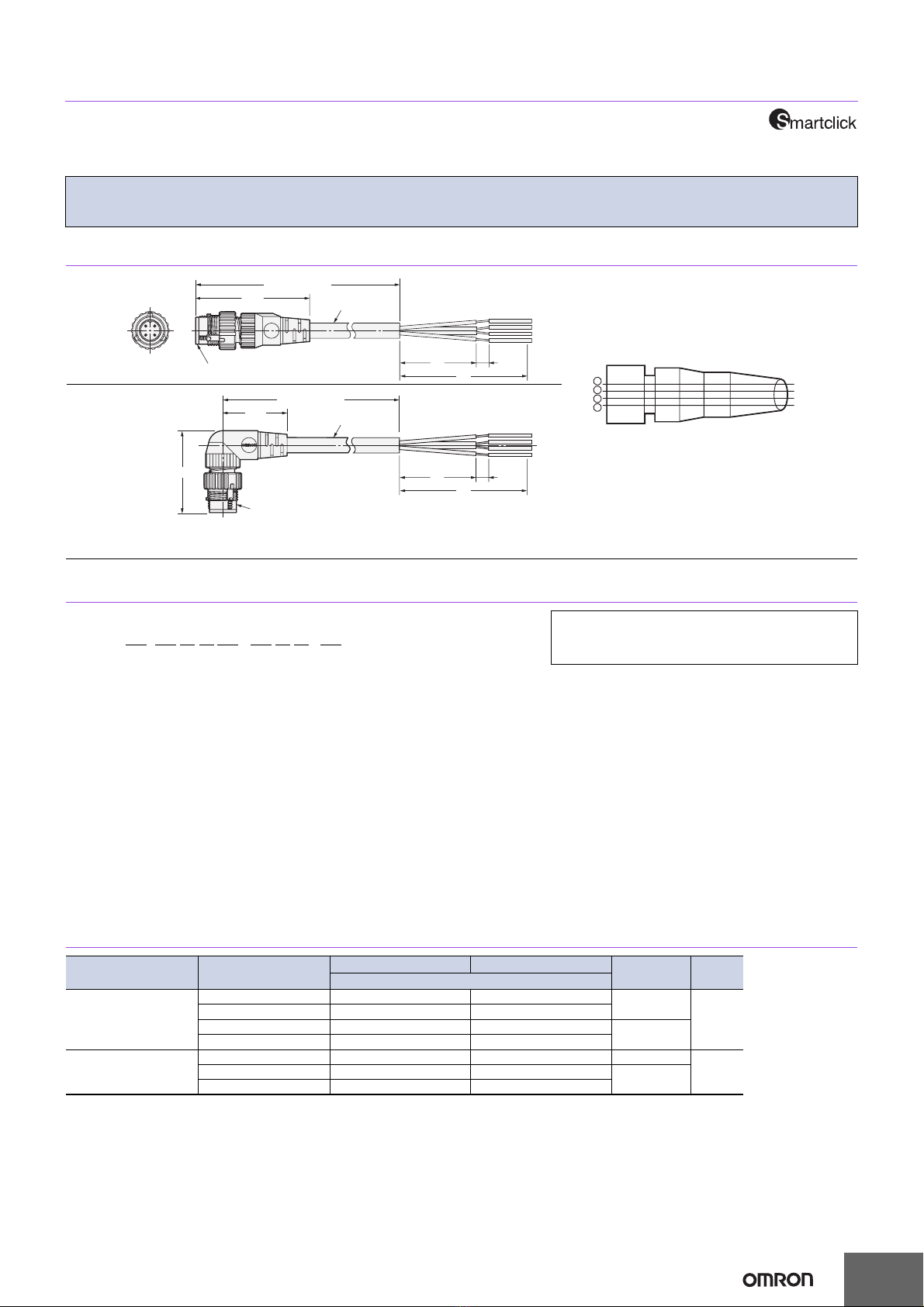

Round Water-resistant Connectors
XS5
Round Water-resistive Smartclick
Connectors That Reduce Installation Work
• A newly developed lock mechanism that is compatible with round M12 connectors.
• Simply insert the Connectors, then turn them approximately 1/8 of a turn to lock.
• A positive click indicates locking.
• Features the same degree of protection (IP67) as M12 connectors.
• A full line-up of models is planned.

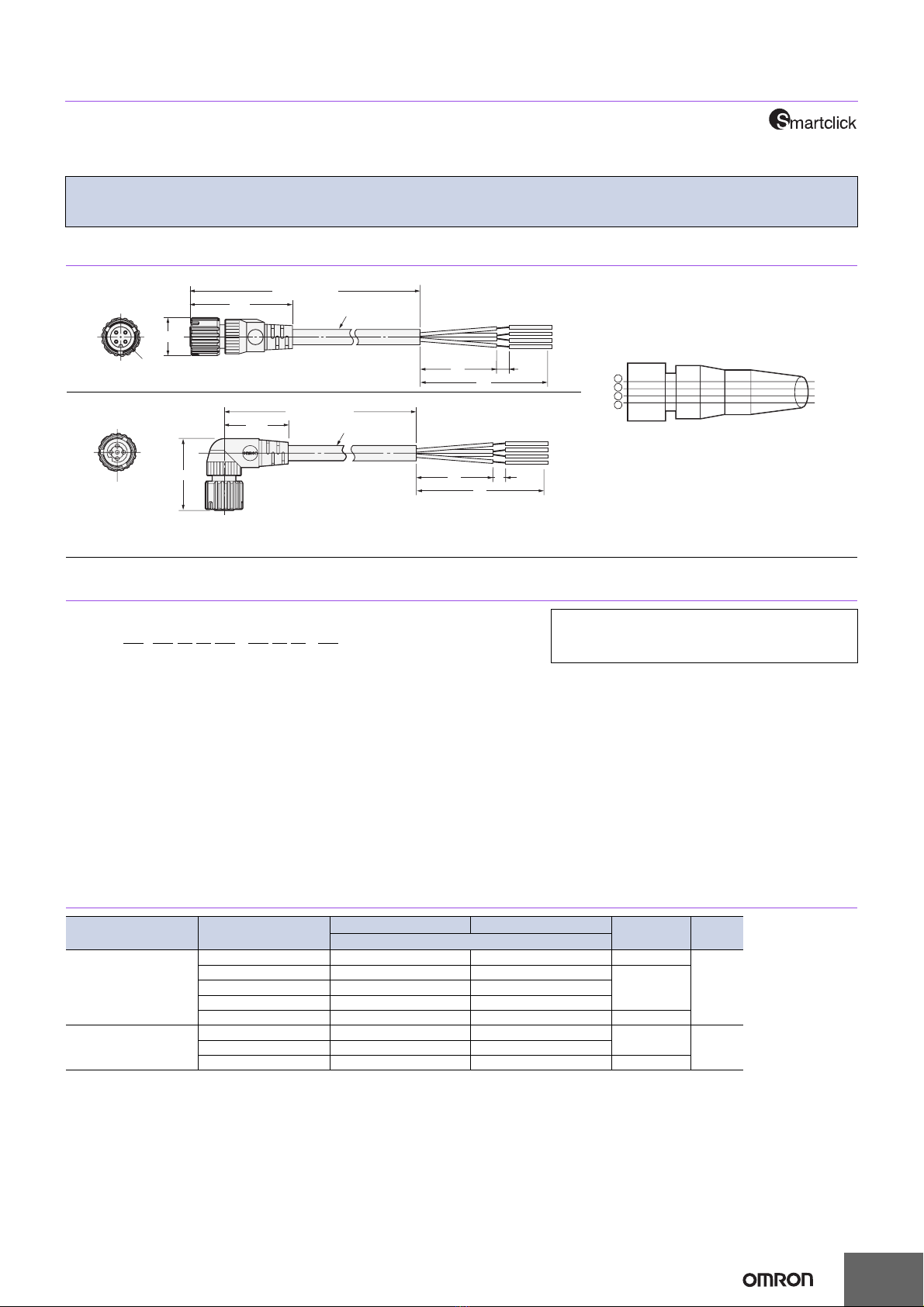

• Connectors with Cables are UL approved.
Refer to Safety Precautions on
page 17.
Ratings and Specifications

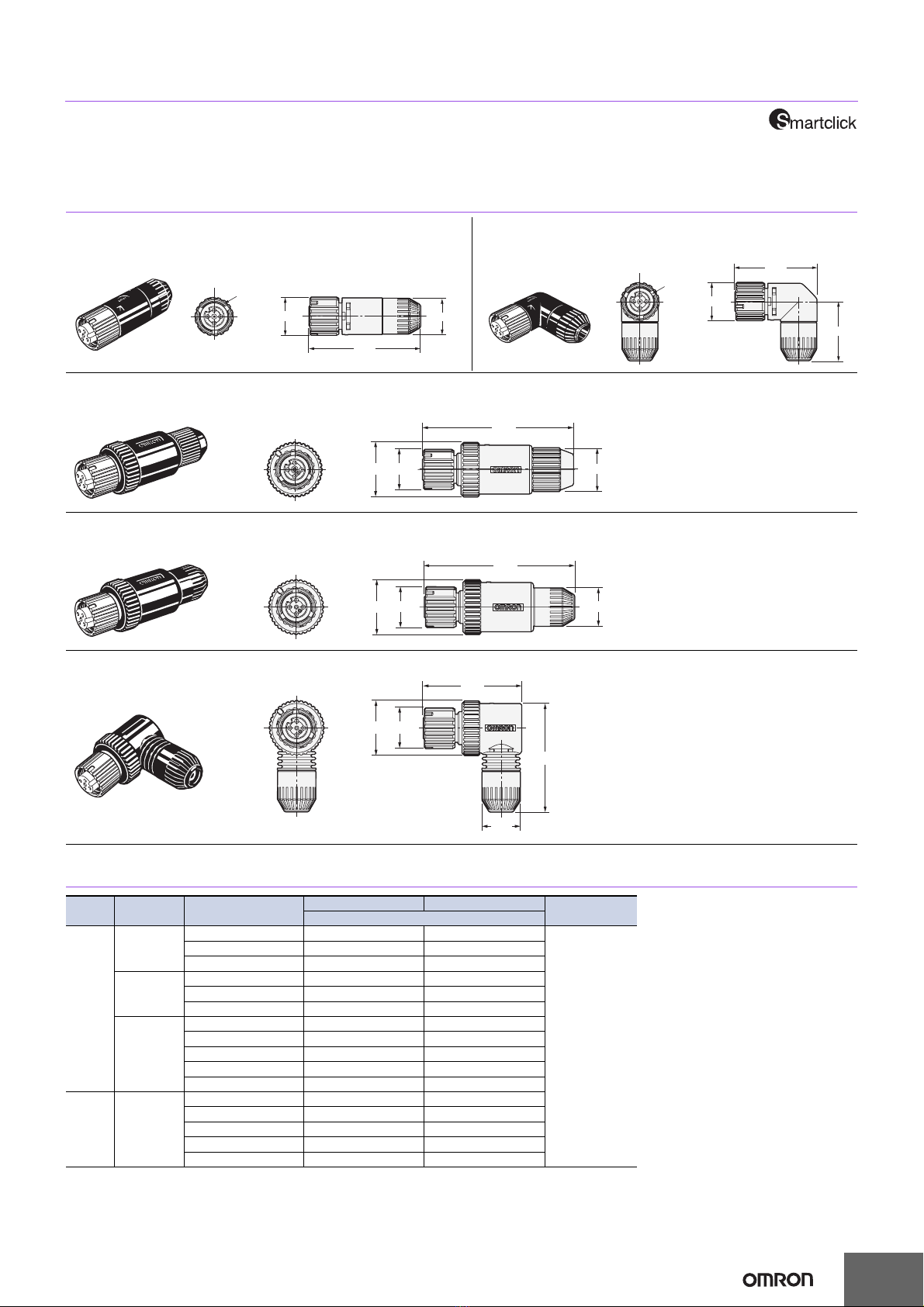

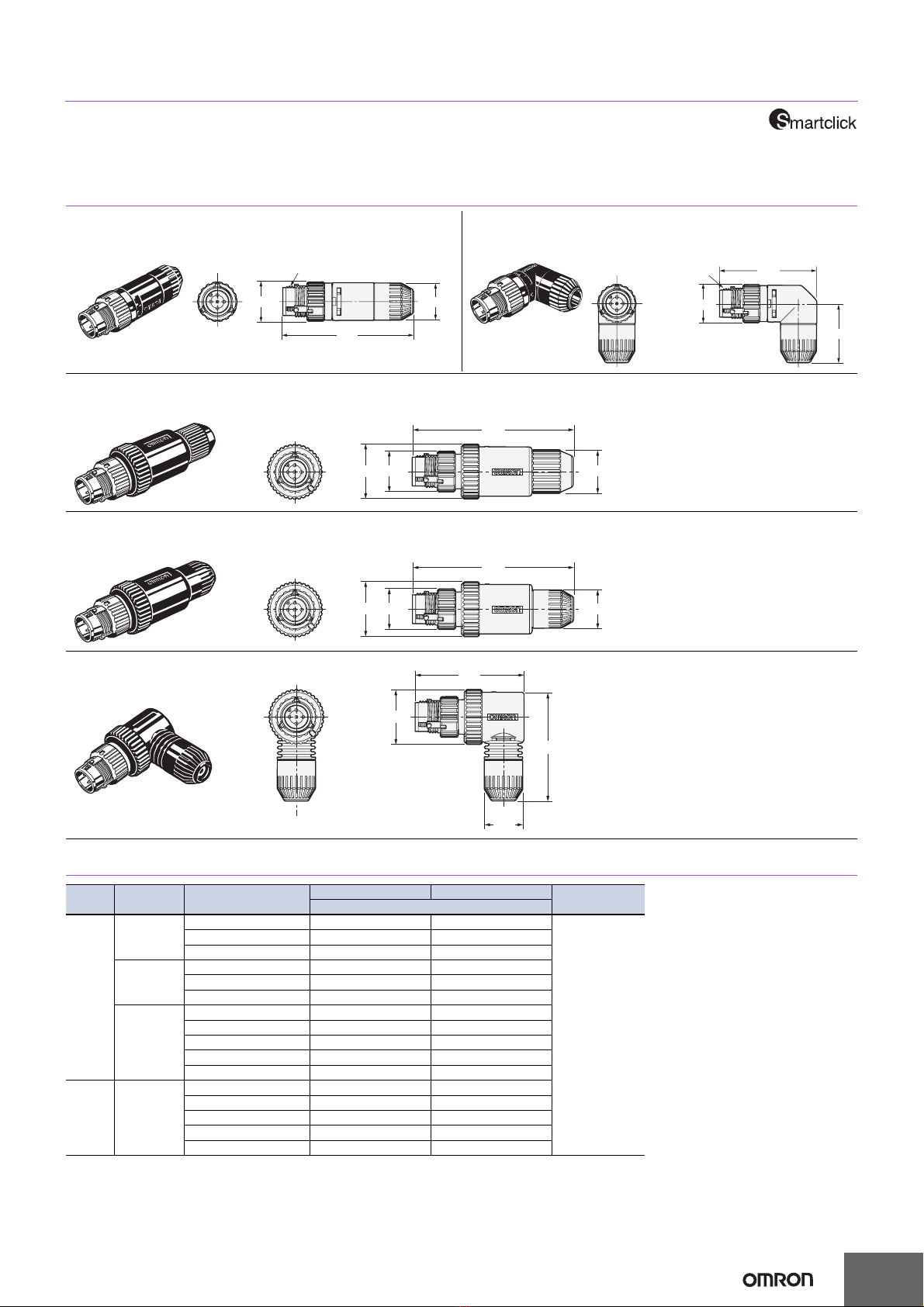

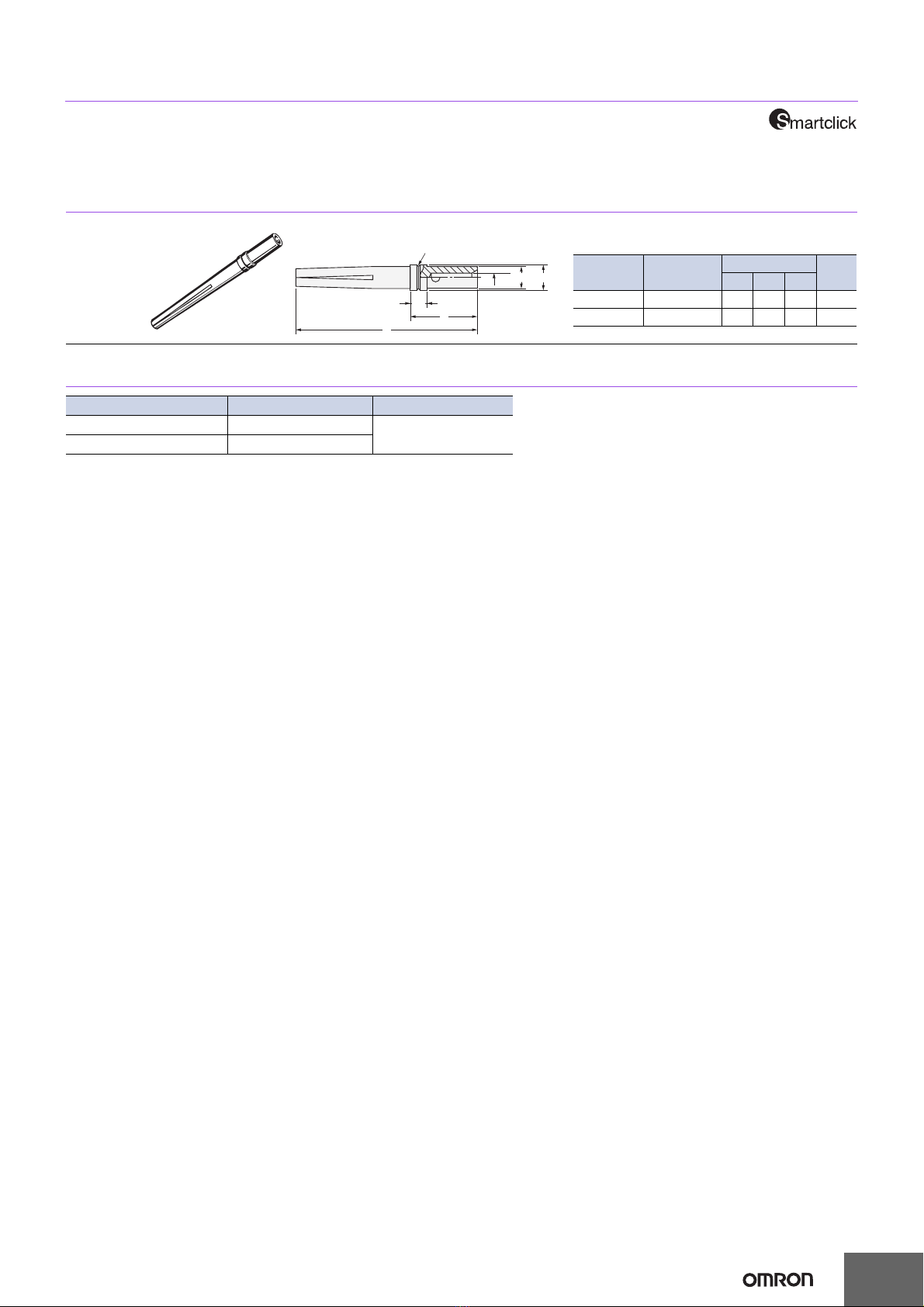

Recommended Cables for Assembly Connectors
Materials and Finish
Connection Combinations
Rated current 4 A
Rated voltage 250 VDC
Contact resistance
(connector)
40 mΩmax.
(20 mV max., 100 mA max.)
Insulation resistance 1,000 MΩ min. (at 500 VDC)
Dielectric strength
(connector)
1,500 VAC for 1 min
(leakage current: 1 mA max.)
Degree of protection IP67 (IEC60529)
Insertion tolerance 50 times min.
Lock strength Tensile: 100 N/15 s, Torsion: 1 N·m/15 s
Cable holding
strength 100 N/15 s (for cable diameter of 6 mm)
Lock operating force 0.1 N·m to 0.25 N·m
Ambient operating
temperature range −25 to 70°C
Cable outer
diameter
(mm)
Core sizes

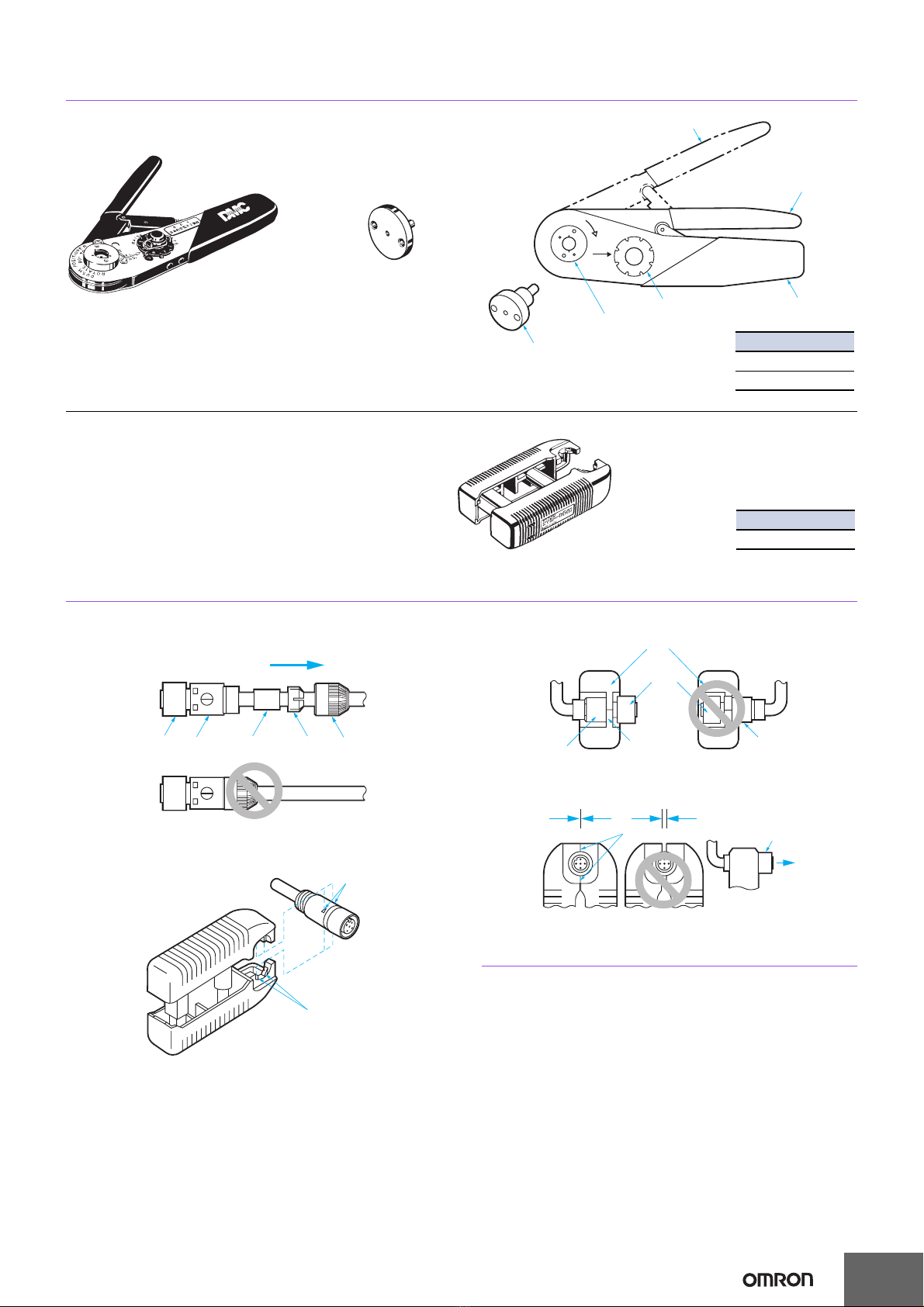

Crimping
models
Soldering
models
Screw-on
models
for 8 dia. 7 to 8 dia. --- ---
0.18 to
0.75 mm
2
for 7 dia. 6 to 7 dia.
for 6 dia. 5 to 6 dia. Two types of
contacts are
available.
0.18 to 0.3 mm
2
0.5 to 0.75 mm
2
0.5 mm2
max.
for 4 dia. 4 to 5 dia.
for 3 dia. 3 to 4 dia.
Item Model XS5F/H/W/R XS5M/P XS5C/G
Con-
tacts
Materials Phosphor bronze Brass
Finish Nickel base, 0.4-µm gold plating
Fixtures Nickel-plated zinc alloy
Fixtures (Lock) SUS
Pin block PBT resin (UL94V-0)
O-ring Rubber
Overmolding/
Cover
Polyester elas-
tomer --- PBT resin
(UL94V-0)
Cable
Vibration-
proof
robot
cable
UL CL3, 6-mm
dia., 4 cores ×
AWG20 (0.08/
110)
---
Oil-resis-
tant poly-
urethane
cable
6 dia.
4 cores ×0.5 mm2
(0.12/45)
---
Seal resin --- Epoxy resin
(UL94V-0) ---
Power supply
wires --- UL1007 AWG20 ---
is a registered trademark of the OMRON Corporation.
OMRON model No.
Smartclick Plug Connectors M12 Plug Connectors
XS5H, XS5G, XS5W (plug side),
XS5R (plug side), XS5M
XS2H, XS2G, XS2W (plug side),
XS2R (plug side), XS2M
Smartclick Socket
Connectors
XS5F, XS5C, XS5W (socket side),
XS5R (socket side), XS5P ❍
M12 Socket
Connectors
XS2F, XS2C, XS2W (socket side),
XS2R (socket side), XS2P ❍❍
: Connected by twisting.
❍: Connected by screwing.
Note: The XS@M and XS@P cannot mate with each other.
