Omron NJ-series Instruction Manual

Machine Automation Controller NJ-series
DeviceNetTM
Connection Guide
OMRON Corporation
3G3MX2-series Inverter
P522-E1-01

About Intellectual Property Right and Trademarks
Windows is a registered trademark of Microsoft Corporation in the USA and other countries.
DeviceNetTM is a trademark of ODVA.
EtherCAT® is registered trademark and patented technology, licensed by Beckhoff Automation
GmbH, Germany.
Company names and product names in this document are the trademarks or registered
trademarks of their respective companies.

Table of Contents
1. Related Manuals.......................................................................................................... 1
2. Terms and Definition................................................................................................... 1
3. Remarks....................................................................................................................... 2
4. Overview ...................................................................................................................... 4
5. Applicable Devices and Support Software................................................................ 4
5.1. Applicable Devices............................................................................................... 4
5.2. Device Configuration............................................................................................ 6
6. DeviceNet Settings...................................................................................................... 8
6.1. DeviceNet Communications Settings................................................................... 8
6.2. Allocation of Remote I/O Communications........................................................... 8
7. Connection Procedure...............................................................................................11
7.1. Overview of Setting Up Remote I/O Communications.........................................11
7.2. Work Flow .......................................................................................................... 12
7.3. Setting Up the Inverter ....................................................................................... 13
7.4. Setting Up the Controller.................................................................................... 21
7.5. Setting Up the Network ...................................................................................... 28
7.6. Connection Status Check................................................................................... 33
8. Initialization Method.................................................................................................. 38
8.1. Controller ........................................................................................................... 38
8.2. Inverter............................................................................................................... 39
9. Appendix1Details of Remote I/O Communication Settings .................................. 40
9.1. Global Variable Table ......................................................................................... 40
10. Appendix 2 Setting Procedure without the Configuration Files............................ 41
10.1. Overview of Setting Procedure without the Configuration Files ......................... 41
10.2. Work Flow of the "Procedure for Setting the Parameters from the Beginning" .. 42
10.3. Setting up the Controller without the Configuration Files ................................... 44
10.4. Setting up the Network by CX-Integrator............................................................ 54
11. Revision History........................................................................................................ 62

1. Related Manuals
1
1. Related Manuals
The table below lists the manuals related to this document.
To ensure system safety, make sure to always read and heed the information provided in all
Safety Precautions, Precautions for Safe Use, and Precaution for Correct Use of manuals for
each device which is used in the system.
Cat.No. Model Manual name
W500 NJ501-[][][][] NJ-series CPU Unit Hardware User's Manual
W501 NJ501-[][][][] NJ-series CPU Unit Software User's Manual
W497 CJ1W-DRM21 CJ-series DeviceNetTM Units Operation Manual for NJ-series
CPU Unit
W267 - DeviceNetTM Operation Manual
W504 SYSMAC-SE2[][][] Sysmac Studio Version 1 Operation Manual
W464 - CX-Integrator CS/CJ/CP/NSJ-series Network Configuration
Tool Operation Manual
I570 3G3MX2-A[][][][] SYSDRIVE MX2 Series Multi-function Compact Inverter
User's Manual
I581 3G3AX-MX2-DRT-E MX2/RS Series DeviceNetTM Communications Unit User's
Manual
2. Terms and Definition
Ter ms Explanation and Definition
Master/slave A master is a unit that manages the DeviceNet communications.
A master sends output data to multiple slaves and receives input data from
the slaves.
Slaves receive output data that are sent from the master, and send input
data to the master.
At least one master is required for DeviceNet communications.
EDS file A file that contains each DeviceNet slave's I/O points and parameters that
can be set via DeviceNet.
Node address
(MAC ID)
An address that identifies a unit connected to a DeviceNet network.
With DeviceNet, a MAC (Media Access Control) ID is used as a node
address. Thus, a node address is a MAC ID.
Scan list A scan list is used to register slaves with which a master communicates in
DeviceNet remote I/O communications. A master communicates with the
slaves based on the scan list settings.

3. Remarks
2
3. Remarks
(1) Understand the specifications of devices which are used in the system. Allow some
margin for ratings and performance. Provide safety measures, such as installing safety
circuit in order to ensure safety and minimize risks for abnormal occurrence.
(2) To ensure system safety, always read and heed the information provided in all Safety
Precautions, Precautions for Safe Use, and Precaution for Correct Use of manuals for
each device used in the system.
(3) The users are encouraged to confirm the standards and regulations that the system must
conform to.
(4) It is prohibited to copy, to reproduce, and to distribute a part of or whole part of this
document without the permission of OMRON Corporation.
(5) This document provides the latest information as of February 2012. The information
contained in this document is subject to change for improvement without notice.

3. Remarks

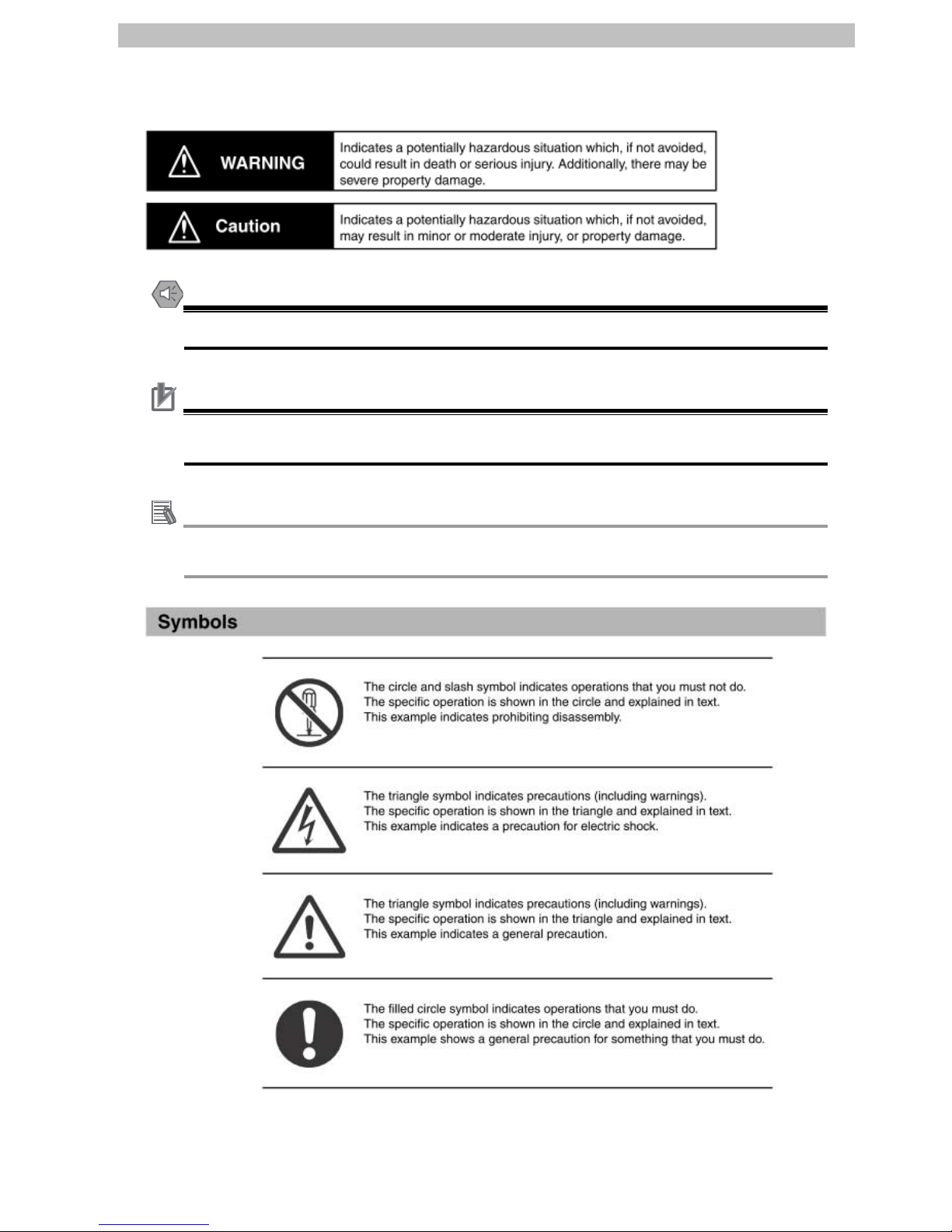

The following notation is used in this document.
Precautions for Safe Use
Indicates precautions on what to do and what not to do to ensure using the product safely.
Precautions for Correct Use
Indicates precautions on what to do and what not to do to ensure proper operation and
performance.
Additional Information
Provides useful information.
Additional information to increase understanding or make operation easier.
3

4. Overview
4. Overview

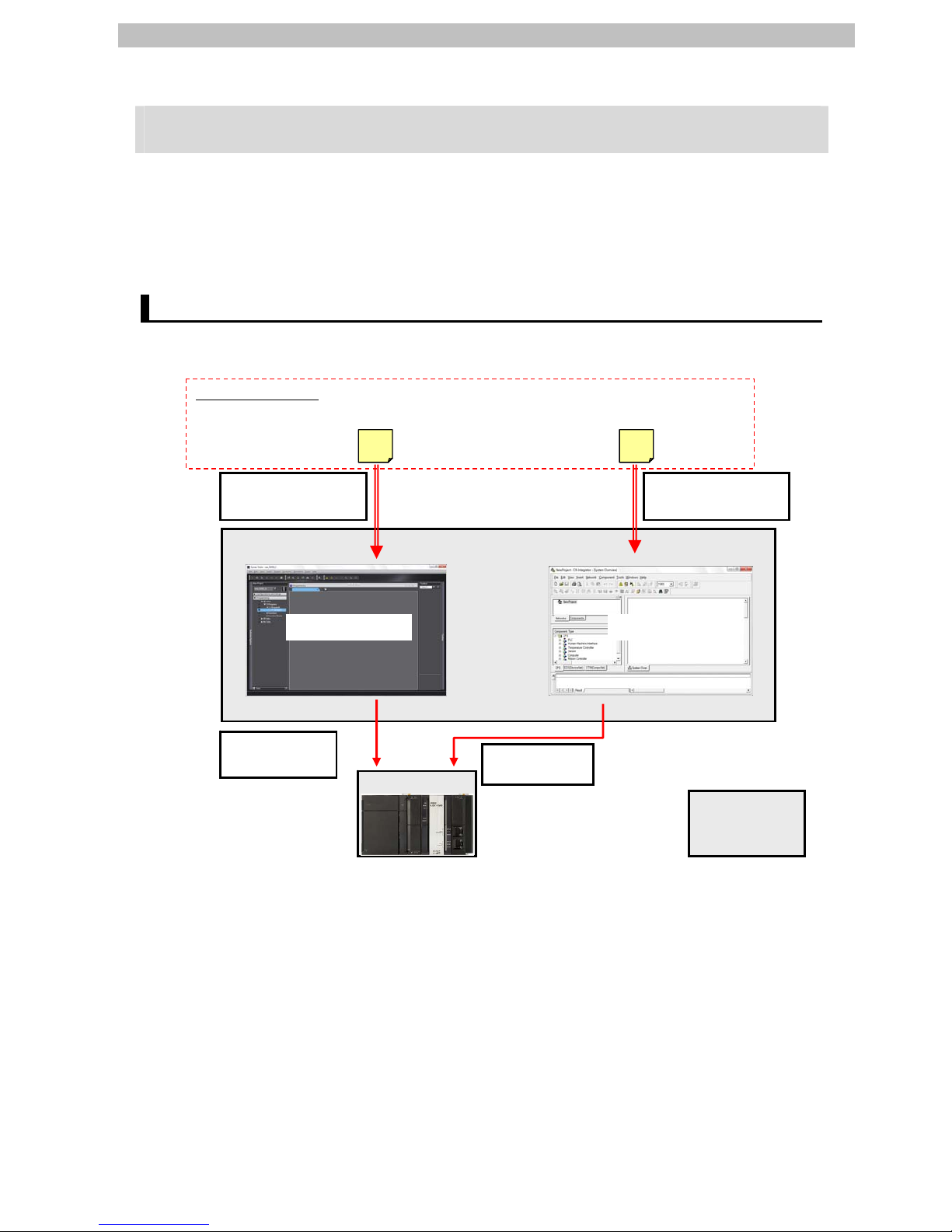

This document describes the procedure for connecting the OMRON Inverter (3G3MX2 series)
to the OMRON Machine Automation NJ-series Controller (hereinafter referred to as
Controller) on the DeviceNet and provides the procedure for checking their connection.
This document describes the procedure for establishing a DeviceNet connection using
DeviceNet settings of the project files prepared in advance (hereinafter referred to as the
"procedures for using configuration files").
Sections 9 A-1 and 10 A-2 describe the procedures for setting parameters without the
prepared configuration files (hereinafter referred to as the "procedures for setting parameters
from beginning".
To follow the "procedures for using configuration files", obtain the latest "Sysmac Studio
project file" and "CX-Integrator project file" (they are referred to as "configuration files") from
OMRON in advance.
Name File name Version
Sysmac Studio project file
(extension: SMC)
OMRON_3G3MX2_DN_EV100.SMC Ver.1.00
CX-Integrator project file
(extension: cin)
OMRON_3G3MX2_DN_EV100.cin Ver.1.00
5. Applicable Devices and Support Software
5.1. Applicable Devices
The following devices can be connected.
Manufacturer Name Model Version
OMRON NJ-series CPU Unit NJ501-[][][][]
OMRON DeviceNet Unit (Master Unit) CJ1W-DRM21
OMRON Inverter 3G3MX2-A[][][][]
OMRON DeviceNet Communications
Unit
3G3AX-MX2-DRT-E
Versions
listed in
Section 5.2
and higher
versions
Additional Information
As applicable devices above, the devices listed in Section 5.2. are actually used in this
document to check the connection. When using devices not listed in Section 5.2, check the
connection by referring to the procedure in this document.
4

5. Applicable Devices and Support Software
Additional Information
This document describes the procedure to establish the network connection. It does not
provide information about operation, installation nor wiring method of each device.
For details on above products (other than communication connection procedures), refer to
the manuals for the corresponding products or contact your OMRON representative.
Additional Information
You can connect devices with the versions listed in Section 5.2 or higher versions.
For devices whose versions are not listed in Section 5.2, versions are not managed or there
is no version restriction.
To connect a device whose model number is not listed in Section 5.2, use the same version
of the device that is listed.
5

5. Applicable Devices and Support Software

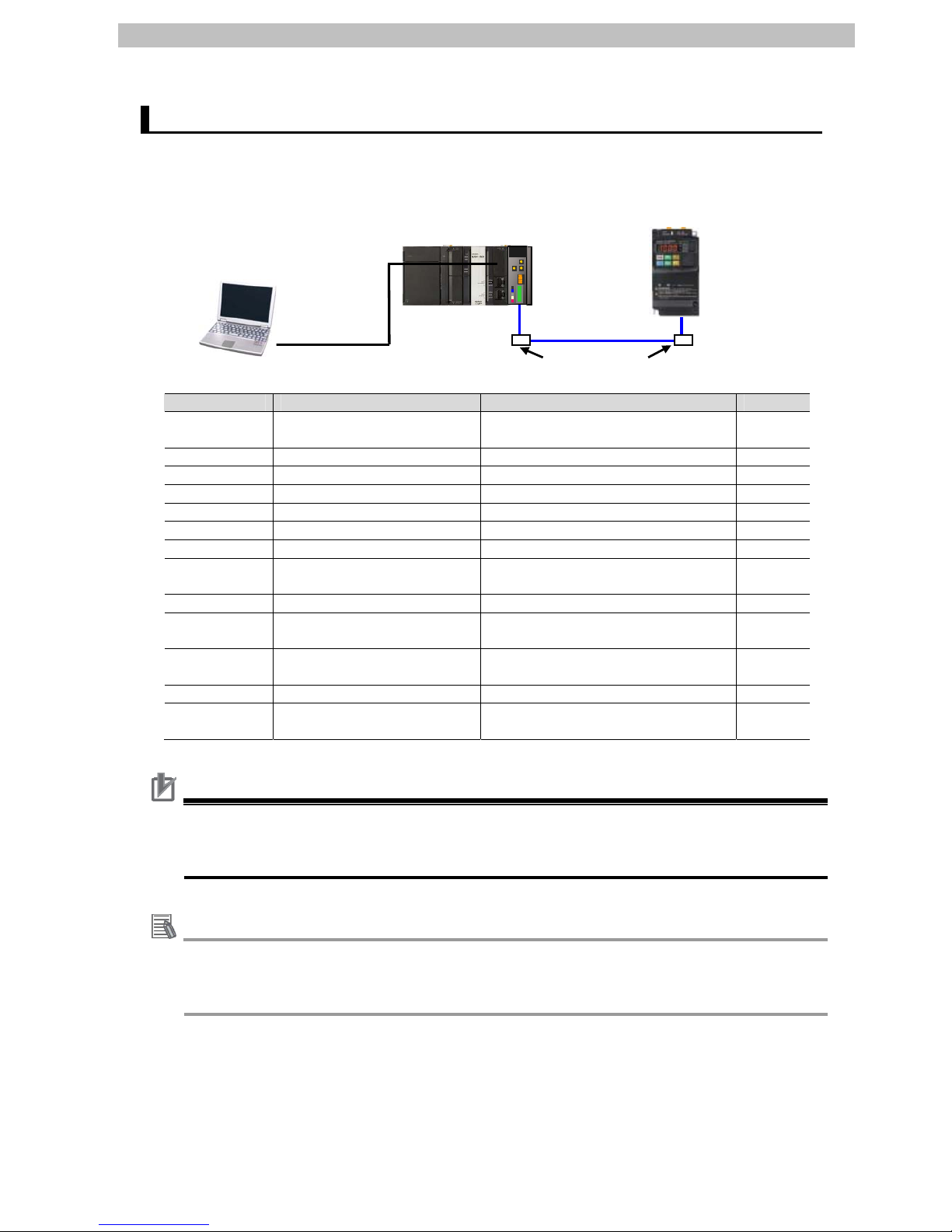

5.2. Device Configuration
The hardware components to reproduce the connection procedure of this document are as
follows.
DeviceNet cable
NJ501-1500+
CJ1W-DRM21
USB cable
Personal computer
(Sysmac Studio
installed,
OS:Windows7 )
3G3MX2-A2015 +
3G3AX-MX2-DRT
T-branch Tap (DCN1-1C)
Manufacturer Name Model Version
OMRON DeviceNet Unit
(Master Unit)
CJ1W-DRM21 Ver.1.3
OMRON CPU Unit NJ501-1500
OMRON Power Supply Unit NJ-PA3001
OMRON DeviceNet cable DCA1-5C10
OMRON T-branch Tap DCN1-1C
OMRON Sysmac Studio SYSMAC-SE2[][][] Ver.1.00
OMRON CX-Integrator (Bundled in the Sysmac Studio.) Ver.2.51
OMRON Sysmac Studio project file OMRON_3G3MX2_DN_EV100.S
MC
Ver.1.00
OMRON CX-Integrator project file OMRON_3G3MX2_DN_EV100.cin Ver.1.00
- Personal computer
(OS: Windows 7)
-
- USB cable
(USB 2.0 type B connector)
-
OMRON Inverter 3G3MX2-A2015 Ver.1.1
OMRON DeviceNet Communications
Unit
3G3AX-MX2-DRT-E
Precautions for Correct Use
To use configuration files, prepare the latest "Sysmac Studio project file" and "CX-Integrator
project file" in advance.
(To obtain the files, contact your OMRON representative.)
Additional Information
For information on the DeviceNet cable and network wiring, refer to Section 2 Network
Configuration and Wiring in the DeviceNet Operation Manuel (Cat.No. W267).
Connect a terminating resistance to each end of the trunk line of the DeviceNet.
6

5. Applicable Devices and Support Software
Additional Information
In this document, a USB is used to connect with the Controller. For information on how to
install a USB driver, refer to A-1 Driver Installation for Direct USB Cable Connection of the
Sysmac Studio Version 1 Operation Manual (Cat.No. W504).
7

6. DeviceNet Settings
8
6. DeviceNet Settings
This section provides specifications such as communications parameters and variable names
that are defined in this document.
Hereinafter, the Inverter is referred to as "destination device" in some descriptions.
6.1. DeviceNet Communications Settings
The following are the settings for DeviceNet.
CJ1W-DRM21 Inverter
Unit number 0 -
Node address (MAC ID) 63 0
Baud rate (bps) 500 kbps (Automatically sets the same
setting as for the Master Unit)
6.2. Allocation of Remote I/O Communications
The remote I/O communication data of the destination device are allocated to Controller's
global variables. An allocation of the remote I/O communication data is called a scan list. The
relationship between the device data and the global variables is shown below. The following
global variables are defined in "Configuration file".
■Output area (Controller →Inverter)
Offset
Destination device
data
Memory used
for CJ-series
Unit
Global variable name Data type
+0 Command %3200 DN00_CMD_OUT BOOL [16]
+1 Rotation Speed
Reference %3201 DN00_DATA_OUT WORD
■Input area (Controller ←Inverter)
Offset
Destination device
data
Memory used
for CJ-series
Unit
Global variable name Data type
+0 Status information %3300 DN00_STA_IN BOOL[16]
+1 Rotation Speed
Monitor %3301 DN00_DATA_IN WORD

6. DeviceNet Settings
Additional Information
When a DeviceNet Unit is used with a Controller, slave data are allocated to the memory
used for CJ-series Units. With programs, specify variable names for the memory used for
CJ-series Units.
With Sysmac Studio, add the prefix "%" to each address to indicate the memory used for
CJ-series Units.
■Details on output area
Global variable Name Description
DN00_CMD_OUT[0] FW Forward/Stop 0: Stop
1: Forward
DN00_CMD_OUT[1] RV Reverse/Stop 0: Stop
1: Reverse
DN00_CMD_OUT[2] RS Reset 0: -
1: Fault reset
DN00_CMD_OUT[5] CTR Net Ctrl. 0: Follow the setting of parameter A002.
1: Follow the reference from network control.
DN00_CMD_OUT[6] REF Net Ref. 0: Follow the setting of parameter A001.
1: Follow the reference from network control.
DN00_DATA_OUT Rotation Speed
Reference
If parameter P049 (Number of Poles for Rotation
Speed Setting) is set appropriately, the rotational
speed unit is [min -1].
If parameter P049 (Number of Poles for Rotation
Speed Setting) is set to 0, the frequency unit is [0.01
Hz].
9

6. DeviceNet Settings
10
■Details on input area
Global variable Name Description
DN00_STA_IN[0] AL Alarm
output
0:Normal
1: Fault/Trip
DN00_STA_IN[1] WR Warning 0:Normal
1:Warning
DN00_STA_IN[2] FWR
During
forward
operation
0:During reverse run/Stopping
1: During forward run
DN00_STA_IN[3] RVR
During
reverse
operation
0:During forward run/Stopping
1:During reverse run
DN00_STA_IN[4] IRDY
Operation
ready
0:Not ready
1:Ready
DN00_STA_IN[5] CFN
Ctrl. from
Net
0:Follow the setting of parameter A002.
1:DeviceNet reference
DN00_STA_IN[6] RFN
Ref. from
Net
0:Follow the setting of parameter A001.
1:DeviceNet reference
DN00_STA_IN[7] FA1
Constant
speed
reached
0:Accelerating or decelerating/Stopping
1:Frequency agree
DN00_STA_IN [15] to [11] [10] [9] [8]
1: Startup 0 0 0 1
2: Not ready 0 0 1 0
3: Ready 0 0 1 1
4: Operation in
progress
0 1 0 0
5: Stopping 0 1 0 1
6: Fault/Trip stop 0 1 1 0
DN00_STA_IN[8]
to
DN00_STA_IN[15]
Drive Status
7: Fault/Trip 0 1 1 1
DN00_DATA_IN Rotation Speed
Monitor
If parameter P049 (Number of Poles for Rotation Speed
Setting) is set appropriately, the rotational speed unit is
[min -1].
If parameter P049 (Number of Poles for Rotation Speed
Setting) is set to 0, the frequency is monitored in units of
[0.01 Hz].

7. Connection Procedure
7. Connection Procedure
This section describes how to connect the Controller on the DeviceNet network using the
"procedures for using configuration files".
This document explains the procedures for setting up the Controller and Inverter from the
factory default setting. For the initialization, refer to Section 8 Initialization Method.
Personal computer
11
Destination
device
Controller
7.1. Overview of Setting Up Remote I/O Communications
The following shows the relationship of processes to operate DeviceNet remote I/O
communications using the "procedures for using configuration files".
CX-Integrator
project file
Transferring
scan list
CX-Integrator
Opening
project file
Importing
project file
Sysmac Studio
Transferring
project data
Configuration files Sysmac Studio
project file

7. Connection Procedure
7.2. Work Flow
The following is the procedure for making connection settings for remote I/O communications
of DeviceNet.
7.3 Setting Up the Inverter Set up the Inverter (3G3MX2 series).
↓
7.3.1 Hardware Setting Mount the DeviceNet Communications Unit on the
Inverter.
↓
7.3.2 Parameter setting Set the parameter of the Inverter.
↓
7.4 Setting Up the Controller Set up the Controller.
↓
7.4.1 Hardware Settings for the
DeviceNet Unit
Set the hardware switches on the DeviceNet Unit
and connect to the Controller.
↓
7.4.2 Starting the Sysmac Studio and
Importing the Project File
Start the Sysmac Studio, and import the Sysmac
Studio project file.
↓
7.4.3 Going Online and Transferring
the Project Data
Go online with the Sysmac Studio and transfer the
project data to the Controller.
↓
7.5 Setting Up the Network Set up remote I/O communications of DeviceNet.
↓
7.5.1 Starting the CX-Integrator and
Opening the Project File
Start the CX-Integrator and open the CX-Integrator
project file.
↓
7.5.2 Going Online and Transferring a
Scan List
Go online with the Controller, and transfer the
setting (scan list) of the set device to the DeviceNet
Unit via the Controller.
↓
7.6 Connection Status Check Check the status of the DeviceNet network
connection.
↓
7.6.1 Checking the Connection Status Confirm that the DeviceNet communication is
correctly performed.
↓
7.6.2 Checking Data that are Sent and
Received
Confirm that the correct data are sent and received.
Precautions for Correct Use
Obtain the latest "Sysmac Studio project file" and "CX-Integrator project file" from OMRON in
advance.
(To obtain the files, contact your OMRON representative.)
12

7. Connection Procedure
7.3. Setting Up the Inverter
Set up the Inverter (3G3MX2 series).
7.3.1. Hardware Setting
Mount the DeviceNet Communications Unit on the Inverter.
Precautions for Correct Use
Make sure that the power supply is OFF when you perform the settings.
1
Confirm that the power supply to
the Inverter is OFF.
*If the power supply is turned ON, settings may not be
applicable as described in the following procedure.
2
Refer to the right figure and
check the name of each part on
the DeviceNet Communications
Unit.
●Inverter
●DeviceNet Communications Unit
A- Communications Unit
connector
B-LED indicators (MS, NS)
C-Warning label
D-Fieldbus connector
E-Grounding cable
F-Housing
G
-
Mounting screw
(3)Cooling fin
(4)Main housing
(5)Terminal block cover
(6)Optional board cover
(7)Backing plate
13

7. Connection Procedure
3
Unscrew and remove the
optional board cover.
*For details on how to install the
DeviceNet Communications
Unit, refer to 2-2 Installation in
the DeviceNet Communications
Unit User's Manual (Cat.No.
I581).
4
Unscrew and remove the
terminal block cover.
5
Connect the Grounding Cable of
the DeviceNet Communications
Unit to the Inverter.
6
If the terminal block cover is
removed, mount it again and
tighten the screw.
1-phase 200 V 0.1 - 2.2 kW 3-phase 200 V 5.5 - 15 kW
3-phase 200 V 0.1 - 3.7 kW 3-phase 400 V 5.5 - 15 kW
3-phase 400 V 0.4 - 4.0 kW
14

7. Connection Procedure
7
Push the DeviceNet
Communications Unit at the
position of the optional cover
until it clicks into place.
8
Press down on the indicated
top-left corner of the DeviceNet
Communications Unit and
ensure the connector of the
DeviceNet Communications Unit
is properly connected.
9
Confirm that there is no gap
between the top edges of the
DeviceNet Communications Unit
and the Inverter casing.
10
Secure the DeviceNet
Communications Unit to the
Inverter with a mounting screw.
15

7. Connection Procedure
7.3.2. Parameter setting
Set the parameters (node address) of the Inverter.
Additional Information
Make sure that the DeviceNet is not connected when you perform the settings.
1
Turn ON the power supply to the
Inverter.
*Set the parameters by using
the digital operator that is on
the front of the Inverter.
Display Various parameters, frequency/set
value and other data are displayed
(red).
RUN key Runs the Inverter. Take note that this
key is enabled only when the RUN
command destination is the Digital
Operator.
STOP/RESET
Key
This key decelerates the Inverter to a
stop. (Although the STOP/RESET key is
enabled even when a RUN command is
issued to a destination other than the
Digital Operator (factory default), it can
be disabled by a Setting (b087).)
If the Inverter is already tripped, the trip
will be reset (return from the tripping).
Mode key Parameter is displayed: Move to the
beginning of the next function group.
Data is displayed: Cancel the setting
and return to the parameter display.
Individual input mode: Move the blinking
digit to the left.
Regardless of the displayed screen,
pressing and holding this key (for 1
second or more) displays the data for
Output Frequency Monitor (d001).
Increment key
Decrement key
These keys are used to
increment/decrement a parameter or set
data. Pressing and holding each key
increases the
incrementing/decrementing speed.
Pressing the Increment and Decrement
keys together activates the "Individual
Input MODE" where each digit can be
edited independently.
Enter key Parameter is displayed: Move to the
data display.
Data is displayed: Confirm/store the
setting (in the EEPROM) and return to
the parameter display.
Individual input mode: Move the blinking
digit to the right.
16

7. Connection Procedure
2
After turning ON the power
supply, the panel displays as
shown on the right.
Use the procedure on the right
to set the parameter.
[A001] Frequency Reference
Selection 1: 04
[A002] RUN Command
Selection 1: 04
*Set "04" (optional board).
*When the power supply is
turned ON, the data of d001
(Output frequency monitor) is
displayed.
(In the case of factory default
value)
00.00
a001
a002
04
a001
a002
02
a004
a002
A
fter turning ON the power
supply, the panel displays as
shown on the left.
Press
the Increment Key once.
A
002 parameter is displayed.
Press the Enter Key.
The parameter is displayed again.
Change the data to "04".
The initial data is displayed.
Press the Enter Key.
Press the Increment Key two times.
The parameter is displayed again.
Press the Enter Key.
Change the data to "04".
Press the Increment Key twice.
The initial data is displayed.
Press the Enter Key.
A
001 parameter is displayed.
Press the Mode Key 3 times.
17
