Thank you for choosing this VARISPEED J7-series product. Proper use and
handling of the product will ensure proper product performance, will lengthen
product life, and may prevent possible accidents. Please read this manual
thoroughly and handle and operate the product with care.
1. To ensure safe and proper use of the OMRON-YASKAWA Inverters,
please read this USER’S MANUAL (Cat. No. I63-EN-01) to gain sufficient
knowledge of the devices, safety information, and precautions before
actual use.
2. The products are illustrated without covers and shieldings for closer look in
this USER’S MANUAL. For actual use of the products, make sure to use
the covers and shieldings as specified.
3. This USER’S MANUAL and other related user’s manuals are to be
delivered to the actual end users of the products.
4. Please keep this manual close at hand for future reference.
5. If the product has been left unused for a long time, please inquire at our
sales representative.
NOTICE
1. This manual describes the functions of the product and relations with other
products. You should assume that anything not described in this manual is
not possible.
2. Although care has been given in documenting the product, please contact
your OMRON representative if you have any suggestions on improving this
manual.
3. The product contains potentially dangerous parts under the cover. Do not
attempt to open the cover under any circumstances. Doing so may result
in injury or death and may damage the product. Never attempt to repair or
disassemble the product.
4. We recommend that you add the following precautions to any instruction
manuals you prepare for the system into which the product is being
installed.
• Precautions on the dangers of high-voltage equipment.
• Precautions on touching the terminals of the product even after power has
been turned OFF. (These terminals are live even with the power turned
OFF.)
5. Specifications and functions may be changed without notice in order to
improve product performance.
Items to Check Before Unpacking
Check the following items before removing the product from the package:
• Has the correct product been delivered (i.e., the correct model number
and specifications)?
• Has the product been damaged in shipping?
• Are any screws or bolts loose?

III
Notice
OMRON-YASKAWA products are manufactured for use according to proper
procedures by a qualified operator and only for the purposes described in this
manual.
The following conventions are used to indicate and classify precautions in this
manual. Always heed the information provided with them. Failure to heed
precautions can result in injury to people or damage to property.
Indicates an imminently hazardous situation which, if not avoided, will result in
death or serious injury. Additionally, there may be severe property damage.
Indicates a potentially hazardous situation which, if not avoided, could result
in death or serious injury. Additionally, there may be severe property damage.
Indicates a potentially hazardous situation which, if not avoided, may result in
minor or moderate injury, or property damage.
OMRON-YASKAWA Product References
All OMRON-YASKAWA products are capitalized in this manual. The word
“Unit” is also capitalized when it refers to an OMRON-YASKAWA product,
regardless of whether or not it appears in the proper name of the product.
The abbreviation “Ch,” which appears in some displays and on some
OMRON-YASKAWA products, often means “word” and is abbreviated “Wd” in
documentation in this sense.
The abbreviation “PC” means Programmable Controller and is not used as an
abbreviation for anything else.
Visual Aids
The following headings appear in the left column of the manual to help you
locate different types of information.
Note Indicates information of particular interest for efficient and convenient
operation of the product.
!DANGER
!WARNING
!Caution

IV
General Precautions
Observe the following precautions when using the VARISPEED Inverters and
peripheral devices.
This manual may include illustrations of the product with protective covers
removed in order to describe the components of the product in detail. Make
sure that these protective covers are on the product before use.
Consult your OMRON-YASKAWA representative when using the product after
a long period of storage.
Do not touch the inside of the Inverter. Doing so may result in electrical shock.
Operation, maintenance, or inspection must be performed after turning OFF
the power supply, confirming that the CHARGE indicator (or status indicators)
are OFF, and after waiting for the time specified on the front cover. Not doing
so may result in electrical shock.
Do not damage, pull on, apply stress to, place heavy objects on, or pinch the
cables. Doing so may result in electrical shock.
Do not touch the rotating parts of the motor under operation. Doing so may
result in injury.
Do not modify the product. Doing so may result in injury or damage to the
product.
Do not store, install, or operate the product in the following places. Doing so
may result in electrical shock, fire or damage to the product.
• Locations subject to direct sunlight.
• Locations subject to temperatures or humidity outside the range specified
in the specifications.
• Locations subject to condensation as the result of severe changes in
temperature.
• Locations subject to corrosive or flammable gases.
• Locations subject to exposure to combustibles.
• Locations subject to dust (especially iron dust) or salts.
• Locations subject to exposure to water, oil, or chemicals.
• Locations subject to shock or vibration.
Do not touch the Inverter radiator, regenerative resistor, or Servomotor while
the power is being supplied or soon after the power is turned OFF. Doing so
may result in a skin burn due to the hot surface.
Do not conduct a dielectric strength test on any part of the Inverter. Doing so
may result in damage to the product or malfunction.
Take appropriate and sufficient countermeasures when installing systems in
the following locations. Not doing so may result in equipment damage.
• Locations subject to static electricity or other forms of noise.
• Locations subject to strong electromagnetic fields and magnetic fields.
• Locations subject to possible exposure to radioactivity.
• Locations close to power supplies.
!WARNING
!WARNING
!WARNING
!WARNING
!Caution
!Caution
!Caution
!Caution
!Caution

V
Transportation Precautions
Do not hold by front cover or panel , instead, hold by the radiation fin (heat
sink) while transporting the product. Doing so may result in injury.
Do not pull on the cables. Doing so may result in damage to the product or
malfunction.
Use the eye-bolts only for transporting the Inverter. Using them for
transporting the machinery may result in injury or malfunction.
Installation Precautions
Provide an appropriate stopping device on the machine side to secure safety.
(A holding brake is not a stopping device for securing safety.) Not doing so
may result in injury.
Provide an external emergency stopping device that allows an instantaneous
stop of operation and power interruption. Not doing so may result in injury.
Be sure to install the product in the correct direction and provide specified
clearances between the Inverter and control panel or with other devices. Not
doing so may result in fire or malfunction.
Do not allow foreign objects to enter inside the product. Doing so may result in
fire or malfunction.
Do not apply any strong impact. Doing so may result in damage to the product
or malfunction.
Wiring Precautions
Wiring must be performed only after confirming that the power supply has
been turned OFF. Not doing so may result in electrical shock.
Wiring must be performed by authorized personnel. Not doing so may result in
electrical shock or fire.
Be sure to confirm operation only after wiring the emergency stop circuit. Not
doing so may result in injury.
Always connect the ground terminals to a ground of 100 W or less for the
200V AC class, or 10 W or less for the 400-V AC class. Not connecting to a
proper ground may result in electrical shock.
Install external breakers and take other safety measures against short-
circuiting in external wiring. Not doing so may result in fire.
Confirm that the rated input voltage of the Inverter is the same as the AC
power supply voltage. An incorrect power supply may result in fire, injury, or
malfunction.
Connect the Braking Resistor and Braking Resistor Unit as specified in the
manual. Not doing so may result in fire.
Be sure to wire correctly and securely. Not doing so may result in injury or
damage to the product.
Be sure to firmly tighten the screws on the terminal block. Not doing so may
result in fire, injury, or damage to the product.
Do not connect an AC power to the U, V, or W output. Doing so may result in
damage to the product or malfunction.
!Caution
!Caution
!Caution
!WARNING
!WARNING
!Caution
!Caution
!Caution
!WARNING
!WARNING
!WARNING
!WARNING
!Caution
!Caution
!Caution
!Caution
!Caution
!Caution

VI
Operation and Adjustment Precautions
Turn ON the input power supply only after mounting the front cover, terminal
covers, bottom cover, Operator, and optional items. Not doing so may result in
electrical shock.
Do not remove the front cover, terminal covers, bottom cover, Operator, or
optional items while the power is being supplied. Doing so may result in
electrical shock or damage to the product.
Do not operate the Operator or switches with wet hands. Doing so may result
in electrical shock.
Do not touch the inside of the Inverter. Doing so may result in electrical shock.
Do not come close to the machine when using the error retry function
because the machine may abruptly start when stopped by an alarm. Doing so
may result in injury.
Do not come close to the machine immediately after resetting momentary
power interruption to avoid an unexpected restart (if operation is set to be
continued in the processing selection function after momentary power
interruption is reset). Doing so may result in injury.
Provide a separate emergency stop switch because the STOP Key on the
Operator is valid only when function settings are performed. Not doing so may
result in injury.
Be sure to confirm that the RUN signal is turned OFF before turning ON the
power supply, resetting the alarm, or switching the LOCAL/REMOTE selector.
Doing so while the RUN signal is turned ON may result in injury.
Be sure to confirm permissible ranges of motors and machines before
operation because the Inverter speed can be easily changed from low to high.
Not doing so may result in damage to the product.
Provide a separate holding brake when necessary. Not doing so may result in
injury.
Do not perform a signal check during operation. Doing so may result in injury
or damage to the product.
Do not carelessly change settings. Doing so may result in injury or damage to
the product.
!WARNING
!WARNING
!WARNING
!WARNING
!WARNING
!WARNING
!WARNING
!WARNING
!Caution
!Caution
!Caution
!Caution

VII
Maintenance and Inspection Precautions
Do not touch the Inverter terminals while the power is being supplied.
Maintenance or inspection must be performed only after turning OFF the
power supply, confirming that the CHARGE indicator (or status indicators) is
turned OFF, and after waiting for the time specified on the front cover. Not
doing so may result in electrical shock.
Maintenance, inspection, or parts replacement must be performed by
authorized personnel. Not doing so may result in electrical shock or injury.
Do not attempt to take the Unit apart or repair. Doing either of these may
result in electrical shock or injury.
Carefully handle the Inverter because it uses semiconductor elements.
Careless handling may result in malfunction.
Do not change wiring, disconnect connectors, the Operator, or optional items,
or replace fans while power is being supplied. Doing so may result in injury,
damage to the product, or malfunction.

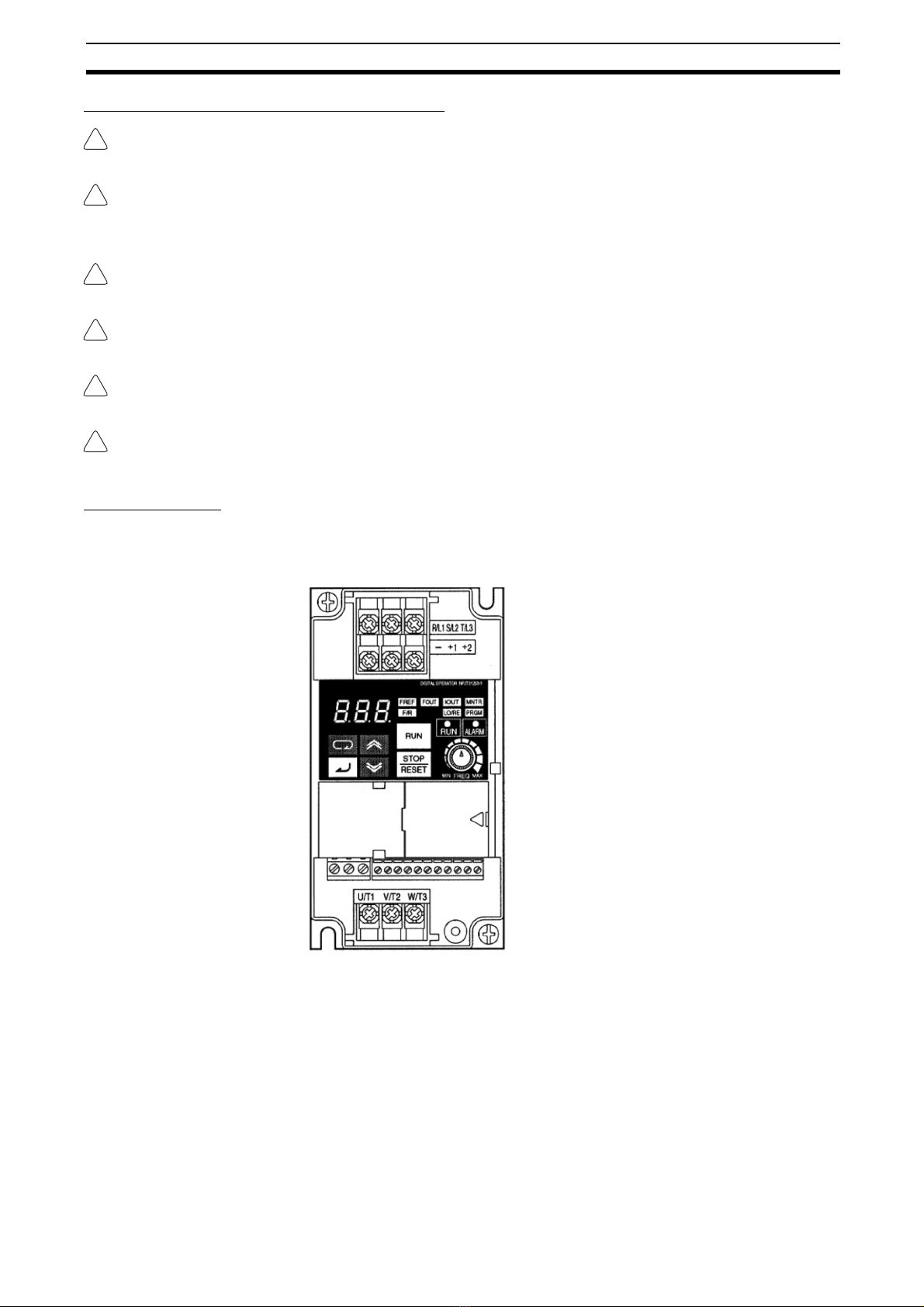

Warning Labels
Warning labels are pasted on the product as shown in the following
illustration. Be sure to follow the instructions given there.
Warning Labels
!WARNING
!WARNING
!WARNING
!WARNING
!Caution
!Caution

VIII
Contents of Warning
• For CIMR-J7AZ20P1 to 20P7 (0.1 to 0.75 kW) and CIMR-J7AZB0P1 to
B0P4 (0.1 to 0.4 kW):
• For CIMR-J7AZ21P5 to A4P0 (1.5 to 4.0 kW), CIMR-J7AZB0P7 to B1P5
(0.75 to 1.5 kW), and CIMR-J7AZ40P2 to 44P0 (0.2 to 3.7 kW):
Checking Before Unpacking
Checking the Product
On delivery, always check that the delivered product is the VARISPEED J7
Inverter that you ordered.
Should you find any problems with the product, immediately contact your
nearest local sales representative.
Checking the Nameplate
Checking the Model
"P" indicates a decimal
point
[ ]
CIMR—J7AZ20P1
Inverter
J7 series
A: With digital operator (with potentiometer)
Z: European standard
specifications
Max. applicable motor output
0P1: 0.1 kW
4P0: 4.0 kW
Voltage
B: Single-phase 200 VAC
2: Three-phase 200 VAC
4: Three-phase 400 VAC

IX
Maximum Applicable Motor Capacity
Note The figures in parentheses indicate capacities for motors used outside Japan.
Voltage Class
Checking for Damage Check the overall appearance and check for damage or scratches resulting
form transportation.
About this Manual
This manual is divided into the chapters described in the following table.
Information is organized by application area to enable you to use the manual
more efficiently.
Read and Understand this Manual
Please read and understand this manual before using the product. Please
consult your OMRON-YASKAWA representative if you have any questions or
comments.
0P1 0.1 (0.1) kW
0P2 0.25/0.37 (0.2) kW
0P4 0.55 (0.4) kW
0P7 1.1 (0.75) kW
1P5 1.5 (1.5) kW
2P2 2.2 (2.2) kW
4P0 4.0 (4.0) kW
2 Three-phase 200-V AC input (200-V class)
B Single-phase 200-V AC input (200-V class)
4 Three-phase 400-V AC input (400-V class)
Chapter Contents
Chapter 1 Overview Describes features and nomenclature.
Chapter 2 Design Provides dimensions, installation methods, wiring methods, peripheral device
design information, and peripheral device selection information.
Chapter 3 Preparing for Operation and
Monitoring
Describes nomenclature and Digital Operator procedures for operating and
monitoring Inverters.
Chapter 4 Test Run Describes the method for controlling a motor through the frequency adjuster on
the front of the Inverter. This can be used for trial operation of the system.
Chapter 5 Basic Operation Describes basic Inverter control functions for users not familiar with Inverters.
The functions that must be understood to drive a motor with an Inverter are
described.
Chapter 6 Advanced Operation Describes all of the functions provided by the Inverter. These functions will
enable more advanced applications, and includes functions that will improve
motor control through the Inverter, such as responsiveness (torque character-
istics), increasing speed accuracy, PID control, overtorque detection, and
other functions.
Chapter 7 Communications Describes the RS-422/485 Communications Unit and the general-purpose
RS-422/485 communications functions provided by the Inverter, including
connection methods.
Chapter 8 Maintenance Operations Provides maintenance, inspection, and troubleshooting information.
Chapter 9 Specifications Provides Inverter specifications, as well as the specifications and dimensions of
peripheral devices.
Chapter 10 List of Parameters Lists basic information on Inverter parameters as a reference for users already
familiar with Inverter operation. Parameters are listed in order with the page
numbers of further information for easy reference.
Chapter 11 Using the Inverter for a
Motor
Describes information on using the Inverter for a motor.

X
Warranty and Limitations of Liability
Application Considerations
WARRANTY
OMRON-YASKAWA’s exclusive warranty is that the products are free from defects in materials and workmanship for a
period of one year (or other period if specified) from date of sale by OMRON-YASKAWA.
OMRON-YASKAWA MAKES NO WARRANTY OR REPRESENTATION, EXPRESS OR IMPLIED, REGARDING NON-
INFRINGEMENT, MERCHANTABILITY, OR FITNESS FOR PARTICULAR PURPOSE OF THE PRODUCTS. ANY
BUYER OR USER ACKNOWLEDGES THAT THE BUYER OR USER ALONE HAS DETERMINED THAT THE PROD-
UCTS WILL SUITABLY MEET THE REQUIREMENTS OF THEIR INTENDED USE. OMRON DISCLAIMS ALL OTHER
WARRANTIES, EXPRESS OR IMPLIED.
LIMITATIONS OF LIABILITY
OMRON-YASKAWA SHALL NOT BE RESPONSIBLE FOR SPECIAL, INDIRECT, OR CONSEQUENTIAL DAMAGES,
LOSS OF PROFITS OR COMMERCIAL LOSS IN ANY WAY CONNECTED WITH THE PRODUCTS, WHETHER SUCH
CLAIM IS BASED ON CONTRACT, WARRANTY, NEGLIGENCE, OR STRICT LIABILITY.
In no event shall the responsibility of OMRON-YASKAWA for any act exceed the individual price of the product on which
liability is asserted.
IN NO EVENT SHALL OMRON-YASKAWA BE RESPONSIBLE FOR WARRANTY, REPAIR, OR OTHER CLAIMS
REGARDING THE PRODUCTS UNLESS OMRON-YASKAWA’S ANALYSIS CONFIRMS THAT THE PRODUCTS WERE
PROPERLY HANDLED, STORED, INSTALLED, AND MAINTAINED AND NOT SUBJECT TO CONTAMINATION, ABUSE,
MISUSE, OR INAPPROPRIATE MODIFICATION OR REPAIR.
SUITABILITY FOR USE
OMRON-YASKAWA shall not be responsible for conformity with any standards, codes, or regulations that apply to the
combination of products in the customer’s application or use of the products.
At the customer’s request, OMRON-YASKAWA will provide applicable third party certification documents identifying
ratings and limitations of use that apply to the products. This information by itself is not sufficient for a complete
determination of the suitability of the products in combination with the end product, machine, system, or other application
or use.
The following are some examples of applications for which particular attention must be given. This is not intended to be an
exhaustive list of all possible uses of the products, nor is it intended to imply that the uses listed may be suitable for the
products:
• Outdoor use, uses involving potential chemical contamination or electrical interference, or conditions or uses not
described in this manual.
• Nuclear energy control systems, combustion systems, railroad systems, aviation systems, medical equipment,
amusement machines, vehicles, safety equipment, and installations subject to separate industry or government
regulations.
• Systems, machines, and equipment that could present a risk to life or property.
Please know and observe all prohibitions of use applicable to the products.
NEVER USE THE PRODUCTS FOR AN APPLICATION INVOLVING SERIOUS RISK TO LIFE OR PROPERTY
WITHOUT ENSURING THAT THE SYSTEM AS A WHOLE HAS BEEN DESIGNED TO ADDRESS THE RISKS, AND
THAT THE OMRON-YASKAWA PRODUCTS ARE PROPERLY RATED AND INSTALLED FOR THE INTENDED USE
WITHIN THE OVERALL EQUIPMENT OR SYSTEM.
PROGRAMMABLE PRODUCTS
OMRON-YASKAWA shall not be responsible for the user’s programming of a programmable product, or any consequence
thereof.

XI
Disclaimers
CHANGE IN SPECIFICATIONS
Product specifications and accessories may be changed at any time based on improvements and other reasons.
It is our practice to change model numbers when published ratings or features are changed, or when significant construc-
tion changes are made. However, some specifications of the products may be changed without any notice. When in doubt,
special model numbers may be assigned to fix or establish key specifications for your application on your request. Please
consult with your OMRON-YASKAWA representative at any time to confirm actual specifications of purchased products.
DIMENSIONS AND WEIGHTS
Dimensions and weights are nominal and are not to be used for manufacturing purposes, even when tolerances are
shown.
PERFORMANCE DATA
Performance data given in this manual is provided as a guide for the user in determining suitability and does not constitute
a warranty. It may represent the result of OMRON-YASKAWA’s test conditions, and the users must correlate it to actual
application requirements. Actual performance is subject to the OMRON-YASKAWA Warranty and Limitations of Liability.
ERRORS AND OMISSIONS
The information in this manual has been carefully checked and is believed to be accurate; however, no responsibility is
assumed for clerical, typographical, or proofreading errors, or omissions.

XII

XIII
Table of Contents
CHAPTER 1
Overview. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
1-1 Function . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
1-2 Nomenclature. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
CHAPTER 2
Design . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
2-1 Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
2-2 Wiring . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
CHAPTER 3
Preparing for Operation and Monitoring . . . . . . . . . . 33
3-1 Nomenclature. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
3-2 Outline of Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
CHAPTER 4
Test Run . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41
4-1 Procedure for Test Run . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43
4-2 Operation Example . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45
CHAPTER 5
Basic Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49
5-1 Initial Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50
5-2 V/f Control. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51
5-3 Setting the Local/Remote Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53
5-4 Selecting the Operation Command . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54
5-5 Setting the Frequency Reference . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55
5-6 Setting the Acceleration/Deceleration Time . . . . . . . . . . . . . . . . . . . . . . . . . . . 60
5-7 Selecting the Reverse Rotation-prohibit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 62
5-8 Selecting the Interruption Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 62
5-9 Multi-function I/0 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 63
5-10 Analog Monitor Output . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 68
CHAPTER 6
Advanced Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . 69
6-1 Setting the Carrier Frequency . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 70
6-2 DC Injection Braking Function . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 72
6-3 Stall Prevention Function . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 73
6-4 Overtorque Detection Function . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 76
6-5 Torque Compensation Function . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 77
6-6 Slip Compensation Function . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 78
6-7 Other Functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 79

XIV
Table of Contents
CHAPTER 7
Communications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 89
7-1 RS-422/485 Communications Unit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 90
7-2 Inverter Settings. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 93
7-3 Message Communications Basic Format. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 98
7-4 DSR Message and Response . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 101
7-5 Enter Command . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 108
7-6 Setting the Communications Data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 109
7-7 Register Number Allocations in Detail . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 111
7-8 Communications Error Codes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 115
7-9 Self-diagnostic Test . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 116
CHAPTER 8
Communications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 117
8-1 Protective and Diagnostic Functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 118
8-2 Troubleshooting. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 123
8-3 Maintenance and Inspection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 128
CHAPTER 9
Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 131
9-1 Inverter Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 132
9-2 Specifications of Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 135
9-3 Option Specifications. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 142
CHAPTER 10
List of Parameters . . . . . . . . . . . . . . . . . . . . . . . . . . . . 145
CHAPTER 11
Using the Inverter for a Motor. . . . . . . . . . . . . . . . . . 159

1
CHAPTER 1
Overview
1-1 Function . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
1-2 Nomenclature. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

2
Function Chapter 1-1
1-1 Function
The compact simple VARISPEED J7-Series Inverter ensures greater ease of
use than any conventional model. The VARISPEED J7 Inverter meets EC
Directives and UL/cUL standard requirements for worldwide use.
VARISPEED J7 Inverter Models
The following 3-phase and single-phase 200-V AC-class, and 3-phase 400-V
AC-class J7AZ models are available.
Note It is not possible to connect a Braking Resistor or Braking Unit to a J7-series
Inverter. Select an Inverter from another series if the application requires
braking control.
International Standards (EC Directives and UL/cUL Standards)
The J7 Inverter meets the EC Directives and UL/cUL standard requirements
for worldwide use.
Versatile
Easy-to-use
Functions
• Incorporates the functions and operability ensured by the conventional
J7AZ Series.
• Easy to initialize and operate with the FREQ adjuster on the Digital
Operator.
• Ease of maintenance. The cooling fan is easily replaceable. The life of the
cooling fan can be prolonged by turning on the cooling fan only when the
Inverter is in operation.
Suppression of
Harmonics
Connects to DC reactors, thus suppressing harmonics more effectively than
conventional AC reactors.
Further improvement in the suppression of harmonics is possible with the
combined use of the DC and AC reactors.
Rated voltage Protective structure Maximum applied
motor capacity kW
Model
3-phase 200 V AC Panel-mounting models
(conforming to IP20)
0.1 CIMR-J7AZ20P1
0.25 CIMR-J7AZ20P2
0.55 CIMR-J7AZ20P4
1.1 CIMR-J7AZ20P7
1.5 CIMR-J7AZ21P5
2.2 CIMR-J7AZ22P2
4.0 CIMR-J7AZ24P0
Single-phase 200 V AC Panel-mounting models
(conforming to IP20)
0.1 CIMR-J7AZB0P1
0.25 CIMR-J7AZB0P2
0.55 CIMR-J7AZB0P4
1.1 CIMR-J7AZB0P7
1.5 CIMR-J7AZB1P5
3-phase 400 V AC Panel-mounting models
(conforming to IP20)
0.37 CIMR-J7AZ40P2
0.55 CIMR-J7AZ40P4
1.1 CIMR-J7AZ40P7
1.5 CIMR-J7AZ41P5
2.2 CIMR-J7AZ42P2
4.0 CIMR-J7AZ44P0
Classification Applicable standard
EC Directives EMC Directive EN50081-2 and EN5008-2
Low-Voltage
Directive
prEN50178
UL/cUL UL508C

3
Nomenclature Chapter 1-2
1-2 Nomenclature
Panel
Note 1. The front cover functions as a terminal cover. The Digital Operator Unit
cannot be removed.
2. Instead of mounting holes, each of the following models has two U-shaped
cutouts located diagonally.
CIMR-J7AZ20P1 (0.1 kW),
CIMR-J7AZ20P2 (0.25 kW),
CIMR-J7AZ20P4 (0.55 kW), and
CIMR-J7AZ20P7 (1.1 kW)
CIMR-J7AZB0P1 (0.1 kW),
CIMR-J7AZB0P2 (0.25 kW), and
CIMR-J7AZB0P4 (0.55 kW)
Data display
Increment key
Increase constant no. or data.
Switch functions among function
display LEDs.
Decrement key
Decrease constant no. or data.
Enter key
Enter data when setting constants.
After selecting constant no. at
PRGM mode, data are displayed.
Display selection key
Stop/Reset key
Press to stop the motor. If fault
occurs, reset the inverter.
Digital operator
Function display LEDs
Selected function is lit (see the
functions below). Its data is
displayed on data display.
Operation key
Press to run the motor. The RUN
light is ON while running.
Frequency setting volume
Set operational frequency with
volume.
Run LED
Alarm LED

4
Nomenclature Chapter 1-2
Digital Operator
Note For safety reasons, the reset will not work while a RUN command (forward or
reverse) is in effect. Wait until the RUN command is OFF before resetting the
Inverter.
Appearance Name Function
Data display Displays relevant data items, such as frequency reference, output frequency,
and parameter set values.
FREQ adjuster Sets the frequency reference within a range between 0 Hz and the maximum
frequency.
FREF indicator The frequency reference can be monitored or set while this indicator is lit.
FOUT indicator The output frequency of the Inverter can be monitored while this indicator is lit.
IOUT indicator The output current of the Inverter can be monitored while this indicator is lit.
MNTR indicator The values set in U01 through U10 are monitored while this indicator is lit.
F/R indicator The direction of rotation can be selected while this indicator is lit when
operating the Inverter with the RUN Key.
LO/RE indicator The operation of the Inverter through the Digital Operator or according to the
set parameters is selectable while this indicator is lit.
Note This status of this indicator can be only monitored while the Inverter is in
operation. Any RUN command input is ignored while this indicator is lit.
PRGM indicator The parameters in n01 through n79 can be set or monitored while this
indicator is lit.
Note While the Inverter is in operation, the parameters can be only monitored
and only some parameters can be changed. Any RUN command input
is ignored while this indicator is lit.
Mode Key Switches the setting and monitor item indicators in sequence.
Parameter being set will be canceled if this key is pressed before entering the
setting.
Increment Key Increases multi-function monitor numbers, parameter numbers, and parameter
set values.
Decrement Key Decreases multi-function monitor numbers, parameter numbers, and
parameter set values.
Enter Key Enters multi-function monitor numbers, parameter numbers, and internal data
values after they are set or changed.
RUN Key Starts the Inverter running when the J7AZ is in operation with the Digital
Operator.
STOP/RESET Key Stops the Inverter unless parameter n06 is set to disable the STOP Key.
Functions as a Reset Key when an Inverter error occurs. (See note.)
Data display
Keys
Indicators
(Setting/Monitor
item indicators)
FREQ adjuster

5
CHAPTER 2
Design
2-1 Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
2-1-1 Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
2-1-2 Installations Conditions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
2-2 Wiring . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
2-2-1 Removing and Mounting the Covers . . . . . . . . . . . . . . . . . . . . . . . . 11
2-2-2 Terminal Block . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
2-2-3 Standard Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
2-2-4 Wiring around the Main Circuit . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
2-2-5 Wiring Control Circuit Terminals . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
2-2-6 Conforming to EC Directive . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

6
Installation Chapter 2-1
2-1 Installation

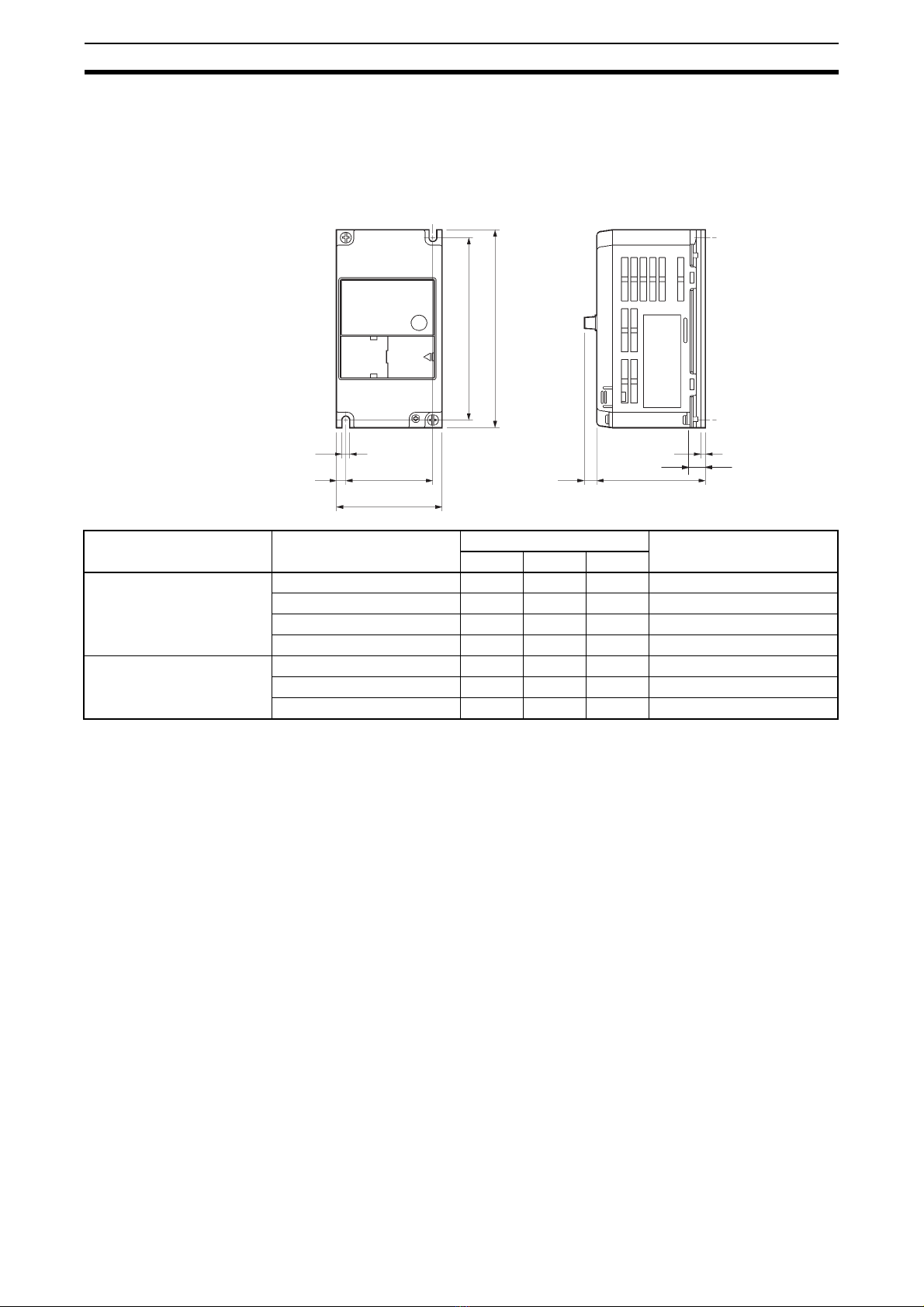

2-1-1 Dimensions
CIMR-J7AZ20P1 to CIMR-J7AZ20P7 (0.1 to 0.75 kW) 3-phase 200-V AC Input
CIMR-J7AZB0P1 to CIMR-J7AZB0P4 (0.1 to 0.4 kW) Single-phase 200-V AC Input
D
8.5
5
656
68
118 128
D1
t
Rated voltage Model CIMR-J7AZ- Dimensions (mm) Weight (kg)
DD1 t
3-phase 200 V AC 20P1 70 10 3 Approx. 0.5
20P2 70103 Approx.0.5
20P4 102 42 5 Approx. 0.8
20P7 122 62 5 Approx. 0.9
Single-phase 200 V AC B0P1 70 10 3 Approx. 0.5
B0P2 70 10 3 Approx. 0.5
B0P4 112 42 5 Approx. 0.9
