Omron SYSDRIVE 3G3IV Service manual
SYSDRIVE 3G3IV
High-performance/Low noise
General-purpose Inverter
Installation/Instruction Manual
Revised June 1995
Notice:
OMRON products are manufactured for use according to proper procedures by a qualified operator
and only for the purposes described in this manual.
The following conventions are used to indicate and classify precautions in this manual. Always heed
the information provided with them. Failure to heed precautions can result in injury to people or dam-
age to the product.
DANGER! Indicates informationthat,ifnotheeded,islikelytoresult inlossof lifeor serious
injury.
WARNING Indicates information that, if not heeded, could possibly result in loss of life or
serious injury.
Caution Indicates information that, if not heeded, could result in relatively serious or mi-
nor injury, damage to the product, or faulty operation.
OMRON Product References
All OMRON products are capitalized in this manual. The word “Unit” is also capitalized when it refers
to an OMRON product, regardless of whether or not it appears in the proper name of the product.
The abbreviation “Ch,” which appears in some displays and on some OMRON products, often means
“word” and is abbreviated “Wd” in documentation in this sense.
The abbreviation “PC” means Programmable Controller and is not used as an abbreviation for any-
thing else.
Visual Aids
The following headings appear in the left column of the manual to help you locate different types of
information.
Note Indicatesinformationof particular interestfor efficientandconvenientoperation
of the product.
1, 2, 3...
1. Indicates lists of one sort or another, such as procedures, checklists, etc.
OMRON, 1992
!
! "#
$
"
%
&
'! ()) *
'+ *
, !
! !-.!! ,
/ 0! ,
& 1 .
!
2 . 3
2
. )4 2 .
$
' 5 '
%
. )4 67 1 '
, 5
$
50
%
"
# $
&
8! 2 *
24 8! ( 3
%
, !
, !
, '9'2:6 0: :-8 5 '
&
$
0:(33
(3/,
&
0:"3
"3
*
0:"33
"/,3
3
0:(33
(3/,
, 0:"3
",3
0:"&,
",3
/ 0:",,3
";
& "#! < 4 5= > ,
* 1
$
.
%
3 .!!? 5! .!! /
!-' )4 ! < 0:"33 &
:' . 0: 5
:.5*,
*
:' . 0:5
:.5*
,3
( '< ,
" . 6@!
2 ,
' () $!
*
About this Manual:
This manual gives instructions and the installation procedure of the SYSDRIVE 3G3IV General-pur-
pose Inverter
Section 1
This section gives general information and instructions on the SYSDRIVE 3G3IV General-
purpose Inverter.
Section 2
This section describes the wiring procedure and the accessories needed. Also includes an
interconnection diagram.
Section 3
Describes the operating procedures using flow diagrams.
Section 4
Describes the routine checks required for maintenance. Also lists possible failure indica-
tions and the corrective actions to be taken.
Section 5
Describes the terminal functions of the main and control circuits as well as the V/F pattern
selections required.
Section 6
This section illustrates the interconnections for various SYSDRIVE 3G3IV models.
Appendix A
Lists the various constants and specifications of the SYSDRIVE 3G3IV.
Appendix B
Lists the optional equipment that may be used with the SYSDRIVE 3G3IV.
Appendix C
Lists the physical dimensions for the SYSDRIVE 3G3IV models described herein.
WARNING Failure to read and understand the information provided in this manual may result in
personal injury or death, damage to the product, or product failure. Please read each
section inits entirety andbesure youunderstand theinformation providedinthe section
and related sections before attempting any of the procedures or operations given.
1 ! '9'2:6 0: < @! A1
5 2
>
! '
1-1 What is an “Inverter”?
An inverter is a device to convert a three-phase AC commercial power supply
to DC with an inverter section to produce AC variable frequency voltage from
this converted DC. This AC variable frequency voltage can then be used for
speed control of three-phase squirrel-cage induction motors.
DANGER! 1) After turning off the main circuit power supply, do not touch circuit compo-
nents until “CHARGE” lamp is extinguished. The capacitors are still charged
and can be quite dangerous.
2) Do not connect or disconnect wires and connectors while power is applied
to the circuit.
3) Do not check signals during operation.
4) Be sure to ground SYSDRIVE 3G3IV using the ground terminal G (E).
5) Never connect main circuit output terminals T1 (U), T2 (V), T3 (W) to AC
main circuit power supply.
Caution 1) All the potentiometers of SYSDRIVE 3G3IV have been adjusted at the fac-
tory. Do not change their settings unnecessarily.
2) Do not make withstand voltage test on any part of the SYSDRIVE 3G3IV
unit. It is electronic equipment using semi-conductors and vulnerable to high
voltage.
3) Control PC board employs CMOS ICs which are easily damaged by static
electricity. Do not touch the CMOS elements.
1-2 Receiving This SYSDRIVE 3G3IV has been put through demanding tests at the factory
before shipment. After unpacking, check for the following.
•Verify the part numbers with the purchase order sheet and/or packing slip.
•Transit damage.
If any part of SYSDRIVE 3G3IV is damaged or lost, immediately notify the
shipper.

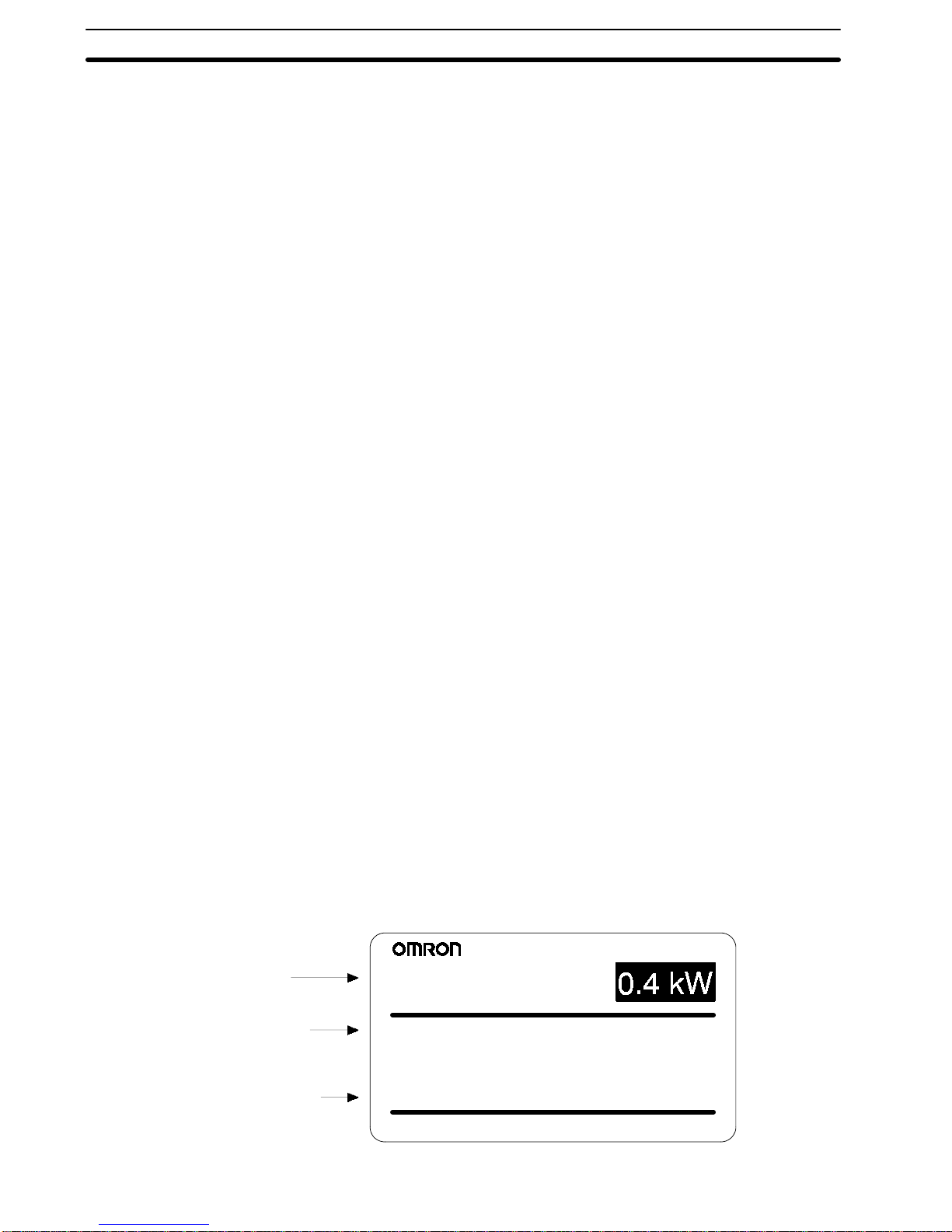

1-3 Name Plate Data
3G3IV-A2004-EV2
200V CLASS INVERTER
INPUT: AC 3PH 200to220V/50Hz
200to230V/60Hz 4A
DC270to310V 4.9A
OUTPUT: AC 3PH 0to230V 1.4kVA 3.6A
OMRON Corporation MADE IN JAPAN
Inverter model
Input specification
Output specification
Section 1-3
3G3IV-A2004-EV1
Inverter
Specifications
A: Enclosed wall-
mounting
B: Panel-mounting
P: Option
Voltage
2: 200 V
4: 400 V
Applicable maximum
motor output
004: 0.4 kW
007: 0.75 kW
to
30K: 300 kW
E: European specifications
blank: Japaneae specifications
V2: Version capable of communicating
with PC (optional card required)
1-4 Installation
Caution Never move, lift or handle the SYSDRIVE 3G3IV cabinet by front cover or
terminal stands. Lift the cabinet from the bottom.
1-4-1 Location Location of the equipment is important to achieve proper performance and
normal operating life. The SYSDRIVE 3G3IV units should be installed in ar-
eas where the following conditions exist.
•Ambient temperature: --10°to 40°C, 14°to 104°F (For enclosed type),
--10°to 45°C, 14°to 113°F (For open chassis type)
•Protected from rain or moisture.
•Protected from direct sunlight.
•Protected from corrosive gases or liquids.
•Free from airborne dust or metallic particles.
•Free from vibration.
•Free from magnetic noise.
Caution To house multiple SYSDRIVE 3G3IVs in a switchgear, install a cooling fan or
some other means to cool the air entering the inverter below 45°C(113°F).

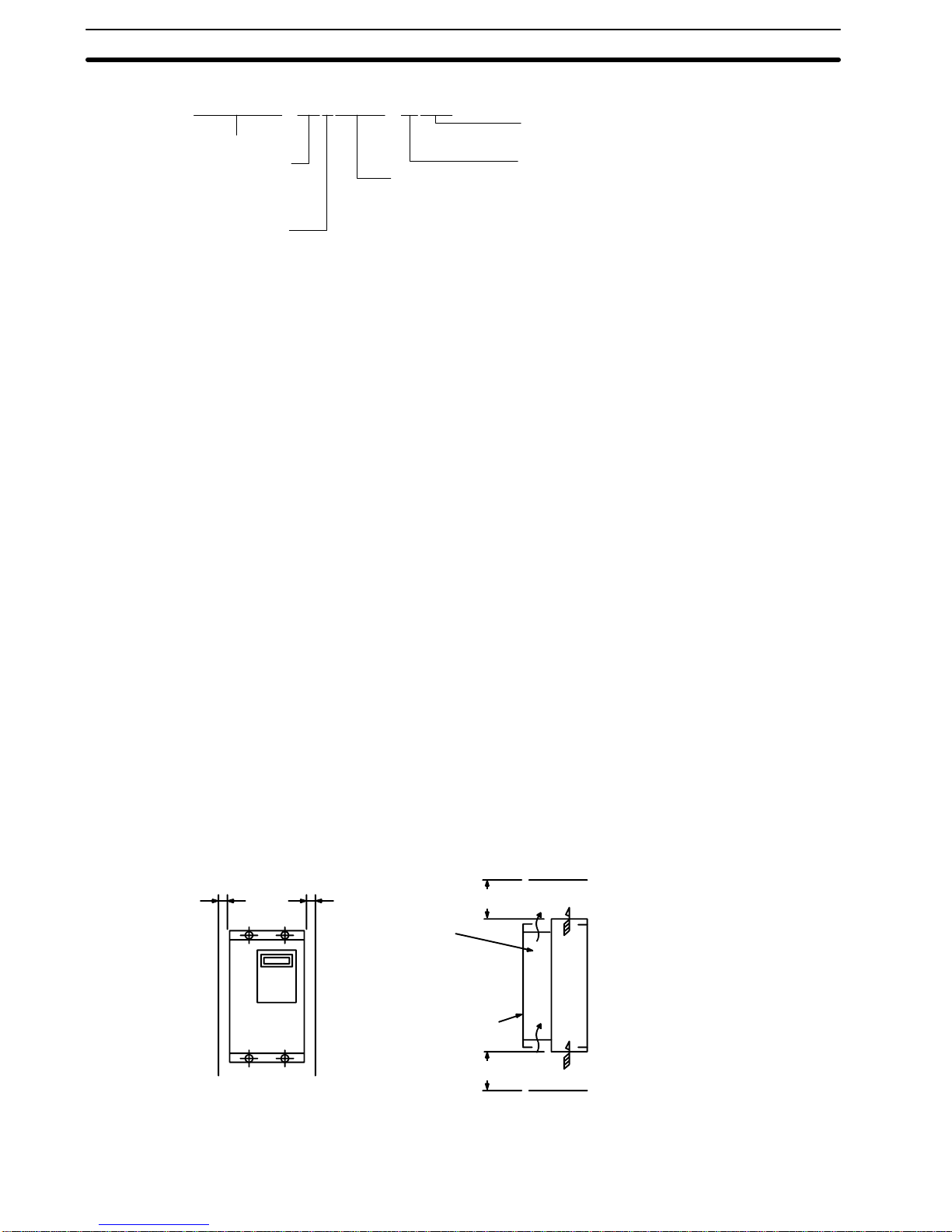

1-4-2 Mounting Space
Install SYSDRIVE 3G3IV vertically and allow sufficient space for effective
cooling as shown below in Fig. 1.
1.18 in (30 mm)*
OR MORE 1.18 in (30 mm)
OR MORE
(a) Front View
Fig. 1 Mounting Spaces
ALLOWABLE
TEMPERATURE
OF CONTROL PART:
55°C(131°F)**
FRONT
COVER
5.9 In (150 mm)
OR MORE
5.9 in (150 mm)
OR MORE
(b) Side View
AIR
AIR
OPEN CHASSIS TYPE: 45°C(113°F)
ENCLOSED WALL-MOUNTED TYPE: 40°C(104°F)
* 3.9in (100 mm) for models 3G3IV-B4110-E or B4150-E
3.15in (80 mm) for models 3G3IV-B4180-E or B4220-E
** Allowable temperature up to 50°C(122°F)
when front cover is removed.
Section 1-4
1 ) '9'2:6 0: = @! ! =
!
! "#
$
"
%
&
'! ()) *
'+ *
, !
! !-.!! ,
/ 0! ,
& 1 .
&

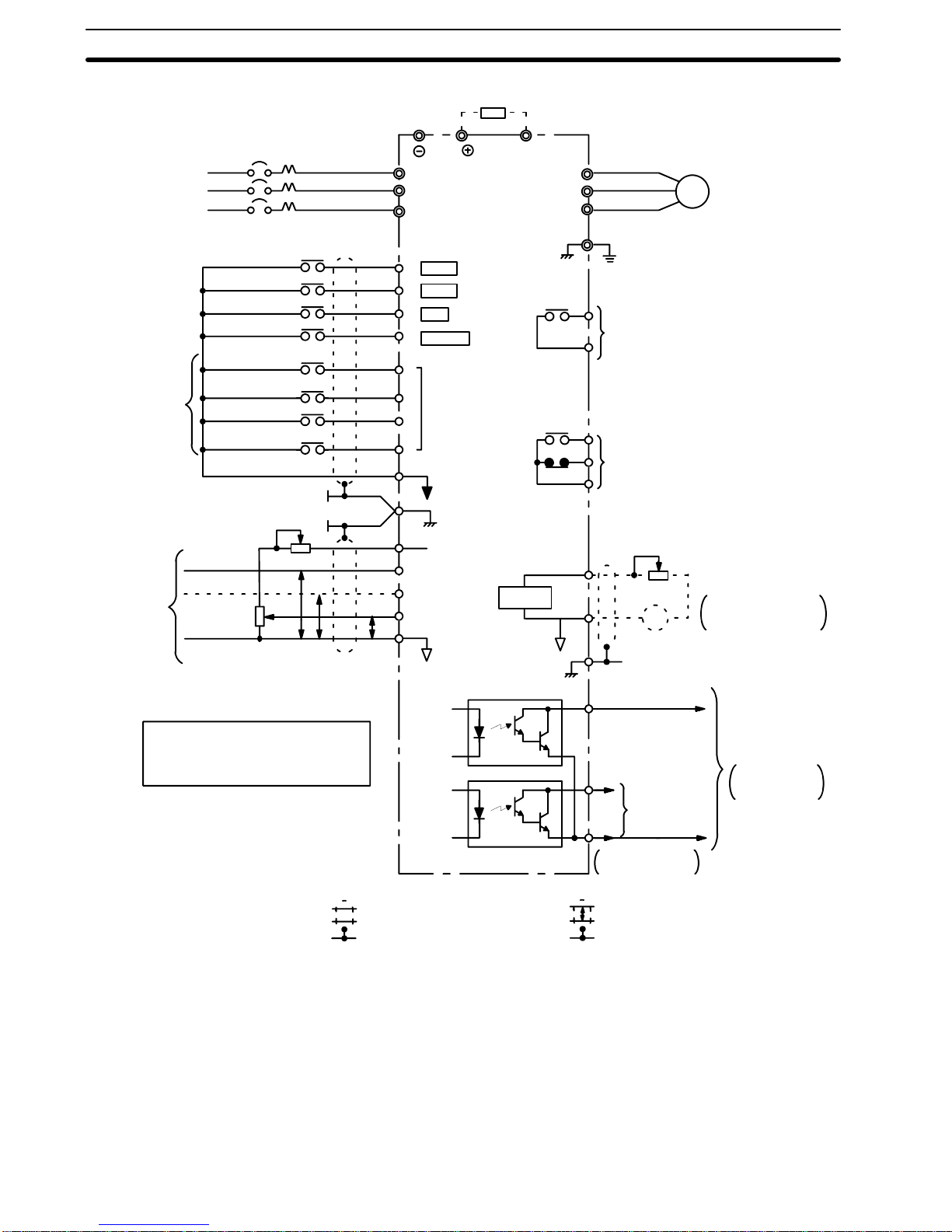

2-1 ConnectionsThe following shows an interconnection diagram. With digital operator, the
motor can be operated by wiring the main circuit only. (Terminal shows
main circuit and control circuit)
Important Use listed closed-loop connectors sized for the wire gauge involved. Connec-
tors are to be installed using the correct crimp tool specified by the connector
manufacturer.
Caution The connections of control circuit terminals 1 through 27 do not follow the
terminal numbering order. To connect them properly, follow the figure below.
11
1
12
2
13
3
14
4
15
5
16
6
17
78
Section 2-1
$
SPEED AGREED
SIGNAL IS SET
AT FACTORY
L1(R)
L2(S)
L3(T)
L1(R)
L2(S)
L3(T)
T1(U)
T2(V)
T3(W)
G(E)
IM
B1/ B2
BRAKING RESISTOR UNIT
(OPTIONAL)
POWER SUPPLY,
3-PHASE,
200/208/220 VAC,
50 Hz
200/208/220/
230 VAC, 60 Hz
MCCB
FORWARD
RUN/STOP
REVERSE
RUN/STOP
EXTERNAL
FAULT
FAULT RESET
MULTI-STEP SPEED
SETTING 1
(MASTER/AUX CHG.)
MULTI-STEP
SPEED SETTING 2
INCHING
COMMAND
EXTERNAL
COASTING STOP
STANDARD
FUNCTIONS
SET AT
FACTORY
PRIOR TO
SHIPMENT
1
2
3
4
5
6
7
8
11
EXTERNAL
FREQ
COMMAND
2kΩ
0TO10V
4TO20mA
0V
P
P
P
12(G)
15
13
14
16
17
MULTI-FUNCTION
INPUT
FWD
REV
Eb
RESET
FORWARD BY
HOLDING INPUT
REVERSE BY
HOLDING INPUT
ANALOG
OUTPUT
FAULT CONTACT OUTPUT
CONTACT CAPACITY
LESS THAN 1 A FOR 250 VAC
AND 30 VDC
FREQ METER (3 VDC, 1 mA)
21
22
(12)
18
19
20
9
10
25
27
MULTI-FUNCTION ANALOG
OUTPUT
STANDARD OUTPUT
FREQUENCY SETTING
OTO+10V
MULTI-FUNCTION OUTPUT
(SIGNAL DURING RUNNING IS SET AT
FACTORY PRIOR TO SHIPMENT)
CONTACT CAPACITY LESS THAN 1 A
FOR 250 VAC AND 30 VDC
SEQUENCE
COMMON
TERMINAL (0 V)
SHIELDED SHEATH
CONNECTION TERMINAL
POWER SUPPLY FOR SPEED
SETTING +15 V 20 mA
MASTER COMMAND
0TO10V(20kΩ)
MASTER COMMAND
4TO20mA
(250 kΩ)
MULTI-FUNCTION
ANALOG INPUT
0TO10V(20kΩ)
26
MULTI-FUNCTION
OUTPUT OPEN
COLLECTOR 2
MULTI-FUNCTION
OUTPUT OPEN
COLLECTOR 1
”0 SPEED SIGNAL”
IS SET AT FACTORY
MOTOR
SYSDRIVE 3G3IV
0V
FM
Switching between master frequency command at
external terminal 13 or 14 and aux. frequency
command at 16 corresponds to the master/aux.
selection contact input.
IMPORTANT
AUX
FREQ
SETTING 2kΩ
3*
3*
FREQ METER CALIBRATION
RESISTOR RV30YN 20SB 20 kΩ
+--
Fig. 2 Interconnections
Example of Model 3G3IV-A2007-E.
Note 1. indicates shielded leads and Ptwisted-pair shielded leads.
2. External terminal 15 of +15V has maximum output current capacity of
20mA.
3. Either external terminal 13 or 14 can be used.
4. Multi-function analog output is an exclusive meter output such as frequen-
cy meter etc. and not available for the feed back control system. Use ana-
log monitor cards (Model PAO08 or PAO12) for the control system.
5. 12(G) indicates inverter frame earth ground.
6. Install an input RFI filter when operating at a high carrier frequency.
7. Use shielded cable if the motor is more than 30 m from the Inverter.
8. Use an AC reactor when driving more than one motor with one Inverter.
Section 2-1
+
2-2 Molded-case Circuit Breaker (MCCB)
Be sure to connect MCCBs between power supply and SYSDRIVE 3G3IV
input terminals L1 (R), L2 (S), L3 (T). Recommended MCCBs are listed in the
table below.
When a ground fault interrupter is used, select the one with no influence for
high frequency, and setting current should be 200mA or over and operating
time, 0.1 s or over to prevent malfunction.
Molded-case Circuit Breakers and Magnetic Contactors
SYSDRIVE Molded-case circuit
breaker or fuse
Model 3G3IV Capacity Rated output
current Rated current
200 to 230V A2004-
1.4 3.2 6A
A2007-
2.1 4.8 10 A
A2015-
2.7 6.4 20 A
A2022-
4.1 9.6 20 A
A2037-
6.9 16 30 A
A2055-
10.3 24 50 A
A2075-
13.7 32 60 A
B2110-
20.6 48 100 A
B2150-
27.4 64 100 A
B2185-
34 80 150 A
B2220-
41 96 150 A
B2300-
54 130 225 A
B2370-
68 160 225 A
B2450-
78 183 300 A
B2550-
95 224 400 A
B2750-
130 300 600 A
400 to 460 V A4004-
1.4 1.6 5A
A4007-
2.2 2.6 5A
A4015-
3.4 4.0 10 A
A4022-
4.1 4.8 10 A
A4037-
6.9 820 A
A4055-
10.3 12 20 A
A4075-
13.7 16 30 A
B4110-
20.6 24 50 A
B4150-
27.4 32 60 A
B4185-
34 40 80 A
B4220-
41 48 100 A
B4300-
54 64 100 A
B4370-
68 80 150 A
B4450-
82 96 150 A
B4550-
110 128 225 A
B4750-
140 165 300 A
B411K-
200 224 400 A
Section 2-2
!
Model 3G3IV Rated currentRated output
current
Capacity
400 to 460 V B416K-
250 300 600 A
B418K-
290 340 600 A
B422K-
380 450 800 A
B430K-
510 600 1,000 A
2-3 Surge Absorber
For the surge absorbers should be connected to the coils of relays, magnetic
contactors, magnetic valves, or magnetic relays. Select type from the table
below.
Surge Absorbers
Coils of magnetic contactor and control relay Surge absorber*
Model Specifications
200 to 230V Large-size Magnetic Contactors DCR2-50A22E 230 VAC 0.5mF + 200W
Control Relay
LY-2, -3 (OMRON)
MM-2, -4 (OMRON)
DCR2-10A25C 250 VAC 0.1mF + 100W
400 to 460V Units DCR2-50D100B 1000VDC 0.5mF + 220W
*Made by MARCON Electronics. (Marketed in Japan.)
2-4 Wire Sizes The next 3 tables show the wire sizes, wire types, and the placement of the
closed-loop connectors respectively.
200V Class Wire Size
Circuit Model
3G3IV kVA Terminal symbol Terminal
screw 75°C Copper wire
range Wire type
AWG mm2
Main A2004-
1.4 L1(R), L2(S), L3(T), (--),
B1/(+), B2, T1(U),
T2(V), T3(W)
M4 14 to 10 2to5.5 Power Cable:
600 V vinyl
sheathed lead or
i
l
t
G(E) 14 to 10 2to5.5 equivalent
A2007-
2.1 L1(R), L2(S), L3(T), (--),
B1/(+), B2, T1(U) T2(V),
T3(W)
M4 14 to 10 2to5.5
G(E) 14 to 10 2to5.5
A2015-
2.7 L1(R), L2(S), L3(T), (--),
B1/(+), B2, T1(U),
T2(V), T3(W)
M4 14 to 10 2to5.5
G(E) 12 to 10 3.5 to 5.5
A2022-
4.1 L1(R), L2(S), L3(T), (--),
B1/(+), B2, T1(U),
T2(V), T3(W)
M4 14 to 10 2to5.5
G(E) 12 to 10 3.5 to 5.5
A2037-
6.9 L1(R), L2(S), L3(T), (--),
B1/(+), B2,, T1(U),
T2(V), T3(W)
M4 10 5.5
G(E) 10 5.5
Section 2-4
,
Circuit Wire type75°C Copper wire
range
Terminal
screw
Terminal symbolkVAModel
3G3IV
mm2
AWG
Main A2055-
10.3 L1(R), L2(S), L3(T), (--),
B1/(+), B2, T1(U),
T2(V), T3(W)
M5 88Power Cable:
600 V vinyl
sheathed lead or
i
l
t
G(E) 10 5.5 equivalent
A2075-
13.7 L1(R), L2(S), L3(T), (--),
B1/(+),B2, T1(U), T2(V),
T3(W)
M5 8 8
G(E) 10 5.5
B2110-
20.6 L1(R), L2(S), L3(T),
B0/(--), B1/(+), T1(U),
T2(V), T3(W)
M6 422
(E) * 8to2 8to38
l1(r), l2(s) M4 14 to 10 2to5.5
B2150-
27.4 L1(R), L2(S), L3(T),
B0/(--), B1/(+), T1(U),
T2(V), T3(W)
M8 3to1/0 30 to 60
G(E) *8to2 8to38
l1(r), l2(s) M4 14 to 10 2to5.5
B2185-
34 L1(R), L2(S), L3(T),
B0/(--), B1/(+), T1(U),
T2(V), T3(W)
M8 2to1/0 38 to 60
G(E) *6to2 14 to 38
l1(r), l2(s) M4 14 to 10 2to5.5
B2220-
41 L1(R), L2(S), L3(T),
B0/(--), B1/(+), T1(U),
T2(V), T3(W)
M8 1/0 60
G(E) *6to2 14 to 38
l1(r), l2(s) M4 14 to 10 2to5.5
B2300-
54 L1(R), L2(S), L3(T),
(N),
1(P1),
3(P3),
T1(U), T2(V), T3(W)
M10 3/0 86
G(E) *4to2 22 to 34
l1(r), l2(s) M4 14 to 10 2to5.5
B2370-
68 L1(R), L2(S), L3(T),
(N),
1(P1),
3(P3),
T1(U), T2(V), T3(W)
M10 1/0 x 2P 54 x 2P
G(E) *4to2 22 to 34
l1(r), l2(s) M4 14 to 10 2to5.5
B2450-
78 L1(R), L2(S), L3(T),
(N),
1(P1),
3(P3),
T1(U), T2(V), T3(W)
M10 2/0 x 2P 68 x 2P
G(E) *4to2 22 to 34
l1(r), l2(s) M4 14 to 10 2to5.5
B2550-
95 L1(R), L2(S), L3(T),
(N),
1(P1),
3(P3),
T1(U), T2(V), T3(W)
M10 4/0 x 2P 108 x 2P
G(E) *3to2 27 to 38
l1(r), l2(s) M4 14 to 10 2to5.5
Section 2-4
Circuit Wire type75°C Copper wire
range
Terminal
screw
Terminal symbolkVAModel
3G3IV
mm2
AWG
Main B2750-
130 L1(R), L2(S), L3(T),
(N),
1(P1),
3(P3),
T1(U), T2(V), T3(W)
M12 300MCM x
2P 152 x 2P Power Cable:
600 V vinyl
sheathed lead or
i
l
t
G(E) *1to2/0 43 to 68 equivalent
l1(r), l2(s) M4 14 to 10 2to5.5
Control Common to
all models --- 1to22
25 to 27 M3.5 18 to 14 0.75 to 2 Twisted shielded
lead with class 1
wiring or
equivalent
Note * indicates the use of Pressure Lug Terminals.
Important Lead size should be determined considering voltage drop of leads.
400V Class Wire Size
Circuit Model
3G3IV kVA Terminal symbol Terminal
screw 75°C Copper wire
range Wire type
AWG mm2
Main A4004-
1.4 L1(R), L2(S), L3(T), (--),
B1/(+), B2, T1(U),
T2(V), T3(W)
M4 14 to 10 2to5.5 Power Cable:
600 V vinyl
sheathed lead or
i
l
t
G(E) 14 to 10 2to5.5 equivalent
A4007-
2.2 L1(R), L2(S), L3(T), (--),
B1/(+), B2, T1(U),
T2(V), T3(W)
M4 14 to 10 2to5.5
G(E) 14 to 10 2to5.5
A4015-
3.4 L1(R), L2(S), L3(T), (--),
B1/(+), B2, T1(U),
T2(V), T3(W)
M4 14 to 10 2to5.5
G(E) 14 to 10 2to5.5
A4022-
4.1 L1(R), L2(S), L3(T), (--),
B1/(+), B2, T1(U),
T2(V), T3(W)
M4 14 to 10 2to5.5
G(E) 14 to 10 2to5.5
A4037-
6.9 L1(R), L2(S), L3(T), (--),
B1/(+), B2, T1(U),
T2(V), T3(W)
M4 14 to 10 2to5.5
G(E) M5 12 to 10 3.5 to 5.5
A4055-
10.3 L1(R), L2(S), L3(T), (--),
B1/(+), B2, T1(U),
T2(V), T3(W)
M4 12 to 10 3.5 to 5.5
G(E) M5 12 to 10 3.5 to 5.5
A4075-
13.7 L1(R), L2(S), L3(T), (--),
B1/(+), B2, T1(U),
T2(V), T3(W)
M4 10 5.5
G(E) M5 10 5.5
B4110-
20.6 L1(R), L2(S), L3(T), (--),
B1/(+), B2, T1(U),
T2(V), T3(W)
M5 8 8
G(E) *10 to 2 5.5 to 38
l1(r), l2(s) M4 14 to 10 2to5.5
Section 2-4
Circuit Wire type75°C Copper wire
range
Terminal
screw
Terminal symbolkVAModel
3G3IV
mm2
AWG
Main B4150-
27.4 L1(R), L2(S), L3(T), (--),
B1/(+), B2, T1(U),
T2(V), T3(W)
M5 8 8 Power Cable:
600 V vinyl
sheathed lead or
i
l
t
G(E) *10 to 2 5.5 to 38 equivalent
l1(r), l2(s) M4 14 to 10 2to5.5
B4185-
34 L1(R), L2(S), L3(T),
B0/(--), B1/(+), T1(U),
T2(V), T3(W)
M6 6to4 14 to 22
G(E) *8to2 8to38
l1(r), l2(s) M4 14 to 10 2to5.5
B4220-
41 L1(R), L2(S), L3(T),
B0/(--), B1/(+), T1(U),
T2(V), T3(W)
M6 422
G(E) *8to2 8to38
l1(r), l2(s) M4 14 to 10 2to5.5
B4300-
34 L1(R), L2(S), L3(T),
B0/(--), B1/(+), T1(U),
T2(V), T3(W)
M8 3to1/0 30 to 60
G(E) *8to2 8to38
l1(r), l2(s) M4 14 to 10 2to5.5
B4370-
68 L1(R), L2(S), L3(T),
B0/(--), B1/(+), T1(U),
T2(V), T3(W)
M8 2to1/0 38 to 60
G(E) *6to2 14 to 38
l1(r), l2(s) M4 14 to 10 2to5.5
B4450-
82 L1(R), L2(S), L3(T),
B0/(--), B1/(+), T1(U),
T2(V), T3(W)
M8 1/0 60
G(E) *6to2 14 to 38
l1(r), l2(s) M4 14 to 10 2to5.5
B4550-
110 L1(R), L2(S), L3(T),
(N),
1(P1),
3(P3),
T1(U), T2(V), T3(W)
M10 3/10 86
G(E) *4to2 22 to 34
l1(r), l2200(s200),
l2400(s400), x, y M4 14 to 10 2to5.5
B4750-
140 L1(R), L2(S), L3(T),
(N),
1(P1),
3(P3),
T1(U), T2(V), T3(W)
M10 1/0 x 2P 54 x 2P
G(E) *4to2 22 to 34
l1(r), l2200(s200),
l2400(s400), x, y M4 14 to 10 2to5.5
B411K-
200 L1(R), L2(S), L3(T),
(N),
1(P1),
3(P3),
T1(U), T2(V), T3(W)
M10 4/0 x 2P 108 x 2P
G(E) *3to2 27 to 34
l1(r), l2200(s200),
l2400(s400), x, y M4 14 to 10 2to5.5
Section 2-4
Circuit Wire type75°C Copper wire
range
Terminal
screw
Terminal symbolkVAModel
3G3IV
mm2
AWG
B416K-
250 L1(R), L2(S), L3(T),
(N),
1(P1),
3(P3),
T1(U), T2(V), T3(W)
M12 250MCM x
2P 127 x 2P Power Cable:
600 V vinyl
sheathed lead or
i
l
t
G(E) *1to2/0 43 to 68 equivalent
l1(r), l2200(s200),
l2400(s400), x, y M4 14 to 10 2to5.5
B418K-
290 L1(R), L2(S), L3(T),
(N),
1(P1),
3(P3),
T1(U), T2(V), T3(W)
M16 350MCM x
2P 177 x 2P
G(E) *1to2/0 43 to 68
l1(r), l2200(s200),
l2400(s400), x, y M4 14 to 10 2to5.5
B422K-
380 L1(R), L2(S), L3(T),
(N),
1(P1),
3(P3),
T1(U), T2(V), T3(W)
M16 500MCM x
2P 253 x 2P
G(E) *1/0to2/0 54 to 68
l1(r), l2200(s200),
l2400(s400), x, y M4 14 to 10 2to5.5
B430K-
510 L1(R), L2(S), L3(T),
(N),
1(P1),
3(P3),
T1(U), T2(V), T3(W)
M16 900MCM x
2P 456 x 2P
G(E) *2/0 68
l1(r), l2200(s200),
l2400(s400), x, y M4 14 to 10 2to5.5
Control Common to
all models --- 1to22
25 to 27 M3.5 18 to 14 0.75 to 2 Twisted shielded
lead with class 1
wiring or
equivalent
Note * indicates the use of Pressure Lug Terminals.
Section 2-4
"
Closed-Loop Connectors
Wire range Terminal Closed-loop connectors
AWG mm2screw
22 0.5 M3.5, M4 1.25 to 3.5, 1.25 to 4
18 0.75
16 1.25
14 2M4 2to4
M5 2to5
12 3.5 M4 3.5to4
M5 3.5to5
10 5.5 M4 5.5to4
M5 5.5to5
8 8 M5 8to5
M6 8to6
614 M6 14 to 6
422 M6 22 to 8
330 M8 30 to 8
238 M8 38 to 8
238 M10 38 to 10
150 M8 50 to 8
1/0 60 M10 60 to 10
2-5 Control Circuit
The external interconnection wiring must be performed with following proce-
dures.
After completing SYSDRIVE 3G3IV interconnections, be sure to check that
connections are correct. Never use control circuit buzzer check.
(1) Separation of control circuit leads and main circuit leads:
Signal leads 1 through 20 must be separated from main circuit leads L1 (R),
L2 (S), L3 (T), B1/(+), B2, (--), B0/(--), T1 (U), T2 (V), T3 (W), and other power
cables to prevent erroneous operation caused by noise interference.
(2) Control circuit leads 9 10 18 19 20 (contact output) must be separated
from leads 1 to 8, 21 22 25 26 27 and 11 to 17.
Use the twisted shielded or twisted-pair shielded lead for the control circuit
line and connect the shield sheath to the inverter terminal 12 (G). See Fig. 3.
Fig. 3 Shielded Lead Termination
SHIELD
SHEATH ARMOR
Never connect
Insulate these parts
with insulating tape.
TO INVERTER SHIELD
SHEATH TERMINAL 12 (G)
Section 2-5
(3) Wiring distance:
It is recommended that the wiring distance of the signal leads (1 to 20) be 50
meters (164 feet) or below.
2-6 Main Circuit Input/Output
(1) Phase rotation of input terminals L1 (R), L2 (S), L3 (T) is available in ei-
ther direction, clockwise and counterclockwise.
(2) When inverter output terminals T1 (U), T2 (V), and T3 (W) are connected
to motor terminals T1 (U), T2 (V), and T3 (W), respectively, motor rotates
counterclockwise, viewed from opposite drive end, upon forward operation
command. To reverse the rotation interchange any two of motor leads.
(3) Never connect AC main circuit power supply to output terminals T1 (U),
T2 (V), and T3 (W).
(4) Care should be taken to prevent contact of wiring leads with SYSDRIVE
3G3IV cabinet, for short-circuit may result.
(5) Never connect power factor correction capacitor or noise filter to SYS-
DRIVE 3G3IV output.
(6) Never open or close contactors in the output circuit unless inverter is
properly sized.
2-7 Grounding
Ground the casing of the SYSDRIVE 3G3IV using ground terminal G (E).
(1) Ground resistance should be 100Ωor less.
(2) Never ground SYSDRIVE 3G3IV in common with welding machines, mo-
tors, and other large-current electrical equipment, or ground pole. Run the
ground lead in a separate conduit from leads for large-current electrical
equipment.
(3) Use the ground leads which comply with AWG standards and make the
length as short as possible.
(4) Where several SYSDRIVE 3G3IV units are used side by side, all the units
should preferably be grounded directly to the ground poles. However, con-
necting all the ground terminals of SYSDRIVE 3G3IV in parallel, and ground
only one of SYSDRIVE 3G3IV to the ground pole is also permissible (Fig. 4).
However, do not form a loop with the ground leads.
G(E) G(E) G(E)
GOOD
(a)
G(E) G(E) G(E)
POOR
(b)
G(E) G(E)
G
(E)
VERY POOR
(c)

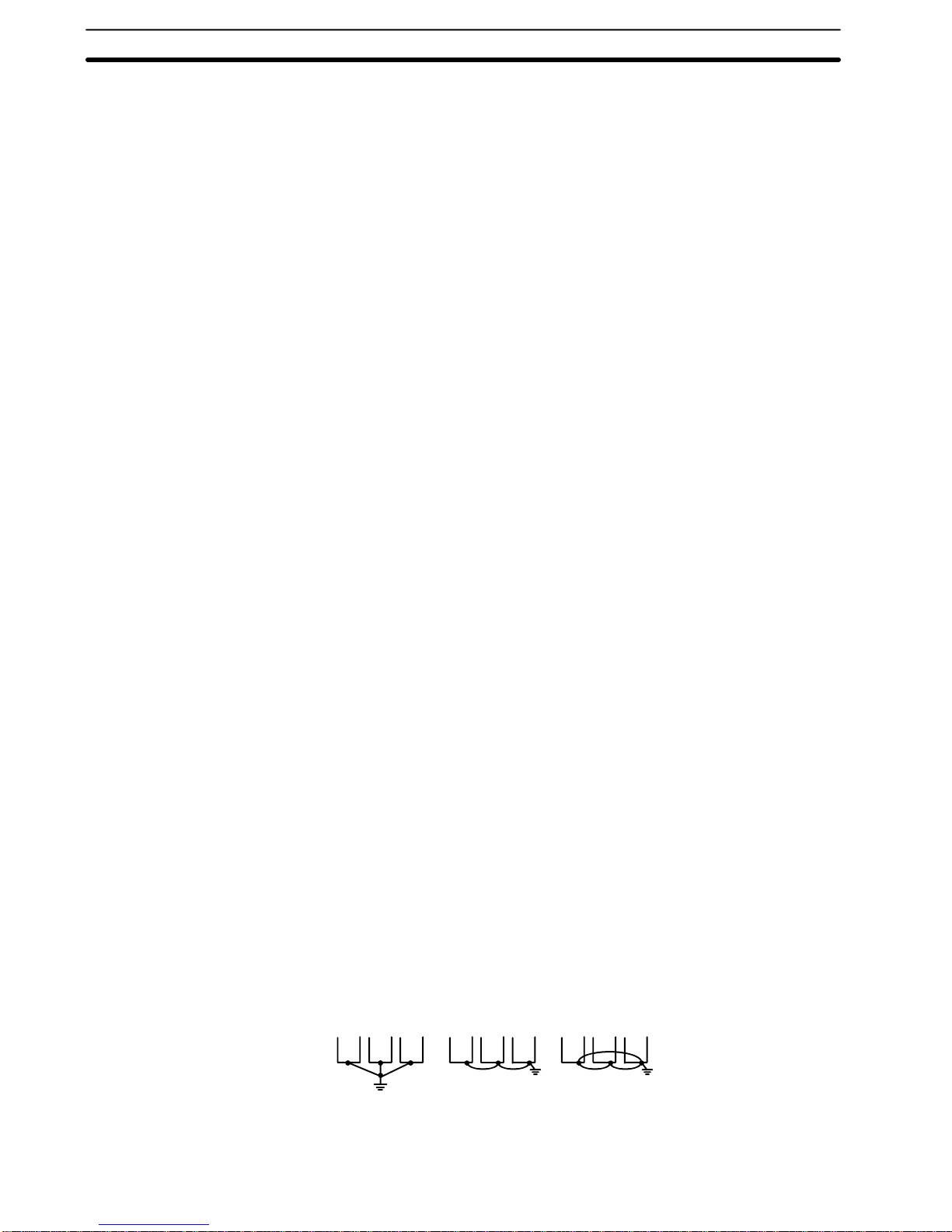

Fig. 4 Grounding of Three SYSDRIVE 3G3IV Units
Section 2-7
&
2-8 Test Operation
To assure safety, prior to test operation disconnect the coupling or belt which
connects the motor with the machine so that motor operation is isolated. If an
operation must be performed while the motor si directly connected to the ma-
chine, use great care to avoid any possible hazardous condition.
Check before turning power ON After completion of installation and wiring,
check for:
(1) proper wiring
(2) short circuit due to wire clippings
(3) loose screw-type terminals
(4) proper loads
Setting the line voltage selecting connector for the 400 V class 20.6 kVA and
above:
The line voltage selecting connector shown in Fig. 5 must be set according to
the type of main power source. Insert the connector at the position showing
the appropriate line voltage. The UNIT is preset at the factory for 460 line
voltage.
Fig. 5 Selection of Line Voltage
Section 2-8
Table of contents
Other Omron Inverter manuals
Omron
Omron RX - 1 Quick guide
Omron
Omron VARISPEED F7 User manual
Omron
Omron 3G3JX-A2002-E User manual
Omron
Omron EasySpeed 3G3JE User manual
Omron
Omron RX Series User manual
Omron
Omron SYSDRIVE MX2 SERIES User manual
Omron
Omron SYSDRIVE 3G3JX-AE002 User manual
Omron
Omron V7 User manual
Omron
Omron 3G3MX2 Series User manual
Omron
Omron SYSDRIVE MX2 SERIES User manual
Omron
Omron SYSDRIVE 3G3HV SERIES User manual
Omron
Omron 3G3RX-V1 Series Instruction Manual
Omron
Omron SYSDRIVE 3G3MV SERIES User manual
Omron
Omron KP100L User manual
Omron
Omron Varispeed E7 User manual
Omron
Omron SYSDRIVE 3G3JV User guide
Omron
Omron VARISPEED F7 User manual
Omron
Omron KP**G-OD Series Use and care manual
Omron
Omron SYSDRIVE MX2 SERIES User manual
Omron
Omron KP100G User manual
Popular Inverter manuals by other brands
Solax
Solax Adapter Box Quick installation guide
SolarTorrent
SolarTorrent 1000W Grid Tie Power Inverter user guide
Victron energy
Victron energy C12/1200 Quick installation guide
Lenze
Lenze EVF9330-V Series Information for the operator of the machine
SEELEY INTERNATIONAL
SEELEY INTERNATIONAL Braemar KBHV Series owner's manual
ABB
ABB UNO-DM-6.0-TL-PLUS-US Quick installation guide
MidNite Solar
MidNite Solar MNPV8 series Prewired Installation Instructions
Hoymiles
Hoymiles DTU-WLite user manual
Yamaha
Yamaha EF2000iS - Inverter Generator owner's manual
Ginlong
Ginlong GCI-H-US-HY Installation and operation manual
SunSynk
SunSynk LIFELYNK X SM3.6kWLL user manual
Powerspot
Powerspot Lanyard user manual
