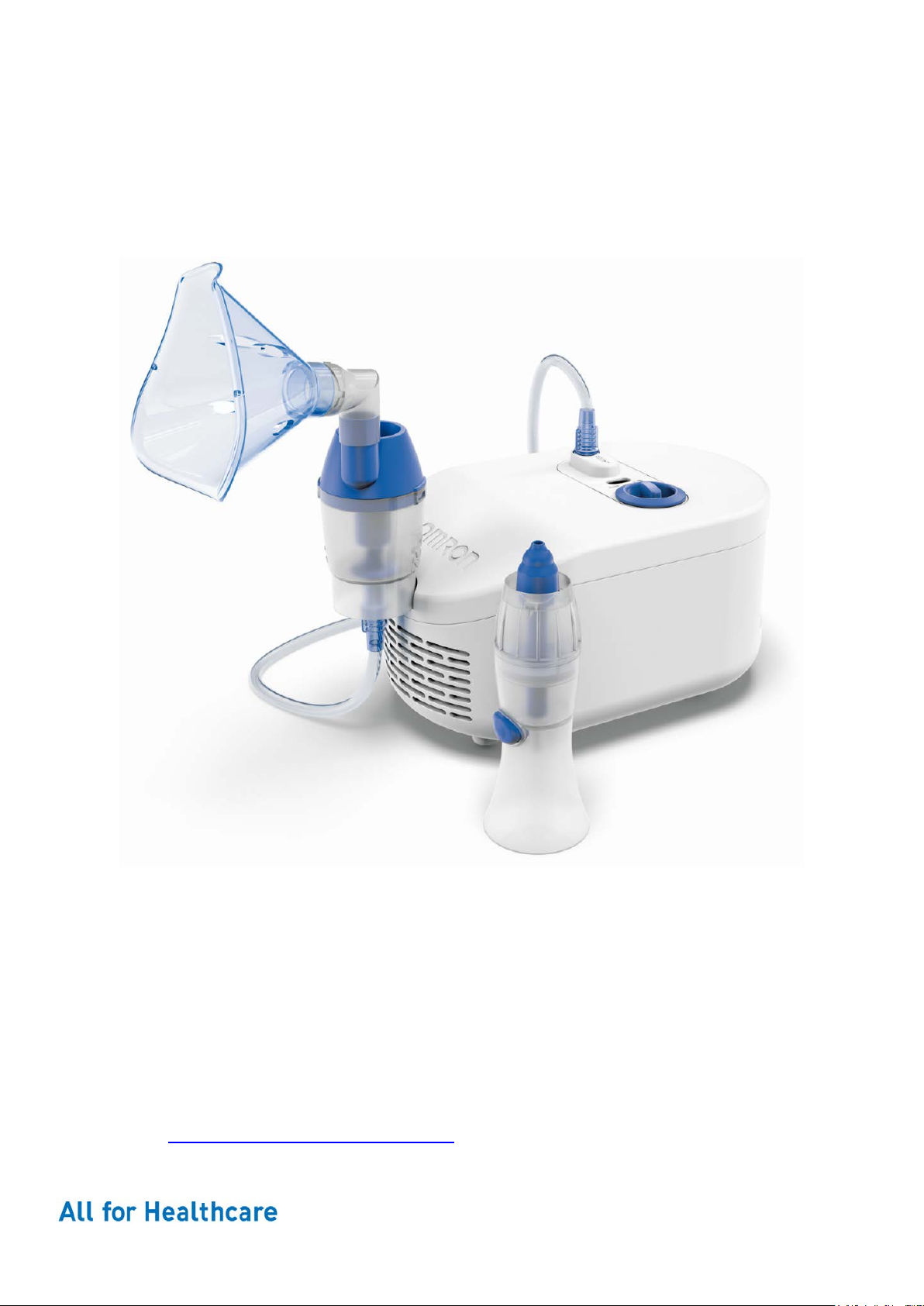

Model (code):
C102 Total (NE-C102-E)

2
PM-1655-E-01-01/2018
Product description: Compressor Nebulizer
Product category: Nebulizers
Model (code): C102 Total (NE-C102-E)
LEGAL MANUFACTURER & PRODUCTION FACILITY
3A HEALTH CARE S.r.l.
Via Marziale Cerutti, 90F/G
25017 Lonato del Garda (BS),
Italy
DISTRIBUTOR
OMRON HEALTHCARE EUROPE B.V.
Scorpius 33, 2132 LR Hoofddorp,
THE NETHERLANDS
Phone: [phone], Fax: [phone],
E-mail: [email protected]

3
PM-1655-E-01-01/2018
Included accessories / optional accessories
General description
OMRON is introducing the C102 Total, a 2-in-1 Nebulizer with Nasal Shower, as a
new addition to its Compressor Nebulizer portfolio.This product was developed in
conjunction with respiratory therapists for the treatment of respiratory disorders such
as asthma, chronic bronchitis, bronchiolitis, etc.
The nasal shower relieves blocked nose and symptoms of conditions such as
common cold, allergic rhinitis or sinusitis.
This is a medical device. Operate the device only as instructed by your doctor and/or
respiratory therapist.
Packaging content
The manufacturer produces the NE-C102-E with the applicable accessories included,
necessary for the application of its intended purpose.
1. Compressor
2. Nebulizer Kit
3. Nasal shower
4. Adapter
5. Mouthpiece
6. Adult Mask (PVC)
7. Child Mask (PVC)
8. Air Tube (PVC, 100 cm)
9. Air Filter (installed in the main unit)
10.Instruction Manual

4
PM-1655-E-01-01/2018
Purpose
The nebulizer is a medical device that is intended to be used for inhaling medication
for respiratory disorders. The nasal shower is a nasal irrigation system for rinsing the
nasal and rhino-pharyngeal cavities.
Application field
This product is intended for use in general household.
Intended User
•Legally certified medical experts, such as doctor, nurse and therapist.
•Caregiver or patient under the direction of qualified medical experts for home
treatment.
•The user should also be capable of understanding general operation of C102 Total
and the content of the instruction manual.
Indications for use
This product is intended to be used for inhaling medication for respiratory disorders.
Features (Particularities)
•2-in-1 Nebulizer with Nasal Shower
•Easy to use and clean
•Efficient medication deposition in the lungs
•Can provide relief from blocked nose and symptoms of common cold, allergic
rhinitis or sinusitis
•Nebulizer: MMAD 2.6μm, Nebulization rate: 0.35 ml/min, Medication tank
capacity: 2-12 ml
•Nasal shower: 90% of particles >10 μm, Nebulization rate: more than 5 ml/min,
Tank capacity: 3-15 ml

5
PM-1655-E-01-01/2018

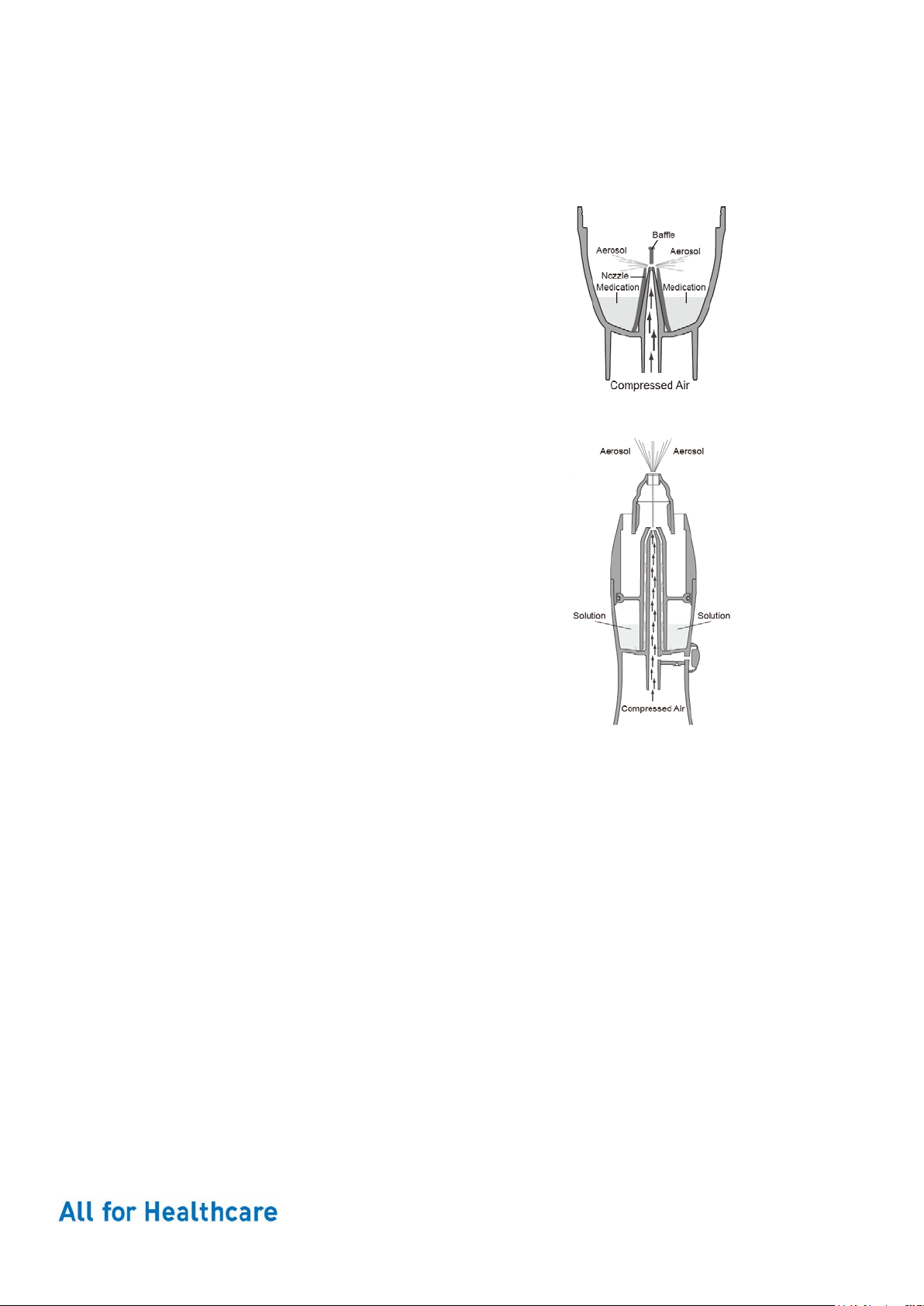

Description of operating principle
How the nebulizer kit works
The medication that is pumped up
through the medication channel is
mixed with compressed air which is
generated by a compressor pump. The
compressed air mixed with medication
is turned into fine particles and
sprayed when in contact with the baffle.
How the nasal shower works
The solution that is pumped up through
the channel is mixed with compressed
air which is generated by a
compressor pump.
The compressed air mixed with
solution is turned into fine particles
ready for irrigation for the nasal and
rhino-pharyngeal cavities.
How to use the nebulizer
1. Make sure that the power switch is in the off position.
2. Plug the power plug into a power outlet.
3. Remove the inhalation top from the medication tank.
4. Add the correct amount of prescribed medication into the medication tank.
5. Verify the presence of the vaporiser head inside the medication tank.
6. Put the inhalation top back onto the medication tank.
7. Attach the adapter, and the mask, mouthpiece or nosepiece to the nebulizer kit
tightly.
8. Attach the air tube.
9. Hold the nebulizer kit straight. Do not tilt more than 30 degrees in all directions.
Follow the instructions of your doctor or respiratory therapist.
10. Turn the power switch to the on position to start nebulization. Inhale the
medication. Exhale through the nebulizer kit.

6
PM-1655-E-01-01/2018
11. When treatment is completed, turn the power off and unplug the compressor
from the power outlet. The wound-up power cord can be stored in the
compartment at the back of the device.
12. Clean and disinfect all (disassembled) parts.
Review the Instruction Manual for the full details on the application of this product.
How to use the nasal shower
Preparation:
1. To add the solution to the nasal shower tank, lift the upper part out of the tank
and remove it.
2. Pour the solution in the tank (max 15 ml).
3. Close the nasal shower by placing back the upper part.
4. Connect one end of the air hose to the nasal shower and the other end to the
compressor.
5. Turn on the compressor to begin the treatment.
Operation:
1. Operation is to be done by pressing/releasing the button before/during exhaling.
During treatment, hold the other nostril, to which the nasal shower is not applied,
closed with one finger. Keep a handkerchief ready to dry the nostrils if mucous
overflows from the trap in the upper part of the nasal shower.
2. When the mist starts disappearing from the nasal shower the treatment is done.
3. After use, dispose of any solution from both upper part and tank, disassemble
the Nasal Shower and clean the parts.
Review the Instruction Manual for the full details on the application of this product.

7
PM-1655-E-01-01/2018
Technical data
Product Category:
Nebulizers
Product Description:
Compressor Nebulizer
Model (code):
C102 Total (NE-C102-E)
Rating
230 V – 50 Hz
Power Consumption:
150VA
Operating Mode:
Continuous Use
Operating Temperature/Humidity/Air
Pressure: +5°C to +40°C / 15% to 85%RH / 700 –
1060hPa
Storage and Transport
Temperature/Humidity/Air Pressure:
-20°C to +60°C / 5% to 95%RH / 500 - 1060hPa
Weight:
Approx. 1.1 kg (compressor only)
Outer Dimensions:
Approx. 145 (W) x 124 (D) x 222 (H) mm
Package Contents:
Compressor, Nebulizer Kit, Nasal Shower, Air
Tube (PVC, 100cm), Mouthpiece, Adapter,
Adult Mask (PVC), Child Mask (PVC),
Instruction Manual.
Classifications:
Type BF (Applied part): Mouthpiece, Nosepiece
and Masks
IP21 (Ingress protection)
Nebulizer kit specifications:
Particle size MMAD:
Approx. 2.6 μm
MMAD = Mass Median Aerodynamic Diameter
Appropriate Medication Quantities:
2ml minimum - 12ml maximum
Residual volume of medication:
Approx. 0.7ml
Sound: Noise level (at 1 m distance)
Approx. 58dB
Nebulization Rate (by weight loss):
Approx. 0.35ml/min (NaCl 0.9%)
Aerosol Output (2 ml, 1% NaF):
Approx. 0.25ml
Aerosol Output Rate (2 ml, 1% NaF):
Approx. 0.07ml/min
Nasal shower specifications:
Appropriate Solution
Quantities:
3 ml minimum - 15 ml maximum
Particle Size:
90% of particles > 10μm
Nebulization Rate
(by weight loss):
More than 5 ml/min

8
PM-1655-E-01-01/2018
Materials used in main device
Item
Material
Housing and air filter cover PP (polypropylene)
Power switch handle ABS (acrylonitrile butadiene styrene)
Air Filter PP (polypropylene)
Legs EPDM (Ethylene-Propylene Diene Monomer)
AC Cord PVC (polyvinyl chloride)
Rating label PET (polyester)
Package Cardboard
Instruction Manual Paper
Materials used in accessories
Item
Material
Nebulizer kit, Mouthpiece,
Adapter
PP (polypropylene)
Air Tube, Adult Mask, Child
Mask
PVC (polyvinyl chloride) – phthalate free
Nasal shower (upper part,
pisper, lower part)
PP (polypropylene)
O-ring for nasal shower Silicone 70 Shore A
Nasal adaptor and button
for nasal shower
TPE (rubber thermoplastic)

9
PM-1655-E-01-01/2018
Title page of Instruction Manual

10
PM-1655-E-01-01/2018

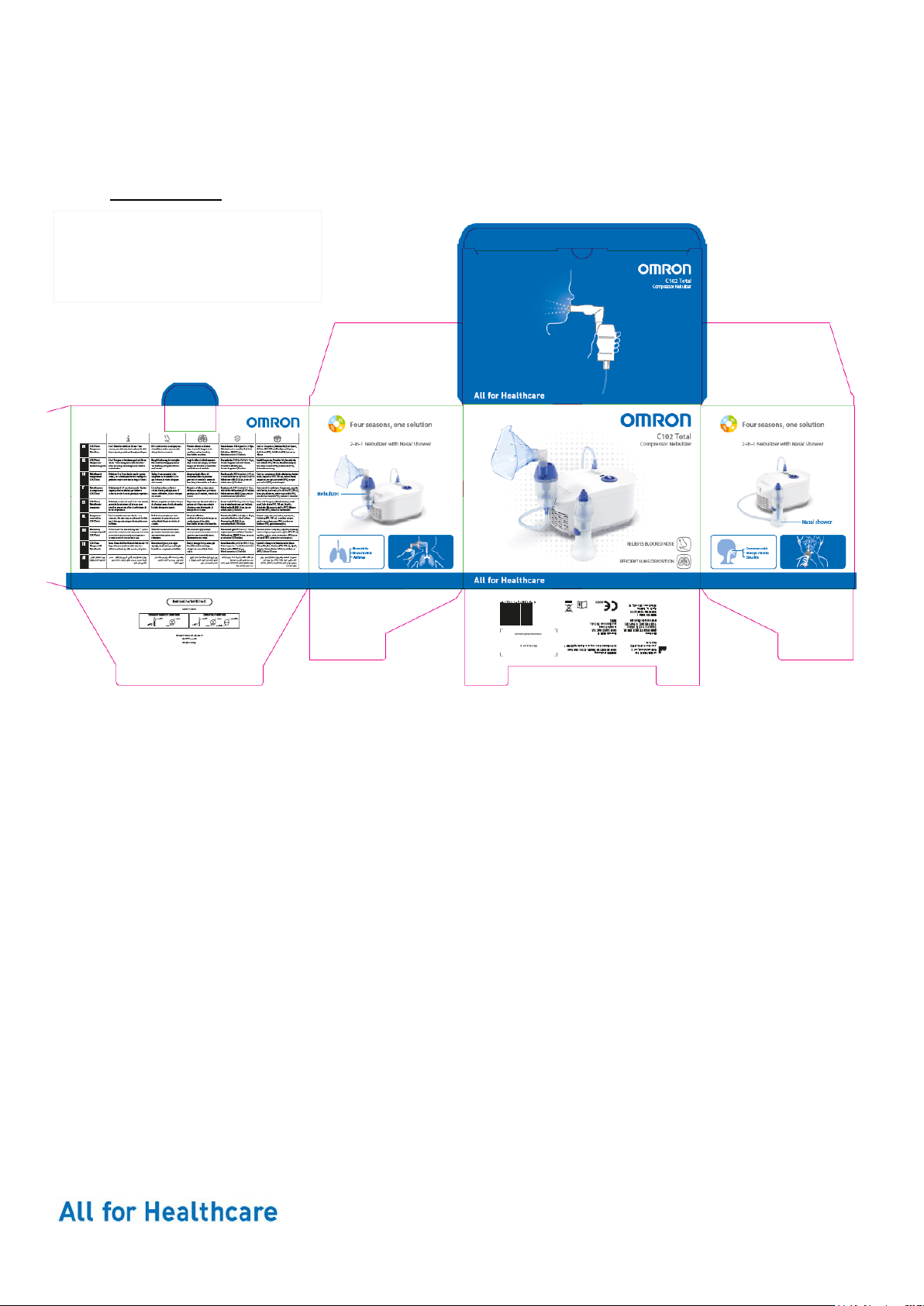

Unfolded package design of main device and accessories
