OMS IQ Pack User manual

I
IQ Q P Pa ac ck k H Ha ar rn ne es ss s
U
Us se er r’ ’s s G Gu ui id de e
Ocean Management Systems, Inc.
P.O. Box 146, Montgomery, NY 12549
Phone: [phone] fax: [phone]
www.omsdive.com
E-mail: [email protected]

B
Bu uo oy ya an nc cy y C Co om mp pe en ns sa at to or r
U
Us se er r’ ’s s G Gu ui id de e
Thank you for choosing OMS,
OMS buoyancy compensators have been constructed from rugged materials with unique features
adaptable to advanced underwater environments. The general design philosophy allows for complete
system integration of a number of components achieving high lift capacities, low drag, and increased safety
through redundancy. With a selection of different harnesses, different air cells and accessories, a diver can
configure his or her system for the specific environment they are operating in. This equipment is intended
for use by individuals with the training and experience to dive these environments safely
General Precautions & Warnings
•Before using this buoyancy compensator (BC), you must receive instruction and
certification in SCUBA diving and buoyancy control from a recognized training agency.
Use of SCUBA equipment by uncertified or untrained persons is dangerous and can result in
injury or death.
•Read this owner’s manual completely before attempting to use your BC, and become
familiar with it first in a controlled environment such as a swimming pool, in order to weight
yourself properly and to become comfortable with using its many features and adjustments.
•Before every dive, perform a complete pre-dive inspection according to the procedure
prescribed in this manual, to ensure that all components are functioning properly and no
signs of damage or leaks are present. If you find that your BC is not functioning properly or
is damaged, remove it from service until it can be repaired.
•Your BC is not a lift bag. Do not use it to bring heavy objects to the surface. Doing so may
cause permanent damage to the BC, and could also result in serious injury or death due to
embolism or decompression sickness.
•In an emergency such as an out of air situation or uncontrolled descent, it is important to
remove and jettison weight immediately. Do not depend solely on using your BC’s power
inflator to lift you to the surface.
•In the event of an uncontrolled, rapid ascent, it is important to immediately begin venting air
from the BC. Continue venting air to slow your ascent rate if neutral buoyancy cannot be
reestablished.

•Do not inhale from your oral inflator. The BC may contain harmful contaminants or gasses,
which could cause suffocation or injury.
•The function of your buoyancy compensator is to help you maintain neutral buoyancy while
in a comfortably balanced, face-down swimming position underwater. It is also designed to
provide you with flotation so that you can rest on the surface, but it is not designed to
function as a life preserver or personal flotation device (PFD). A buoyancy compensator
(BC) is not a life jacket. It is not designed to provide face-up flotation in all situations, and
therefore it does not meet U.S. Coast Guard regulations for a life preserver or personal
flotation device (PFD).
•Have your OMS equipment inspected and serviced annually by an authorized OMS dealer
or at any time you have any concerns about your equipment’s function or condition.

The IQ Pack Harness System
The OMS IQ Pack is a versatile fast adjusting harness system that can be used with or without a
back plate. This means that it can be used as a lightweight travel BC or a heavy duty technical
diving jacket capable of carrying double cylinders.
The OMS IQ Pack comes fully assembled but there are a
number of adjustments and features the diver should be
familiar with.
There is a row of small D-rings along the side of the harness for attaching
accessories. There also larger D-rings mounted on the waist strap that can
be repositioned or removed completely.
Make all adjustments while wearing your exposure suit. Trim excess but
allow length for future changes and the addition of more D-rings. If you
have any questions, please contact OMS and speak with a technical support
representative.

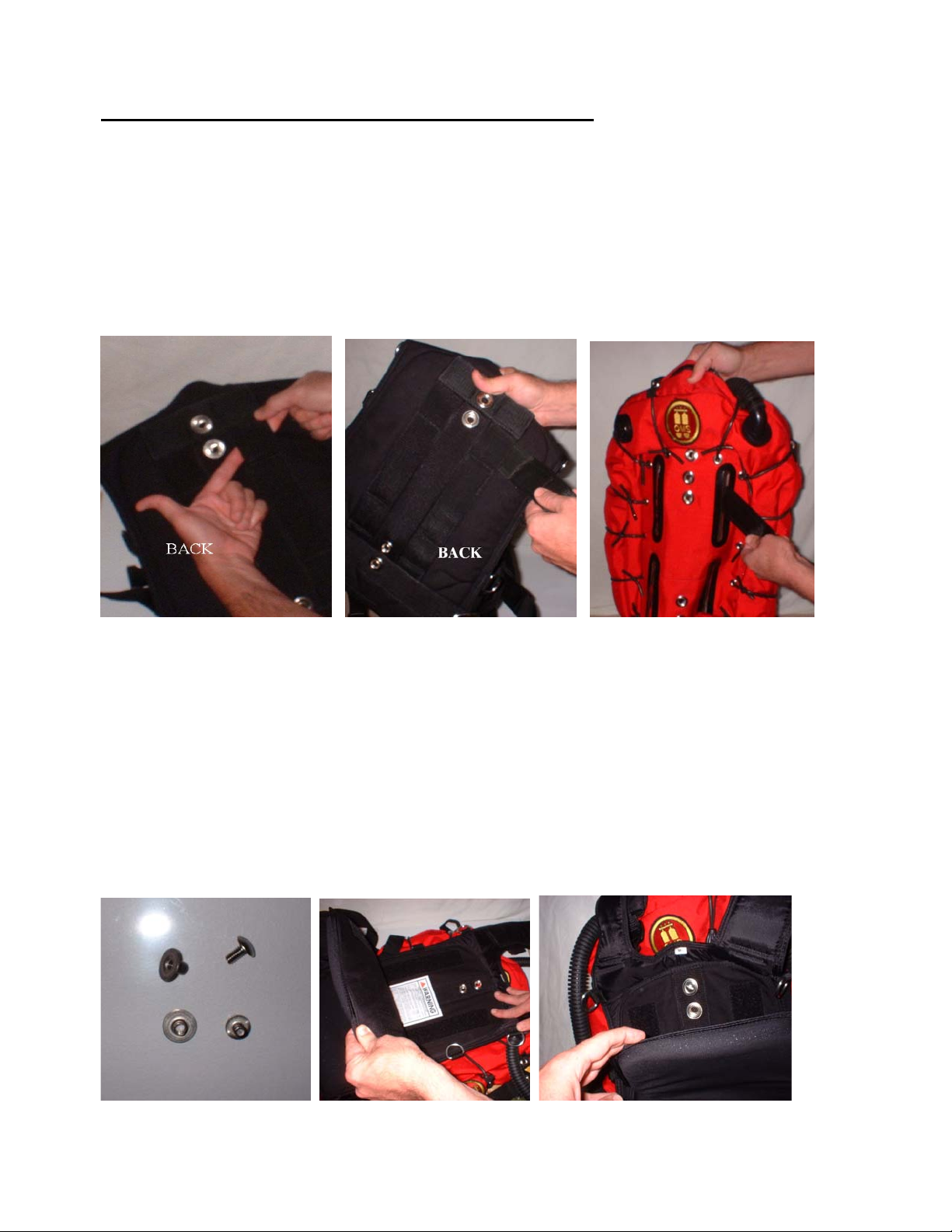

Assembly of the IQ Pack Harness System
Attaching the Bladder and Single Tank
A bladder can be attached to the IQ Pack with two nylon tank bands. Locate the sewn webbing
slots sewn onto the back of the IQ Pack. Thread a nylon tank band through the top slot and another
through the bottom slot. Next, thread the free ends of the tank bands through the corresponding
slots in the bladder. As the tank bands are tightened onto the tank the bladder and harness will be
securely sandwiched together against the tank.
Optional Bookscrews
If the BC is to be used primarily as a ‘soft pack’ (no back plate), the diver should consider
purchasing a set of OMS ‘bookscrews’. Installation of the book screws will allow the BC to be
handled as a single component even when not attached to a tank. To install the bookscrews, grasp
the top of the IQ pack’s back pad and peel it downward revealing the grommet holes. Insert the slot
head screw through the grommet hole of the harness then through the matching grommet hole of the
bladder. Insert the narrow end of the female nut through the grommet hole of the bladder from the
back. Mate the threads of the male and female parts then tighten them to secure the bladder against
the harness.

Assembly of the IQ Pack Harness System
Attaching the Single Tank Adaptor
The OMS single tank adaptor may be used to secure a single tank to an IQ Pack that has a back
plate installed. To install a back plate, grasp the top of the IQ Pack’s back pad and peel it
completely downward revealing an opening at the bottom of the harness. Slide a back plate up into
the slot aligning the grommet holes with the bolt holes in the back plate. Insert the bolt studs of the
Single Tank Adaptor through the grommet holes in the back of the bladder through the boltholes of
the back plate and through the corresponding holes in the harness. Hold the adaptor, bladder and
harness together and place the large washer over the bolt stud then the split lock washer followed by
the wing nut. Tighten the wing nut securely then press the back pad back into place against the
Velcro strips.

Operations
Pre-Dive Checks
•Check all fittings and connections for damaged components (cracks, tears, etc.)
•Inflate each bladder until the dump valve vents, leave inflated for 30 minutes.
•On dual bladder models test each bladder separately (do not inflate both bladders at the
same time)
•With the bladder fully inflated check that pull dump cord or folds in the bladder are not
trapped by the retraction bands
•Check the security of weight systems before entering the water.
•After entry, inspect units for bubbles indicating leaks.
•Test pull dumps for smooth operation and positive seal.
Operations
•WARNING: Before using this buoyancy compensator (BC), you must receive in-
struction and certification in SCUBA diving and buoyancy control from a recognized
training agency. Use of SCUBA equipment by uncertified or untrained persons is dangerous
and can result in injury or death.
•Inflate the bladder with short controlled bursts of air by pressing the inflate button.
•The unit can be inflated orally through the oral inflator. Depress the deflate button
completely and exhale into the oral inflator.
•On dual bladder models, the bladder against the diver’s back is the primary bladder. Do not
inflate both bladders at the same time. This could decrease the overall lift provided by the
jacket.
•Deflate the jacket by pressing the deflate button on the inflator or by pulling a pull dump.
Use proper descent techniques taught in scuba training.
WARNING! Repeated improper use of the Oral Inflation/ Deflation mechanism or dump
valves assemblies may allow water to enter the BC with a subsequent reduction in buoyancy.
Reduced buoyancy can cause a loss of buoyancy control resulting in PERSONAL INJURY
OR DEATH
Post-Dive Checks
•Connect the inflator to an air supply to pressurize the inflator mechanism then use a garden
hose to direct fresh water into the oral inflator while pressing the deflate button.
•Partially inflate the unit and allow the water to wash around the interior of the bladder.
Drain completely and store partially inflated away from temperature extremes and direct
sunlight.
•Do not attempt to service a malfunctioning piece of equipment. Take it to an authorized
OMS dealer for repair.

WARRANTY
WARRANTY AND LIMITATION OF LIABILITY
1. OMS® warrants to the purchaser that goods sold by OMS® to the purchaser will be free from
manufacturing defects in materials and workmanship for a period of ninety (90) days after the date
of purchase from an authorized OMS® dealer.
2. EXCEPT AS EXPRESSLY SET FORTH IN SECTION 1 'WARRANTY AND LIMITATION
OF LIABILITY", COMPANY MAKES NO WARRANTIES TO THE PURCHASER, WRITTEN
OR ORAL, EXPRESS, IMPLIED OR STATUTORY, IN ANY MANNER OR FORM
WHATSOEVER INCLUDING BUT NOT LIMITED TO ANY WARRANTIES OF
MERCHANTABILITY OR FITNESS FOR ANY PARTICULAR USE OR PURPOSE, WHICH
ARE HEREBY EXPRESSLY DISCLAIMED.
3. The warranty does not apply to goods that have been subject to abuse, misuse, neglect,
improper installation or alteration after delivery to the carrier for shipment to the purchaser. At
OMS'® request, the purchaser shall return goods to OMS® at its Middletown, NY, office for
verification that the warranty set forth in these terms and conditions as limited by this paragraph is
applicable. Any such returns are subject to the provisions in the RETURN POLICY Section.
4. In the event OMS® determines that the warranty set forth above in #1 of this Section are
limited by #3 in this Section is applicable to any goods, OMS® shall, as the purchaser's sole
remedy, replace, repair or at OMS'® sole discretion, issue to the purchaser a credit for an amount
not to exceed the original purchase price paid by the purchaser for the affected goods. OMS® shall
have no liability with respect to warranty claims made by the purchaser more than ninety (90) days
after OMS'® sale of the goods involved to the purchaser. In no event shall OMS® be liable to the
purchaser for a special, incidental or consequential damages. OMS® shall have no liability to the
purchaser for any delay or failure in carrying out its obligation to the purchaser for reasons beyond
OMS'® control, including without limitation, acts of God, war, natural disasters, labor disputes,
changes in or compliance with laws, regulations or governmental policies and shortages of supplies
and services. OMS® may extend delivery until any such cause of delay has been removed, or at its
option, cancel the undelivered portion of any order so affected without liability to the purchaser;
except for the return of any payment made by the purchaser to OMS® with respect to any
undelivered portion of the order so canceled.
