Evolution 05 Mini Outdoor
QUICK START GUIDE
Welcome
The Oncam Evolution Mini Outdoor 360° camera is
designed to be connected to an IP network. Congure
and operate the camera using a standard internet
browser.
Described are the installation and conguration
procedures for a standard surface mount camera
application.
Power Input Power over Ethernet (PoE),
IEEE standard 802.3af
Operating
Temperature -40 to +55°C (-40 to +131°F)
Enclosure Aluminum with polymer bubble
Weight 0.32 kg (0.70 lbs)
MAC Address
Document the camera’s installation location and unique
MAC address. Find the MAC address printed on the
camera label. This information may be needed during the
camera conguration.
Mounting & Installation
The Evolution Mini Outdoor camera is intended for
mounting on at surfaces, such as walls or ceilings. The
camera comes tted with an RJ45 or M12 ying lead for
connectivity to data and PoE.
NOTICE: Do not over-tighten the Torx screws. Only hand
tighten.
1. Using the drilling template, drill holes sized for the
mounting hardware and network connector pigtail.
2. Loosen the screws with the Torx screwdriver bit.
3. Carefully remove the trim cover, ensuring the gasket
is not damaged or removed.
4. Secure the camera base to a wall or ceiling with
the appropriate mounting hardware. Pull the cable
through the mounting surface.
5. Realign the front cover to
the base, ensuring the Gore
vent holes are aligned with
the side arrow.
6. Fasten the Torx screws and
install the protective caps.
Important
• Read these instructions carefully before
installing or operating this camera.
• This camera should be installed by a qualied
service person and the installation should
conform to local and national regulations.
• This product is only suitable for a surface
mount installation and should not be modied
or adapted for any type of plenum installation.
• Certied as FCC Class A. In a domestic
environment this camera may cause radio
interference in which case the user should take
adequate measures.
DANGER: RISK OF EXPLOSION IF
REPLACING A BATTERY WITH AN
INCORRECT BATTERY TYPE.
Supplied Parts
• EVO-05 Mini Camera • Torx Screwdriver Bit
• Mounting Kit • Drilling Template
• Quick Start Guide
RJ45
EVO-05-LMD
M12
EVO-05-LMM
Technical Support
For the A&E, Specication, Installation and User Manual, Software
and Firmware visit:
https://www.oncamgrandeye.com/resources/product-downloads/
Tel: UK [phone]
US [phone]
Email: [email protected]

© Copyright 2020 ONVU Technologies AG. All rights reserved. Oncam is a trading name of ONVU Technologies AG. Specications and congurations subject to change without
notice.
EVO-05-L#D-03 |Outdoor Mini |11.2020|Rev G

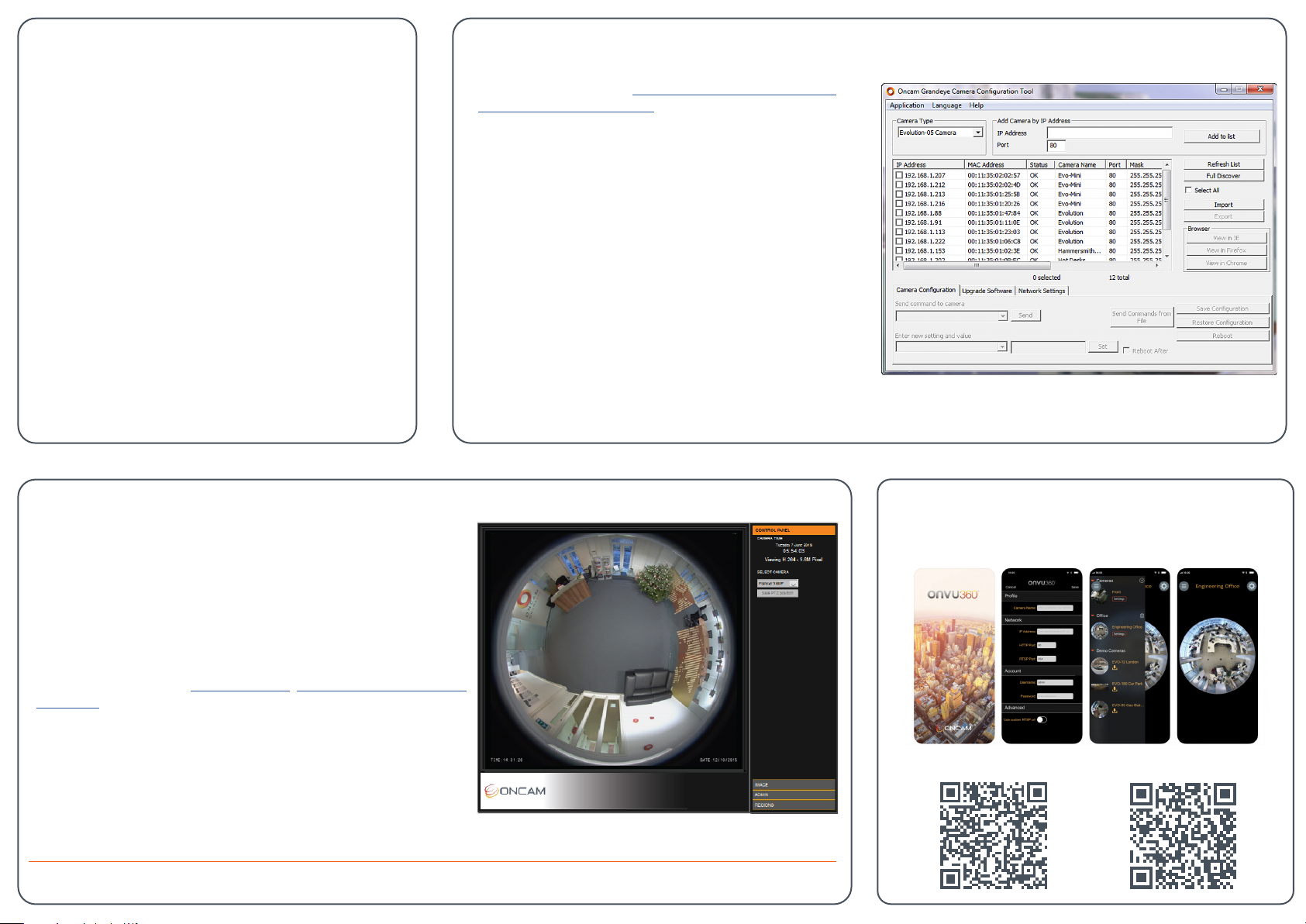

Conguring Network Settings
Powering the Camera
Supply power to the camera with PoE IEEE802.3af
through the integrated cable.
IP Settings
In order to use the camera you need the IP address.
There are two IP Settings.
• DHCP server or router to automatically assign
unique valid IP addresses to each camera.
• A manually congured network using static IP
addresses.
If your network has a DHCP server, go to First Time Camera
Access.
Should a DHCP server not be available, the camera
adopts the default static IP address 192.168.0.200. You
will then need to manually assign each camera with a
new unique IP address.
Note: See the camera’s User Manual and Camera
Conguration Tool User Manual for IP Setting.
Download our FREE ONVU360 Pro mobile application and
put the 360-degree experience right at your ngertips.
Scan the QR Code to get it now!
Android iOS
First Time Camera Access
Web Browser
1. If you know the IP address of the camera, enter this
into the address bar of your web browser (Internet Explorer, Edge,
Firefox or Chrome). The camera should be on the same network.
2. Create an Admin username and password.
Notes:
Internet Explorer 11 is required to view live camera images in the browser.
All other browsers can be used for conguration purposes only.
Ensure you have the latest VLC Media Player (http://www.videolan.org/vlc/
index.html) for viewing camera images on the web interface.
Camera Conguration Tool
1. Select a camera from the camera list
2. Select your browser to open the web interface.
3. Click OK on the authentication pop up. You will then be prompted
to create and set an Admin username and password to access the
camera.
Using the Camera Conguration Tool
Go to the Oncam website (https://www.oncamgrandeye.com/
resources/camera-cong-tool/) to download the latest version of
the Camera Conguration tool and corresponding User Manual.
The Camera Conguration tool quickly nds the IP and MAC
addresses of all Oncam Evolution cameras connected to
the network. It also allows you to change network settings,
congure the system and perform software updates on multiple
cameras. Initiate a new scan by clicking the Full Discover button
Start the application by clicking the CameraCongurationTool
icon found on your desktop or from the program list (under
Oncam Grandeye). The software scans the network and provides
a list of all connected Oncam Evolution cameras.
Note: Some functions in this tool require a username and
password. If accessing the camera for the rst time, an
administrator username and password will need to be set
