OpenEye OE-C3014D4 User manual

4MP Outdoor IP Dome
OE-C3014D4
37554AD
QUICK START GUIDE
This quick start guide provides
only basic information on the
camera’s settings and operation for
initial installation. Please read the
user manual for optimal camera
congurations.
Scan the QR code or go to
openeye.net/downloads
Find the latest product
documentation and software.
Copyright ©2021 OpenEye.
All Rights Reserved. Information contained in this
document is subject to change without prior notice.
OpenEye does its best to provide accurate information but
cannot be held responsible for typos or mistakes.
Liberty Lake, WA, USA
509.232.5261
openeye.net
CONNECTIONS
Waterproof Cable
11Thread lock capThread lock cap 44Rubber “O” ringRubber “O” ring
22Rubber plugRubber plug 55Camera cableCamera cable
33RJ45 enclosureRJ45 enclosure
5432
11Reset ButtonReset Button
To restore the camera to factoryTo restore the camera to factory
defaults:defaults:
1.1. Disconnect power for 30Disconnect power for 30
seconds.seconds.
2.2. Reconnect power and wait 30Reconnect power and wait 30
seconds.seconds.
3.3. Press and hold the resetPress and hold the reset
button for 20 seconds.button for 20 seconds.
22MicroSD Card SlotMicroSD Card Slot
Supports up to 512GB microSDSupports up to 512GB microSD
card for Edge storage.card for Edge storage.
Do not add or remove theDo not add or remove the
microSD card when the camera ismicroSD card when the camera is
powered on.powered on.
1
2
11RJ-45RJ-45 For network and PoE connectionsFor network and PoE connections
22Power (12vDC)*Power (12vDC)* Power connectionPower connection
33Audio I/OAudio I/O
GreyGrey Audio OutAudio Out
BlueBlue GroundGround
BrownBrown Audio InAudio In
44Alarm I/OAlarm I/O
OrangeOrange Alarm InAlarm In
BlueBlue GroundGround
YellowYellow Alarm Out +Alarm Out +
WhiteWhite Alarm Out -Alarm Out -
3
*12vDC power input port should be plugged when not in use.
1
2
3
1
2
3
4
DC12V IN
4
1
2
1

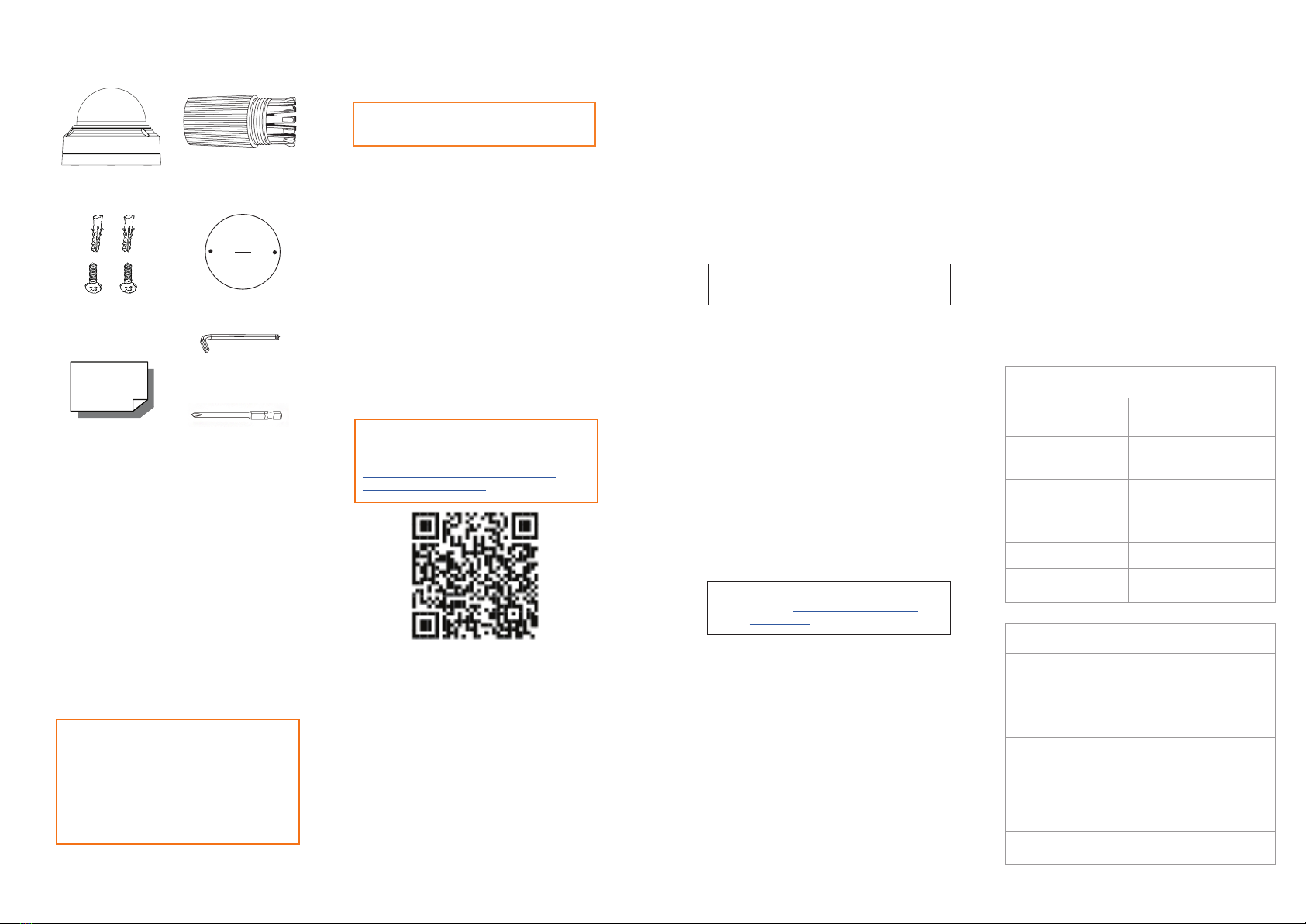

CONTENTS
Selecting multiple cameras and enter-
ing IP address 192.168.51.2 will set
an IP address on all selected cameras,
starting at 192.168.51.2 and increase
per camera.
1. Open the Network Camera
Manager application.
2. Select applicable camera(s).
3. Input starting IP address, Subnet
Mask, Gateway, DNS.
4. Apply changes.
5. Wait 60 seconds before refreshing
NCM.
OE-C3014D4
Mini Dome Camera
PRODUCT FEATURES
Self-Tapping
Screws &
Plastic Anchors
Quick Start
Guide
Mounting Template
ASSIGNING AN
IP ADDRESS
OpenEye IP cameras are set to DHCP
by default. If a DHCP server is not
detected after 4 minutes, the camera
will default to IP address 192.168.51.2.
If you are not using a DHCP server,
NCM will allow you to batch confi gure
a static IP address.
The IP address for the camera network
on your Apex recorder is 192.168.51.1.
NOTE: To change this IP address please refer
to your Apex recorder manual.
CONNECTING TO THE
IP CAMERA
To access the camera setup menu,
you need to open Network Camera
Manager (NCM) utility. NCM is pre-
installed on all OpenEye Recorders,
and is also available for download on
the OpenEye website for installation on
your personal computer or laptop.
1. Open Network Camera Manager.
2. Locate your camera on the
Network Camera Manager list.
3. To open the web browser, select
the camera and click LOAD.
NOTE: OpenEye IP cameras ship
without a default password.
DEFAULT USERNAME
AND PASSWORD
The admin user password can be set
using the following methods:
1. OpenEye recorders running Apex
2.1 or newer will automatically set
a new unique password if:
• Connected to an M-Series
recorder with a built in PoE
switch.
• Connected to a network
switch through the
camera network port
and selected then added in
setup, if a new password has
not already been set.
NOTE: The NCM software manual can be
found at https://www.openeye.net/
ncm-manual
Security Torx Tool
INSTALLATION
1. Apply template sticker to desired
camera location.
2. Drill anchor holes using included
mounting template.
3. Remove mounting template.
4. Insert anchors.
5. Mount camera.
6. Connect network cable with
included waterproof cable
connector.
7. Adjust camera view.
8. Secure Lid / dome
Camera
Maximum Resolution 2688x1520
Frame Rate at
Maximum Resolution 30FPS @ 4MP H.264/H.265
Total Streams Dual Streaming
ONVIF Profi le S / G / T Compliant
Day/Night True Day / Night
Wide Dynamic Range True WDR
Environmental and Power
Power
Consumption 8.7W Max
Input Voltage 12vDC / PoE
Pan / Tilt / Rotate
Pan: 0° ~ 360°
Tilt: 0° ~ 70°
Rotate: 0° ~ 360°
IP Rating IP66
Impact Rating IK10
Waterproof Cable
Connector
Optional Free Paintable Dome Cover
This camera has an available paintable dome
cover allowing it to be quickly converted to a
black housing or the allow custom painting to
match its installation environment. To reduce
waste it is not included in every package but
may be requested free of charge at time of
purchase.
#2 Phillips Bit
2. Connect to the camera directly
through a Web Browser and follow
the onscreen prompts.
3. Use the Network Camera Manager
(NCM) Utility.
Username: admin
Set the Default Camera Password
Use the QR code or link for instructions on
defi ning a unique camera password:
https://www.openeye.net/support/faqs/
default-camera-password
