Welcome!
Congratulations on your purchase of the M1-2R2-TR, Optical DVI Extender.
This manual contains information that will assist you in installing and operating
the product.
Product Description
The M1-2R2-TR module offers 100m with HDCP or 500m without HDCP
extension of high-resolution digital graphic data over fiber, directly connected
between PC or video source and displays. Two boxes, located one in the PC
and the other in the display are connected to each of them by a 1.0 m DVI
copper cable. Between two boxes, the 4 LC patch cord fiber bundled cable
enables to transmit 4 channels (R,G,B,Clk) of graphic data over it and the DVI
Digital Display Channel (DDC2B) interface is performed over a bundled copper
cable, so called as DDC cable, which optionally has RJ-45C connectors.
Shipping Group of M1-2Rx-TR Optical DVI Module
Tx and Rx boxes: One (1) Transmitter (Tx) Box and One (1)
Receiver (Rx) Box
AC/DC power adapter: One (1) +5V 3A power supply
AC cord: One (1) AC cord
DVI cable: Two (2) DVI cables
User’s Manual
Four(4) Optical Fibers
M1-2R2
Tx
Up to 100m at WUXGA
DVI OUTPUT
Display
DVI INPUT
PC
M1-2R2
Rx
CAT5 Cable

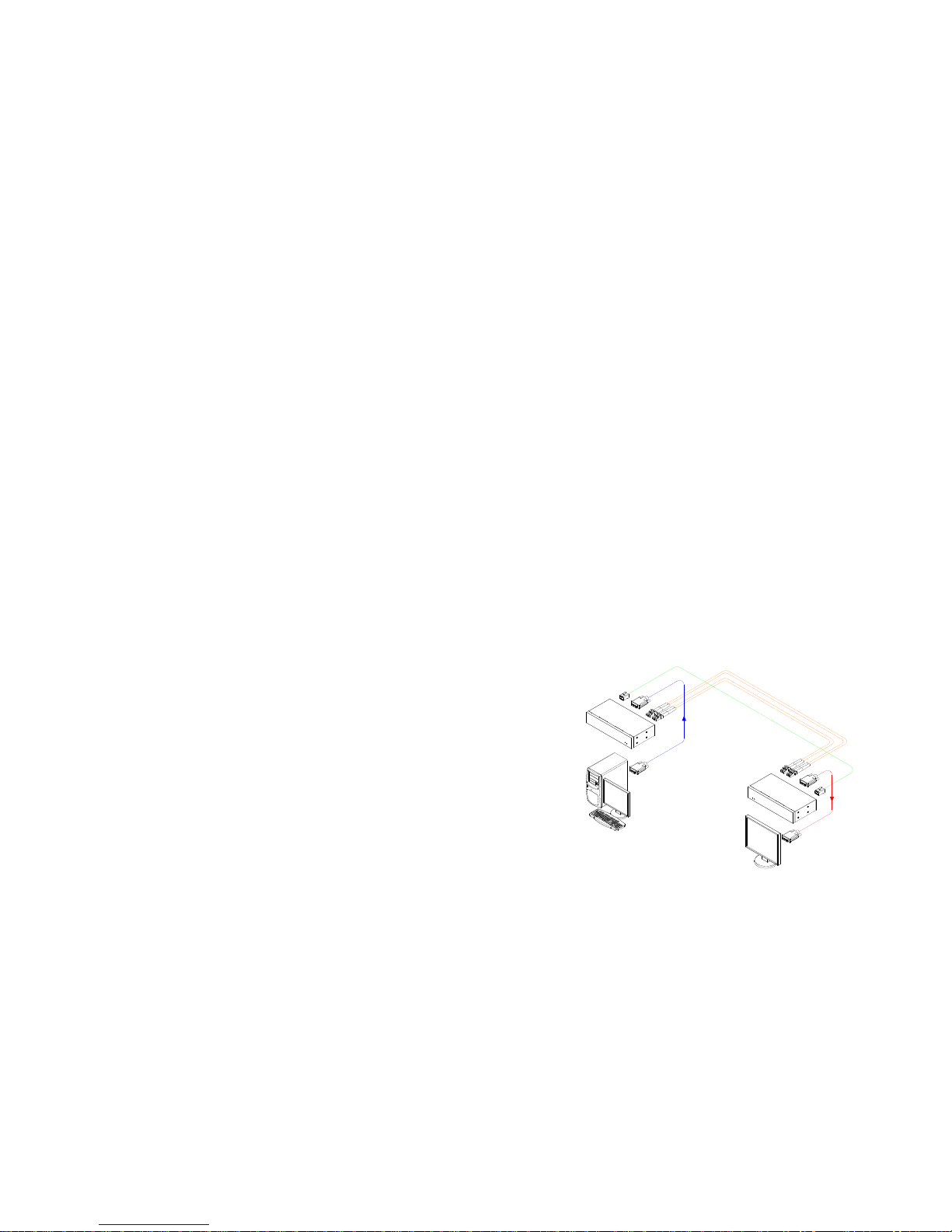

Figure 1 –Overall connection of M1-2R2-TR
1-1 Welcome, Product Description

Installation
Important: Please use the installation procedure below. Improper, or no
operation may result if the start-up sequence is not correctly followed.
Step 1
Carefully unpack the contents of the shipping group.
Step 2
With system power turned off, connect the Transmitter box to the DVI
receptacle of a DVI source or a PC by one DVI copper cable in the shipping
group.
Step 3
In the same way as above, connect the Receiver box into the DVI receptacle
of the display by the other DVI copper cable.
Notice: Please DO NOT look directly into the LC receptacles of the
Transmitter box, while it is powered on, although this product is regulated
strictly enough to operate under the Laser Class I, classified by CDRH/FDA
for eye safety.
1-3 Installation
System Requirements for Setup
Hardware requirements
You have a PC or a graphic source with a DVI (Digital Visual
Interface) port with Windows/Mac (Mac is option), or SUN
system. It should support the maximum graphic resolution
feature of the display to be connected.
In case of using a computer, no special memory size, CPU
speed and chipsets are required.
Proper initial trial of the entire platform with its application using
a short length copper cable is recommended prior to install with
the optical link.
Software requirements
No special needs, if the DVI source and display peripheral are
operational with the platform’s OS and application.
AC/DC Power Adapter Technical Advisory
The power of M1-2R2-TR is designed to supply to both modules of
Tx and Rx over the DDC cable by plugging the power jack to either
of their power plugs.
1-2 System Requirements for Setup

Step 4
Remove the module dust covers and connect each duplex LC fiber cable one
by one to each of 4 LC receptacles of the Transmitter and Receiver boxes.
Plug A to A and B to B. Carefully recheck numbers and ensure the duplex
connectors are fully engaged.
Step 5
Connect each RJ-45C plug of the DDC cable to each RJ-45C receptacle of
the Transmitter and Receiver boxes.
Step 6
Connect an AC/DC power adapter to either of the Transmitter and Receiver
boxes as your availability of AC outlets.
Step 7
Power on the DVI source or PC and display.
Tip 1: After initial installation as guided in the above, we recommend you to
power On and Off while all connections are set and the Tx/Rx boxes are
powered in.
Tip 2: Avoid “hot plugging” the Tx or Rx boxes as this is not recommended
practice with live digital voltages.
1-4 Installation (continued)
Troubleshooting
The display displays only black screen.
Check that all AC and DC plugs and jacks used by external power
supplies (both Opticis and others) are firmly connected.
Ensure that power adapter is live.
Ensure that the Tx and Rx boxes plug correctly to the DVI source or
PC and display, respectively.
Check if the DVI source or PC and display are powered on and
properly booted.
Re-boot up the system after reconnecting the optical system cable.
Screen is distorted or displays noises.
Check if the graphic resolution is properly set. Go to the display
properties and tap the settings. Ensure that the resolution sets less
than that of display.
Reset the system.
Power down, disconnect and reconnect the optical system cable or
DC power adaptors, and power up.
Maintenance
No special maintenance is required for the optical cables and power supplies.
Ensure that the cables and power modules are stored or used in a benign
environment free from liquid or dirt contamination.
There are no user serviceable parts. Refer all service and repair issues to
Opticis or its authorized distributor.
Technical Support and Service
For commercial or general product support, contact your reseller. For
technical service, contact Opticis by email tec[email protected] or visit its
website at www.opticis.com.
1-5 Troubleshooting, Maintenance, Technical Support

Product Specifications
M1-2Rx-TR Optical DVI Module
Compliance with DVI standard: supports DVI 1.0, using fiber-optic
communication links and DDC2B.
Extension limit: 100m (328feet) for WUXGA (1920x1200) at 60Hz
refresh rate in ultimate operation.
Graphic Transmission Bandwidth: supports up to 1.65Gbps.
Fiber-optic Connection: The transmitter and receiver boxes of M1-
2R2-TR have 2 duplex LC receptacles connected to four
62.5/125m or 50/125m Multi-Mode fibers cables.
Mechanical specifications of Tx and Rx boxes
Dimensions: 216mm / 112mm / 44mm (W/D/H)
Environmental Specifications
Operating temperature: 0°C to 50°C
Storage temperature: - 30°C to 70°C
Humidity: 10% to 80%
AC/DC Power Adapter
Power Input: Universal AC 85-264V, 50/60Hz, AC power cord with
power jack.
Power Output: +5 V, 3.0 A SMPS DC-power Adapter
Cord DC Jack & length: Core is 5 V and outer cylinder is GND.
Certification: PSE, UL, cUL, FCC, CE, TUV-GS
1-6 Product Specifications
Warranty Information
1 (One) Year Warranty
Opticis warrants this optical DVI module to be free from defects in
workmanship and materials, under normal use and service, for a period of
one (1) year from the date of purchase from Opticis or its authorized resellers.
If a product does not work as warranted during the applicable warranty period,
Opticis shall, at its option and expense, repair the defective product or part,
deliver to customer an equivalent product or part to replace the defective item,
or refund to customer the purchase price paid for the defective product.
All products that are replaced will become the property of Opticis.
Replacement products may be new or reconditioned.
Any replaced or repaired product or part has a ninety (90) day warranty or the
reminder of the initial warranty period, whichever is longer.
Opticis shall not be responsible for any software, firmware, information, or
memory data of customer contained in, stored on, or integrated with any
products returned to Opticis for repair under warranty or not.
Warranty Limitation and Exclusion
Opticis shall have no further obligation under the foregoing limited warranty if
the product has been damaged due to abuse, misuse, neglect, accident,
unusual physical or electrical stress, unauthorized modifications, tampering,
alterations, or service other than by Opticis or its authorized agents, causes
other than from ordinary use or failure to properly use the product in the
application for which said product is intended.
Dispose of Old Electrical & Electronic Equipment
(Applicable in the European Union and other European countries with separate systems)
This symbol on the product or on its packaging indicates that this
product shall not be treated as household waste. Instead it shall be
handed over to the applicable collection point for the recycling of
electrical and electronic equipment. By ensuring this product is
disposed of correctly, you will help prevent potential negative
consequences for the environment and human health, which could
otherwise be caused by inappropriate waste handling of this product.
The recycling of materials will help to conserve natural resources. For more detailed
information about recycling of this product, please contact your local city office, your
household waste disposal service or the shop where you purchased the product.
1-7 Warranty Information

© 2014 Opticis Co., Ltd. All Rights Reserved
Revision 2.4. 27, May, 2014
Opticis Locations
Headquarters
Opticis Co., Ltd.
# 16Fl, Kins Tower
8 Sungnam-daero, 331 beon-gil,
Bundang-gu,
Seongnam-si, Gyunggi-do, 463-844
South Korea
Te l: [phone]
Fax: [phone]
www.opticis.com
For order support, please contact your Distributor or Reseller.
For technical support, check with the Opticis web site www.opticis.com or
contact [email protected]om
FCC/CE Statement for regulation of Electro-magnetic
emission
This device complies with part 15 of FCC Rules. Operation is subject to the
following two conditions: (1) this device may not cause harmful interference,
and (2) this device must accept any interference received, including
interference that may cause undesired operation. This equipment has been
tested and found to comply with the limits for a Class B digital device,
pursuant to part 15 and 2 of FCC Rules, EN 55022/55024/61000-3 for CE
certification. These limits are designed to provide reasonable protection
against harmful interference when the equipment is operated in a residential
installation. This equipment generates, uses, and can radiate radio frequency
energy and. if not installed and used in accordance with the instruction guide,
may cause harmful interference to radio communications. However, there is
no guarantee that interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television reception,
which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the following
measures:
Re-orient or relocate the receiving antenna.
Increase the separation between the equipment and the receiver.
Connect the equipment into an outlet on a circuit different from that to
which the receiver is connected.
Consult a service representative for help.
Properly shielded and grounded cables and connectors must be used in order
to comply with FCC/CE emission limits. Changes or modifications not
expressly approved by the party responsible for compliance could void the
user s authority to operate the equipment.
Certification for Safety
The extension system is certified pursuant to IEC60065 and its AC/DC power
adapter is certified by UL1310, 1950, 60950 for North America, cUL or CSA
for Canada, TUV-CE & GS for EU and PSE for Japan.
Certification of Eye Safety
This laser product is inside implemented by using 850nm VCSEL (Vertical
Cavity Surface Emitting Laser) Transceivers, manufactured by Opticis Co.,
Ltd., which are all certified by CDRH/FDA referred in Accession Number
0210774 as classified in Laser Class 1.
1-8 Regulatory Statements
