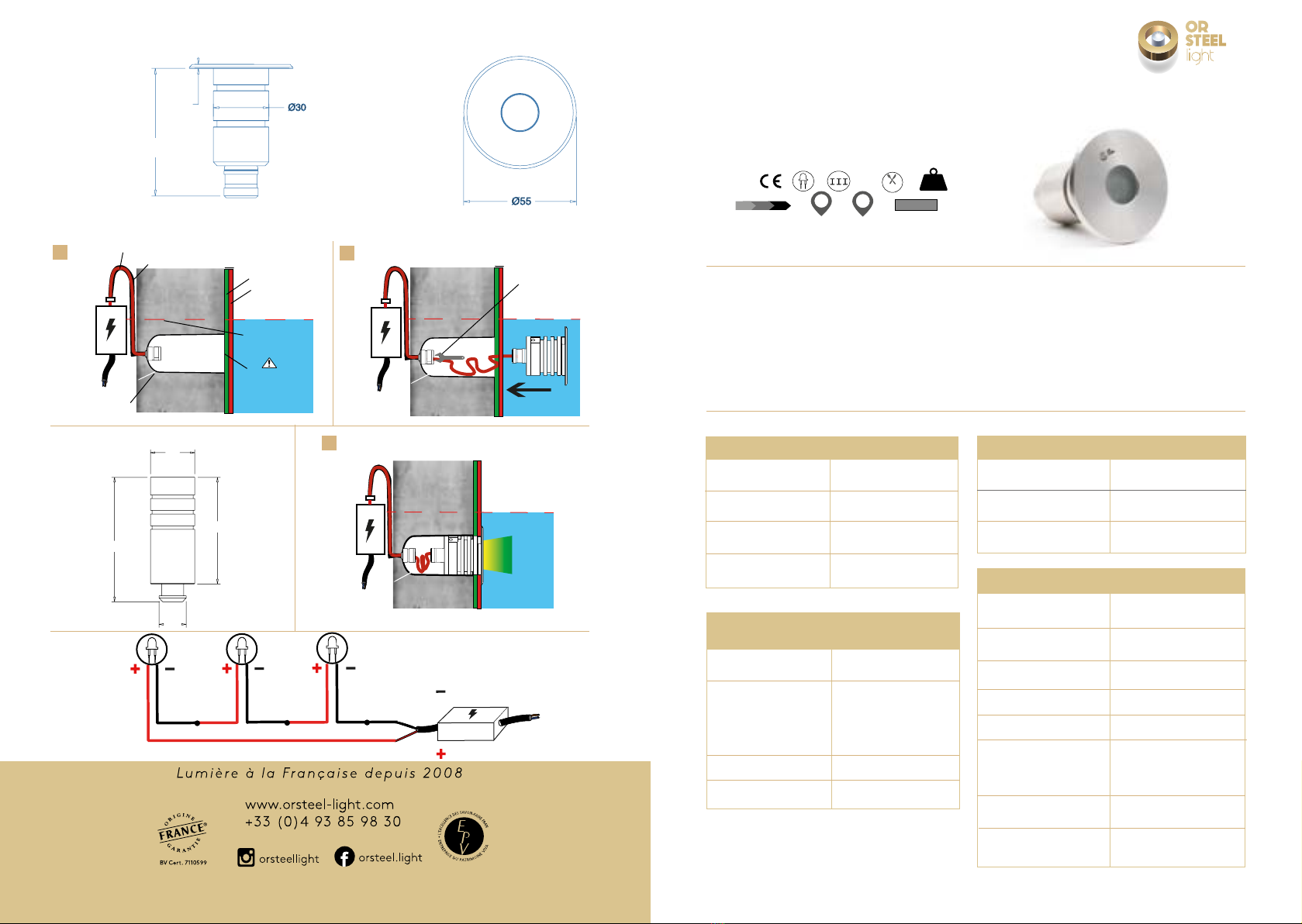

OR STEEL light HIPPOCAMPE User manual

TECHNICAL MANUAL
The Hippocampe submersible recessed spotlight is for occasional use and lighting small
underwater areas. This spotlight is ideal for lighting stairs, small pools or waterfalls. It
is also very much appreciated for all types of lighting in a marine environment. This
spotlight has been designed in 316L stainless steel to IP69 standard so it is perfectly
watertight in an aquatic environment.
HIPPOCAMPE
350mA-700mA
POWER 1x2.5W
SUPPLY 350mA-700mA
POWER SUPPLY Not included
WIRING Serial
Electrical features
TECHNICAL SCHEMATICS
DIMENSIONS Ø55mmx68mm
WEIGHT 0.18kg
MATERIAL INOX316L
electropolished
OPERATING
TEMPERATURE
- 20°c ~+ 40°
INGRESS PROTECTION IP69
IMPACT RESISTANCE IK10
APPLICANCE CLASS CLASS III
WALKOVER FIXTURE NO
DRIVE-OVER FIXTURE NO
Mechanical features
INSTALLATION SCHEMATICS
General features
WIRES 2x0,5mm2 in IP68
PHOTOBIOLOGICAL
SAFETY
Risk group I
ENERGY CLASS A /A+/A++
All data are given for information purposes only. They do not constitute a contractual commitment on our part and are subject
to change at any time.
6666
22
T° max 55°C
AA+
A++
ACS
IK10
IP69
0,18
AVERAGE LIFE OF THE
LED
60 000 hours
Certied L90 B10
COLOR EMISSION 2700K - 3000K -
4000K - 6000K
RED - GREEN
BLUE - AMBER
ANGLE BEAM 6°-25°-40-115°
INITIAL OUTFLOW 237lm at 3000k
Features
lighting technology
12
3
max 10mm
Serial Wiring 350-700mA
max 10mm
40
24,5
105
90
Sealing Casing
Flexible ref TA802
Fourreau
Wire ref CAB0010
Sealing casing
to the edge of
the mortar
Connect to the ground
Tighten the
cable gland
Water level
Water level
Water level
Tile
Mortar
Concrete Concrete
Concrete
Sealing casing

INSTALLATION MANUAL
1. Use
Submersible recessed spotlight for occasional use and lighting small underwater
areas. Illuminates steps, small pools, waterfalls or a marine environment. Only
an IP69 connection to the electricity network ensures the IP69 degree of the
product.
Spotlight for permanent submersion only. Construction/special Functions
available on request. Please note that during installation in water, the intensity
depends on the turbidity of the water.
2. Technical data/Assembly
Spotlight in 316L INOX electro-polished - 1x 2,5W LED - Color emission : cold
white (6000 K), neutral white (4500 K), warm white (3000 K), red, green, blue
and amber. 316L stainless steel gland. Delivered with 2x0.5 mm² Submersible
cable· Sealing casing to be ordered separately.
3. Installation/Assembly
Please comply with the applicable national safety requirements. We disclaim
all responsibility for non-compliant use or assembly. Similarly, we reject any
responsibility for any modifications to the light fittings. Possibility of mounting
the projector in combination with the corresponding moulded plastic housing for
mounting in the wall or floor of the tiled concrete basins (max. height of tiles/
mortar 10 mm or over-demand).
Monting in concrete pool
Position and secure the underrun housing on the front (water side) formwork as
marked. If necessary, seal the outer base, by example with silicone to prevent dirt
from entering the housing. Attach the plastic end cap to the posterior formwork.
Check the proper fastening of the underrun housing, the cable protective sheath
with clamps and the plastic end cap. After concreting the pool and removing the
formwork, apply the mortar and lay the tiles to the maximum inside diameter of
the housing. Maximum height mortar and tile 10 mm.
Monting of projector
Inject the silicone through the cable passage into the underrun housing and the
cable protective sheath. Tighten the fitting nut to seal the cable. Insert, adjust
and secure the projector. Screw the M16 plastic screw fitting supplied at the
plastic end-piece and tighten the nut-fitting to seal the cable. at the end of the
hose travel. Caution: use factory-connected cables only. Indicate the desired
cable length when ordering.
4. Connecting to the power packs/connection matrix
Constant current spotlights must only be connected in series. If necessary,
connect in series in separate distribution boxes, the exterior of which must also
be protected against moisture by means of a sealing mass.
5. General Maintenance Instructions
Do not use detergents which are harmful to metals when cleaning the spotlight.
The use of hydrochloric acid-based detergents on and around any parts of a
stainless steel light fitting is totally forbidden.
Regularly clean the spotlight and its mounting box to avoid any rust deposit.
Caution: Do not use a high pressure cleaner. Any lost screws should only be
replaced by V4A stainless steel screws.
According to conditions of use (power, environmental circumstances), it is
recommended to change the seals (on the glass, screw fittings and O-rings) and
the cable every 5 to 8 years.
6. Warranty conditions
The following time limits and provisions of the warranty shall apply from the date
of delivery: - 24 months for Orsteel spotlights
The warranty covers defects in materials, manufacturing defects and any
treatment which is proven to be attributable to the manufacturer.
Any damage resulting from the non-compliance with this user leaflet or any non-
compliant repair is excluded from the warranty.
We disclaim any guarantee where the installation has not been carried out
according to the instructions or where unsuitable bulbs or connection cables
have been used. We reserve the right to make any modification corresponding to
technical advancement.
7. Important Notice
(The warranty becomes void in the event of non-compliance with the following
points)
The absence of damage during transport must be verified before installation.
Any assembling and installation, as well as any electrical work, must be carried
out by qualified personnel.
To avoid any rust deposits, only stainless steel tools should be used.
The cable length for lamps must be chosen to avoid extending it in water or in a
damp environment. Any subsequent claim for this reason will not be accepted.
A mounting distance of 10 cm between each device is strongly recommended to
avoid mutual heating.
Equipment must be connected without current, otherwise surges in the power
supply could damage the LEDS. There must be no primary voltage when changing
LEDs. When connecting the lamps, please ensure that polarity matches! A polarity
error may damage the LED module.
The customer is advised to install protection against any over voltage compliant
with standards DIN VDE 0100-443, DIN VDE 0100-534 and En 62305.
Please observe the measures against electrostatic discharge during all work on
the spotlights, equipment and LEDs.
