OR STEEL light POSEIDON 24VDC User manual

TECHNICAL MANUAL
Poseidon is the star spotlight for light coloured water jets! This spotlight, designed in
316L stainless steel, will provide magical colours for your fountains and water jets. It is
simply xed on the nozzle of the fountain or water jet. Give a new dimension to your
water eects and take advantage of the incredible capacity of this lighting ring. This
LED spotlight is also programmable with an innite range of lighting eects.
POSEIDON
24VDC
POWER 5x2.5W
SUPPLY 24VDC
POWER
SUPPLY
Not included
WIRING Parallel
Electrical features

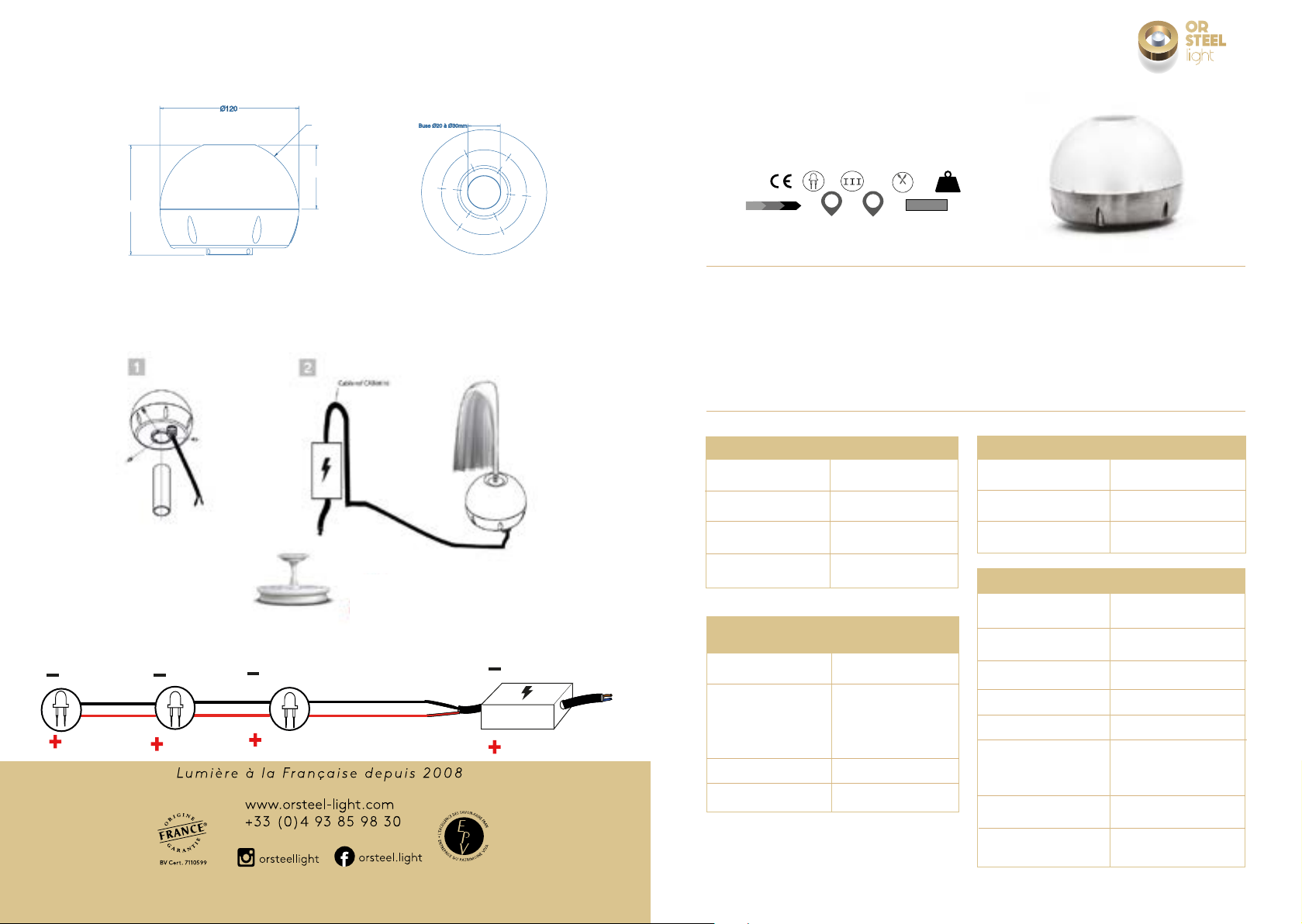

TECHNICAL SHEMATICS
SIZE Ø120mmx90
WEIGHT 2.1kg
MATERIAL 316L Stainless steel
OPERATING
TEMPERATURE
- 20°c ~+ 40°
PROTECTION RAITING IP69
RESISTANCE INDEX IK10
APPLICANCE CLASS CLASS III
WALKOVER FIXTURE NO
DRIVE-OVER FIXTURE NO
Mechanical features
INSTALLATION SHEMATICS
General features
POWER SUPPLY
CABLES
Supply wire 2x0.5mm2
in IP68
PHOTOBIOLOGICAL
SAFETY
Risk group I
ENERGY CLASS A /A+/A++
All data are given for information purposes only. They do not constitute a contractual commitment on our part and are subject
to change at any time.
T° max 55°C
AA+
A++
ACS
IK10
IP69
2,1
9595
5555
PMMA DIFFUSANPMMA DIFFUSANTT
AVERAGE LIFE OF THE
LED
60 000 hours
Certicated L90 B10
COLOUR EMISSION 2700K - 3000K -
4000K - 6000K
RED - GREEN
BLUE - AMBER
BEAM 10°-25°-40-115°
INITIAL OUTFLOW 980lm at 3000k
Features
lighting technology
Parallel wiring 24VDC

1. Use
Submersible recessed spotlight for occasional use and lighting small underwater
areas. Illuminates steps, small pools, waterfalls or a marine environment. Only
an IP69 connection to the electricity network ensures the IP69 degree of the
product.
Spotlight for permanent submersion only. Construction/special Functions
available on request. Please note that during installation in water, the intensity
depends on the turbidity of the water.
2. Technical data/Assembly
Spotlight in 316L INOX electro-polished - 5x 2,5W LED - Color emission : cold
white (6000 K), neutral white (4500 K), warm white (3000 K), red, green, blue
and amber. 316L stainless steel gland. Delivered with 2x0.5mm² Submersible
cable· Sealing casing to be ordered separately.
3. Installation/Assembly
Please comply with the applicable national safety requirements. We disclaim
all responsibility for non-compliant use or assembly. Similarly, we reject any
responsibility for any modifications to the light fittings. When in use, constant
current spotlights must always be connected in series to the corresponding DC
power supply (see power packs) (24VDC). Do not disassemble the spotlight
casing, because the cables and the plate are sealed. Exterior and underwater
assembly can be carried out on different media. Mount the projector directly on
concrete, paving blocks, plates, wood and in association with an earth rod (Pt800)
We cannot supply universal installation instructions because ground conditions
and the location will vary for each project. The pictograms show examples of
typical installations A/B /C Surface mount the projector on a strengthened
support and on a support with an earth rod and on a weighted support. If800).
Caution: Never use full power withou t water Caution: Do not use a high pressure
cleaner. Caution: Protect the spotlights from frost; where appropriate, dismantle
or ensure special protection. Any lost screws should only be replaced by V4A
stainless steel screws. According to conditions of use (power, environmental
circumstances), it is recommended to change the seals (on the glass, screw
fittings and O-rings) and the cable every 5 to 8 years.
4. Connecting to the power packs/connection matrix
Constant current spotlights must only be connected in parallel. H/I. If applicable,
proceed with connection in parallel in separate load distribution units, the outside
of which must also be protected against humidity using a sealing compound.
5. General Maintenance Instructions
Do not use detergents which are harmful to metals when cleaning the spotlight.
The use of hydrochloric acid-based detergents on and around any parts of a
stainless steel light fitting is totally forbidden.
Regularly clean the spotlight and its mounting box to avoid any rust deposit.
Caution: Do not use a high pressure cleaner. Any lost screws should only be
replaced by V4A stainless steel screws.
According to conditions of use (power, environmental circumstances), it is
recommended to change the seals (on the glass, screw fittings and O-rings) and
the cable every 5 to 8 years.
6. Warranty conditions
The following time limits and provisions of the warranty shall apply from the date
of delivery: - 24 months for Orsteel spotlights
The warranty covers defects in materials, manufacturing defects and any
treatment which is proven to be attributable to the manufacturer.
Any damage resulting from the non-compliance with this user leaflet or any non-
compliant repair is excluded from the warranty.
We disclaim any guarantee where the installation has not been carried out
according to the instructions or where unsuitable bulbs or connection cables have
been used.
We reserve the right to make any modification corresponding to technical
advancement.
7. Important Notice
(The warranty becomes void in the event of non-compliance with the following
points)
The absence of damage during transport must be verified before installation.
Any assembling and installation, as well as any electrical work, must be carried
out by qualified personnel.
To avoid any rust deposits, only stainless steel tools should be used.
The cable length for lamps must be chosen to avoid extending it in water or in a
damp environment. Any subsequent claim for this reason will not be accepted.
A mounting distance of 10 cm between each device is strongly recommended to
avoid mutual heating.
Equipment must be connected without current, otherwise surges in the power
supply could damage the LEDS. There must be no primary voltage when changing
LEDs.
When connecting the lamps, please ensure that polarity matches! A polarity error
may damage the LED module.
The customer is advised to install protection against any over voltage compliant
with standards DIN VDE 0100-443, DIN VDE 0100-534 and En 62305.
Please observe the measures against electrostatic discharge during all work on
the spotlights, equipment and LEDs.
INSTALLATION MANUAL
