Oransi max User manual

U S E R M A N U A L
max
R E A D A N D S A V E T H E S E I N S T R U C T I O N S
A I R P U R I F I E R

welcome
W E A P P R E C I A T E Y O U C H O O S I N G O R A N S I
Y o u c a n e x p e c t t h e v e r y b e s t p e r f o r m a n c e
f r o m y o u r O r a n s i f o r r e m o v a l o f f i n e a i r
p a r t i c l e s w h e r e i t i s u s e d . I f y o u h a v e
q u e s t i o n s b e y o n d t h i s m a n u a l , f e e l f r e e t o
v i s i t o u r w e b s i t e O r a n s i . c o m o r c a l l o u r
t r a i n e d c u s t o m e r s e r v i c e s t a f f a t
8 8 8 . 2 8 1 . 3 9 4 8 . Y o u r a i r p u r i f i e r s e r i a l
n u m b e r c a n b e f o u n d o n t h e r a t i n g l a b e l .
S i n c e r e l y ,
T H E O R A N S I T E A M

safety precautions
air purifier overview
how to use
maintenance
assembly/disassembly
troubleshooting
best practices
warranty program
I N D E X
05
07
11
13
14

first,
be safe.

S A F E T Y P R E C A U T I O N S
Do not attempt to service the air purifier in any way other than to replace or
clean the air filter.
This product operates at 120V 60Hz only.
Always unplug the power cord from the electrical outlet when the air purifier
is not in use or when changing the filter.
Never run the air purifier unless it is fully assembled.
Do not alter the plug in any way.
Always tum off the air purifier before unplugging the air purifier from the
outlet.
Do not place the cord near a heated surface.
Never operate the air purifier if the plug or cord is damaged or appears
damaged. Only qualified service personnel should ever replace or attempt to
replace a damaged power cord or plug.
Never use the power cord to pick up, carry, drag, pull, or lift the air purifier.
Do not pull the cord against or around sharp corners and edges.
Always remove the plug from its power outlet by holding onto the plug itself
and pulling gently.
Use care when operating the air purifier by keeping all foreign objects,
fingers, body parts, hair, loose clothing, jewelry, etc., away from openings.
Do not drop items into the air purifier.
Never touch the air purifier or its plug when your hands are wet.
If moving the air purifier, lift by the carrying handle.
Do not use outside.
Do not operate without the filters installed.
Only use in an upright position. Do not place anything on top of the air
purifier.
Use only as described in this manual.
Use only Oransi replacement filters.
Place air purifier on a flat floor.
This appliance has a polarized plug (one blade is wider than the other). To
reduce the risk of electric shock, this plug is intended to fit in a polarized
outlet only one way. If the plug does not fit fully in the outlet, reverse the
plug. If it still does not fit, contact a qualified electrician. Do not attempt to
by-pass this safety feature.
READ ALL INSTRUCTIONS BEFORE USING THIS APPLIANCE TO REDUCE THE RISK
OF FIRE, ELECTRIC SHOCK, OR INJURY. PLEASE SAVE FOR REFERENCE.
W A R N I N G
T o R e d u c e T h e R i s k O f F i r e O r E l e c t r i c S h o c k , D o N o t U s e
T h i s F a n W i t h A n y S o l i d - S t a t e S p e e d C o n t r o l D e v i c e .
05

next, meet
your max.
S K U : O V H M 8 0

Technical Data
120V, 60Hz, 90W, 0.8A
Purifying Process & Main Features
Pre-Filter
Captures larger sized particles like dust. Can be cleaned by vacuuming lightly
or wiping with a damp cloth. You can rinse in the sink with water, but the filter
must be laid out to air dry and COMPLETELY dry before reinstalling.
HEPA Filter
HEPA Filter to remove microscopic particles down to 0.3 microns in size such as
fine dust, pollen, bacteria and mold.
Activated Carbon Filter
The activated Carbon Filter consists of a vast system of highly absorbent
molecular-sized pores to remove gases, light odors and VOCs (volatile organic
compounds).
Anion generator
Low level and ozone-safe negative ionizer to freshen and balance the air (i.e.
neutralizes a surplus of positive charges from TVs and computer monitors).
A I R P U R I F I E R O V E R V I E W
07

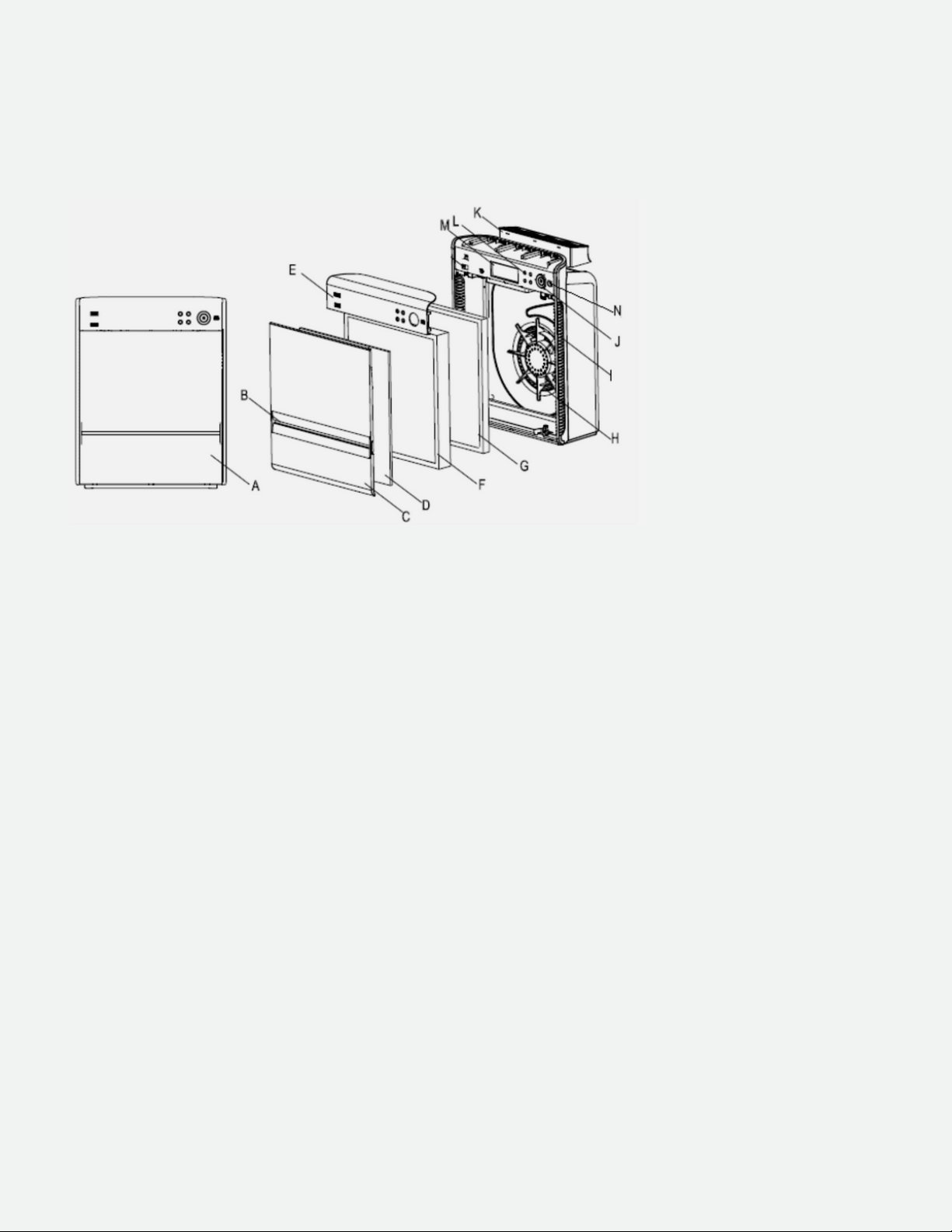

Main Structure
A. Front view
B. Front air flow inlet
C. Front cover
D. Pre-filter
E. Front panel
F. HEPA Filter
G. Carbon Filter
H. Fan
I. Side air flow inlet
J. Power button
K. Air flow outlet
L. Function buttons
M. LED Display
N. Air Quality Sensor

Air Quality Sensor (AQS)
Measures and displays the air quality. In Auto Mode, the unit automatically adjusts its
fan speed based upon the air quality reading. There are five levels of air quality as
indicated above.
NOTE: The air quality reading is located above the AQS. Since the air quality sensor is
located on the air purifier the reading will be in the area of the air purifier. In many
cases it will have a reading of Excellent or Very Good.
Placement
In order to get better performance in cleaning, it is recommended to place the purifier
on the ground or a stable surface. Since the air is drawn in through the front of the air
purifier it can be placed near a wall.
Standby
In Standby Mode, the Standby indicator illuminates in red to show the air purifier has
been plugged in and has power but is not operating.
Refresh Anions
The Refresh icon will be illuminated on the panel when the Ionizer feature is activated.
You can turn this off by pressing the Anion button. In Auto Mode, the Ionizer will
always automatically be on and producing negative ions, indicated by “Refresh.”
Fan Speed
There are four different fan speeds with Silent the lowest and Turbo the highest fan
speeds.
Auto Mode
In Auto Mode, the unit will run at the lowest fan speed. If the AQS detects a change in
the density of particles in the air, the unit will increase the fans speed. Once the AQS
detects it has cleaned the dense particles out of the atmosphere it will return to the
lowest fan speed.
Check Filter
When the purifier has run for a total time of 3,000 hours, the maintenance indicator
illuminates to remind the user to vacuum the pre-filter and to look at the HEPA Filter.
The HEPA Filter has a color shade on the frame to see whether it is time to be
replaced.
A I R P U R I F I E R O V E R V I E W
08
Excellent Very
Good
Good Standard Poor

Buttons and Display
ON/OFF, Fan Speed, Timer, Auto, Refresh
Operation Guide
On/Off
When plugged in, the unit will beep and illuminate the icons on the display. Press the
ON/OFF button and the unit will start on the Strong fan speed. Any time the unit is
restarted, it will remember its last working status.
Night Mode
By pressing the Power button for 3 seconds you can turn off the light around the
power button. This will not turn off the icons on the display.
Fan Speed
The fan speed cycles in the following order:
Silent - Green
Middle - Blue
Strong - Orange
Turbo - Red
The lighted indicator around the power button indicates the fan speed with different
colors. Silent is green, Middle is blue, Strong is orange and Turbo is red.
Refresh
Press this button and the ionizer starts generating anions (negative ions). Press this
button again to turn off. The refresh icon will be illuminated when the anion feature
is activated.
Check Filter Timer
Press the Timer button to set the number of hours the air purifier will run before
turning off. With each press of this button, the time will increase 1 hour and max at
12 hours. Pressing again after 12 hours will turn off the timer.
H O W T O U S E
09

let's keep
each other
healthy.

Cover and Housing
Power off the unit and unplug before any maintenance.
Clean the unit only when necessary. If the unit is used in a dirty environment it may need
cleaning more frequently.
Wipe any dust away with a soft cloth (can be dry or damp).
Do not use any cleaners or chemicals on the air purifier.
M A I N T E N A N C E
11
A I R Q U A L I T Y S E N S O R
Air Quality Sensor (AQS)
Clean out the dust blocking the sensors’ air inlet.
If the sensor is giving a false reading, vacuum around the sensor to remove any dust that may
have accumulated there.The sensor is located next to the ON/OFF button.
Filters
The filters should be cleaned and replaced regularly.
Pre-filter
The Pre-filter can be vacuumed lightly and/or rinsed under sink water, but make sure it is
completely dry before re-installing. It’s recommended to clean this filter every 3 months and
replace it after 1 year.
HEPA Filter and Carbon Filter
When the purifier has run for 3,000 hours, the maintenance indicator illuminates to remind
the user to check the HEPA and Carbon Filters. The HEPA Filter has a color shade on the frame
to see whether it is necessary to replace. Please replace it when the color is dark.
NOTE: After maintenance, press the buttons Fan Speed and Anion
simultaneously until you see CL for Clear on your control panel. Please note
that whenever the Fan Speed and Anion buttons are pressed at the same time,
the counter will be reset. If users do not reset the counter after checking the
filter or forget to check the filter after 3,000 hours, Check Filter will blink after
3,500 hours as a reminder.

Using the front cover removal tool, or any non-conductive item such as the handle of a
plastic utensil, a wooden chopstick or similar item can be used in place of the tool provided
with your unit. Insert the tool into the uppermost side air intake slot and gently push
outwards against the back surface of the front cover until the top corner of the front panel
‘pops’ free, as shown below. Repeat this process for the other side and then lift the entire
front panel up and away from the main body, exposing the filter compartment. Place the
front panel out of the way and protect it from damage.
Pre-filter: Turn the 4 locks per the direction of the arrows to release the pre-filter.
HEPA Filter: Hold the small ribbon and pull the filter out.
Carbon Filter: Hold the small ribbon and pull the filter out.
Disassembly
1.
2.
3.
4.
M A I N T E N A N C E
12
INSTRUCTIONS ARE LISTED IN NUMERICAL ORDER. USE AIR PURIFIER
OVERVIEW AND PHOTOS FOR REFERENCE.
Carbon Filter: Put the filter in place from the bottom and then push it into the cabinet.
HEPA Filter: Put the filter in place from the bottom and then push it into the cabinet.
Pre-filter: Place in the pre-filter and turn the locks to secure it.
Front cover: Secure the interlock at the bottom first and push the whole cover inwards at
the top two corners to secure it
Assembly
1.
2.
3.
4.

Using Your Oransi
Always operate your air purifier
indoors on a level surface.
Locate your air purifier wherever
you spend most of your time.
Typically, a bedroom, living space,
office waiting room, or classroom.
Set the fan speed to a level that is
comfortable for you. Low settings
are less audible. In most cases, you
can run your air purifier on a very
low fan.
For larger areas, consider a higher
fan speed when you’re absent and
then turn the setting lower when
you return.
Air enters your Oransi at the
bottom and exits the top, so you
can place the unit anywhere in a
room. However, be careful that
curtains do not block air intake or
exit.
Problem: Air Quality indicator constantly shows poor air quality.
Cause: Lens inside the sensor is dirty.
Solution: Turn off and vacuum the sensor (to the right of the power button). Wait a
few seconds and power back on.
Problem: Unit will not turn on.
Cause: Cover is not fully closed, may be blocked by filters. This occurs sometimes in
shipment.
Solution: Remove the front cover and all of the filters. Re-install the filters and ensure
each is fully installed. Reinstall the front cover with the bottom edge first and then
rotate to snap the top two corners in place.
T R O U B L E S H O O T I N G

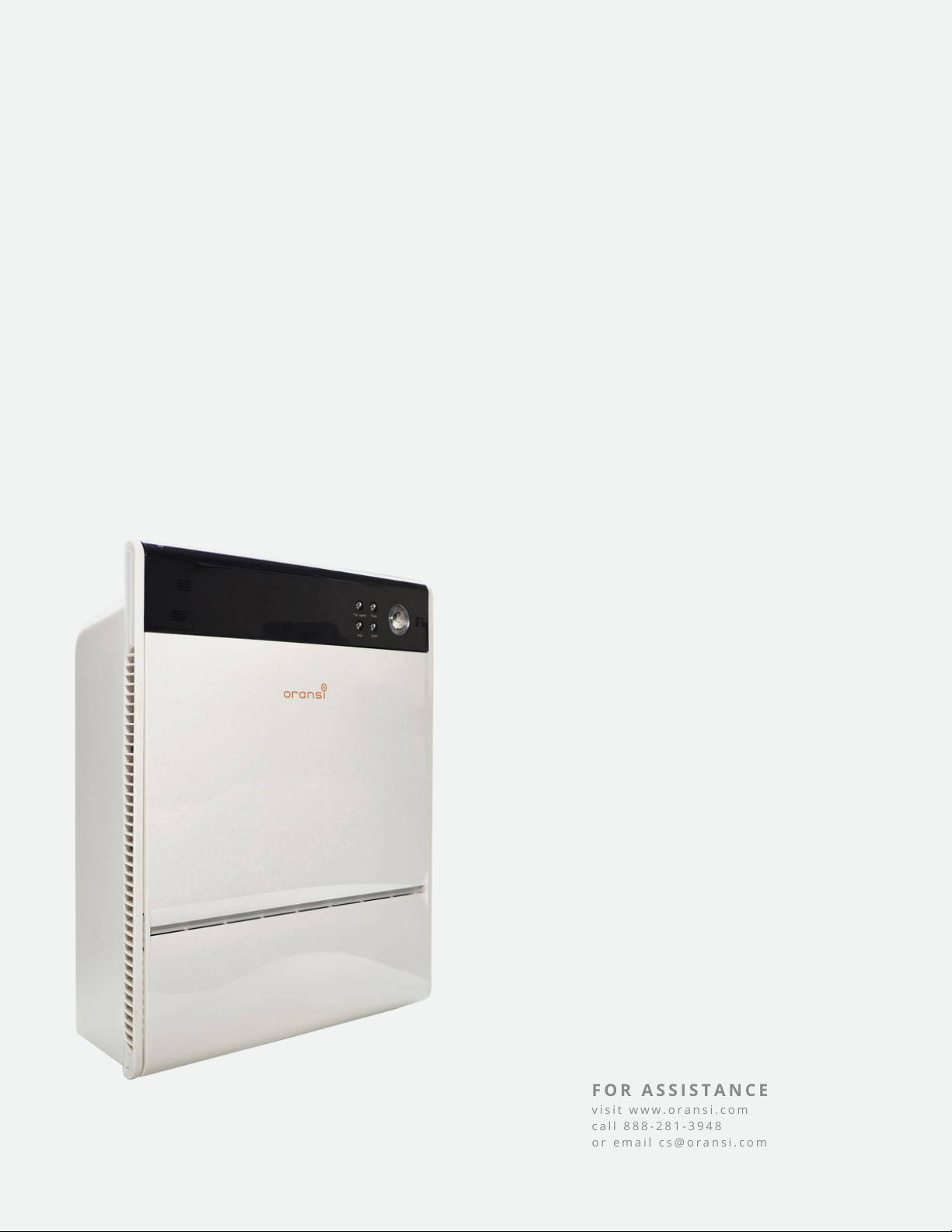

F O R A S S I S T A N C E
v i s i t w w w . o r a n s i . c o m
c a l l 8 8 8 - 2 8 1 - 3 9 4 8
o r e m a i l c s @ o r a n s i . c o m
13

warranty
O R A N S I W A R R A N T Y D I S C L A I M E R
The Air Purifier is operated in accordance
with the instructions provided in the
Oransi User Manual
The Air Purifier is connected to a proper
power supply (see voltage label on the
machine).
The unit shows no evidence of tampering,
mishandling, neglect, accidental damage,
modification, and/or repair by anyone
other than authorized Oransi service
personnel.
Replacement filters are purchased directly
from Oransi or an authorized dealer.
The Max Air Purifier carries a 10-year limited
warranty from the original purchase date. Oransi
will replace your air purifier provided the product
is determined to be defective as a result of faulty
material or workmanship while in normal use.
Oransi’s sole obligation under this warranty is to
replace or at Oransi’s discretion, to repair, free of
charge, all defective parts. This warranty will not
be valid if the unit is damaged by the user. Proof
of purchase may be required by Oransi’s warranty
service representative. All parts or units that are
replaced become the property of Oransi.
W a r r a n t y r e m a i n s i n e f f e c t o n l y i f :
1.
2.
3.
4.
