Oregon Scientific JM889N User manual

Jumbo RF Clock
with Indoor Thermometer
Model: JM889N / JM889NU
User Manual
JM889N English Cover R2 8/17/04, 3:28 PM1

1
EN
Oregon ScientificTM Jumbo RF Clock
with Indoor Thermometer
(JM889N / JM889NU)
User Manual
TABLE OF CONTENTS
Introduction ........................................................................ 2
Key features ....................................................................... 2
Front view ........................................................................ 2
Back view ........................................................................ 3
LCD display symbols ....................................................... 3
Safety and care instructions ............................................. 4
Safety precautions ........................................................... 4
Caring for your product .................................................... 4
Getting started ................................................................... 4
Unpacking the product ..................................................... 4
Batteries .......................................................................... 5
Placement of unit ............................................................. 5
Indoor temperature display .............................................. 6
Toggling between seconds/day-of-week display ............. 6
Radio reception .................................................................. 6
Radio reception description ............................................. 6
Enabling/disabling radio reception ................................... 7
To set the clock manually ................................................. 7
Language options ............................................................ 8
Alarm functions .................................................................. 8
Basic functions ................................................................ 8
Displaying alarm time ...................................................... 8
Adjusting the alarm time .................................................. 9
Activating / deactivating the alarm ................................... 9
Reset hole ........................................................................... 9
Troubleshooting guide .................................................... 10
Specifications ................................................................... 11
Warnings ........................................................................... 11
About Oregon Scientific .................................................. 12
EC-Declaration of conformity.......................................... 13
JM889N_NU_English R2 8/17/04, 3:28 PM1

EN
2
INTRODUCTION
Thank you for selecting the Oregon ScientificTM Jumbo RF
Clock with Indoor Thermometer as your product of choice. This
device is designed to give you many years of reliable service,
including the following conveniences:
• Radio-Controlled Calendar Clock*
• Indoor Temperature Display
• Daily Alarm
*Automatically synchronizes the current time and date when
itisbroughtwithinrangeoftheradiosignalMSF60generated
fromRugby,England(modelJM889NU)orDCF77 generated
fromFrankfurt,GermanyforCentralEurope(modelJM889N).
Inadditiontoproviding step-by-step instructions for this product,
this manual contains important safety and care information.
Read the manual thoroughly, and keep it in a safe place in case
you need to refer to it.
KEY FEATURES
1. Main LCD Display
Displays current time and RF signal reception indication
2. Seconds/Day-of-Week Display
Select between seconds or day-of-week display
3. Current Date/Alarm Time Display
Select between current date or alarm time display
4. Indoor Temperature Display
Displays currently monitored indoor temperature

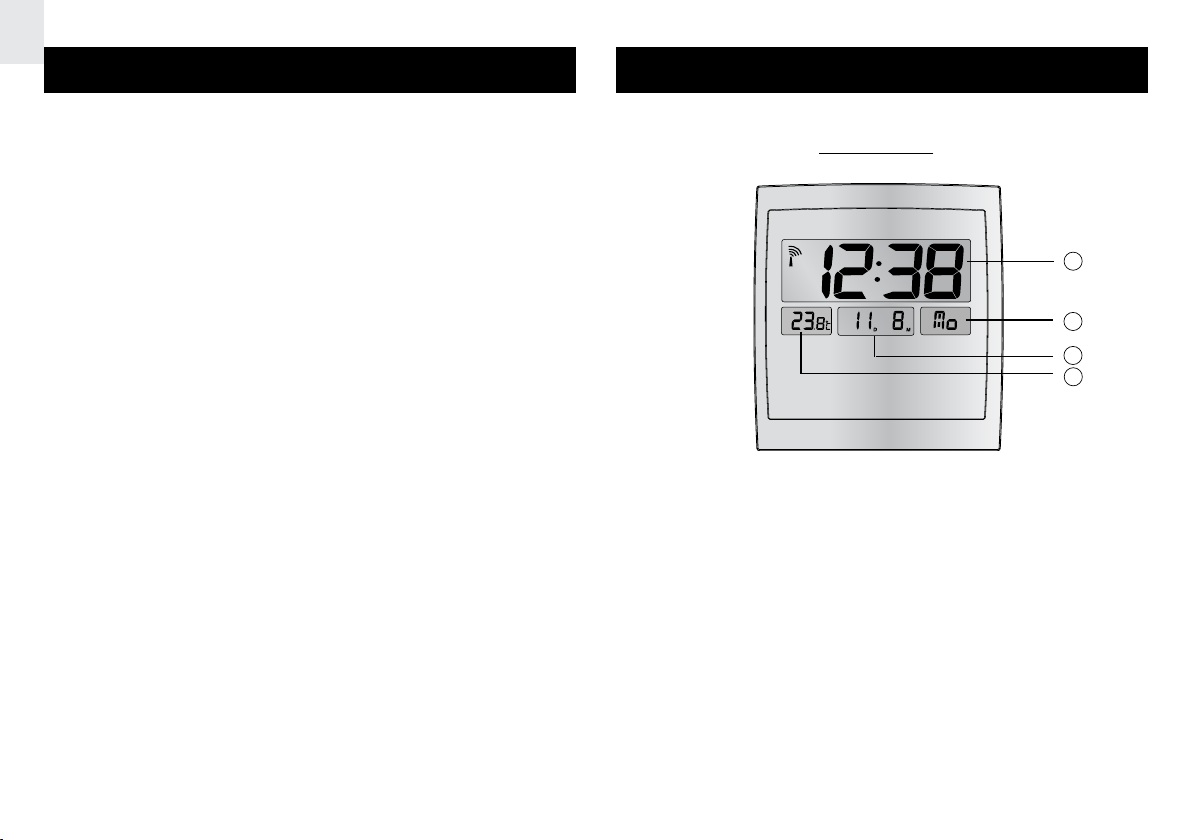

Front View
1
2
3
4
JM889N_NU_English R2 8/17/04, 3:28 PM2

3
EN
Back View

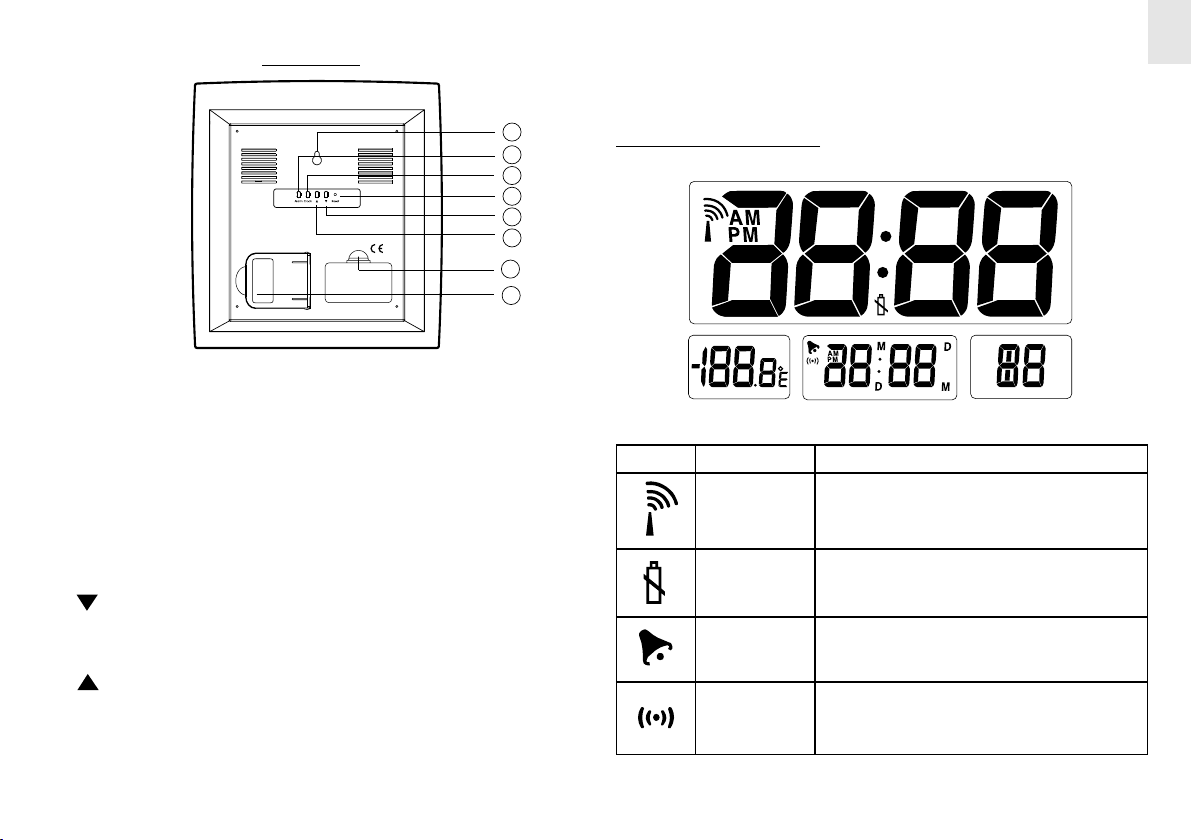

LCD Display Symbols
Icon Description Explanation
Radio Reception
Signal
Indicates the condition of radio reception.
Low Battery Appears when power is low.
Alarm-on Appears when alarm is activated.
Alarm Time
Indicator
Appears when alarm time is displayed.
5. Wall-Mount Recess Hole
For mounting the unit to a wall
6. Alarm Button
Display and adjust alarm time
7. Clock Button
Manually adjust current time and date
8. Reset Hole
Returns all settings to default values.
9. Button
Used to adjust settings down one notch or to enable/disable
RF radio reception
10. Button
Used to adjust settings up one notch or to enable/disable
RF radio reception
11. Battery Compartment
The unit uses 2 AA 1.5V batteries for power.
12. Table Stand
Can be pulled out and used to stand the unit on a flat surface
5
6
7
8
9
10
11
12
JM889N_NU_English R2 8/17/04, 3:28 PM3

EN
4
SAFETY AND CARE INSTRUCTIONS
Safety Precautions
Please observe the following safety precautions when setting
up and using this product.
• LCD panel - The LCD panel is made of glass, and may
break if the unit is dropped or impacted.
• Heat sources - Keep the product away from heat sources
such as radiators, stoves, heaters, and other
heat-generating products.
• Water and moisture - Do not use the product in or near
water or in high moisture areas such as a bathroom.
Caring for your Product
To ensure you receive the maximum benefit from using this
product, please observe the following guidelines.
• Cleaning - Use a damp cloth. Do not use liquid cleaning
agents, benzene, thinner, or aerosols.
• Ventilation - The vents and other openings are designed
for ventilation, and should not be blocked or covered.
Blocking the vents can cause the product to overheat, and
can damage the unit.
• Repair - Do not attempt to repair the product or modify the
circuitry by yourself. Contact the retailer or a qualified
repairman if the product requires servicing. Only use
replacement parts that are recommended by the
manufacturer.
• Do not scratch hard objects against the LCD display as this
may cause damage.
GETTING STARTED
Unpacking the product
When you unpack your clock, make sure to keep all the packing
materials in a safe place, in case you need to later transport or
return it for servicing.
In the box, you will find:

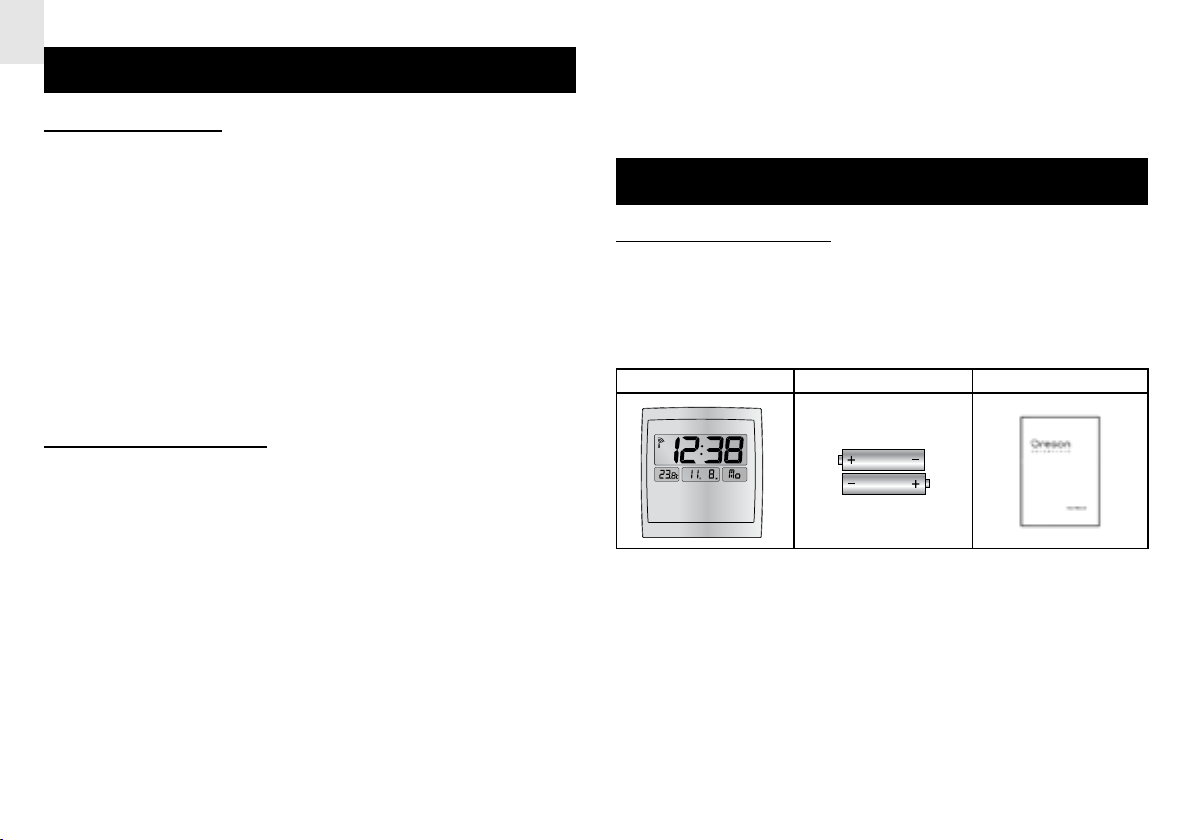

Clock unit Batteries User manual
JM889N_NU_English R2 8/17/04, 3:28 PM4

5
EN
Batteries
When using the product for the first time, please note
that the batteries have already been installed in the unit.
To operate, locate the clear plastic battery tab inside the
battery compartment and remove it.
To load the batteries:

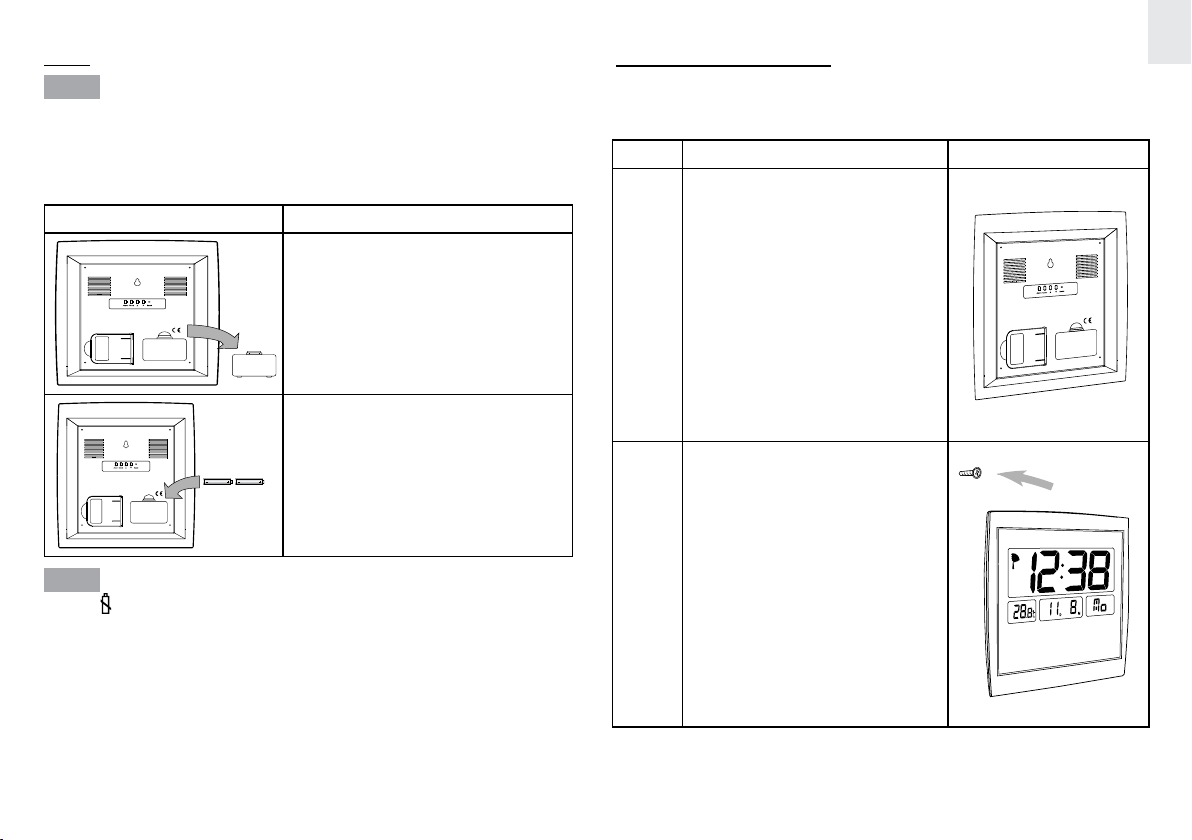

Diagram Instructions
1. Locate the battery compartment.
2. Install the batteries by matching the correct
polarity.Alwaysusethe correct battery type
(2 UM-3 AA-sized 1.5V batteries).
Warning: Reversing the polarity may
damage the product.
Replace the batteries whenever the weak battery
mark ( ) is shown, the display is dim, or the display does not
illuminate when the power is on. Replace all the batteries at the
same time - it is dangerous to mix old and new batteries.
Contact your local waste disposal authority for instructions on
how to dispose of used batteries. Used batteries can be
harmful to the environment, and should not be thrown out with
household trash.
Placement of Unit
You can either mount the main unit on a wall or make it stand
on a flat surface.
Method Instruction Diagram
Table
Stand
The unit is already equipped with a Table
Stand. Simply pull out the Table Stand
and rest the main unit on a flat surface.
Wall
Mount The main unit can be mounted onto a wall
using a No. 6 screw (3.0mm).
a) Position and nail the screw into the
place where you would like to hang
your main unit.
b) Leave ample space between the wall
and the screw head while testing to
make sure the nail is secure.
c) Fit the unit’s Wall-Mount Recess Hole
onto the screw head.
NOTE
NOTE
JM889N_NU_English R2 8/17/04, 3:28 PM5

EN
6
Indoor Temperature Display
Soon after the clear plastic battery tab has been removed, the
unit immediately reads and displays the surrounding indoor
temperature.
Toggling between Seconds/Day-of-Week Display
To toggle between displaying seconds or day-of-week on the
LCD screen, press CLOCK.
RADIO RECEPTION
This product is designed to synchronize its calendar clock
automatically once it is brought within range of the radio signal.
When the unit is receiving the signal, the Radio Reception
symbol with start to blink. Generally, complete reception takes
around 2 to 10 minutes, depending on the strength of the signal.
Radio Reception Description
Radio Reception Description
Reception can be affected by a number of factors. For
best reception, place the device away from metal objects and
electrical appliances. Other causes for signal interference
include electrical transmission towers, steel reinforced
construction, and metal siding. Reception is ideal when placed
near a window.
Even though there are areas that may have more difficulty in
receiving a signal, the Atomic Clock contains accurate quartz
movement and will retain precise timing if the signal is missed
on a rare occasion.

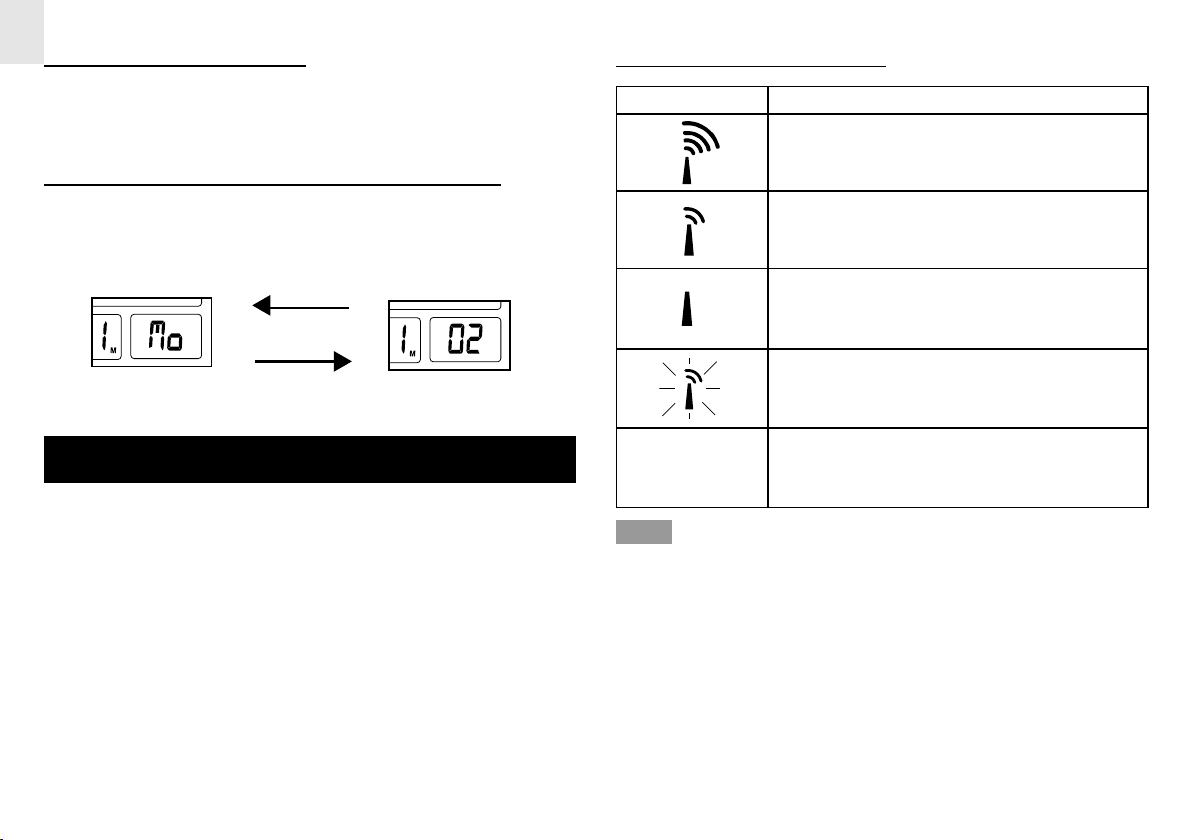

Strong reception of radio clock signal.
Weak reception of radio clock signal.
No reception of the radio clock signal.
Receiving the radio clock signal.
Radio Reception is disabled.
NOTE
JM889N_NU_English R2 8/17/04, 3:28 PM6

7
EN
Enabling/Disabling Radio Reception
To manually disable the reception of the RF signal,
press and hold [UP ] and [DOWN ]simultaneously for
2 seconds until the Radio Reception symbol completely
disappears.
To enable the reception again, press and hold [UP ] and
[DOWN ]simultaneouslyfor 2seconds.TheRadio Reception
symbol will blink and the unit will search for the RF*¤ignal
automatically.
TO SET THE CLOCK MANUALLY
To adjust the clock settings manually without automatic
RF synchronization, remember to disable the Radio Reception
first. Press once or press and hold [UP ]or [DOWN ]
to adjust the value of each setting.
NOTE
Diagram Instructions
1. Press and hold the CLOCK button for 2 seconds.
2. Adjust the current month. Press CLOCK when done.
Diagram Instructions
3. Adjust the current date. Press CLOCK when done.
4. Choose the language displayed for the day-of-week.
Press CLOCK when done.
5. Choose the current day-of-week. Press CLOCK when
done.
6. Adjust the current hour. Press CLOCK when done.
7. Adjust the current minute. Press CLOCK when done.
8. LCD Display returns to normal clock operation.
JM889N_NU_English R2 8/17/04, 3:28 PM7

EN
8
Language Options
Themain unitcandisplaythe week-
day in five different selectable lan-
guages.
ALARM FUNCTIONS
Basic Functions
Your product can also be used as
an alarm clock.
1. When the alarm sounds, you
can turn it off by pressing
ALARM.
2. The alarm will automatically
stop ringing after 1 minute.
But after 8 minutes, the alarm
will sound again unless
ALARM is pressed.
Symbol Language
English
German
French
Italian
Spanish
Displaying Alarm Time
By default, the unit’s LCD screen displays the current date and
month. To display the alarm time instead:
1. LCD screen displays the current date and month.
2. Press the ALARM button.
3. The currently set Alarm Time is now displayed.
Diagram Instructions
JM889N_NU_English R2 8/17/04, 3:28 PM8

9
EN
Adjusting the Alarm Time
Make sure that the Alarm Time is currently displayed on the
LCD screen.
1. Press and hold the ALARM button for 2 seconds.
2. Adjust the hour of the Alarm Time. Press ALARM when
done.
3. Adjust the minute of the Alarm Time. Press ALARM
when done.
4. Adjusted Alarm Time now displayed.
Activating / Deactivating the Alarm
Diagram Instructions
Diagram Instructions
1. LCD screen displays Alarm Time. If is displayed,
the alarm is enabled. Otherwise it is disabled.
2. Press ALARM button to enable or disable the alarm.
RESET HOLE
If the clock behaves strangely or
stops responding, insert and press
a blunt stylus into the clock’s Reset
Hole. The clock will then be reset
to its original factory setting.
JM889N_NU_English R2 8/17/04, 3:28 PM9

EN
10
TROUBLESHOOTING GUIDE
This section includes a list of frequently asked questions for
problems you may encounter. If your device is not operating as
you think it should, check here before arranging for servicing.
Radio antenna not
displayed on LCD
screen.
The RF signal
cannot be
received.
Obstacles (either
electromagnetic
interference or
objects) are
barring the signal
from reaching the
main unit.
Move the unit
away from any
sources of
interference,
including other
electronic devices.
Batteries of the
unit are low.
Check LCD
Display of the unit.
Install new
batteries into the
unit.
Problem Symptom Check This Remedy
Problem Symptom Check This Remedy
Clock time is not
correctly set.
No radio signal
reception.
Electromagnetic
interference or
objects are barring
reception.
Orientation or
placement of main
unit is not optimum
for receiving the
RF signal.
Place the main unit
far away from PCs,
phones, and other
electronic
equipment.
No Alarm Alarm does not
sound.
Alarm is disabled. Turn on the alarm
setting.
Operation Not
Normal
Certain functions
do not perform.
Device requires
reset.
Reset the unit with
a blunt stylus
pressed against
the RESET Hole.
displayed
on LCD screen.
JM889N_NU_English R2 8/17/04, 3:28 PM10

11
EN
SPECIFICATIONS
Dimensions:
Width x Height x Depth 234mm x 220mm x 23mm
Weight 426g (without batteries)
Radio frequency:
System DCF77 (JM889N) or
MSF60 (JM889NU)
Display:
Time format 24 Hour (JM889N) or
12-Hour AM/PM (JM889NU)
Date format DD-MM
Day-of-week display In English, French, German,
Spanish, and Italian
Clock accuracy +/-0.5 second per day
(when RF is disabled)
Alarm:
Alarm Duration 1 minute
Power:
Power supply 2 x AA 1.5V batteries
Operating environment:
Operation temperature -5.0°C to +50.0°C
Temperature resolution 0.1°C
Default temperature unit °C
WARNINGS
Toensure you use your productcorrectlyand safely, read these
Warnings and the entire user manual before using the product.
The warnings given here provide important safety information
and should be observed at all times.
WARNINGS
• Do not attempt to repair the product yourself. Contact
the retailer or our customer service department if it
requires servicing.
• Take precautions when handling all battery types. They
can cause injuries, burns, or property damage as a
result of contact with conducting materials, heat,
corrosivematerialsorexplosives.Remove the batteries
before storing the product for long periods of time.
• The product is a precision instrument. Never attempt to
take this device apart. There is a serious danger of
powerful electric shocks.
• Do not immerse the device in water.
• Do not, under any circumstances, touch the exposed
electronic circuitry of the device as there is a danger of
electric shock should it become exposed.
• Take special care when handling a damaged
LCD display, as the liquid crystals can be harmful to
your health.
• Do not use or store the device, including the remote
sensor,in locations that mayadverselyaffectthe product
such as rain, snow, desert, and magnetic fields.
JM889N_NU_English R2 8/17/04, 3:28 PM11

EN
12
• Do not use this device in aircrafts or hospitals. The use
of radio frequency products can cause malfunctions in
the control devices of other equipment.
• Do not subject the product to impact or shock.
• Check all major functions when the device is unused for
a long period of time. This is to ensure its full operation.
Maintain a regular internal testing and cleaning of your
device.
ABOUT OREGON SCIENTIFIC
Visit our website (www.oregonscientific.com) to learn more
about Oregon Scientific products such as digital cameras; MP3
players; children's electronic learning products and games;
projection clocks; health and fitness gear; weather stations;
and digital and conference phones. The website also includes
contact information for our customer care department in case
you need to reach us, as well as frequently asked questions and
customer downloads.
We hope you will find all the information you need on our
website, however if you'd like to contact the Oregon Scientific
Customer Care department directly, please visit:
www2.oregonscientific.com/service/support
OR
Call 949-608-2848 in the US.
For international enquiries, please visit
www2.oregonscientific.com/about/international/default.asp
JM889N_NU_English R2 8/17/04, 3:28 PM12

13
EN
EC-DECLARATION OF CONFORMITY
This product complies with the essential requirements of Article
3 of the R&TTE 1999 / 5 / EC Directive, if used as intended and
the following standards have been applied:
Safety of information technology equipment
(Article 3.1.a of the R&TTE Directive)
Applied Standard EN 60950-1 : 2001
Electromagnetic compatibility
(Article 3.1.b of the R&TTE Directive)
Applied Standards
ETSI EN 301 489-1-3 (Ver.1.4.1) : 2002-08
CH
N
Additional information:
The product herewith complies with the requirements of the
Low Voltage Directive 73 / 23 / EC, the EMC Directive 89 / 336
/ EC and carries the CE marking accordingly.
Carmelo Cubito
Agrate Brianza (MI) / Italy January 2004
Manufacturer's EU R&TTE Representative
COUNTRIES RTTE APPROVAL COMPLIED
All EC countries, Switzerland
and Norway
JM889N_NU_English R2 8/17/04, 3:28 PM13

1
ES
Reloj Radiocontrolado Jumbo de
Oregon ScientificTM con Termómetro
para el Interior
(JM889N / JM889NU)
Manual del usuario
ÍNDICE
Introducción ....................................................................... 2
Características principales ............................................... 2
Vista frontal ...................................................................... 2
Vista posterior .................................................................. 3
Símbolos de la pantalla ................................................... 3
Instrucciones de seguridad y mantenimiento ................. 4
Consejos Básicos de Seguridad ...................................... 4
Cómo cuidar su producto ................................................ 4
Inicio .................................................................................... 4
Cómo desembalar el reloj ................................................ 4
Pilas ................................................................................. 5
Ubicación de la Unidad .................................................... 5
Muestra de la temperatura interior .................................. 6
Cambio entre la pantalla de segundos/ días
de la semana ................................................................... 6
Recepción de la radio ........................................................ 6
Descripción de la recepción de Radio ............................. 6
Cómo habilitar / deshabilitar la recepción
de la radiocontrol ............................................................. 7
Para configurar manualmente el reloj .............................. 7
Opciones del idioma ........................................................ 8
La función de alarma ......................................................... 8
Funciones básicas ........................................................... 8
Exhibición del horario de la alarma ................................. 8
Cómo configurar las alarmas ........................................... 9
Cómo activar / desactivar las alarmas ............................. 9
Cómo volver a configurar la unidad ................................. 9
Resolución de problemas ............................................... 10
Especificaciones .............................................................. 11
Advertencias .................................................................... 11
Sobre Oregon Scientific .................................................. 12
EC-Declaracion de Conformidad .................................... 13

ES
2
INTRODUCCIÓN
Gracias por elegir el Reloj JUMBO con Termómetro Interior
radiocontrolado. Este producto ha sido diseñado para
proporcionarle muchos años de servicio, destacando las
siguientes características:
• Reloj calendario radiocontrolado*
• Pantalla con la temperatura interior
• Alarma diaria
*Sincroniza automáticamente la hora y la fecha actual
cuando se lo coloca dentro del alcance de la señal de radio
MSF60 que se transmite desde Rugby, Inglaterra (Modelo
JM889NU) o la señal de radio DCF77 que se transmite desde
Frankfurt,Alemania,paraEuropaCentral(Modelo JM889N).
Este manual, además informarle sobre el manejo y cuidado del
prodcuto, contiene información importante sobre seguridad y
mantenimiento.Lea detenidamente el manual yguárdeloen un
lugar seguro en caso de que necesite utilizarlo.
CARACTERÍSTICAS PRINCIPALES
1. Pantalla LCD principal
Muestra el horario actual y la indicación de recepción de la
radio
2. Pantalla con los segundos/ día de la semana
Puede elegir entre la pantalla de los segundos o del día de
la semana
3. Pantalla con la fecha actual/ horario de la alarma
Puede seleccionar entre la pantalla con la fecha actual o el
horario de alarma
4. Pantalla con la temperatura interior
Muestra la temperatura interior controlada regularmente
Vista frontal
1
2
3
4

3
ES
Símbolos de la pantalla LCD
Símbolo Descripción Explicación
Señal de
recepción de
radio
Indica la condición de la recepción de radio
Icono de pila
agotada
Aparece cuando la energía es baja
Icono de alarma Aparece cuando está activada la alarma
Indicador del
horario de la
alarma
Aparece cuando se exhibe el horario de la alarma.
5. Orificio para colgar de la pared
Para colgar la unidad de la pared.
6. Botón de alarma
Para mostrar y ajustar el horario de la alarma.
7. Botón del reloj
Para ajustar manualmente el horario y la fecha actual.
8. Orificio de Reset
Vuelve todas las configuraciones a los valores
predeterminados.
9. Botón
Utilizado para ajustar el volumen y las configuraciones una
posición hacia abajo o para activar/ desactivar la recepción
de radio FR
10. Botón
Utilizado para ajustar el volumen y las configuraciones una
posición hacia arriba o para activar/ desactivar la recepción
de radio RF.
11. Compartimiento para la batería
La unidad utiliza 2 pilas de 1,5V AA para la energía.
12. Soporte para la mesa
Se puede tirar del mismo para utilizarlo como soporte de la
unidad sobre una superficie plana
5
6
7
8
9
10
11
12
Vista posterior

ES
4
INSTRUCCIONES DE SEGURIDAD
Y MANTENIMIENTO
Precauciones de seguridad
Tenga en cuenta las siguientes precauciones de seguridad
cuando utilice este producto.
• Panel LCD - El panel LCD puede romperse si la unidad se
cae o si se golpea.
• Fuentes de calor - Mantenga este producto alejado de
fuentes de calor, como radiadores, estufas, calefactores y
otros productos que generen calor.
• Agua y humedad - No utilice este producto cerca de zonas
de agua o humedad, como el cuarto de baño.
Cómo cuidar este producto
Para asegurarse de recibir máximos beneficios al utilizar este
producto, por favor tenga en cuenta los siguientes consejos.
• Limpieza - Utilice un trapo húmedo. No utilice líquidos de
limpieza, benceno, tiner o aerosoles.
• Ventilación - Las aberturas y demás orificios están
diseñados para la ventilación, por consiguiente no deben
ser bloqueados ni cubiertos. Si lo hace, el producto puede
sobrecalentarse, dañando así la unidad.
• Reparación - No intente reparar el producto o modificar
usted mismo el sistema de circuitos. Póngase en contacto
con la tienda donde adquirió el producto si éste, tiene que
ser reparado. Utilice solamente los repuestos
recomendados por el fabricante.
• No raye la pantalla de cristal líquido con objetos duros ya
que ésto puede dañarla.
INICIO
Cómo desembalar el reloj
Cuando desembale su reloj, asegúrese de guardar la caja en
un lugar seguro, ya que lo puede necesitar en caso de avería.
En la caja encontrará:
Unidad del reloj 2 pilas UM-3 / AA Manual de usuario

5
ES
Pilas
Con el producto se entregan 2 pilas UM-3/ AA de 1.5 V.
Ya están instaladas así que asegúrese de que se ha retirado
lalengüeta de plástico transparentedentrodel compartimiento
de la pila antes de hacer funcionar el producto.
Para colocar las pilas:
Diagrama Instrucciones
1. Ubique el compartimiento para las pilas
2. Inserte las pilas según las polaridades que
se muestran. Utilice siempre el tipo
adecuado de pilas (2 pilas UM-3 AA
de 1,5V).
Advertencia: Si revierte la polaridad, se
puede estropear el producto.
Reemplace las pilas cuando aparezca el ícono de pila
baja ( ), cuando la pantalla de cristal líquido esté tenue o
cuando la pantalla no se ilumine al encenderla. Reemplace
todas las pilas al mismo tiempo - no es aconsejable mezclar
pilas usadas con las nuevas.
Comuníquese con el organismo local de eliminación de
desperdicios si necesita instrucciones sobre como desechar
las pilas usadas, ya que éstas pueden ser perjudiciales para el
medioambienteynodeberíansertiradasen labasuradoméstica.
Ubicación de la unidad
Puede colgar la unidad de la pared o pararla con un soporte
sobre una superficie plana.
Método Instrucciones Diagrama
Soporte
para la
mesa
Launidad ya estáequipadaconun soporte
parala mesa. Simplementetiredelsoporte
y coloque la unidad sobre una superficie
plana.
Soporte
para
colgar de
la pared
La unidad principal puede colgarse de la
pared utilizando un tornillo N˚ 6 (3,0mm).
a) Ubique y asegure el tornillo en el lugar
dondepuedacolgar su unidad principal.
b) Deje bastante espacio entre la pared y
la cabeza del tornillo mientras controla
que el tornillo esté seguro.
c) Coloque el reloj, acoplando el hueco
destinado para el tornillo con el tornillo
mismo.
NOTA
NOTA

ES
6
Pantalla con la temperatura interior
Justo después de sacar el separador de plástico, la unidad lee
ymuestrainmediatamentelatemperaturainterior del ambiente.
Cambioentre la pantalla conlossegundos/díade la semana
Para cambiar entre la pantalla con los segundos o el día de la
semana en la pantalla LCD, presione el CLOCK (RELOJ).
LA RECEPCIÓN DE RADIO
Este producto fue diseñado para sincronizar automáticamente
su reloj cuando se encuentra dentro del alcance de la señal de
radio. Cuando la unidad está recibiendo la señal, el icono de
Recepción de Radio comienza a parpadear. Generalmente, la
recepción completa tarda alrededor de 2 a 10 minutos,
dependiendo de la fuerza de la señal.
Descripción de la recepción de radio
La recepción de radio Descripción
La recepción puede ser afectada por distitnos factores.
Para tener una mejor recepción, coloque el reloj alejado de
objetos metálicos y de electrodomésticos. Otras causas de
interferencia de señal incluyen a las torres eléctricas de
transmisión, construcciones reforzadas de acero y
revestimientos exteriores metálicos. La recepción ideal se
logra cuando se coloca el producto cerca de una ventana.
Aunque existen áreas en las que puede haber más dificultad
para recibir la señal, el reloj atómico contiene el movimiento de
cuarzo exacto y mantendrá la sincronización precisa aun
cuando se haya perdido la señal.
Recepción fuerte de señal de radio reloj.
Recepción débil de señal de radio reloj.
No hay recepción de señal de radio reloj.
Recibiendo la señal de radio.
La recepción de radio no está habilitada.
NOTA
