Oregon Scientific RRA320PNX User manual

RRA320PNX
User Manual
FM Radio Projection Alarm Clock
with Outdoor Temperature Display

1
CONTENTS
EN....................................................................................................................................................................................................................... 2
IT ........................................................................................................................................................................................................................ 10
FR....................................................................................................................................................................................................................... 18
DE....................................................................................................................................................................................................................... 25
ES....................................................................................................................................................................................................................... 33
POR.................................................................................................................................................................................................................... 40
NL....................................................................................................................................................................................................................... 48
SWE ................................................................................................................................................................................................................... 56

2
EN

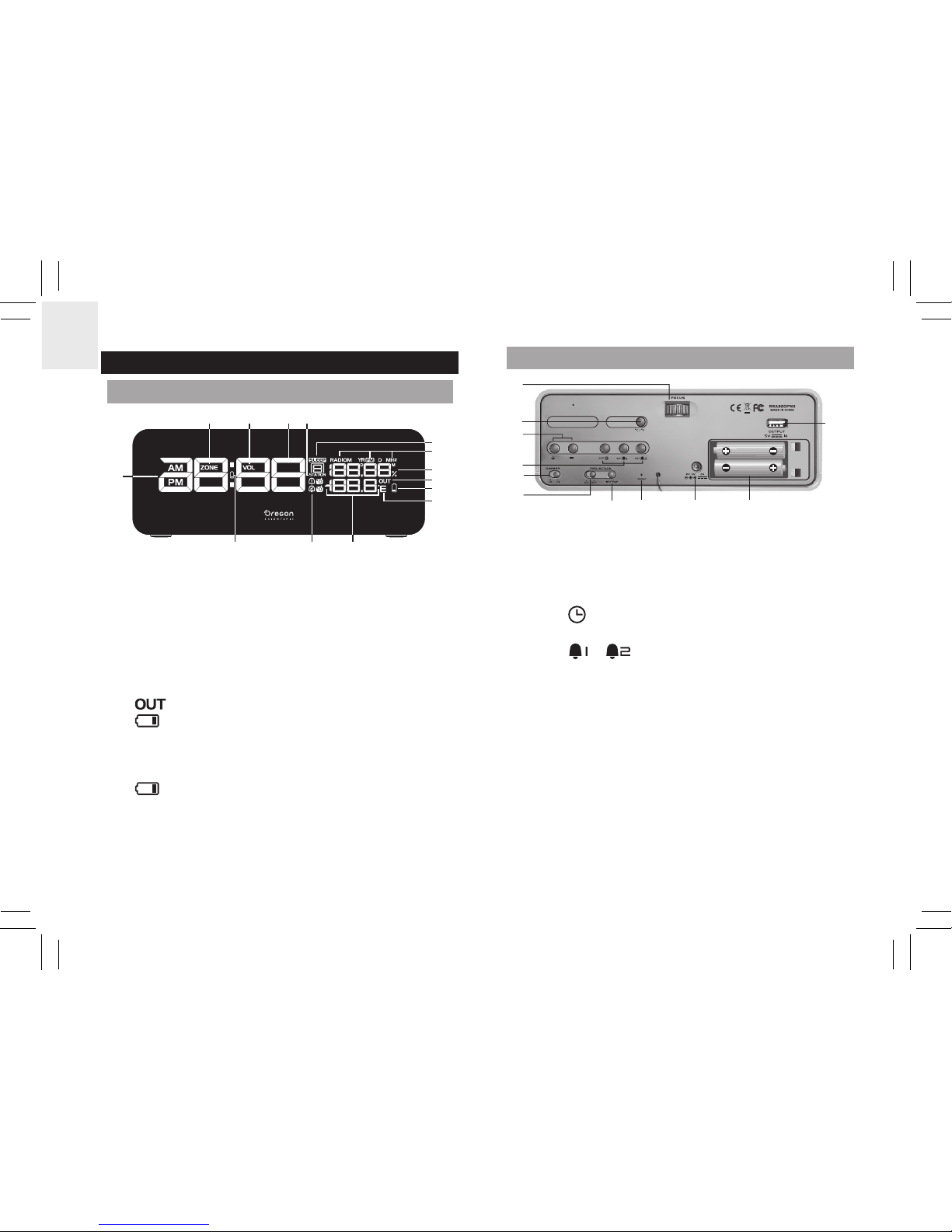

OVERVIEW
FRONT VIEW (FIG. 1)
1
234
10
11
12
7
8
9
6
13
14
5
1. AM / PM: Indicates AM / PM (12 hour mode)
2. Time zone offset
3. Indicates radio volume
4. Clock / Volume
5. Radio station (logged)
6. Sleep mode is ON
7. Indicates Radio mode is ON and frequency is displayed
8. Calendar / Radio frequency / Humidity
9. Sensor reception indicator
10. Sensor batteries low
11. User selectable temperature units
12. Temperature
13. Beep / Radio Alarm 1/ 2
14. Main unit batteries low / no battery
BACK VIEW (FIG. 2)
Ɯ
4
3
2
5
6
78 910
11
1. FOCUS Wheel : Adjust projection focus
2. OC/OF : Select the temperature unit
3. + / - :Increase / decrease values of the selected
setting
4. SET : Set the clock time; Toggle between date/
humidity display
SET / :Set the alarm; View respective
alarm status
5. DIMMER : Select display brightness LO / HI
6. PROJECTION ON/OFF : Enable / disable
continuous projection
7. 180° FLIP : Flip projected image 180o
8. RESET : Reset unit to default settings
9. AC / DC socket
10. Battery compartment
11. USB output port

3
EN
BOTTOM VIEW (FIG. 4)
Ɯ
1. SNOOZE / SLEEP buttons
REMOTE SENSOR (FIG. 5)
1
2
3
4
5
FRONT VIEW BACK VIEW
1. LED status indicator: blinks when transmitting a reading
2. Wall mount hole
3. Battery compartment
4. RESET: Reset unit to default settings
5. Channel Switch
TOP VIEW (FIG. 3)
1. ALARM 1 ON / OFF : Activate / deactivate
Alarm 1 function
2. VOL / : Adjust radio volume
3. ALARM 2 ON / OFF : Activate / deactivate
Alarm 2 function
4. STATION: Change radio station
5. TUNE / :Auto search / adjust radio frequency
6. RADIO ON / OFF: Turn Radio On / Off
7. SNOOZE / SLEEP: Alarm snooze or enable radio
sleep; Press and hold to turn off the backlight;
Activate the projection and backlight for 5 seconds.

4
EN
GETTING STARTED

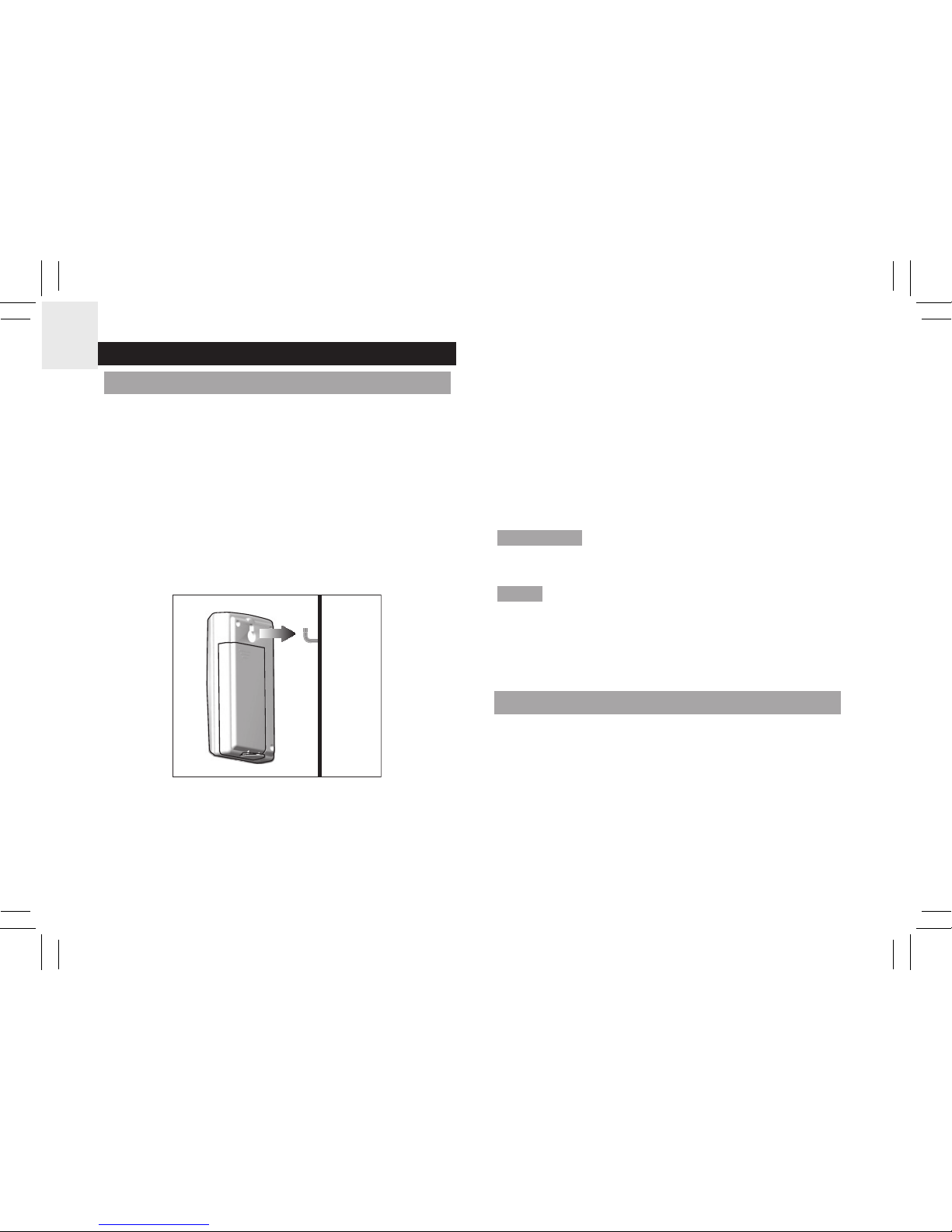

REMOTE SENSOR INSTALLATION
1. Slide open the battery door.
2. Slide channel switch to select a channel (1, 2, 3).
Ensure you use a different channel for each sensor.
3. Insert the battery, matching the polarities (+ / -) See
FIG.5.
4. Press RESET after each battery change.
5 . Close the battery door.
6. Secure the sensor in the desired location using the
wall mount hole or table stand.
For best results:
• Place the sensor within 30 m (100 ft) of the main unit.
• Place the sensor out of direct sunlight and moisture.
• Position the sensor so that it faces the main unit,
minimizing obstructions such as doors, walls and
furniture.
• Place the sensor in a location with a clear view to the
sky, away from metallic / electronic objects.
• Position the sensor close to the main unit during cold
winter months as below-freezing temperatures may
affect battery performance and signal transmission.
TIP The transmission range may vary depending on
many factors. You may need to experiment with various
locations to get the best results.
NOTE
• Use alkaline batteries for longer usage and
consumer grade lithium batteries in temperatures
below freezing.
• Install battery in the remote sensor before connecting
power to the main unit.
MAIN UNIT INSTALLATION
Memory backup:
1. Remove the battery compartment cover.
2. Insert the batteries, matching the polarities (FIG. 2).
3. Press RESET after each battery change.
AC power:
Plug AC/DC adaptor into power socket. Make sure the
adapter is not obstructed and is easily accessible to the
unit.

5
EN
NOTE
• When the main unit is connected to power, it will
search and start receiving temperature / humidity
data from the sensor automatically.
• To completely disconnect from power, the adapter
should be disconnected from the main unit.
• The main unit and adapter should not be exposed to
wet conditions. No objects lled with liquid, such as
vases, should be placed on the main unit and adapter.
• Batteries serve as a back-up power supply. To fully
utilize all features, install adapter.
SET CLOCK
1. Press and hold .
2. Press +or -to change the settings.
3. Press to conrm and move to the next
setting. The setting options are as follows: time-
zone offset, 12/24 hr format, hour, minute, year,
month-day / day-month, day and month.
NOTE You need manually adjust to Daylight Saving
Time (DST) or back to standard time.
ALARM
To set the alarm:
1. Press SET or SET to display desired set
alarm time.
2. Press and hold SET or SET to enter
respective setting.
3. Press + / - to change the settings
4. Press or to conrm and move to the next
setting. The setting options are as follows: hour,
minute, beep alarm / radio alarm .
To adjust station and volume:
• If radio alarm is selected, press + / - to select the
radio station and + / - to adjust the volume.
To silence the alarm:
• Press SNOOZE / SLEEP to silence it for 8 minutes
OR
• Press SET / SET , / ,to turn the
alarm off and activate it again after 24 hours.
RADIO
To activate / deactivate radio:
• Press RADIO ON / OFF to turn radio ON / OFF.
To set radio station:
1. For rst time using, press RADIO ON/OFF to turn on
the radio, the main unit will search the frequency and
save to the preset station (1-8) automatically.
2. To manually set the station, select a preset station,
then press and hold TUNE / TUNE to auto
search or press TUNE / TUNE to manually
select frequency. The desired frequency will save to
the corresponding station.
To adjust volume:
• Press VOL / VOL when in Radio Mode.

6
EN
To adjust sleep timer setting:
• Press SNOOZE / SLEEP to activate.
• Press SNOOZE / SLEEP again to change the sleep
time setting (120, 90, 60, 30, 15, OFF).
PROJECTION
This unit projects time and outdoor temperature
information for your convenience.
For continuous projection:
• Slide PROJECTION switch to ON when adaptor is
connected, to enable / disable.
To ip projected image by 180°:
• Press 180° FLIP.
To focus image :
• Turn FOCUS wheel.
NOTE If projection is illuminated, do not look directly
into the projector.
BACKLIGHT
• Slide the DIMMER switch to HI or LO to adjust
backlight level.
• Press and hold SNOOZE/SLEEP for 5 seconds to
turn off the backlight.
• Press SNOOZE/SLEEP to activate the backlight
and projection functions for 5 seconds, when the
backlight is off or set to LO.
RESET
Press RESET to return to the default settings.
SPECIFICATIONS
TYPE DESCRIPTION
MAIN UNIT
L x W x H 183 x 67 x 81 mm
(72 x 26.4 x 31.9 in)
Weight 386 g (13.6 oz) without battery
FM 87.5 to 108 MHz
Power
5 V 2 A AC adaptor
2 x UM-4 (AAA)
1.5 V batteries (for backup)
REMOTE THERMO SENSOR (THGN132N)
L x W x H 50 x 22 x 96 mm
(1.97 x 0.87 x 3.78 in)
Weight 62 g (2.22 oz) without battery
Temperature range -20 °C to 60°C(-4 °F to 140 °F)
Resolution 0.1°C (0.2 °F)
Humidity range 25% - 95%
Humidity resolution 1%
Signal frequency 433 MHz
Transmission range 30 m (98 ft) unobstructed
No. of channels 3
Power 1 x UM-3 (AA) 1.5 V battery

7
EN
PRECAUTIONS
• Use only fresh batteries of the required size and
type. Do not mix old and new batteries, different
types of batteries.
• Do not dispose old batteries as unsorted municipal
waste. Collection of such waste separately for
special treatment is necessary.
• If you do not plan to use the product for a long time,
remove the batteries. Batteries can leak chemicals
that can damage electronic parts.
• Do not subject the device to excessive force, shock,
dust, temperature or humidity.
• Do not cover the ventilation holes with any items
such as newspapers, curtains etc.
• Do not immerse the device in water. If you spill liquid
over it, dry it immediately with a soft, lint-free cloth.
• Do not clean the device with abrasive or corrosive
materials.
• Do not tamper with the device’s internal components.
Doing so invalidates the warranty.
• Images shown in this manual may differ from the
actual display.
• When disposing of this product, ensure it is collected
separately for special treatment.
• The contents of this manual may not be reproduced
without the permission of the manufacturer.
NOTE The technical specications for this product and
the contents of the user manual are subject to change
without notice.
NOTE Features and accessories will not be available
in all countries. For more information, please contact
your local retailer. To download an electronic version of
the user manual, please visit
http://global.oregonscientic.com/customerSupport.php.
ABOUT OREGON SCIENTIFIC
Visit our website www.oregonscientic.com to learn
more about Oregon Scientic products.
For any inquiry, please contact our Customer Services
at info@oregonscientic.com.
Oregon Scientic Global Distribution Limited reserves
the right to interpret and construe any contents, terms
and provisions in this user manual and to amend it, at
its sole discretion, at any time without prior notice. To
the extent that there is any inconsistency between the
English version and any other language versions, the
English version shall prevail.

8
EN
EU-DECLARTION OF CONFORMITY
Hereby the manufacturer, Oregon Scientic Global Distribution
Limited, declares that the radio equipment type FM Radio
Projection Alarm Clock with Outdoor Temperature Display
(Model: RRA320PNX) is in compliance with 2014/53/EU
Directive. The full text of the EU Declaration of Conformity is
available at the following internet address:
http://global.oregonscientic.com/customerSupport.php.
All EU countries, Switzerland CH
and Norway N
Countries RED Approval Complied
FCC STATEMENT
This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions: (1)
This device may not cause harmful interference, and
(2) This device must accept any interference received,
including interference that may cause undesired
operation.
WARNING: Changes or modications to this unit
not expressly approved by the party responsible for
compliance could void the user’s authority to operate
the equipment.
NOTE: This equipment has been tested and found
to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits
are designed to provide reasonable protection against
harmful interference in a residential installation.
This equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful
interference to radio communications. However, there
is no guarantee that interference will not occur in a
particular installation. If this equipment does cause
harmful interference to radio or television reception,
which can be determined by turning the equipment
off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment
and receiver.
• Connect the equipment into an outlet on a circuit
different from that to which the receiver is connected.
• Consult the dealer or an experienced radio / TV
technician for help.
