Oregon Scientific RGR126N User manual

EN
1
Remote Rain Gauge
with Outdoor Thermometer
Model: RGR126N
USER MANUAL
RGR126N_US_COVER_R2.indd 1 2014/8/6 3:18:48 PM
P/N: 300103670-00004-10 REV1.0
1/38

EN
1
Remote Rain Gauge
with Outdoor Thermometer
Model: RGR126N
USER MANUAL
CONTENTS
Packaging contents ................................................. 2
Introduction .............................................................. 2
Overview ................................................................... 2
Front View............................................................ 2
Rear View ............................................................ 3
LCD display ......................................................... 3
Remote sensor (THN802) ................................... 4
Rain gague (PCR800) ......................................... 5
Getting started ......................................................... 5
Main unit - batteries installation .......................... 5
Remote sensor - Insert batteries ........................ 6
Remote sensor ........................................................ 6
Sensor data transmission ................................... 6
Rain gauge ............................................................... 7
Signals ................................................................. 8
Clock ........................................................................ 8
Manually set clock ............................................... 8
Rainfall ..................................................................... 8
Rainfall history .................................................... 8
Total rainfall ..........................................................9
Rainfall alert ..........................................................9
Temperature ............................................................. 9
Reset ....................................................................... 9
Precautions ............................................................ 10
Specifications ........................................................ 10
About Oregon Scientific .........................................11
EU - Declaration of Conformity ............................. 11
FCC Statement .........................................................11
Declaration of Conformity ......................................12
RGR126N_UM_EN_R12.indd 1 2014/11/4 2:16:54 PM
P/N: 300103670-00004-10 REV1.0
2/38

EN
2
PACKAGING CONTENTS
Main Unit Rain Gauge
Thermo Sensor Thermo Sensor Table Stand
INTRODUCTION
Thanks for purchasing the Oregon ScientificTM Remote
Rain Gauge with Outdoor Thermometer (RGR126N).
NOTE
Please keep this manual handy as you use
your new product. It contains practical step-by-step
instructions, as well as technical specifications and
warnings you should know about.
OVERVIEW
FRONT VIEW
1. Four-line LCD display: for displaying the total
rainfall, current rainfall or rainfall history, indoor/
outdoor temperature and clock/calendar.
2. UP: increase setting values; press and hold for
rapid increase;
3. HIST: toggle between rainfall history and daily rainfall
4. SINCE: press to review the date when the
measurement started. Press and hold to clear the
previous rainfall start time and reset the rainfall
counter to start again.
1
2
3
4
5
6
7
8
RGR126N_UM_EN_R12.indd 2 2014/11/4 2:16:59 PM
P/N: 300103670-00004-10 REV1.0
3/38

EN
3
5. DOWN: decrease setting values: press and hold
for rapid decrease
6. SEARCH: press and hold to enforce a search for
the rain gauge and remote thermo sensor
7. MODE: change setting/clock display
8. Removable table stand: for securing the main unit
on a at surface

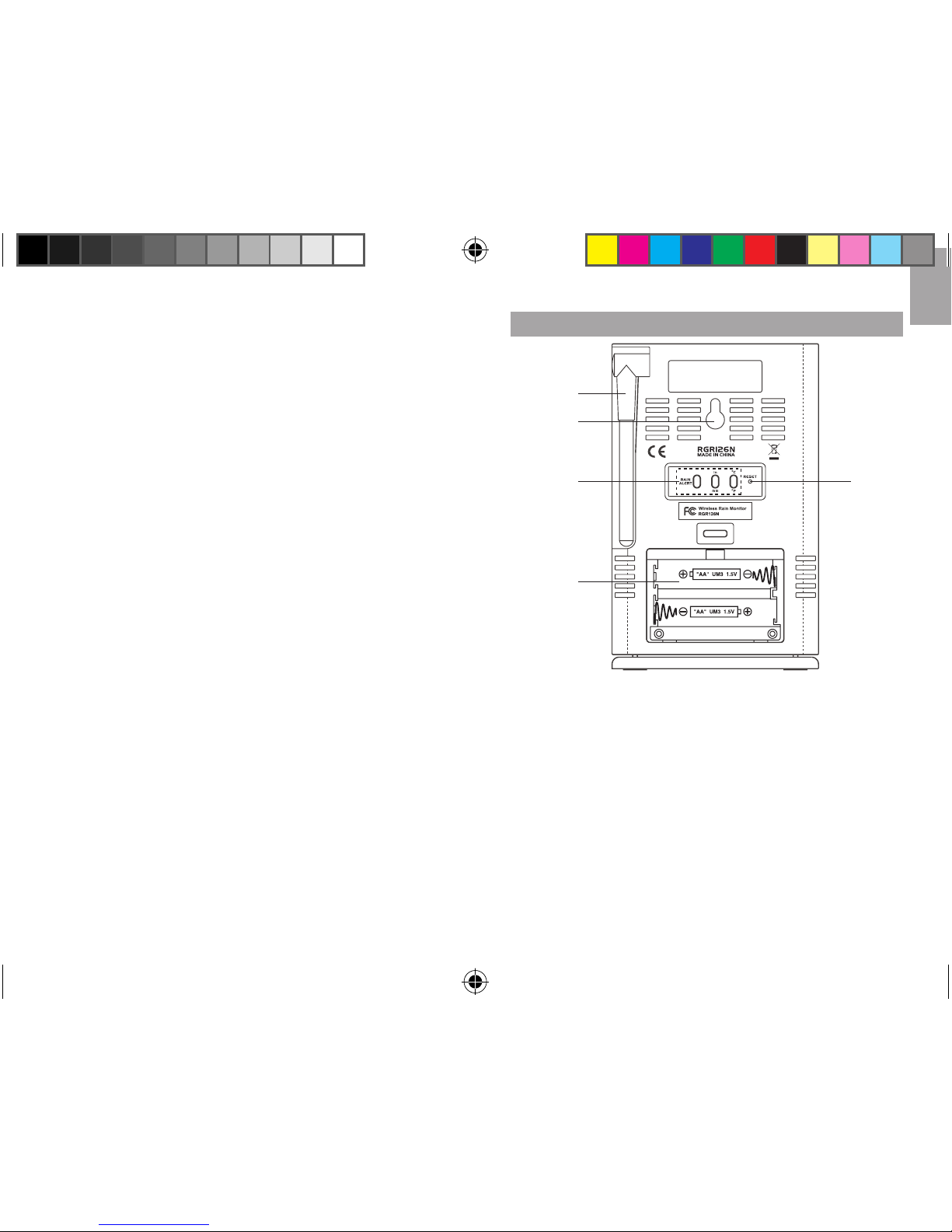

REAR VIEW
1. Antenna: receives radio signal from rain gauge
and remote thermo sensor
2. Wall mount hole
3. RAIN ALERT: an alert for excessive rain
In/mm: inch/millimeter (rain rate unit)
˚C/˚F: temperature unit
4. Battery compartment
5. RESET: reset the unit to default settings

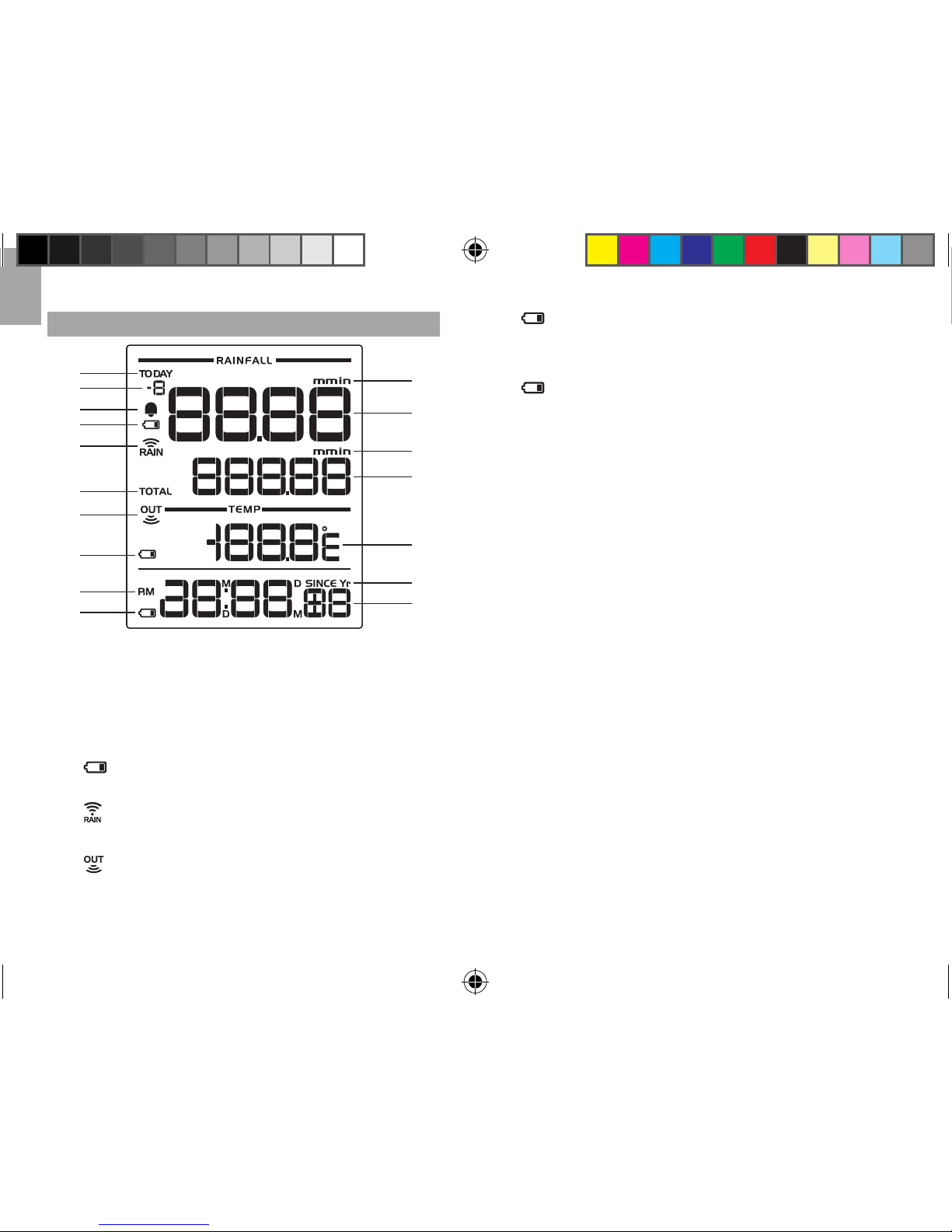

LCD DISPLAY
1. TODAY: today’s rainfall indicator
2. Indicates on which previous day (1-9) is the displayed
data recorded
1
2
3 5
4
111
12
13
14
15
16
17
2
3
4
5
6
7
8
9
10
RGR126N_UM_EN_R12.indd 3 2014/11/4 2:17:00 PM
P/N: 300103670-00004-10 REV1.0
4/38

EN
4
3. Rainfall alert indicator
4. : remote rain gauge sensor battery low
5. : rain gauge RF reception status
6. TOTAL: rainfall indicator
7. : outdoor thermo RF reception status
8. : outdoor remote sensor battery low
9. AM/PM
10. : main unit battery low
11. mm/in: millimeter/inch (rain rate unit)
12. Today’s rainfall
13. mm/in: millimeter/inch (rain rate unit)
14. Total rainfall
15. Outdoor temperature
16. SINCE: start date of the accumulated rainfall Yr: year
17. Time display; M:D(month: day); D:M(day: month);
calendar

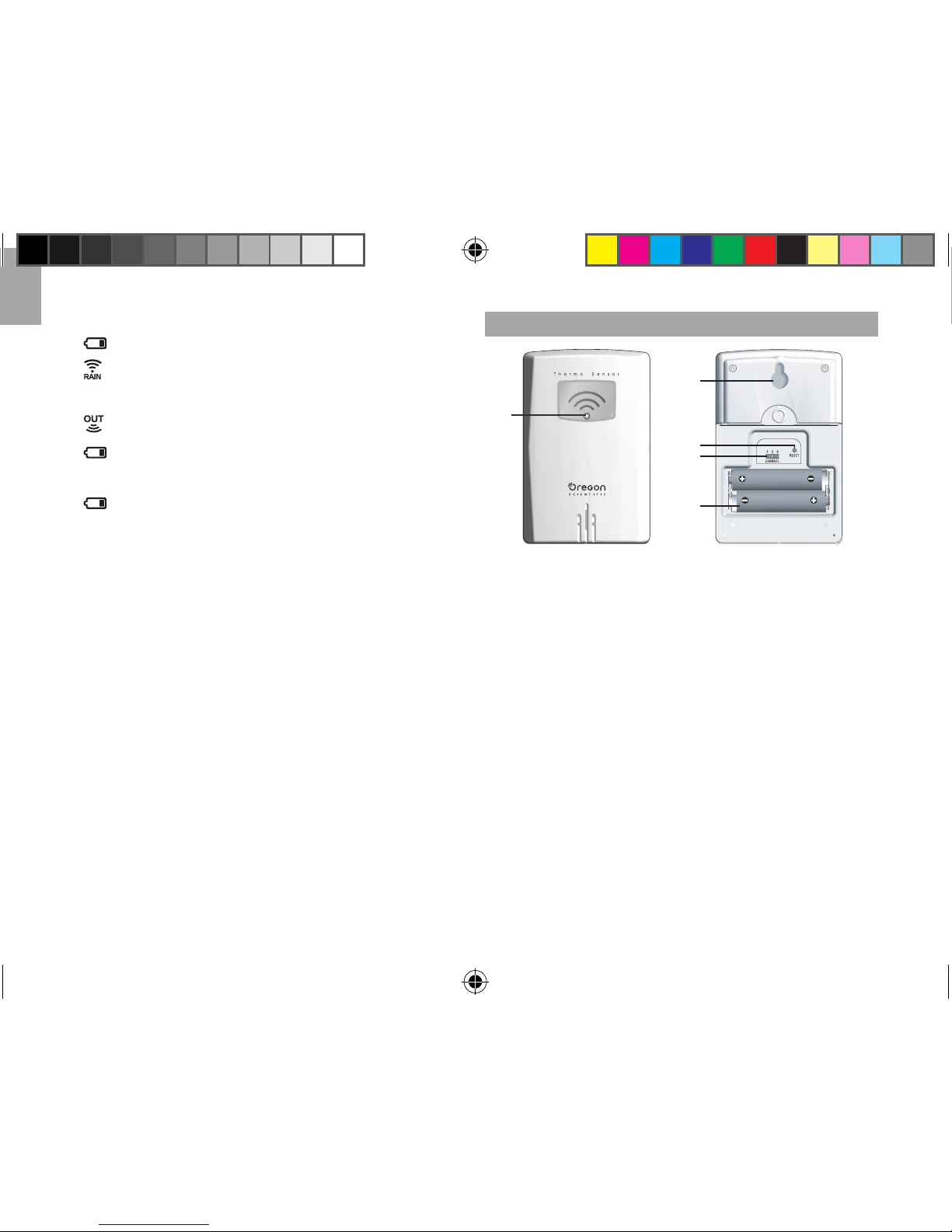

REMOTE SENSOR (THN802)
1. LED status indicator
2. Wall mount hole
3. RESET hole
4. CHANNEL switch (1,2,3)
5. Battery compartment
1
2
3
4
5
RGR126N_UM_EN_R12.indd 4 2014/11/4 2:17:03 PM
P/N: 300103670-00004-10 REV1.0
5/38

EN
5

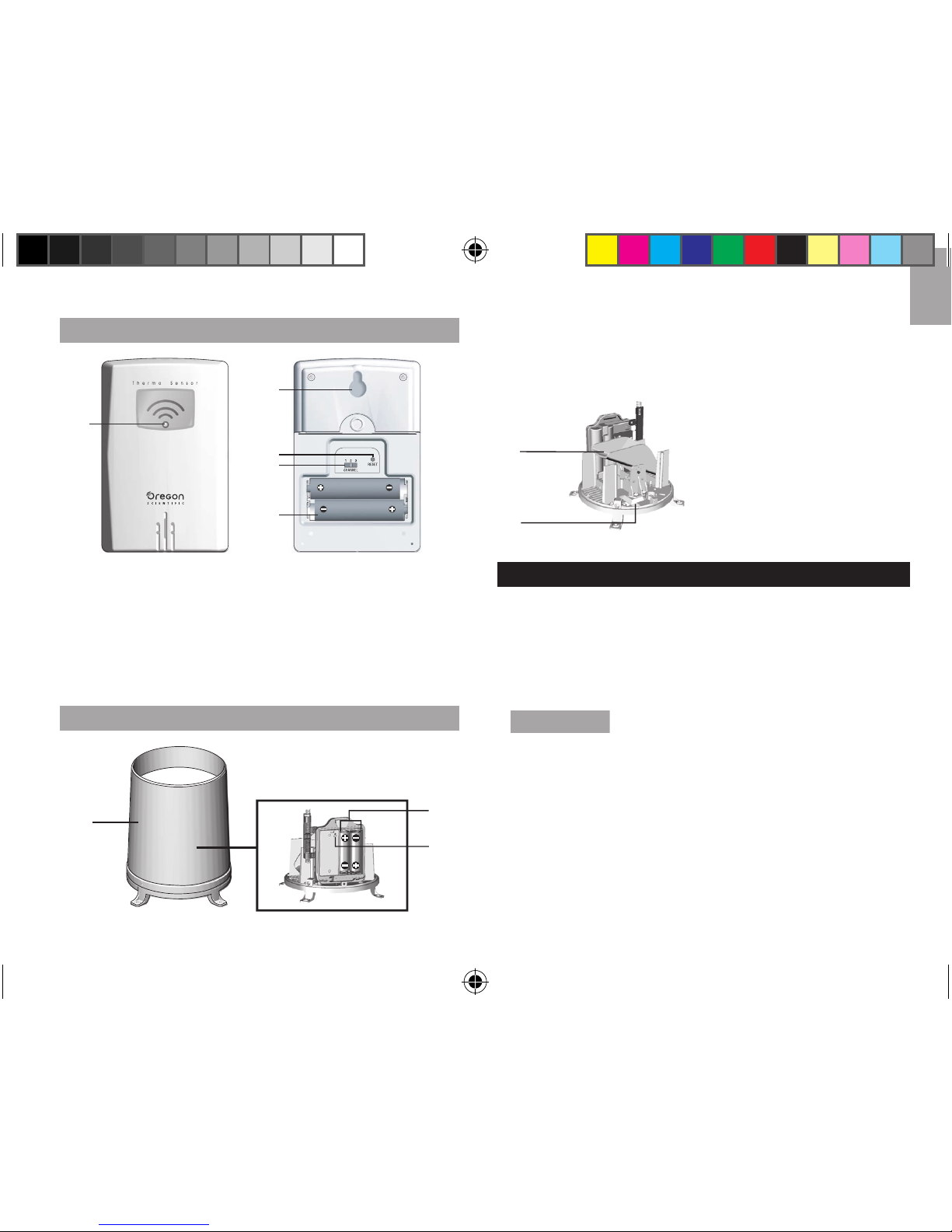

RAIN GAGUE (PCR800)
1. Rain gauge
2. Battery compartment
3. RESET button
1. Funnel
2. Indicator
GETTING STARTED
Position the main unit, rain gauge, and thermo sensor
within effective range:
• Rain gauge – 100 meters/329 feet
• Thermo sensor – 100 meters/329 feet
IMPORTANT
It is recommended that you follow the
sequence below while setting up the units:
1. Set up the main unit.
2. Set up the rain gauge, then press and hold SEARCH
on the main unit and wait until you receive a signal.
3. Set up the thermo sensor, then press and hold
SEARCH on the main unit and wait until you receive
a signal.
4. In the event that you do not obtain a signal from a
remote unit please repeat the process above.
MAIN UNIT - BATTERIES INSTALLATION
12
3
1
2
1
23
RGR126N_UM_EN_R12.indd 5 2014/11/4 2:17:07 PM
P/N: 300103670-00004-10 REV1.0
6/38

EN
6
1. Insert the batteries, matching the polarity (+/-) as
shown in the battery compartment.
2. Press RESET, or press and hold SEARCH on the
main unit to initiate operation. The reception icons
( and ) on the main unit will blink while it is
searching for the sensor or rain gauge.
NOTE
The main unit returns to default settings in each
battery replacement.
REMOTE SENSOR - INSERT BATTERIES
1. Remove the battery compartment cover by screw driver.
2. Insert the batteries, matching the polarities (+/-).
3. Press RESET after each battery change.
LOCATION MEANING
Rainfall area Rain collector sensor
batteries low
Outdoor temperature area Outdoor sensor batteries low
Clock area Main unit batteries low
NOTE
Use alkaline batteries for longer usage and consumer
grade lithium batteries in temperatures below freezing.
REMOTE SENSOR
The main unit can collect data from up to two (2) sensors,
including one rain gauge and one outdoor thermo sensor.
To set up the sensor:
1. Open the battery compartment.
2. Select a channel then press RESET.
3. Close the battery compartment cover.
4. Place the sensor within 100 m (329 ft) of the main
unit using the table stand or wall mount.
TIP
For accurate readings, ideal
placements for the sensor would
be in any location on the exterior
of the home at a height of no
more than 1.5 m (5 ft); and can
shielded it from direct sunlight or
wet conditions.
SENSOR DATA TRANSMISSION
To search for a sensor:
• Press and hold SEARCH.
• The sensor reception icon in the remote sensor
area shows the status (see below).
150cm(5ft)
RGR126N_UM_EN_R12.indd 6 2014/11/4 2:17:09 PM
P/N: 300103670-00004-10 REV1.0
7/38

EN
7
ICON DESCRIPTION
Main unit is searching for
sensor(s).
A channel has been found.
The sensor cannot be found.
TIP
The transmission range may vary depending on
many factors. You may need to place the sensor(s) in
different locations to get the best result.
RAIN GAUGE
The rain gauge collects rain and takes readings of rainfall
rate and the total rainfall over a period of time. The sensor
can remotely transmit data to the main unit.
The main unit and rain gauge should be positioned
within an effective range: about 100 m (329 ft) in an
open area.
The rain gauge should be mounted horizontally about
one meter (three feet) from the ground in an open area
away from tress or other obstructions to allow rain to fall
naturally for an accurate reading.
To set up a rain gauge:
1. Remove screws and slide the cover off in an
upwards motion,
2. Insert the batteries (2 x UM-3/AA), matching
the polarities (+/-). Press RESET after each
battery change.
3. Remove the ber tape.
To ensure a level plane:
Put a few drops of water on the cross at the base of the
funnel to check the horizontal level.
Water will pool to the center of the cross when the rain
gauge is level.
If water remains on 1-4, the gauge is not horizontal.
If necessary, adjust the level using the screw.
1
23
4
3
2
1
RGR126N_UM_EN_R12.indd 7 2014/11/4 2:17:13 PM
P/N: 300103670-00004-10 REV1.0
8/38

EN
8
NOTE
For best results, ensure the base is horizontal to
allow maximum drainage of any collected rain.
SIGNALS
To search for the rain collector:
• Press and hold SEARCH.
The remote rain collector reception indicator in the rainfall
area shows the status:
ICON DESCRIPTION
No signal.
Searching for
signal.
Signal connected.
TIP
The transmission range may vary depending on
many factors. You may need to place the sensor(s) in
different locations to get the best result.
CLOCK
MANUALLY SET CLOCK
1. Press and hold MODE.
2. Press UP or DOWN to change the settings.
3. Press MODE to conrm.
4. The settings order is: 12/24 hr format, hour, minute,
year, calendar mode (day-month/month-day),
month, day and language.
NOTE
The language options are English (E),
German (D), French (F), Italian (I), and Spanish (S).
To select display mode:
• Press MODE to choose between clock with
seconds/weekday/calendar.
RAINFALL
Today’s rainfall appears on the first line of the display.
Press in/mm to toggle between inches and millimeters.
RAINFALL HISTORY
The rainfall history is displayed on the first row of the
display. The main unit can record and store up to nine
days of rainfall.
(flash)
RGR126N_UM_EN_R12.indd 8 2014/11/4 2:17:20 PM
P/N: 300103670-00004-10 REV1.0
9/38

EN
9

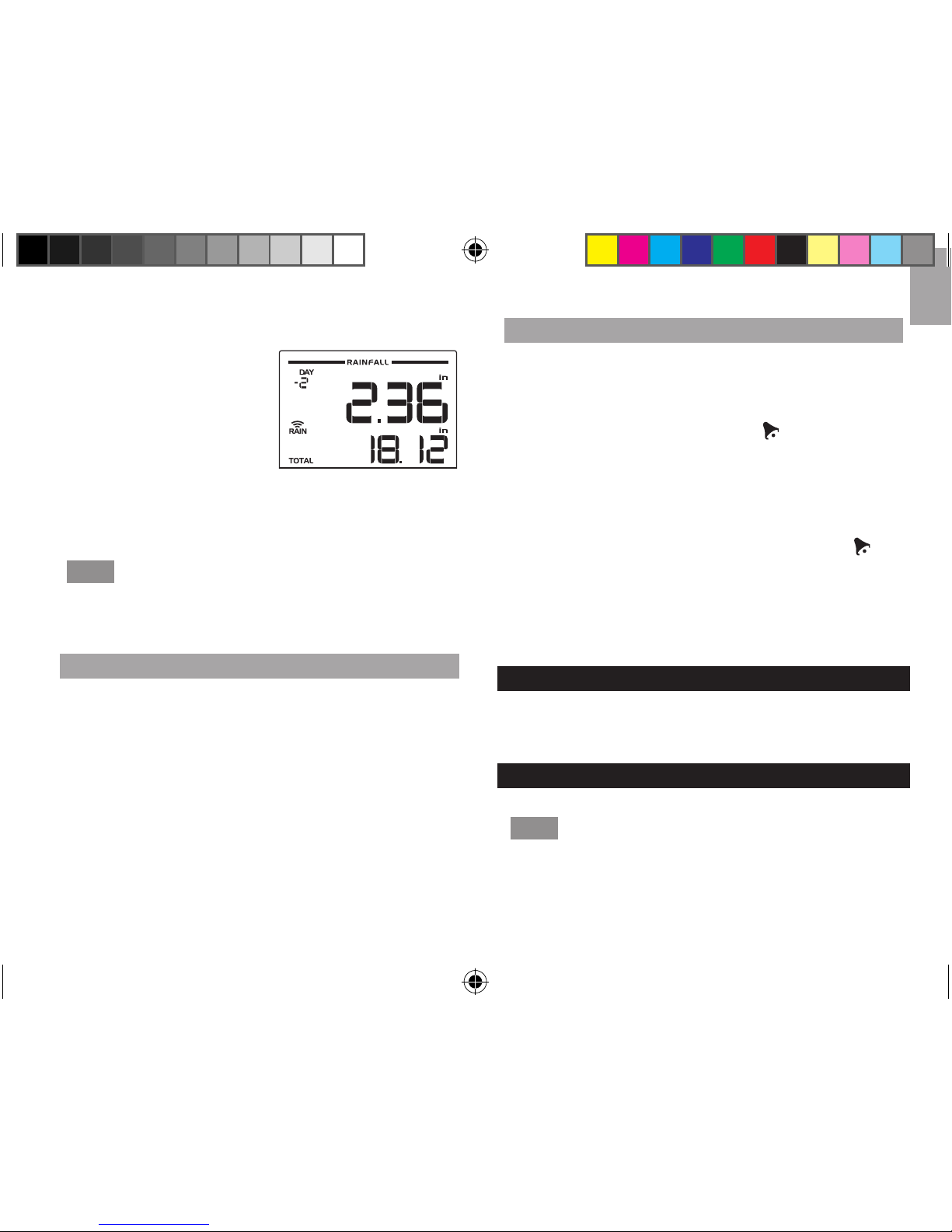

To display the record for a particular day:
• Press HIST to toggle
between daily rainfall
and rainfall history over
the past nine days. The
day of the record will be
displayed with a minus
(-) sign at the top left
hand corner. TODAY
means the record is for
the current day.
NOTE
Other sensors using the 433 MHz transmission
frequency may influence the rainfall reading. Please avoid
placing those sensors too close to the unit.
TOTAL RAINFALL
The total rainfall is displayed on the second line of
the display.
To display the commencing date of the total
rainfall record:
• Press SINCE. The date when the measurement started
will appear on the bottom line of the display.
To clear the existing commencing date and reset it
to start again:
• Press and hold SINCE. The total rainfall will be
reset to zero and then collect the rainfall data
starting from today.
RAINFALL ALERT
To set the rainfall alert value:
1. Press and hold RAIN ALERT to enter setting mode.
2. Press UP or DOWN to toggle values.
3. Press RAIN ALERT to conrm. indicates rainfall
alert function is enabled.
To deactivate rainfall alert:
• The rainfall alert will be activated when the rainfall is
equal to or more than the rainfall alert value; will
ash continuously.
• To deactivate the rainfall alert, press RAIN ALERT
twice and wait for 8 seconds, or increase the rainfall
alert value.
TEMPERATURE
To toggle temperature unit:
• Press between ˚C / ˚F.
RESET
Press RESET to return to the default settings.
NOTE
The main unit returns to default settings in each
battery replacement.
RGR126N_UM_EN_R12.indd 9 2014/11/4 2:17:22 PM
P/N: 300103670-00004-10 REV1.0
10/38

EN
10
PRECAUTIONS
• Do not subject the unit to excessive force, shock,
dust, temperature or humidity.
• Do not cover the ventilation holes with any items
such as newspapers, curtains, etc.
• Do not immerse the unit in water. If you spill liquid
over it, dry it immediately with a soft, lint-free cloth.
• Do not clean the unit with abrasive or
corrosive materials.
• Do not tamper with the unit’s internal components.
This invalidates the warranty.
• Only use fresh batteries. Do not mix new and
old batteries.
• Images shown in this manual may differ from the
actual display.
• When disposing of this product, ensure it is
collected separately for special treatment and not
as household waste.
• Placement of this product on certain types of wood
may result in damage to its nish for which Oregon
Scientic will not be responsible. Consult the furniture
manufacturer's care instructions for information.
• The contents of this manual may not be reproduced
without the permission of the manufacturer.
• Do not dispose old batteries as unsorted municipal
waste. Collection of such waste separately for
special treatment is necessary.
• Please note that some units are equipped with a
battery safety strip. Remove the strip from the
battery compartment before rst use.
NOTE
The technical specifications for this product and
the contents of the user manual are subject to change
without notice.
NOTE
Features and accessories will not be available
in all countries. For more information, please contact
your local retailer.
SPECIFICATIONS
TYPE DESCRIPTION
MAIN UNIT
Dimensions
(L x W x H)
93 x 68 x 30mm
(3.66 x 2.68 x 1.18 in)
Weight 96g (3.39 ounces)
including battery
Temperature range -5°C to 50°C
(23°F to 122°F)
Temperature resolution 0.1°C (0.2°F)
Signal frequency 433 MHz
Power 2 x UM-3(AA) 1.5V
batteries
RGR126N_UM_EN_R12.indd 10 2014/11/4 2:17:22 PM
P/N: 300103670-00004-10 REV1.0
11/38

EN
11
REMOTE THERMO SENSOR (THN802)
Dimensions
(L x W x H)
96 x 50 x 22mm
(3.78 x 1.97 x 0.87 in)
Weight 62g (2.22 ounces)
RF transmission range 100 meters (329 feet)
Temperature range -30°C to 60°C
Temperature resolution 0.1°C (0.2°F)
Number of channel 3
Power 2 x UM-4 (AAA) 1.5V
batteries
REMOTE RAIN GAUGE (PCR800)
Dimensions
L x W x H
114 x 114 x 145 mm
(4.5 x 4.5 x 5.7 inches)
Weight 241 g (8.5 oz)
without battery
Transmission range 100m (329 ft) unobstructed
Power 2 x UM-3 (AA) 1.5V
ABOUT OREGON SCIENTIFIC
Visit our website www.oregonscientific.com to learn more
about Oregon Scientific products.
For any enquiry, please contact our Customer Services
at [email protected].
Oregon Scientific Global Distribution Limited reserves
the right to interpret and construe any contents, terms
and provisions in this user manual and to amend it, at
its sole discretion, at any time without prior notice. To
the extent that there is any inconsistency between the
English version and any other language versions, the
English version shall prevail.
EU - DECLARATION OF CONFORMITY
Hereby, Oregon Scientific, declares that Remote Rain
Gauge with Outdoor Thermometer (model: RGR126N) is
in compliance with the essential requirements and other
relevant provisions of Directive 1999/5/EC. A copy of the
signed and dated Declaration of Conformity is available
on request via our Oregon Scientific Customer Service.
FCC STATEMENT
This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions:
(1) This device may not cause harmful interference,
and (2) This device must accept any interference
received, including interference that may cause
undesired operation.
COUNTRIES RTTE APPROVED COMPLIED
All EU countries, Switzerland CH
and Norway N
RGR126N_UM_EN_R12.indd 11 2014/11/4 2:17:23 PM
P/N: 300103670-00004-10 REV1.0
12/38

EN
12
WARNING
Changes or modifications not expressly
approved by the party responsible for compliance could
void the user’s authority to operate the equipment.
NOTE
This equipment has been tested and found
to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits
are designed to provide reasonable protection against
harmful interference in a residential installation.
This equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful
interference to radio communications. However, there is
no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful
interference to radio or television reception, which can
be determined by turning the equipment off and on, the
user is encouraged to try to correct the interference by
one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment
and receiver.
• Connect the equipment into an outlet on a circuit
different from that to which the receiver is connected.
• Consult the dealer or an experienced radio / TV
technician for help.
DECLARATION OF CONFORMITY
The following information is not to be used as contact for
support or sales. Please call our customer service number
(listed on our website at www.oregonscientific.com), or on
the warranty card for this product) for all inquiries instead.
We
Name: Oregon Scientific, Inc.
Address: 10778 SW Manhasset Dr.
UNIT B-2 Tualatin, Or 97062 USA
Telephone No.: 1-800-853-8883
Declare that the product
Product No.: RGR126N
Product Name: Remote Rain Gauge with Outdoor
Thermometer
Manufacturer: IDT Technology Limited
Address: Block C, 9/F, Kaiser Estate,
Phase 1, 41 Man Yue St.,
Hung Hom, Kowloon,
Hong Kong
RGR126N_UM_EN_R12.indd 12 2014/11/4 2:17:23 PM
P/N: 300103670-00004-10 REV1.0
13/38

FR
1
Précipitations ........................................................... 9
Historique Des Précipitations .............................. 9
Précipitations Totales .......................................... 9
Alerte de Pluie ................................................... 10
Température ........................................................... 10
Réinitialisation ....................................................... 10
Précautions ............................................................ 10
Détails Techniques ................................................ 11
À Propos D’oregon Scientic ............................... 12
EU – Déclaration De Conformité .......................... 12
Pluviomètre Sans Fil avec
Thermomètre d’extérieur
Modèle: RGR126N
Mode d’emploi
TABLE DES MATIÈRES
Contenu de L’emballage .......................................... 2
Introduction .............................................................. 2
Vue d’ensemble ....................................................... 2
Vue de Face ........................................................ 2
Vue de Dos ......................................................... 3
Afchage LCD ..................................................... 4
Sonde Sans Fil (THN802) ................................... 5
Pluviomètre (PCR800) ........................................ 5
Pour Commencer ..................................................... 5
Unité Principale – Installation Des Piles .............. 6
Sonde Sans Fil – Installation Des Piles............... 6
Sonde Sans Fil ......................................................... 7
Transmission de Données ................................... 7
Pluviomètre .............................................................. 7
Signaux ............................................................... 8
Horloge...................................................................... 9
Réglage Manuel .................................................. 9
RGR126N_UM_FR_R10.indd 1 2014/11/4 11:00:03 AM
P/N: 300103670-00004-10 REV1.0
14/38

FR
2
CONTENU DE L’EMBALLAGE
Unité Principale Pluviomètre
Sonde Thermique Support de table
pour la sonde
INTRODUCTION
Félicitations pour votre achat du Pluviomètre sans fil
avec Thermomètre d’extérieur d’Oregon ScientificTM
(RGR126N).
REMARQUE
Veuillez garder ce mode d’emploi à portée
de main lorsque vous utilisez votre nouveau produit. Il
contient des instructions étape par étape, ainsi que des
spécifications techniques et avertissements dont vous
devez prendre connaissance.
VUE D’ENSEMBLE
VUE DE FACE
1. Écran LCD quatre lignes: Pour afcher les valeurs
de précipitations totale, actuelle ou l’historique des
précipitations, la température intérieure / extérieur
et l’heure / la date.
2. UP (HAUT): Augmente les valeurs de réglage; appuyez
et maintenez appuyé pour une avance rapide.
3. HIST (HISTORIQUE): fais basculer l’afchage entre
l’historique des précipitations et les précipitations
quotidiennes.
1
2
3
4
5
6
7
8
RGR126N_UM_FR_R10.indd 2 2014/11/4 11:00:07 AM
P/N: 300103670-00004-10 REV1.0
15/38

FR
3
4. SINCE (DEPUIS): Ache la date de début
de mesure. Appuyez le total des précipitations
sur l’année; appuyez et maintenez appuyé pour
effacer l’heure précédente de début de relevé des
précipitations et réinitialiser le compteur.
5. SEARCH (RECHERCHE): Maintenez appuyé
pour forcer une recherche du pluviomètre et de la
sonde thermique sans l.
6. MODE: Permet de changer les réglages/ l’afchage
de l’horloge.
7. DOWN (BAS): Diminue les valeurs de réglage;
appuyez et maintenez appuyé pour une diminution
rapide des valeurs.
8. Support de table amovible: pour xer l’unité
principale sur une surface plane
VUE DE DOS
1. Antenna (Antenne): Reçoit le signal radio du
pluviomètre et de la sonde thermique sans l.
2. Orice d’attache murale
3. RAIN ALERT (ALERTE DE PLUIE): Alerte en cas
de précipitations excessives.
In/mm: Sélectionne l’unité de mesure de
pluviométrie en pouces ou en millimètres
˚C / ˚F: unité de température
4. Compartiment des piles
5. RESET (RÉINITIALISATION): Remet tous les
réglages sur leur valeur par défaut
1
2
3 5
4
RGR126N_UM_FR_R10.indd 3 2014/11/4 11:00:08 AM
P/N: 300103670-00004-10 REV1.0
16/38

FR
4
AFFICHAGE LCD
1. TODAY (AUJOURD’HUI): indicateur de
pluviométrie de la journée en cours.
2. Indique à quel jour précédent (1-9) correspondent
les données enregistrées afchées sur l’écran.
3. Indicateur d’alerte de pluie
4. : Le niveau des piles de la sonde sans l
est faible
5. : État de la réception RF de la sonde
6. TOTAL: Indicateur de précipitations
7. : État de la réception RF de la température
extérieure
8. : Le niveau des piles de la sonde extérieure
sans l est faible
9. AM/PM
10. : Le Niveau des piles de la sonde intérieure
sans l est faible
11. mm/in: mesure des précipitations en pouces ou
en millimètres
12. Précipitations de la journée en cours
13. mm/in: mesure des précipitations en pouces ou
en millimètres
14. Précipitations totales
15. Température extérieure
16. SINCE (DEPUIS): Date de début
d’enregistrement des précipitations accumulées
Yr: Année
17. Afchage de l’heure; M:D (mois: jour); D:M (jour:
mois); calendrier
111
12
13
14
15
16
17
2
3
4
5
6
7
8
9
10
RGR126N_UM_FR_R10.indd 4 2014/11/4 11:00:10 AM
P/N: 300103670-00004-10 REV1.0
17/38

FR
5
SONDE SANS FIL (THN802)
1. Indicateur d’alimentation LED
2. Orice d’attache murale
3. Orice de REINITIALISATION (RESET)
4. Numéro du CANAL (1-3)
5. Compartiment à piles
PLUVIOMÈTRE (PCR800)
1. Pluviomètre
2. Compartiment à piles
3. Bouton RESET
1. Entonnoir
2. Indicateur
POUR COMMENCER
Placez l’unité principale, le pluviomètre et la sonde sans
fil à une portée efficace:
• Pluviomètre – 100 mètres / 329 pieds
• Sonde – 100 mètres / 329 pieds
IMPORTANT
Il est recommandé de bien suivre l’ordre
ci-dessous lors de l’installation des appareils:
1. Installez l’unité principale.
2. Installez le pluviomètre et appuyez et tenez appuyé
SEARCH sur l’unité principale jusqu’à réception
d’un signal.
3. Installez la sonde et appuyez et tenez appuyé
SEARCH sur l’unité principale jusqu’à réception
d’un signal.
1
2
3
4
5
12
3
1
2
RGR126N_UM_FR_R10.indd 5 2014/11/4 11:00:14 AM
P/N: 300103670-00004-10 REV1.0
18/38

FR
6
4. Au cas où aucun signal n’est obtenu d’une des unités
à distance, recommencez le processus ci-dessus.

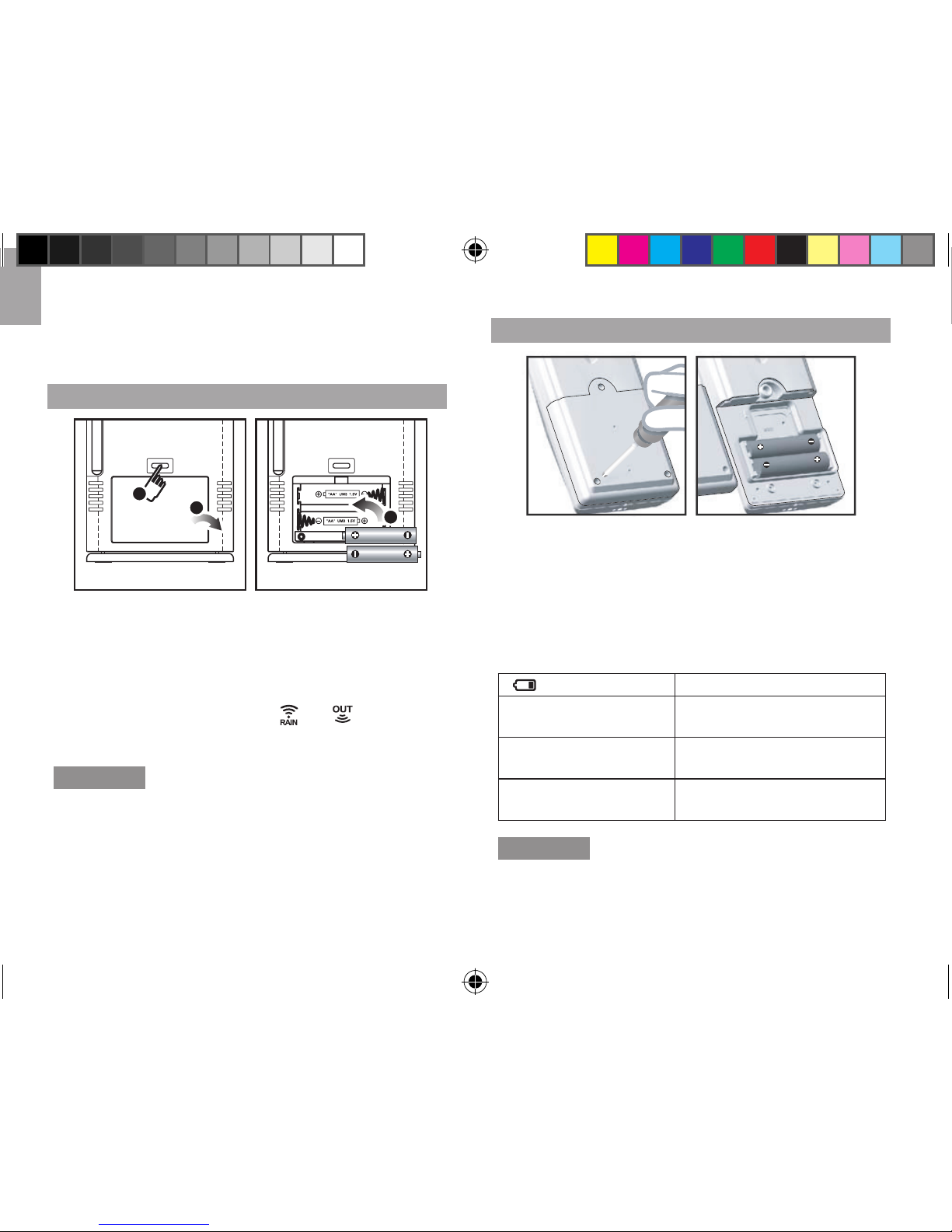

UNITÉ PRINCIPALE – INSTALLATION DES PILES
1. Installez les piles en faisant correspondre les
indications de polarités (+et -) comme il est montré
dans le compartiment à piles.
2. Appuyez sur RESET, ou appuyez et tenez appuyé
SEARCH sur l’unité principale pour initier l’opération.
Les icones de réception ( et ) sur l’unité
principale clignotent lors de la recherché de la sonde
ou du pluviomètre.
REMARQUE
L’unité principale retournera aux réglages
par défaut à chaque changement de pile.
SONDE SANS FIL – INSTALLATION DES PILES
1. Retirez le couvercle du compartiment à piles à
l’aide d’un tournevis.
2. Installez les piles en faisant correspondre les
indications de polarité (+et -).
3. Appuyez sur RESET après chaque changement
de piles.
EMPLACE-ENT SIGNIFICATION
Zone des précipitations Le niveau des piles du
pluviomètre est faible
Zone de température
extérieure Le niveau des piles de la sonde d’extérieur est faible
Zone de l’horloge Le niveau des piles de
l’unité principal est faible
REMARQUE
Utilisez des piles alcalines pour un usage
prolongé et des piles au lithium de bonne qualité lors de
températures en dessous de zéro.
1
23
RGR126N_UM_FR_R10.indd 6 2014/11/4 11:00:15 AM
P/N: 300103670-00004-10 REV1.0
19/38

FR
7

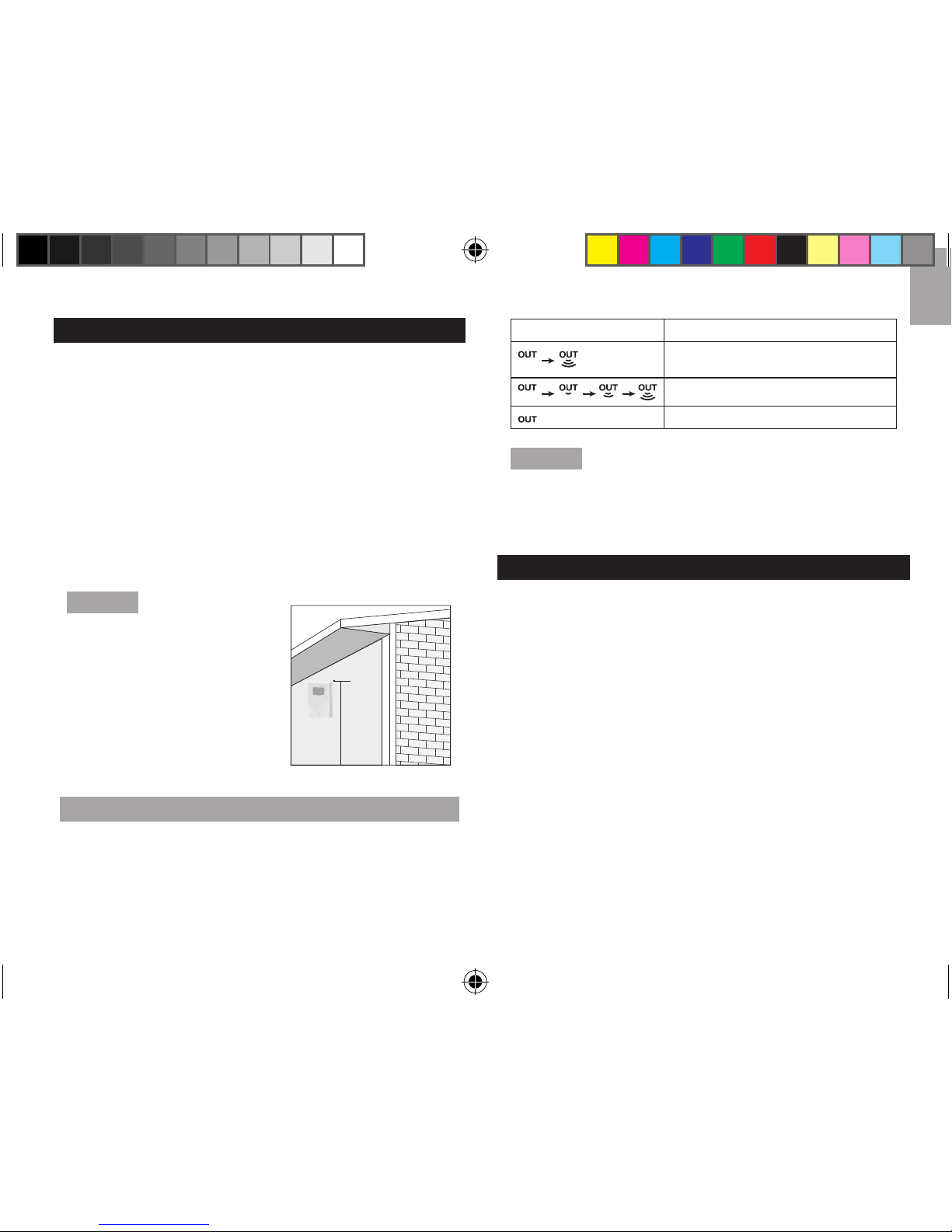

SONDE SANS FIL
L’unité principale peut collecter les données de deux (2)
sondes au maximum, dont un pluviomètre et une sonde
sans fil d’extérieur.
Pour régler la sonde:
1. Ouvrez le compartiment à piles
2. Sélectionnez un canal et appuyez sur RESET.
3. Refermez le compartiment à piles.
4. Placez la sonde à moins de 100 m (329 pieds) de
l’unité principale, en utilisant le support de table ou
l’encoche de xation murale.
ASTUCE
Pour des mesures
précises, les emplacements
idéaux pour la sonde se
trouvent dans n’importe quels
endroits à l’extérieur de la
maison, à une hauteur de plus
de 5 pieds (1,5 m), et à l’abri de
la lumière directe du soleil et de
l’humidité.
TRANSMISSION DE DONNÉES
Pour localiser une sonde:
• Appuyez et maintenez appuyé SEARCH.
• L’icone de réception sur la sonde afche un des
états suivants (voir ci-dessous).
ICONE DESCRIPTION
L’unité principale recherche
la(les) sonde(s)
Un canal a été détecté.
Aucune sonde n’a été trouvée
ASTUCE
La portée de transmission peut varier en
fonction de nombreux facteurs. Essayez de placer la
(les) sonde (s) à différents endroits afin d’obtenir les
meilleurs résultats.
PLUVIOMÈTRE
Le pluviomètre collecte la pluie. Il relève le total des
précipitations et l’intensité pluviale sur une période
donnée. Le capteur transmet les données à la station
de base.
La station de base et le pluviomètre doivent se situer
à une distance d’environ 100 mètres (329 pieds) en
plein air.
Le pluviomètre doit être monté horizontalement à environ
1 mètre (3 pieds) du sol dans une zone découverte loin
d’arbres ou autres obstacles pour permettre à la pluie de
tomber naturellement et obtenir des données précises.
150cm(5ft)
RGR126N_UM_FR_R10.indd 7 2014/11/4 11:00:18 AM
P/N: 300103670-00004-10 REV1.0
20/38
