Oregon Scientific SG18-11 User manual

About Your SmartGlobe™ Star Kit
Getting Started
AC/DC adapter connection
Auto off
Low battery indicator
PC requirements
Key functions
Activities
Touch
Compare
Find
Spanish activities
Knowledge
Constellation Mode & Star Activities
Sound Options
Built-in speaker
Base speaker
Headphones
Register Your SmartGlobe™ Star
Access code
SmartGlobe™ Star PC program installation
Register and update your SmartGlobe™ Star
How to Renew Your Internet Subscription
Dear customer,
Thank you for purchasing SmartGlobe™ Star by Oregon Scientific.
We hope that this product will help you and your family to learn more about the
world we live in, and to develop the interest in geography, history,
and cultures around the world. With the new added constellation mode
and star activities, it further extends the exploration beyond the atmosphere.
As a truly international company, all of us at Oregon Scientific take a personal
interest in designing products that help both children and adults understand more about
our global neighbors. It is our goal that you will learn something new and inspiring that might
change your perspective of the world. The SmartGlobe™ Star can be continually updated
by connecting the SmartGlobe™ Star to the Internet via USB cable. As such,
we hope that every day will bring a new adventure to your world using SmartGlobe™ Star.
1
3
5
8
8
9
11
T
Table of Contents able of Contents
SG18-11_US_manual_30June2010 7/25/11 12:28 PM Page 1

SmartGlobe™ Star
Constellation mode switch
User Manual
About Your SmartGlobe™ Star Kit
Your SmartGlobe™ Star is supplied with the following parts; please
contact Oregon Scientific if any parts are missing.
AC/DC adapter jack (AC/DC Adapter not included)
Back
Front
2
1
SG18-11_US_manual_30June2010 7/25/11 12:28 PM Page 2

Key functions
• Player
Touch this icon to select up to four players in the ‘Find’ activities.
• Pause
Touch this icon if you would like to pause the game. Touch it again to
resume your game.
• Repeat
Touch this icon to repeat a question or instruction prompt.
• Volume
To raise the volume, touch [ +] .
To lower the volume, touch [ --] .
• Demo
Touch this icon to listen to a demonstration of some of the exciting
features and games on your SmartGlobe™Star.
• Local Map
To use the U.S. map, push in the drawer at the bottom of the base and it will open out, enough for you to
pull it out by its sides. To close the drawer, push it back in until it clicks again.
Getting Started
Your SmartGlobe™ Star base uses four AA size batteries, which are
installed in the back of the base as shown. It is also equipped with an
AC/DC adapter connection, which allows the base speaker to work
without batteries. (AC/DC Adapter not included)
Your smart pen uses two AAA size batteries. To open the battery cover,
remove the screw on the back of the pen with a coin and then pull it
open from the top as shown. Once you have installed the batteries in
the pen, remove the plastic tag from the back of the pen located next
to the reset button. The tag is only for demo use.
Turn on the smart pen by pressing the button.
PC requirements
• Windows XP/Vista/7
• 1 GHz or above 32-bit (x86) processor
• 512 MB RAM or above
• 200 MB of available hard disk space
4
3
• USB port
• Internet Access
AC/DC adapter connection (AC/DC
Adapter not included)
Please remove the batteries from the base
unit before plugging in the AC/DC adapter.
Otherwise the unit may be damaged. Plug
the adapter into the adapter jack (center
positive type) at the rear side of the unit.
Plug the adapter into a wall outlet.
Auto off
The smart pen will automatically shut off
after a few minutes if it is not being used,
and the base speaker can only be used when
plugged into the smart pen.
Low battery indicator
A flashing red LED light indicates that the
smart pen is running out of batteries.
Note: The clock in smart pen will be inaccurate
when out of batteries for over 2 minutes.
Caution
• Different types of batteries or new and
used batteries are not to be mixed.
• Only batteries of the same or
equivalent type as recommended are to
be used.
• Batteries are to be inserted with the
correct polarity.
• Remove batteries from the unit if the unit
is not going to be used for a long time.
• Remove all batteries when replacing.
• Do not dispose of batteries in fire.
• Non-rechargeable batteries are not to be
recharged.
• Rechargeable batteries are to be removed
from the product before being charged.
• Rechargeable batteries are only to be
charged under adult supervision.
• Exhausted batteries are to be removed
from the product.
• The supply terminals are not to be
short-circuited.
• The base unit must not be connected to
an AC/DC adapter greater than 6V.
• Due to AC/DC adapter connection -
Not suitable for children under 3 years
of age. Use only under adult supervision.
• The Toy must only be used with the
recommended AC/DC adapter.
• The AC/DC adapter is not a toy.
• In an environment prone to static
discharge, the unit may malfunction. To
reset, remove batteries or disconnecting
the adapter for at least 10 seconds before
connecting the power supply again.
• Toys liable to be cleaned with liquid are
to be disconnected from the AC/DC
adapter before cleaning.
• Any safety isolating adapter to be used
with the toy should be regularly
examined for potential hazard, such as
damage to the cable or cord, plug, or
enclosure of other parts. In the event of
such damage, the toy must not be used
until the damage has been properly
removed.
SG18-11_US_manual_30June2010 7/25/11 12:28 PM Page 3

This table shows the time limit of each game for each age group.
This table shows the number of correct answers required from the player to advance to a higher level.
Spanish Activities ( )
To learn about a country in Spanish, use the tip of the smart pen to touch one of the “ ” categories
on the activity panel (located on the base), and then
use the smart pen to point to a place on the globe or
the local map. To learn more about a particular coun-
try in Spanish, use the smart pen to touch an activity
under the “ ” category, and touch the
country again.
Activities
Touch
To learn about a country, use the tip of the smart pen to touch one of the “Touch” categories on the activity
panel (located on the base), and then use the smart pen to point to a place on the globe. To learn more about
a particular country, use the smart pen to touch a different category on the activity panel, and touch the
country again.
Compare
To compare information between two places, such as distances, flying times, and exchange
rates, choose a category under ‘Compare’, and then touch two countries on the globe one
after the other. The smart pen will even let you compare places on the U.S. map with places
on the main Globe.
Note: The time function will only be accurate once you have registered and updated the smart pen;
see pages 9 and 10 for instructions. Also, the exchange rates will be based on those automatically
updated at the time of your last download.
Find
To play a search game, touch one of the “Find” categories with your smart pen. The
SmartGlobe™ Star will tell you to find certain places on the map, and you must answer
the questions as quickly as you can. Each activity has 3 different levels, and for each
level the player must answer the required number of questions correctly. Players need to
answer the questions within the time limit; the time limit varies depending on the age
group the player has selected. The “Ultimate Challenge” game is a combination of
questions from all the other categories.
Note: Use the local map to answer the questions about local places.
TOUCH
Continent Time Weather
Population Area Features
Capital Highest Point History
Leader Geography Language
Name Currency National Anthem
COMPARE
Population
Area
Currency
Time
Distance
Flying Time
FIND
Continents
Countries
Capitals
Ultimate Challenge
Local Places
Cities
Game/Age Age 5-8 Age 9-14 Age 15+
Continents 90 seconds 60 seconds 45 seconds
Countries 120 seconds 90 seconds 60 seconds
Capitals 120 seconds 90 seconds 60 seconds
Ultimate Challenge 120 seconds 90 seconds 60 seconds
Local Places 120 seconds 90 seconds 60 seconds
Cities 120 seconds 90 seconds 60 seconds
Age/Level Age 5-8 Age 9-14 Age 15+
Level 1 1 question 2 questions 2 questions
Level 2 2 questions 2 questions 3 questions
Level 3 3 questions 3 questions 3 questions
6
5
Continente (Continent)
Nombre (Name)
Características (Features)
Hora local (Time)
Capital (Capital)
Líder (Leader)
SG18-11_US_manual_30June2010 7/25/11 12:28 PM Page 4

8
7
Brightest Star
Look in the brightest star of each constellation.
Size
Learn the size of each constellation and some cosmic objects in their area.
Visibility
Find out when a constellation is visible.
Origins & Mythology
Tell you the stories and myths behind each constellation.
Game
Search out all 88 constellations.
Note: The Constellation Mode only supports English(US) currently. Other language versions will be available
for download soon.
Sound Options
Your SmartGlobe™ Star can be used in three different sound modes:
Built-in speaker
With the smart pen’s built-in speaker.
Base speaker
With the larger, louder speaker in the base; just use the speaker
cable to connect the pen to the speaker jack.
Headphones
With headphones connected to the smart pen.
Note: Purchasing multiple smart pens allows multiple users to learn with one SmartGlobe™ Star
at one time; we recommend using headphones in this case.
Speaker
1.
2.
3.
Knowledge
For up-to-date World News, Amazing Facts and Earth Facts, touch an icon with the smart pen under the
“Knowledge”.
Earth Facts
Each time you select the Earth Facts icon, you will hear facts about the Earth.
Amazing Facts
To explore amazing facts in our world, use the tip of the smart pen to touch Amazing Facts on the activity
panel, and then use the smart pen to point to a place on the globe.
World News
Each time you select the World News icon, you will hear up-to-date World News. Updates are available; see
“Register and update your SmartGlobe™ Star” on the page 9 and 10 for details.
Constellation Mode & Star Activities
Glow in the Dark! The SmartGlobe™ Star is featured with its brilliant constellation mode. Discover the 88
constellations and various information about them.
Getting Started
To see the constellations on the globe, just turn on the light switch (above the game panel) and place it in the dark.
Once the globe glows, touch any Star Activities (in the middle of the game panel) and any constellation on the globe to play.
How To Play?
Here are some tips for using the globe to view the constellations.
Stargazing
Tell you which constellation is best-viewed.
Constellations
Get to know about all the 88 constellations.
SG18-11_US_manual_30June2010 7/25/11 12:28 PM Page 5

Register Your SmartGlobe™ Star
Your new SmartGlobe™ Star is not only ready to be used right out of the box, but can also be customized by
age level and can receive new educational content updated by Oregon Scientific editors.
Note: It is recommended that you register your SmartGlobe™ Star in order to download the latest information for your
Globe.
Access code
Your SmartGlobe™ Star has a personal access code (located on this page) that will allow you to use our
Internet services, which are free for one year from the time you begin using them. But before you get started,
you need to register and activate the access code. The condition of this free service is
that you must register the SmartGlobe™Star within 12 months after buying the SmartGlobe™ Star.

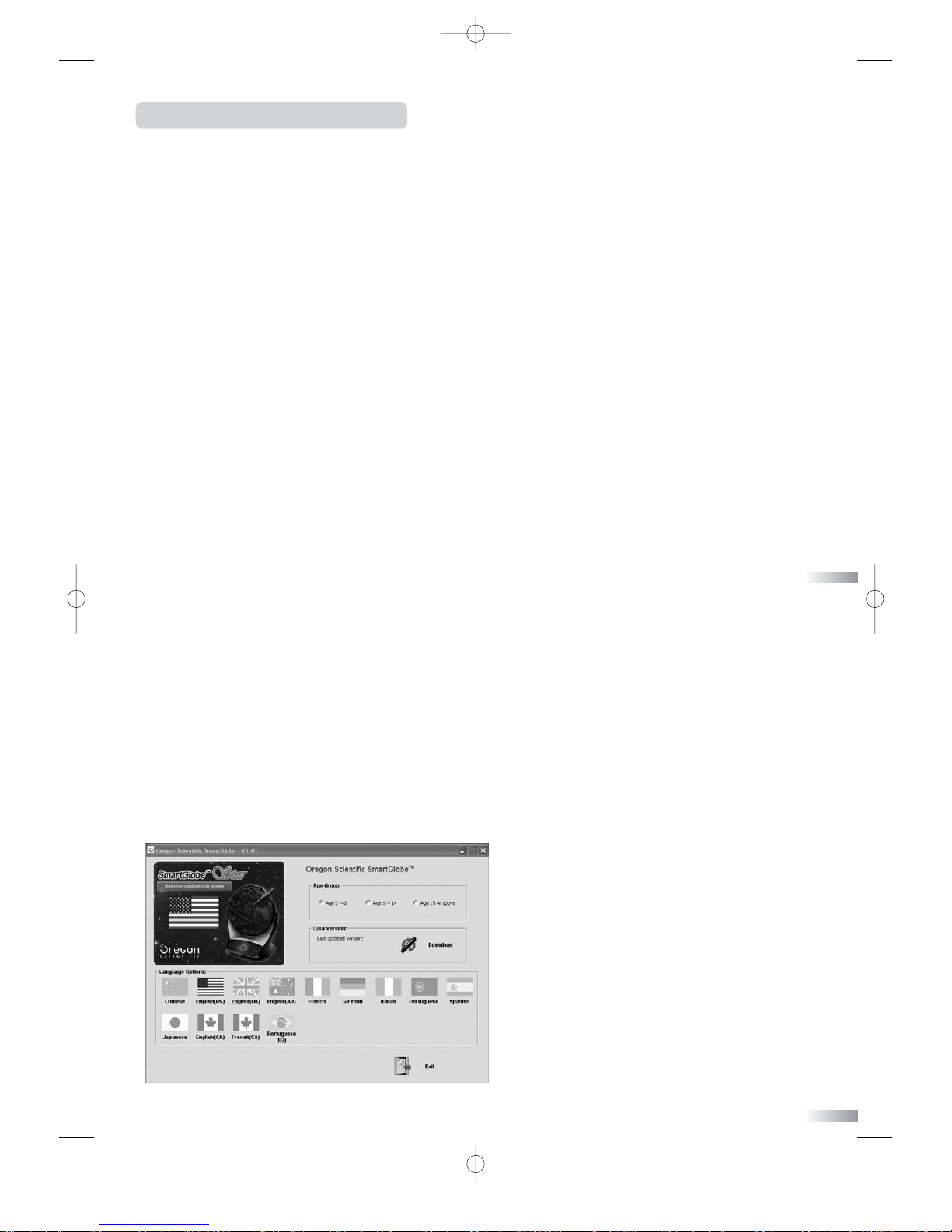

SmartGlobe™ Star PC program installation
Windows XP/Vista/7
Note: Before the installation, please connect your PC to the internet.
1. Go to the following website and download the SmartGlobe™ Star PC Program installer:
http://smartglobe3.oregonscientific.com/updates/star.html
2. Launch the installer and following the instruction to go through the installation process.
3. After the installation process, connect the smart pen to your computer using the USB cable provided.
4. Your PC will recognize the smart pen and complete the driver installation.
Through our server, you will be able to change your age group, language, and download the latest
information, including World News.
Note: Please turn off the Firewall before downloading the new data.
Warning: Do not unplug the smart pen while downloading the data otherwise it may damage the smart pen.
Restart your PC or reinstall the download program if you encounter download failure several times.
Register and update your SmartGlobe™ Star
1) After the installation, launch the SmartGlobe™ Star PC Program, a web page will open up; please fill in the
information and enter the Access Code (located on page 9).
2) You can now download the latest information from our server.
10
9
1) Connect the smart pen to your computer using
the USB cable provided.
2) Launch the SmartGlobe™ Star PC Program, and
wait a moment. It will check and show if there is
newer version available.
3) Select an age group and language.
4) Press the “Download” button to download the
latest version from the Server.
5) Unplug the smart pen when it shows “Download
Completed”.
* As a result of our efforts to continually improve
ourproducts, the actual screen displays from the
product may differ slightly from the diagrams shown.
SG18-11_US_manual_30June2010 7/25/11 12:28 PM Page 6

300102868-00001-10
Your smart pen and all cables should be checked regularly for damage to avoid the danger of an
electric shock. Do not use them if they are damaged.
Always remove the batteries and disconnect the power supply before cleaning. Do not attempt to
dismantle any part of the product, and only use a soft, dry cloth for cleaning.
Do not get SmartGlobe™ Star or any of its parts wet, and be sure that your hands and the tip of the
smart pen are clean before touching the globe surface; otherwise, the smart pen may fail to read
information from the Globe.
As this product is updateable, prompts, instructions and game functions may change as we
continue to improve SmartGlobe™ Star and its user interface. We would be happy to receive your
comments and suggestions, and appreciate your feedback. Feel free to contact us at
[email protected].
Note: All SmartGlobe™Star data is for reference only, and is not intended to be used as a source for academ-
ic or professional research.
Contact Information
Cleaning and Maintenence
How to Renew Your Internet Subscription
Your SmartGlobe™ Star purchase includes one year of free unlimited download service from the date of
registration.
You will be reminded to renew your subscription 30 days before it expires.
Press the “Renew now” button on the control panel window, and you will be directed to a web site through
which you can renew your subscription.
11
Oregon Scientific, Inc.
19861 SW 95th Avenue
Tualatin, OR 97062, USA
Hotline: [phone]
Service: http://us.oregonscientific.com/service
Website: http://us.oregonscientific.com
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause
harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation
Warning: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user’s
authority to operate the equipment
NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC
Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment
generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on,
the user is encouraged to try to correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
• This Class B digital apparatus complies with Canadian ICES-003.
CAUTION – ELECTRIC TOY– Not recommended for children under 3
years of age. As with all electric products, precautions should be observed during
handling and use to prevent electric shock.
SG18-11_US_manual_30June2010 7/25/11 12:28 PM Page 7
