Oregon Scientific AT108A User manual

GB
1
OUTBREAKER
USER'S MANUAL
Model: AT108A/ATP108A/ATC108A
CONTENT
SECTION 1: INTRODUCTION.......................................................................................................................................................... 3
MEASUREMENTS AND UNITS.......................................................................................................................................... 4
CONTROL BUTTONS........................................................................................................................................................... 4
OPERATING MODES........................................................................................................................................................... 5
HOW TO USE THE BACK LIGHT..................................................................................................................................... 5
SECTION 2: THE CALENDAR CLOCK, CHRONOMETER AND THERMOMETER.............................................................5
HOW TO SET THE CALENDAR CLOCK........................................................................................................................ 5
HOW TO SET THE ALARM CLOCK................................................................................................................................5
HOW TO USE THE CHRONOMETER..............................................................................................................................6
HOW TO USE THE TIMER.................................................................................................................................................6
THE THERMOMETER........................................................................................................................................................ 6
SECTION 3:THE ALTIMETER..........................................................................................................................................................6
DISPLAY MODES...................................................................................................................................................................7
HOW TO SET THE CURRENT ALTITUDE.......................................................................................................................7
HOW TO SET THE ALTIMETER ALARM........................................................................................................................7
MAXIMUM AND ACCUMULATED ALTITUDE..............................................................................................................7
RATE OF CHANGE IN ALTITUDE.....................................................................................................................................8

2
GB
SECTION 4:THE BAROMETER........................................................................................................................................................
HOW TO SET THE SEA LEVEL PRESSURE.....................................................................................................................
BAROMETRIC HISTORY......................................................................................................................................................
WEATHER FORECAST.........................................................................................................................................................
SECTION 5:THE HEART RATE MONITOR...................................................................................................................................
THE CHEST BELT...................................................................................................................................................................
EFFECTIVE RANGE...............................................................................................................................................................
DISPLAY MODES....................................................................................................................................................................
HOW TO MEASURE HEART RATE....................................................................................................................................
HOW TO SET HEART RATE LIMITS.................................................................................................................................
HEART RATE HISTORY.......................................................................................................................................................
SECTION 6:THE BICYCLE COMPUTER........................................................................................................................................
HOW TO SET THE BIKE CIRCUMFERENCE..................................................................................................................
PERFORMANCE MEMORY.................................................................................................................................................
SECTION 7:ADDITIONAL INFORMATION...................................................................................................................................
KEY LOCK................................................................................................................................................................................
TOUR MODE............................................................................................................................................................................
MARKER...................................................................................................................................................................................
OVERALL ERASE MEMORY RECORD.............................................................................................................................
PC LINKAGE............................................................................................................................................................................
BATTERY INFORMATION...................................................................................................................................................
PRECAUTIONS........................................................................................................................................................................
SPECIFICATIONS...................................................................................................................................................................
8
8
8
8
9
9
9
9
10
10
10
10
11
11
12
12
12
12
13
13
13
13
14

GB
3
this manual.
For each model there are accessories bundled with the package:
Wrist band 1 2 2
Heart Rate
Monitor X
Chest Belt
Wireless
Speedometer
Handlebar
cradle with
cadence meter
PC Docking
Station (CD
Rom included)
Note:
It is not recommended to use the OUTBREAKER for professional
sportssuchasskydiving,hanggliding,paragliding,helicopterriding
and flying small aircrafts.
SECTION 1 INTRODUCTION
Congratulations on your purchasing the OUTBREAKER. The
Outbreaker has the Barocompensation advanced technology. With
this advanced technology the OUTBREAKER can distinguish the
pressure change due to weather changes and altitude changes. The
advanced Barocompensation technology makes the altitude reading
more reliable.
Your OUTBREAKER is a precision device for an active lifestyle.
There are three models in the series:
• OUTBREAKER SMART
• OUTBREAKER PLUS
• OUTBREAKER PRO
The functions for the three models are listed in the following table,
please refer to the functions list for your OUTBREAKER.
The associated mode of each functions will be described later in
FUNCTIONS OUTBREAKER OUTBREAKER
PLUS OUTBREAKER
PRO
Altimeter
Barometer
Thermometer
Calendar Clock
Chronometer
Heart Rate Monitor
Bicycle Computer
PC linkage
HiGlo back light
XXX
XXX
XXX
XXX
XXX
XXX
XXX
XX
X
Accessories OUTBREAKER
SMART OUTBREAKER PLUS OUTBREAKER PRO
X
X
X
X

4
GB
MEASUREMENTS AND UNITS
For each models there is two versions available.
Note:
The unit of measurement cannot be changed either on the watch or
through the PC software.

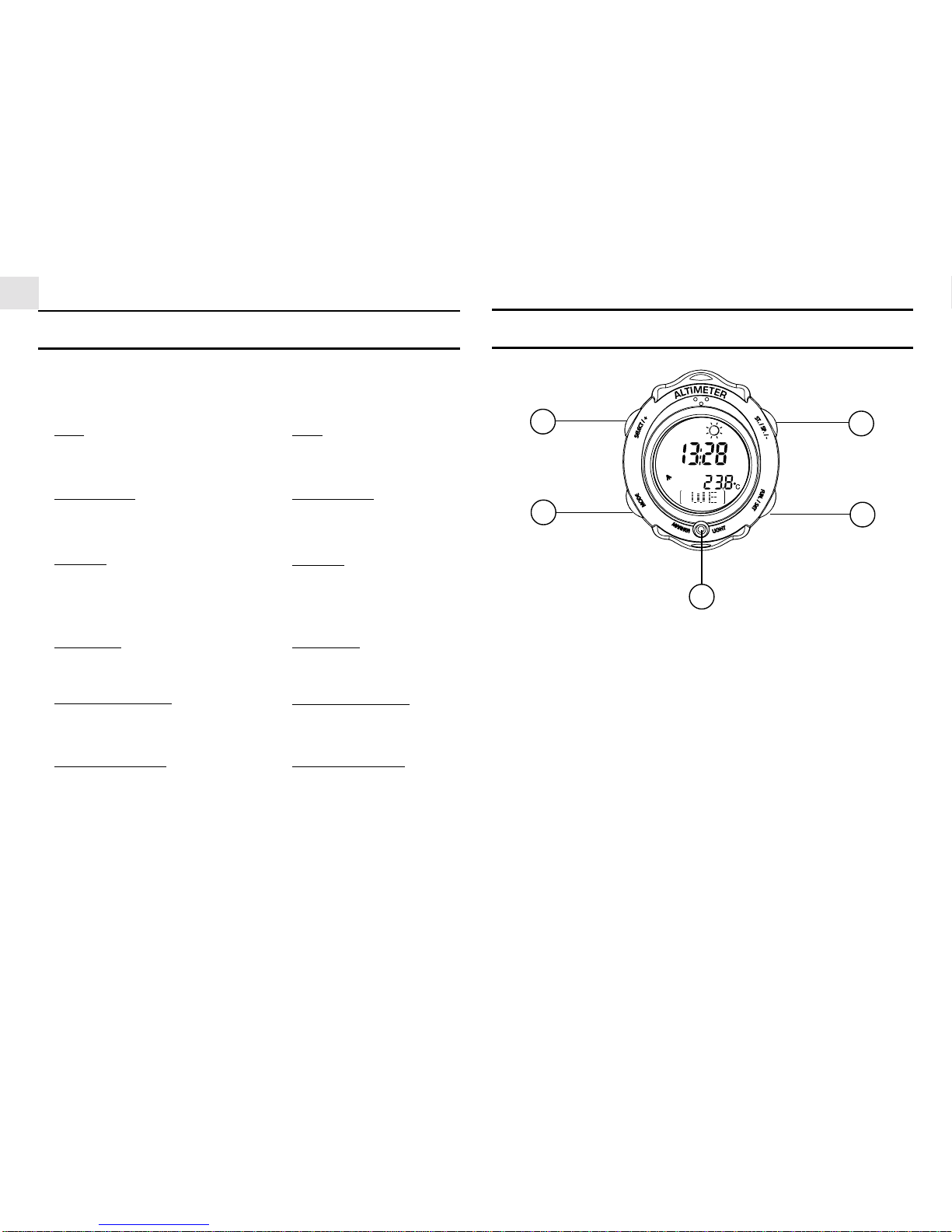

CONTROL BUTTONS
1. MODE
Changes among clock, altimeter, barometer, heart rate monitor
and bicycle computer
2. SELECT/+
Changes among display lines or increases a value while setting
3. START/STOP/-
Startsorstopsthechronometerordecreasesavaluewhilesetting
4. FUNCTION/SET
Changes among functions in individual mode or holds to enter a
setting routine
5. LIGHT/MARKER
Turns on the back light or holds to set the marker during tour
mode
MEASUREMENT FOR
METRIC VERSION MEASUREMENT FOR IMPERIAL VERSION
Date
dd.mm.yy 24hr
Temperature
OC
Altitude
m
m/s
Barometer
hPa
Heart rate monitor
bpm
Bicycle computer
km/h
rpm
km
mm
Date
mm.dd.yy 12hr
Temperature
OF
Altitude
ft
ft/s
Barometer
inHg
Heart rate monitor
bpm
Bicycle computer
mile/h
rpm
mile
inch
1
23
4
5

GB
5
OPERATING MODES
Refer to Fig 1 to change from one mode to the other.
Note:
Modedisplayvariesfordifferentmodels,pleaserefertotheprevious
function list for detailed.
HOW TO USE THE BACK LIGHT
Press LIGHT to turn on the back light for five seconds.
Note:
a) When the backlight is ON, any key press will keep it ON for an
additional five seconds.
b) Thebacklightwillnotswitchonwhenthebatterylevelistoolow.
This indicates a need to change the watch battery.
SECTION 2 THE CALENDAR CLOCK,
CHRONOMETER AND
THERMOMETER
This section applies to OUTBREAKER PLUS and
OUTBREAKER PRO
Refer to diagram A to install the nylon wrist belt to the watch.
There are four display modes when the CLOCK operating mode is
adopted.
Refer to fig 2 to change among the displays.
To display the daily alarm in any of these display modes, press
FUNCTION (fig 2). Then press SELECT to turn on or off the alarm
(fig 4a)
When the daily alarm is activated, it will sound off at the designated
time. Press any control button to mute the alarm.
For OUTBREAKER SMART, OUTBREAKER PLUS and
OUTBREAKER PRO
Refer to diagram B to install the rubber wrist belt to the watch.
HOW TO SET THE CALENDAR CLOCK
Refer to fig 3 to set the calendar clock.
Note:
ThecalendarclockmayalsosetthroughthePCsoftware.Toconnect
the watch to the PC software please refer to Section 7.
HOW TO SET THE ALARM CLOCK
There are 4 alarms – 1 daily alarm & 3 event alarms equipped in the
watch.
A) SET THE DAILY ALARM CLOCK ON THE WATCH
Refer to fig 4b to set the daily alarm clock.
Note:
a) The alarm will be automatically turned on during the setting
procedure.
b) The event alarm can only be set by the PC software. To connect
the watch to the PC sofware please refer to Section 7.

6
GB
THE THERMOMETER
Your OUTBREAKER is equiped with a thermometer. Refer to Fig
2 to display the temperature in clock mode.
Note:
a) When the OUTBREAKER is worn on wrist, the temperature
measured could be affected by the body heat. To acquire an
accuratetemperature reading remove theOUTBREAKER from
the wrist and wait at least for 15 minutes before taking the
reading.
b) The temperature could also be displayed in various modes,
please also refer to Section 3 - 4.
SECTION 3 THE ALTIMETER
This section applies to all models.
YourOUTBREAKERisequippedwithanintelligentbarometerthat
helps determine altitude by the built-in sensor with the advanced
Barocompensation technology. The sensor can also distinguish the
differencesbetweenpressurecausedbychangesinphysicalaltitudes
or pressure caused by weather conditions. This smart distinction
eliminates discrepancies and makes the altimeter reading more
accurate than the average devices.
B) SET ALARM CLOCK BY PC SOFTWARE
The alarms may also set through the PC software. To connect the
watch to the PC software please refer to Section 7.
HOW TO USE THE CHRONOMETER
When the chronometer is displayed, use START/STOP to start or
stopa countup.Pressingthe same buttonafterstopping the countup
will clear the chronometer. Refer to fig 5 for the operation.
Note:
Chronometer could be activated in various modes, please also refer
to Section 3 –6.
HOW TO USE THE TIMER
Refer to fig 6 to set the timer.
To start the timer, press START/STOP. To stop, press the button
again. Press the same button a third time to resume the count down.
Refer to fig 7 for the operation.
Note:
When the timer reaches the preset time, it will count up as a
chronometer automatically.

GB
7
DISPLAY MODES
There are four display modes in ALTIMETER:
• Altitude and clock
• Altitude and local barometric pressure
• Altitude and chronometer
• Altitude and temperature
Refer to fig 8 to change among the displays. Within the four display
modes there are four functions that can be recalled:
• Altitude memory
• Altitude alarm
• Climbing speed
• Climbing speed memory
Note:
The chronometer can also be activated in the climbing speed mode
(fig 8a).
HOW TO SET THE CURRENT ALTITUDE
When you first use the OUTBREAKER, you should set the current
altitude – that is the known altitude at the current location. You can
obtain the correct altitude from a topographical map.
Refer to fig 8b to set the reference altitude.
Note:
The altitude could be re-calibrated in another way by inputing the
sea-levelpressure through the PC software.To connect the watch to
the PC software please refer to section 7.
HOW TO SET THE ALTIMETER ALARM
Refer to fig 9 to set the altimeter alarm.
Once the altitude alarm is set, your OUTBREAKER will emit an
alarm when the set altitude is exceeded.
Note:
a) The watch is equipped with both the ascending and descending
altimeter alarm.
b) The duration of the altitude alarm can also be set through the PC
software.
MAXIMUM AND ACCUMULATED
ALTITUDE
From the total ascending and descending altitude you can recall the
maximumascendingordescendingaltitude.Youmayalsoerasethis
memory record. (fig 10)
Note:
a) please refer to Section 7 for overall erase memory record.
b) YoucanusethisfeaturewiththePCDockingstation. Toconnect
the watch to the PC software please refer to section 7.

8
GB
Refer to fig 12a to set the sea level pressure. Repeat this procedure
after changing the battery or after one year of operation.
BAROMETRIC HISTORY
Your unit retains the hourly barometric pressure for the past 24
hours. Refer to fig 12b to recall the reading for a certain hour.
WEATHER FORECAST
Apartfromdeterminingthealtitude,thebarometeralsohelpsforecast
the weather for the forthcoming 12 to 24 hours basing on based
pressure changes. The effective range is 18 to 30 miles.
The forecast will automatically be displayed as one of these four
icons:
Indicator
displays
on the unit
Forecast Sunny Slightly cloudy Cloudy Rainy
RATE OF CHANGE IN ALTITUDE
Youcanmonitortheactualrateofchangeinaltitudeduringyourtrip.
Themaximum ascending speed as wellasthedescendingspeed will
be recorded automatically. You may recall and erase this memory
record (fig 11).
Note:
please refer to Section 7 for overall erase memory record.
SECTION 4 THE BAROMETER
This section applies to all models.
There are two display modes in BAROMETER:
• Sea pressure and clock
• Sea pressure and temperature
Refer to Fig 12 to change among the display mode.
HOW TO SET THE SEA LEVEL
PRESSURE
When you first use the OUTBREAKER, please calibrate the sea
levelpressure. Itwillbealteredduetothe thebarometricchangeand
not the change in altitude.
You can obtain the current sea level pressure from newspaper, local
news and radio weather reports or through the internet weather
station.

GB
9
Note:
a) Theweather forecast couldbeaffectedby oceanic orcontinental
weather phenomenon. Please note that we cannot be held
responsible for any inconveniences caused by an inaccurate
forecast.
b) The weather forecast is meant for the next 12 to 24 hours. It may
not necessarily reflect the current situation.
c) The“Sunny”icon, when appears at night, impliesclearweather.
d) To have a faster response to the weather forecast, match and set
the weather forecast icon in the watch to the the current weather
conditions via the PC software. To connect the watch to the PC
software please refers to section 7.
SECTION 5 THE HEART RATE
MONITOR
ThissectionappliestoOUTBREAKERPLUS&OUTBREAKER
PRO only.
THE CHEST BELT
The chest belt counts and transmits heart beat data to the watch
receiver. To put it on (diagram C),
a) Wettheconductivepadsontheundersideofthetransmitter with
water, sweat or a conductive gel to ensure a solid contact.
b) Strapthebeltacrossthechest.Adjustthestrapuntilthetransmitter
sits snugly below the pectoral muscles for an accurate heart rate
signal.
Hints:
• Theposition ofthetransmitter affectsitsperformance. Movethe
transmitteralong thestrapfor thebesttransmission.Avoid areas
with dense chest hair.
• The transmitter takes a while to function steadily in dry and cold
climates. This is normal as the conductive pads need a film of
sweat to improve contact with the skin.
EFFECTIVE RANGE
The transmitter and receiver will start transmitting and receiving
signals once batteries are in place. Both units should be worn or
mountedwithinaneffectivedistanceof62.5centimeters(25inches).
If the signals are unsteady,
• Shorten the distance between the transmitter and receiver.
• Re-adjust the position of the transmitter.
• Check the batteries. Replace them when necessary.
DISPLAY MODES
There are two display modes in HEART RATE:
• Heart rate and chronometer
• Heart rate and clock
Refer to fig 13 to change among the display modes.

10
GB
HOW TO MEASURE HEART RATE
Select any display mode in HEART RATE mode. Once heart rate is
transmitted the heart indicator will flash and the measurement will
start from 0. The measuring range is 25 to 240 beats per minute.
When no signals are received or the measurement is out of range for
five minutes. The receiver will disable the function and automati-
callyreturntothepreviousoperatingmodeifnosignalsarereceived
or the measurement is out of range for more than five minutes.
Whenthe heartrateisdisplayed, you cangotoother functionswhile
measuring the heart rate in the background.
Note:
When measuring the heart rate, keep the watch away from signal
generating sources like PC's, Televisions, car engines etc., or else
irregular signal will be observed.
HOW TO SET HEART RATE LIMITS
Theheart rate limits helpyou determine if youare exercising within
your training zone. There are five preset training zones for you to
select or you can set them between 50 to 240 beats per minute. You
may select the preset training zone or alter the setting on the unit or
through the PC software (To connect the watch to the PC software
please refers to Section 7). When the heart rate alert alarm is
activated, an audible beep sound will flash whenever you go above
or below your limits.
Refertofig14tosettheheartratelimitsandtheheartratealertalarm.
Note:
a) The upper limit must be set higher than the lower limit.
b) The alarms may also be set through the PC software. To connect
the watch to the PC software please refers to Section 7.
HEART RATE HISTORY
Your OUTBREAKER is capable of retaining 99 heart rate records.
Each record contains:
• A time and date stamp
• Average heart rate and total exercise time
• Upper limit and time above limit
• Lower limit and time below limit
• Time within limit
Refer to fig 13a to scroll on the records.
Note:
When a record is selected, the information embedded in the record
will be scrolled automatically.
SECTION 6 THE BICYCLE COMPUTER
This section applies to OUTBREAKER PRO only.
Before operating the bicycle computer, attach the bicycle computer
to the receiver as shown in diagram D-E.
Note:
a) The maximum distance between the sensor magnet and sensor
should be 5 mm (3/16 inches).
b) To ensure a secure signal transmission between the sensor
magnet and sensor, the centre of the magnet should be aligned
with the marker on the sensor.
c) The sensing distance between the wireless speedometer sensor
and the handlebar cradle is around 1 m (39 inches).

GB
11
Please bear in mind that both the cadence and wheel speed sensor
should be mounted on the non-movable part of the bike and the
magnets should be mounted on the movable part of the bike such as
the wheel spoke and the pedal.
The bicycle computer has three display modes:
• Bike speed and chronometer
• Bike speed and trip time
• Bike speed and clock
Refer to fig 15 to change among the display modes.
HOW TO SET THE BIKE
CIRCUMFERENCE
For the bicycle computer to function properly, you have to set the
wheel circumference for your bike.
Refer to fig 15a to set the wheel circumference.
Note:
a) You can obtain the wheel circumference by running a wheel-
sized on one-revolution rollout test to your bike.
b) You may also set the circumference to the unit through the PC
software. To connect the watch to the PC software please refer
to Section 7.
c) YoumayinputthewheeldiameterintothePCsoftwareanditwill
automatically convert to wheel circumference that can be
downloaded to the unit.
d) The PC software can store various sets of wheel sizes for your
selection.
PERFORMANCE MEMORY
The bicycle computer retains and automatically clears and updates
the following information:
• Wheel speed – obtained by the wireless sensor
• Cadence (the pedal speed) – obtained by the cabled sensor
(linked to the handlebar cradle)
Refer to fig 16 to display such information.
A) WHEEL SPEED
You can obtain the following information..
• Average speed
• Maximum speed
• Tour distance
• Total distance travel
Refer to fig 17 to display such information and fig 18a to clear the
memory.
Note:
a) Theeffectivetransmissiondistancebetweenthehandlebarcradle
and the wireless speed sensor will be around 100cm (39 inches).
b) Please refer to Section 7 for overall erase of memory record.
B) CADENCE
There are two display modes for the cadence measurement.
• Cadence and chronometer
• Cadence and clock
You could retain the average cadence and the maximum cadence in
this mode.

12
GB
Refer to fig 18 to display such information and fig 18a to clear the
memory.
Note:
please refer to Section 7 for overall erase of memory record.
SECTION 7 ADDITIONAL
INFORMATION
This section applies to all models.
KEY LOCK
The OUTBREAKER is equipped with a key lock function to avoid
accidental pressing of any key during the activities. To activate the
function, simply press and hold SELECT. Press and hold the
SELECT again to release the key lock function.
Refertofig 19. It shows the LCD displayinvariousmodeswhenthe
key lock function is activated.
TOUR MODE
The tour mode retains tour memory for the ALTIMETER,
BAROMETER, HEART RATE and BIKE operating modes.
To activate the tour mode, hold MODE and FUNCTION
simultaneously in any of the above operating modes. The tour
number and total memory used will be displayed. Press and hold
FUNCTION to disable or enable the tour function. You can
temporarily stop the recording during a rest on the tour.
Refer to Fig 20 for the operation.
Note:
a) Afterdisablingatourfunction,anewtourmemorywillbestarted
when the function is activated again.
b) Tour memory can be retreived only through the PC.
c) Tour memory can be erased only by the PC software.
d) Informationrecordedduringthetoursuchastemperature,altitude,
heartrate,wheelspeed,cadence,tripdistanceetc.canbeselected
through the PC software.
MARKER
The marker function is used to mark a particular position of a tour.
To use the marker, press and hold MARKER when the tour mode is
in place.
Note:
Themarker can only be observedafterdownloadingthetour data on
the PC.

GB
13
OVERALL ERASE MEMORY RECORD
All the maximum and minimum records on the unit can be erased at
once.
Note:
The tour memory record will not be affected.
PC LINKAGE
The PC docking station allows you to transfer data between your
OUTBREAKER and a PC through RS232C connection.
To link up with a PC,
1. Connect the docking station to the PC with the Outbreaker
software pre-installed.
2. Fit the Outbreaker into the docking station.
3. SelecttheconnectionoperationonthePCsoftware.A10-second
linkage initiation will follow.
4. LookinthecontentsundertheHelpmenuontheOUTBREAKER
software for further instructions on using the PC features of the
watch
Note:
a) ThePCdownloadfeatureisavailabeforallmodels. Butyouwill
need the PC Docking Station to make use of the PC download
feature. For OUTBREAKER SMART and OUTBREAKER
PLUS please contact the nearest retailer for the optional PC
docking station.
b) When the OUTBREAKER is plugged to the docking station ,it
will switich to PC download mode automatically . (Fig1a.)
c) The cadence, speed and heart rate functions will be temporarily
disabled during the PC communication.
BATTERY INFORMATION
The OUTBREAKER, chest belt and handlebar cradle each uses a
CR2032 3V lithium battery, while the bicycle computer transmitter
usesan E23A/MA/21-V23 12Valkalinebattery. Batteries forinitial
testing are included with the package.
When the battery of the OUTBREAKER is running low, the low
battery indicator will light up. To save the battery power, the
backlight will not be turned on. The transmitters stop transmitting
signals when the battery is dry.
To change the battery, refer to diagram F.
Note:
Ifnotdisposedofproperly,batteriescanbeharmful. Protectthe
environmentbytakingexhaustedbatteriestoauthorizeddisposal
stations.
PRECAUTIONS
• Read the user’s manual thoroughly.
• Do not subject the unit to excessive force, shock, dust and
temperature.
• Do not tamper with the unit’s internal components.
• Do not mix fresh and old batteries, or batteries of different
specifications.

14
GB
SPECIFICATIONS
Calendar clock
Date and time format : dd.mm.yy and 24hr
100 years auto-calendar : 2001-2100
Alarm : 1 daily alarm (hh:mm)
3 event alarms
(hh:mm, dd.mm.yy)
Chronometer/Timer : 99:59:59
Thermometer
Range : -10.0 … 60.0°C
Resolution : 0.1 °C
Accuracy : +/-1 °C
Altimeter
Altitude Range : -400 … 9,000m
Resolution : 1m
Accuracy : +/-10m
Vertical speed : -50 … 50m/s
Vertical speed resolution : 1m/s
Max change in altitude : +/-60,000m
Total change in altitude : +/-999,999m
Alert alarm : 1 altitude alarm
Barometer
Local pressure range : 300 … 1100hPa
Sea level pressure range : 900 ... 1100hPa
Resolution : 1hPa
Accuracy : +/-3hPa
Heart rate monitor
Heart rate range : 25 … 240bpm
Resolution : 1bpm
Accuracy : +/-1bpm
Heart rate zone : 5
Heart rate alert limit : 50 … 240bpm
Alert alarm : 2 heart rate limit alarm
Number of memory : 99
Bicycle computer
Wheel speed range : 0 … 150km/h
Wheel speed resolution : 1km/h
Cadence range : 0 … 250rpm
Cadence resolution : 1rpm
Max trip distance : 999.9km
Max total distance : 99,999.9km
Wheel circumference : 1,000 … 3,000mm
Circumference resolution : 1mm
Tour mode
Record time(5 sec sampling time)
OUTBREAKER SMART
(Altitude / Pressure / Temperature) : 508min
OUTBREAKER PLUS

GB
15
(Heart rate / Altitude / Pressure /
Temperature) : 508min
OUTBREAKER PRO
(Distance / Cadence /Heart Rate /
Altitude / Pressure / Temperature) : 753min
Environment
Operation : -10 … 60 °C
Storage : -5 … 70 °C
at 10% … 95%RH
Water resistance : notactuatingkeysto30m
Power source
Wrist watch : 1 x CR2032 3V
lithium battery
Chest belt : 1 x CR2032 3V
lithium battery
Handlebar cradle : 1 x CR2032 3V
lithium battery
Wheel speed transmitter : E23A/MA21-V23 12V
alkaline battery
Imperial version specs
Calendar clock
Date and time format : mm.dd.yy and 12hr
100 years auto-calendar : 2001-2100
Alarm : 1 daily alarm (hh:mm)
3 event alarms
(hh:mm, mm.dd.yy)
Chronometer/Timer : 99:59:59
Thermometer
Range : 14.0 … 140.0°F
Resolution : 0.2 °F
Accuracy : +/-2°F
Altimeter
Altitude Range : -1,312 … 30,000ft
Resolution : 3ft
Accuracy : +/-30ft
Vertical speed : -150 … 150ft/s
Vertical speed resolution : 3ft/s
Max change in altitude : +/-180,000ft
Total change in altitude : +/-999,999ft
Alert alarm : 1 altitude alarm
Barometer
Local pressure range : 8.86 … 32.48inHg
Sea level pressure range : 26.58 ... 32.48 in Hg
Resolution : 0.03inHg
Accuracy : +/-0.1 inHg
Heart rate monitor

16
GB
Heart rate range : 25 … 240bpm
Resolution : 1bpm
Accuracy : +/-1bpm
Heart rate range : 5
Heart rate alert limit : 50 ... 240bpm
Alert alarm : 2 heart rate limit alarm
Number of memory : 99
Bicycle computer
Wheel speed range : 0 ... 100 mile/h
Wheel speed resolution : 1 mil/h
Cadence range : 0 ... 250rpm
Cadence resolution ; 1rpm
Max trip distance ; 999.9mile
Max total distance : 99,999.9mile
Wheel circumference : 39.00 ... 118.00in
Circumference resolution : 0.04in
Tour mode
Record time(5 sec sampling time)
OUTBREAKER SMART
(Altitude / Pressure / Temperature) : 508min
OUTBREAKER PLUS
(Heart rate / Altitude / Pressure /
Temperature) : 508min
OUTBREAKER PRO
(Distance / Cadence /Heart Rate /
Altitude / Pressure / Temperature) : 753min
Environment
Operation : 14 ... 140°F
Storage : 23 ... 158°F
at 10% … 95%RH
Water resistance : not actuating keys to 99ft
Power source
Wrist watch : 1 x CR2032 3V
lithium battery
Chest belt : 1 x CR2032 3V
: lithium battery
Handlebar cradle : 1 x CR2032 3V
lithium battery
Wheel speed transmither : E23A/MA21-V23 12V
alkaline battery
NOTE ON COMPLIANCE
This device complies with Part 15 of the FCC Rules. Operation is
subject to the following two conditions: (1) This device may not
cause harmful interference, and (2) This device must accept any
interference received, including interference that may cause unde-
sired operations.

GB
17
Warning: Changes or modifications to this unit not expressly
approved by the party responsible for compliance could void the
user's authority to operate the equipment.
FCC :
NOTE: This equipment has been tested and found to comply with
thelimitsforaClass Bdigitaldevice, pursuanttoPart15oftheFCC
Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This
equipment generates, uses and can radiate radio frequency energy
and, if not installed and used in accordance with the instructions,
may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful
interferencetoradioortelevisionreception,whichcanbedetermined
byturning the equipment off andon, the user is encouraged totry to
correct the interference by one or more of the following measures:
o Reorient or relocate the receiving unit.
o Increase the separation between the equipment.
o Connect the equipment into an outlet on a circuit different from
that to which the receiver is connected.
o Consult the dealer of an experienced radio/TV technician for
help.
Company Name : Oregon Scientific, Inc.
Address : 19861 SW 95th Place, Tualatin, Oregon 97062, USA
Website Address:www.oregonscientific.com
Nameandmodelnumberoftheproduct:OUTBREAKER ATC108A/
ATP108A/ AT108A
CAUTION
— The content of this manual is subject to change without
further notice.
— Due to printing limitation, the displays shown in this
manual may differ from the actual display.
— The contents of this manual may not be reproduced
without the permission of the manufacturer.
CUSTOMER ASSISTANCE
Shouldyourequireassistanceregardingthisproductanditsoperation,
pleasecontact our customer care department at 800-853-8883orvia
email at [email protected].
WARRANTY
This product is warranted to be free of manufacturing defects for
a period of 1 year from date of retail purchase. Defective product
should be directed to the place of retail purchase for exchange.
Shouldthisnotbepossible,contactourcustomercaredepartmentfor
assistance and a return material authorization. No returns may be
madewithout a returnauthorization.Pleaseretain yourretailreceipt
as you may be asked to provide a copy of it for proof of date
purchased.Thiswarranty doesnotcoverproductsubjectedtoabuse,

18
GB
misuse, accidental damage or tampering. Upon return of the defec-
tive product, Oregon Scientific will at its discretion, replace the
product with either a new or a tested reconditioned product. Should
the product be out of warranty, the consumer may purchase directly
from Oregon Scientific a replacement at reasonable cost plus ship-
ping and handling.
