Oregon Scientific™ OUTBREAKER
Sports Watch (RX109 series)
User Manual
TABLE OF CONTENTS
Introduction ......................................................................2
Key features .....................................................................3
OUTBREAKER watch ................................................... 3
Chest belt (RS109 / RP109 only) ..................................3
Bicycle equipment (RP109 only) ...................................3
PC Kit (RP109 only) .....................................................4
LCD display symbols ..................................................... 4
How the OUTBREAKER works .......................................6
How the altimeter, thermometer and barometer work ... 6
A multi-system facility .................................................... 6
TOUR Mode ..................................................................6
PC Software Kit (RP109 only) ....................................... 6
Getting started .................................................................7
Turn on the watch (first-time use only) .......................... 7
Batteries ........................................................................7
Switch between Modes ..................................................8
Switch between Mode options .......................................8
Change setting values ................................................... 8
Use the HI-GLO backlight ..............................................8
Key lock ......................................................................... 8
Handling the product .....................................................8
CLOCK Mode ....................................................................9
Set clock and measurement units .................................9
Set the alarm .................................................................9
Stopwatch .........................................................................9
Timer .................................................................................10
Temperature display ........................................................10
ALTI-BARO Mode .............................................................10
Access altimeter options ................................................ 11
Set current altitude and resolution .................................11
Set sea-level pressure ...................................................12
View sea-level pressure ................................................12
Set altitude alert .............................................................12
Recall altitude data ........................................................13
Switch between view options .........................................13
Weather forecast ...........................................................13
TOUR Mode ......................................................................14
TOUR memory ..............................................................14
Activate TOUR Mode .....................................................15
Record markers in TOUR Mode .................................... 15
Pause TOUR Mode .......................................................15
Deactivate TOUR Mode ................................................15
Clear all TOUR memories ............................................. 16
CARDIO (Heart Rate) Mode (RS109, RP109 only) ......... 16
Wearing the chest belt ...................................................17
Training Zones ............................................................... 17
Set upper and lower heart rate limits for
Training Zone 5 ......................................................... 18
Activate the Training Zone alarm ................................... 19
Track heart rate during training ..................................... 19
RX109-English.P65 2004.9.2, 3:08 PM1

EN
2
BIKE Mode (RP109 only) .................................................20
Set up for BIKE Mode ....................................................20
Step 1: Attach the equipment to the bicycle .................. 20
Step2: Enter wheel circumference ................................ 21
Access the BIKE Mode options ..................................... 22
View speed and cadence information ............................ 22
PC Kit (RP109 only) .........................................................22
PC Mode ............................................................................ 23
Set up for PC Mode ....................................................... 23
Use the software ............................................................ 23
PC Mode options ........................................................... 23
Download data ...............................................................24
Effective use and range ...................................................24
Aquatic and outdoor activities ........................................ 24
Safety and care ................................................................25
Safety precautions ......................................................... 25
Care instructions ............................................................25
Troubleshooting guide .................................................... 26
Specifications ................................................................... 27
Warnings ........................................................................... 29
Declaration of conformity ...............................................29
About Oregon Scientific ..................................................30
INTRODUCTION
Thank you for selecting the Oregon Scientific OUTBREAKER
Sports Watch as your fitness product of choice. Your new
sports watch is designed to give you many years of reliable
service and includes the following features:
•Clock, calendar, stopwatch and timer functions
•Barometer with local and sea pressure readings
•Weather forecast and temperature readings
•Altimeter readings up to 9,000 meters (30,000 feet)
•Heart rate monitor that gives pulse rate readings during
exercise (RS109/RP 109 only)
•Bicycle accessory kit to take readings during cycling (RP109
only)
•PC docking station and software to download readings onto
your computer (RP109 only)
The OUTBREAKER RX109 sports watch series comprises the
most advanced and patented Baro-compensation technology,
distinguishing between barometric and altitude pressure
changes, and giving you more reliable readings (weather
forecasts, etc.). It is a precision device designed to augment
your daily or weekly exercise program as well as provide you
with accurate and easy to use watch functions.
This manual contains important safety and care information,
and provides step-by-step instructions for using this product.
Read the manual thoroughly, and keep it in a safe place in case
you need to later refer to it.
RX109-English.P65 2004.9.2, 3:08 PM2

3
EN
OUTBREAKER WATCH
I
IITEM NAME DESCRIPTION
1SELECT/+/> Press to increase value, change Mode display, or
record a marker during TOUR Mode.
2MODE Press to switch between Modes.
3ST/SP/- Press to start/pause/stop the Stopwatch/Timer or
decrease value.
4 LIGHT/KEY Press to activate HIGLO- backlight, or press and hold
to activate key lock.
5 FUNC/SET Press to enter a sub-mode or press and hold to change
a value..
CHEST BELT
IITEM NAME
1CHEST BELT
2STRAP
KEY FEATURES
BICYCLE EQUIPMENT (RP109 ONLY)
I
ITEM NAME
1SPEED SENSOR
2CADENCE SENSOR
3BIKE MOUNT
4BIKE RING
5MAGNETS/ SCREWS/ NUTS/PADS
6 FIXING STRAPS
7RUBBER GRIPS (RS109 only)
2
7
RX109-English.P65 2004.9.2, 3:08 PM3

EN
4

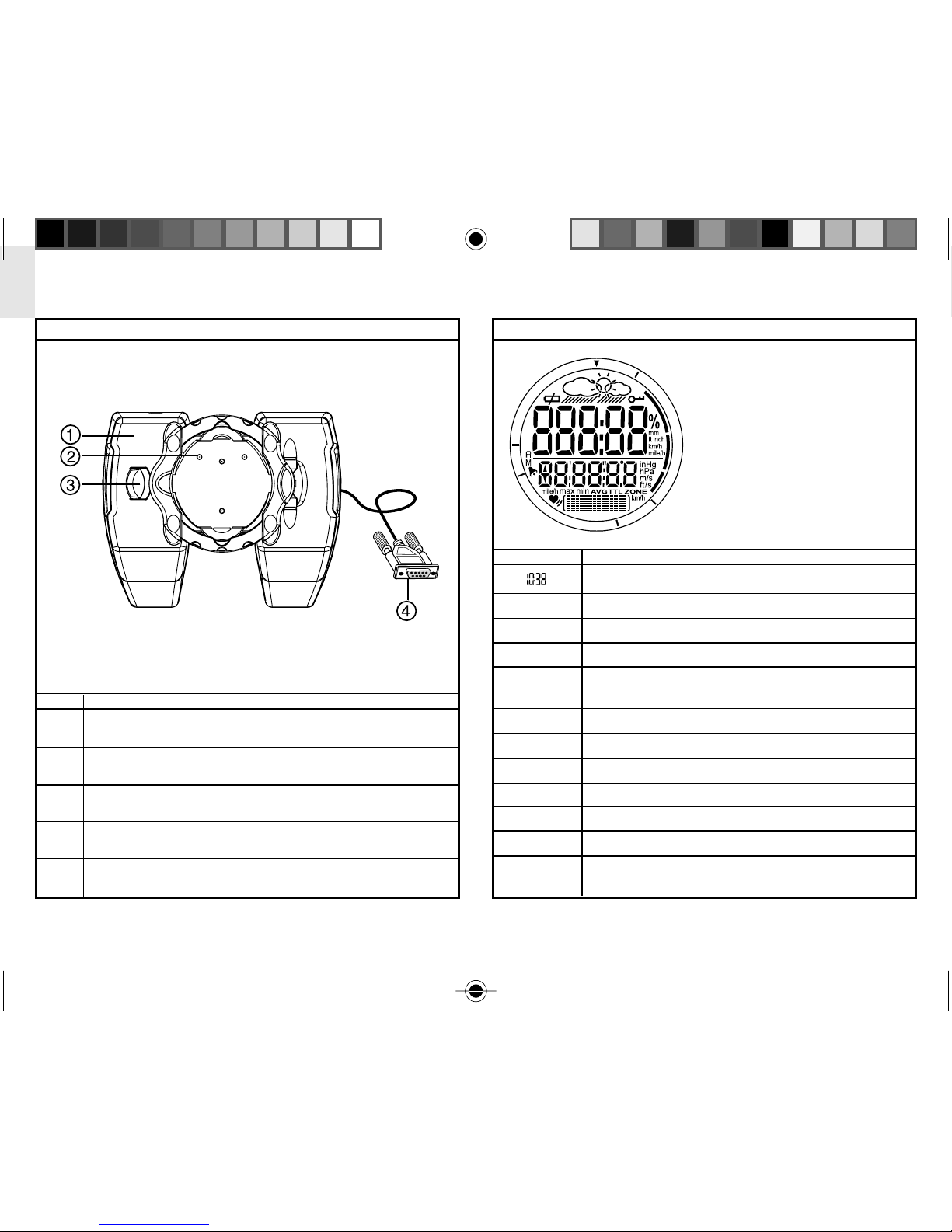

LCD DISPLAY SYMBOLS
SYMBOL DESCRIPTION
The current time.
YR Year setting.
MTH Month setting.
DAY Day setting.
MON Current day of the week.
(MON..SUN)
TRIP TOUR Mode is running time/date cannot be set
HR Hour setting.
MIN Minute setting.
DM/MD Order for date to be displayed.
TIME Time zone setting screen.
SET Displayed when in a setting mode.
UNIT Set Celsius/Fahrenheit for temperature and h/p/Hg,
inHg barometric pressure. Set m/ft for altitude.
PC KIT (RP109 ONLY)
ITEM NAME
1DOCKING STATION
2WATCH CONNECTION POINTS
3MOUNTING CLIPS
4BUILT-IN RS-232C COMPUTER CONNECTION CABLE
5SOFTWARE CD-ROM
RX109-English.P65 2004.9.2, 3:08 PM4

5
EN
Zone The current time set in your second time zone.
AL Shows alarm time, or event alarms
(max/min altitude/heart rate etc)
Shows max/min altitude alarm is deactivated.
Shows if alarm is on or off.
Weather forecast for the next 12-24 hours.
(Sunny/Slightly Cloudy/Cloudy/Rainy)
STW Stopwatch can be started/stopped/reset.
TMR Timer (countdown) can be started/stopped/reset
TEMP Temperature is displayed (in lower second row).
ALTI Altitude is displayed (in lower second row).
HR Heart rate is displayed in lower matrix font.
MEM Memory record (current trip only).
max Shows maximum record
min Shows minimum record
AVG Shows average record
TTL Show total record
RES Change resolution of readings on altimeter
ICON Choose current weather icon.
LOC Local barometric pressure.
SEA Sea pressure (barometric).
SPD Shows vertical speed (historical or current).
Graphical display of your bicycle speed.
Rxxx Receiver (Bike Mount) low battery.
Sxxx Speed sensor low battery.
Cxxx Cadence sensor low battery.
ttl Shows total time of activity.
Shows altitude graphically.
Heart rate (per minute) monitor activated.
Heart rate alert in effect.
Key lock activated.
Z1 (1-5) Shows which training shown is currently selected.
Shows heart beat graphically.
M1 (1..99) Shows which record you are making, or storing
(see TOUR Mode).
WØ (wheel icon) Wheel circumference setting mode.
CAD Pedal speed (revolutions/min).
T1 (1…99) Shows sequence of memories in TOUR Mode.
88% % of memory used in TOUR Mode.
END TOUR is finished.
CLR Ready to clear all tour memories.
donE All tour memories have been cleared.
hpa Pressure shown in Hecto-Pascal’s.
inHg Pressure shown in inches of mercury.
Low battery level (replace batteries)
RX109-English.P65 2004.9.2, 3:08 PM5

EN
6
HOW THE OUTBREAKER WORKS
The OUTBREAKER sports watch comes equipped with a
barometer (measuring altitude, barometric pressure, and
weatherconditions),aweatherforecastdisplay,athermometer,
a heart rate monitor (RS109/RP 109 only), and a bicycle
computer to display information when cycling (RP109 only).
HOW THE ALTIMETER, THERMOMETER, AND
BAROMETER WORK
Thepatentedbaro-compensationtechnologyusedinthiswatch
allows it to distinguish between barometric pressure change
and altitude pressure change. This means it can detect
barometric pressure (localized weather conditions) as distinct
from changes in altitude pressure, and gives more accurate
readings than most average devices (which frequently rely on
manual deactivation before initiating a new forecast).
A MULTI-SYSTEM FACILITY
The product is designed for use during many kinds of activity.
It can display and store a range of information of interest to the
casual and more serious sports or exercise enthusiast. The
watch includes the following Modes: CLOCK, ALTIMETER,
CARDIO (Heart Rate) (RS109/RP109 only), BIKE (RP109
only), and PC (docking station and CDROM are optional for the
RA109 and RS109, and are not supplied). It is equipped with
a multi-system facility that allows you to combine information
according to your preference, such as altitude and time, altitude
and heart rate, or bike speed and altitude, etc. You may also
use the stopwatch or timer (countdown) facility in combination
with other functions, and both will continue to run in the
background while you use other features of the watch.
The heart-rate monitor and altimeter features of the
OUTBREAKER watch include customized settings. Maximum
and minimum heart rate limits can be set for use during
exercise, and the altimeter can be set to register ascending and
descending limits. In both cases a short beep signifies either
limit has been exceeded. The watch also has a clock, calendar,
and pressure reading apparatus, all of which need to be set
according to the current date and location.
TOUR MODE
The watch features a TOUR Mode in which you can record all
data from a single trip, or workout, and then download this
information onto your PC for storage and viewing. The watch
can recall 99 different single tours, trips or workouts.
ThedockingstationandCD-ROMarerequired (optional
for the RA109 and RS109, but not supplied) to download
information from TOUR Mode.
PC SOFTWARE KIT (RP109 ONLY)
A docking station is provided with the watch for connecting to
a computer, along with a CD-ROM for installing the necessary
software onto your computer. You can also use the software to
change some of the watch settings.
The RZ910 PC Kit can be purchased separately for the
RA109 and RS109.
NOTE
NOTE
RX109-English.P65 2004.9.2, 3:08 PM6

7
EN
To load new batteries in the chest belt (RS109 and RP109
only) and bike mount:
The chest belt will stop sending signals if its battery is
low. Badtransmission from the chestbeltmay also be the result
of poor contact with the skin, surrounding interference, or
placing the receiver watch too far away.
To load new batteries in the bicycle sensors (RP109 0nly):
The sensors will stop sending signals to the watch if
their batteries are low.
Replace the batteries whenever the HIGLO backlight
dims or stops working, or when you see the low battery icon.
NOTE
GETTING STARTED
TURN ON THE WATCH (FIRST-TIME USE ONLY)
Press mode key for 2 seconds or more to activate the LCD
Display
BATTERIES
All batteries are included and already installed. Refer to the
Specifications page for battery types (27).
To avoid the possibility of permanently damaging the
watch, we strongly recommend that you take your watch to a
local retailer or jeweler to have the watch battery replaced.

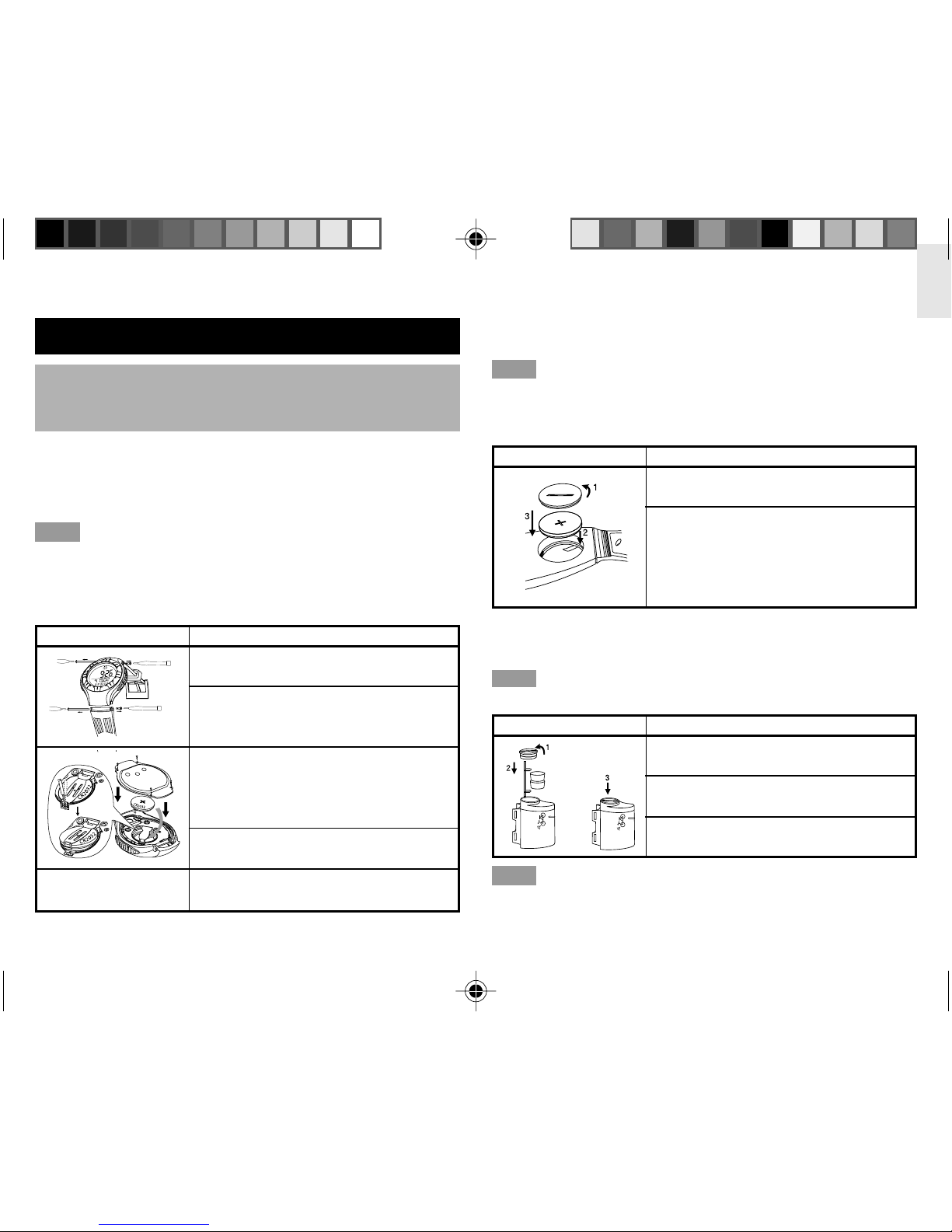

To load new batteries in the watch:
Diagram Instructions
1. Remove the watchband and screw pin.
2. Remove the back cover with a small Phillips screw-
driver.
3. Install the battery by matching the correct polarity.
Always use the correct battery type.
Warning: Reversing the polarity may damage the
product.
4. Replacethecover,screws, screw pin, and watchband.
(Be sure to replace the O ring properly).
5. Check the replacement batteries are fitted properly
by confirming there is a key tone (beep).
Diagram Instructions
1. Insert a coin into the grove. Turn counter-clock-
wise.
2. Insert the battery. Match the correct polarity.
3. Replace the battery compartment. Tighten into
place.
Diagram Instructions
1. Insert a coin into the grove. Turn counter-clock-
wise.
2. Remove the battery and insert a new one.
3. Replace the compartment. Tighten into place.
NOTE
NOTE
NOTE
RX109-English.P65 2004.9.2, 3:08 PM7

EN
8
The watch will show Cxxx, Rxxx or Sxxx whenever either the
bike mount, cadence or speed sensor batteries are low.
Replace all the batteries at the same time – it is
dangerous to mix old and new batteries.
Used batteries can be harmful to the environment, and
should not be thrown out with household rubbish. Contact your
local waste disposal authority for instructions on how to dispose
of used batteries. Protect the environment by taking exhausted
batteries to authorized disposal stations.
SWITCH BETWEEN MODES
Press the MODE button to switch between the Modes: CLOCK,
ALTI-BARO, CARDIO (RS109/RP109 only), BIKE (RP109
only), and PC. A bar shows next to the appropriate Mode (on
the outer ring of the LCD display) when it is selected.
SWITCH BETWEEN MODE OPTIONS
Press SELECT/+ to switch between the options within a Mode.
CHANGE SETTING VALUES
Press and hold FUNC/SET for 2 seconds to enter setting mode.
Then, press ST/SP/- or SELECT/+ to change the value. Press
FUNC/SET to switch between options, and to confirm the
changes when you are done.
USE THE HI-GLO BACKLIGHT
Press light/key to turn on the HI-GLO backlight on for five
seconds. Once the light is on, press any key to keep it on for a
further five seconds.
In order to save power the light will not work when the battery
is low. If this happens, change the battery as soon as possible.
KEY LOCK
The watch also has a key lock function to stop the buttons from
being accidentally pressed during an activity. To activate it
simply press and hold light/key until a small key icon appears
inthe right hand cornerofthescreen. The function keysarenow
useless. To reactivate them, press and hold light/key again
until the key icon disappears.
The alarm will still go off while the Key Lock is activated.
Pressing any key while in Key lock will stop the alarm.
HANDLING THE PRODUCT
The watch is designed to withstand a wide range of sports
activities, and comes complete with a strong wristband. When
riding (RP109 only), make sure the watch is firmly connected to
the bike mount, and connect all bicycle equipment carefully and
securely. See the BIKE Mode section (20) for instructions.
NOTE
NOTE
NOTE
RX109-English.P65 2004.9.2, 3:08 PM8

9
EN
CLOCK MODE
The time, date (including the day of the week) and time alarm
can be set while the watch is in CLOCK Mode. Follow the
instructions below to set or activate the time, date, zone time,
metric or imperial standards, alarm time, stopwatch and timer.
SET CLOCK AND MEASUREMENT UNITS:
You cannot change these settings while in TOUR
Mode. If you attempt to do so, TRIP will show on the display.
Refer to the TOUR Mode section (14).
Diagram Instructions
1.Press MODE to display the CLOCK mode.
2.Press and hold FUNC/SET for 2 seconds. “24h” will flash
on the display.
3.Press ST/SP/- to change from 24 hour to 12 hour time
display.
4.Press FUNC/SET again. The hour will flash. Press SE-
LECT/+ to move the value up, or ST/SP/- to move the
value down.
Tip: Continuouslypress and hold abuttonto fast-change
the value.
5.Repeat Steps 3 – 4 to change the rest of the settings, in
this order: minutes, year, month/date or date/month
display,month,day,timezone(+/- 23 hours), temperature
display (°C / °F), measurement units (feet / meters), and
barometric pressure units (inHg or hPa).
NOTE

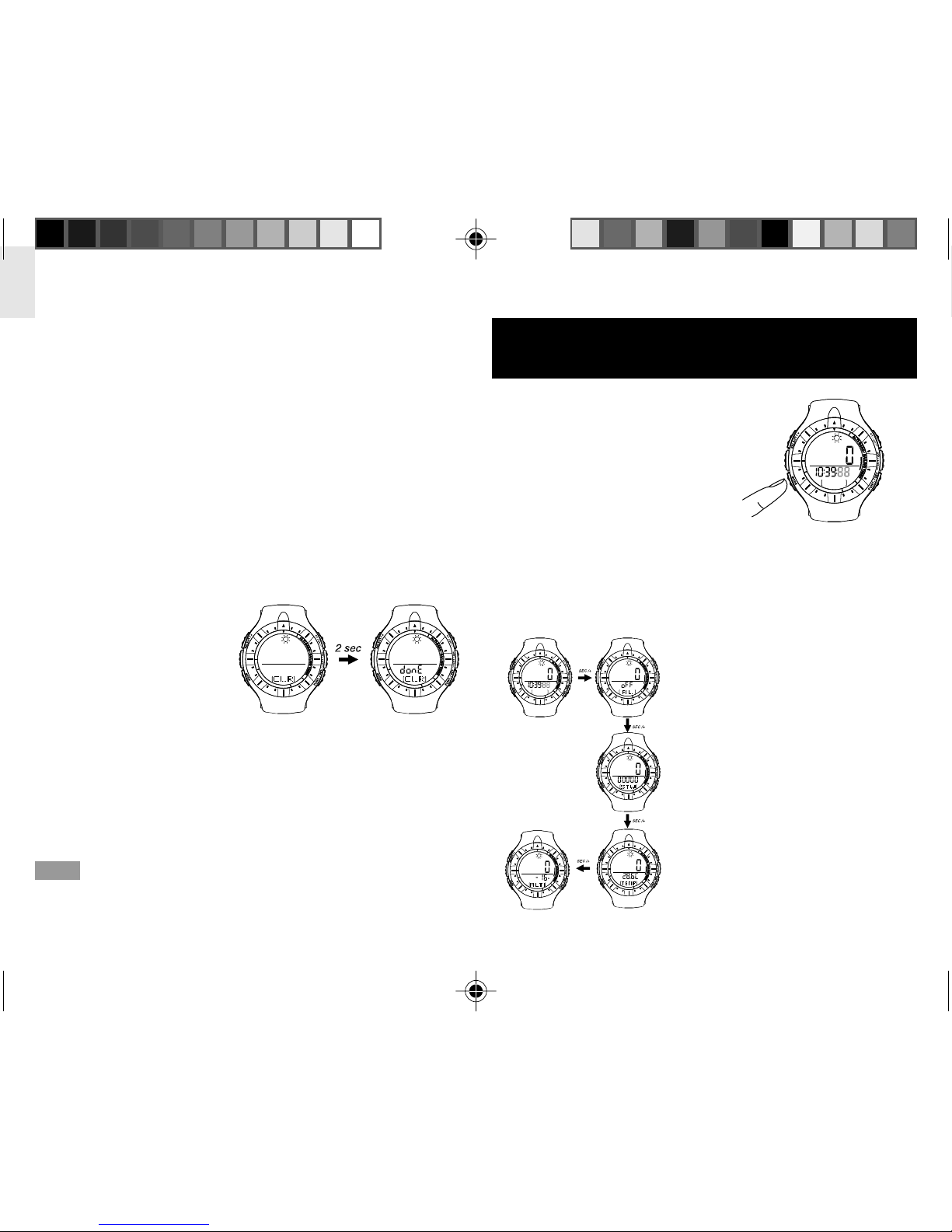

SET THE ALARM
STOPWATCH
TheStopwatchworksin CLOCK, ALTI-BARO,
CARDIO, and BIKE modes. From any of
these modes, press SELECT/+ to display the
stopwatch. Then,
• Press ST/SP/- to start, pause, and stop the
stopwatch.
• With the stopwatch stopped, press and
hold FUNC/SET to reset.
You can switch to other modes while running the stop-
watch in the background.
NOTE
Diagram Instructions
1. Press MODE to display the CLOCK mode.
2. Press SELECT/+ 3 times to move it into the alarm
setting screen.
3. Press ST/SP/- to activate or deactivate the alarm.
A small bell icon will appear on the left side of the
alarm time when it is activated.
4. Press and hold FUNC/SET for2 seconds, to setthe
alarm hour and minutes. Use the SELECT/+ or ST/
SP/- buttons to change the value. (The alarm will
be automatically activated once the alarm time is
set).
RX109-English.P65 2004.9.2, 3:08 PM9

EN
10
TIMER
The Timer works in CLOCK, ALTI-BARO,
CARDIO, and BIKE modes. From any of
these Modes, press SELECT/+ to display
the stopwatch. Press FUNC/SET to reset
the Stopwatch, then:
•PressandholdFUNC/SETfor2seconds.
The display will change to TMR.
• Press ST/SP/- or SELECT/+ to change a value.
• Press FUNC/SET to switch between values and accept
changes.
• Press ST/SP/- to start or stop the timer.
•With the timer stopped, press and hold FUNC/SET to reset.
You can switch to other Modes while running the timer
in the background.
To return to STW Mode, you must reset all the timer
values to 0. The timer automatically switches to STW Mode
when it reaches 0.
NOTE
NOTE
NOTE
TEMPERATURE DISPLAY
The Temperature can be displayed in CLOCK,
ALTI-BARO, CARDIO, and BIKE Modes. From
anyoftheseModes,press SELECT/+ to display
the Temperature. The Temperature shows in
either Celsius or Fahrenheit, depending on the
measurement unit you select when setting the
CLOCK (see CLOCK Mode).
Your wrist temperature may affect the reading, particu-
larly during exercise. Take off the watch and leave it for 15
minutes to get the most accurate reading.
ALTI-BARO MODE

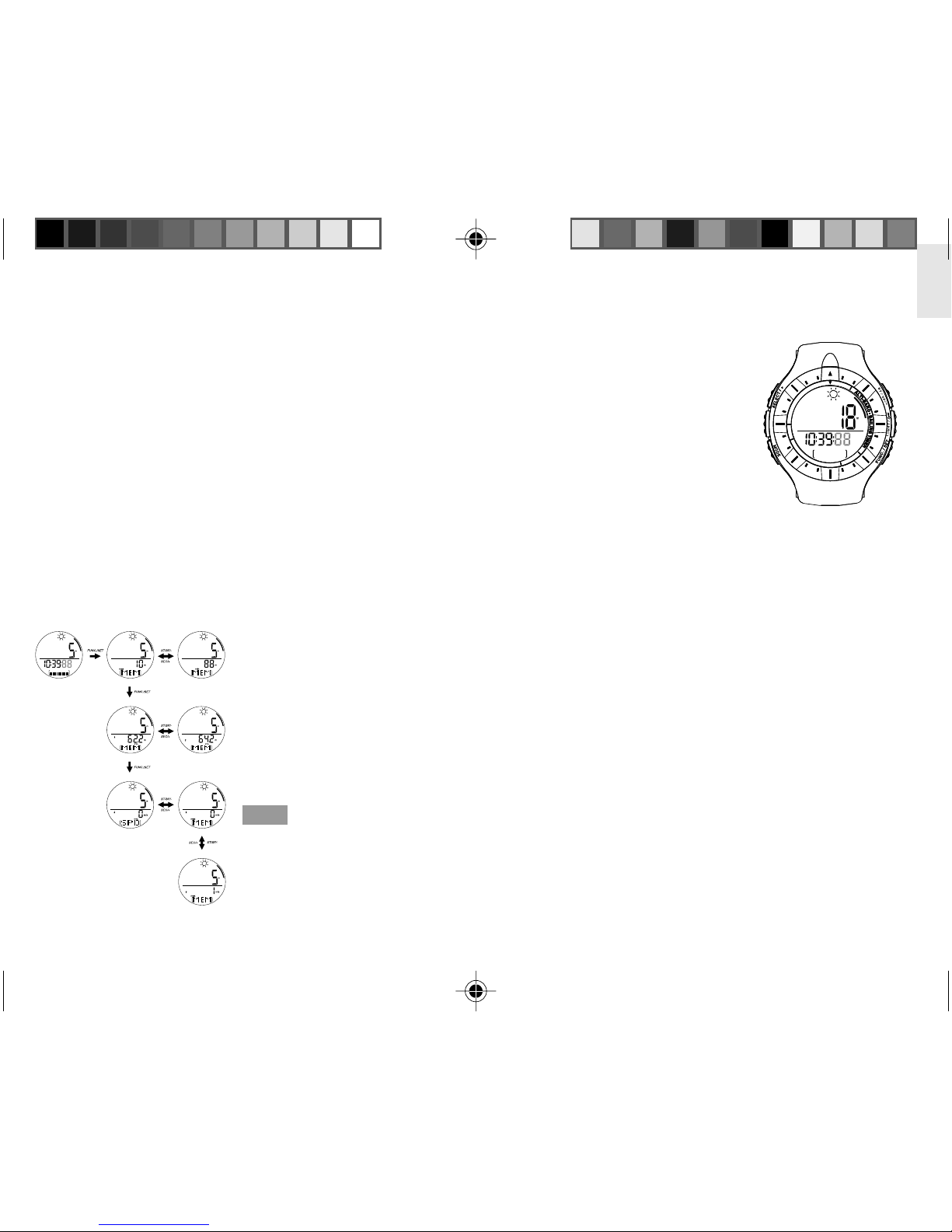

The OUTBREAKER sports watch includes a
barometerthatdistinguishes between pressure
caused by altitude changes and pressure
causedbyweatherconditions.Thistechnology
reduces discrepancies in readings and makes
thealtimetermoreaccurate than most average
devices.
The watch can store and recall the following values:
•Current altitude (updated every 2 seconds)
• Maximum / minimum altitudes attained during your a trip
•Total accumulated maximum / minimum altitudes attained
during your trip
RX109-English.P65 2004.9.2, 3:08 PM10

11
EN

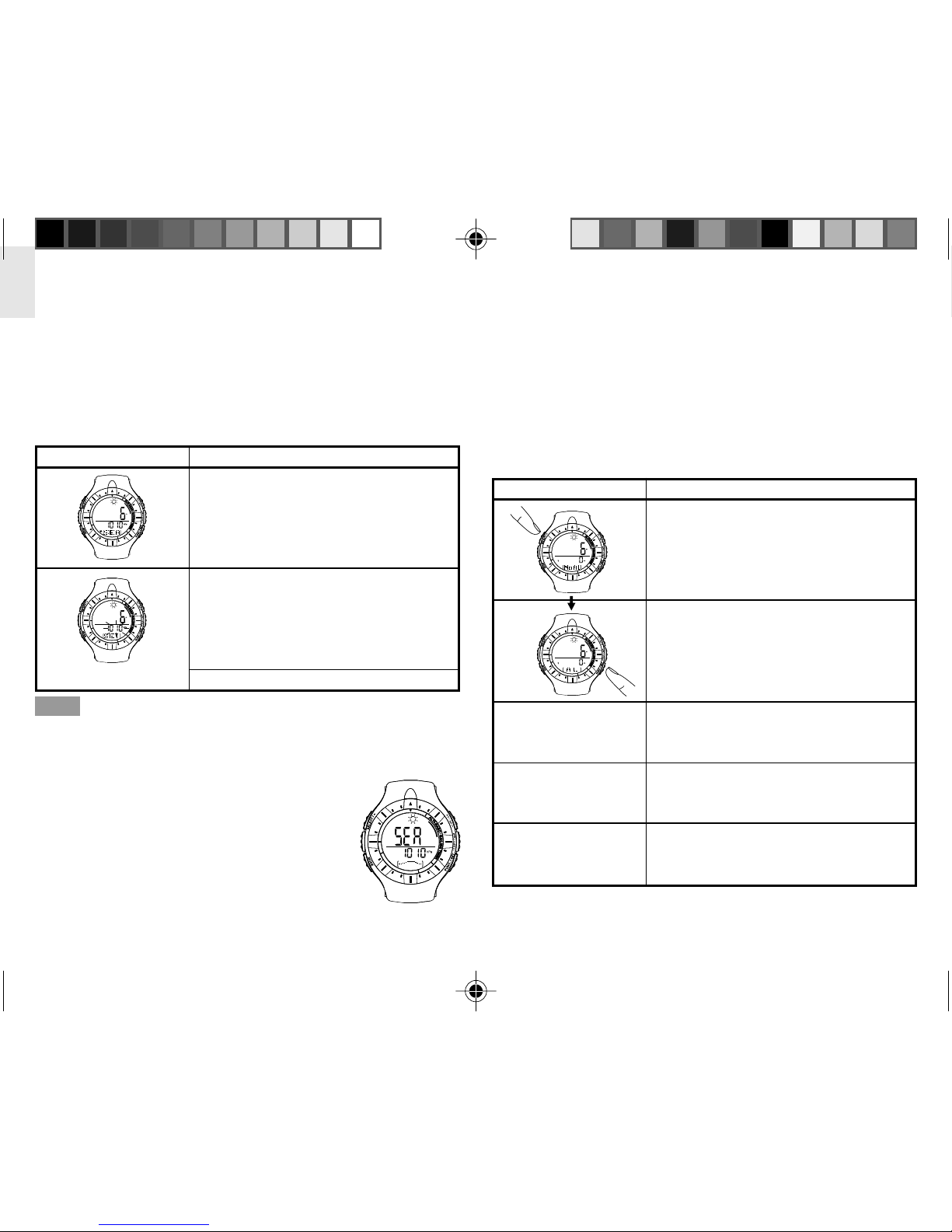

SET CURRENT ALTITUDE AND RESOLUTION
When you first use the watch, it is important to set the current
altitude and local sea-level pressure so your ascending and
descending altitude can be accurately measured. You can
find the current altitude by comparing your position to a
topographical map, and then entering the value in the watch.
It is necessary to reset the altitude after being in a
pressurized chamber (such as an airplane).
For instructions on setting the sea-level pressure, refer to the
next section.
Tip: You can also set the current altitude and alarm limits with
the help of the PC software (see PC section). (RP109 only)
Thesea level pressurereadingwill change if thealtitude
is adjusted.
•Maximum / minimum altitude alert (sounds an alarm when
exceeded)
•Maximum / ascending, maximum descending speeds
•Current vertical speed
•Rate of altitude change
The altitude is shown it two ways, as a numeric value indicating
your current altitude, and as a bar chart indicating changes in
altitude. Both values will change as you move about.
In ALTI-BARO Mode, the current altitude is always
displayedinlargerfont,ineveryscreenexcept the sea pressure-
setting screen.
ACCESSING THE ALTIMETER OPTIONS
Press MODE to access the ALTI-BARO mode, then press
SELECT/+ to loop through the options.
NOTE
NOTE
NOTE
Diagram Instructions
1. Press and hold FUNC/SET for 2 seconds while in
ALT mode.
2. Use SELECT/+ or ST/SP/- to change the value.
The value will change in unit increments based on
the resolution you set (next step) and the
measurement unit you selected when setting the
CLOCK (9).
3. PressFUNC/SETtoswitchtotheResolution setting
screen, then press ST/SP/- to change the value.
Theresolution is the increment atwhichthealtitude
will display: 3 / 10 ft, or 1 / 3 meters.
4. Press FUNC/SET to exit the setting mode.
RX109-English.P65 2004.9.2, 3:08 PM11

EN
12
SET THE SEA-LEVEL PRESSURE
Sea level pressure can change relative to location. To achieve
accurate altitude readings, set the sea-level pressure value
before every trip. Check the newspaper, local news station,
trail marker, or weather forecast for local readings, and always
select the reading nearest to your present location.
The altitude reading will change according to the sea
level pressure adjustment.
VIEW THE SEA-LEVEL PRESSURE
To view a graphical image of the current sea
level pressure reading, press FUNC/SET with
the SEA screen shown in ALTI-BARO Mode.
Press again to return to normal display.
SET ALTITUDE ALERT
The watch can be set to remember an altitude limit (either up or
down, but not both simultaneously). If the alarm is activated, a
series of beeps (at 5 second intervals) will sound, and the mode
bar will blink, when you breach the limit. To end the alert, press
any button.
To set the alert limits and activate or deactivate the alert:
NOTE
Diagram Instructions
1. Press SELECT/+ until you reach the Alarm screen.
(Display reads 'AL' or 'NoAL' at the bottom)
2. Press and hold FUNC/SET for two seconds.
3. You may set the arrow at the bottom of the screen to
a
ascending , or descending limit (but not both). To
change direction, press SELECT/+ or ST/SP/-.
4. Press FUNC/SET again, then press SELECT/+ or
ST/SP/- to change the altitude limit. (The alarm will
be automatically activated once the limits are set).
5. Alternatively press ST/SP/- if you simply want to
accept a preset altitude alert setting. (Activated
[AL] or deactivated [NoAL]).
Diagram Instructions
1. While in ALTI-BARO Mode, press SELECT/+ until
the SEA (sea pressure) screen is shown.
2. Press and hold FUNC/SET for two seconds, then
use SELECT/+ or ST/SP/- to change the value.
The value will change in increments of 1 hPa or
.03 inHg, depending on the measurement unit you
selected in CLOCK Mode (see CLOCK mode).
3. Press FUNC/SET again when finished.
RX109-English.P65 2004.9.2, 3:08 PM12

13
EN
RECALLING ALTITUDE DATA
TheOUTBREAKERallowsyouto track the following information
as you exercise.
•Max / min altitude attained -- shows the highest or lowest
point you have reached so far in relation to your watch’s
permanent altitude setting.
•Max/minaltitude accumulated –representsthetotaldistance
you have ascended or descended; that is, every incline is
added together or ‘accumulated’, and likewise every decline
is added and ‘accumulated’, to give a total.
•Vertical speed -- how fast you are currently climbing
•Max ascending speed – fastest speed you have climbed
•Maxdescendingspeed – fastest speed you have descended
The following illustration shows these points:
These display screens are
shown in a loop, and the
information in each screen is
displayed for 30 seconds
(excluding the ALT/SPD vertical
speed screen, which is not on a
timeout)atwhichpointthe watch
returns to ALT Mode.
Clearing the memory
allows you to start over again on
a new trip, though all the
informationfromyourcurrenttrip
will be lost.
SWITCH BETWEEN VIEW OPTIONS
While in ALT/TIME Mode, press
FUNC/SET to switch between the
view options: max / min altitude, total
ascending / descending altitude, and
speed. In the speed display, you can
view current speed (ascending or
descending), maximum ascending
speed, and maximum descending
speed.
PressSELECT/+ or ST/SP/- to loop through the values for each
option.
To clear a value from the memory, press and hold FUNC/SET
for 2 seconds.
WEATHER FORECAST
The built-in barometer helps to forecast the weather for the next
12-24 hours. This reading is based on barometric pressure
changes and has an effective range of 30 to 50 kilometers
(18 – 31 miles). The patented baro-compensation technology
in the OUTBREAKER watch allows it to differentiate between
pressure changes due to altitude, and those due to weather
changes. To avoid inaccurate forecasts, the watch will favor
altitude readings when you are
actually ascending or
descending. This means the weather icon will disappear after
significantverticalmovements.Todisplayanaccurateforecast,
simply remain at any fixed altitude for roughly 5 minutes.
You may wish to set the icon manually for these reasons:
•The speed in the change of icon forecast depends on the
NOTE
RX109-English.P65 2004.9.2, 3:08 PM13

EN
14
speed of barometric change and in some cases may take
longer (up to 24hrs) than desired.
•Setting the icon can speed up the adjustment for the weather
forecast.
•It is necessary to set the icon after exposure to artificial
environments, such as an airplane cabin, which may cause
incorrect readings.
The forecast will be displayed at the top of the watch as one of
these four icons:
The current barometric pressure reading (in hPa or inHg,
depending on the measurement unit you set in CLOCK Mode)
shows at the bottom of the display.
To set the weather icon manually, follow these instructions:
When functioning normally the watch automatically
updates the forecast every 15 minutes.
Diagram Instructions
1. While in the ALTI-BARO Mode, press SELECT/+
until LOC shows at the bottom of the display.
2. Press and hold FUNC/SET for two seconds.
3. Press SELECT/+ or ST/SP/- to change the icon.
4. Press FUNC/SET to save your changes.
NOTE
TOUR MODE
TherearetwowaysofusingthememoryontheOUTBREAKER.
First, the watch computer will record information as you train,
for display only. This means you can check the information
during or after your exercise, but there will be no record once
you clear the memory in preparation for your next training
event.
To record and store this information (for up to 99 different trips,
depending on the size of each record – see below) you must
activate the TOUR Mode and view the records through the PC
software.
The information from a TOUR can only be viewed
through the PC software.
TOUR MEMORY
Tour mode allows you to record and store data displayed on the
watch, which can then be downloaded onto your PC. Up to 99
TOURs can be recorded and stored to the PC software.
Depending on the model you purchase, the information you
choose to record (see below), and the time used by TOURs you
have already stored on the watch, the available memory length
may vary. The average memory storage capacities in real-
time, (taking a data sample every 5 seconds), assuming default
settings (see Specifications: Tour Mode) and no TOURs have
been saved for each model are as follows:
NOTE
Model Total recording time available
RA109 598 min (10 hours)
RS109 508 min (8.5 hours)
RP109 659 min (11 hours)
RX109-English.P65 2004.9.2, 3:08 PM14

15
EN
The watch can record and store up to 99 different trips,
providing there is enough remaining memory.
Default sampling time for readings in TOUR Mode is every 5
seconds. To increase the gap between samplings, and thus
increase the memory capacity, you can adjust this setting
through the PC software.
ACTIVATE TOUR MODE:
For best results, perform these
stepsimmediatelybeforeyoubegin
your trip.
1. Simultaneously press FUNC/
SET and MODE. The TOUR
END screen will display.
2. Press and hold FUNC/SET for
two seconds. The TOUR number (T1, T2, etc.) will show at
thebottomofthedisplay. Youarenowrecordinginformation.
The percentage (%) at the top indicates the total used
memory.
3. Tostop the TOUR,pressand hold FUNC/SET for 2seconds.
END will show at the bottom of the display. The Tour data will
be stopped.
4. To begin another TOUR, press and hold FUNC/SET for 2
seconds. The new TOUR number (T3, etc.) will show at the
bottom of the display. You are recording information again.
5. Press MODE to return to the CLOCK display.
Used watch memory is given as a percentage. It is
recommended that you download information to your PC and
clear all TOUR memories when this figure approaches 100%.
When the used memory hits 100% it will no longer record, and
any future readings will not be recorded.
RECORD MARKERS IN TOUR MODE
The marker function is used to mark a particular position during
a TOUR. To place a marker, press and hold SELECT/+ when
the TOUR Mode is in use.
The marker will only be shown in the PC data, once it
has been downloaded from the watch.
PAUSE TOUR MODE:
1. If you are not already in TOUR
Mode, simultaneously press
FUNC/SET and MODE. The
TOUR number will display. The
percentage (%) at the top
indicates the total used memory.
2. Press FUNC/SET. REST shows
at the bottom of the display.
3. Press ST/SP/- to turn the rest on (paused) or off (recording).
DEACTIVATE TOUR MODE:
For best results, perform
these steps immediately
after you end your trip.
1. Simultaneously press
FUNC/SET and MODE.
The TOUR number will
display. The percentage
(%) at the top indicates the total used memory.
NOTE
NOTE
2 sec
RX109-English.P65 2004.9.2, 3:08 PM15

EN
16
2. Press and hold FUNC/SET for two seconds. This ENDS the
TOUR recording session.
3. Press MODE to return to the CLOCK display.
CLEAR ALL TOUR MEMORIES
For best results, perform these steps after you download TOUR
information to the PC software.
Either:
1. Download the information to you PC (the TOUR will be
automatically cleared.
Or:
1. Deactivate the TOUR
Mode. With the END
screenshown,pressthe
FUNC/SETbutton. CLR
shows at the bottom of
the display.
2. Press and hold FUNC/
SET until donE shows at the bottom of the display.
3. Press FUNC/SET again to display 0% and confirm all data
has been cleared.
4. Press MODE to return to the CLOCK display.
The maximum and minimum values for the various sub-
modes (i.e., max heart rate, or max altitude, etc) will remain
after all data has been cleared.
NOTE
CARDIO (HEART RATE) MODE
(RS109/RP109 ONLY)
The OUTBREAKER watch is
equipped with a CARDIO Mode
and heart rate chest belt, which
together allow you to measure
yourheartrate(from25-240beats
per minute) while exercising. You
can track your heart rate while in
the ALTI-BARO, CARDIO, or
BIKE Modes, and with the following features: Stopwatch,
Timer, Temperature, and Altimeter display.
There are five screens in the CARDIO Mode including the
HEART RATE/CLOCK/HR chart (starting) screen. They are:
•HEART RATE/CLOCK/HR
chart (starting) screen,
•HEARTRATE/HRalarmon/off/
screen,
•HEART RATE/STW (stopwatch)
screen,
•HEART RATE/TEMP
(temperature) screen,
•HEART RATE/ALTI (altimeter)
screen.
To move between them, simply
press SELECT/+.
RX109-English.P65 2004.9.2, 3:08 PM16

17
EN
WEARING THE CHEST BELT
You must wear the chest belt to measure your heart rate.
This OUTBREAKER watch is specially designed to
work with the chest belt with which it was sold. It is not
recommended you use any other chest belt with this watch, as
the transmission may not work.
Tips: The transmission from the belt is dependent on good
contact with the skin and proximity to the receiver watch. Make
sure the transmitting section of the belt is against the skin, not
blocked by chest hair, and close enough to the receiver watch
(approximately 30 inches) to send a clear signal. Sweat or gel
can help to improve the signal, and remember it is not
instantaneous. If no signal is received immediately, wait for a
few seconds for the signal to get through.
An old battery may weaken the transmission and
reception power. Replace the battery if the performance is
progressively worse.
Once you have good contact with the chest belt, will begin
to flash. This means the signal is being sent and your heart rate
will soon appear in place of the large 0. Your heart rate will be
displayed as the larger font in every screen of this Mode, and
can also be displayed in a smaller font, below the line, while in
BIKE Mode. If you remove the chest belt, or the watch is moved
too far away from it, the signal will be broken.
The CARDIO Mode will stop functioning after no signal
is received for 5 or more minutes.
When you are measuring your heart rate, keep the
watch away from signal generating sources, such as TVs, PCs,
and car engines, as these may impair the reading.
TRAINING ZONES
The OUTBREAKER watch is
equippedwitha special TrainingZone
feature that allows you to pre-select
the optimal heart rate range (50-240
beats per minute) for your activity.
For example, the amount of exertion
required for a stroll in the park is
different from the amount of exertion required for weight lifting
to build muscle mass. With the Training Zone feature, you can
set and then monitor the upper and lower heart rate limits
(Training Zone) that best support your training activity and
goals.
Diagram Instructions
1. Wet the conductive pads on the underside
of the chest belt with few drops of water or a
conductive gel to ensure a better, solid
contact.
2. Put on the belt, wrapping it around the upper
chest so the heart rate monitor is in the
middle of the chest, tucked snugly under the
pectoral muscles.
3. Adjust the belt for comfort and best contact
with the skin.
NOTE
NOTE
NOTE
NOTE
RX109-English.P65 2004.9.2, 3:08 PM17

EN
18
The calculation for determining your upper and lower heart rate
limits is as follows.
Once you know your maximum heart range, you can set the 5
Training Zones (described below) with the PC software (refer
to the online help). With the OUTBREAKER watch, you can
directly set your upper and lower limits for Training Zone 5, and
can set an alarm to sound whenever you exceed the limits for
the selected Training Zone.
Warning: The heart rate limits for Training Zones 1 – 4 are
based on the profile for a 20-year-old young man. If you do not
meet this profile, we HIGHLY RECOMMEND that you either set
the limits for Training Zones 1 – 4 using the PC software, or
follow the steps below to set the limits for Training Zone 5.
The recommended Training Zones are as follows:
High-altitudeactivitiesmayelevateyourmaximumheart
rate.
You can override the zone preference by adjusting the
value through the PC (all zones), or by manually adjusting
Zone 5.
SET UPPER AND LOWER HEART RATE LIMITS
FOR TRAINING ZONE 5
1. PressMODEto accesstheCARDIO
(heart rate) Mode.
2. Press SELECT/+ to switch to the
AL (Alarm) setting.
3. Press and hold FUNC/SET for two
seconds.Thezonenumber will flash
at the bottom of the screen. The upper limit is shown above
the line in larger font, and the lower limit is below. (You may
adjust the value for upper and lower rate limits in Zones 1-
4 by using the PC software. Otherwise pressing ST/SP/- will
simply activate or deactivate the preset alarm).
4. Press SELECT/+ or ST/SP/- to switch to Zone 5.
5. Press FUNC/SET again to display the SET screen
NOTE
Sex Maximum Heart Lower limit Upper limit
Range (MHR)
Men 220 – age = MHR
Women 230 – age = MHR
Zone MHR range Description
(min – max %)
150 – 60% ModerateActivity–Thislow-intensity zone is good for warm-
ups, cool downs, and activities such as brisk walking. It is also
good for beginners and those who want to strengthen their
cardiovascular systems.
260 – 70% Weight Management – Up to 85% of calories burned in this
zone are from fat cells. Moderate exercises such as light
jogging or swimming are good for this zone.
370 – 80% Aerobic Zone – Increases strength and endurance. It works
withinthebody’soxygen intake capability, burnsmorecalories,
and can be maintained for a long period of time.
480 – 90% Anaerobic Zone – Generates speed and power. It works at
or above the body’s oxygen intake capability, builds muscle,
and cannot be maintained for a long period of time.
590 – 100% Red Line Zone – This high-intensity zone can only be
maintained in short bursts or intervals, as it pushes your
muscles and cardiovascular system beyond their capacity.
NOTE
MHR x (lower training zone %) MHR x (upper training zone %)
RX109-English.P65 2004.9.2, 3:08 PM18

19
EN
6. Press SELECT/+ or ST/SP/- to change the upper heart rate
limit.
7. Repeat Steps 5 – 6 to set the lower heart rate limit.
8. Press FUNC/SET when finished.
Heart rate range is between (upper 26-240 bpm) and
(lower 25-239 bpm).
ACTIVATE THE TRAINING ZONE ALARM
Once activated, the Training Zone Alarm will sound whenever
you exceed the upper or lower heart rate limits for the selected
Training Zone.
1. From the CARDIO Mode, press SELECT/+ to switch to the
AL (Alarm) screen.
2. Press and hold FUNC/SET for two seconds.
3. Press SELECT/+ or ST/SP/- to select the desired Training
Zone.
4. Press FUNC/SET.
5. Press ST/SP/- to turn the alarm off or on.
TRACK HEART RATE DURING TRAINING
Toset up the OUTBREAKER watchso
that it can track your heart rate activity
during training, first do the following:
1. Put on the chest belt (refer to the
“Wearing the Chest belt” section).
2. PressMODEto access theCARDIO
Mode and check to make sure the watch is receiving your
heart rate signals.
3. Select the Training Zone that is most appropriate for your
activity (refer to previous section).
4. Activate the Stopwatch or Timer in CARDIO Mode (refer to
the Stopwatch / Timer section).
5. Set up the TOUR Mode if you want to store a long-term
record of your heart rate history that spans several training
sessions or activities (refer to the TOUR Mode section).
Once you complete these steps, you are ready to begin
exercising. After you finish, reset the Stopwatch or Timer to
zero, then press FUNC/SET to have the following metrics
displayed in 5-second intervals:
•Time and date in M1 or M2….M99 (all current data will be
stored under M1, while previous data is stored under M2 and
so on until M99).
•Average heart rate during exercise and Total exercise time
• Upper Training Zone limit and time spent above limit
•Lower Training Zone limit and time spent below limit
•Total time spent exercising within the heart rate limits
If you have more than one set (M1-M99) of training
records, press SELECT/+ or ST/SP/- to loop through the
records.
NOTE
NOTE
RX109-English.P65 2004.9.2, 3:08 PM19

EN
20
STEP 1: ATTACH THE EQUIPMENT TO THE BICYCLE
BIKE MODE (RP109 ONLY)
The OUTBREAKER sports watch comes complete with a
bicyclecomputer(andaccessories),whichrecordsanddisplays
the following information:
•Speed: 0 – 255 km/hour or 0 – 158 mile/hour, depending on
the measurement unit you select (refer to the Clock Mode
section)
•Average speed (Max:255km/hr or 158 mile/hr)
•Maximum speed (Max:255km/hr or 158 mile/hr)
•Cadence: 0 – 255 rpm (pedal revolutions per minute)
•Distance traveled (Max:999.9 km or 620 miles)
•Total distance travelled (Max:99,999.9 km or 620,000 miles)
•Total time spent cycling
The BIKE Mode comprises pioneering technology that uses
two wireless sensors instead of one. The high frequency of
eachsensor(868MHz)eliminatespossible interferencebetween
the cadence and signal sensors, ensuring you accurate
performance measurements.
SET UP FOR BIKE MODE
To set up the BIKE Mode you must first do two things:
1. Attach the measuring equipment to your bicycle:speed
sensor (front wheel), cadence sensor (pedal), two magnets
(front wheel and pedal), and bike mount (handle bar). Refer
to the next section for instructions.
2. Specifyyourwheel circumference. Seebelowforinstructions.
Max 5 mm
Max 100 cm
RX109-English.P65 2004.9.2, 3:08 PM20
