Oregon Scientific Arena SW288 User manual

11
EN
Arena by Oregon Scientific
Model: SW288
User Manual

23
EN
23
Arena by Oregon Scientific
SWIMWATCH (SW288)
USER MANUAL
CONTENTS
Introduction ....................................................................... 3
Control buttons .................................................................. 3
LCD ...................................................................................... 4
Getting started ................................................................... 5
Activate watch (first-time use only) .................................. 5
Set time and user data ..................................................... 5
Main mode .......................................................................... 5
Setup mode ........................................................................ 6
Swim mode ......................................................................... 7
Calibration mode ................................................................ 9
Memory mode ................................................................... 10
Silence alarm .....................................................................11
Backlight and keypad lock ...............................................11
Use in the water ............................................................... 12
Battery replacement ........................................................ 13
Specifications ................................................................... 14
Precautions ..................................................................... 14
About Oregon Scientific .................................................. 16
About Arena ..................................................................... 16
EU-Declaration of Conformity ......................................... 17

23
23
EN
INTRODUCTION
Thank you for selecting this Arena Swimwatch (SW288). This
is a specially designed watch for swimming purpose, and is
equipped with automatic lap counter, stroke counter, calorie
counter, exercise timer and memory function.

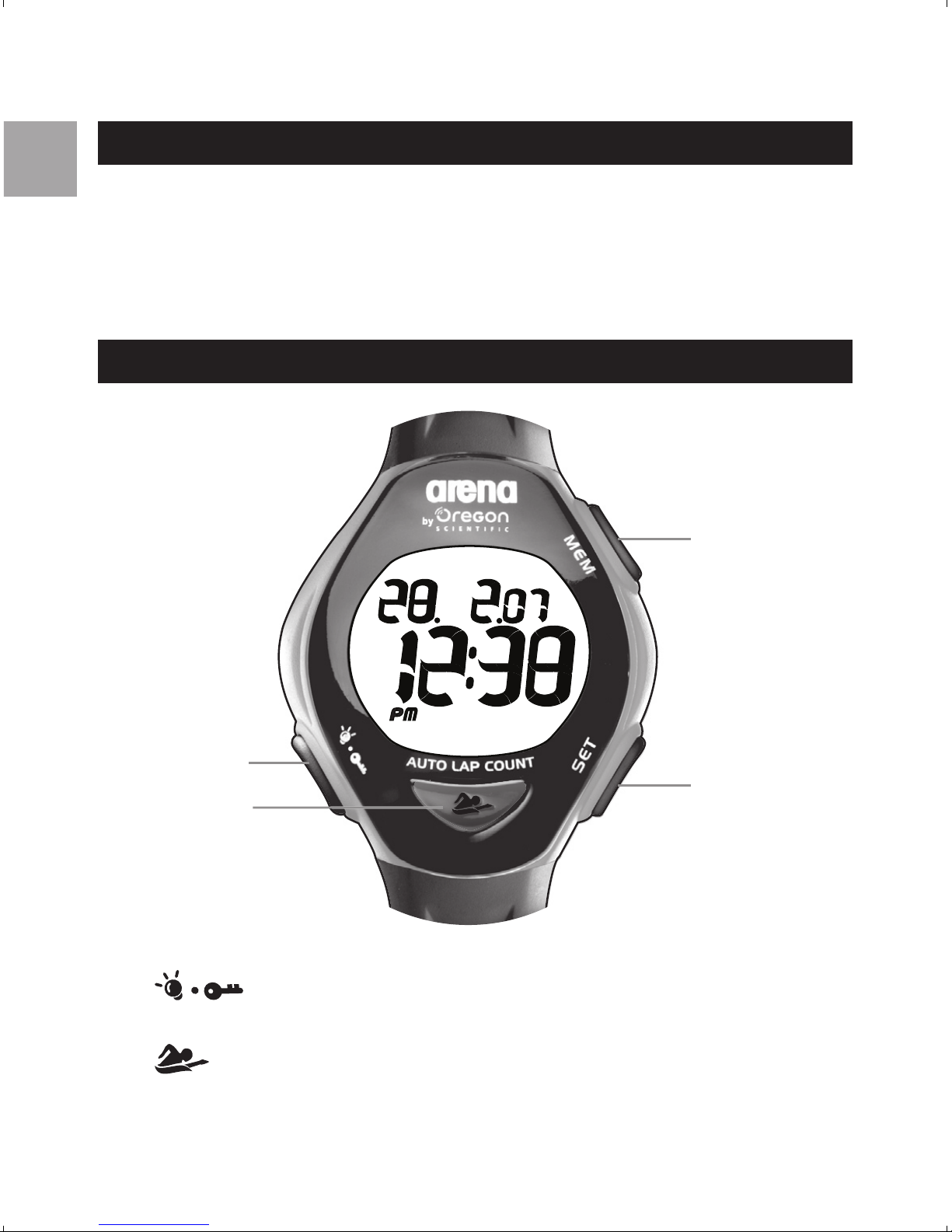

CONTROL BUTTONS
1
2
3
4
1. : Activate backlight; lock / unlock keypad
2. (SWIM): Enter Swimming Mode; start / stop exercise
timer; immediate exit; decrease values
3. MEM: Enter Memory Mode; view memory record; increase
values

45
EN
45
4. SET: Enter Setting Mode; move to next page or setting
option
LCD
1
2
3
4
5
7
6
8 9 10 11
13
14
15
12
17
16
18
19
1. or : Indicates battery power is low
2. : Indicates swimming style is displayed
3. Displays mode banners and numerical values
4. : Indicates keypad is locked
5. : 12/24 hour clock
6. : Indicates the number of strokes is displayed
7. : Indicates beep tone is Off
8. : Indicates alarm is On

45
45
EN
9. : Smart indicator to press the button for toggling or for
decreasing values
10. : Press to exit
11. : Indicates SET is pressed and held
12. : Indicates there is a following page
13. : Pool length unit
14. : Calorie unit
15. : Weight unit (Pounds / Kilograms)
16. : Press to view the record contents in Memory Mode
17. : Smart indicator to press the button for toggling or for
increasing values
18. : Indicates exercise timer is displayed
19. : Indicates you are in Memory Mode
GETTING STARTED
ACTIVATE WATCH (FIRST-TIME USE ONLY)
Press and hold any key until the screen is activated.
SET TIME AND USER DATA
To effectively use the watch for calculating calorie burned
(based on stroke frequency, exercise time and user body
weight), you are advised to set the time and your user data in
the Setup Mode. Refer to Setup Mode in this manual.
MAIN MODE
The Main Mode is the default display mode, which displays
the current time and date.

67
EN
67
SETUP MODE
In the Setup Mode, you can set the user’s weight, time, date,
alarm On/Off and alarm time, and beep tone On/Off.
1. Press SET to enter Setup Mode.
2. Wait for the screen to appear.
3. Press and hold SET to set values in each setting option (or
press SET once to skip to the next setting option). Press
MEM to increase values or to decrease values. The
setting options (in sequence) are:
• Weight - weight unit, weight value
• Time - 12/24 format, hour and minute
• Date - year, month-day/day-month format, month and
day
• Alarm - alarm On/Off (press MEM to toggle), hour and
minute
• Beep - beep tone On/Off (press MEM to toggle)
4. Press SET to confirm.
IMPORTANT
• Set the time and your user data after every battery
replacement.
• Re-set the user data when used by a different user.
REMARK Press anytime to return to Main Mode.

67
67
EN
SWIM MODE
Press to enter Swim
Mode and wait for the
screen to appear.
Press SET, then follow steps 6-10 in
Calibration Mode, or press to
return to Main Mode.
Press SET.
To select other
setting
Press and
hold SET
until the
display
starts to
flash.
Press MEM to select the swimming
style and pool length, then press SET
to confirm. The setting sequence is:
swimming style, pool length.
If the setting is
not calibrated
If the setting is
not calibrated
To use this
setting
If the setting is
calibrated
If the setting is
calibrated
After stopping the watch, it will display in auto
toggle for 30 seconds the total exercise time
and calorie burned with the total lap count
and stroke count, then return to Main Mode
automatically.
You can also press to return to
Main Mode.
Press to start
and stop swimming.

89
EN
89
IMPORTANT
• The watch must be calibrated when it is to be used by a
different user.
• Swimming should be continuous and make sure to use the
same swimming style and pool length as calibrated.
REMARK
• Except in swimming, press anytime to return to Main
Mode; the watch will also return to Main Mode if idled for
30 seconds.
• The watch is water-resistant up to 50 metres and allows for
pressing of buttons under 1 metre deep maximum.
• While swimming, the watch will display the exercise time
and stroke count.
• The pool lengths available are 25m and 50m.
• The swimming styles available are:
Freestyle Backstroke Breaststroke Butterfly

89
89
EN
CALIBRATION MODE
The watch must be calibrated when it is to be used by a different
user or used in a different setting (different swimming style
and pool length).
1. Press and hold to enter Calibration
Mode and wait for the screen to appear.
2. Press MEM to select the swimming style
(Freestyle, Backstroke, Breaststroke,
Butterfly).
3. Press SET to confirm.
4. Press MEM to select pool length (25 m
or 50 m).
5. Press SET to confirm.
6. The watch will prompt you to swim 1 lap (a lap
means swimming to the opposite end of the pool
and back again to the starting point once).
7. Press and start swimming immediately. Do not
wait for a while before swimming.
8. After completing 1 lap,
press immediately
to stop. Do not wait for a
while before pressing.
If calibration fail
9. Press SET to go to Swim
Mode and start swimming,
or press to return to
Main Mode.
If calibration is
successful
10. Press SET
to retry, or
press
to return to
Main Mode.

10 11
EN
10 11
IMPORTANT
• Calibrate the watch after being reset and after battery
replacement.
• The calibration should reflect your actual swimming style
and pool length.
• While calibrating, swimming should be continuous and
swimming style should maintain the same.
REMARK Except in swimming, press anytime to return
to Main Mode; the watch will also return to Main Mode if idled
for 30 seconds.
MEMORY MODE
The watch stores the latest 7 exercise records. Each record
contains the swimming style, total distance, total lap count, total
stroke count, total exercise time and calorie burned.
1. Press MEM to enter Memory Mode.
2. Wait for the screen to appear.
3. Press SET repeatedly to select the record to view.
4. Press MEM repeatedly to view the 3 content pages of the
selected record and to return to the record page.

10 11
10 11
EN
The watch will also automatically toggle for 3 seconds among
the content pages, but it cannot return to the record page.
Press MEM to return.
REMARK Press anytime to return to Main Mode.
To reset records:
You cannot reset the records manually. The watch is designed
to automatically reset the records.
SILENCE ALARM
Press any button to silence an alarm. If the alarm is not
deactivated, it will turn on at the same time the following day.
BACKLIGHT AND KEYPAD LOCK
To activate backlight:
Press to turn backlight On for 3 seconds.
NOTE The backlight function will not operate if “ ” or
“ ” is displayed.
To toggle keypad lock On or Off:
Press and hold for 2 seconds. indicates keypad
is locked.

12 13
EN
12 13
USE IN THE WATER
The SW288 is water-resistant up to 50 meters (164 feet).
RAIN
SPLASHES
ETC
OK
SHOWERING
(WARM/
COOL
WATER
ONLY)
OK
LIGHT
SWIMMING/
SHALLOW
WATER
OK
SHALLOW
DIVING/
SURFING/
WATER
SPORTS
OK
SNORKELING/
DEEP
WATER
DIVING
NO
50M /
164 FEET
NOTE The watch is water-resistant up to 50 metres and allows
for pressing of buttons under 1 metre deep maximum.

12 13
12 13
EN
BATTERY REPLACEMENT
The SW288 uses a CR2032 lithium battery, which has already
been installed.
“ ” or “ ” Indicates battery power is low.
To replace battery:
NOTE When the battery compartment is opened or battery
is replaced, all data in the watch will be reset.

14 15
EN
14 15
SPECIFICATIONS
Real time clock 12 / 24 format with hour /
minute
Lap measurement range 0 – 999 laps
Stroke measurement
range 0 – 9 999 strokes
Exercise timer range 99:59’59’’
Calorie measurement
range 0 – 9 999 kcal
Body weight range 20 – 225 kg (44 – 495 lb)
Power 1 x CR2032 lithium battery
Operating temperature 0°C to 40°C (32°F to
104°F)
Storage temperature -20°C to 60°C (-4°F to
140°F)
PRECAUTIONS
To ensure you use your product correctly and safely, read
these warnings and the entire user manual before using the
product:
• Use a soft, slightly moistened cloth. Do not use abrasive or
corrosive cleaning agents, as these may cause damage.

14 15
14 15
EN
Use lukewarm water and mild soap to clean the device
thoroughly after each training session. Never use the
product in hot water or store it when wet.
• Do not subject the product to excessive force, shock,
dust, temperature changes, or humidity. Never expose
the product to direct sunlight for extended periods. Such
treatment may result in malfunction.
• Do not tamper with the internal components. Doing so will
terminate the product warranty and may cause damage.
The main unit contains no user-serviceable parts.
• Do not scratch hard objects against the LCD display as this
may cause damage.
• Take precautions when handling all battery types.
• Remove the batteries whenever you are planning to store
the product for a long period of time.
• When replacing batteries, use new batteries as specified
in this user manual.
• The product is a precision instrument. Never attempt to
take this device apart. Contact the retailer or our customer
service department if the product requires servicing.
• Do not touch the exposed electronic circuitry, as there is a
danger of electric shock.
• Check all major functions if the device has not been used for
a long time. Maintain regular internal testing and cleaning
of your device. Have your device serviced by an approved
service centre annually.
• When disposing of this product, ensure it is collected
separately for special treatment and not as normal
household waste.
• Due to printing limitations, the displays shown in this manual
may differ from the actual display.

16 17
EN
16 17
• The contents of this manual may not be reproduced without
the permission of the manufacturer.
NOTE The technical specifications for this product and the contents
of the user manual are subject to change without notice.
NOTE Features and accessories will not be available in all
countries. For more information, please contact your local
retailer.
ABOUT OREGON SCIENTIFIC
Visit our website (www.oregonscientific.com) to learn more
about Oregon Scientific products. If you’re in the US and would
like to contact our Customer Care department directly, please
visit: www2.oregonscientific.com/service/support
OR
Call 1-800-853-8883.
For international inquiries, please visit: www2.oregonscientific.
com/about/international
ABOUT ARENA
Visit our website (www.arenainternational.com) to learn more
about the Arena Brand and products, such as swimwear
and accessories for both pool competition and leisure. The
site also includes a wide overview of Arena history and
company philosophy, as well as the profiles of top athletes and
federations swimming in Arena, a glossary of swimming and
all contact information to reach us.

16 17
16 17
EN
EU-DECLARATION OF CONFORMITY
Hereby, Oregon Scientific, declares that this Swimwatch
(Model: SW288) is in compliance with EMC directive 89/336/
CE. A copy of the signed and dated Declaration of Conformity
is available on request via our Oregon Scientific Customer
Service.

11
DE
Arena by Oregon Scientific
SCHWIMMUHR (SW288)
BEDIENUNGSANLEITUNG
INHALT
Einleitung ........................................................................... 2
Bedientasten ...................................................................... 2
LCD-anzeige ....................................................................... 3
Erste schritte ...................................................................... 4
Die uhr aktivieren (nur bei erstmaliger inbetriebnahme) ....... 4
Uhrzeit und benutzerdaten einrichten .............................. 4
Hauptmodus ....................................................................... 5
Einstellmodus .................................................................... 5
Schwimm-modus ............................................................... 7
Kalibrierungsmodus .......................................................... 9
Speichermodus ................................................................ 10
Den alarm stumm schalten ..............................................11
Hintergrundbeleuchtung und tastensperre ....................11
Verwendung im wasser ................................................... 12
Batteriewechsel ................................................................ 12
Technische daten ............................................................. 13
Vorsichtsmaßnahmen .................................................... 14
Über Oregon Scientific .................................................... 16
Über Arena ........................................................................ 16
EU-konformitätserklärung ............................................... 16

23
DE
23
EINLEITUNG
Wir danken Ihnen, dass Sie sich für die Arena Schwimmuhr
(SW288) entschieden haben. Dies ist eine speziell entwickelte
Uhr für Schwimmzwecke; sie ist mit einem automatischen
Rundenzähler, Zähler für Armzüge, Kalorienzähler,
Trainingstimer und Speicherfunktion ausgestattet.
BEDIENTASTEN
1
2
3
4
1. : Hintergrundbeleuchtung aktivieren; Tasten
sperren/ entsperren
2. (SWIM): Schwimm-Modus aufrufen; Trainingstimer
starten / beenden; sofort beenden; Werte verringern

23
23
DE
3. MEM: Speichermodus aufrufen; Speicherdatensatz
anzeigen; Werte erhöhen
4. SET: Einstellungsmodus aufrufen; zur nächsten Seite oder
Einstellungsoption übergehen
LCD-ANZEIGE
1
2
3
4
5
7
6
8 9 10 11
13
14
15
12
17
16
18
19
1. oder : Gibt an, dass die Ladung der Batterie
niedrig ist
2. : Schwimmstil wird angezeigt
3. Modusbanner und numerische Werte werden angezeigt
4. : Gibt an, dass die Tasten gesperrt sind
5. : 12/24-Stundenuhr
