Oregon Scientific VIBRA Trainer Elite User manual

VIBRA Trainer Elite /
VIBRA Trainer Elite Pro
Model: SE212 / SE233
User Manual
SE212 English Cover R3 OP 10/4/04, 11:23 AM1
Black

1
EN
TABLE OF CONTENTS
Introduction ............................................................................ 3
Key Features .......................................................................... 4
Watch ................................................................................... 4
LCD Display ......................................................................... 5
Getting Started ....................................................................... 8
Unpacking the Watch ........................................................... 8
Turning On the Watch ( irst-Time Use Only) ...................... 8
Batteries ............................................................................... 8
Wearing the Chest Belt and Watch .................................... 11
Transmission Signal .......................................................... 12
Signal Search .................................................................... 14
Setting the Keypad Tone / Light Mode ............................... 14
Activating the Backlight ...................................................... 15
Switching Between Operation Modes ................................ 15
sing the Clock .................................................................... 16
sing the Alarm(s) ............................................................... 17
Setting the Alarm(s) ........................................................... 17
Turning the Alarm Sound Off ............................................. 17
Activating / Deactivating the Alarm .................................... 18
Exercise Profile .................................................................... 18
Target Activity .................................................................... 20
Maximum / Lower / Upper Heart Rate Limit ....................... 20
Heart Rate Alert ................................................................. 21
ser Profile ........................................................................... 21
Activity Level ...................................................................... 23
About the Fitness / Body Mass Index ................................ 23
itness Index ..................................................................... 23
Body Mass Index (VIBRA Trainer Elite Pro Only) .............. 24
View itness / Body Mass Index ........................................ 25
VIBRA Trainer Elite /
VIBRA Trainer Elite Pro
Model: SE212 / SE233
SER MAN AL
SE212 English R3 OP 8/28/04, 5:27 PM1
Black

2
EN
About the SMART TRAINING PROGRAM .......................... 25
Using the SMART TRAINING PROGRAM ........................ 26
View Data while SMART TRAINING PROGRAM is Running .. 27
View SMART TRAINING PROGRAM Memory Records ... 28
Recovery Heart Rate (VIBRA Trainer Elite Pro Only) ........ 28
Stopwatch ............................................................................. 29
View Data while Stopwatch / Lap is Running .................... 29
View Stopwatch or Lap Memory Records .......................... 30
Training Information ............................................................ 31
How the Heart Rate Monitor Helps You ............................. 31
Training Tips ...................................................................... 32
Care Instructions ................................................................. 32
Aquatic and Outdoor Activities ........................................... 33
Tips for Keeping Your Watch it ........................................ 33
Specifications ....................................................................... 33
Warnings ............................................................................... 35
About Oregon Scientific ...................................................... 35
SE212 English R3 OP 8/28/04, 5:27 PM2
Black

3
EN
INTROD CTION
Thank you for selecting the Oregon ScientificTM VIBRA Trainer
Elite (SE212) / VIBRA Trainer Elite Pro (SE233) watch as your
sports fitness product of choice. This precision device includes
the following features:
• Heart rate monitor with cordless transmission between watch
and chest belt.
• Digital coding system to reduce environmental interference.
• Heart rate monitoring system when you go above or below
your upper and lower heart rate limit.
• Vibration, visual or sound alert for heart rate thresholds during
training.
• Memory stores heart rate figures during exercise.
• SMART TRAINING PROGRAM enables you to complete
exercise cycles effectively.
• Calorie consumption and percent fat burn display during and
after exercise.
• Exercise profile - to calculate your personal heart rate limit for
training.
• User profile - to calculate your fitness index and body mass
index (BMI - VIBRA Trainer Elite Pro only).
• Stopwatch.
• 99 lap memory storage showing average heart rate and
maximum heart rate. (VIBRA Trainer Elite Pro only.)
• Dual alarms with a choice of daily, weekday or weekend
settings.
• Mounting bracket, chest belt and carrying case included.
• Watch - up to 50 metres water resistant.
• Chest belt - splash proof.
The use of the SE212 or SE233 watch is for sport
purposes only and it is not meant to replace any medical advice.
This manual contains important safety and care information, and
provides step-by-step instructions for using this product. Read
the manual thoroughly, and keep it in a safe place in case you
need to later refer to it.
IMPORTANT
SE212 English R3 OP 8/28/04, 5:27 PM3
Black

4
EN

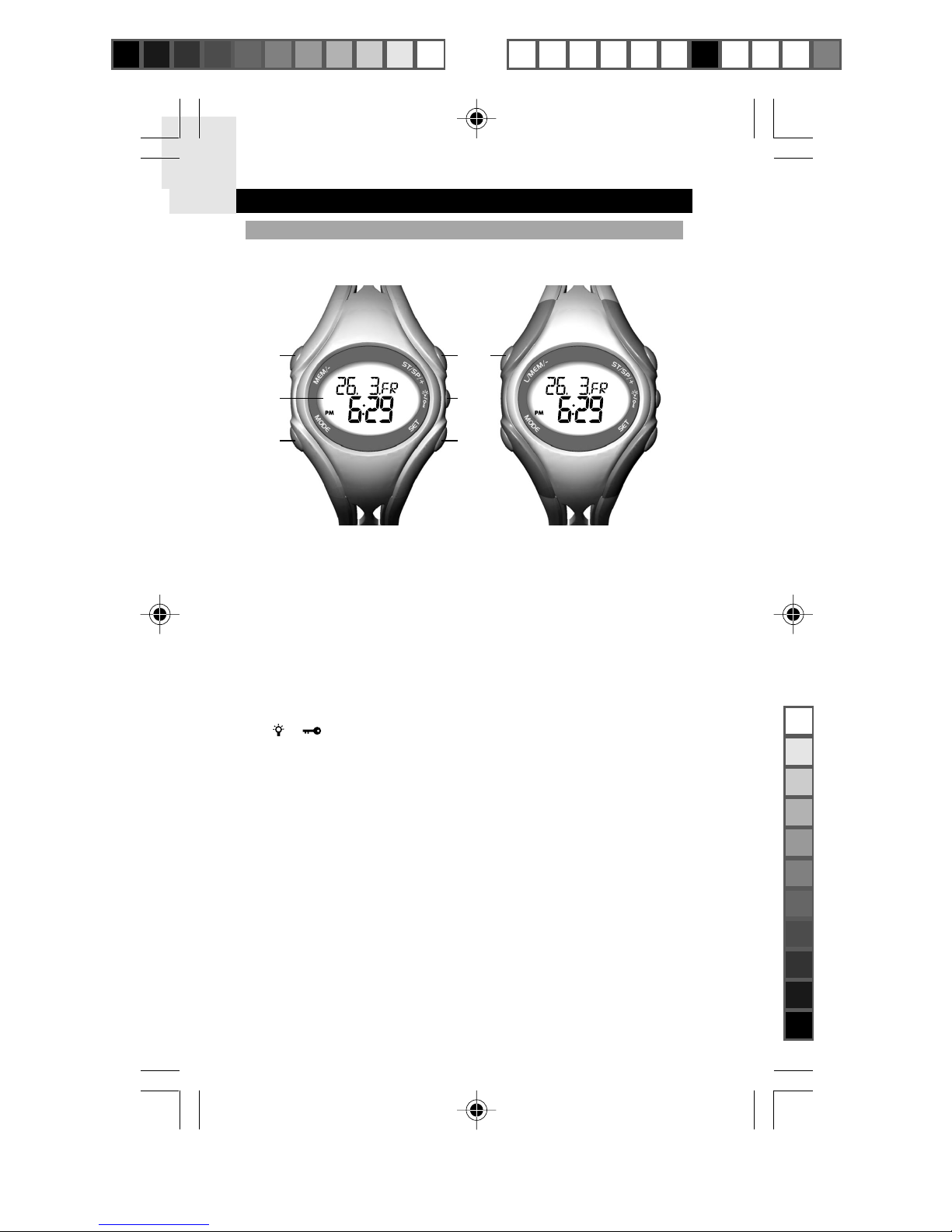

KEY FEAT RES
WATCH
SE212 - VIBRA Trainer Elite SE233 - VIBRA Trainer Elite Pro
1. - VIBRA Trainer Elite only - MEM / -: Display training records;
decrease setting value.
- VIBRA Trainer Elite Pro only - L / MEM / -: Display training
records; decrease setting value; mark a lap.
2. LCD display.
3. MODE: Switch to another display.
4. ST / SP / +: Start / stop timer; increase setting value.
5. / : Turn on backlight for 3 seconds; lock / unlock the
keypad.
6. SET: Enter Setting Mode; select another setting option; display
different information during training.
4
5
6
1
2
3
1
SE212 English R3 OP 8/28/04, 5:27 PM4
Black

5
EN
2
1
3
1. TTL: Total exercise time is displayed.
2. WARM: Warm-up timer is shown or running.
3. REST: Recovery timer is shown or running.
4. TIMER: SMART TRAINING PROGRAM is shown or running.
5. SPLIT: Shows and calculates split time (VIBRA Trainer Elite
Pro only).
6. : Stopwatch is shown or running.
7. LAP: Shows current lap time or memory lap time (VIBRA
Trainer Elite Pro only).
LCD DISPLAY
1. Area 1
2. Area 2
3. Area 3
Area 1
1
4
6
7
5
2
3
SE212 English R3 OP 8/28/04, 5:27 PM5
Black

6
EN

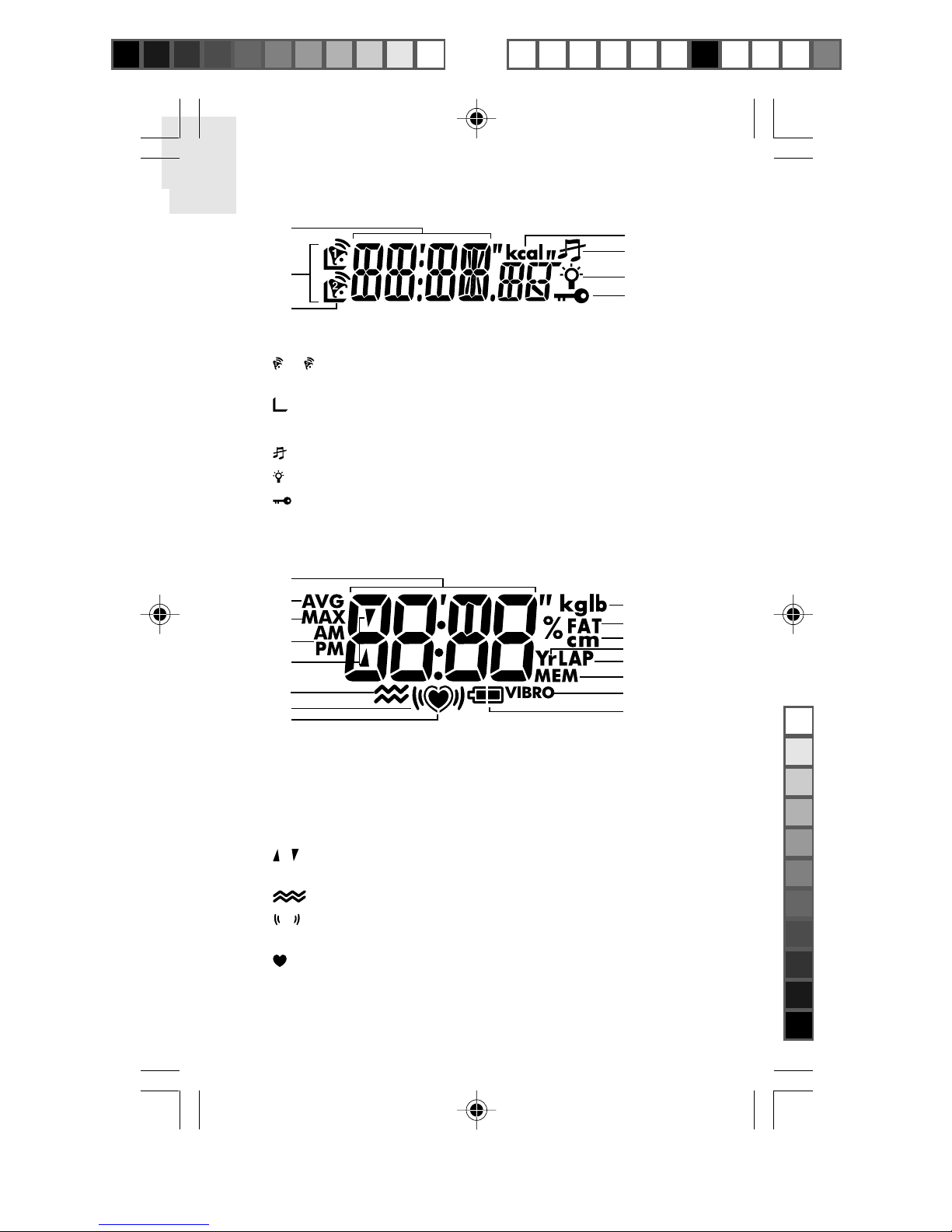

1. Date: MM:DD or DD:MM and day of the week; stopwatch time.
2. / : Alarm 1 and 2 time; waves show when alarm
is activated.
3. : Cursor highlights the selected alarm in Alarm Mode.
4. kcal: Calorie unit.
5. : Keypad tone is disabled.
6. : Light Mode is enabled.
7. : Keypad lock is enabled.
Area 3
Area 2
1. Time: HH:MM.
2. AVG: Average heart rate is displayed.
3. MAX: Maximum heart rate is displayed.
4. AM / PM: Appears when the 12-hour clock / alarm is being used.
5. / : lash in Timer / Stopwatch Mode when the heart rate is
above or below the upper and lower zone.
6. : Heart rate alert is set to vibrate.
7. : Heart rate is above or below limit; sound alert is
activated.
8. : lashes when receiving heart rate signal.
9. kg / lb: Body weight unit.
10. % FAT: Percentage of fat burn.
4
1
2
3
5
6
7
1
2
3
4
5
6
7
8
9
10
11
13
14
15
16
12
SE212 English R3 OP 8/28/04, 5:27 PM6
Black

7
EN
11. cm: Height unit.
12. Yr: Year of user's birth.
13. LAP: Take lap; lap number (VIBRA Trainer Elite Pro only).
14. MEM: Stopwatch or timer memory is shown.
15. VIBRO: Battery is too low for vibrate function.
16. : Battery status.
SE212 English R3 OP 8/28/04, 5:27 PM7
Black

8
EN
GETTING STARTED
NPACKING THE WATCH
When you unpack your VIBRA Trainer Elite / VIBRA Trainer Elite
Pro watch, make sure to keep all the packing materials in a safe
place, in case you need to later transport or return the product for
servicing.
In this box, you will find:
• Watch
• Heart rate chest belt
• Mounting bracket
• Carry case
• 2 x CR2032 lithium batteries - already installed
T RNING ON THE WATCH (FIRST-TIME SE ONLY)
Press any key for 2 seconds to activate the LCD display.
BATTERIES
The VIBRA Trainer Elite / VIBRA Trainer Elite Pro uses two CR2032
lithium batteries, one for the watch and another for the heart rate
chest belt. Both are already installed. See the table below for
battery warnings.
LOW BATTERY ICON DESCRIPTION
The battery is too low to run the
backlight
The battery is too low to run the
vibration alert
The batteries typically last one year. We highly recommend that
you contact the retailer or our customer service department if you
need to replace them.
The watch battery is low; the
vibration alert and backlight cannot
be used
The chest belt battery is nearly too
low to send a signal to the watch
SE212 English R3 OP 8/28/04, 5:28 PM8
Black

9
EN
To replace the watch battery:
1. Turn the watch over so that you are looking at the back plate.
2. Disconnect the watchstrap as shown above.
3. Using a small screwdriver, remove the four screws that hold
the back plate into position.
4. Remove the back plate and set it aside.
5. Using a thin blunt instrument, hook the release catch and lift
the clip.
6. With your finger, remove the old battery and set it aside.
7. Slide the new battery into the battery compartment with the +
side upwards.
8. Replace the battery clip.
9. Replace the back plate and screws.
SE212 English R3 OP 8/28/04, 5:28 PM9
Black

10
EN

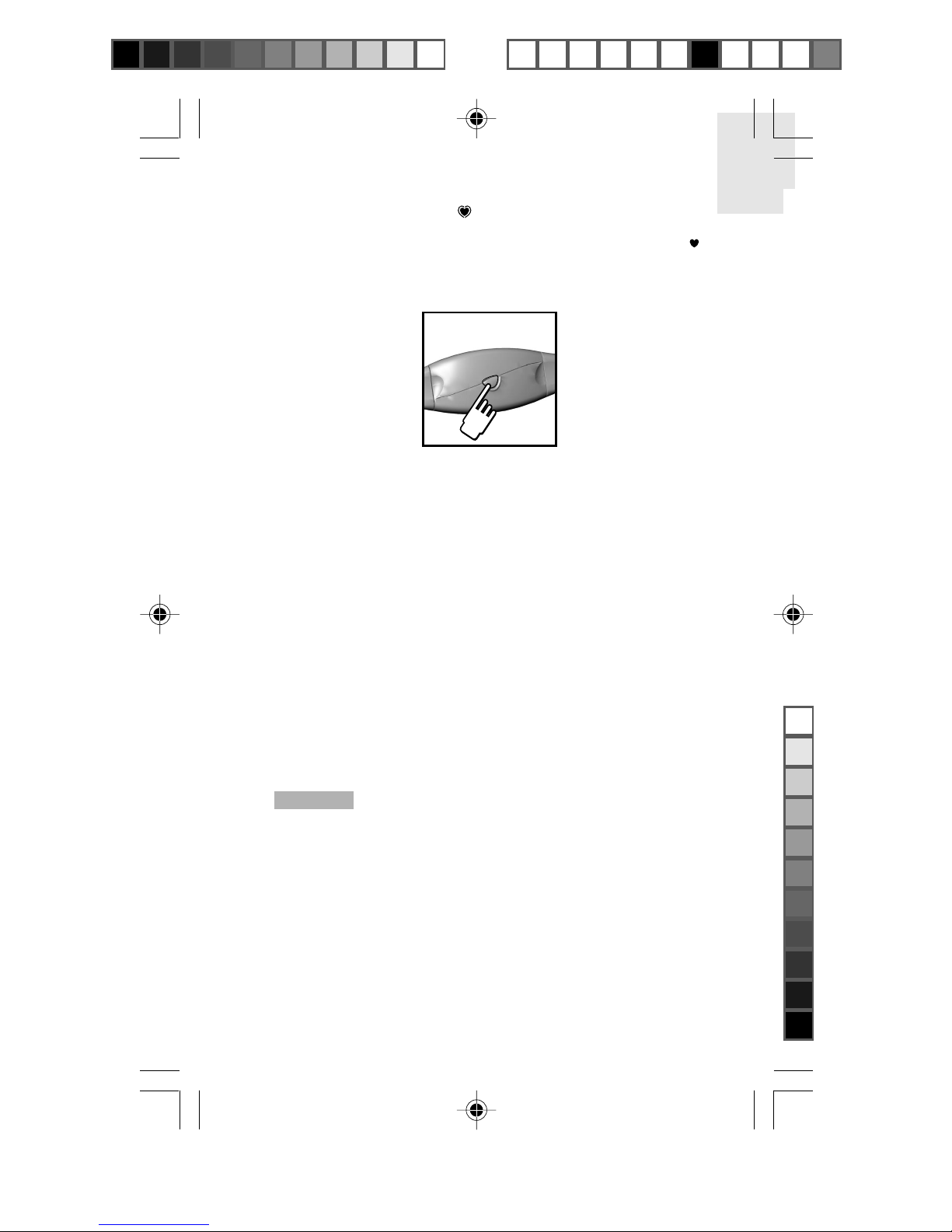

To replace the chest belt battery:
1. Locate the battery compartment on the back of the chest belt.
2. Using a coin, as shown above, twist the compartment lid
counter-clockwise until it clicks out of place.
3. Set the battery compartment lid aside.
4. With your finger, remove the old battery and set it aside.
5. Insert the new battery with the + side upwards.
6. Replace the battery compartment lid by twisting it clockwise
until it is firmly in place.
IMPORTANT
• Non-rechargeable and rechargeable batteries must be
disposed of properly. or this purpose, special containers are
provided for non-rechargeable and rechargeable battery
disposal at communal collection centres.
• Batteries are extremely dangerous when swallowed!
Therefore, keep batteries and the article away from infants. If
a battery has been swallowed seek immediate medical advice.
• The batteries supplied must not be recharged, reactivated by
any other means, dismantled, put into fire or short-circuited.
SE212 English R3 OP 8/28/04, 5:28 PM10
Black

11
EN
TIPS

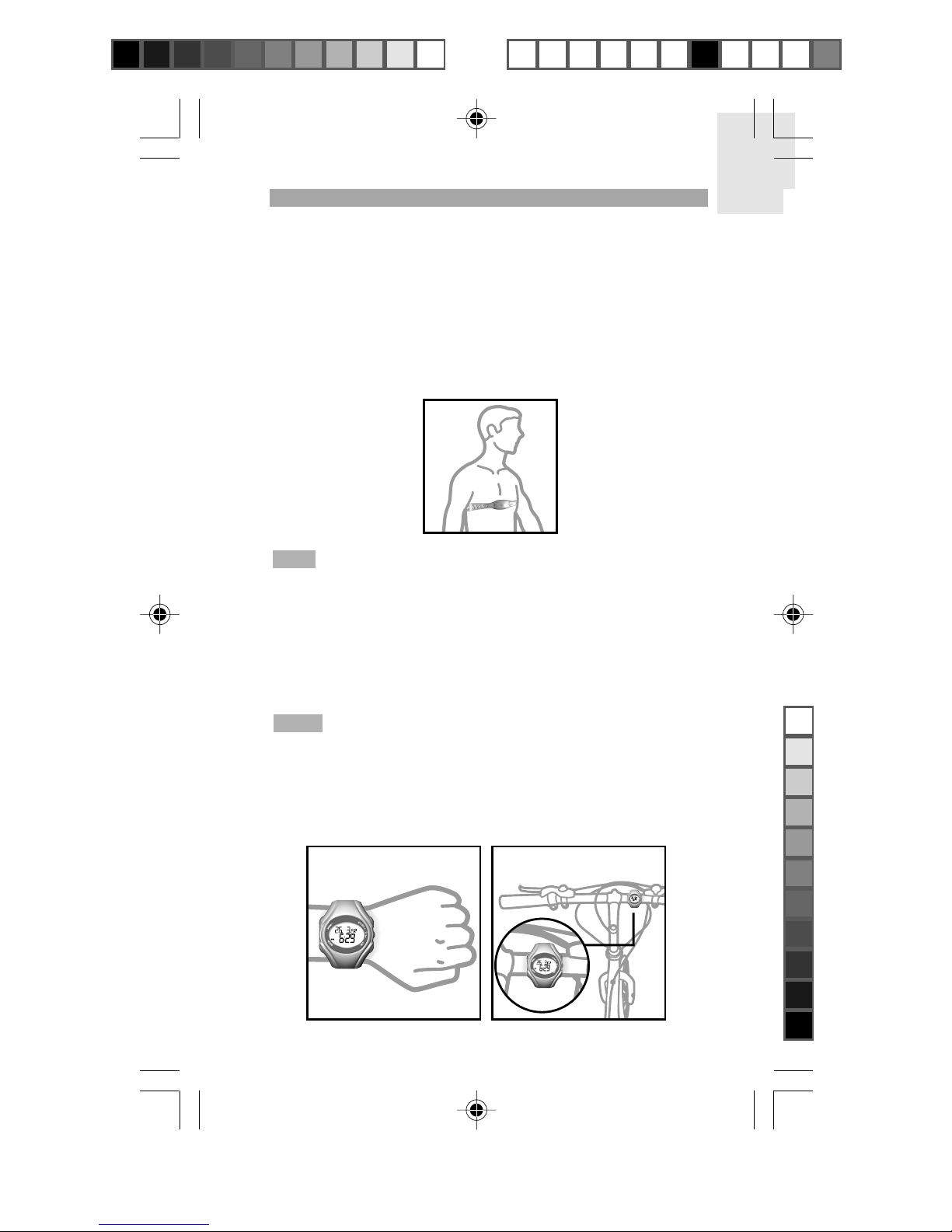

• The position of the chest belt affects its performance. Move
the chest belt along the strap so that it falls above your heart.
• Avoid areas with dense chest hair.
• In dry, cold climates, it may take several minutes for the chest
belt to function steadily. This is normal and should improve
with several minutes of exercise.
If the watch is kept idle without receiving a heart rate signal
for 5 minutes, the Heart Rate Mode will quit and return to Clock Mode.
WATCH
You can wear the receiver watch on your wrist or strap it to a bike
or exercise machine, as shown below.
NOTE
WEARING THE CHEST BELT AND WATCH
CHEST BELT
The heart rate chest belt is used to count your heartbeat and
transmit the data to the watch. To wear the chest belt:
1. Wet the conductive pads on the underside of the chest belt
with a few drops of water or a conductive gel to ensure solid
contact.
2. Strap the heart rate chest belt across your chest. To ensure
an accurate heart rate signal, adjust the strap until the belt
sits snugly below your pectoral muscles.
SE212 English R3 OP 8/28/04, 5:28 PM11
Black

12
EN
TRANSMISSION SIGNAL
The heart rate chest belt and watch have a maximum transmission
range of about 62.5 centimetres (25 inches). They are equipped
with the latest digital coding system to reduce signal interference
from the environment, as well as analog technology. or more
accurate readings use the digital transmission signal. You should
only switch to the analog transmission signal if the situation in
point 2 occurs (see below). Your watch will advise you which
system it is using and the signal status by displaying the following
icons:
If the heart icon does not appear on the display or
is not flashing because no signal has been found, force a signal
search. See "Signal Search" section for how to do this.
In the event that you experience a weak signal or your signal is
disrupted by interference in the environment, follow the instructions
below to identify and resolve the situation.
1. The signal is weak - the watch heart rate monitor will only
show "0":
• Shorten the distance between the heart rate chest belt and
watch.
• Re-adjust the position of the heart rate chest belt.
• Check the conductive pads are moist enough to ensure solid
contact.
• Check the batteries. If they are low or exhausted, the range
may be less.
• orce a signal search (see "Signal Search" section).
IMPORTANT
ICON DESCRIPTION
Outside heart is flashing Searching for a signal
Inside heart is flashing A signal has been found and
the digital system is being
used
Heart is flashing A signal has been found and
the analog system is being
used
No signal has been found
No signal has been found
SE212 English R3 OP 8/28/04, 5:28 PM12
Black

13
EN
3. Interference from another person's heart rate monitor - their
heart rate readings appear on your watch, or the heart rate
monitor shows "0":
• Press the chest belt button to get the watch to receive your
chest belt signal. Do not press and hold the chest belt button,
as it will change the transmission signal from digital to analog.
• Take the chest belt off for 12 seconds to automatically change
your User ID. (The watch has 4 User ID's. When the watch
receives the chest belt signal it will tell you which User ID it
has selected. Only products with a digital coding system have
User ID capability.)
4. The signal is jammed - the heart rate reading on your watch is
flashing:
• There is too much interference in the environment for your
heart rate monitor to function. Move to an area where the heart
rate reading stops flashing.
Signal interference in the environment can be due to
electromagnetic disturbances. These may occur near high voltage
power lines, traffic lights, overhead lines of electric railways, electric
bus lines or trams, televisions, car motors, bike computers, some
motor driven exercise equipment, cellular phones or when you
walk through electric security gates.
WARNING
2. The gym equipment does not seem to work with your chest
belt and the digital icon is displayed:
• Most gym equipment is compatible with the analog system .
Press and hold the chest belt button for 4 seconds to change
from digital to analog. Then force a signal search (see "Signal
Search" section).
SE212 English R3 OP 8/28/04, 5:28 PM13
Black

14
EN
• Light Mode ON or O - see "Activating the Backlight" section.
• LCD Screen Contrast - this function is reserved for future models.
SIGNAL SEARCH
To force a signal search:
1. Press MODE to navigate to the SMART TRAINING PROGRAM
or Stopwatch Mode.
2. Press and hold MODE for 2 seconds. The signal-searching
icon with the outside flashing will appear to confirm a signal
search is taking place.
The signal search will take approximately 10 seconds. If after
10 seconds the heart icon is not flashing, then your signal search
has been unsuccessful and you need to force another signal
search.
See the table in the "Transmission Signal" section for more signal
status information.
SETTING THE KEYPAD TONE / LIGHT MODE
You can set the watch to have the:
• Keypad "Beep" tone ON or O .
SE212 English R3 OP 8/28/04, 5:28 PM14
Black

15
EN
To set these features:
1. Press MODE to navigate to the Real-Time Clock Mode.
2. Press SET until you reach the feature you wish to change.
3. Press ST / SP / + or MEM / - to change the setting.
4. Press SET to confirm the setting and move on to the next one.
ACTIVATING THE BACKLIGHT
When the Light Mode is set to O :
• Press to turn on the backlight for 3 seconds. Press any
other key whilst the light is on and it will extend the light time
by another 3 seconds.
When the Light Mode is set to ON:
• Press any key to turn ON or extend the backlight for
3 seconds.
To help conserve power the Light Mode ON setting will
automatically switch to O after 2 hours.
The backlight does not work when the low battery icon is
shown and will return to normal once the batteries are replaced.
SWITCHING BETWEEN OPERATION MODES
Press MODE to switch between the 5 operation modes:
• Real-Time Clock
• Alarm Clock
• User Profile / Exercise Profile
• Timer - SMART TRAINING PROGRAM
• Stopwatch
The modes are described in the sections that follow.
You can run the SMART TRAINING PROGRAM or stopwatch
in the background as you access other modes. The icon for the mode
that is running will flash until you switch back to that mode.
NOTE
NOTE
SE212 English R3 OP 8/28/04, 5:28 PM15
Black

16
EN

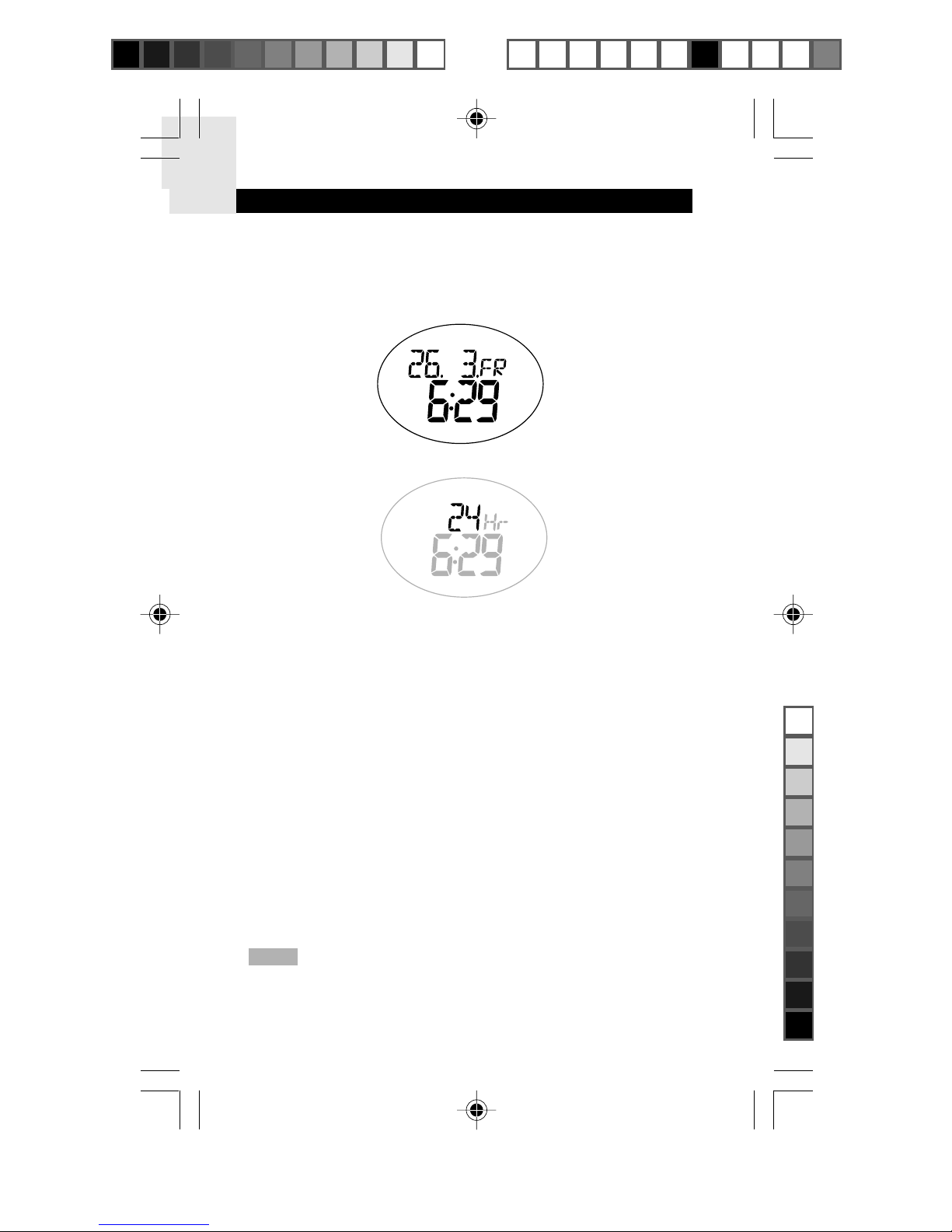

SING THE CLOCK
The real-time clock is the default display for the VIBRA Trainer Elite /
VIBRA Trainer Elite Pro watch.
To set the real-time clock:
1. Press MODE to switch to Real-Time Clock Mode.
2. Press and hold SET until the first setting flashes.
3. Press ST / SP / + or MEM / - to change the setting. Hold to
speed through the options. Press SET to confirm the setting
and move on to the next one.
4. Repeat step 3 to change other settings for this mode.
The order of the real-time clock settings is:
• 12 / 24 hour clock format
• Hour
• Minute
• Year
• DD:MM or MM:DD date format
• Month
•Day
The clock is programmed with a 50-year auto-calendar,
which means you do not need to reset the days of the week and
dates each month.
NOTE
SE212 English R3 OP 8/28/04, 5:28 PM16
Black

17
EN
SING THE ALARM(S)
SETTING THE ALARM(S)
Your watch has 2 alarms that can be set to activate daily
(Mon-Sun), on a weekday (Mon- ri), or on a weekend (Sat / Sun).
To set alarm 1 or alarm 2:
1. Press MODE to navigate to Alarm Clock Mode.
2. Press SET to move the cursor to select alarm 1 or alarm 2
and ST / SP / + to activate or deactivate the alarm.
3. Press and hold SET to enter the setting mode for the chosen
alarm.
4. Press ST / SP / + or MEM / - to change the setting. Hold to
speed through the options. Press SET to confirm the setting
and move on to the next one.
5. Repeat step 4 to change other settings for this mode.
6. The alarm will automatically be activated once you have
finished setting the alarm time.
The order of the alarm clock settings is:
• Select daily, weekday or weekend alarm
• Hour
• Minute
T RNING THE ALARM SO ND OFF
Press any key to turn the alarm sound off. The alarm will
automatically reset itself unless you deactivate it.
SE212 English R3 OP 8/28/04, 5:28 PM17
Black

18
EN
ACTIVATING / DEACTIVATING THE ALARM
1. Press MODE to navigate to Alarm Clock Mode.
2. Press SET to move to the cursor to select alarm 1 or 2.
3. Press ST / SP / + or MEM / - to activate or deactivate
the alarm.
EXERCISE PROFILE
To calculate your minimum and maximum heart rate you need to
set the exercise profile.
The VIBRA Trainer Elite watch supports 1 exercise profile, whereas
the VIBRA Trainer Elite Pro watch supports 3 different exercise
profiles.
Different activities exercise the body in different ways and help
you to achieve a variety of fitness goals. To accommodate this the
exercise profile can be set to suit different exercise activities. or
example, if you are running, your exercise profile settings are likely
to differ from those you would use when undertaking a weight
training activity.
Also, the time you require to warm-up and complete an exercise
will vary. That is why you can change the warm-up and exercise
countdown time to suit you.
To set the exercise profile:
1. Press MODE to navigate to Exercise Profile Mode.
2. If this screen appears, press SET to navigate to the Exercise
Profile Mode.
SE212 English R3 OP 8/28/04, 5:28 PM18
Black

19
EN
3. VIBRA Trainer Elite Pro only - press SET to navigate to 1 of
the 3 exercise profiles.
4. Press and hold SET until the first setting flashes.
5. Press ST / SP / + or MEM / - to change the setting. Hold to
speed through the options. Press SET to confirm the setting
and move on to the next one.
6. Repeat step 5 to change other settings for this mode.
The order of the user profile settings is:
• Target activity - 0 to 2
• Lower limit heart rate
• Upper limit heart rate
• Resume vibration mode (only appears when the battery is low,
this warning enables you to resume vibration mode or turn it
O to save power)
• Heart rate alert
• Exercise timer - hour
• Exercise timer - minute
• Warm-up timer - set to 5, 10, 15 to activate or 0 mins to
deactivate timer
• Rest timer - ON / O (VIBRA Trainer Elite Pro only)
Once you have set your exercise profile your lower and
upper heart rate limit will be set automatically. However, you can
manually change your upper and lower heart rate limit if the
automatic setting does not suit you. If you change the target activity
level, your upper / lower and maximum heart rate will automatically
be updated.
NOTE
SE212 English R3 OP 8/28/04, 5:28 PM19
Black
