Oriental motor BXII Series User manual

HP-5058-3
Data Setter OPX-2A
BXⅡ Series
OPERATING MANUAL
Thank you for purchasing an Oriental Motor product.
This Operating Manual describes product handling procedures and safety precautions.
Please read it thoroughly to ensure safe operation.
Always keep the manual where it is readily available.
Table of contents
1 Safety precautions ...............................2
2 Introduction ..........................................3
3 Preparation ..........................................4
3.1 Checking the product ............................ 4
3.2 Names and functions of parts ............... 4
3.3 How to read the display ......................... 5
3.4 How to read the LED indicators ............ 5
3.5 Types of operation modes ..................... 5
3.6 Basic operations of the OPX-2A ........... 6
3.7 Edit lock function ................................... 7
3.8 Rewriting the driver’s non-volatile
memory ................................................. 7
4 Installation and connection of the
OPX-2A ...............................................8
4.1 Location for installation ......................... 8
4.2 Installation method ................................ 8
4.3 Connecting to the driver ........................ 9
4.4 Error display on OPX-2A screen ........... 9
5 When using the product with the
speed control mode ...........................10
5.1 Screen transitions ............................... 10
5.2 Monitor mode ...................................... 14
5.3 Data mode ........................................... 18
5.4 Parameter mode ................................. 20
5.5 Test mode ............................................ 22
5.6 Copy mode .......................................... 25
6 When using the product with the
position control mode ........................28
6.1 Screen transitions ............................... 28
6.2 Monitor mode ...................................... 32
6.3 Data mode ........................................... 37
6.4 Parameter mode ................................. 38
6.5 Test mode ............................................ 39
6.6 Copy mode .......................................... 42
7 Parameter ..........................................43

Safety precautions
−2−
1 Safetyprecautions
The precautions described below are intended to prevent danger or injury to the user and other personnel through safe,
correct use of the product. Use the product only after carefully reading and fully understanding these instructions.
Also read the "Safety precautions" sections in the USER MANUAL that came with the product you are combining
with the OPX-2A.
Handling the product without observing the instructions that accompany a "Warning"
symbol may result in serious injury or death.
Handling the product without observing the instructions that accompany a "Caution"
symbol may result in injury or property damage.
Note
The items under this heading contain important handling instructions that the user should
observe to ensure safe use of the product.
General
Do not use the product in explosive or corrosive environments, in the presence of ammable gases, locations
subjected to splashing water, or near combustibles. Doing so may result in re, electric shock or injury.
Assign qualied personnel the task of installing, wiring, operating/controlling, inspecting and troubleshooting the
product. Failure to do so may result in re, electric shock or injury.
When the driver’s protective function is triggered, rst remove the cause and then clear the protective function.
Continuing the operation without removing the cause of the problem may cause malfunction of the motor and
driver, leading to injury or damage to equipment.
Repair, disassembly and modication
Do not disassemble or modify the data setter. This may cause electric shock or injury. Refer all such internal
inspections and repairs to the branch or sales ofce from which you purchased the product.
General
Do not use the motor, gearhead and driver in conditions exceeding the specications. Doing so may result in
electric shock, injury or damage to equipment.
Operation
Provide an emergency stop device or emergency stop circuit so that the entire equipment will operate safely in the
event of a system failure or malfunction. Failure to do so may result in injury.
Disposal
Dispose the product correctly in accordance with laws and regulations, or instructions of local governments.

Introduction
−3−
2 Introduction
Only qualied personnel should work with the product.
Use the product correctly after thoroughly reading the section "1 Safety precautions" on page.2.
The product described in this manual has been designed and manufactured to be incorporated in general industrial
equipment. Do not use for any other purpose. Oriental Motor Co., Ltd. is not responsible for any damage caused
through failure to observe this warning.
 Overviewoftheproduct
The OPX-2A is a data setter that lets you set operation data and parameters, perform monitoring, etc.
Use the OPX-2A properly and safely after thoroughly reading the "BXⅡ Series USER MANUAL" and understanding
the basic operating procedures and other details.
 FeaturesofOPX-2A
The OPX-2A can be used to save data in addition to setting of operation data and parameters.
There are four destinations (data banks) to save data.
OPX-2A
Data bank 1
Data bank 0
Data bank 2
Data bank 3
Driver
Driver
Set operation data and parameters.
Up to 4 sets of operation data and
parameters can be saved.
Copy any one of the four
sets to the driver.
The OPX-2A can be used for the following purposes:
Operation data and parameters of the driver can be set.
The operating status of the motor can be monitored.
Operation data and parameters set in the driver can be saved to the OPX-2A.
Operation data and parameters saved in the OPX-2A can be copied to other drivers.
 Specications
Connection Mini DIN, 8 pins
External dimensions 96 (W)×72 (H)×21.5 (D) mm
[3.78 (W)×2.83 (H)×0.85 (D) in.]
Cable length 5 m (16.4 ft.)
Mass 0.25 kg (8.8 oz)
 RoHSDirective
The products do not contain the substances exceeding the restriction values of RoHS Directive (2011/65/EU).

Preparation
−4−
3 Preparation
This chapter explains the items you should know before using the OPX-2A.
3.1 Checkingtheproduct
Verify that the items listed below are included. Report any missing or damaged items to the branch or sales ofce
from which you purchased the product.
Data setter OPX-2A...................................... 1 unit
Information ................................................... 1 copy
3.2 Namesandfunctionsofparts
Display
This area shows the motor position,
operation data, parameters, alarms, etc.
LED indicators
These LED indicators are used to indicate
the operation mode of the OPX-2A and
the driver status.
Use this button to select data or change
the displayed item or move to the lower
level.
Use this button to change the operation
mode or move to the upper level.
Use these buttons to change the selected item or set data and parameters.
Use these buttons to increase or decrease the value or change the selected item.
Use these buttons to navigate through each data or parameter to a desired digit.
 Notation
In this manual, keys are denoted by symbols, such as .
In gures, a simplied illustration of the display and LED indicators is used, as shown below.

Preparation
−5−
3.3 Howtoreadthedisplay
The display consists of 7-segment LEDs. (The number "5" and alphabet "S" are the same.)
1234567890
A
• Numbers
+ -
• Signes
• Alphabets
B C D E F G H I J K L
M N O P Q R S T U V W Y
3.4 HowtoreadtheLEDindicators
When the operation mode is changed or an alarm or warning generates, a corresponding LED will be lit.
While the motor is operating or the edit lock function is enabled, the condition is also indicated by the illumination of
a corresponding LED.
Lit in the copy mode
Lit in the test modeLit in the parameter mode
Lit in the data mode
Lit in the monitor mode
Lit while an alarm is present
Lit while a warning is present
Lit while the motor is operating Not used
Lit while the edit lock function is enabled
Not used
Not used
3.5 Typesofoperationmodes
The OPX-2A has multiple operation modes. The operation
mode will change every time the key is pressed.
The display starts in the monitor mode when the power is
turned on.
When the operation mode is changed, the LED indicator
corresponding to the previous mode will turn off and the one
corresponding to the new mode will be lit. Identify the present
operation mode based on the LED indicator currently lit.
Monitor mode
(MON)
Copy mode
(COPY)
Test mode
(TEST)
Parameter mode
(PAR)
Data mode
(DATA)
The mode changes
every time the key
is pressed.

Preparation
−6−
3.6 BasicoperationsoftheOPX-2A
Use the six keys to set data and operate the motor.
 Operationow
The OPX-2A is operated according to the ow shown below.
Level 2: Item selection screen Level 3Level 1: Top screen in each mode
12
3
4
Use the
key to navigate
through the
modes.
Use the
key to move
to the lower level.
toUse
move to the
previous item.
toUse
move to the
next item.
Use the
key to move
to the upper level.
1. Use the key to select a desired operation mode appropriate for your intended operation.
Example: If you want to use a function in the test mode, press the key to select the test mode (indicated by
a lit "TEST" LED).
The top screen of the test mode is displayed.
2. Press the key to move to the lower level.
3. Use the keys to select a desired item.
4. To move to the lower level, press the key. To return to the previous level, press the key.
As explained above, use the key to navigate through the levels and use the keys to select a desired
item. This is the basic operation ow.
Note If the key is pressed while the driver performs the internal processing, the screen cannot
change to any lower level from the top screen, and "mEm-bUSY" is displayed.
Be sure to wait until all internal processing is completed, before pressing the key.

Preparation
−7−
 Howtoinputvalues
As an example, how to change the rotation speed from "80" r/min to "1000" r/min is explained.
Basic operations
Use the keys to increase/decrease the value or change the sign. Use the keys to move to the
digit you want to edit.
If positive and negative values are differentiated, each value is preceded by a sign.
The digit currently blinking can be edited.
1. First, change the 10’s place from "8" to "0."
Press the key once to move to the 10’s digit you want to edit.
Determined
Once
Twice
Twice
Once
2. Press the key twice to change the value to "0."
3. Next, change the 1000’s place from "0" to "1."
Press the key twice to move to the 1000’s digit you want to edit.
4. Press the key once to change the value to "1."
5. After all digits have been changed, press the key to
determine the value.
All digits comprising the value blink for approximately 2 seconds.
Note If the value you have input is outside the setting range, "Error" will be displayed for 1 second. If this error
display appears, input a different value that falls within the setting range.
3.7 Editlockfunction
Enable the edit lock function if you want to prevent operation data and parameters from being edited or cleared.
Operation data and parameters cannot be changed or deleted while the edit lock function is enabled.
 Setting the edit lock function
Press the key for at least 5 seconds on the top screen in each
mode.
The display will show "LocK" and the edit lock function will be
enabled.
The "LOCK" LED in the LED indicator area will also be lit.
"LOCK" lit
 Canceling the edit lock function
Again, press the key for at least 5 seconds on the top screen in
each mode.
The display will show "UnLocK" and the edit lock function will be
cancelled.
The "LOCK" LED in the LED indicator area will turn off.
3.8 Rewritingthedriver’snon-volatilememory
Operation data and parameters are saved to the driver’s non-volatile memory. The non-volatile memory can be
rewritten approximately 100,000 times. The non-volatile memory will be rewritten after one of the following
operations is performed:
Edit any operation data or parameter
Download data from the OPX-2A to the driver
Initialize driver operation data and parameters

Installation and connection of the OPX-2A
−8−
4 Installationandconnectionofthe
OPX-2A
4.1 Locationforinstallation
The OPX-2A is designed and manufactured to be incorporated in equipment.
Install it in a well-ventilated location that provides easy access for inspection. The location must also satisfy the
following conditions:
Inside an enclosure that is installed indoors (provide vent holes)
Operating ambient temperature 0 to +40 °C (+32 to +104 °F) (non-freezing)
Operating ambient humidity 85% or less (non-condensing)
Area that is free of explosive atmosphere or toxic gas (such as sulfuric gas) or liquid
Area not exposed to direct sun
Area free of excessive amount of dust, iron particles or the like
Area not subject to splashing water (rain, water droplets), oil (oil droplets) or other liquids
Area free of excessive salt
Area not subject to continuous vibration or excessive shocks
Area free of excessive electromagnetic noise (from welders, power machinery, etc.)
Area free of radioactive materials, magnetic elds or vacuum
1000 m (3300 ft.) or less above sea level
4.2 Installationmethod
Using a metal plate of 1 to 3 mm (0.04 to 0.12 in.) in thickness, insert the OPX-2A into the mounting hole from the
front side and securely attach it.
92 +0.8
0 (3.62 )
+0.031
0
68 +0.7
0
(2.68 )
+0.028 0
• Dimension of mounting hole [mm (in.)]
Removing method
Press all of the four hooks provided on top and bottom of the OPX-2A.
In this condition, press the OPX-2A forward to release.
Hook

Installation and connection of the OPX-2A
−9−
4.3 Connectingtothedriver
Plug the connector attached to the end of the OPX-2A
cable into the data edit connector (CN6) on the driver, and
then turn on the power to the driver. Data edit connector
(CN6)
Note
When operation data and parameters are set on the OPX-2A, they will be stored in the driver.
Once stored in the driver, the data will not be cleared even after the OPX-2A is disconnected
from the driver.
Turning on the power to the driver will also turn on the power to the OPX-2A. Turning off the
driver power will turn off the OPX-2A power.
Turn off the driver power before connecting or disconnecting the OPX-2A cable.
4.4 ErrordisplayonOPX-2Ascreen
The following error message is displayed on the OPX-2A screen.
Error display Description Remedial action
A communication error occurred
between the OPX-2A and driver.
Check if the OPX-2A is connected securely.
Check if the OPX-2A cable is disconnected or
damaged.
The OPX-2A or the communication part of the driver
may have damaged. Contact your nearest Oriental
Motor sales ofce.

When using the product with the speed control mode
−10−
5 Whenusingtheproductwiththe
speedcontrolmode
5.1 Screentransitions
Speed
Load factor
Operation data number
Warning
I/O monitor
Monitor mode
Top screen
Input monitor
Output monitor
External voltage monitor
Warning record 1 (latest)
Warning record 10 (oldest)
Clear warning records
Alarm
Alarm record 1 (latest)
Alarm record 10 (oldest)
Alarm reset
Clear alarm records
Execute
(blinking)
Execute
(blinking)
Execute
(blinking)
Control mode

When using the product with the speed control mode
−11−
Note
There are the following restrictions while the edit lock function is enabled.
• Data mode, parameter mode: Although they are displayed on the screen, they are unable to operate.
• Clearing the alarm and warning records, copy mode: They are not displayed on the screen.
When the HMI input is in an OFF state, all functions of the test mode cannot be executed. Downloading and
initializing are also disabled.
Data number selection 0
Data number selection 15
Operation speed Numerical entry
Writing data (blinking)
Torque limiting Numerical entry
Writing data (blinking)
Acceleration time Numerical entry
Writing data (blinking)
Deceleration time Numerical entry
Writing data (blinking)
Executing (blinking)
Data clear Execute
Data mode
Parameter mode
In the lower level except the top screen, press the key to return to the previous level.

When using the product with the speed control mode
−12−
Speed increases in
the forward direction
Speed increases
in the reverse
direction
Speed increases in the forward direction
Speed increases in the reverse direction
Parameter ID input
(Example: Speed reduction ratio)
Parameter selection
Parameter setting
I/O test
JOG operation
Data number selecting
operation
Execute
Teaching function Execute
Input monitor
Output test
External voltage monitor
Output test
Writing data (blinking)
Data number selection 0
Data number selection 15
Operation (blinking)
Operation (blinking)
Data number selection 15
Writing data
(blinking)
Writing data
(blinking)
Data number selection 0
Parameter mode Test mode
Data mode

When using the product with the speed control mode
−13−
Download
Upload
Data bank selection 0
Data bank selection 3
Execute (blinking)
Execute (blinking)
Data bank selection 0
Execute (blinking)
Execute (blinking)
Initialization
Initialize operation data
Initialize parameters
Initialize all data
Execute (blinking)
Execute (blinking)
Execute (blinking)
Verification
Data bank selection 0
Data bank selection 3
Verification result: Matched
Verification result: Unmatched
Data bank selection 3
Copy mode
Monitor mode
In the lower level except the top screen, press
the key to return to the previous level.

When using the product with the speed control mode
−14−
5.2 Monitormode
 Overviewofthemonitormode
 Monitoring the operating status
The motor speed, load factor and operation data number corresponding to the present operation can be monitored in
real time.
 Checking alarms/warnings, clearing alarm/warning records, and resetting alarms
If an alarm or warning generates, since a corresponding alarm code or warning code will be displayed, the item to
identify the details of the alarm/warning can be checked.
Up to ten most recent alarms/warnings can be displayed, starting from the latest one. Also, alarm/warning records
can be cleared.
The alarm currently present can be reset.
 Checking I/O signals
The ON/OFF status of each I/O signal of the driver can be checked.

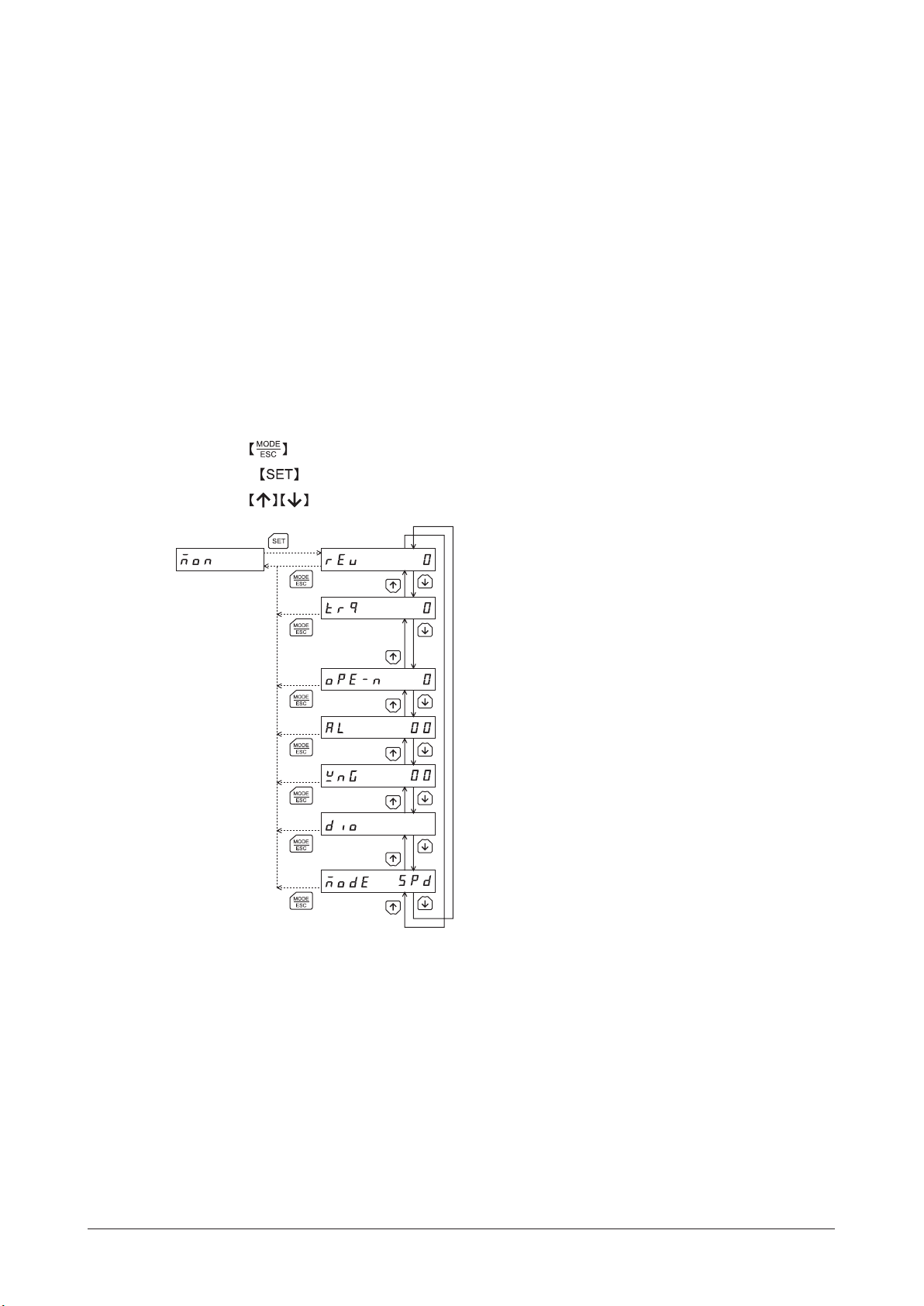

 Operationinthemonitormode
1. Use the key to select the monitor mode.
2. Press the key on the top screen in the monitor mode.
3. Use the keys to select the item you want to monitor.
Top screen in the
monitor mode Speed
Load factor
Operation
data
number
Alarm
Control
mode
I/O monitor
Warning
 Monitoritems
 Speed (unit: r/min)
The motor operation speed can be checked.
While the motor rotates in the counter clockwise direction (CCW), the "−" sign is displayed in front of the value.
The value can also be displayed as the absolute value, or the "−" sign can be displayed in front of the value while
the motor rotates in the clockwise direction (CW). In this case, change the setting of the "data setter speed display"
parameter (ID: 480).
The operation speed can be displayed as the rotation speed of the gear output shaft. To do this, set the "speed
reduction ratio" parameter (ID: 2085) and "speed reduction ratio digit setting" parameter (ID: 2086).
It is also possible to increase the rotation speed and display the increased speed. Set in the "speed increasing ratio"
parameter (ID: 2087).

When using the product with the speed control mode
−15−
 Load factor (Unit: %)
The motor generating torque can be checked. The present load factor is displayed based on the rated torque being
100%.
 Operation data number
The operation data number corresponding to the present operation can be checked.
 Alarm
When an alarm generates, a corresponding alarm code will be displayed.
The present alarm can be reset, and also alarm records can be checked or cleared.
Alarm record 1 (latest)
Alarm record 10
(oldest)
Alarm record 2
Alarm
Alarm reset
An alarm is being
reset (blinking)
Clear alarm records
Alarm records are
being cleared (blinking)
 If operations are limited by the edit lock function, the screens in gray color are not displayed.
Note
Do not turn off the driver power while an alarm is being reset or alarm records are being cleared
(=while the display is blinking). Doing so may damage the data.
Some alarms cannot be reset using the OPX-2A. Check by the following table. To reset these
alarms, cycle the driver power.
Alarm code list
Code Alarm name Reset using the OPX-2A
10 Excessive position deviation Possible
20 Overcurrent Not possible
22 Overvoltage
25 Undervoltage Possible
28 Sensor error Not possible
2D Main circuit output error
30 Overload Possible
31 Overspeed
41 EEPROM error Not possible
42 Sensor error at power-on
46 Prevention of operation at power-on Possible
51 Regeneration unit overheat Not possible
67 Software overtravel Possible
70 Operation data error

When using the product with the speed control mode
−16−
 Warning
When a warning generates, a corresponding warning code will be displayed.
Warning records can also be checked or cleared.
Warning record 1 (latest)
Warning record 10
(oldest)
Clear warning records
Warning records
are being cleared
(blinking)
Warning record 2
Warning
 If operations are limited by the edit lock function, the screens in gray color are not displayed.
Note
Do not turn off the driver power while warning records are being cleared (=while the display is
blinking). Doing so may damage the data.
Warning records will automatically be cleared by turning off the driver power.
Warning code list
Code Warning name
10 Excessive position deviation
22 Overvoltage
30 Overload
6C Operation prohibited

When using the product with the speed control mode
−17−
 I/O monitor
The ON/OFF status of each I/O signal of the driver can be checked.
Input monitor
Output monitor
Top screen in
the I/O monitor
External voltage
monitor
Each digit on the 7-segment LED display corresponds to a signal. The corresponding digit is lit when the signal is
ON, and the digit is unlit when the signal is OFF.
 Input monitor
IN0
IN1
IN2
IN3
IN4
IN6
IN5
IN8
IN7
 Output monitor
OUT0
OUT1
OUT2
 External voltage monitor [V]
The voltage value input by the analog external
setter can also be checked.
 Control mode
The present control mode can be checked.
Speed control mode Speed control mode
(servo lock)
Position control mode

When using the product with the speed control mode
−18−
5.3 Datamode
Up to 16 sets of motor operation data can be set. Once set, the operation data is stored in the driver. The data will not
be lost even after the OPX-2A is disconnected from the driver.
Before setting operation data, read the "BXⅡ Series USER MANUAL" carefully to understand the basic operations,
functions and other details of the driver.
Note
Operation data has signicant bearing on motor operation. Before setting any operation data,
make sure you fully understand the content of the operation data.
If operations are limited by the edit lock function, the operation data cannot be edited.
Operation data can also be set by selecting the ID in the parameter mode.
If the value you have input is outside the setting range, "Error" will be displayed for 1 second. If
this error display appears, input a different value that falls within the setting range.
 Operationinthedatamode
1. Use the key to select the data mode.
2. Press the key on the top screen in the data mode.
3. Use the keys to select a desired operation data number.
4. Press the key.
The display changes to the setting screen of the items in the operation data.
5. Use the key to select the operation data item you want to set.
6. When pressing the key on the last operation data item, the display returns to the screen of the
operation data number.
Operation
data number 0
Top screen in
the data mode
Operation
data number 15
Acceleration
time
Torque
limiting
Deceleration
time
Data clear
Operation
speed
 If operations are limited by the edit lock function, the screens in gray color are not displayed.
Note If the key is pressed while the driver performs the internal processing, the screen cannot
change to any lower level from the top screen, and "mEm-bUSY" is displayed. Be sure to wait until
all internal processing is completed, before pressing the key.

When using the product with the speed control mode
−19−
 Settingitems
Item Initial
value Setting range Description Setting unit
Operation speed 0 0 to 4000 r/min Sets the operation speed for the speed control operation.
Set as the rotation speed of the motor output shaft. 1
Torque limiting 250 0 to 250%
Sets when limiting the motor output torque.
Sets the torque limiting value based on the rated torque
being 100%.
1
Acceleration time
0.100 0.000 to 30.000 s
The acceleration time is set as the time needed for the
motor to reach the rated rotation speed (3000 r/min) from
the standstill state. 0.001
Deceleration time The deceleration time is set as the time needed for the
motor to stop from the rated rotation speed (3000 r/min).
Data clear – – Restores the operation data to the initial value. –
 The motor may not start operating with the torque limiting value depending on variations in load torque, individual
differences in motors, gearheads or drivers, as well as operating environment.
Set the torque limiting value with providing a margin of 20% or more as a guide.
 Initializationofalloperationdata
All of the operation data saved in the driver can be restored to the initial values. Execute "Initialize operation data" of
the copy mode. For details, refer to the "Initializing driver data" on page.27.

When using the product with the speed control mode
−20−
5.4 Parametermode
Parameters relating to motor operation and control can be set. These parameters are saved in the driver.
Before setting parameters, read the "BXⅡ Series USER MANUAL" carefully to understand the basic operations,
functions and other details of the driver.
Note
Parameters have signicant bearing on motor operation. Before setting any parameter, make
sure you fully understand the content of the parameter.
If operations are limited by the edit lock function, parameters cannot be edited.
If the value you have input is outside the setting range, "Error" will be displayed for 1 second. If
this error display appears, input a different value that falls within the setting range.
If a non-existent parameter ID is entered, "id-Err" will be displayed for 1 second. Check the ID
and enter the correct one.
 ParameterID
There is a unique ID in each parameter. With the OPX-2A, set the parameter selecting the ID.
Timing for the setting value to become effective
When a parameter is changed, the timing for the new value to become effective varies depending on the parameters,
which are the following three types.
Effective immediately
Executes the recalculation and setup immediately when writing the parameter.
Effective after stopping the operation
Executes the recalculation and setup after stopping the operation.
Effective after turning the power ON again
Executes the recalculation and setup after turning the power ON again.
Operation in the parameter mode
1. Use the key to select the parameter mode.
2. Press the key on the top screen in the parameter mode.
The display changes to the screen to select the parameter type.
3. Use the keys to select a desired parameter ID.
4. Press the key.
The display changes to the parameter setting screen.
Enter the parameter ID
Check the ID and setting range with the parameter list.
Parameter selection
Top screen in the
parameter mode
Use to increase/decrease the value.
Use to navigate through the digits.
Note
If the value you have input is outside the setting range, "Error" will be displayed for 1 second. If
this error display appears, input a different value that falls within the setting range.
If a non-existent parameter ID is entered, "id-Err" will be displayed for 1 second. Check the ID
and enter the correct one.
 Initializingparameters
Parameters saved in the driver can be restored to their initial values. Execute "Initialize parameters" in the copy mode.
For the operation, check the screen transitions of the copy mode on page 13, or "Initializing driver data" on page 27.
