Oriental motor DR Series User manual

Thank you for purchasing an Oriental Motor product.
This Manual describes product handling procedures and safety precautions.
•Please read it thoroughly to ensure safe operation.
•Always keep the manual where it is readily available.
HL-14115-2
Motorized Actuator
Compact Motorized Cylinder
DR Series
DRS2 Series
Function Setting Edition

2
1 Introduction ............................................. 3
1-1 Before use.............................................................3
1-2 How to use this manual...................................3
1-3 Related operating manuals............................3
1-4 Setting procedure..............................................4
Actuators equipped with the AZ Series ...................4
Actuators equipped with the PKP Series .................4
1-5 Traveling direction of the moving part......5
1-6 How to describe the model name in this
manual...................................................................5
2 When using the DR Series ..................... 6
2-1 When the equipped motor is the
AZ Series ..............................................................6
How to read the table......................................................6
Mechanism limit ................................................................7
DR201(lead 1 mm)..................................................... 8
DR281(lead 1 mm)...................................................10
DR282.5 (lead 2.5 mm)...........................................12
2-2 When the equipped motor is the
PKP Series ......................................................... 14
Setting of minimum travel amount..........................14
3 When using the DRS2 Series .............. 15
3-1 When the equipped motor is the
AZ Series ........................................................... 15
How to read the table....................................................15
Mechanism limit ..............................................................16
DRSM42-2(lead 2 mm).............................17
DRSM60-4(lead 4 mm).............................18
DRSM42-8(lead 8 mm).............................19
4 Operation (Actuators equipped with
the AZ Series only)................................ 21
4-1 Push-motion return-to-home
operation ........................................................... 21
Actuator movement.......................................................21
Operating speed..............................................................22
Push force...........................................................................22
4-2 Push-motion operation ................................ 22
Maximum push force.....................................................22
Operating speed..............................................................22
Relationship between the push force and
current.................................................................................23

Introduction
3
1 Introduction
1-1 Before use
Only qualied personnel of electrical and mechanical engineering should work with the product.
Use the product correctly after thoroughly reading the section “Safety precautions” on the OPERATING MANUAL
Actuator. In addition, be sure to observe the contents described in caution and note in this manual.
The motorized actuators described in this manual have been designed and manufactured to be incorporated in
general industrial equipment. Do not use for any other purpose. Oriental Motor Co., Ltd. is not responsible for any
damage caused through failure to observe this warning.
Notation on this manual
Handling the product without observing the instructions that accompany a“CAUTION”
symbol may result in injury or property damage.
The items under this heading contain important handling instructions that the user
should observe to ensure the safe use of the product.
The items under this heading contain related information and contents to gain a further
understanding of the text in this manual.
1-2 How to use this manual
This manual explains about parameters required for operation of motorized actuators.
Use it in the following cases.
•To check the factory setting for parameters.
•To check the upper limit values for parameters.
•To change the traveling direction of the moving part.
•To perform push-motion return-to-home operation.
•To perform push-motion operation.
1-3 Related operating manuals
For operating manuals not included with the product, contact your nearest Oriental Motor sales oce or download
from Oriental Motor Website Download Page.
Motorized actuator equipped with AZ Series
Name Included or not included with product
OPERATING MANUAL Actuator Included
Motorized Actuator Compact Motorized Cylinder
Function Setting Edition (this document) Not included
AZ Series/Motorized actuator equipped with AZ Series
Function Edition Not included
Refer to the operating manual of the driver for contents not described in these manuals.
Motorized actuator equipped with PKP Series
Name Included or not included with product
OPERATING MANUAL Actuator Included
Motorized Actuator Compact Motorized Cylinder
Function Setting Edition (this document) Not included
Refer to the operating manual of the driver for contents not described in these manuals.

Introduction
4
1-4 Setting procedure
Actuators equipped with the AZ Series
The motorized actuator equipped with the AZ Series can be used with the parameters
at the time of shipment.
1 Install and connect a motorized actuator and a driver.
2 Connect and start the support software MEXE02.
3
Copy the ABZO information (xed value) to the driver.
Parameters such as the traveling direction and minimum travel amount have
been set in the ABZO sensor at the time of shipment.
Using the MEXE02, match the xed value of the ABZO sensor and the setting
value of the driver parameter.
4 Set the software limit when no sensor is used.
5 Write the set data to the driver.
6 Check the movement of the motorized actuator.
7 Save the set data.
Actuators equipped with the PKP Series
1 Install and connect a motorized actuator and a driver.
2 Use the switches on the driver to set the minimum travel amount.
3 Check the movement of the motorized actuator.

Introduction
5

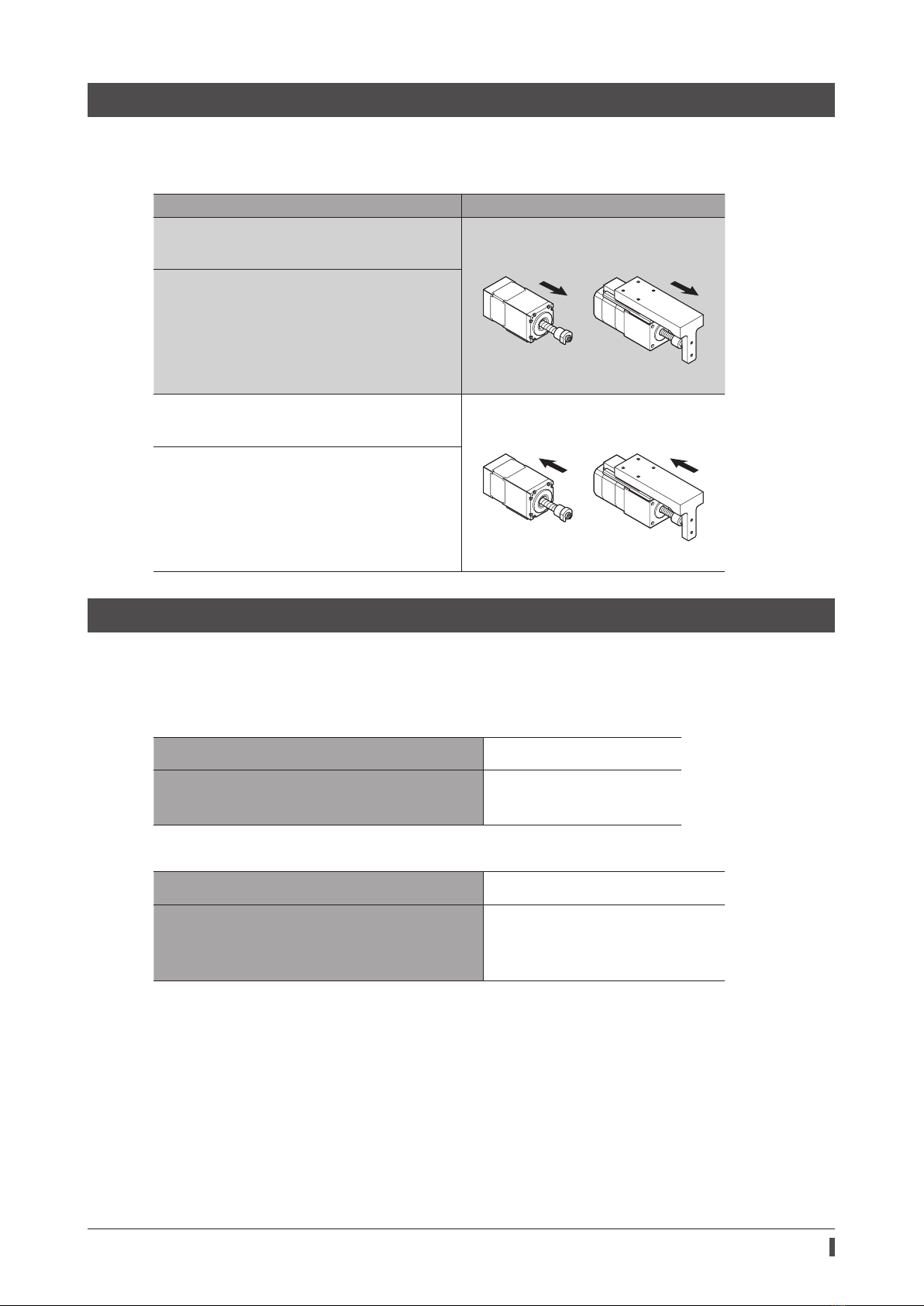

1-5 Traveling direction of the moving part
The traveling direction of the moving part varies depending on the setting of the travel amount or the input method
of the pulse signal. Check in the table.
The table describes examples when an actuator is used with the factory setting.
Setting Traveling direction
Operation by setting of parameter
Set the travel amount to the positive (+) direction.
Move to the opposite the motor side.
Operation by pulse signal
•2-pulse input mode
Input the pulse signal to the CW input.
•1-pulse input mode
Input the pulse signal to the PLS input when the
DIR input is ON.
Operation by setting of parameter
Set the travel amount to the negative (−) direction.
Move to the motor side.
Operation by pulse signal
•2-pulse input mode
Input the pulse signal to the CCW input.
•1-pulse input mode
Input the pulse signal to the PLS input when the
DIR input is OFF.
1-6 How to describe the model name in this manual
The setting values of parameters for the motorized actuator vary depending on the frame size or ball screw lead.
Alphanumeric characters other than the frame size or ball screw lead of the motorized actuator are omitted from the
model names described in this manual.
Examples for description of DR Series
To describe so that the frame size can be understand DR28
To describe so that the frame size and the ball screw
lead can be understand
DR281(lead 1 mm)
DR282.5 (lead 2.5 mm)
Examples for description of DRS2 Series
To describe so that the frame size can be understand DRSM42, DRSM60
To describe so that the frame size and the ball screw
lead can be understand
DRSM42-2(lead 2 mm)
DRSM60-4(lead 4 mm)
DRSM42-8(lead 8 mm)

When using the DR Series
6
2 When using the DR Series
2-1 When the equipped motor is the AZ Series
The motorized actuator equipped with the AZ Series can be used with the parameters
at the time of shipment.
Do not perform push-motion operation with the DR201and DR281(ball screw lead 1 mm)
equipped with the AZ Series. The TLC output may be turned ON before push-motion operation is
complete. (Push-motion return-to-home operation can be performed.)
•Set the operating speed by checking the specication of the maximum speed.
•The maximum speed may decrease depending on the ambient temperature or the motor cable
length.
•Rod type:
Be sure to set the home position before starting operation since it is not set at the time of
shipment. [For actuators other than the rod type, the home position (factory home position) is set
at the time of shipment.]
•When using in combination with the pulse input type driver:
Use the function setting switch No.1 (resolution setting) with the factory setting as it is. If it is
changed, the ABZO information does not apply and the actuator will operate at a certain
resolution.
How to read the table
Parameters that have set a value dedicated for the motorized actuator are described on p.8 and later. Setting the
specied values enables operation that satises the specications of the motorized actuator.
The minimum travel amount is set to “0.001 mm” at the time of shipment. It makes easier to calculate the travel
amount and others since the actuator moves 0.001 mm per one step.
Unit of travel amount: mm
(JOG) Operating speed 2 [mm/s]
(JOG) Acceleration/deceleration 0.5 [m/s2]
(JOG) Starting speed 0.5 [mm/s]
Unit of travel amount: step
Item Factory setting
2 [kHz]
500 [kHz/s]
500 [Hz]
These values are set in the motorized
actuator at the time of shipment.
Set the values in this column
when setting in unit of step.

When using the DR Series
7
Mechanism limit
The home position is set at the time of shipment for actuators other than the rod type of the DR Series. This is called
“factory home position.”
The mechanism limit (mechanical end) is stored in the ABZO sensor (xed value) for products that the factory home
position is set. If the moving part reaches the mechanism limit during operation, an alarm of mechanical overtravel is
generated. The position of the mechanism limit does not change even if the home position is set by the customer
side.
To disable the mechanism limit, change the "Mechanism limit parameter setting" parameter to "Disable."
However, if the mechanism limit is disabled, the moving part may strike the mechanical end or the ball screw shaft
may not move with being jammed in the nut part, causing damage to the product. Operate with enough care.
Factory home position
Mechanism limit
positive directio
n
Mechanism limit
negative direction
Factory home position
* The gure shows the table type.
When disabling the mechanism limit, be careful not to damage the product or
equipment by thoroughly examining the operation data such as the travel amount
(position) and the operating speed.
If the moving part reaches the mechanism limit on the negative direction and a state of generating
the alarm of mechanical overtravel is continued, an alarm of overload may also be generated.

When using the DR Series
8
DR201(lead 1 mm)
Product specications
Item Factory setting
Lead 1 [mm]
Minimum travel amount *1 0.001 [mm]
Mechanism limit
positive direction *2
Table type 26 [mm] (26,000 [step])
Rod type None
Mechanism limit
negative direction *2
Table type −1 [mm] (−1,000 [step])
Rod type None
*1 The minimum travel amount is determined by the “Electronic gear” parameter and the ball screw lead.
*2 Distance from the factory home position.
Upper limit value of setting
If a value exceeding the upper limit value is set to start operation, an alarm of operation data error is
generated. The upper limit value can also be checked using the unit information monitor
(mechanism protection parameter) of the MEXE02.
Item Factory setting
Unit of travel amount: mm Unit of travel amount: step
Maximum starting speed 6 [mm/s] 6 [kHz]
Maximum operating speed 20 [mm/s] 20 [kHz]
Maximum pushing return-to-home speed 6 [mm/s] 6 [kHz]
Maximum push current 90 [%] * 90 [%] *
* It is the upper limit value when push-motion return-to-home operation is performed.
Motor & mechanism parameters
Item Factory setting
Unit of travel amount: mm Unit of travel amount: step
Mechanism settings Prioritize ABZO setting Prioritize ABZO setting
Electronic gear A 1 1
Electronic gear B 1 1
Motor rotation direction Positive side=Clockwise Positive side=Clockwise
Mechanism lead pitch 1 1
Mechanism lead decimal digit setting ×1 [mm] ×1 [mm]
JOG/HOME/ZHOME operation setting Prioritize ABZO setting Prioritize ABZO setting
(JOG) Operating speed 2 [mm/s] 2 [kHz]
(JOG) Acceleration/deceleration 0.2 [m/s2] 200 [kHz/s]
(JOG) Starting speed 0.2 [mm/s] 200 [Hz]
(JOG) Operating speed (high) 10 [mm/s] 10 [kHz]
(ZHOME) Operating speed 10 [mm/s] 10 [kHz]
(ZHOME) Acceleration/deceleration 0.2 [m/s2] 200 [kHz/s]
(ZHOME) Starting speed 0.2 [mm/s] 200 [Hz]
(HOME) Home-seeking mode Push Push
(HOME) Starting direction Negative direction Negative direction
(HOME) Acceleration/deceleration 0.2 [m/s2] 200 [kHz/s]
(HOME) Starting speed 0.2 [mm/s] 200 [Hz]
(HOME) Operating speed 6 [mm/s] 6 [kHz]
(HOME) Last speed 0.2 [mm/s] 200 [Hz]
(HOME) Backward steps in 2 sensor home-seeking 0.5 [mm] 500 [step]

When using the DR Series
9
Item Factory setting
Unit of travel amount: mm Unit of travel amount: step
(HOME) Operating amount in uni-directional
home-seeking 0.5 [mm] 500 [step]
(HOME) Operating current for push-home-seeking 90 [%] * 90 [%] *
(HOME) Backward steps in push-home-seeking 1 [mm] 1,000 [step]
* When performing push-motion return-to-home operation, use the actuator with the operating current of the factory
setting as much as possible. If the operating current smaller than the factory setting is set, the TLC output may be
turned ON before push motion is complete, causing push-motion return-to-home operation to end at an
unexpected position.

When using the DR Series
10
DR281(lead 1 mm)
Product specications
Item Factory setting
Lead 1 [mm]
Minimum travel amount *1 0.001 [mm]
Mechanism limit
positive direction *2
Wide table type
Table type
Rod type with guide
31 [mm] (31,000 [step])
Rod type None
Mechanism limit
negative direction *2
Wide table type
Table type
Rod type with guide
−1 [mm] (−1,000 [step])
Rod type None
*1 The minimum travel amount is determined by the “Electronic gear” parameter and the ball screw lead.
*2 Distance from the factory home position.
Upper limit value of setting
If a value exceeding the upper limit value is set to start operation, an alarm of operation data error is
generated. The upper limit value can also be checked using the unit information monitor
(mechanism protection parameter) of the MEXE02.
Item Factory setting
Unit of travel amount: mm Unit of travel amount: step
Maximum starting speed 6 [mm/s] 6 [kHz]
Maximum operating speed 40 [mm/s] 40 [kHz]
Maximum pushing return-to-home speed 6 [mm/s] 6 [kHz]
Maximum push current 55 [%] * 55 [%] *
* It is the upper limit value when push-motion return-to-home operation is performed.
Motor & mechanism parameters
Item Factory setting
Unit of travel amount: mm Unit of travel amount: step
Mechanism settings Prioritize ABZO setting Prioritize ABZO setting
Electronic gear A 1 1
Electronic gear B 1 1
Motor rotation direction Positive side=Clockwise Positive side=Clockwise
Mechanism lead pitch 1 1
Mechanism lead decimal digit setting ×1 [mm] ×1 [mm]
JOG/HOME/ZHOME operation setting Prioritize ABZO setting Prioritize ABZO setting
(JOG) Operating speed 2 [mm/s] 2 [kHz]
(JOG) Acceleration/deceleration 0.2 [m/s2] 200 [kHz/s]
(JOG) Starting speed 0.2 [mm/s] 200 [Hz]
(JOG) Operating speed (high) 10 [mm/s] 10 [kHz]
(ZHOME) Operating speed 10 [mm/s] 10 [kHz]
(ZHOME) Acceleration/deceleration 0.2 [m/s2] 200 [kHz/s]
(ZHOME) Starting speed 0.2 [mm/s] 200 [Hz]
(HOME) Home-seeking mode Push Push
(HOME) Starting direction Negative direction Negative direction
(HOME) Acceleration/deceleration 0.2 [m/s2] 200 [kHz/s]
(HOME) Starting speed 0.2 [mm/s] 200 [Hz]

When using the DR Series
11
Item Factory setting
Unit of travel amount: mm Unit of travel amount: step
(HOME) Operating speed 6 [mm/s] 6 [kHz]
(HOME) Last speed 0.2 [mm/s] 200 [Hz]
(HOME) Backward steps in 2 sensor home-seeking 0.5 [mm] 500 [step]
(HOME) Operating amount in uni-directional
home-seeking 0.5 [mm] 500 [step]
(HOME) Operating current for push-home-seeking 55 [%] * 55 [%] *
(HOME) Backward steps in push-home-seeking 1 [mm] 1,000 [step]
* When performing push-motion return-to-home operation, use the actuator with the operating current of the factory
setting as much as possible. If the operating current smaller than the factory setting is set, the TLC output may be
turned ON before push motion is complete, causing push-motion return-to-home operation to end at an
unexpected position.

When using the DR Series
12
DR282.5 (lead 2.5 mm)
Product specications
Item Factory setting
Lead 2.5 [mm]
Minimum travel amount *1 0.001 [mm]
Mechanism limit
positive direction *2
Wide table type
Table type
Rod type with guide
31 [mm] (31,000 [step])
Rod type None
Mechanism limit
negative direction *2
Wide table type
Table type
Rod type with guide
−1 [mm] (−1,000 [step])
Rod type None
*1 The minimum travel amount is determined by the “Electronic gear” parameter and the ball screw lead.
*2 Distance from the factory home position.
Upper limit value of setting
If a value exceeding the upper limit value is set to start operation, an alarm of operation data error is
generated. The upper limit value can also be checked using the unit information monitor
(mechanism protection parameter) of the MEXE02.
Item Factory setting
Unit of travel amount: mm Unit of travel amount: step
Maximum starting speed 6 [mm/s] 6 [kHz]
Maximum operating speed 100 [mm/s] 10 [kHz]
Maximum pushing speed 6 [mm/s] 6 [kHz]
Maximum pushing return-to-home speed 6 [mm/s] 6 [kHz]
Maximum push current 70 [%] * 70 [%] *
* It is the upper limit value when push-motion return-to-home operation is performed. When push-motion operation
is performed, check the upper limit value with the graph on p.23.
Motor & mechanism parameters
Item Factory setting
Unit of travel amount: mm Unit of travel amount: step
Mechanism settings Prioritize ABZO setting Prioritize ABZO setting
Electronic gear A 2 2
Electronic gear B 5 5
Motor rotation direction Positive side=Clockwise Positive side=Clockwise
Mechanism lead pitch 25 25
Mechanism lead decimal digit setting ×0.1 [mm] ×0.1 [mm]
JOG/HOME/ZHOME operation setting Prioritize ABZO setting Prioritize ABZO setting
(JOG) Operating speed 2 [mm/s] 2 [kHz]
(JOG) Acceleration/deceleration 0.5 [m/s2] 500 [kHz/s]
(JOG) Starting speed 0.5 [mm/s] 500 [Hz]
(JOG) Operating speed (high) 10 [mm/s] 10 [kHz]
(ZHOME) Operating speed 10 [mm/s] 10 [kHz]
(ZHOME) Acceleration/deceleration 0.5 [m/s2] 500 [kHz/s]
(ZHOME) Starting speed 0.5 [mm/s] 500 [Hz]
(HOME) Home-seeking mode Push Push
(HOME) Starting direction Negative direction Negative direction

When using the DR Series
13
Item Factory setting
Unit of travel amount: mm Unit of travel amount: step
(HOME) Acceleration/deceleration 0.5 [m/s2] 500 [kHz/s]
(HOME) Starting speed 0.5 [mm/s] 500 [Hz]
(HOME) Operating speed 6 [mm/s] 6 [kHz]
(HOME) Last speed 0.5 [mm/s] 500 [Hz]
(HOME) Backward steps in 2 sensor home-seeking 0.5 [mm] 500 [step]
(HOME) Operating amount in uni-directional
home-seeking 0.5 [mm] 500 [step]
(HOME) Operating current for push-home-seeking 70 [%] * 70 [%] *
(HOME) Backward steps in push-home-seeking 1 [mm] 1,000 [step]
* When performing push-motion return-to-home operation, use the actuator with the operating current of the factory
setting as much as possible. If the operating current smaller than the factory setting is set, the TLC output may be
turned ON before push motion is complete, causing push-motion return-to-home operation to end at an
unexpected position.

When using the DR Series
14
2-2 When the equipped motor is the PKP Series
Setting of minimum travel amount
The minimum travel amount can be set based on a combination of the STEP switch and R2/R1 switch on the driver.
Factory setting 0.0125 mm (STEP switch: 0, R2/R1 switch: R2 side)
Do not change the switch while operating. This may cause the motorized actuator to misstep and
stop.
Combination of switches and minimum travel (mm)
Dial of STEP
switch
R2/R1 switch
R2 side R1 side
0 0.0125 0.005
1 0.00625 0.0025
2 0.003125 0.002
3 0.0025 0.00125
4 0.0015625 0.001
5 0.00125 0.000625
6 0.00078125 0.0005
7 0.0005 0.00025
8 0.000390625 0.0002
9 0.00025 0.000125
A 0.0001953125 0.0001
B 0.000125 0.0000625
C 0.0001 0.00005
D 0.00009765625 0.00004
E 0.00005 0.000025
F 0.000048828125 0.00002
•Values for the minimum travel amount are theoretical values.
•The set switches are enabled after the power is turned on again.

When using the DRS2 Series
15
3 When using the DRS2 Series
3-1 When the equipped motor is the AZ Series
The motorized actuator equipped with the AZ Series can be used with the parameters
at the time of shipment.
•Set the operating speed by checking the specication of the maximum speed.
•The maximum speed may decrease depending on the ambient temperature or the motor cable
length.
•Non-guide type:
Be sure to set the home position before starting operation since it is not set at the time of
shipment. [The home position (factory home position) for the guide type is set at the time of
shipment.]
•When using in combination with the pulse input type driver:
Use the function setting switch No.1 (resolution setting) with the factory setting as it is. If it is
changed, the ABZO information does not apply and the actuator will operate at a certain
resolution.
How to read the table
Parameters that have set a value dedicated for the motorized actuator are described on p.17 and later. Setting the
specied values enables operation that satises the specications of the motorized actuator.
The minimum travel amount is set to “0.001 mm” at the time of shipment. It makes easier to calculate the travel
amount and others since the actuator moves 0.001 mm per one step.
Unit of travel amount: mm
(JOG) Operating speed 2 [mm/s]
(JOG) Acceleration/deceleration 0.4 [m/s2]
(JOG) Starting speed 0.4 [mm/s]
Unit of travel amount: step
Item Factory setting
2 [kHz]
400 [kHz/s]
400 [Hz]
These values are set in the motorized
actuator at the time of shipment.
Set the values in this column
when setting in unit of step.

When using the DRS2 Series
16
Mechanism limit
The home position for the guide type is set at the time of shipment. This is called “factory home position.”
The mechanism limit (mechanical end) is stored in the ABZO sensor (xed value) for products that the factory home
position is set. If the moving part reaches the mechanism limit during operation, an alarm of mechanical overtravel is
generated. The position of the mechanism limit does not change even if the home position is set by the customer
side.
To disable the mechanism limit, change the "Mechanism limit parameter setting" parameter to "Disable."
However, if the mechanism limit is disabled, the moving part may strike the mechanical end or the ball screw shaft
may not move with being jammed in the nut part, causing damage to the product. Operate with enough care.
Factory home position
Mechanism limit
positive directio
n
Factory home position
Mechanism limit
negative direction
When disabling the mechanism limit, be careful not to damage the product or
equipment by thoroughly examining the operation data such as the travel amount
(position) and the operating speed.
If the moving part reaches the mechanism limit on the negative direction and a state of generating
the alarm of mechanical overtravel is continued, an alarm of overload may also be generated.

When using the DRS2 Series
17
DRSM42-2(lead 2 mm)
Product specications
Item Factory setting
Lead 2 [mm]
Minimum travel amount *1 0.001 [mm]
Mechanism limit
positive direction *2
Guide type 41 [mm] (41,000 [step])
Non-guide type None
Mechanism limit
negative direction *2
Guide type −1 [mm] (−1,000 [step])
Non-guide type None
*1 The minimum travel amount is determined by the “Electronic gear” parameter and the ball screw lead.
*2 Distance from the factory home position.
Upper limit value of setting
If a value exceeding the upper limit value is set to start operation, an alarm of operation data error is
generated. The upper limit value can also be checked using the unit information monitor
(mechanism protection parameter) of the MEXE02.
Item Factory setting
Unit of travel amount: mm Unit of travel amount: step
Maximum starting speed 6 [mm/s] 6 [kHz]
Maximum operating speed 50 [mm/s] 50 [kHz]
Maximum pushing speed 6 [mm/s] 6 [kHz]
Maximum pushing return-to-home speed 6 [mm/s] 6 [kHz]
Maximum push current 55 [%] * 55 [%] *
* It is the upper limit value when push-motion return-to-home operation is performed. When push-motion operation
is performed, check the upper limit value with the graph on p.23.
Motor & mechanism paramters
Item Factory setting
Unit of travel amount: mm Unit of travel amount: step
Mechanism settings Prioritize ABZO setting Prioritize ABZO setting
Electronic gear A 1 1
Electronic gear B 2 2
Motor rotation direction Positive side=Clockwise Positive side=Clockwise
Mechanism lead pitch 2 2
Mechanism lead decimal digit setting ×1 [mm] ×1 [mm]
JOG/HOME/ZHOME operation setting Prioritize ABZO setting Prioritize ABZO setting
(JOG) Operating speed 2 [mm/s] 2 [kHz]
(JOG) Acceleration/deceleration 0.4 [m/s2] 400 [kHz/s]
(JOG) Starting speed 0.4 [mm/s] 400 [Hz]
(JOG) Operating speed (high) 10 [mm/s] 10 [kHz]
(ZHOME) Operating speed 10 [mm/s] 10 [kHz]
(ZHOME) Acceleration/deceleration 0.4 [m/s2] 400 [kHz/s]
(ZHOME) Starting speed 0.4 [mm/s] 400 [Hz]
(HOME) Home-seeking mode Push Push
(HOME) Starting direction Negative direction Negative direction
(HOME) Acceleration/deceleration 0.4 [m/s2] 400 [kHz/s]
(HOME) Starting speed 0.4 [mm/s] 400 [Hz]
(HOME) Operating speed 6 [mm/s] 6 [kHz]

When using the DRS2 Series
18
Item Factory setting
Unit of travel amount: mm Unit of travel amount: step
(HOME) Last speed 0.4 [mm/s] 400 [Hz]
(HOME) Backward steps in 2 sensor home-seeking 0.4 [mm] 400 [step]
(HOME) Operating amount in uni-directional
home-seeking 0.4 [mm] 400 [step]
(HOME) Operating current for push-home-seeking 55 [%] * 55 [%] *
(HOME) Backward steps in push-home-seeking 1 [mm] 1,000 [step]
* When performing push-motion return-to-home operation, use the actuator with the operating current of the factory
setting as much as possible. If the operating current smaller than the factory setting is set, the TLC output may be
turned ON before push motion is complete, causing push-motion return-to-home operation to end at an
unexpected position.
DRSM60-4(lead 4 mm)
Product specications
Item Factory setting
Lead 4 [mm]
Minimum travel amount *1 0.001 [mm]
Mechanism limit positive direction *2 None
Mechanism limit negative direction *2 None
*1 The minimum travel amount is determined by the “Electronic gear” parameter and the ball screw lead.
*2 Distance from the factory home position.
Upper limit value of setting
If a value exceeding the upper limit value is set to start operation, an alarm of operation data error is
generated. The upper limit value can also be checked using the unit information monitor
(mechanism protection parameter) of the MEXE02.
Item Factory setting
Unit of travel amount: mm Unit of travel amount: step
Maximum starting speed 6 [mm/s] 6 [kHz]
Maximum operating speed 50 [mm/s] 50 [kHz]
Maximum pushing speed 6 [mm/s] 6 [kHz]
Maximum pushing return-to-home speed 6 [mm/s] 6 [kHz]
Maximum push current 75 [%] * 75 [%] *
* It is the upper limit value when push-motion return-to-home operation is performed. When push-motion operation
is performed, check the upper limit value with the graph on p.23.
Motor & mechanism parameters
Item Factory setting
Unit of travel amount: mm Unit of travel amount: step
Mechanism settings Prioritize ABZO setting Prioritize ABZO setting
Electronic gear A 1 1
Electronic gear B 4 4
Motor rotation direction Positive side=Clockwise Positive side=Clockwise
Mechanism lead pitch 4 4
Mechanism lead decimal digit setting ×1 [mm] ×1 [mm]
JOG/HOME/ZHOME operation setting Prioritize ABZO setting Prioritize ABZO setting
(JOG) Operating speed 2 [mm/s] 2 [kHz]
(JOG) Acceleration/deceleration 0.4 [m/s2] 400 [kHz/s]

When using the DRS2 Series
19
Item Factory setting
Unit of travel amount: mm Unit of travel amount: step
(JOG) Starting speed 0.8 [mm/s] 800 [Hz]
(JOG) Operating speed (high) 10 [mm/s] 10 [kHz]
(ZHOME) Operating speed 10 [mm/s] 10 [kHz]
(ZHOME) Acceleration/deceleration 0.4 [m/s2] 400 [kHz/s]
(ZHOME) Starting speed 0.8 [mm/s] 800 [Hz]
(HOME) Home-seeking mode Push Push
(HOME) Starting direction Negative direction Negative direction
(HOME) Acceleration/deceleration 0.4 [m/s2] 400 [kHz/s]
(HOME) Starting speed 0.8 [mm/s] 800 [Hz]
(HOME) Operating speed 6 [mm/s] 6 [kHz]
(HOME) Last speed 0.8 [mm/s] 800 [Hz]
(HOME) Backward steps in 2 sensor home-seeking 0.5 [mm] 500 [step]
(HOME) Operating amount in uni-directional
home-seeking 0.5 [mm] 500 [step]
(HOME) Operating current for push-home-seeking 75 [%] * 75 [%] *
(HOME) Backward steps in push-home-seeking 1.6 [mm] 1,600 [step]
* When performing push-motion return-to-home operation, use the actuator with the operating current of the factory
setting as much as possible. If the operating current smaller than the factory setting is set, the TLC output may be
turned ON before push motion is complete, causing push-motion return-to-home operation to end at an
unexpected position.
DRSM42-8(lead 8 mm)
Product specications
Item Factory setting
Lead 8 [mm]
Minimum travel amount *1 0.001 [mm]
Mechanism limit
positive direction *2
Guide type 41 [mm] (41,000 [step])
Non-guide type None
Mechanism limit
negative direction *2
Guide type −1 [mm] (−1,000 [step])
Non-guide type None
*1 The minimum travel amount is determined by the “Electronic gear” parameter and the ball screw lead.
*2 Distance from the factory home position.
Upper limit value of setting
If a value exceeding the upper limit value is set to start operation, an alarm of operation data error is
generated. The upper limit value can also be checked using the unit information monitor
(mechanism protection parameter) of the MEXE02.
Item Factory setting
Unit of travel amount: mm Unit of travel amount: step
Maximum starting speed 6 [mm/s] 6 [kHz]
Maximum operating speed 200 [mm/s] 200 [kHz]
Maximum pushing speed 6 [mm/s] 6 [kHz]
Maximum pushing return-to-home speed 6 [mm/s] 6 [kHz]
Maximum push current 65 [%] * 65 [%] *
* It is the upper limit value when push-motion return-to-home operation is performed. When push-motion operation
is performed, check the upper limit value with the graph on p.23.

When using the DRS2 Series
20
Motor & mechanism parameters
Item Factory setting
Unit of travel amount: mm Unit of travel amount: step
Mechanism settings Prioritize ABZO setting Prioritize ABZO setting
Electronic gear A 1 1
Electronic gear B 8 8
Motor rotation direction Positive side=Clockwise Positive side=Clockwise
Mechanism lead pitch 8 8
Mechanism lead decimal digit setting ×1 [mm] ×1 [mm]
JOG/HOME/ZHOME operation setting Prioritize ABZO setting Prioritize ABZO setting
(JOG) Operating speed 2 [mm/s] 2 [kHz]
(JOG) Acceleration/deceleration 0.4 [m/s2] 400 [kHz/s]
(JOG) Starting speed 0.4 [mm/s] 400 [Hz]
(JOG) Operating speed (high) 10 [mm/s] 10 [kHz]
(ZHOME) Operating speed 10 [mm/s] 10 [kHz]
(ZHOME) Acceleration/deceleration 0.4 [m/s2] 400 [kHz/s]
(ZHOME) Starting speed 0.4 [mm/s] 400 [Hz]
(HOME) Home-seeking mode Push Push
(HOME) Starting direction Negative direction Negative direction
(HOME) Acceleration/deceleration 0.4 [m/s2] 400 [kHz/s]
(HOME) Starting speed 0.4 [mm/s] 400 [Hz]
(HOME) Operating speed 6 [mm/s] 6 [kHz]
(HOME) Last speed 0.4 [mm/s] 400 [Hz]
(HOME) Backward steps in 2 sensor home-seeking 0.4 [mm] 400 [step]
(HOME) Operating amount in uni-directional
home-seeking 0.4 [mm] 400 [step]
(HOME) Operating current for push-home-seeking 65 [%] * 65 [%] *
(HOME) Backward steps in push-home-seeking 1 [mm] 1,000 [step]
* When performing push-motion return-to-home operation, use the actuator with the operating current of the factory
setting as much as possible. If the operating current smaller than the factory setting is set, the TLC output may be
turned ON before push motion is complete, causing push-motion return-to-home operation to end at an
unexpected position.
