OrienTek TPM-25m User manual

TPM-25m Mini Optical Power Meter User Manual

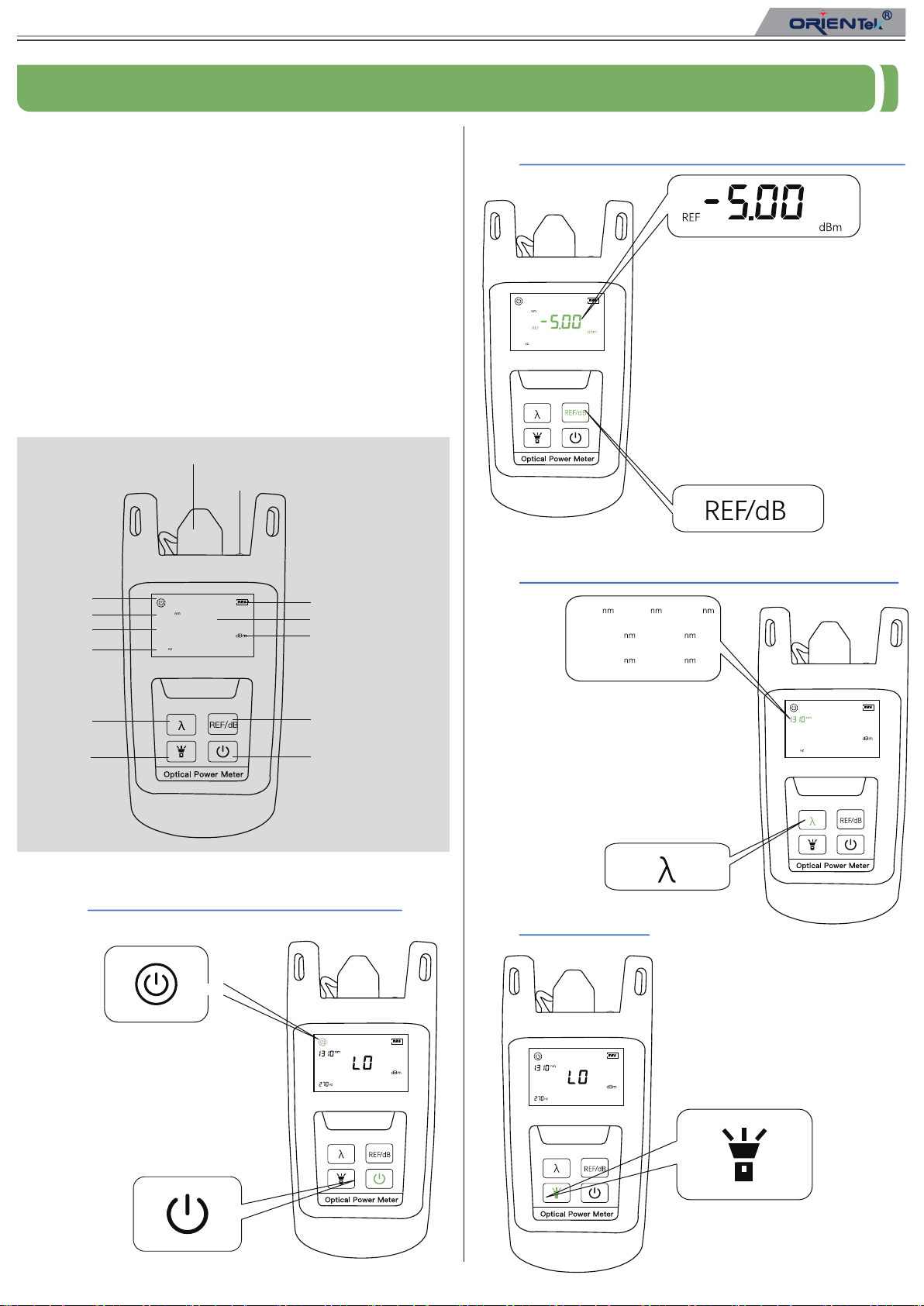

Products introduction
Power on/Auto power off


Optical power reference value setting

Optical power wavelength switching

LED lighting
LED button:
turn on/off
the flashlight
On/off key: turn the
device on or off
wavelength
Auto Off
Frequency
Battery level
Unit
Numerical value
Wavelength
switch key
REF/dB key: Short press
the dB to switch unit
OPM interface
l0
1310
270
LED lighting
Display
TPM-25m optical power meter is widely used in the construc-
tion, maintenance, inspection and acceptance of optical fiber
communication network projects. The combination of fiber optic
power meter & light source, check continuity, and help evaluate
the transmission quality of optical fiber links. Smart appearance,
sustainable backlit display, and friendly operation interface make
you feel good about it. Provides 7 wavelengths detection, with
automatic wavelength memory function. The ultra-wide optical
power test range, precise test accuracy and new user self-cali-
bration function will make your work even better. Universal
interface design, support FC/SC/ST and other interfaces, without
complicated conversion. In addition, the LED lighting function
has been added to the product basis to allow it to be carried out
in a dark environment, further improvin.
Short press the power button to turn
on machine, and automatically start the
auto-off function, the default auto-off time
is 10 minutes. If you want to cancel this
function, press and hold the power button
.when starting up. When the power on icon
disappears, it means to cancel the auto-off
function.
1310
270
Enter the optical power meter interface after
booting, short press the "REF" key to set the
current power value as the reference power,
which can realize relative optical power test
(insertion loss test) or absolute power test. After
entering the relative power test mode, the
insertion loss (dB) is displayed at the bottom of
the screen, and the screen displays the
reference value; short press the "dB" key to
switch between linear power and absolute
power display.
The units of linear power, absolute power, and
relative power are nW, dBm, and dB respectively.
850 980 1300
1310 1490
1550 1625
On the optical power meter interface, short
press the "λ" key to switch the measurement
wavelength. You can choose 7 different test
wavelengths, 850nm/980nm/1300nm/
1310nm/1490nm/1550nm, 850nm, 1625nm.
To ensure the accuracy of thetest, the
selected wavelength must be consistent with
the wavelength of the measured optical signal
P absolute power = 10lgP linear power / 1mW.
P relative power = P absolute power-
P reference power.
l0
270
Press the LED key to control the
flashlight to turn on and off. Press
any key to turn on the backlight.

Standard configuration
Contact us
Calibration function description

Common fault solutions

Tips

NANJING ORIENTEK OPTICAL COMMUNICATION LTD
Mail: [email protected]
Add: Jianshan Industry Park, Liuhe District, Nanjing, Jiangsu, China
Web: www.orientekot.com
TEL: [phone]

Products features

Product parameter
Please read all instructions and warnings before
using this product. Irregular use will cause.It will
damage the product or personal safety.
Operating environment altitude:
areas below 2000m above sea level
Use environment
Press the LED+REF/dB keys at the same time to enter the calibration
mode. Cal is displayed at the bottom of the screen. The following
operations are only valid in the calibration mode. 入 key for downward
adjustment,REF/dB key for upward adjustment. After adjustment, press
LED to save.
Packing carton, optical power meter ,
certificate of conformity, instruction manual.
1) Do not store this product in high temperature, strong light
and strong magnetic fields, and do not place it in other harsh
environments such as fire sources.
2）Improper use of the product may easily cause the product
damage or may endanger personal and property safety.
3) If consumers violate the product manual and improperly
use it, the personal and property damage caused by it will
bearby yourselve, our company will not bear any legal
responsibility.
4) Non-professionals are strictly prohibited from
disassembling this product.
5) Avoid using electrical appliances or loads that exceed the
output current of this product (the circuit will be protected
and there will be no output).
6) Avoid strong physical effects, including knocking, throwing,
trampling, squeezing, etc.
Key Function
REF/dB Increase by 0.1dB
Shut down
λDecrease by 0.1dB
Save
Fault prompt Possible Causes Solutions
LCD display is weak Battery low Replace battery
Reboot or replace battery
Unable to boot display Battery low or
other reasons
Optical power
value is abnormal Connector failure/dirty Reconnect the connector or clean the sensor
Wavelength（nm）
Measuring range（dBm）
Connectors
Power Supply
Resolution（dB）
Working Temperature
Dimensions/Weight
850/980/1300/1310/1490/1550/1625nm
-70～+10dBm
2.5mm universal interface
Alkaline battery(3 AA 1.5V battery)
0.01
-10~+60(℃）
Storage Temperature -25~+70(℃）
130x65x35mm / 180g
2.5mm universal connector, suitable for
FC/SC/ST connectors
±0.2 dB accuracy
Wavelength range 850nm~1625nm
Measuring range: -70~+10dBm/ -50~+26 dBm
Manual calibration
Waterproof keys suitable for various outdoor
environments
Silicone case protection design
Equipped with LED lights to facilitate work
in dark environments
SC FC ST LC(Optionnel)
